USER MANUAL Bodyclock Starter 30 LUMIE

White spherical digital water heater with digital display showing 7:00 AM (no text or symbols on device body)

English

OPERATING INSTRUCTIONS

Bodyclock Starter 30

3 Introduction
4 Important!
5 Basic set-up

Plugging in

Setting the clock and alarm times

What now?

6 Using Bodyclock Starter

Bedside light

Going to sleep

Waking up

Waking up without a sunrise

7 Customising your Bodyclock Starter

Clock and alarm time

12-/24-hour clock

Wake-up options

Snooze

Display brightness

9 Frequently asked questions

10 Warranty
10 Technical specification
11 Contact us

English

Introduction

Lumie Bodyclock Starter wakes you with a sunrise that naturally helps to regulate your sleep and wake patterns. You'll wake up in a better mood, find it easier to get up and feel more energetic during the day. There's also a fading sunset to help you unwind at the end of the day and drift off to sleep.

In clinical trials, 'dawn simulators' such as Bodyclock Starter have been shown to improve mood, energy, productivity and the quality of sleep and awakening*. They can also help SAD (Seasonal Affective Disorder) and winter blues sufferers cope with dark winter mornings.

Lumie was the first to launch a dawn simulator range and began selling an early version of Bodyclock in 1993.

Please read these instructions carefully to get the most out of your Bodyclock Starter.

*Acta Psychiatr Scand 1993 Jul; 88 (1):67-71.

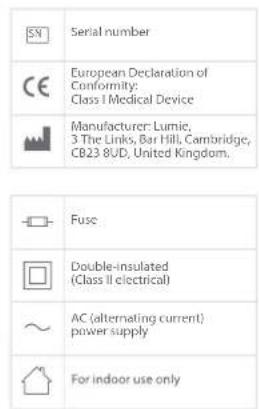

SN Serial number CE European Declaration of Conformity: Class I Medical Device Manufacturer: Lumie, 3 The Links, Bar Hill, Cambridge, CB23 8UD, United Kingdom. Fuse Double-insulated (Class II electrical) AC (alternating current) power supply For indoor use only

Do not place in household waste. Dispose of at a recycling centre. Read instructions for use. Caution Caution - hot surface Member of the 'Green Dot' recycling scheme.

English

Important

• Do not use Bodyclock Starter if the lamp cover is broken, damaged or missing. If you need to remove the lamp cover, unplug the unit first and let it cool down.
• The lamp cover gets warm when the light is on so keep the unit clear of anything that may be damaged by heat. Take care that you don't accidentally cover the unit with your bedding!
• Do not open the base – there are no user-serviceable parts inside.
• For indoor use only. Keep away from water and damp.
• Clean only with a dry or lightly moistened cloth.
• Always use the correct bulb (maximum 42W E14 halogen bulb). Replacements are available from Lumie.
  This product conforms to the electromagnetic compatibility standard for medical devices and is unlikely to cause interference affecting other electrical and electronic products in its vicinity. However, radio transmitting equipment, mobile phones and other electrical/electronic equipment can interfere with this product; if this happens simply move the product away from the source of interference.
• Keep the cable away from heated surfaces. If the cable is damaged it must be replaced by Lumie, a Lumie distributor or suitably qualified person in order to avoid a hazard.
• At the end of its life, do not throw the unit out with normal domestic waste. Please take it to an official recycling point to be disposed of responsibly.

English

Basic set-up

You're probably keen to try it out so here's how to set up and program your Bodyclock Starter to promote restful sleep and a natural wake-up.

Plugging in

• If the product is damaged please contact us before use
• Lift off the lamp cover.
• Screw the bulb firmly into the bulb holder.
• Replace the lamp cover making sure that it clicks back into position.
• Decide where to put your Bodyclock Starter - the ideal place is near the head of your bed.
• Plug in the unit and switch on at the mains.

Now you're ready to make some essential settings.

Setting the clock and alarm times

The display shows SEtc then 13:00 flashes. Press and hold or to change the clock time (in 24-hour format) and press to set it.

The display shows SEER then ✦ flashes.

This is the time your sunrise ends. Press and hold 0 or 0 to change the alarm time. To set, press 0 or wait 12 seconds.

What now?

As well as showing the correct time, your Bodyclock Starter is now programmed with the following default settings:

• a 30-minute sunrise to wake you gently
  an optional 30-minute sunset to help you get to sleep
• a display panel that automatically dims during sunset.
  Read on to find out how to get the most out of your Bodyclock Starter.

English

Using Bodyclock Starter

Now that you've set the basic features of Bodyclock Starter, you're ready to use the default settings to help you wake up and get to sleep. If you want to use other settings, see Customising your Bodyclock Starter.

Ideally, you should use Bodyclock Starter all year round to help keep your sleep and wake cycles on track.

Lamp cover Alarm beep ACTIVATED 7:00 AM/PM indicator Wake-up sunrise ACTIVATED Light -/+ Wake-up sunrise ON/OFF Redside light

Bedside light

To use Bodyclock Starter as a bedside light, press and hold or to set a comfortable light level. The light automatically turns off after 90 minutes.

Going to sleep

When you're ready to sleep, set the wake-up sunrise by pressing ⚠. The display shows alarm time briefly and ⚡.

The ⏻ button also activates the sunset and auto-dimming display to help create a relaxing sleep environment.

If you don't want a sunset, press and hold to turn off the light.

Waking up

You'll wake to a gentle sunrise without any sounds. Press Ⓡ to turn off the alarm; press and hold Ⓡ to turn off the light.

If you want an alarm beep or snooze, see Customising your Bodyclock Starter.

English

Waking up without a sunrise

Sometimes it's nice to have a lie-in so instead of activating the wake-up sunrise, when you're ready to sleep, do the following to activate only the sunset feature:

Press and hold to turn on the light to your preferred brightness. When you're ready to sleep, press both and at the same time. F_n shows on the display (beeps twice) and the light slowly starts to fade.

This also activates the auto-dimming display to help create a relaxing sleeping environment.

To cancel the sunset only feature (the next day's a work day and you need the wake-up sunrise again) press any button. You can now activate your wake-up sunrise in the normal way.

Customising your Bodyclock Starter

You can only change these settings when the wake-up sunrise is not activated. ✦ shows when it's activated, in which case press Ⓧ to turn it off.

Clock and alarm time

If you need to change your alarm time or the clock time, press and hold until SE & R shows and ✕ flashes; press again for SE & c with the time flashing.

Press and hold or to change the time. To set, press or wait 12 seconds.

12-/24-hour clock

Remember to check the am/pm indicators when using 12-hour clock, particularly when setting the alarm.

Press and hold Ⓧ until SETR shows, then press Ⓧ repeatedly until flashes.

Press or to select either 24Hr or 12Hr . To set, press or wait 12

English

seconds.

Wake-up options

You can wake to a sunrise followed by an alarm beep. This also adds a snooze feature.

Press and hold Ⓧ until SETR shows, then press Ⓧ repeatedly until Ⓧ flashes.

Press 0 or 0 to select either beep on or beep OFF. To set, press 0 or wait 12 seconds.

Press ⬆ to turn off the alarm sound in the morning.

Snooze

To snooze, instead of turning off the alarm, press and hold to grab another nine minutes in bed before the alarm goes off again.

Note: If you don't turn them off yourself, the light and the audible alarm turn off automatically after 30 minutes.

Display brightness

You can set the brightness of the display panel to automatically dim to minimise sleep disturbance. When you activate your wake-up sunrise before going to sleep this feature is also activated (see also Waking up without a sunrise).

Press and hold Ⓧ until SETR shows, then press Ⓧ repeatedly until all three Ⓧ symbols flash.

Press Θ or Θ to select either Lo or oFF.

- Lo causes the display panel to dim to a low level when the light is low or off. The display reverts to normal brightness during the wake-up sunrise.

- OFF causes the display panel to dim to a low level then finally off when the light is low or off. The display reverts to normal brightness during the wake-up sunrise.

To set, press ⏻ or wait 12 seconds.

Tip: If you need to see the time when the display is dim or off, press ① to light the display panel. After 12 seconds it reverts to its

English

previous low level.

Frequently asked questions

- What happens when I unplug my Bodyclock Starter or there's a power cut?

Your Bodyclock Starter keeps time for one hour; other settings are permanent, so you won't need to reprogram the unit, just plug it back in. If you need to adjust the time, see Clock and alarm time.

The display panel is too bright when I'm trying to sleep; how can I change it?

See Display brightness for auto-dimming options.

- What can I do if the display is working but the light doesn't come on?

Check to make sure the bulb is firmly screwed into the socket. If this doesn't work, replace the bulb.

How do I restore the default factory settings?

Turn off the power at the mains. Press and hold Ⓧ as you turn the power back on. Release the button when the software version number shows.

- What can I do if neither the display nor light are working?

A fuse may have blown. With the unit unplugged, try replacing the 3A fuse in the plug.

Please contact Lumie if you need a replacement bulb or if you still have a problem with your Bodyclock Starter.

English

Warranty

This unit is covered under warranty against any manufacturing defect for 24 months from the date of purchase. This is in addition to your statutory rights. If you are returning the unit for service, please use original packaging if possible, including internal pieces. Make sure that the mains plug is prevented from moving in transit and damaging the unit. If the unit is received damaged, then we may have to charge to put it right. Please contact Lumie for advice before sending the unit back.

Technical specification

Subject to change without notice.

Lumie Bodyclock Starter 30

230Vac, 50Hz, 50W

Halogen bulb E14 42W

Operating temperature: 0°C – 35°C

Class I Medical Device

English

Contact us

Lumie is Europe's leading specialist in light therapy. Our products are based on the latest scientific studies and we focus solely on light therapy and its benefits. If you have any suggestions that you feel could help us improve our products or service, or if there are problems you think we should know about, please call the Lumie Careline on 01954 780500 or email [e-mail].

Lumie

3 The Links, Trafalgar Way

Bar Hill

Cambridge

CB23 8UD

UK

Lumie is a trademark of:

Outside In (Cambridge) Limited, incorporated in England and Wales.

Registered Number: 2647359. VAT No: GB 880 9837 71.

Bodyclock is a registered trademark of Lumie.

© Lumie 2012
