USER MANUAL JC610 Joycare

Add: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffraben 4130175, Hannover, Germany.

The Blood Pressure Monitor JOYCARE detects the Systolic, Diastolic, and the Pulse rate using the oscillometric method. All values are displayed on the large LCD screen. Please read carefully this entire instruction manual before use and keep it. For further questions about blood pressure and its measurement, please contact your doctor.

IMPORTANT INFORMATION BEFORE MEASURING

Blood pressure changes during the day and is also influenced by many factors such as smoking, drinking alcohol, taking drugs and physical activity. The blood pressure measurement should be performed by a doctor or a healthcare assistant who knows your medical history thoroughly. The regular use of the JOYCARE'S blood pressure meter will allow you to keep your doctor abreast of the continuing trend of your blood pressure, and therefore provide a useful tool for your health diagnosis. Ensure you wear the cuff correctly, paying particular attention to its position relative to your heart, since a position above or below it could affect the measurement. Do not move the device, body or arm and do not talk during the measurement, otherwise the readings will not be reliable. Perform the measurement while in a comfortable position, sitting, resting quietly and at ease. Never wrap the cuff around the sleeve of your jacket or shirt, otherwise the readings are not reliable. Please allow at least 3-5min between measurements to restore normal circulation. Measure the pressure always in the same arm, preferably the left one, as the pressure between arms may differ. Certain factors may affect the measurement, cause variations, and unreliable readings, including bathing, talking during the measurement, alcohol, exercise or agitated movement, large meals, sudden temperature changes, nervous tension, stress, etc... CAUTION: Do not forget: while self-measurement represents control, it does not constitute a proper diagnosis or treatment. Any unusual values should always be discussed with your doctor. Under no circumstances should you change the dosage of any medication prescribed by your doctor. This blood pressure monitor is not suitable for people with diagnosed cardiac arrhythmia. Should the user should suffer from heart problems, kidney problems, diabetes and circulatory problems, it shall be necessary to seek the doctor's advice before using the device. This device is not a toy. Keep out of reach of children. Do not leave it unattended and make sure that children do not play with it. This device shall not be used should you have any arm wounds. This device should only be used for measuring blood pressure in adults. The device contains sensitive electronic components (Microcomputer). Therefore, avoid strong electrical or electromagnetic fields in the immediate vicinity of the device (e.g. cell phones, microwave ovens). These can cause a temporary loss of measurement accuracy. To avoid possible damage to the device, always use and store it within the temperature and humidity ranges contained in the technical specifications.

POWER SPECIFICATIONS:

4 AA batteries included

DC 6 V power adaptor (not included)

Network adaptor connector

INSERTING AND REMOVING THE BATTERIES

Remove the cover on the battery compartment at the rear of the device and insert 4 new AA batteries, respecting the polarity indicated, then replace the cover. Replace the batteries when the battery symbol t_0 appears on the display, and when the display starts to wane or doesn't power on. If the product is not used for an extended period of time, it is advisable to remove the batteries, since a leak from the batteries can cause damage to the device.

SETTING THE DATE AND TIME:

Before using your blood pressure monitor, you must set the date and time so that readings can be memorized with their date and time. Once the batteries have been inserted, press and hold the "SET" key for approximately 3 seconds; the year will begin to flash on the display; now press the "MEM" key to set the year, followed by "SET" to confirm; the month will start to flash, press the "MEM" key to set the month, then the "SET" key to confirm. Repeat the same sequence to set the day, time and minutes. Once all the settings have been set, the display shows ONE, and the device will power itself off automatically after a few seconds.

RECOMMENDATIONS FOR TAKING READINGS

5 minutes before taking a blood pressure reading, sit down, relax and remain calm. Wait at least 3 minutes between one measurement and the next. Keep your body and arm cuff still and do not speak during the reading. Avoid touching the device. Always take readings on the same arm. Uncover your

arm so that it is exposed in the area in which the reading is being taken, and do not tighten the arm cuff excessively, allowing a space equivalent to the width of a finger. Take your blood pressure reading while seated in an upright position, resting your lower arm onto a table or other surface. If necessary, place something under your arm to adjust the height (e.g. a book). Relax your arm with the palm of your hand facing upwards. The arm cuff must be positioned at the same level as your heart.

Because blood pressure varies throughout the day, it is advisable to measure your blood pressure always at the same time of day, so as to be able to make a reliable comparison.

Connect the arm cuff's air tube to the main unit. Fit your arm in through the arm cuff and pull the cuff so that it is positioned around 1 or 2cm above the fold of your elbow; the air tube must be positioned in line with your little finger.

Press the START/STOP button. All of the digits on the display will appear simultaneously, then "0" will appear on the display, together with the arrow symbol. Immediately after, the arm cuff will begin to inflate and the device will begin the blood pressure measurement. Avoid

speaking or moving while taking readings. After taking a reading, the display will show the systolic and diastolic pressure, as well as the heart rate, storing them in memory automatically. The date and time also appear on the display, along with the symbol next to a different colour depending on the World Health Organization classification (see paragraph on "Blood pressure classification standards"). The results of the reading will appear on the measurement bar, according to the WHO classification:

GREEN: blood pressure from normal to slightly high

YELLOW: moderately high blood pressure

ORANGE: very high blood pressure

RED: severely high blood pressure

In addition, in the case of an irregular heart rate, the symbol shown here will appear on the display. In these conditions, the device will take a reading anyhow, but the data obtained may not be exact; it is advisable in this case to contact your physician. This device is not suited to patients with a proven cardiac arrhythmia condition.

Press the START/STOP button to switch off the device, otherwise it will power off automatically after a few seconds.

SAVING, RECALLING AND CANCELLING DATA

This device is capable of memorizing data for up to 60 readings. After each reading, the device stores in memory all data from the blood pressure measurement (Systolic pressure, Diastolic pressure, heart rate, date, time and WHO classification). Press the "MEM" key to recall memorized readings. The data from the last measurement appears under "MEM 1". To view all other memorized readings simply press the "SET" or "MEM" keys. The device can memorize 60 readings in total, after which it will progressively delete the oldest readings. (starting from no. "60"). To delete/cancel the data stored in the memory, simply press and hold the "MEM" key for a few seconds. The heading "DEL ALL" will appear on the display; press the "SET" key to delete all memorized data, and "DEL" will appear on the display. If no data is stored in the memory, "...-" will appear on the display.

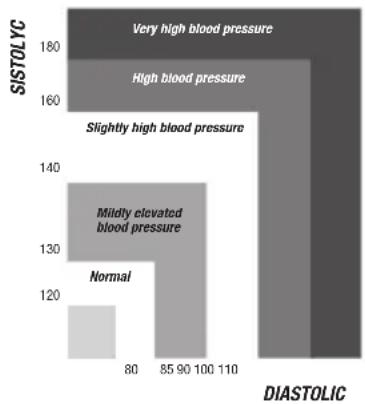

BLOOD PRESSURE CLASSIFICATION STANDARDS

The World Health Organization (WHO) has set the standards for blood pressure classification, which you may find in the table below.

Note: This device is suitable for measuring blood pressure exclusively in adults. Risk factors such as diabetes, obesity, smoking etc. are not considered in these tables. This table is only indicative, these values indicate exclusively the different levels of blood pressure, and under no circumstances you should change the dosage of any medication prescribed by your doctor. For a final evaluation of your blood pressure, it is essential to seek always your doctor's advice.

Blood pressure classification	Pressione sistolica mmHG	Pressione diastolica mmHG	Colour
Excellent	<120	<80	GREEN
Normal	121-129	80-84	GREEN
Moderately high	130-139	85-89	GREEN
Hypertension degree 1	140-159	90-99	YELLOW
Hypertension degree 2	160-179	100-109	ORANGE
Hypertension degree 3	≥180	≥110	RED

MAINTENANCE AND CARE OF THE DEVICE

Clean the device using a cloth dampened with water or a delicate detergent, and dry using a supple cloth. Never use aggressive detergents or sprays to clean the device. Never immerse the arm cuff or the device in water. In the eventuality the device is not used for a long period of time, it is advisable to remove the batteries, since leaked battery fluid can damage the appliance. Do not expose the device to direct sunlight. Never store the device in a humid or dusty environment.

PREVENTING MALFUNCTIONS

Do not twist the arm cuff in any way. Do not inflate the arm cuff if it hasn't been positioned around the arm beforehand. Never attempt to disassemble or modify any component/s on the device, including the arm cuff, in an attempt to repair it. In the eventuality of a malfunction, contact an authorized service centre. Avoid dropping the device, and do not expose it to any sort of shock. Always store the device away from any heat source, the sun's rays, excessive humidity, sharp objects, etc.

Problem Situation Verify	Intervention
The product does not work	The display is dimmed or not lit.	The batteries are exhausted	Install new batteries
		The batteries were not installed correctly	Insert the batteries as required
The batteries are exhau-sted	The symbol +Lo appears on the display	The batteries are exhau-sted	Install new batteries
Error Message	The display shows E1	The cuff was not properly connected	Fasten the cuff correctly and repeat the meas-rement
	The display shows E2 The	cuff is too tight	Fasten the cuff correctly and repeat the meas-rement
	The display shows E3	The cuff pressure is too high	Relax for a few minutes and repeat the meas-rement
Error Message	The display shows E10 or E11	The monitor has detected a movement during the measurement	Shifting your position during the measurement may adversely affect the measurement. Relax for a few minutes and repeat the measurement
	The display shows Eexx	Incorrect measurement	relax for a few minutes and repeat the measurement
		Calibration error	Repeat the measurement and contact an authorized service centre should the problem persist.

Should the problems persist, please contact an authorized service ce

Should the readings be excessively high or low, please seek your doctor's advice.

TECHNICAL SPECIFICATIONS

Model JC-610

Description Arm blood pressure monitor

Method of measurement Oscillometric

Measurement interval Pressure 0~300mmHg, pulses 40~199/min

Accuracy Pressure +/- 3mmHg, (for an operating temperature of 15^ - 25^) + / - 6mmHg (for an operating temperature of 5^ - 40^ pulse + / - 5%

Power appliance powered by internal electric source, 4 AA batteries (included DC 6V 1A power pack (not included)

Operating conditions from +5^ to +40^ ,humidity ≤ 80%

Operating conditions from -20^ to +60^ , humidity 10% 93%

Display LCD V.A. 80X60mm

Memory 60 measurements with date and time

Product dimensions 138x100x73 mm

Product weight 500gr circa, batteries included

Circumference of arm cuff approx. 22~42cm

Power-off automatic after around 1 minute unused

Accessories arm cuff with tube, instruction manual, 4 "AA" batteries

Symbols:

Type B applied part

See the documentation attached

Warning: The Blood Pressure Monitor JOYCARE was designed to measure blood pressure exclusively in adults.

0123

MADE

IN P.R.

JC-610 has been manufactured in compliance with the European directives 93/42ECC 0197

Imported and distributed under the brand JOYCARE, by JOYCARE S.p.A. sole partner, registered offices, Via Fabio Massimo, 45 -Rome- Italy

ZHONGSHAN TRANSTEK ELECTRONICS CO., LTD.

Address: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Germany.

DISPOSAL The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with European Directive 2002/96/EC. Since it must be handled separately from household waste, either carry it to a separately-collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted. The batteries used in this device must be disposed of in the special bins at the end of their life.

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.

JC-610 F

MESUREUR DE PRESSION AUTOMATIQUE PAR LE BRAS

Add: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, Chine

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hanovre, Allemagne.

Add: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Germany

Add: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffraben 4130175, Hannover, Germany.

Endereço: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Alemanha.

OncanHe AnapaT3aN3MepBaHeHaKpbBHOHaIraHc,3aPbKa

MeToHaH3MepBaHe OcunnOmeTpueH

HInTePbAHa H3MepBaHe KpbBHo HaIraHe 0~300mmHg,cbpeuH yapn 40~199/MnH.

ToHOC KpbBHO HAnraHe + / - 3mmHg (pnp TemnepaTpaHa yHKUOHNpaHe 15^ 25^)

+/-6mmHg (npu TempepaHa hyHKUIOHpaHe 5^ 40^ nyc +/−5%

3axpaHbAe Ype, 3axpaHbAOT BbTpwe Hen eNEKTPmuecckn H3TOuHNK, 46aTePNN AA (BKNIOUeHN

3axpnaBauo yctpoiCTBO DC6V1A (He e BkIooheO)

YcnoBnaHa yHkuMoHpaHe oT +5°C Do +40°C, BnAaXHoCT ≤ 80%

YcnoBn npTpaHcnpnt CbXpaHeHne ot-20Cdo+60°,BnaXhoct 10%~93%

Ducnnei LCDV.A.80X60mm

Pamet 60 n3MepBaHnC data uac

PazmepnHa ypeia 138x100x73 mm

TernoHa ypeda okono 500q,6aTeepn

Диаметбр Ha MaHWEta OKJO 22~42cm

M3KIOUbaHe aBtOMaTHHO CNEI OKOIO 1 MMHyTA OT NocJeHTo I3NON3BaHe

PnHaJnEeKHOCTMaHWeTcMapky，yntbTaHe3aynoTe6a,46aTeepn“AA"

CHMBOIN:

Hapabete cnpabka c npnoxehata dokymteaunnpnoxhn qactn ot ttn B

BHHMaHHe: AnapaTbT 3a N3MepBaHe Ha KpbBHO HAnraHae Joycare e npoeKTHpah 3a N3MepBaHe Ha KpbBHOTo HAnraHae cAmo npn Bb3paCTHn nIua.

JC-610 e npom3BedeH B cboTBetCTBme C ebponeeKnTe DnpeKtmbn 93/42ECC

MADE IN P.R.C.

BHeceH m p3npoctpnaHbA O m KAPkata JOYCARE, oT JOYCARE S.p.A. eHNCTBEN cbpyxHHK, kpnDyuecko cdaannne, Via Fabio Massimo, 45 Roma- Italy

ZHONGSHAN TRANSTEK ELECTRONICS CO.,LTD.

Apec: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Germany.

YHmOxabaeKorato HAc7bPi KpaTHa XJIBota Ha ypea, BKNIOHTENHO HA HerOBITE NOBIXHHaCTN, ToH He Tp6Ba Da 6bde 3XbBpRnH 3aeHNO C6UTOBITE OTMaNbUa, a YHmOxabAHeto My Tp6Ba Da 6bde N3BbPueHO B CbOTBeTcBne C EbponeKa DnpeKtmba 2002/96/EC.

TbKaTO Tp8BaDa 6bDe OTeDeneHOTbOToBte OTnabu,3aHeceTe ro B ceHTbp 3pa3dElnHO Cbmpane Ha enektpueckn H enekTPoHH ypeH, HIN B MoMeTa B KOIT0 OTNDTe Da CHaynite HOyep, MoKeTe Da OCTabIne CTapnB CbOTBeTHMaMarazn, KbTe To ce nOrpuxat 3a YHmOxKabAHeTo My. B cnyaHa HApUWeHne Ce npdeBnKdTcPOrCaHKnM.

BCmKn yka3aHn H3o6paKeHHce 6baHpaT Ha Hai-CKopoWHaTa HhOpMaun,

HaHnUHa KbM MOMeHTa HaOTNeuTbHe HaPbKOBODCTBToI MoRAt JaNoDJIeXaT HaIpomeH

JC-610 HU

AUTOMATA KARPÁNTOS VÉRNYOMÁSMÉRÖ

Kijelzo LCD V.A. 80X60mm

Add: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Germany.

Adresa: Jin'an Road, Jinbiao, Minzhong Town, 528400, Zhongshan, Guangdong, China.

MDSS - Medical Device Safety Service GmbH, Schiffgraben 4130175, Hannover, Germany.

EVACUAREA Dispositivul (inclusiv paitle detasabile si accorsorile) nu trebuie evacuat imprenunau deseurile mncipale la sfaritul duratei de viata, ci in confortitate cu Direiva Europeana 2002/96/EC. Intrucat trebuie tratat separat de seurile menajere, fide ducei dispositivul la un centru de colectare separata a deeurilr portu aparatele electrice si electronice, fe il returnatu comericiantului la achizionarea unui nou dispositiv cu acelasi scop. Orice incalcare va f urmarita c strictete in justitie.

OBSERVATIE: Specificaile si modele au la baza cele mai noi informati disponibhe la momentul tiparirii se supun modificarior fara previaz.

GARANZIA PER ITALIA

Joycare S.p.A., a company with a sole shareholder, offers a period of 3 year warranty after the date of purchase. The warranty does not cover damage caused by accidental breakage, transportation, incorrect maintenance or cleaning, misuse, tampering or repairs carried out by non authorised third parties. The following is also excluded: damage caused by incorrect product installation, and damage caused by wear and tear, obviously including parts subject to wear and tear. In order to obtain the replacement/repair of products under warranty in cases other than those mentioned above, but which are instead caused by manufacturing defects, please contact your local importer/distributor. Goods that are not held to be in good condition because of the aforesaid causes must be accompanied by this certificate, duly filled-in, as well as a receipt for the goods (invoices and transport documents) and purchasing documentation.

Please keep the original packaging of the product.
