JC-368 - Manicure and Pedicure Set Joycare - Free user manual and instructions

Product type	Electric manicure and pedicure set
Brand	Joycare
Model	JC-368
Dimensions (approx.)	20 x 15 x 5 cm
Weight (approx.)	250 g
Power supply	2 AA batteries (not included) or USB (cable included)
Rotation speed	Variable, up to 3000 rpm
Included accessories	6 sanding bits, 1 file, 1 polishing disc, 1 safety cap
Main functions	Filing, polishing, sanding of nails and calluses
Use	Home manicure and pedicure
Noise level	Less than 50 dB
Maintenance and cleaning	Clean the bits with soapy water, dry before reassembling
Safety	Automatic shut-off in case of overheating, use under supervision
Spare parts	Replacement bits available
Repairability	Repairability index not disclosed
Warranty	2 years

Frequently Asked Questions - JC-368 Joycare

How to use the Joycare JC-368 manicure and pedicure set?

Insert 2 AA batteries or plug in the USB cable, select the appropriate bit, turn on the device and apply gently to nails or calluses. Use the lowest speed to start.

What accessories are included with the JC-368?

The set includes 6 sanding bits, a file, a polishing disc and a safety cap.

How to clean the bits of the Joycare JC-368?

After use, remove the bits and clean them with warm soapy water. Dry them completely before reassembling on the device.

Is the Joycare JC-368 suitable for artificial nails?

No, this set is designed for natural nails. Avoid using it on fake nails or gel to avoid damaging them.

Can I use the device without batteries by plugging it directly into the mains?

Yes, the USB cable allows powering it via a mains adapter (5V, 1A minimum) or a computer. Batteries are not needed then.

How to change the accessories of the Joycare JC-368?

Hold the bit and pull gently to remove it. To install a new bit, simply push it onto the shaft until it clicks.

What is the maximum rotation speed?

The maximum speed is about 3000 revolutions per minute. A speed controller allows continuous adjustment.

Is it dangerous to use the device on cuticles?

Yes, avoid touching the cuticles with the bits. Use only on the nail or thickened horny areas.

What to do if the device overheats?

If the device overheats, it will shut off automatically. Let it cool down for 15 minutes before using again. Check that the bits are not clogged.

Where can I buy replacement bits?

Replacement bits are available on the Joycare manufacturer's website or from authorized dealers. Refer to model number JC-368.

USER MANUAL JC-368 Joycare

Product photo of a medical device with labeled parts and six close-up views of the same tool (no text or symbols visible)

We thank you sincerely for having chosen the Joycare Manicure and Pedicure Set. This product has been conceived for the beauty and wellness of your hands and feet nails. Before starting using this appliance, it is advisable to read carefully this instruction manual. It is also advisable to save this manual for a future use.

IMPORTANT SAFETY INSTRUCTIONS

Use this product only for its intended purpose, as described in this instruction manual. Any other use is improper and therefore hazardous. Use only original components. Before starting using the appliance, please check that the product is in perfect conditions, without damages. In case of doubts, please address to a specialised centre. Never sit or stand on the product heavily. Never use the appliance while you are having a bath or a shower. Never store the appliance in places from where it can easily fall into a basin or a tub. Never dip the product in water and never store it is damp places. NEVER TRY TO REACH THE PRODUCT INTO WATER. Always store the product away from heating sources, sunlight, dampness and sharp objects. Do no place the appliance under blankets or pillow, as excessive heating may occur thus causing fire, electric shocks or other injuries to the user. Do not operate where aerosol (spray) products are being used or whether oxygen is being administrate. Check regularly the product: in case of damages, do not use the appliance. Never try to repair the product by yourself but always address to specialised centres. The product is for indoor use only. Do not insert objects into any openings. Do not block air inlets. Do not use the appliance for more than 20 minutes at a time. Too long usage could lead to an overheating and consequently a product shorter life. In case longer usage

is necessary, it is advisable to stop the appliance for 15minutes, let it cooling down and then start the unit again. In order to avoid possible infections, only one person should use the device. In case the product should be used by more than one person, it is advisable to replace attachments.

Avoid any contacts of the products with aggressive detergents, chemicals and similar ones. Never use the product if you are sleeping or if you feel drowsy. Never use the product in case of skin eruptions on your hands or feet. Before using the appliance, please address to your physician if you are suffering from diabetes or vascular disorders. Check the result of your manicure/pedicure each time. This is important for those suffering from diabetes and who are subject to a densification of the skin surface, and may be injured.

IMPORTANT WARNINGS

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Packaging components (plastic bags, cardboard, polystyrene etc.) must be kept out of the reach of children as they have the potential to be dangerous and their disposal should be carried out according to the current regulations

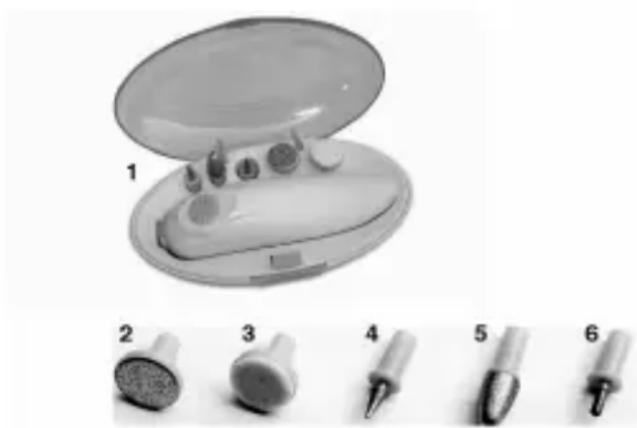

MANICURE SET COMPONENTS

Product photo of a medical or dental device with labeled parts, shown alongside six close-up images of the same tool (no text or symbols visible)

1. Appliance
2. Disc to file and shorten nails
3. Polishing disc
4. Fine-grain precision head
5. Wide head for manicures
6. Slim polishing (and callus removal) head

HOW TO USE THE APPLIANCE

• Insert the batteries into the specific compartment, taking care to position the polarities as shown.
• The manicure/pedicure set is now ready for use.
• Attach the desired accessory (depending on the operation you which to perform, as specified below). A specific switch on the appliance allows you to choose from two speeds in each direction.

Manicure/Pedicure

Immerge your hands in warm, soapy water. Dry carefully.

Disc to file and shorten nails

This accessory can shape and re-define even the thickest, hardened nails. Regular use makes nails stronger and more hardwearing. Suitable for both fingernails and toenails.

Polishing disc

To polish and refine the tips of the nails after filing, and to polish the nail surface.

Remove cuticles (fine-grain precision head)

To remove and raise hardened cuticles and to clean nails

Wide head for manicures

To treat and polish toenails

Slim polishing head (to remove calluses)

Allow the accessory to slide carefully over the areas to be treated. After treatment, immerge feet (or hands) in water and apply a moisturising cream or lotion (creams and lotions not supplied). For best results, wash feet before beginning pedicure treatment

CLEANING THE PRODUCT

Before clearing the product, ensure that you have removed the batteries. Never immerge the central unit in other liquids. Clean the central unit and case with a soft cloth, slightly dampened with water. Never use other liquids or abrasive detergents. Always dry carefully. To clean the accessories: use a soft brush to remove any residues of skin and nails. The discs and conical heads can be cleaned with a soft brush, dampened with alcohol (brush not included)

TECHNICAL CHARACTERISTICS

Description: Manicure and pedicure set

2 speeds

Motor: output 3V / approximately 0.87 W, approximately 290 mA

Batteries: 2 x 1.5V AA (not included)

Weight: approximately 74 g (without accessories)

This item is made in conformity with all the applicable European directives

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

DISPOSAL

The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with European Directive 2002/96/EC. Since it must be handled separately from household waste, either carry it to a separately-collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted.

The batteries used in this device must be disposed of in the special bins at the end of their life

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.

JC-368 F

JC-368

SET MANUCURE/PEDICURE

COMPOSANTS DU SET MANUCURE

Product display of a medical or laboratory device with six labeled parts (1–6), no visible text or symbols on the devices themselves.

Product display of a medical or laboratory device with six labeled parts (1–6), no visible text or symbols on the devices themselves.

Product photo of a medical or dental implant device with six labeled parts (1–6), shown alongside a close-up of the same component.

Product photo of a medical device with labeled parts and six close-up views of the same tool (no text or symbols visible)

Close-up of a small electronic device with a lid and control panel (no visible text or symbols)

Product photo of a medical device with labeled parts and six close-up views of the same tool (no text or symbols visible)

Close-up of a small electronic device with a transparent lid and internal components (no visible text or symbols)

Joycare S.p.A., a company with a sole shareholder, offers a period of 3 year warranty after the date of purchase. The warranty does not cover damage caused by accidental breakage, transportation, incorrect maintenance or cleaning, misuse, tampering or repairs carried out by non authorised third parties. The following is also excluded: damage caused by incorrect product installation, and damage caused by wear and tear, obviously including parts subject to wear and tear. In order to obtain the replacement/repair of products under warranty in cases other than those mentioned above, but which are instead caused by manufacturing defects, please contact your local importer/distributor. Goods that are not held to be in good condition because of the aforesaid causes must be accompanied by this certificate, duly filled-in, as well as a receipt for the goods (invoices and transport documents) and purchasing documentation.

Please keep the original packaging of the product.
