USER MANUAL SF700CB FAGOR

1.5 - COMBINED WASHER/DRYER INSTALLATION An adaptation kit is available from your dealer.

This is used to mount your tumble dryer

above your washing machine.

— Check that the kit is compatible with your washing

— For safety reasons, fitting must be performed by a

qualified professional.

1.6 - M ODIFYING THE DOOR OPENING DIRECTION (Fig. 2.2 - 2.3)

To alter the direction the door opens as follows:

— Remove the 4 screws in the front panel holding the

Check the labels on your textiles:

— Reverse the hinge and fasten it back on.

— Reverse the bolt and fix it on the door.

— Fasten the hinge screws and .

— Screw the screw the opposite side to the bolt.

— Reverse the lock with the hide and lock .

E F During the laboress to disassembly and

reassembly of the door, you must take the

— Clothing including rubber like materials (for exam-

ple: shower caps, waterproof clothing and textiles,

linings, pillows etc.).

— Chlorofibres (Thermolactyl* for example)

( *Registered trademark). — Items containing underwiring that could become

— Bulky items (duvets, eiderdowns, etc.).

— Laundry that has not been spun.

— Laundry cleaned with inflammable chemicals.

R ECOMMENDED LOADS: — The maximum capacity of the dryer is 7 kg.

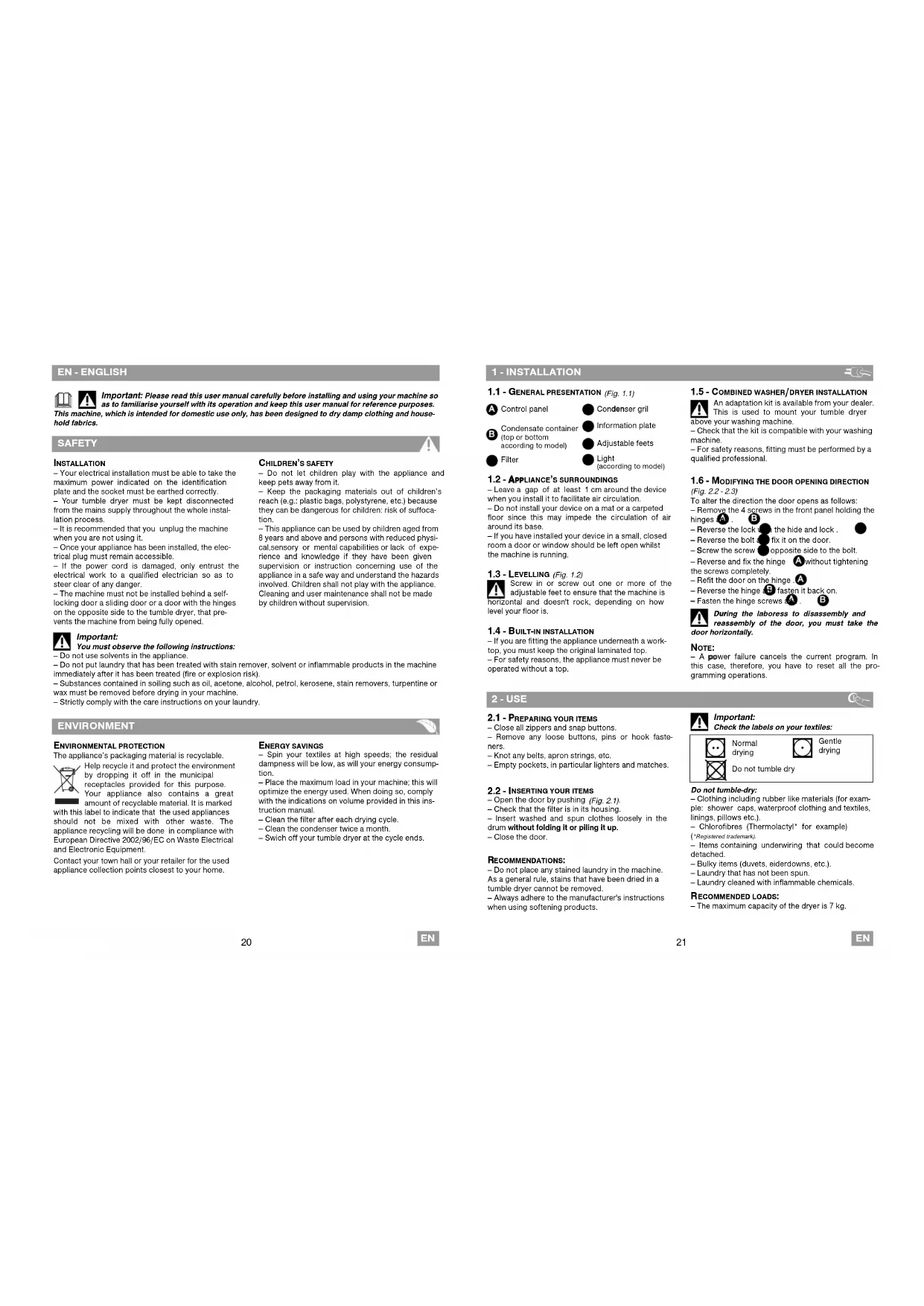

Important: Please read this user manual carefully before installing and using your machine so

as to familiarise yourself with its operation and keep this user manual for reference purposes.

This machine, which is intended for domestic use only, has been designed to dry damp clothing and house-

— Your electrical installation must be able to take the

maximum power indicated on the identification

plate and the socket must be earthed correctly.

— Your tumble dryer must be kept disconnected

from the mains supply throughout the whole instal-

— It is recommended that you unplug the machine

when you are not using it.

— Once your appliance has been installed, the elec-

trical plug must remain accessible.

— If the power cord is damaged, only entrust the

electrical work to a qualified electrician so as to

steer clear of any danger.

— The machine must not be installed behind a self-

locking door a sliding door or a door with the hinges

on the opposite side to the tumble dryer, that pre-

vents the machine from being fully opened.

ENVIRONMENT ENERGY SAVINGS

— Spin your textiles at high speeds; the residual

dampness will be low, as will your energy consump-

— Place the maximum load in your machine; this will

optimize the energy used. When doing so, comply

with the indications on volume provided in this ins-

— Clean the filter after each drying cycle.

— Clean the condenser twice a month.

— Swich off your tumble dryer at the cycle ends.

1.1 - GENERAL PRESENTATION

Condensate container (top or bottomaccording to model) Filter

Light (according to model)

1.2 - APPLIANCE’S SURROUNDINGS

— Leave a gap of at least 1 cm around the device

when you install it to facilitate air circulation.

— Do not install your device on a mat or a carpeted

floor since this may impede the circulation of air

— If you have installed your device in a small, closed

room a door or window should be left open whilst

the machine is running.

1.3 - L EVELLING (Fig. 1.2)

Screw in or screw out one or more of the

adjustable feet to ensure that the machine is

horizontal and doesn't rock, depending on how

level your floor is.

1.4 - B UILT-IN INSTALLATION — If you are fitting the appliance underneath a work-

top, you must keep the original laminated top.

— For safety reasons, the appliance must never be

operated without a top.

EN - ENGLISH CHILDREN’S SAFETY

— Do not let children play with the appliance and

keep pets away from it.

— Keep the packaging materials out of children’s

reach (e.g.: plastic bags, polystyrene, etc.) because

they can be dangerous for children: risk of suffoca-

— This appliance can be used by children aged from

8 years and above and persons with reduced physi-

cal,sensory or mental capabilities or lack of expe-

rience and knowledge if they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

You must observe the following instructions:

— Do not use solvents in the appliance.

— Do not put laundry that has been treated with stain remover, solvent or inflammable products in the machine

immediately after it has been treated (fire or explosion risk).

— Substances contained in soiling such as oil, acetone, alcohol, petrol, kerosene, stain removers, turpentine or

wax must be removed before drying in your machine.

— Strictly comply with the care instructions on your laundry.

ENVIRONMENTAL PROTECTION The appliance’s packaging material is recyclable.

Help recycle it and protect the environment

by dropping it off in the municipal

receptacles provided for this purpose.

Your appliance also contains a great

amount of recyclable material. It is marked

with this label to indicate that the used appliances

should not be mixed with other waste. The

appliance recycling will be done in compliance with

European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment.

Contact your town hall or your retailer for the used

appliance collection points closest to your home.

— Reverse and fix the hinge without tightening

the screws completely.

— Refit the door on the hinge .

— A power failure cancels the current program. In

this case, therefore, you have to reset all the pro-

gramming operations.

2.1 - P REPARING YOUR ITEMS — Close all zippers and snap buttons.

— Remove any loose buttons, pins or hook faste-

— Knot any belts, apron strings, etc.

— Empty pockets, in particular lighters and matches.

2.2 - I NSERTING YOUR ITEMS — Open the door by pushing

— Check that the filter is in its housing.

— Insert washed and spun clothes loosely in the

drum without folding it or piling it up.

R ECOMMENDATIONS: — Do not place any stained laundry in the machine.

As a general rule, stains that have been dried in a

tumble dryer cannot be removed.

— Always adhere to the manufacturer's instructions

when using softening products.22

4.3 - CLEANING THE CONDENSER The condenser must be cleaned twice a

— Unplug the power cable from the socket before

cleaning the condenser.

Clean it as follows:

— Open the grill at the front of the appliance.

— Release the condenser and remove it carefully

— Remove any fluff from the condenser. Clean it with

water only under the tap

— After cleaning, ensure that none of the tubes are

“blocked” and that the fins are clean.

— Rub it superficially.

— Re-insert the condenser and lock it in place. Close

When refitting the condenser, ensure that it

is pushed in firmly right to the back of its

housing when locking it in.

3 - PROGRAMMING PROGRAMS AUTO

— Turn the Time selector to the posi-

— Choose your laundry by pressing the Laundry

SELECT C AUTO A COTTON - : For loads consisting of household

linen, terry towelling and cotton clothes and under-

MIXED - : For loads consisting of items of

different types (cotton and hard-wearing synthetic

articles) or made from mixed fibres.

DELICATES - : For laundry that are particularly

temperature-sensitive (e.g. made from acrylic

The drying temperature is regulated to suit the type

of textile selected.

— Press the “Start/Pause” button to start

The drying time indicator lights switch off one

by one until the end of the drying cycle

A LTERING PROGRAMMING OR DRYING DURING OPERATION — Press the “Start/Pause” button to inter-

The drying time and choice of textile indicators

— Select another program.

— Press the “Start/Pause” button to

The drying time indicator lights switch off one

by one until the end of the drying cycle

A DDING OR REMOVING AN ITEM DURING DRYING — Press the “Start/Pause” button to inter-

rupt drying or open the door.

The drying time and the choice of textile indicators

— Press the “Start/Pause” button to

COOLING CYCLE All programs finish with a cooling cycle that lasts for

a few minutes to allow the washing to cool gra-

Do not stop your dryer before this cycle has

F F B F ANTI-CREASING OPTION The “Anti-creasing” option fluffs the textiles every 10

minutes for up to 24 hours, until the door is opened

or the machine is turned off. It begins as soon as the

drying finishes and prevents the clothes from sett-

ling in the machine.

— To select this function, press the “Anti-creasing”

T ANK FULL WARNING DURING CYCLE If the tank is full before the end of the drying cycle,

the machine shuts off.

The “Tank Full” light , the drying time and the

choice of textile indicators will start to flash

time to time to remind you that you should clean the

Do not forget to do this as soon as possible,

since the warning will disappear when the

next program starts.

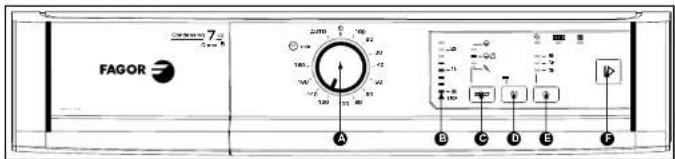

3.1 - THE CONTROL PANEL

3.2 - PROGRAMMING A DRYING CYCLE Your dryer is equipped with a sensor which automatically detects the moment when your laundry is dry.

— You access the automatic dryness detection programs by turning the Time selector to .

— If you wish to adjust the time for the cycle yourself (so that laundry is slightly damp for immediate ironing, for

example, or for extra drying or to dry just a few pieces of laundry) use timed programs with set drying times.

S TARTING THE APPLIANCE — Check that the power cable is plugged in, and if the door is properly closed.

AUTO A A C D E FB SELECT 9h

Drying time indicators

F E TIMER DRYING PROGRAMS

— Select the drying time by turning the Time selec-

tor to the desired drying time The indicators

light up according to the time selected.

— Choose your laundry by pressing the Laundry

— You can delay the start time by 3, 6 or 9 hrs by

pressing the "Delayed start" button seve-

The corresponding “3h, 6h or 9hr” light will flash.

Pressing once more will cancel the "Deferred start"

— Confirm by pressing the “Start/Pause” button

. The deferred start indicator is set.

During the delayed start phase, the indicator

changes from 9:00 to 6:00 or from 6:00 to 3:00.

Once the Delayed Start time delay has expired, the

program actually starts.

S TOPPING THE APPLIANCE When the drying cycle is finished, only the “STOP”

light comes on to show that the cycle is finished

The “Filter” and “Tank full” lights flash

alternately to remind you that you must clean the fil-

ter and empty the water collection tank after every

— Turn the Time selector to the “Stop” position

— Clean the filter and empty the condensate contai-

ner (for how to do this, see the “REGULAR MAIN-

— The "Anti-creasing" option remains selected from one program to the next. Just press the button once to des-

4.1 - C LEANING THE FILTER This is located in the lower part of your dryer.

Clean it as follows:

— Remove it from its housing by pulling it upwards

— Open the filter and clean it by removing the thin

coating of fluff covering it

— Re-insert it in its housing, pushing it well in.

Do not wash filter with water (Fig. 4.1.3). The

filter must be cleaned after every drying.

4.2 - EMPTYING THE CONDENSATE CONTAINER This is located at the top or bottom of your

appliance (according to model), and it recovers the

water extracted from your items during drying.

— To empty it, release it from its housing by pulling

The condensate container must be emptied

after each drying cycle (Fig. 4.2.2).

— Empty the condensate container if there is a risk

of frost, or if you wish to move or tilt your

6 - TROUBLESHOOTING Some incidents may arise when you are using your dryer. Here are the points you should check: 7 - INTERVENTIONS Any work on your appliance must be performed by a Brand-approved qualified professional. When you call,mention your appliance’s full reference (model, type, serial number). These details are shown on the manufac-turer’s information plate(Fig. 1.1). 5.B - STANDARDIZED PROGRAMS

5.A - DRYING TIME The drying times below are given to you as an indication, because they are function:— The desired result: dry, damp, etc.— The ambient temperature (these values correspond to an ambient temperature of 20°C).— The quality of the prior spin-drying.For lower spin speeds, the times will be relatively longer.(For example, for 5kg of normal laundry spun at 500 rpm: 120 to 160 minutes). 4 - REGULAR MAINTENANCE

(continued) Load I ”Dry cotton” 7 kg .... select “Cotton” - 140 minLoad II ”Ready to iron cotton” 7 kg .... select “Cotton” - 100 minLoad III ”Easy care textiles” 3 kg .... select “Delicates” - 60 min

RECOMMENDED PROGRAMS FOR TESTS TO EN 61121 - DIRECTIVE 95/13/EEC Fault: Check whether:

The dryer does not start:

- the plug is in the socket.

- the door is properly closed.

- the condenser is correctly locked in place.

- the “Start” key was pressed (if the appliance was

The drying times are too long:

- the filter in the drum is clogged with fluff.

- the laundry has been spun enough beforehand

(500rpm minimum, but spinning at 850rpm provides

better drying times).

- the room temperature is not too high, particularly if

the room is small: if necessary, open the door or

- the condenser is not clogged.

- the air inlets and outlets are unobstructed enough to

ensure correct air circulation.

- the laudry choice selected matches the type of

The laundry is too damp:

- the filter in the drum is clogged with fluff.

- the type of laundry has been selected correctly or if

the drying time is good enough.

- the condenser is not blocked by fluff.

The laundry is too dry, too creased:

- the drying time selected is too long: the drying time

is better to be too short than too long: this avoids

the laundry becoming too dry and difficult to iron.

The items are unevenly dried:

- the types of textiles in the load are too different (e.g.

sheets together with jeans).

- the laundry has been laid correctly ‘unfolded’ in the

- the drum is not overloaded.

The synthetic items are loaded with

- the laundry has been dried too much.

- you have used softener during washing. By using

this product, you can reduce most of the problems

with static electricity.

The “Tank Full” indicator light is lit:

- the condensate container is full: once you have emp-

tied it, re-insert it correctly, pushing it completely

The “Tank Full” indicator light illumi-

nates although the tank is empty:

- the container has been properly inserted: push it in

- the condenser is tightly locked on the two sides.

4.5 - DIRECT EVACUATION OF WATER CONDEN-

SER (Top condensate container models only)To avoid having to empty the collection tank every time you use the appliance, you have a kit (*) for removing the water from the condenser directly intothe drain (hose and deflector). To fit this:— Take off the existing pipe and push it insidethe appliance(Fig. 4.5.1).— Clip the deflector with the top of the pump(Fig. 4.5.1).— Connect the hose from the kit to the end

C B A connector on the appliancl (Fig. 4.5.2).You can connect the other end of the hose either:- To a ventilated trap (Fig. 4.5.3).- Or a sink trap (Fig. 4.5.4).When connecting to a trap, you must remove the fil-ler plug. Then press home the rubber tip. If neces-sary, add a clamp connection(Fig. 4.5.4).— (*) This kit is provided with the appliance or isavailable near your After-sales service (accordingto model). — The deflector must necessarily be positioned before the drain hose connection.

D Type of items Load For items spun at Drying cycle time

5 kg 1200 rpm 60 to 80 minutes

3,5 kg 1200 rpm 50 to 60 minutes

5 kg 850 rpm 80 to 100 minutes

2,5 kg 850 rpm 50 to 60 minutes

3 kg 500 rpm 60 to 80 minutes

1,5 kg 500 rpm 40 to 50 minutes

4.4 - CLEANING THE APPLIANCE To clean the control panel, the access to the drumand the casing, use only a sponge or a damp clothand some soapy water.— Ensure that there is no fluff accumulating roundthe dryer.— Clean the door seal with a damp cloth and the fil-ter housing with your vacuum cleaner once a year.— You should not use, under any circumstances, the abrasive powders, the metal or plastic sponges and the alcohol-based products (Fig. 4.4). 4.6 - CHANGING THE BULB (according to model)You can replace the light bulb (type E14-15W/230V)yourself(Fig. 1.1) . To do this:— Unscrew the glass cover located at the top, insidethe appliance.— Unscrew the extinguished bulb and replace it .

— Screw on the glass cover tightly. Important: Unplug the power cord before changing the bulb. The bulb must be repla-ced when the appliance is cooled down. G26

3.2.33.2.6SF-700CB WS2U00073_00 - 03/12
