USER MANUAL 1SF70CB FAGOR

ES MANUAL DE INSTALLACION Y UTILIZATION
PT GUIA DE INSTALLACAO E DE UTILIZATION
FR GUIDE D'INSTALLATION & D'UTILISATION
EN INSTALLATION & OPERATING INSTRUCTIONS
DE INSTALLATIONS- UND GEBRAUCHSANLEITUNG
CS' NAVOD K INSTALACI A' OBSLUZE
HU UZEMBEHYLEZESH ES HASZNALATI UTMUTO
NL INSTALLATIE & GEBRUISHANDLEIDING
SK INSTALACNA POUZIVATEISKA PRIRUCKA

Secadora de condensation
Máquina de secar roupa com condensador
Seche-linge à condenseur
Condenser tumble dryer
Kondensationswäschétrockner
Susicka na pradlo
Légkivezetées szárítogép
Droogtrommel met condensatie
Susieka bielizne s kondenzátorom

FAGOR

ES-ESPANOL

3 - PROGRAMACAO 3 - PROGRAMACAO

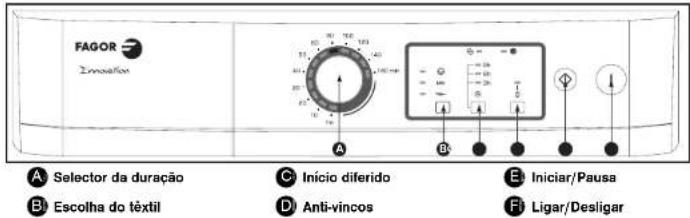

3.1 - O PAINEL DE COMANDOS

3.2 - PROGRAMAÇAO DE UM CICLO DE SECAGEM

4-ENTRETIEN COURANT (suite)

4.4 - NETTOYAGE DU SECHE-LINGE

Important: Please read this user manual carefully before installing and using your machine so as to familiarise yourself with its operation and keep this user manual for reference purposes. This machine, which is intended for domestic use only, has been designed to dry damp clothing and household fabrics.

SAFETY

INSTALLATION

• Your electrical installation must be able to take the maximum power indicated on the identification plate and the socket must be earthed correctly.

• Your tumble dryer must be kept disconnected from the mains supply throughout the whole installation process.

• It is recommended that you unplug the machine when you are not using it.

• Once your appliance has been installed, the electrical plug must remain accessible.

If the power cord is damaged, only entrust the electrical work to a qualified electrician so as to steer clear of any danger.

• The machine must not be installed behind a self-locking door a sliding door or a door with the hinges on the opposite side to the tumble dryer, that prevents the machine from being fully opened.

Important:

• You must observe the following instructions:

• Do not use solvents in the appliance.

• Do not put laundry that has been treated with stain remover, solvent or inflammable products in the machine immediately after it has been treated (fire or explosion risk).

Substances contained in soiling such as oil, acetone, alcohol, petrol, kerosene, stain removers, turpentine or wax must be removed before drying in your machine.

-Strictly comply with the care instructions on your laundry.

ENVIRONMENT

ENVIRONMENTAL PROTECTION

The appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate that the used appliances should not be mixed with other waste. The appliance recycling will be done in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment.

Contact your town hall or your retailer for the used appliance collection points closest to your home.

CHILDREN'S SAFETY

• Do not let children play with the appliance and keep pets away from it.

• Keep the packaging materials out of children's reach (e.g.: plastic bags, polystyrene, etc.) because they can be dangerous for children: risk of suffocation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

ENERGYSAVINGS

• Spin your textiles at high speeds; the residual dampness will be low, as will your energy consumption.

• Place the maximum load in your machine: this will optimize the energy used. When doing so, comply with the indications on volume provided in this instruction manual.

Clean the filter after each drying cycle.
- Clean the condenser twice a month.
- Switch off your tumble dryer at the cycle ends.

1-INSTALLATION

1.1 -GENERAL PRESENTATION (Fig. 1.1)

Control panel

D Condenser grid

Condensate container (top or bottom according to model)

Information plate Adjustablefeets

Filter Light (according to model)

1.2 - APPLIANCE'S SURROUNDINGS

• Leave a gap of at least 1 cm around the device when you install it to facilitate air circulation.

• Do not install your device on a mat or a carpeted floor since this may impede the circulation of air around its base.

• If you have installed your device in a small, closed room a door or window should be left open whilst the machine is running.

1.3-LEVELLING(Fig.1.2)

A Screw in or screw out one or more of the adjustable feet to ensure that the machine is horizontal and doesn't rock, depending on how level your floor is.

1.4 - BUILT-IN INSTALLATION

• If you are fitting the appliance underneath a worktop, you must keep the original laminated top.
• For safety reasons, the appliance must never be operated without a top.

2-USE

2.1 - PREPARED YOUR ITEMS

• Close all zippers and snap buttons.
• Remove any loose buttons, pins or hook fasteners.
• Knot any belts, apron strings, etc.
  Empty pockets, in particular lighters and matches.

2.2-INSERTING YOUR ITEMS

• Open the door by pushing (Fig. 2.1).
• Check that the filter is in its housing
• Insert washed and spun clothes loosely in the drum without folding it or piling it up.
• Close the door

RECOMMENDATIONS:

• Do not place any stained laundry in the machine. As a general rule, stains that have been dried in a tumble dryer cannot be removed.
• Always adhere to the manufacturer's instructions when using softening products.

1.5-COMBINED WASHER/DRYER INSTALLATION

An adaptation kit is available from your dealer. This is used to mount your tumble dryer above your washing machine.
- Check that the kit is compatible with your washing machine.
- For safety reasons, fitting must be performed by a qualified professional.

1.6 - MODIFYING THE DOOR OPENING DIRECTION

(Fig.2.2-2.3)
If you wish, you can alter the direction the door opens as follows:
- Remove the 4 screws in the front panel holding the hinges.
- Reverse the hinge. A fasten it back on.
- Refit the door on the hinge A
- Reverse the hinge fasten it back on
- Reverse the positions of the lock 1,2 the cover 3,4 the machine's front.

• Reverse the positions of the bolt

During the laboress to disassembly and reassembly of the door, you must take the door horizontally.

NOTE:

• A power failure cancels the current program. In this case, therefore, you have to reset all the programming operations.

Important:

Check the labels on your textiles:

Gentledrying

Do not tumble-dry:

Clothing including rubber like materials (for example: shower caps, waterproof clothing and textiles, linings, pillows etc.).
- Chlorofibres (Thermolactyl * for example)
- Items containing underwiring that could become detached.

Bulky items (duvets, eiderdowns, etc.).
-Laundry that has not been spun.
- Laundry cleaned with inflammable chemicals.

RECOMMENDED LOADS:

• The maximum capacity of the dryer is 7kg or 8kg (according to model).

26

27

3-PROGRAMMING 3-PROGRAMMING

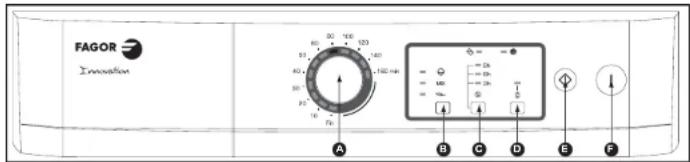

3.1 - THE CONTROL PANEL

Time selector
3 Laundry choice

3.2 - PROGRAMMING A DRYING CYCLE

STARTING THE APPLIANCE

• Check that the power cable is plugged in, and if the door is properly closed.
• Press the "On/Off" button ① F. The indicator lights around the Time selector A flash.

LAUNDRY CHOICE

• Choose your laundry by pressing the Laundry choice button
  COTTON:For loads consisting of household linen,terry towelling and cotton clothes and underclothes.

• MIXED - MIX: For loads consisting of items of different types (cotton and hard-wearing synthetic articles) or made from mixed fibres.

• DELICATES - For laundry that are particularly temperature-sensitive (e.g. made from acrylic fibres).
  The indicator light lit shows you the program you have selected (Fig. 3.2.1).

CHOICE OF DRYING TIME

By default, a drying time in minutes is displayed based on the textile type.
- You can adjust this time by turning the Time selector A The indicators light up to show the time selected (Consult the "Drying Time" chart on the following page to determine the recommended drying times for your amount of laundry).

IMMEDIATE START

• Press the "Start/Pause" button ④ E. The drying cycle starts.
  The indicator lights around the Time selector A stop flashing and go out gradually during the program sequence, thereby indicating the time remaining until the end of the cycle.

DELAYING A PROGRAM'S START

• You can delay the start time by 3, 6 or 9 hrs by pressing the "Delayed start" button & & & several times. The corresponding ^3h, 6h or 9hr^ light will flash. Pressing once more will cancel the "Deferred start" function (Fig. 3.2.2).
  Confirm by pressing the Start/Pause button The deferred start indicator is set.
  During the delayed start phase, the indicator changes from 9:00 to 6:00 or from 6:00 to 3:00. Once the Delayed Start time delay has expired, the program actually starts.

ADDITION OR REMOVIDING AN ITEM DURING DRYING

• Press the "Start/Pause" button to interrupt drying or open the door.
  Drying time indicators flash (Fig. 3.2.3).
• Insert or remove the item or items and close the door.
  Press the "Start/Pause" button to resume drying.

ALtering PROGRAMMING OR DRYING DURING OPERATION

If you have entered the wrong program, you can change your selection during the cycle
- Press the "Start/Pause" button to interrupt drying.

Drying time indicators flash (Fig. 3.2.3).
-Select another program.
- Press the "Start/Pause" button to resume drying.

MEMO ACTIV FUNCTION

Your dryer remembers the programs that you use most often.
After a few drying cycles, the program displayed when you switch on your machine is the one that you have used most often.

(continued)

ANTI-CREASING OPTION

• The "Anti-creasing" option fluffs the textiles every 10 minutes for up to 24 hours, until the door is opened or the machine is turned off. It begins as soon as the drying finishes and prevents the clothes from settling in the machine.
• To select this function, press the "Anti-creasing" button (A) indicator lights up to show that this option has been activated (Fig. 3.2.4).

COOLING CYCLE

All programs finish with a cooling cycle that lasts for a few minutes to allow the washing to cool gradually. Do not stop your dryer before this cycle has finished.

NOTE:

• The "Anti-creasing" option remains selected from one program to the next. You can simply press the button to deactivate this option, even during a program.

TANK FULL WARNING DURING CYCLE

If your tank is full during the drying cycle, the appliance stops.

The "Tank Full" light will start to flash (Fig. 3.2.5).
- Proceed to empty your condensate container (see the "REGULAR MAINTENANCE" section).

• Press the "Start/Pause" button to repress your program.

STOPPING THE APPLIANCE

When the drying cycle is finished, the "Fin" light comes on to show that the cycle is finished (Fig. 3.26).
The 'Filter' and "Tank Full" lights flash alternately to remind you that you must clean the filter and empty the water collection tank after every driving cycle.

-Press the "On/Off" button.
Empty your dryer.
Clean the filter and empty the water collection tank (for how to do this, see the "REGULAR MAIN- TENANCE" section).

4-REGULAR MAINTENANCE

4.1-CLEANING THE FILTER

This is located in the lower part of your dryer. Clean it as follows:
- Remove it from its housing by pulling it upwards (Fig. 4.1.1).
- Open the filter and clean it by removing the thin coating of fluff covering it (Fig. 4.1.2).
- Re-insert it in its housing, pushing it well in.

The filter must be cleaned after every drying. Do not wash it with water (Fig. 4.1.3).

4.2-EMPTYING THE CONDENSATE CONTAINER

This is located at the top or bottom of your appliance (according to model), and it recovers the water extracted from your items during drying.
- To empty it, release it from its housing by pulling it towards you (Fig. 4.2.1).
The condensate container must be emptied after each drying cycle (FiG.4.2.2).
Empty the condensate container if there is a risk of frost, or if you wish to move or tilt your appliance.

4.3 - CLEANING THE CONDenser

The condenser must be cleaned twice a month.
- Unplug the power cable from the socket before cleaning the condenser.
Clean it as follows:
- Open the grill at the front of the appliance.
- Release the condenser and remove it carefully (Fig. 4.3.1).
- Remove any fluff from the condenser. Clean it with water only under the tap (Fig. 4.3.2).
- After cleaning, ensure that none of the tubes are "blocked" and that the fins are clean.
- Rub it superficially.
- Re-insert the condenser and lock it in place. Close the grill.

When refitting the condenser, ensure that it is pushed in firmly right to the back of its housing when locking it in.

4- REGULAR MAINTENANCE (continued)

4.4 - CLEANING THE APPLIANCE

To clean the control panel, the access to the drum and the casing. use only a sponge or a damp cloth and some soapy water.
- Ensure that there is no fluff accumulating round the dryer.
Clean the door seal with a damp cloth and the filter housing with your vacuum cleaner once a year.
- You should not use, under any circumstances, the abrasive powders, the metal or plastic sponges and the alcohol-based products (Fig. 4.4).

4.6 CHANGING THE BULB (according to model) You can replace the light bulb (type E14-15W/230V) yourself (Fig. 1.1).

To change the bulb:
- Unscrew the glass cover located at the top, inside the appliance.
- Unscrew the extinguished bulb ⑥ replace it.
- Screw on the glass cover tightly.
Important: Unplug the power cord before changing the bulb. The bulb must be replaced when the appliance is cooled down.

4.5 - DIRECT EVACUATION OF WATER CONDEN

SER (Top condensate container models only) To avoid having to empty the collection tank every time you use the appliance, you have a kit () for removing the water from the condenser directly into the drain (hose and deflector). To fit this:
- Take off the existing pipe A push it inside the appliance (Fig. 4.5.1)
-Clip the defector B on the top of the pump (Fig. 4.5.1)
- Connect the hose on the kit to the end connector Dthe applian (Fig.4.5.2).
You can connect the other end of the hose either:
- To a ventilated trap (Fiq. 4.5.3).
-Or a sink trap (Fio.45.4)
When connecting to a trap, you must remove the filler plug. Then press home the rubber tip. If necessary, add a clamp connection (Fig. 4.5.4).
- () This kit is provided with the appliance or is available near your After-sales service (according to model).
The deflector must necessarily be positioned before the drain hose connection.

5.A - DRYING TIME

The drying times below are given to you as an indication. because they are function: The desired result: dry, damp, etc.
- The ambient temperature (these values correspond to an ambient temperature of 20^ - The quality of the prior spin-drying.

Type of items	Load For	Items spun at ...	Drying cycle time
COTTON - Ø	8 kg	1200 rpm	100 to 120 minutes
	5 kg	1200 rpm	60 to 80 minutes
	3,5 kg	1200 rpm	50 to 60 minutes
MIXED - MIX	5 kg	850 rpm	80 to 100 minutes
	2,5 kg	850 rpm	50 to 60 minutes
DELICATES - Ø	3 kg	500 rpm	60 to 80 minutes
	1,5 kg	500 rpm	40 to 50 minutes

For lower spin speeds, the times will be relatively longer.

(For example, for 5kg of normal laundry spun at 500 rpm: 120 to 160 minutes).

5.B - STANDARDIZED PROGRAMS

RECOMMENDED PROGRAMS FOR TESTS TO EN 61121 - DIRECTIVE 95/13/EEC
Model 7 kg:

Load I	‘Dry cotton’	7 kg	...	select	‘Cotton’ - 140 minutes
Load II	‘Ready to iron cotton’	7 kg	...	select	‘Cotton’ - 100 minutes
Load III	‘Easy care textiles’	3 kg	...	select	‘Delicates’- 60 minutes

Model 8 kg:

Load I "Dry cotton" 8 kg ... select "Cotton" - 160 minutes
Load II "Ready to Iron cotton" 8 kg	...	select	"Cotton" - 120 minutes
Load III "Easy care textiles" 4 kg	...	select	"Delicates" - 70 minutes

6-TROUBLESHOOTING

NOTES

Some incidents may arise when you are using your dryer. Here are the points you should check:

Fault: Check whether:
The dryer does not start:	- the plug is in the socket. - the door is properly closed. - the condenser is correctly locked in place. - the "On/Off" button is pressed in.
The drying times are too long:	- the filter in the drum is clogged with fluff. - the laundry has been spun enough beforehand (500rpm minimum, but spinning at 850rpm provides better drying times). - the room temperature is not too high, particularly if the room is small: if necessary, open the door or window. - the condenser is not clogged. - the air inlets and outlets are unobstructed enough to ensure correct air circulation. - the drying program selected matches the type of items in the drum.
The laundry is too damp:	- the filter in the drum is clogged with fluff. - the type of drying has been selected correctly: switch to the next programme. - the condenser is not blocked by fluff.
The laundry is too dry, too creased:	- the drying program selected matches the type of items in the drum.
The items are unevenly dried:	- the types of textiles in the load are too different (e.g. sheets together with jeans). - the laundry has been laid correctly 'unfolded' in the dryer. - the drum is not overloaded.
The synthetic items are loaded with static electricity:	- the laundry has been dried too much. - you have used softener during washing. By using this product, you can reduce most of the problems with static electricity.
The "Tank Full" indicator light is lit:	- the condensate container is full: once you have emp-tied it, re-insert it correctly, pushing it completely into its housing.
The "Tank Full" Indicator light illumina-tes although the tank is empty:	- the container has been properly inserted: push it in completely. - the condenser is tightly locked on the two sides.

7 - INTERVENTIONS

Any work on your appliance must be performed by a Brand-approved qualified professional. When you call, mention your appliance's full reference (model, type, serial number). These details are shown on the manufacturer's information plate (Fig. 1.1).

ORIGINAL PARTS

During any maintenance work, ask that only certified original replacement parts be used.

DE-DEUTSCH

2.1 - PIPRAVA PRADLA

PROGRAM KESLELTETETT INDITA

1.2 - OMGEVING HET APPARAAT

FUNCTIE "MEMO ACTIV"

Uw droogtrommel memoriseert da vaakst begruiteprogramma's.

WAARSCHUWING "WATERBAK VOL"

4.5 - RECHTSTREEKSE AFVOER VAN HET

CONDENSVOCHT (Lade top modellen)
