USER MANUAL RP835 MARMITEK

PK836 PROGRAMMING KEYPAD

USER MANUAL 2

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.

• Do not expose the components of your systems to extremely high temperatures or bright light sources.

• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.

• This product is not a toy. Keep out of reach of children.

• The product should only be repaired or serviced by a qualified repairman.

• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.

• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter when it is damaged. In that case, contact your supplier.

INTRODUCTION

The RP835 wireless repeater is a part of the Marmitek ProGuard800 series, and operates together with the ProGuard800 alarm system. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com. Up to four repeaters can be registered to the control panel with 32 transmitters registered to each repeater. The repeater is powered by either 9VAC or 12VDC with a 6V rechargeable backup battery pack. Registration and maintenance tests are performed using a plug-in LCD Programming Keypad (PK836) that provides a comprehensive interface to the repeater.

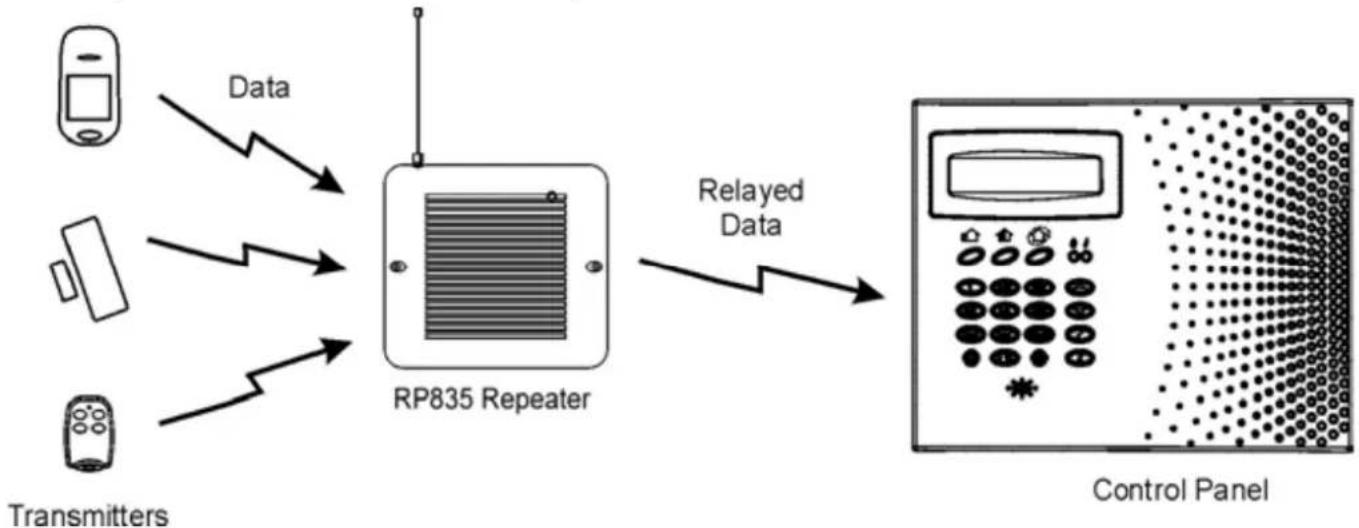

Figure 1: Typical Single Repeater

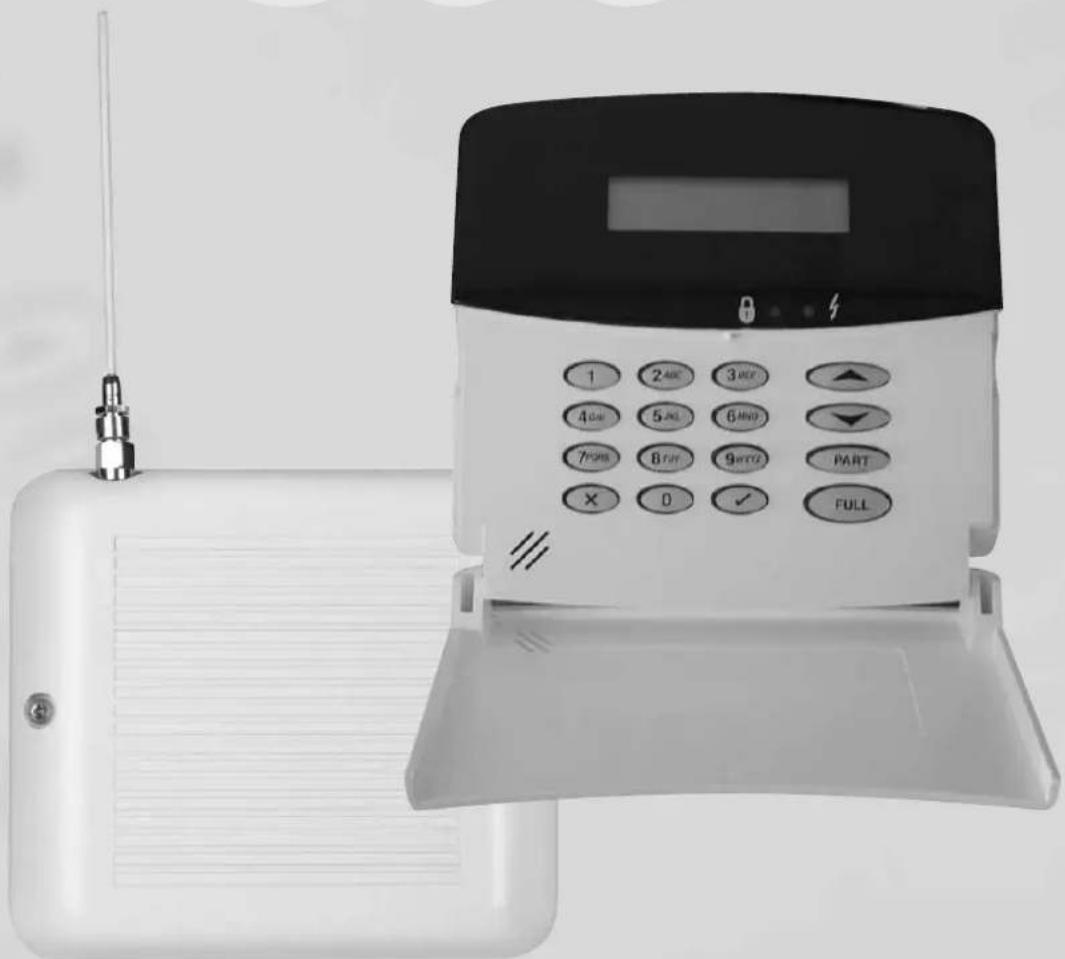

RP835 & PK836

INSTALLATION

1. Register all wireless devices to the ProGuard800 control panel as explained in the ProGuard800 installation manual.
2. On the control panel, define the detection devices that are intended to transmit via the repeater as follows:
   From the Programming menu, select Devices, Zones [911].
3. Select the zone you want to program (1-32).
   From the zone's sub-menu, select Repeater [#9].
4. Select "Use Repeater".

Note: It is not necessary to define, at the control panel, the keypads and keyfobs that are registered to the repeater.

1. Open the RP835's plastic housing. To do so, remove the two cover screws and lift the front cover away from the base.

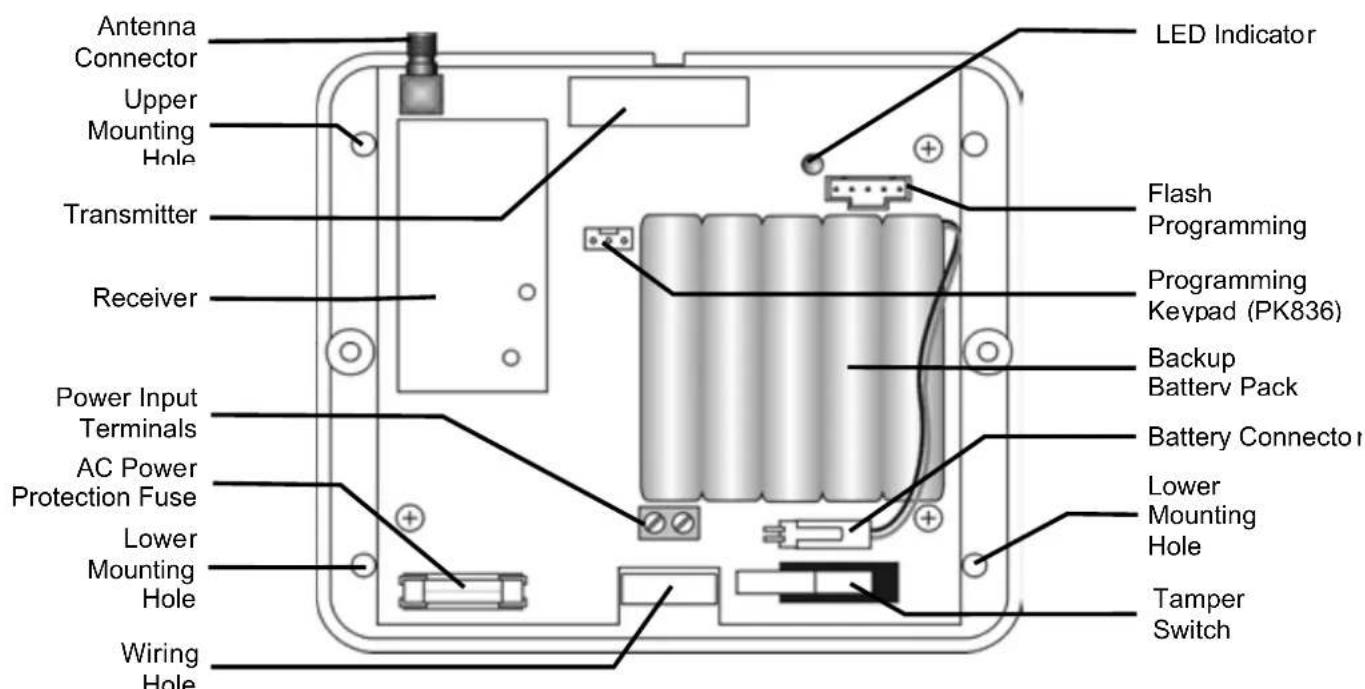

Figure 2: RP835 (cover removed)

1. Connect the antenna provided to the antenna connector.
2. Connect the backup battery pack to the Battery connector.
3. Connect a 9VAC or 12VDC transformer to the Power Input terminal block (polarity is not important).
4. All registration and test functions, described in the following sections, are performed from the LCD Programming Keypad (PK836) shown in Figure 3.

Connect the Programming Keypad (PK836) to the Programming Keypad (PK836) connector.

Note: The Programming Keypad (PK836) is not able to operate on battery power only.

1. Test the repeater from the required mounting location before permanently mounting the unit.
2. Mount the base to the wall using four screws and replace the front cover.

When the tamper switch is open, the bi-color LED provides indication regarding repeater transmission and reception as an aid during the installation procedure - see Table 1. When the tamper switch is closed, the bi-color LED provides indication regarding power status - see Table 2.

Table 1: LED Indication (Tamper Open)

LED Indication Description

Flashing Green Signal Reception

Flashing Red Signal Transmission

Table 2: LED Indication (Tamper Closed)

LED Indication Description

Steady Green AC & Battery OK

Flashing Red AC Loss

Flashing Orange Low Battery

REGISTERING THE REPEATER TO THE CONTROL PANEL

For the control panel to recognize the repeater, you must register the repeater to the control panel.

To register the repeater to the control panel:

1. Set the control panel to Registration mod as follows:

From the Programming menu, select Devices, Repeaters [914].
- Select the repeater you want to register (1-4).
From the repeater's sub-menu, select Register [#1].

1. Send two Status transmissions from the repeater as follows:

2. On the Programming Keypad (PK836), press until 5. STS Transmit appears on the display.
   Press ✓.

3. Press again.

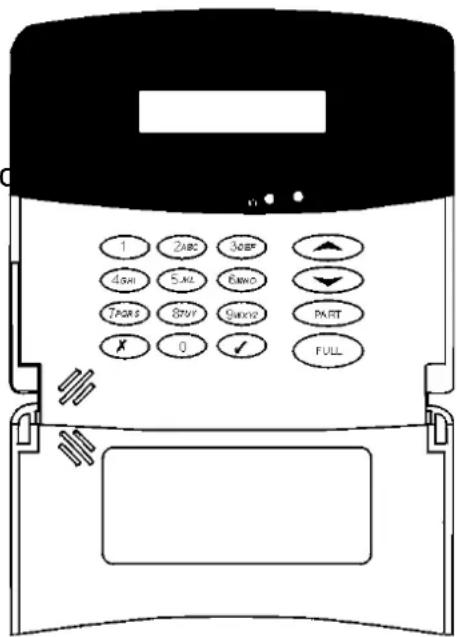

Figure 3: LCD rogramming Keypad (PK836)

1. Confirm registration to the control panel as follows:

2. When Save? appears on the control panel's LCD display, press .

REGISTERING TRANSMITTERS TO THE REPEATER

You can register up to 32 transmitters to the RP835 repeater.

Note: Do not register the same transmitter to more than one repeater.

To register transmitters to the repeater:

1. On the LCD Programming Keypad (PK836), press until 4. TX Register appears on the display.
2. Press ; New Device appears on the display.
3. Press again; Transmit 1 appears on the display.
4. Send two transmissions from the device you want to register.
5. When the transmitter number and Save? appear on the display, press to confirm registration.

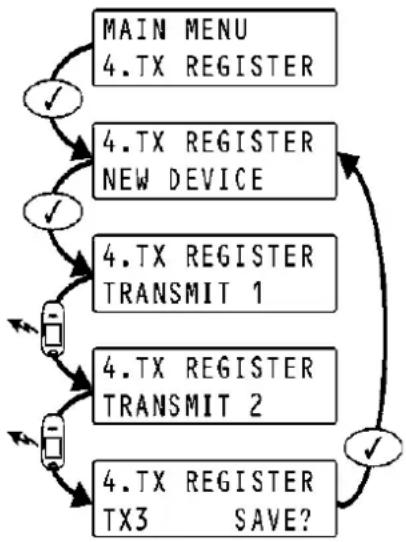

Figure 4:Transmitter Registration Procedure

Note: The RP835 repeater automatically allocates a transmitter number to each newly registered device. Write this number and the zone number on the sticker provided with the sensor and stick it inside the transmitter's cover for future reference.

1. After you have confirmed registration, the display returns to New Device. Press to register another device or × to exit Registration mode.

DELETING REGISTERED TRANSMITTERS

To delete transmitters from the repeater's register:

1. On the LCD Programming Keypad (PK836), press until 3. TX Delete appears on the display.
2. Press ; the first transmitter in the list appears on the display.
3. Use the arrow navigation keys ( / ) to scroll to the transmitter you want to delete.
4. Press to select the transmitter.
5. Press again for confirmation; the transmitter is deleted.
6. Select another transmitter to delete or press × to exit.

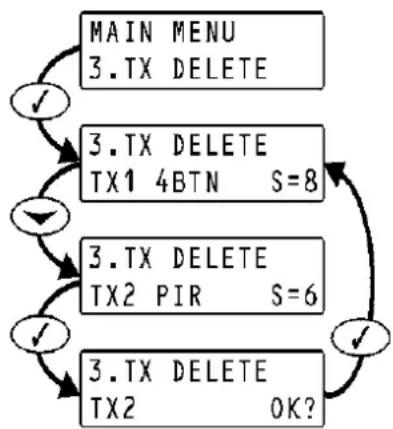

Figure 5: Delete Transmitter Procedure

INSTALLER UTILITIES

The RP835 repeater offers two installer utilities that serve as a valuable aid during installation and maintenance.

TX List

The TX List is a scrollable inventory of all registered transmitters and their last reported signal strength.

To view the TX list:

1. Press until 1. TX List appears on the display.
2. Press ; the first transmitter in the list is displayed.
3. Use the arrow navigation keys ( / ) to scroll through the list.
4. Press × to exit the list.

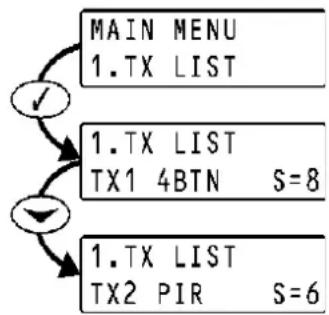

Figure 6: TX List Procedure

TX Test

TX Test is a utility that enables you to identify registered transmitters and test their signal strength.

To perform a TX test:

1. Press until 2. TX Test appears on the display.
2. Press ✓.
3. Activate a transmitter; the transmitter number, type and signal strength are displayed.
4. Press ±bx to exit TX Test mode.

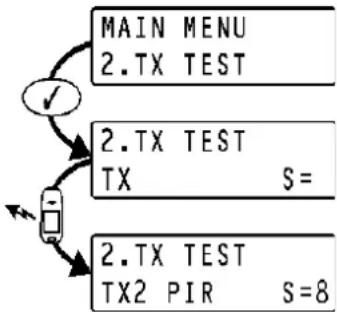

Figure 7: TX Test Procedure

TECHNICAL DATA

RP835

Frequency: 868.35MHz FM

Antenna:

External

Whip

Operating Voltage: 9VAC or 12VDC

Backup Battery: 6V/850mAh

(5 x 1.2V Ni-MH rechargeable cells, size AAAL)

Current Consumption: 100mA max. (during transmission)

Number of Transmitters: 32 max.

Tamper Protection: Front Cover (N.C.)

Operating Temperature: 0 - 60^

Dimensions: 123 × 109 × 27mm

PK836

Programming cable length: 50 cm

Operating Temperature: 0 - 60^

Dimensions: 135 × 130 × 34 ~mm

Specifications may be modified without prior notice.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated

collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Pufferbattery: 6V/850mAh

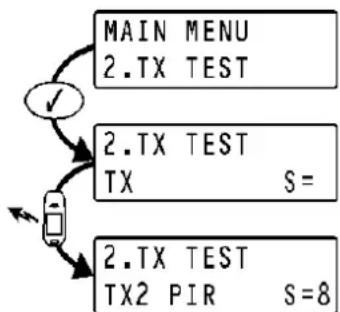

Figure 7: Procedure Test EM

CHARACTERISTIQUES TECHNIQUES

RP835

Fréquence: 868,35MHz FM

Antenne:

Fouet

external

VEILIGHEIDSWAARSCHUWINGEN

INSTALLATIE FUNCTIONS

Voltage: 9VAC of 12VDC

Back-up Batterij: 6V/850mAh

(5 x 1.2V Ni-MH oplaadbare batterijen, formaat

AAAL)

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this RP835+PK836 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility

868.35MHz is not intended for use in BG, GR, PL & SI.
