USER MANUAL WK820 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Automatic switching devices provide comfort, but can also be dangerous. They can surprise people or can ignite clothing hanging over an electric heat source. Please be careful and take appropriate measures to avoid accidents.

INTRODUCTION

The WK820 and RC840 are one-way wireless keypads primarily designed as additional arming stations, including three arming keys that enable Full, Part or Perimeter arming modes. Pressing the Full and Perimeter buttons simultaneously generates an SOS panic alarm. Additionally, the keypad may be used to control Home Automation modules.

The WK820 also includes an additional Cancel key ⊗ that clears the keypad in the event that a key is pressed by mistake while entering a code, for example. This key causes the keypad to disregard what was previously entered enabling the user to start again.

MARMITEK 1 2 3 4 5 6 0 7 8 9 SOS

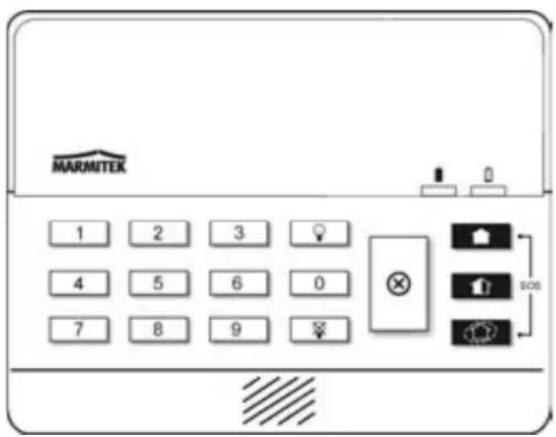

Figure B.13: WK820

This product is a part of the Marmitek ProGuard800 series, and operates together with the ProGuard800 alarm system. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com.

2 © MARMITEK

REGISTRATION PROCEDURE

To register wireless keypads:

1. From the Programming menu, select Devices, Keypads [913].
2. Select the keypad you want to register; the system initiates Registration mode.
3. Press a button on the keypad making sure that a LED lights up when the button is pressed.
4. Press the same button again. When Save? appears on the panel's LCD display, press √.

Line drawing of a mobile phone control panel with numbered buttons and navigation icons

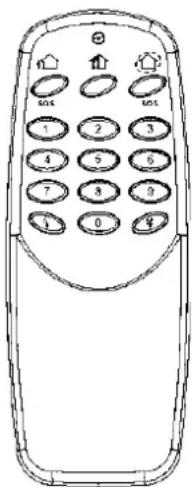

Figure B.14: RC840

BATTERY REPLACEMENT (WK820)

Every time a key is pressed, one of the battery status LEDs is lit. When the battery needs to be replaced, the red Low Battery LED is lit.

To replace the battery:

1. Insert a small screwdriver into the pry-off slots at the bottom of the unit and twist to remove the back cover.
2. Observing correct polarity, replace the battery (9V, alkaline).
3. Replace the back cover making sure that the two covers click shut.

Tamper Switch Buzzer 9V Alkaline Battery

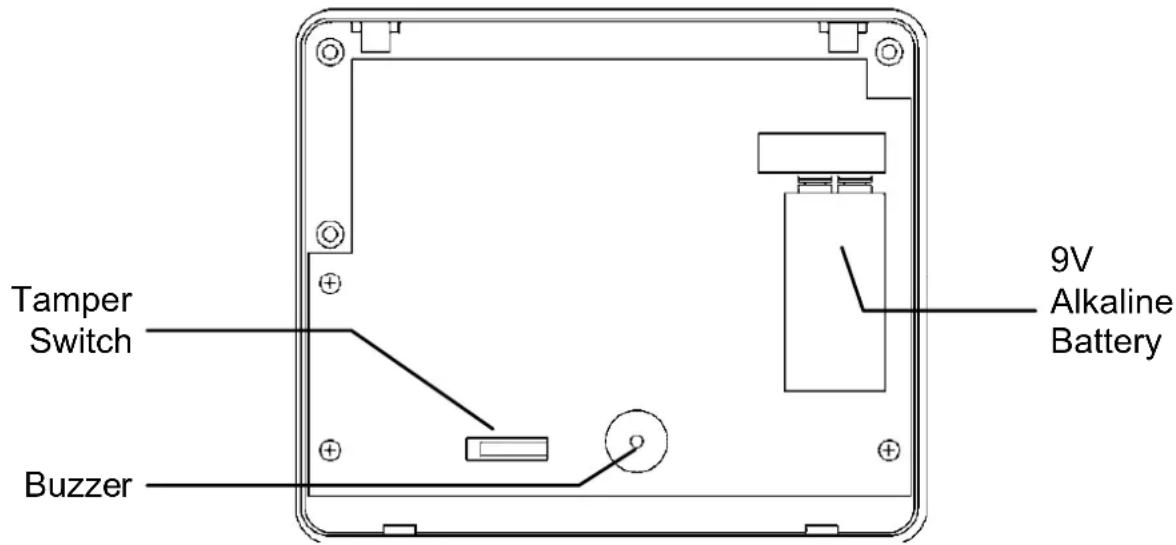

Figure B.15: WK820 (back cover off)

BATTERY REPLACEMENT (RC840)

When the battery is low, the RC840's LED flashes during transmission.

To replace the battery:

1. Remove the battery cover located at the rear of the unit. To do so, press the release tab using a small screwdriver and lift the cover away from the RC840's plastic housing.
2. Observing correct polarity, replace the battery (9V, alkaline).
3. Replace the battery cover making sure that it clicks shut.

TECHNICAL DATA WK820

Antenna: Printed Frequency: 868.35MHz FM Current Consumption: 26mA (transmission) 2μA (standby)

Power: 9V

RFI Immunity: 40V/m

Operating Temperature: 0 to 60°C

Dimensions: 130 x 110 x 28mm

RC840

Antenna: Printed Frequency: 868.35MHz FM Current Consumption: 25mA (transmission) 3μA (standby)

Power: 9V

RFI Immunity: 40V/m

Operating Temperature: 0 to 60°C

Dimensions: 128 x 49 x 27mm

Specifications may be modified without prior notice.

on PCB Alkaline Battery 9V Alkaline Battery on PCB Alkaline Battery

Figure B.16: RC840 (battery cover off)

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

4 © MARMITEK

SICHERHEITSHINWEISE

Line drawing of a mobile phone with numbered keypad and control buttons

Figure B.14: RC840

REEMPLACEMENT DE BATTERIE (WK820)

Fréquence: 868,35MHz FM

Consommation Courante: 26mA (en alarme)

2μA

Dimensions: 130 x 110 x 28mm

RC840

Fréquence: 868,35MHz FM

Consommation Courante: 25mA (en transmission)

3μA (au

Dimensions: 128 x 49 x 27mm

(au

Batterie Alcaline de 9V

repos)

Figure B.16: RC840 (couverture de

repos)

batterie retirée)

Technical line drawing of a mechanical component with curved and rectangular features (no text or symbols)

Figura B.11: EL-2640 (sin tapa de baterias)

Line drawing of a mobile phone with 12 rotary buttons labeled 0 to 9, showing control and display icons.

Figure B.14: RC840

SOSTITUZIONE BATTERIE (WK820)

Figura B.15: WK820 (back cover off)

Assorbimento: 26mA (transmission)

VEILIGHEIDSWAARSCHUWINGEN

Line drawing of a mobile phone with labeled buttons arranged in a grid layout

Figuur B.14: RC840

BATTERIJ VERVANGEN (WK820)

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this WK820+RC840 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility

868.35MHz is not intended for use in BG, GR, PL & SI.

Copyrights

Marmitek is a trademark of Marmidenko B.V. | WK820 is a trademark of Marmitek B.V. RC840 is a trademark of Marmitek B.V All rights reserved.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.
