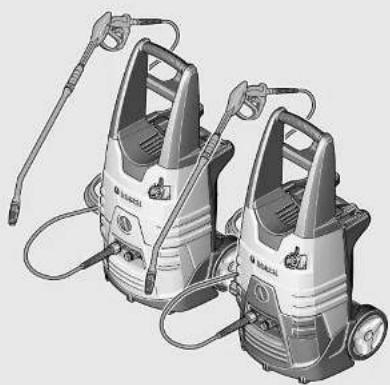

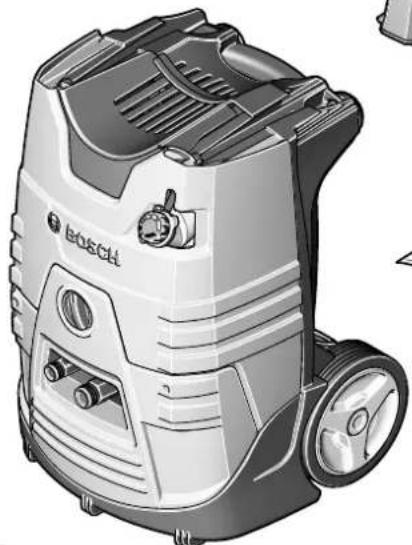

USER MANUAL GHP 513 C Professional BOSCH

Warning: High pressure jets can be dan-

gerous if subject to misuse. According to the applicable regulations, the appliance must never be used on the drinking water network without a system separator. Use a separator as per IEC 61770 Type BA. Water flowing though a system sepa- rator is considered not drinkable. For self priming use special suction kit 3 m long (F 016 800 335). Safety Notes for pressure washer Read all safety warnings and all instructions. Failure to follow the warnings and in- structions may result in electric shock, fire and/or serious injury. The warning and information signs attached to the unit provide impor- tant information for safe operation. Apart from the information in the op- erating instructions comply with the general safety regulations and regu- lations for the prevention of acci- dents. Connecting to the mains The voltage indicated on the rating plate must correspond to the voltage of the power source. We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residu- al current. This is a class I unit and may only be connected to properly earthed power sources. Remove the plug from socket when- ever the machine is left unattended for any period. The electric supply installation should comply with IEC 60364-1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. OBJ_BUCH-1762-003.book Page 11 Wednesday, July 12, 2017 2:29 PM12 | English 1 609 92A 3ER | (12.7.17) Bosch Power Tools If the plug is damaged, pay attention to the following: Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide ad- equate protection against ingress of water, etc. and cable entries require effective sealing. Rubber shrouds should be provided over cable glands. Drip-proof (class IP X2 of BS 5490) plugs and sockets to BS 4343 are suitable for use indoors where the plug is away from the water spray area where the appliance is in use. Never touch the mains plug with wet hands. Do not pull plug while operating the device. Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Pro- tect the cable from heat, oil and sharp edges. Do not use the unit, if the power sup- ply cord or important parts, e. g. high-pressure hose, power gun or safety devices are damaged.

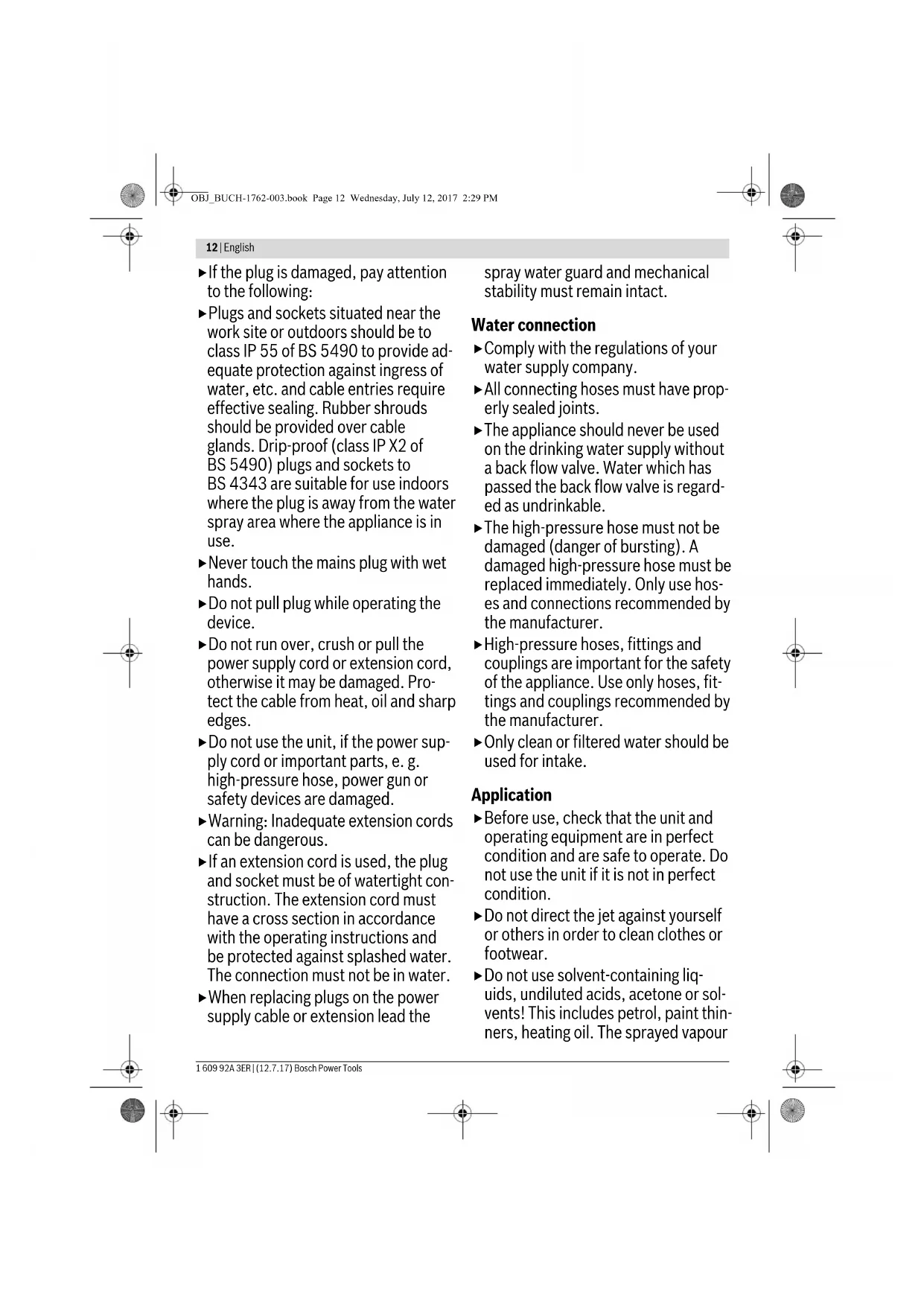

Warning: Inadequate extension cords

can be dangerous. If an extension cord is used, the plug and socket must be of watertight con- struction. The extension cord must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water. When replacing plugs on the power supply cable or extension lead the spray water guard and mechanical stability must remain intact. Water connection Comply with the regulations of your water supply company. All connecting hoses must have prop- erly sealed joints. The appliance should never be used on the drinking water supply without a back flow valve. Water which has passed the back flow valve is regard- ed as undrinkable. The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hos- es and connections recommended by the manufacturer. High-pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fit- tings and couplings recommended by the manufacturer. Only clean or filtered water should be used for intake. Application Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition. Do not direct the jet against yourself or others in order to clean clothes or footwear. Do not use solvent-containing liq- uids, undiluted acids, acetone or sol- vents! This includes petrol, paint thin- ners, heating oil. The sprayed vapour OBJ_BUCH-1762-003.book Page 12 Wednesday, July 12, 2017 2:29 PMEnglish | 13 Bosch Power Tools 1 609 92A 3ER | (12.7.17) is highly flammable, explosive and toxic. The appropriate safety regulations must be observed when using the unit in dangerous areas (e. g. petrol sta- tions). It is forbidden to operate the unit in potentially explosive locations. The unit must be placed on a solid base. Take care if using the machine in a confined space ensuring that there is adequate ventilation. Ensure that all vehicles are switched off at all times whilst cleaning. Operation of this machine requires both hands to be used at all times. Do not operate from a ladder. Take care when using the machine on balconies or other raised areas ensuring that you can see any edges at all times. Only use detergents recommended by the manufacturer. Comply with the application, disposal and warning instructions of the detergent manu- facturers. All current-conducting components in the working area must be protect- ed against splashed water. The gun trigger must not be jammed in position “ON” during operation. Wear suitable protective clothing to protect against splash water. Do not use the machine in reach of persons, unless these are also wearing protec- tive clothing. If necessary wear personal protective equipment (PPE) e. g. safety goggles, breathing protection etc to protect against water, particles and/or aero- sols sprayed back from parts. During use of high pressure clean- ers, aerosols may be formed. Inha- lation of aerosols can be hazardous to health. High pressure may cause objects to rebound. If necessary wear suitable personnel protective equipment such as safety goggles. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm in order to avoid damages by the high-pressure jet. The first indica- tion of damage is the discolouration of the tyre. Damaged vehicle tyres/tyre valves are dangerous to life. Materials containing asbestos and other materials which contain sub- stances which are hazardous to your health must not be sprayed. Detergents must not be used undilut- ed. The products are safe to use as they contain no acids, alkalis or sub- stances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash im- mediately with plenty of water and if swallowed contact a doctor immedi- ately. Never use the power washer with- out water filter, or with a contami- nated or damaged water filter. Us- ing the power washer without water filter or with a contaminated or dam- aged water filter shall void the war- ranty. OBJ_BUCH-1762-003.book Page 13 Wednesday, July 12, 2017 2:29 PM14 | English 1 609 92A 3ER | (12.7.17) Bosch Power Tools Metal parts may become hot after prolonged usage, if necessary wear protective gloves. Avoid high pressure washing in bad weather conditions especially when there is a risk of lightning. Operation The operator must use the unit in ac- cordance with the regulations. He/she must take local conditions in- to account and be aware of other peo- ple, especially children, when operat- ing the unit. The unit may only be used by author- ised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or juveniles (danger of accidents due to incorrect use of the unit). Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the ma- chine. Local regulations may restrict the age of the operator. Children should be supervised to en- sure that they do not play with the machine. The unit must never be left unsuper- vised while the unit is switched on. The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly with both hands. Transport Switch off the motor and secure the unit before transporting. Maintenance Switch off the unit prior to all cleaning and maintenance work and before re- placing components. Pull out the mains plug if the unit is mains-operat- ed. Repairs may only be carried out by authorised Bosch Service Centres. Accessories and spare parts Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safety and without any breakdowns. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner. Intended Use The product is intended for cleaning areas and objects out- side the house, tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch are used. Intended use is related to operation within 0°C and 40°C am- bient temperature. Symbol Meaning Movement direction Weight

Off Lo Low pressure Hi High pressure Accessories OBJ_BUCH-1762-003.book Page 14 Wednesday, July 12, 2017 2:29 PMEnglish | 15 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Technical Data Noise/Vibration Information Mounting and Operation Starting For Your Safety Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled. Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). For increased electrical safety use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. The supply cables must be inspected for signs of damage at regular intervals and may only be used if in perfect condition. Pressure washer GHP 5-14 GHP 6-14 Article number 3 600 J10 1.. 3 600 J10 2.. Rated power kW 2.4 2.6 Supply temperature max. °C 50 50 Supply rate min. l/min 8.3 10.5 Rated pressure MPa 14 14 Max. operating pressure MPa 15 15 Rated Flow l/min 8.3 10.5 Maximum inlet pressure MPa 1 1 Kickback force at the gun to the maximum pressure N 22.98 32.24 Motor insulation Class F Class F Motor protection IPX5 IPX5 Detergent tank

Net impedance Weight according to EPTA-Procedure 01:2014 kg 23.4 25.6 Protection class /I /I Serial number See serial number (rating plate) on pressure washer. The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.32 ohm. Sound emission values determined according to EN 60335-2-79. 3 600 ... J 10 1.. J10 2.. Typically the A-weighted noise levels of the product are: Sound pressure level Sound power level Uncertainty K Wear hearing protection! dB(A) dB(A)

(triax vector sum) and uncertainty K determined according to EN 60335-2-79: Vibration emission value a

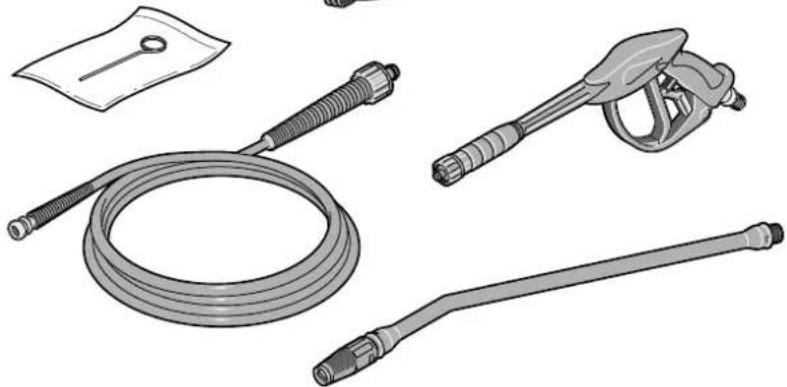

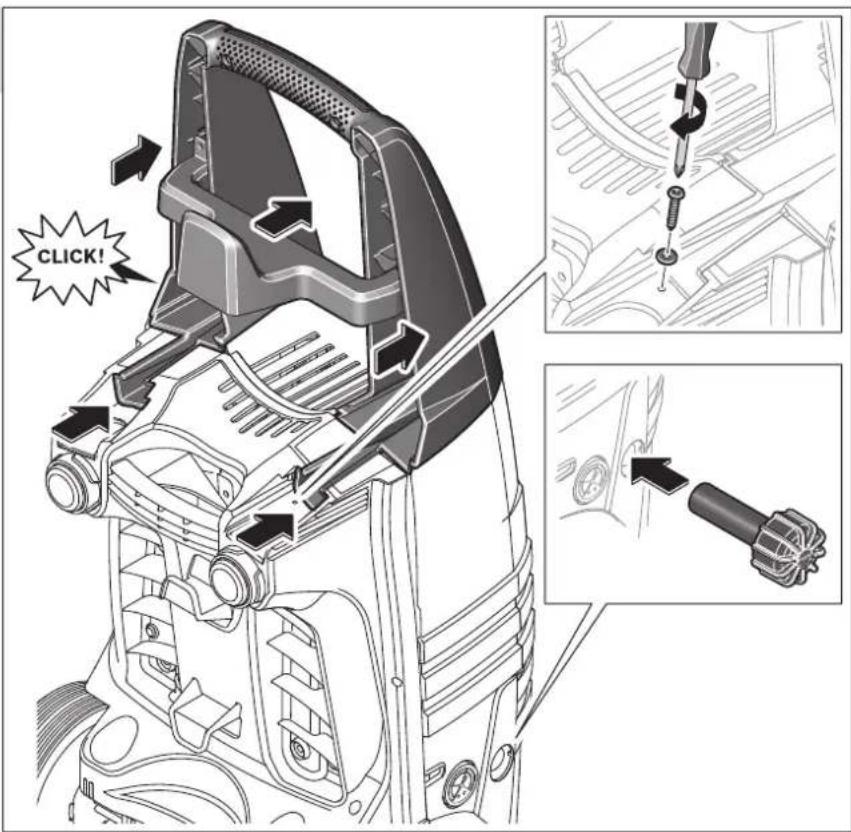

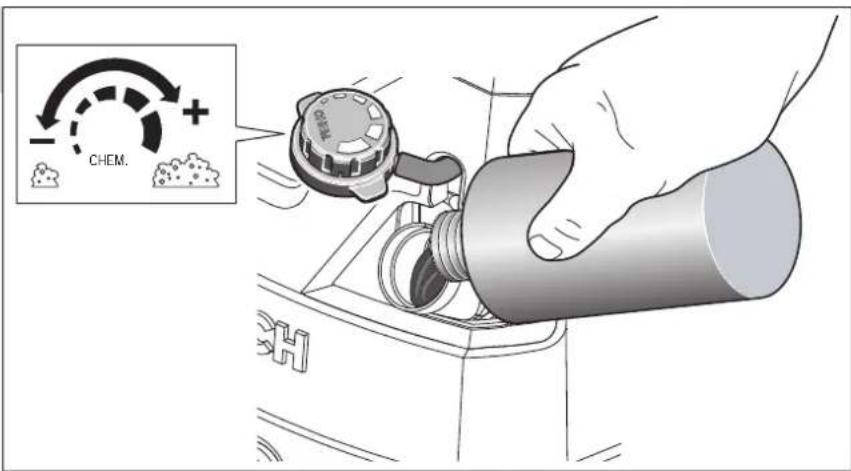

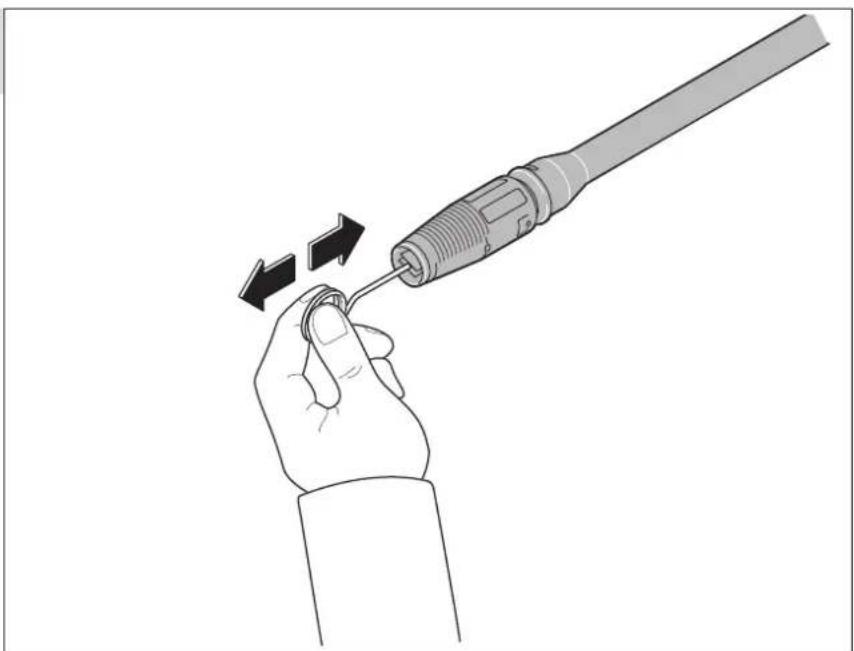

=4.91 =1.5 =4.91 =1.5 Action Figure Page Delivery Scope

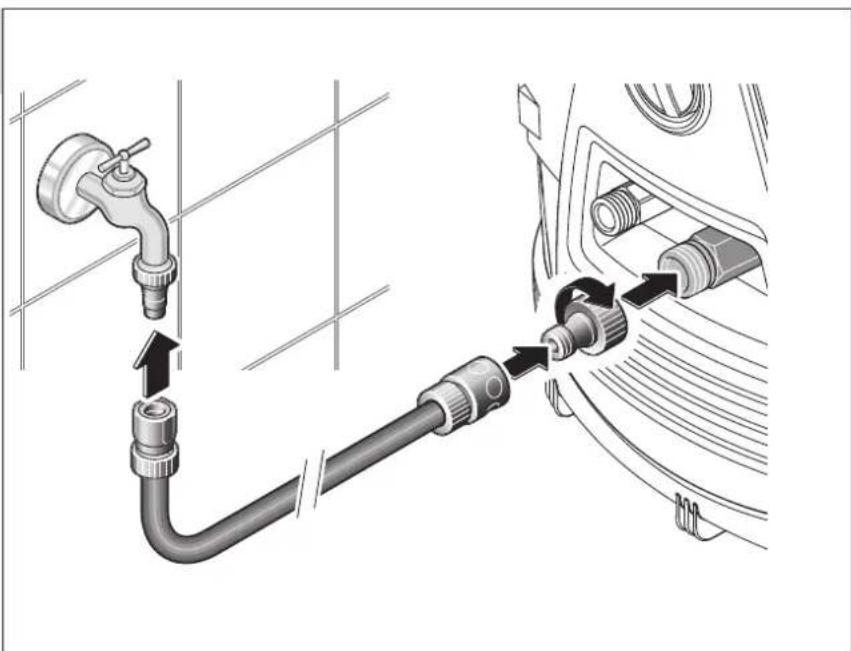

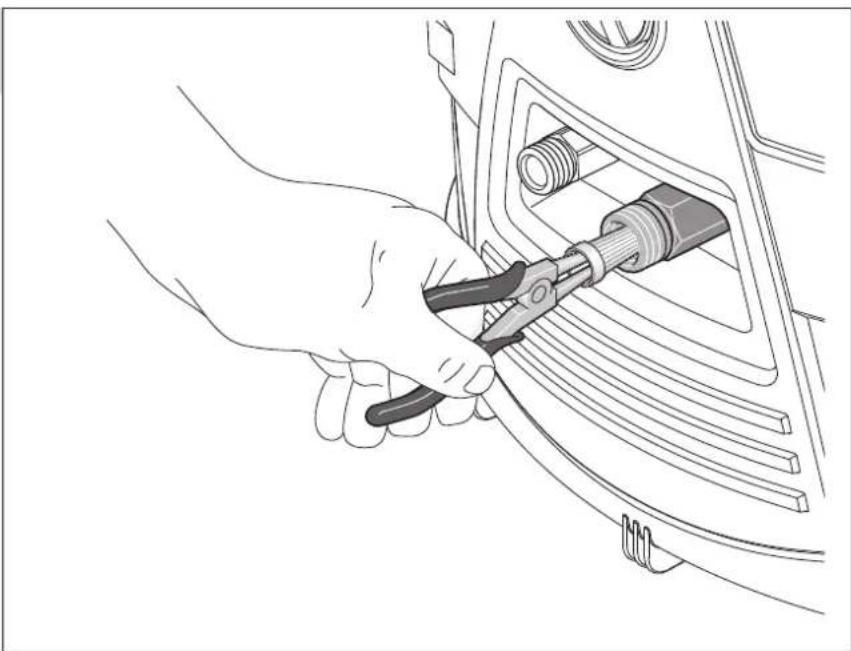

Connecting to the water supply

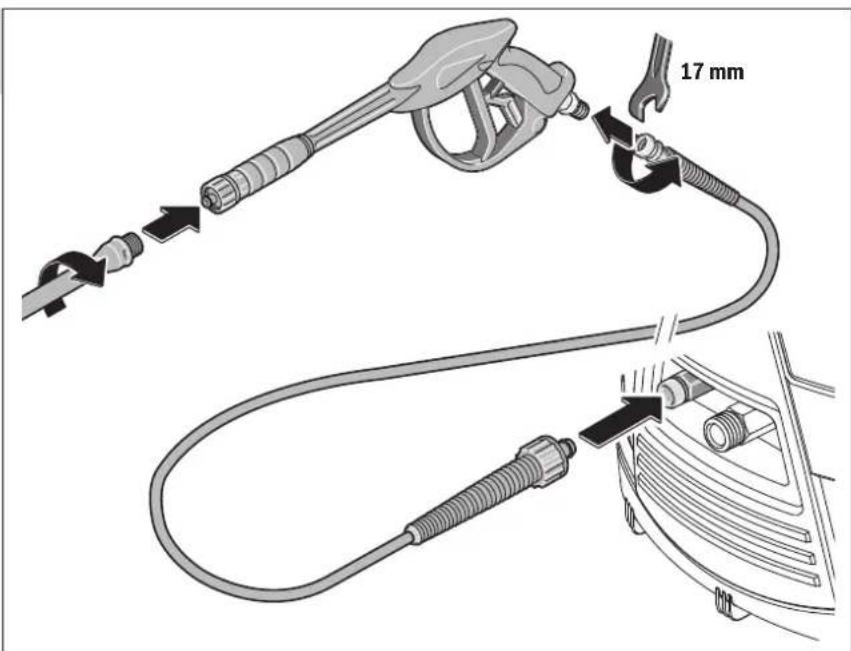

Connecting high pressure water supply hose/nozzle

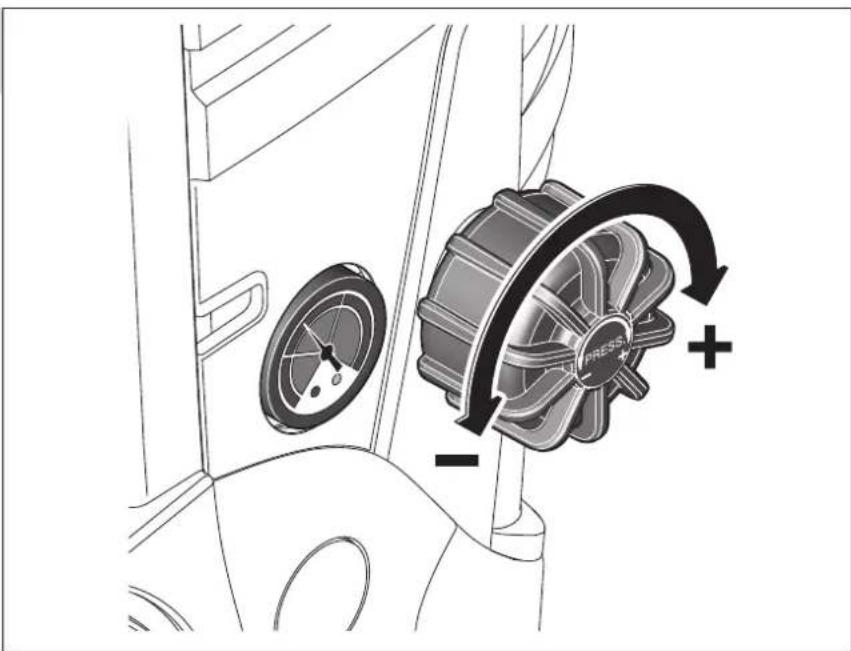

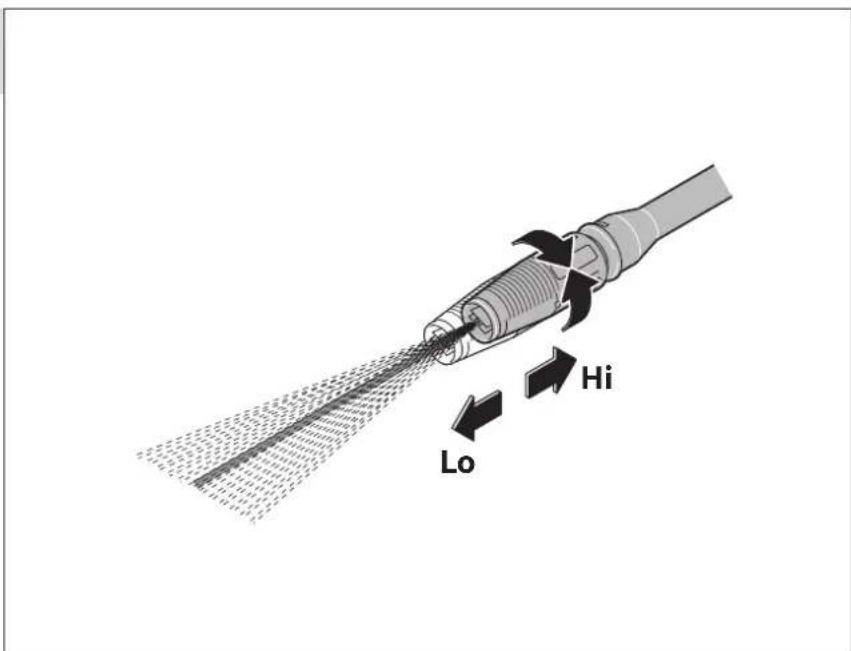

Adjust water pressure

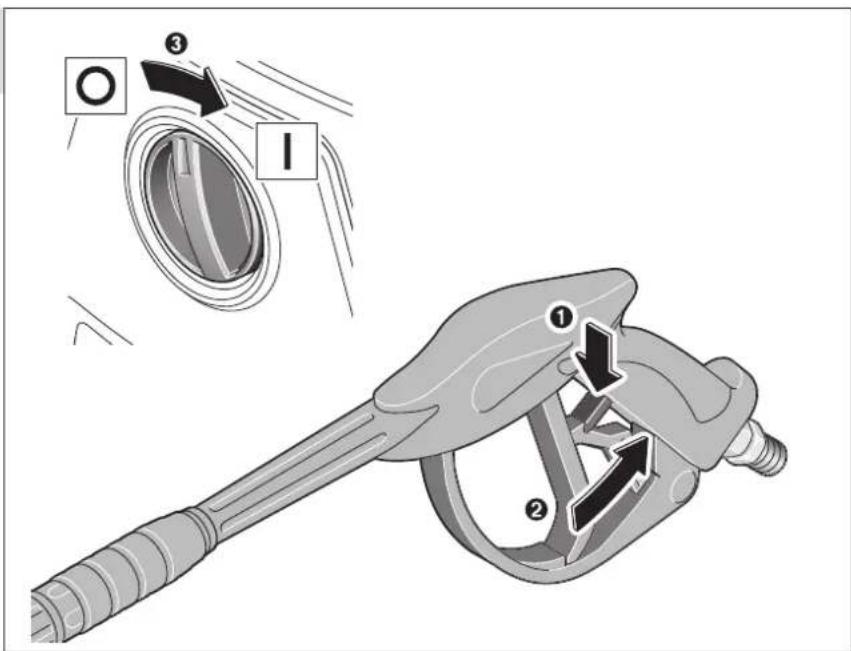

Switching On and Off

OBJ_BUCH-1762-003.book Page 15 Wednesday, July 12, 2017 2:29 PM Ω 0.32 0.3216 | English 1 609 92A 3ER | (12.7.17) Bosch Power Tools If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in or- der to avoid a safety hazard. Only use approved extension cables. WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and sock- et must be of watertight construction and in- tended for outdoor use. Extension cords, cables, leads, reels should only be used if they comply with EN 61242/IEC 61242 or IEC 60884-2-7. If you want to use an extension cable when operating your product, only the following cable dimensions should be used: – Nominal Conductor Area of 1.5mm

to a max. cable length of 20m for a Cord Extension Set The connections (plugs and sockets) should be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60 mm above the ground. Note: If an extension cable is used it must be earthed and con- nected through the plug to the earth cable of your supply net- work in accordance with prescribed safety regulations. Refer to the instruction manual of the extension cord, lead, reel manufacturer and your local wiring regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre. For products not sold in GB:

WARNING: For your safety, it is required that the plug at-

Central Motors & Equipment LLC 1984 :

OBJ_BUCH-1762-003.book Page 246 Wednesday, July 12, 2017 2:29 PM| 247 Bosch Power Tools 1 609 92A 3ER | (12.7.17)

OBJ_BUCH-1762-003.book Page 247 Wednesday, July 12, 2017 2:29 PM1 609 92A 3ER | (12.7.17) Bosch Power Tools 248 | 17 mm

OBJ_BUCH-1762-003.book Page 248 Wednesday, July 12, 2017 2:29 PM| 249 Bosch Power Tools 1 609 92A 3ER | (12.7.17)

OBJ_BUCH-1762-003.book Page 249 Wednesday, July 12, 2017 2:29 PM1 609 92A 3ER | (12.7.17) Bosch Power Tools 250 |
