USER MANUAL MZ 3395 CLATRONIC

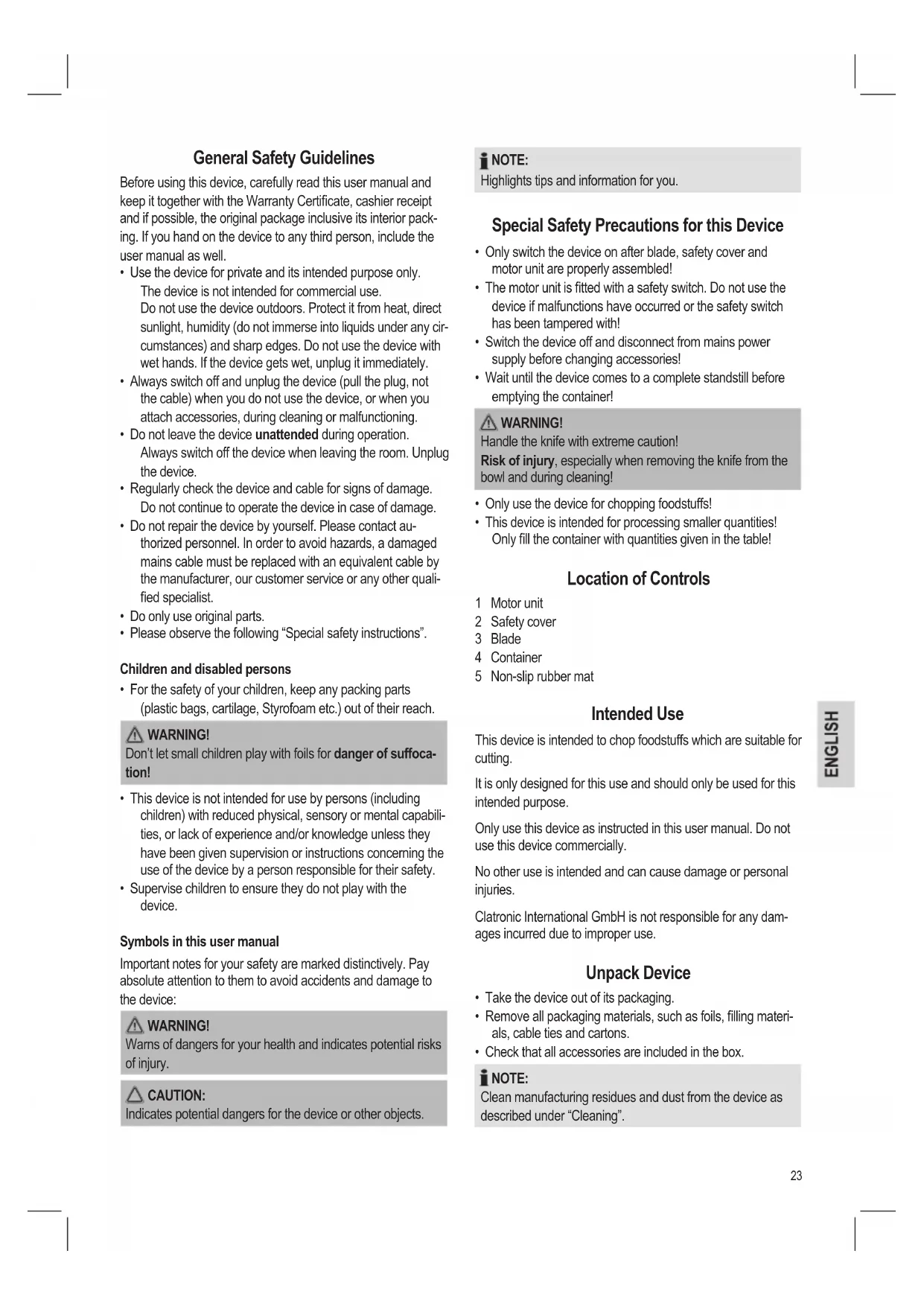

• Use the device for private and its intended purpose only. The device is not intended for commercial use. Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any cir- cumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.

• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.

• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.

• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.

• Do not repair the device by yourself. Please contact au- thorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other quali- ed specialist.

• Do only use original parts.

• Please observe the following “Special safety instructions”. Children and disabled persons

• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suffoca- tion!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabili- ties, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.

• Supervise children to ensure they do not play with the device. Symbols in this user manual Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device: WARNING! Warns of dangers for your health and indicates potential risks of injury. CAUTION: Indicates potential dangers for the device or other objects. NOTE: Highlights tips and information for you. Special Safety Precautions for this Device

• Only switch the device on after blade, safety cover and motor unit are properly assembled!

• The motor unit is tted with a safety switch. Do not use the device if malfunctions have occurred or the safety switch has been tampered with!

• Switch the device off and disconnect from mains power supply before changing accessories!

• Wait until the device comes to a complete standstill before emptying the container! WARNING! Handle the knife with extreme caution! Risk of injury, especially when removing the knife from the bowl and during cleaning!

• Only use the device for chopping foodstuffs!

• This device is intended for processing smaller quantities! Only ll the container with quantities given in the table! Location of Controls 1 Motor unit 2 Safety cover 3 Blade 4 Container 5 Non-slip rubber mat Intended Use This device is intended to chop foodstuffs which are suitable for cutting. It is only designed for this use and should only be used for this intended purpose. Only use this device as instructed in this user manual. Do not use this device commercially. No other use is intended and can cause damage or personal injuries. Clatronic International GmbH is not responsible for any dam- ages incurred due to improper use. Unpack Device

• Take the device out of its packaging.

• Remove all packaging materials, such as foils, lling materi- als, cable ties and cartons.

• Check that all accessories are included in the box. NOTE: Clean manufacturing residues and dust from the device as described under “Cleaning”.24 Start-Up

1. Place the rubber mat on a level, at surface. Place the

glass container on the rubber mat.

2. Carefully insert the blade (blades down) on the glass pin in

the centre of the container.

3. Empty the desired foodstuffs into the container.

NOTE: Do not overll the container; otherwise the foodstuffs cannot be properly chopped (quantities see table)!

4. Place the safety cover onto the container in such way that

the blade shaft rests in the recess. The safety cover is properly positioned if it cannot be moved. NOTE: Before use, always check that the silicone seal ts correctly.

5. Place the motor unit on the cover. In doing so, use the

recesses in the safety cover.

6. Electric Connection

Connect the mains plug to a properly installed and earthed 230V, 50Hz wall outlet. NOTE:

• The motor unit is tted with a safety switch.

• If the device cannot be switched on, check that the motor unit, safety cover and blade are tted correctly.

7. With one hand, press down on the motor unit while simulta-

neously pressing the LOW or HIGH button. LOW = low speed HIGH = high speed. The unit starts up. CAUTION: This device is suitable for short time operation of maxi- mum 20 seconds. Leave to cool down for at least 2 minutes before using the device again. NOTE: PULSE OPERATION: Briey press and release the switch for pulse operation. Use the device in this mode for maximum 1 minute. Leave to cool down for at least 2 minutes before using the device again!

8. After chopping, take your hand off the motor unit. Discon-

nect from mains power supply.

9. Remove the motor unit from the transparent container.

10. Lift off the safety cover and carefully remove the blade.

11. Now you can empty the contents in the transparent con-

tainer. Crushing ice: The blade is suitable for crushing ice cubes. Fill the container no higher than the 0.75 marking with ice cubes. Only crush ice cubes in pulse mode. Table Food Preparation Max. Quantity Max. Duration Boiled eggs Shelled, quartered 300g (1/4 pieces) 10 sec Herbs 150g 15 sec or pulse Walnuts / hazelnuts Without nutshells! 200g 15 sec Almonds Without shells! 200g 15 sec Garlic Peeled 200g 15 sec or pulse Onions 2 cm cubes 250g 5-10 sec or pulse Parsley Wash, destalk 30g 10 sec Bread (breadcrumbs) 2 cm cubes 40g 15 sec or pulse Meat 2 cm cubes, without bones, skin and sinews! 250-400g 15 sec or pulse Parmesan cheese 1 cm cubes 100g 15-20 sec Cooking chocolate 1 cm cubes ice cold 100g Max. 20 sec or pulse Obviously, you can chop other foodstuffs as well. Compare with the hardness of the foodstuffs in this table to nd out the approximate chopping time; i.e. an apple is about as hard as an onion. In this case follow the instructions in the table for “onions”. Cleaning and Storage WARNING!

• After use and before cleaning always disconnect from mains power supply!

• Do not submerge the motor unit in water!

• The blade is very sharp. Risk of injury! Handle the blade with extreme care! CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.

• Do not use aggressive or abrasive cleaning agents.

• Clean the motor unit with a dry cloth without additional cleaning agents. Transparent Container, Safety Cover, Blade and Black Rubber Mat CAUTION:

• Do not wash these accessories in the dishwasher.

• The surfaces may become dull.25

• Wash these accessories manually in dishwater.

• Rinse with clear water and dry with a cloth.

• Assemble the Multi Chopper before storage. Troubleshooting Device does not work. Solution: Check mains power connection. Further possible causes: The device is tted with a safety switch. This prevents accidental starting of the motor. Solution: Check that the motor unit, safety cover and blade are tted correctly. Noise Emission The sound pressure level was measured close to the ear of an operator (LpA) according to DIN EN ISO 3744. Resulting sound pressure level: 83.0 dB(A) (no limit) Technical Specications Model: ............................................................................. MZ 3395 Power supply: ...........................................................230 V, 50 Hz Power consumption: ........................................................... 200 W Protection class: .......................................................................... II Short term operation:......................................................... 20 sec. Capacity: ..................................................................approx. 1 litre Net weight: .........................................................................1.55 kg Subject to change without prior notice! This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations. Meaning of the “Wheelie Bin” Symbol Take care of our environment, do not dispose of electrical ap- plicances via the household waste. Dispose of obsolete or defective electrical appliances via municipal collection points. Please help to avoid potential environmental and health impacts through improper waste disposal. You contribute to recycling and other forms of utilization of old electric and electronic appliances. Your municipality provides you with information about collecting points.26
