USER MANUAL Tassimo TAS4016 BOSCH

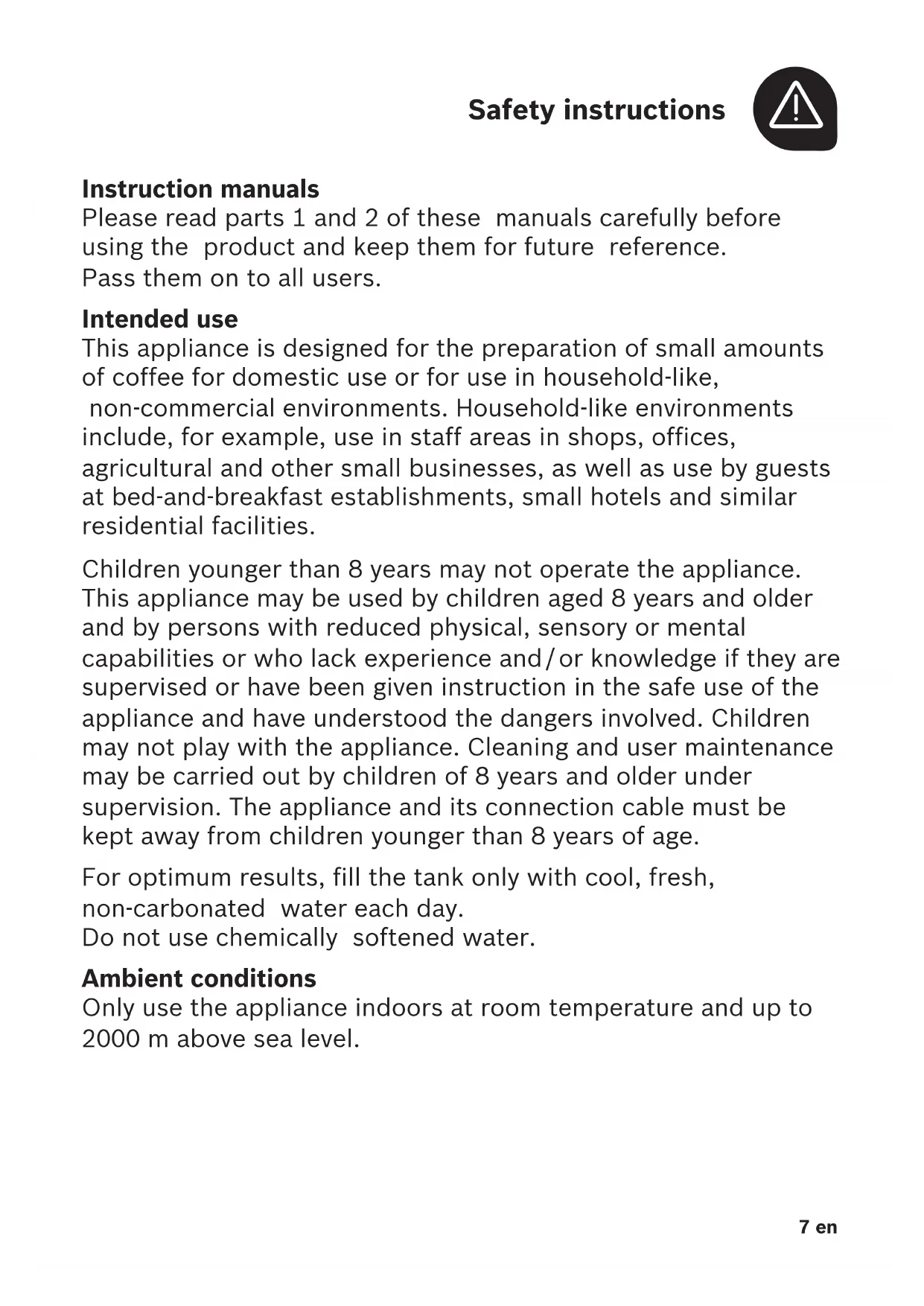

A Instruction manuals

Please read parts 1 and 2 of these manuals carefully before

using the product and keep them for future reference.

Passthemon to all users.

This appliance is designed for the preparation of small amounts

of coffee for domestic use or for use in household-like,

non-commercial environments. Household-like environments

include, for example, use in staff areas in shops, offices,

agricultural and other small businesses, as well as use by guests

at bed-and-breakfast establishments, small hotels and similar

residential facilities.

Children younger than 8 years may not operate the appliance.

This appliance may be used by children aged 8 years and older

and by persons with reduced physical, sensory or mental

capabilities or who lack experience and / or knowledge if they are

supervised or have been given instruction in the safe use of the

appliance and have understood the dangers involved. Children

may not play with the appliance. Cleaning and user maintenance

may be carried out by children of 8 years and older under

supervision. The appliance and its connection cable must be

kept away from children younger than 8 years of age.

For optimum results, fill the tank only with cool, fresh,

non-carbonated water each day.

Do not use chemically softened water.

Only use the appliance indoors at room temperature and up to

Operate and connect the appliance only in accordance with

theinstructions given on the nameplate.

Only use your TASSIMO appliance if the power cable and

appliance show no signs of damage.

Disconnect the appliance from the mains as soon as a fault is

Any repairs, such as replacing a damaged power cable, may only

be carried out by our Customer Services team in order to avoid

Never attempt to open the brewing unit during operation.

Pleasenote that any escaping liquids will be very hot.

TheTDISC, the piercing unit and the beverage outlet may be

very hot immediately after brewing. Allow to cool first.

Do not use TDISCs that are damaged.

Only use each TDISC once.

Risk of electric shock!

Before cleaning, switch off the appliance using the On / Off

switch and disconnect from the mains.

Never immerse the appliance or power cable in water.

Under no circumstances should you drink the descaling liquid.

You should switch off your TASSIMO appliance after every use in

order to save energy.9 en

B Before reading on, please unfold the illustrations page at the start of the booklet.

d TDISC reading window

5 Removable water tank

d Lid for water tank

6 Storage compartment

a Yellow Service TDISC

(removable and height adjustable)

a Height adjustment with drip grate

8 Cord storage compartment

Dispose of packaging in an environmen-

tally-friendly manner. This appliance is

labelled in accordance with European

Directive 2012/19/EG concerning

used electrical and electronic appli-

ances (waste electrical and electronic

equipment – WEEE). The guideline

determines the framework for the return

and recycling of used appliances as

applicable throughout the EU.

Please ask your specialist retailer about

current disposal facilities.

I Bosch is the manufacturer of the

TASSIMO machine. Therefore, it cannot

provide any delivery guarantee for the

TASSIMO TDISCs are available from

specialist retailers.

Or visit www.tassimo.com to discover the

large variety of beverages available and to

order your discs online.10en

The following table contains solutions to problems or faults which may occur during

operation of the appliance and that can be easily rectified at home. If you are not satis-

fied with the solutions provided here, please contact our Customer Service department.

Further customer service information can also be found online: www.tassimo.com

Problem Cause Solution

The appliance is not

working and none of the

display elements (LEDs)

The appliance has no

Check to see whether the appliance is con

nected to the mains.

Make sure the appliance has been switched on.

The water tank is not

Check that the water tank is correctly inserted.

brewing stage or there is

Start the cleaning process with the yellow

Service TDISC. Please refer here to the section

â First Time Use, Steps 2 – 14.

The float in the water

Clean the water tank and free the float.

The brewing will not

No TDISC inserted. Check that a TDISC has been inserted.

The appliance does not

recognise the TDISC bar

Clean the TDISC reading window with a soft,

Smooth out the foil of the TDISC with your

finger so that the bar code can be read.

If the problem persists, contact the TASSIMO

The brewing unit is not

Clean the brewing unit with a soft, damp cloth,

paying particular attention to the lid area.

not switched on when

inserting the TDISC.

Switch on the appliance before inserting the

TDISC The brewing unit cannot

The piercing unit and/

or the TDISC support

have not been correctly

Press the piercing unit into its holder using

both thumbs and check the position of the

The TDISC has not been

Replace the damaged TDISC with a new one.

Place the TDISC with the printed side facing

downwards so that the tab is resting in the

The brewing unit is not

Clean the brewing unit with a soft, damp cloth,

paying particular attention to the lid area.

Press the lid down until it audibly clicks into

water in the water tank.

Fill the tank with cold, fresh water as far as the

max mark. Reinsert the water tank.

Fill water tankR lights

up even though there

is enough water in the

The float in the water

Clean the water tank and free the float.

The water tank is not

Check that the water tank has been correctly

Fill water tank R and

Descale Q are flashing

simulta neously and it is

not possible to prepare

There is a fault on the

Turn the machine off using the On / Off switch,

wait approximately 5 minutes and turn the

machine back on. If R and Q are still flashing,

please contact the TASSIMO careline.

Descale Q lights up or

The appliance needs to

Descale the appliance. Please refer here to the

section áDescaling.

or starts flashing even

though decalcified water

Even decalcified water

contains low amounts of

Descale the appliance. Please refer here to the

mode is skipped; the

“Manual” mode appears

The bar code reader was

unable to recognise the

Clean the bar code reading window.

You can still prepare the beverage regardless by

pressing and holding the Start / Stop button.

The quality of the crema

The beverage outlet is

Clean the beverage outlet. Please refer here to

the section àCleaning.

Clean the brewing unit with the yellow

ServiceTDISC. Please refer here to the section

Build-up of limescale in

Descale the appliance. Please refer here to the

section áDescaling.

Water is dripping from

The TDISC is damaged

The TDISC has not been

Do not use TDISCs that are damaged.

Only use each TDISC once.

he brewing stage has come to

an end and the appliance has cooled down.

Remove the TDISC and clean the brewing unit.

Please refer here to the section àCleaning.

The piercing unit has not

been inserted correctly.

Press the piercing unit into its holder using

both thumbs (until an audible click is heard).

On the surface below

the cup stand there is

This is condensation. Condensation may appear and is not caused

by any fault with the appliance. Wipe the water

TDISC is damaged or

The yellow Service TDISC can be requested

from Bosch Customer Services (item no.

621101, contact information included at the

end of these instructions).

The beverage quantity

ery beverage selected.

This volume can also

be adapted to personal

During the brewing process, press the

art / Stop button to interrupt this stage.

Press and hold the Start / Stop button until the

uired beverage quantity has been reached.

Build-up of limescale

in the appliance could

cause reduced quantity.

Descale the appliance. Please refer here to the

section áDescaling.13 fr
