USER MANUAL Z87M Extreme4 ASROCK

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

QR code image containing encoded data, no visible human-readable text

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive, DTS Neo:PC are trademarks of DTS, Inc. Product includes software.

© DTS, Inc., All Rights Reserved.

Connect

Interactive

Neo:PC

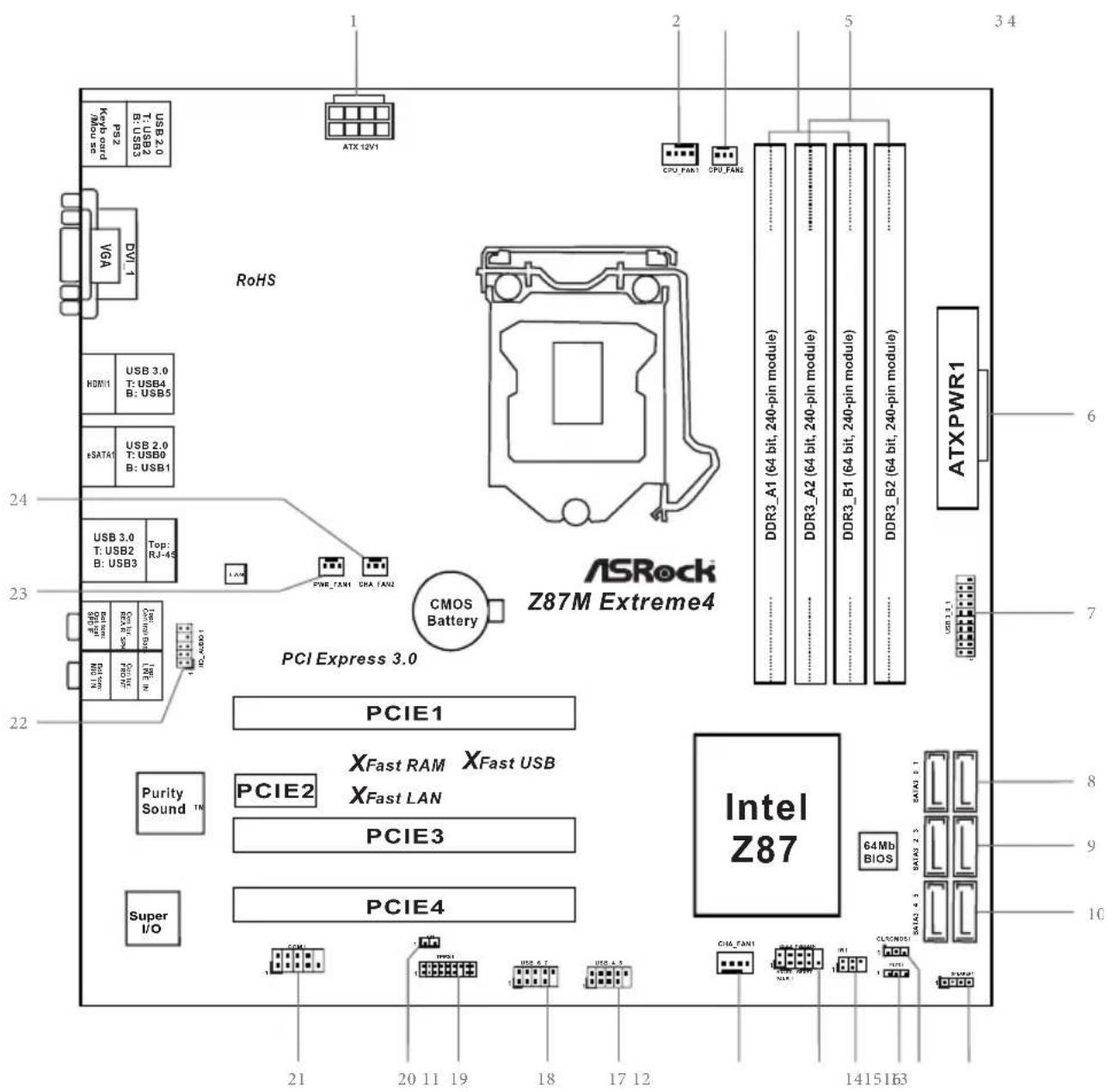

Motherboard Layout

RoHS ASRock Z87M Extreme4 PCI Express 3.0 PCIE1 Purity Sound Super I/O XFast RAM XFast USB XFast LAN PCIE2 PCIE3 PCIE4 Intel Z87 ATXPWR1 ATX 12V1 CPU_FAN1 CPU_FAN2 DDR3_A1 (64 bit, 240-pin module) DDR3_A2 (64 bit, 240-pin module) DDR3_B1 (64 bit, 240-pin module) DDR3_B2 (64 bit, 240-pin module) 64MB BIOS 64MB 2.3 CLCNOSI CIN_FAN1 NLS INTL 1415163 21 20 19 18 17 12 24 23 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 CPU Fan Connector (CPU_FAN2)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
5 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)
6 ATX Power Connector (ATXPWR1)
7 USB 3.0 Header (USB3_0_1)
8 SATA3 Connectors (SATA3_0_1)
9 SATA3 Connectors (SATA3_2_3)
10 SATA3 Connectors (SATA3_4_5)
11 Chassis Speaker Header (SPEAKER1)
12 Clear CMOS Jumper (CLRCMOS1)
13 Power LED Header (PLED1)
14 Infrared Module Header (IR1)
15 System Panel Header (PANEL1)
16 Chassis Fan Connector (CHA_FAN1)
17 USB 2.0 Header (USB4_5)
18 USB 2.0 Header (USB6_7)

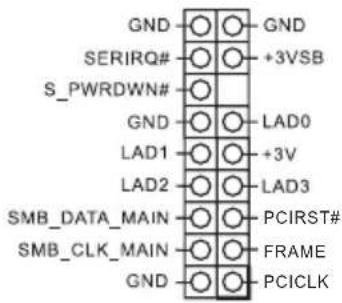

19 TPM Header (TPMS1)
20 Chassis Intrusion Header (CI1)
21 COM Port Header (COM1)
22 Front Panel Audio Header (HD_AUDIO1)
23 Power Fan Connector (PWR_FAN1)
24 Chassis Fan Connector (CHA_FAN2)

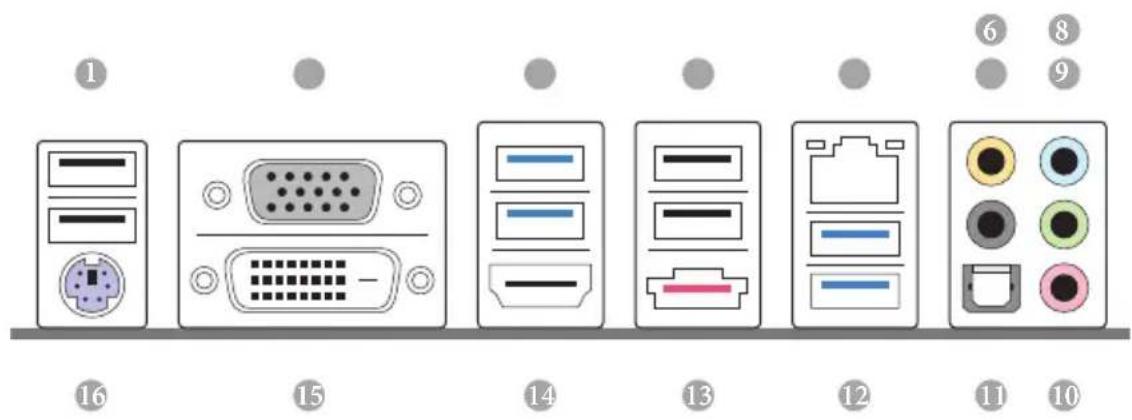

I/O Panel

1 16 15 14 13 12 11 10 6 8 9

No. Description No. Description

1 USB 2.0 Ports (USB23) 9 Front Speaker (Lime)**

2 VGA Port 10 Microphone (Pink)

3 USB 3.0 Ports (USB3_45) 11 Optical SPDIF Out Port

4 USB 2.0 Ports (USB01) 12 USB 3.0 Ports (USB3_67)

5 LAN RJ-45 Port* 13 eSATA Connector***

6 Central / Bass (Orange) 14 HDMI Port

7 Rear Speaker (Black) 15 DVI-D Port

8 Line In (Light Blue)

16 PS/2 Mouse/Keyboard Port

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED SPEED LED LAN Port

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	1Gbps connection

** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels	Front Speaker (No. 9)	Rear Speaker (No. 7)	Central / Bass (No. 6)	Line In (No. 8)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox", click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.

*** The eSATA connector supports SATA3 with cables within 1 meters.

Chapter 1 Introduction

Thank you for purchasing ASRock Z87M Extreme4 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

1.2 Specifications

Platform

quality Conductive Polymer Capacitors)

A-Style

'TM

CPU

Pentium ^® / Celeron ^® in LGA1150 Package

^2 Turbo Boost 2.0 Technology

^° K-Series unlocked CPU

Chipset

Z87

Memory

1866(OC)/1600/1333/1066 non-ECC, un-buffered memory

(see CAUTION)

Extreme Memory Profile (XMP)1.3/1.2

Expansion

Slot

(PCIE1) or dual at x8/x8 mode)

CrossFireX ^TM

^TM , 3-Way CrossFireX ^TM and

^TM and SLI^TM

Graphics

be supported only with processors which are GPU integrated.

Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

2K (4096x2304) @ 24Hz

60Hz

60Hz

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

and HDMI ports

Audio

Audio Codec)

• 115dB SNR DAC with differential amplifier
• TI® NE5532 Premium Headset Amplifier (supports up to 600 Ohms headsets)
• Direct Drive Technology
• EMI shielding cover
• PCB isolate shielding

LAN

Rear Panel I/O

LED)

Speaker / Microphone

Storage

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and Intel Smart Response Technology), NCQ, AHCI and "Hot Plug" functions (SATA3_1 connector is shared with eSATA port)

Connector

BIOS

Feature

ment

Support

CD

berLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8, MeshCentral, Splashtop Streamer, Intel® Extreme Tuning Utility (IXTU)

Hardware

Monitor

Adjust by CPU Temperature)

OS

Certifica-

tions

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.

ASRock Instant Flash

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing or during POST to enter the BIOS setup menu to access ASRock Instant Flash. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

ASRock APP Charger

Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

ASRock XFast USB

ASRock XFast USB can boost the performance of your USB storage devices. The performance may depend on the properties of the device.

ASRock XFast LAN

ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application's priority ideally and add new programs to the list. Lower Latency in Game: After setting online game's priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.

ASRock XFast RAM

ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock Internet Flash

ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows OS. Please setup network configuration before using Internet Flash.

ASRock UEFI System Browser

ASRock System Browser shows the overview of your current PC and the devices connected.

ASRock Dehumidifier Function

Users may prevent motherboard damages due to dampness by enabling "Dehumidifier Function". When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID driver from the support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change “SATA Mode” to “RAID”, then you can start installing the OS in RAID mode.

ASRock Easy Driver Installer

For users that don't have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.

ASRock Interactive UEFI

ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and more amusement.

ASRock Fast Boot

With ASRock's exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock Restart to UEFI

Windows® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.

ASRock Good Night LED

ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/HDD LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and Keyboard LEDs when the system enters into Standby/Hibernation mode as well.

ASRock USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!

ASRock Home Cloud

This motherboard supports remote wake with the onboard Intel LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.

Chapter 2 Installation

This is an Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Failure to do so may cause physical injuries to you and damages to motherboard components.

NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

in the bag that comes with the components.

tighten the screws! Doing so may damage the motherboard.

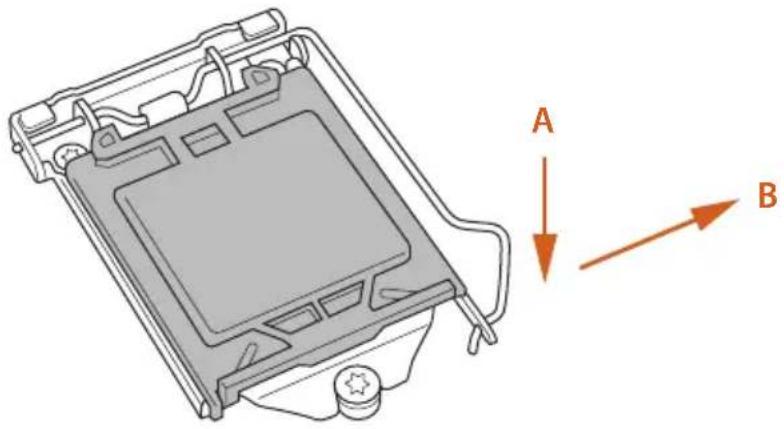

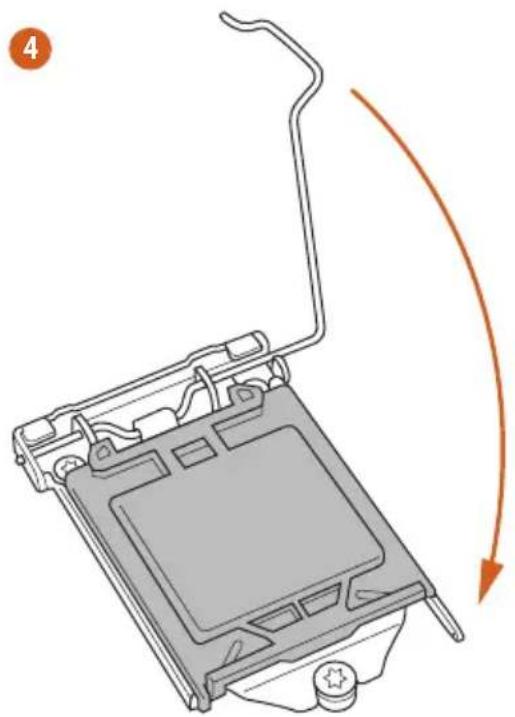

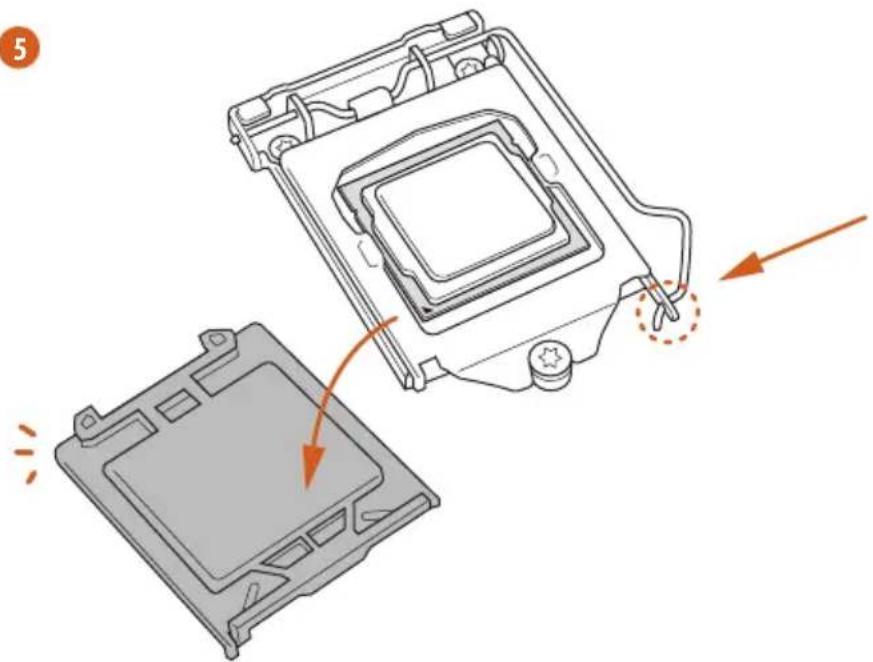

2.1 Installing the CPU

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

Technical line drawing of a mechanical component with labeled directional arrows (A and B), no readable text or symbols beyond labels

2

Technical line drawing of a mechanical device with internal components and an orange curved arrow indicating rotation (no text or symbols)

3

Technical diagram of a computer processor internal structure showing mounting holes and internal components (no text or labels)

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

5

Technical diagram showing a computer processor's internal structure with highlighted components and directional arrows indicating motion or assembly.

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

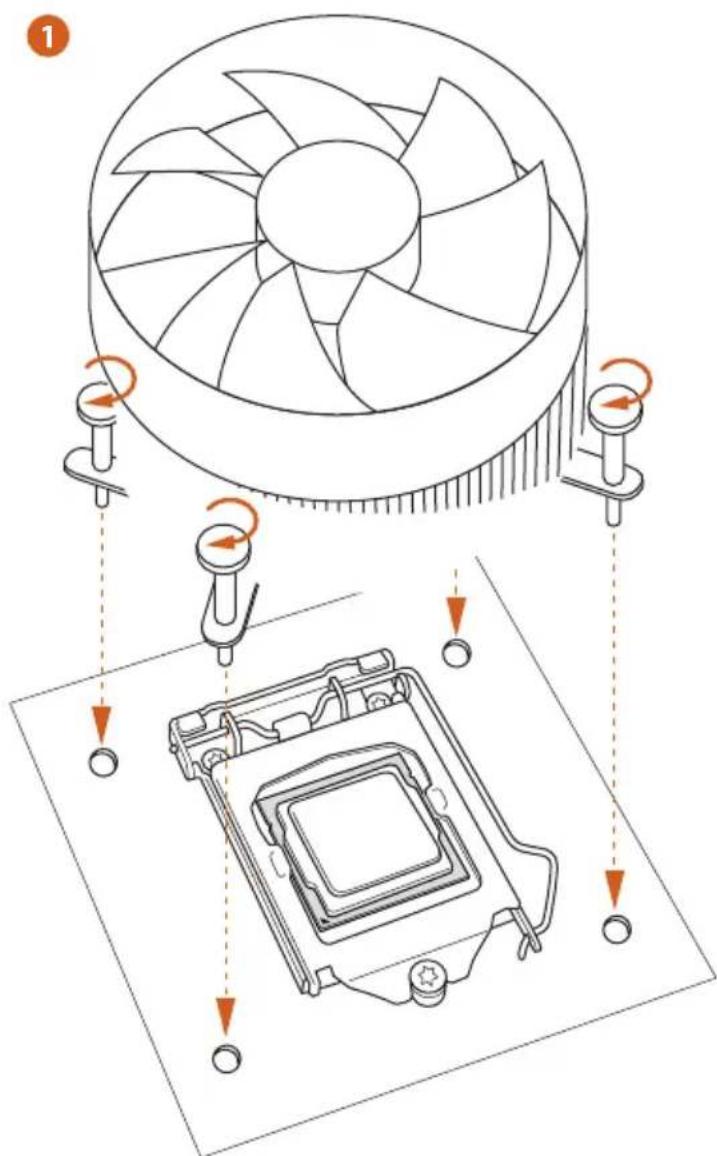

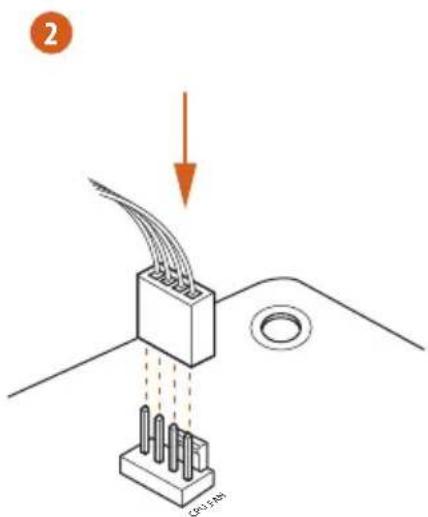

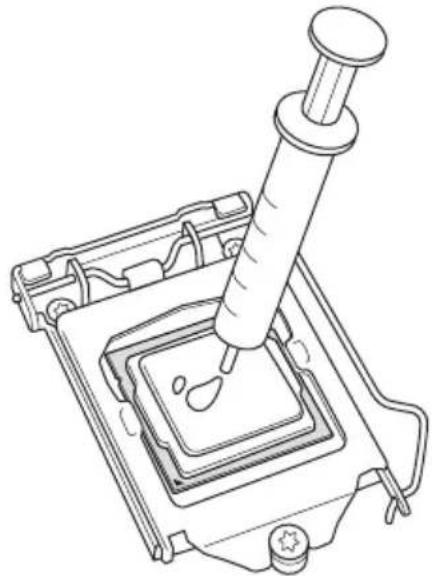

2.2 Installing the CPU Fan and Heatsink

Technical line drawing of a mechanical assembly with a pipette inserted into a square component (no text or symbols)

Diagram illustrating the installation of a CPU fan with cooling mechanism, showing fan blade and heatsink components.

2 Cass 3 PS

2.3 Installing Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

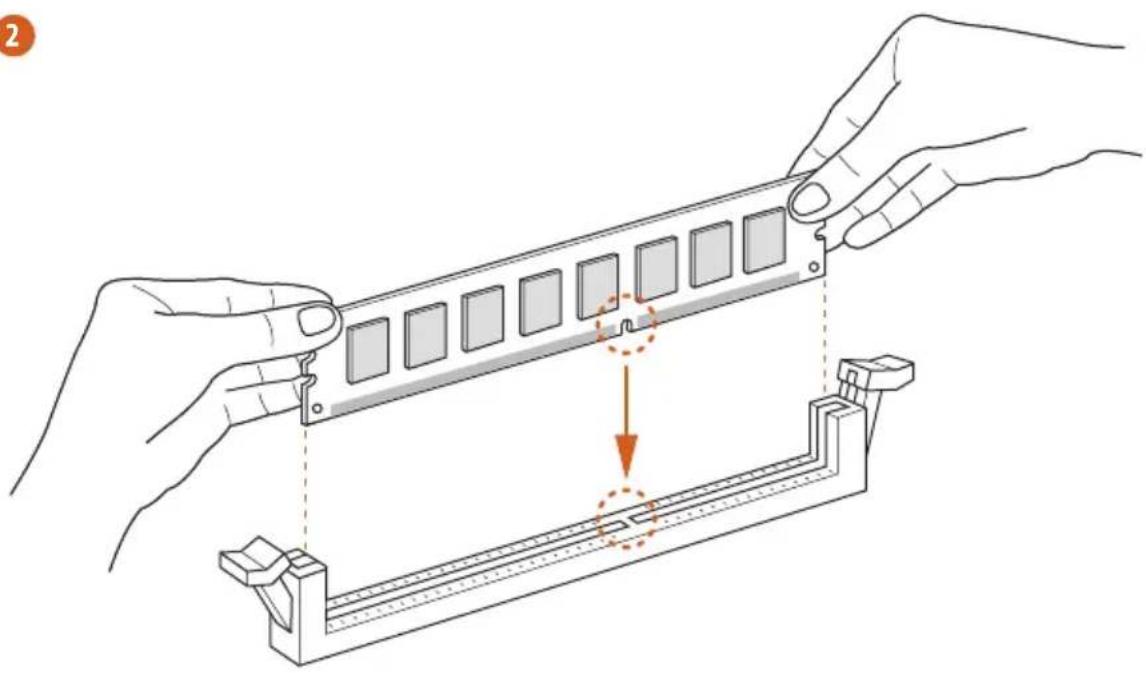

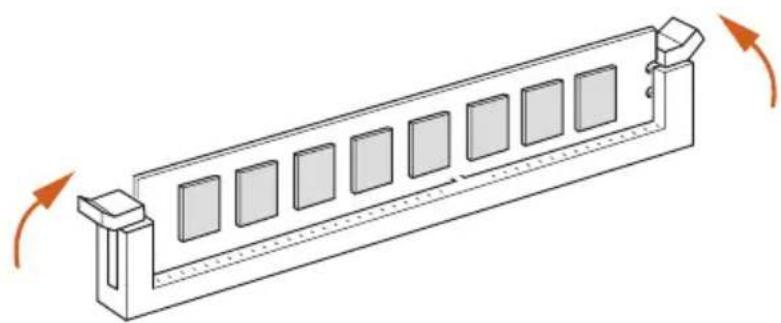

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

2

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

3

Isometric line drawing of a rectangular electronic component with multiple slots and a base, showing rotational arrows (no text or symbols)

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 4 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Configurations

PCIE1 PCIE3 PCIE4

Single Graphics Card x16 N/AN/A

Two Graphics Cards in CrossFireX ^TM or SLI ^TM Mode

x8 x8 N/A

Three Graphics Cards in 3-Way CrossFireX ^TM Mode

x8 x4 x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1 or CHA_FAN2) when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Short Open 1 2 3

Clear CMOS Jumper (CLRCMOS1)

(see p.1, No. 12)

Default

Clear CMOS

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

1. The Clear CMOS Switch has the same function as the Clear CMOS jumper.
2. If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No. 15)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Power LED Header(3-pin PLED1)(see p.1, No. 18)		Please connect the chassis power LED to this header to indicate the system's power status.
Serial ATA3 Connectors(SATA3_0_1:see p.1, No. 8)(SATA3_2_3:see p.1, No. 9)(SATA3_4_5:see p.1, No. 10)		These six SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. If the eSATA port on the rear I/O has been connected, the internal SATA3_1 will not function.
USB 2.0 Headers(9-pin USB4_5)(see p.1, No. 17)(9-pin USB6_7)(see p.1, No. 18)		Besides two USB 2.0 ports on the I/O panel, there are three headers on this motherboard. Each USB 2.0 header can support two ports.
USB 3.0 Headers(19-pin USB3_4_5)(see p.1, No. 7)		Besides four USB 3.0 ports on the I/O panel, there are one header on this motherboard. Each USB 3.0 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 22)

OUT_RET OUT2_L J_SENSE MIC_RED OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1, No. 11)

DUMMY SPEAKER

Please connect the chassis speaker to this header.

Chassis and Power Fan

Connectors

(4-pin CHA_FAN1)

(see p.1, No. 16)

(3-pin CHA_FAN2)

(see p.1, No. 24)

GND +12V CHA_FAN_SPEED FAN_SPEED_CONTR OL

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(3-pin PWR_FAN1)

(see p.1, No. 23)

CPU Fan Connectors

(4-pin CPU_FAN1)

(see p.1, No. 2)

(3-pin CPU_FAN2)

(see p.1, No. 3)

This motherboard pro-

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 6)

This motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, No. 1)

This motherboard pro-

vides an 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

Infrared Module Header

(5-pin IR1)

(see p.1, No. 14)

This header supports an optional

wireless transmitting and

receiving infrared module.

Serial Port Header

(9-pin COM1)

(see p.1, No. 21)

RRXD1 DDTR#1 DDSR#1 CCTS#1 RRI#1 RRTS#1 GND TTXD1 DDCD#1

This COM1 header

supports a serial port

module.

Chassis Intrusion Header (2-pin CI1) (see p.1, No. 20)

This motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header (17-pin TPMS1) (see p.1, No. 19)

GND SERIRQ# S_PWRDWN# GND LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN GND +3VSB LAD0 +3V LAD3 PCIRST# FRAME PCICLK

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

1 Einleitung

* Extreme Memory Profile (XMP)1.3/1.2

Erweiter-

ungssteck-

- Direct Drive Technology

Serial-ATA-III-Anschlüsse

(SATA3_0_1:

siehe S. 1, Nr. 8)

(SATA3_2_3:

siehe S. 1, Nr. 9)

(SATA3_4_5:

siehe S. 1, Nr. 10)

SATA3_0_1SATA3_4_5 SATA3_2_3 PLED- PLED+ PLED+ SATA3_0_1SATA3_4_5 SATA3_2_3

Bitte verbinden Sie

die Betrieb-LED des

* Extreme Memory Profile (XMP)1.3/1.2

Fente

d'expansion

* K-Series unlocked CPU

Chipset

^* Z87

Memoria

(OC)/1866 (OC)/1600/1333/1066 non ECC, senza buffer

* Extreme Memory Profile (XMP)1.3/1.2

Slot di

espansione

(OC)/2400(OC)/2133(OC)/1866 (OC)/1600/1333/1066

la ADVERTENCIA)

Intel ^®

Ranura de expansión

(PCIE1) o dual a modo x8/x8)

^TM , 3-Way

CrossFireX ^TM y CrossFireX ^TM

^TM y SLI ^TM

Gráficos

Blank white image with no visible content, text, or symbols

TM

TM

TM

TM

TM

4400/4600

C

LAN

OS

1.3 ジャンパー設定

Short Open 1 2 3

(CLRCMOS1)

1. 2.

* Extreme Memory Profile (XMP)1.3/1.2

扩充槽

双 - x8/x8 模式)

CrossFireX ^TM

(Voltage Multi-adjustment)

支持光盘

MediaEspresso 6.5 试用版、Google Chrome 浏览器和工具栏、Start8、MeshCentral、Splashtop Streamer、Intel® Extreme Tuning Utility (IXTU)

硬件监控

扇速度）

操作系统

认证

^° K-Series unlocked CPU

晶片組

^* Z87

記憶體

* Extreme Memory Profile (XMP)1.3/1.2

擴充插槽

或雙 x8/x8 模式）

^TM 、3-Way CrossFireX ^TM 及

CrossFireX ^TM

^TM 及 SLI^TM

顯示卡

* Extreme Memory Profile (XMP)1.3/1.2

Slot Ekspansi

Short Open

Clear CMOS Jumper (CLRCMOS1) (lihat hal. 1, No. 12)

RESET (Switch Atur Ulang):

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]
