USER MANUAL BLADE ECOFLOW

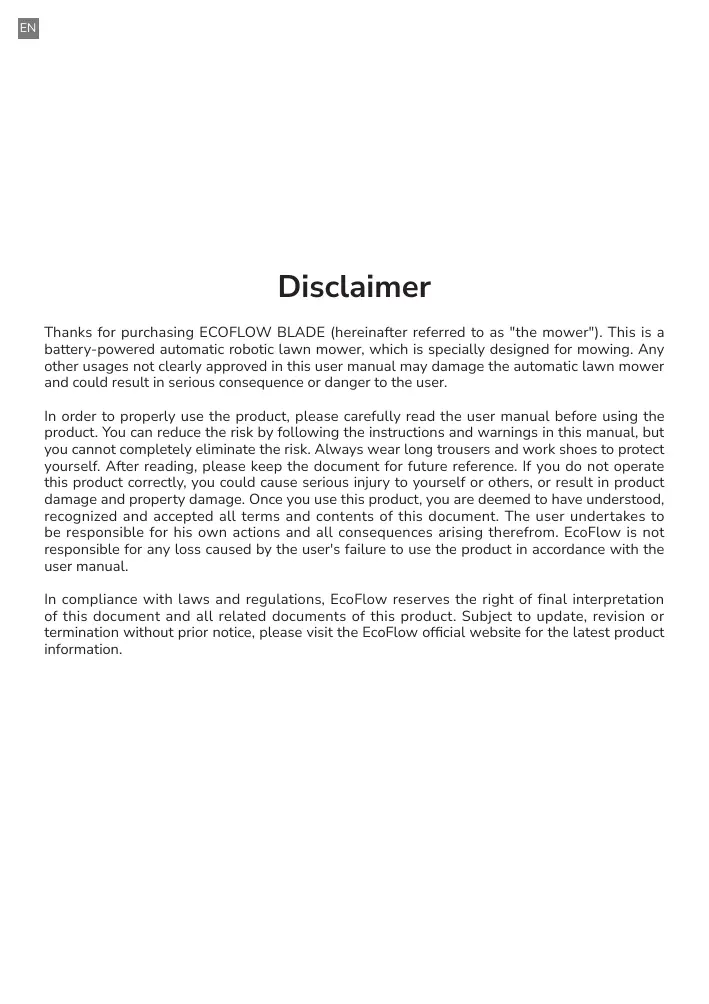

Disclaimer Thanks for purchasing ECOFLOW BLADE (hereinafter referred to as ‘the mower'). This is à battery-powered automatic robotic Llawn mower, which is specially designed for mowing. Any other usages not clearly approved in this user manual may damage the automatic Lawn mower and could result in serious consequence or danger to the user. In order to properly use the product, please carefully read the user manual before using the product, You can reduce the risk by following the instructions and warnings in this manual, but you cannot completely eliminate the risk. Always wear long trousers and work shoes to protect yourself. After reading, please keep the document for future reference. If you do not operate this product correctly, you could cause serious injury to yourself or others, or result in product damage and property damage. Once you use this product, you are deemed to have understood, recognized and accepted all terms and contents of this document. The user undertakes to be responsible for his own actions and all consequences arising therefrom. EcoFlow is not responsible for any loss caused by the user's failure to use the product in accordance with the user manual. In compliance with Laws and regulations, EcoFlow reserves the right of final interpretation of this document and all related documents of this product. Subject to update, revision or termination without prior notice, please visit the EcoFlow official website for the latest product information.

L\ WARNING-Read instruction FAT À WARNING-Keep a safe manual before operating À distance from the machine the machine when operating A WARNING-Do not ride on IR À Keep hands and feet away the machine y from the rotating blades. AN WARNING - Remove the disabling device before working on or Lifting the machine (The disabling device means battery pack) “Make sure the battery is removed before working on or Lifting the machine. L\ WARNING-H is not permitted to dispose of this product as normal household waste. Ensure that the product is recycled in accordance with local Legal requirements. Directives. Class Il appliance Efficiency Level This product conforms SMPS (Switch mode to the applicable EC power supply unit) Class Ill appliance De Directcurrent SMPS incorporating a 7 Alternating current short-circuit-proof safety isolating transformer [== | CLASS 1 LASER PRODUCT. finherentty or non- Complies with 21 CFR inherentiy) 1040.10 and 1040.11 except for conformance with IEC60825-1 Ed.3, as described in Laser Notice No.56, dated May 8, 2019.

Safety Warnings L. Please read and fallow the instructions & wamings carcfully in user manual before operating the mower. The operator is responsible for accidents or hazards oceurring to other people on their property: Please regularly inspect the area where the mower is used and remove all the obstacles. DO NOT use the mowrer if any part of i is damaged, worn or inoperable. DO NOT modify the mower by voursetf, please contact after-sales service of EcoFlow if necessary Please be careful of al the potential hazards that are hidden in the grass. Use the mower in daylight or good artificial light. DO NOT operate the mower in bad weather, such as thunderstorm or snow. Use a residual-current device (RCD) with a tripping current of maximum 30 mA when you connect the power supply ta the power outiet.

10. To achieve better mowing results and prolong its service Life, please be sure to keep the mower clean and

the blades in good condition. Inspection and maintenance should be carried out by an adult every weck. Any damaged or worn parts should be replaced. DO NOT perform maintenance when wearing open sandals or barefoot. Always wear long trousers and work shoes when maintaining the mower.

11. We recommend that you replace the blades every quarter depending on their condition. Replace all the

three blades and screws at the same time for further use. Only use the right type of screws and original blades as approved by EcoFlow. When replacing the blade, make sure that the mower is completely stopped running and remove the battery temporariy. We recommend that you wear heavy work gloves in case of sharp blades.

1. Never allow children, persons with reduced physical, sensory or mental capabilities or Lack of

2. DO NOT allow children to get close to or play with the mower when it is in use.

3. DO NOT touch the rotating blades! Da not put hands er feet under or near the rotating parts.

itisin use. H accident or breakdown happens when the mower is running, please press STOP button immediately. During the manual control, do not overextend it and maintain balance at all times. Secure footing when i is walking on slopes. Always wear long trausers and wark shoes. Do not run while operating the mower or its peripherals. Hthere are abnormal vibrations, please turn off the mower, place it on level ground for about 30 seconds and then restart. Ifthe issue persists, please contact authorized after-sales service. Please make sure the mower has completely stopped and the battery has been removed before you clean, repair or inspect it. Hthe machine is not used for a Long time, remove the battery. Store the machine indoors in a cool and dry place.

1. When mowing on a public Law, please put up a warning sign around the working area that

says: Warning! Automatic mower! Keep away from the mac!

2. D0 NOT use the product or its peripherals with defective guards/shields, or without safety

devices, or if the cord is damaged or worn.

3. Ifthe cord on the power supply or the extension cable becomes damaged or entangled during

use, disconnect the power supply from the power socket and then untangle. To avoid a hazard, pull the body of the plug rather than the cord when separating the power supply from the power socket. Contact after-sales service and have a professional technician to repair or replace he cord if necessary.

4. DO NOT modify or dismantle the battery by yourself. Please contact after-sales service or a

professional technician for help if necessary.

5. The battery pack contains electrolytes. Ifthe electrolyte leakage comes into contact with your

skin, wash off with soap and water immediately. Get medical help in case of eye contact and mediately flush the eyes with plenty of water for at Least 15 minutes without rubbing.

1. When possible, please fully discharge the battery of this product before placing the product in the

designated battery recycling bin. This product contains batteries, Batteries are dangerous chemicals and should not be disposed of in ordinary trash bins. For details, please follow your local laws and regulations about battery recycling and disposal.

2. Ifthe battery cannot be fully discharged due to product failure, do not dispose of battery directly in the

battery recycling bin. Please contact a professional battery recycling company for further processing,

3. The battery will not be able to start after over-discharge. Please dispose of it property.

‘This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points. Disposing of this product correctiy wi help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling, To return vour used device, please use the return and collection systems ar contact the retailer where the product was purchased, which is free of charge, please contact your Local authority for further details of vour nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation

‘This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or he batteries or accumulators it contains to your supplier or to a designated collection paint, wi! free of charge. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your Local community waste collection/recycling center. Specifications Name ECOFLOW BLADE Brand EcoFlow Model EFH100 Dimensions (mower) Approx. 669*452*312 mm (26 x 18 x 12 in) Dimensions (charging station) Approx. 715*501*205 mm (28 x 20 x 8 in) Weight 16.5 kg (36.4 lbs) Material Plastic and aluminium alloy. |Mowing Parameter Working area Max. 3,000 nf (0.75 acres) Typical mowing time per full charge 2120 mins Cutting width 26 cm (102 in) Cutting height 20-76mm (0.8-3 in) Charging duration Approximately 2 hours GNSS working mode GPS, Beidou, Galileo, GLONASS

Cellular network North America:

Silent mode: 0.4 m/s (1.3 ft/s) Rated speed Normal mode: 0.6 ms (2 ft/s) Dynamic mode: 0.8 m/s (2.6 ft/s) Max. speed 08 m/s (2.6 ft/s) Drive mode Direct-drive hub motor Rated speed 2.800 rpm Max. speed 3,000 rpm Motor type Brushless motor

Battery type Lithium-ion battery Rated voltage 216V Rated capacity 298Wh Overheat protection, short circuit protection, Protection system over-current protection, over-voltage protection, and undervoltage protection Input voltage 36v Input current 5A Output voltage Max. 25.2 V DC Output current Max. 7A Front wheel 200 mm omni-wheel Rear wheel Hub motor with rubber tyres IMU sensor, Lift sensor, rain sensor, wheel Sensor encoder, RGB-D camera Vertical obstacle crossing ability 40 mm 1.The noise emission declarations conform to EN 50636-2-107 and ANSI/OPEI 60335-2-107.

2. The manufacturer reserves the right to make modifications without notice, please

go to wwwiecoflow.com for the Latest manuals and EU Declaration of Conformity.

FCC Warning ‘This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: {2) This device may not cause harmful interference, and

2) this device must accept any interference received, including interference that may cause undesired
