Product type	Fan heater
Brand	EQUATION
Model	WEST
Reference	IFH04-33A-N (03)
Supply voltage	220-240V~ 50-60Hz
Rated power	3300 W
Minimum power (indicative)	1650 W
Protection index	IP24
Number of positions	4 (Off, fan only, low heat, high heat)
Thermostat	Mechanical, adjustable
Timer	0 to 180 minutes
Temperature control	Mechanical thermostat
Overheat protection	Yes, thermal cut-off
Minimum safety distance	1 meter
Recommended use	Workshops, garages
Cleaning	Soft dry cloth, vacuum for the grilles
Maintenance	Unplug before cleaning
Repairability	Repair by qualified professional
Safety instructions	Do not cover, do not use near water, supervise children
Disposal	Do not dispose with household waste, recycle

Frequently Asked Questions - WEST EQUATION

How to use the timer?

Place the slider on the OFF position until you hear a click, then set the desired time between 0 and 180 minutes. The appliance turns on and off automatically after the delay. For continuous operation, place the slider on ON.

What safety distance should be maintained?

Leave a space of at least 1 meter between the appliance and any obstacle or object (furniture, walls, curtains). Never place the appliance directly below a power outlet.

Can I use this heater in a bathroom?

No, this heater is intended for use in workshops, garages or similar. Do not use it in a bathroom, near a bathtub, shower, or swimming pool.

What to do if the appliance stops suddenly?

This may be due to overheating. The appliance is equipped with a thermal cut-off. Unplug it, let it cool down, then check that the grilles are not obstructed. If the problem persists, contact a professional.

How to clean the appliance?

Always unplug the appliance before cleaning. Use a soft dry cloth for external dust. For the grilles, use a vacuum cleaner. Never immerse the appliance.

Can I leave the appliance unattended with the timer?

Yes, the timer allows unattended operation. However, make sure the appliance is placed on a flat, clear surface and follow the safety distances.

What is the maximum power?

The rated thermal power is 3300 W. In low mode, the power is about 1650 W.

Is the appliance suitable for outdoor use?

No, this heater is designed for indoor use only. Do not expose it to rain or moisture. The IP24 rating protects against splashes, but not against immersion.

How to adjust the temperature?

Turn the thermostat clockwise to increase the temperature and counterclockwise to decrease it. Combine it with the power selector for optimal control.

What to do if the power cord is damaged?

To avoid any danger, the cable must be replaced by the manufacturer, its after-sales service, or a similarly qualified person. Do not use the appliance with a damaged cable.

USER MANUAL WEST EQUATION

Whenever you want to use the temporalization, you can use the following command.

He nepemiuye npucrtpi, KOJI BIn npaioe.

He 3aIIuaiTe o6irpiBaH niD oIoem a6o y BOIorOmy cepeIOBnui.

CTaBTe npicrtpi nnne Ha npancky, cncty Ta npnbpahy nobepxHIO.

YBAGA: Cπiπ nepeδ6aunτm mimalbny BiDCTaHb 1 M mIX CTiHKamn npucTpoTo Ta 6ydb-aykmm nepewkoadamu nn ppeMeTamn (Me6hi, CTiHn Ttoio).

4. BUKOPUCTAHN

PnueHaTe Ka6eIb JKNBHeHna Do pO3eTKn 220-240B\~,50-60Tu.

06irpiBaay mε nepemnkaa Ha 4 noloxeHHy: 0 (Cton) - Iiue BeHTnlaiz - BeHTnlaiz i nomiphe o6irpiBaHHa - BeHTnlaiz i cnilbHe o6irpiBaHHa.

IobepTaIe TepMoCTaT 3a rOdnHnKOBoIO CTpiIKoIO dJa 36iNbSeHHa TempePAtyI.

Bn6epitbacpo60Tu TaIMePOM (0-180 xBUNIH).

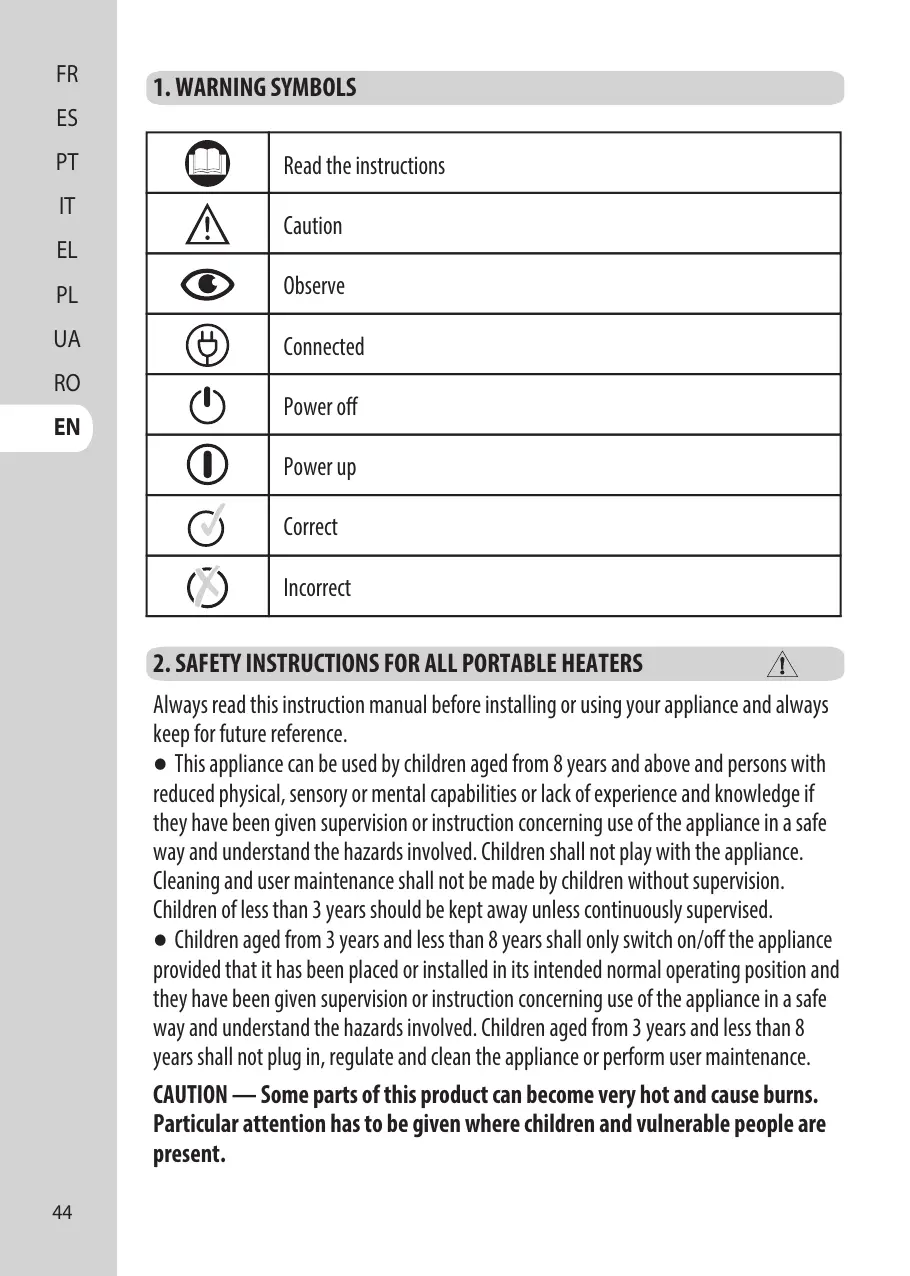

	Read the instructions
!	Caution
	Observe
	Connected
	Power off
	Power up
	Correct
	Incorrect

2. SAFETY INSTRUCTIONS FOR ALL PORTABLE HEATERS

Always read this instruction manual before installing or using your appliance and always keep for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• WARNING: In order to avoid overheating, do not cover the heater.

• The heater must not be located immediately below a socket-outlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

CAUTION: This mobile heater is intended to be used mainly in workshops, craftsmen or garages. Do not use in bathrooms.
- It is important to connect the product to a properly sized socket because the product has a high power.

3. INSTALLATION

WARNING: This portable heater is intended mainly to be used in workshops, light industries or garages. Do not use it in bathrooms.

WARNING: Your heater shall be used as portable appliance only (thanks to respect all the safety warnings given below).

Move the heater only by its handles. Never move the heater when it's working. Never let the heater under the rain or under wet conditions.

Put the heater only on plane, clean & empty surface.

WARNING: Let a minimum distance of 1m between any side of your appliance and any obstacle (furniture or walls, for example)

4. HOW TO USE

Plug the appliance to a 220 - 240V 50 - 60Hz socket. If you are not sure, we advice you to contact a professional electrician for more details.

There is a 4 positions switch on your appliance: 0 (Stop) - Fan only - Fan & heating low temperature - Fan & heating high temperature.

Turn the thermostat clockwise to increase the temperature.

Set the working time with the timer (0-180 minutes)

When using without timer, the cursor must be on « ON » which indicates the heating function permanent.

When usint with timer, the cursor must be on « OFF » and hear a "clack" then put the wanted time from 0 to 180 min.

The heater will run, once the time has passed, the cursor will be set to « OFF » and the heater will be turned off.

Note : When using in timer mode, due consideration should be given to the fact that the heater may come on whilst unattended.

5. CLEANING & MAINTENANCE

Switch off and unplug from the power supply before cleaning.

Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.

CAUTION: Allow the product to completely cool before handling or cleaning it.

Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.

We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.

CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

6. ENVIRONMENT

Meaning of crossed-out wheeled dustbin :

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get in the food chain, damaging your health and well-being

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

IFH04-33A-N (03)

220-240V～ 50-60Hz

3300W

IP24

Information requirements for electric local space heaters

Model identifier(s): IFH04-33A-N (03)
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	3,3	kW	manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	1,65	kW	manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax,c	3,3	kW	electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				fan assisted heat output	[no]
At nominal heat output	eImax	N.A.	kW	Type of heat output/room temperature control (select one)
At minimum heat output	eImin	N.A.	kW	single stage heat output and no room temperature control	[no]
In standby mode	eI8	0	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[yes]
				with electronic room temperature control	[no]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[yes]
				with black bulb sensor	[no]
Contact details	ADEO Services135 rue Sadi Carnot - CS 0000159790 RONCHIN - FRANCE

www.erp-equation.com/heaters

LM-18B, Building 4, Dajaoting Zhongjie, Chaoyang District, Beijing 100022 - CHINA, P.R.C

OOO JEPYA MEPJIEN BOCTOK,141031,MosKOBsKa8
obnaTb, MbytBuHnCHNKpaJohr, r.MbyTuN,
OctauKOBcKoe wOocce, d.1,POCcN

Imported by Adeo South Africa (PTY) LTD T/A Leroy Merlin Leroy Merlin Greenstone Store - Corner Blackrock Street and Stoneridge Drive, Greenstone Park Ext 2, Edendale, 1610- Johannesburg, Gauteng, South Africa

«Jepya Menepn K3aaXCTa»K7UIC Ka3aaKCTah Pecny6bnkacb,050000,AnlmatbK,koHaeb K8ueci,77,xParkViewbO,6K,07 opf.
