USER MANUAL MINI OIL EQUATION

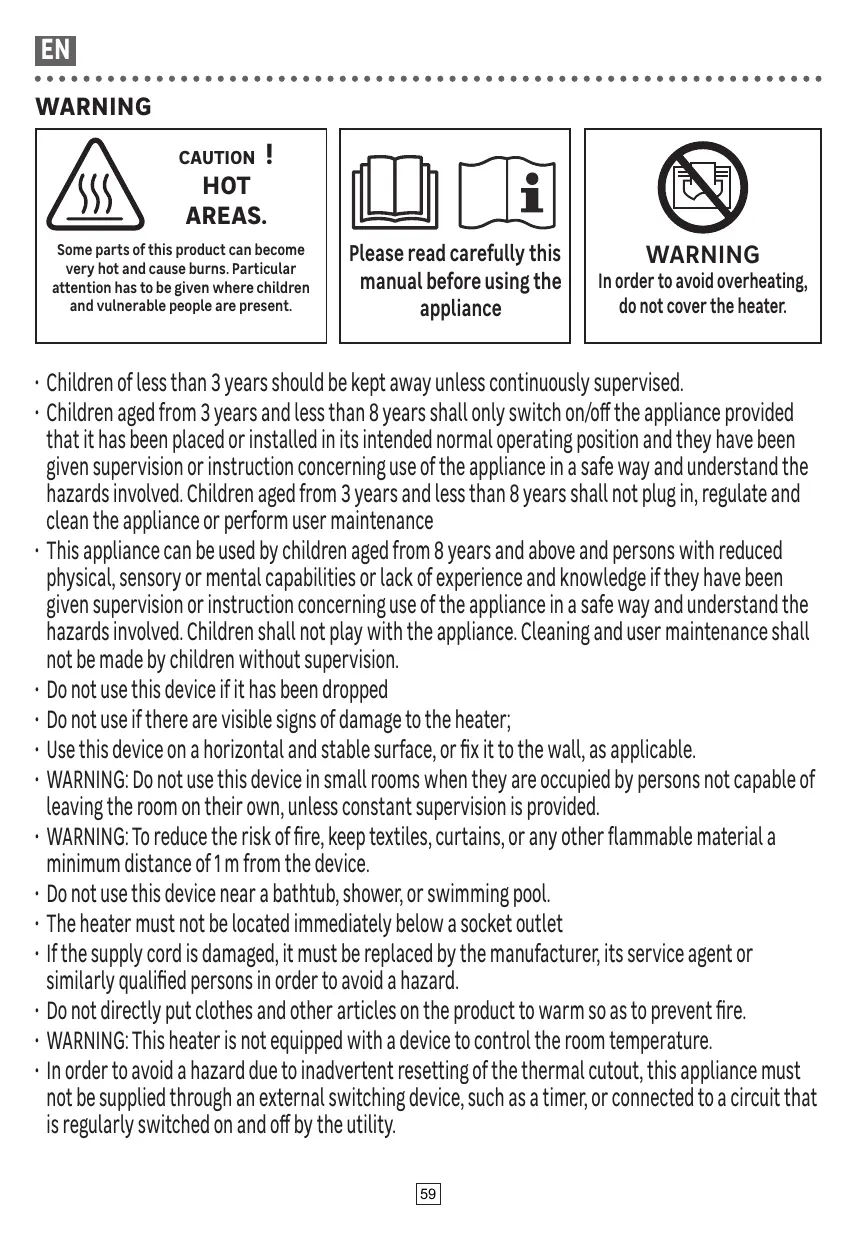

WARNING CAUTION ! HOT J AREAS. = ina || peasereadcarefly this || WARNING attention has to be given where children manual before using the | | In order to avoid overheating, and vulnerable people are present. appliance do not cover the heater. + Children of less than 3 years should be kept away unless continuously supervised. + Children aged from 3 years and Less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and Less than 8 years shall not plugin, regulate and clean the appliance or perform user maintenance + This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge iftthey have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. + Do not use this device ifit has been dropped + Do not use ifthere are visible signs of damage to the heater: + Use this device on a horizontal and stable surface, or fix it to the wall, as applicable. + WARNING: Do not use this device in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. + WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the device. + Do not use this device near a bathtub, shower, or swimming pool. + The heater must not be located immediately below a socket outlet

• Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. + Do not directly put clothes and other articles on the product to warm so as to prevent fire. + WARNING: This heater is not equipped with a device to control the room temperature. + Inorder to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

+ When heating for the first time, a slight odor may appear corresponding to the removal of any traces associated with the manufacture of the appliance. + This heater is filled with a precise quantity of heat transfer fluid which is hazardous to health if swallowed. + Please disconnect power supply when you are out or the oil radiator is not used for a Long time. + Repairs requiring opening of the fluid container are only to be made by the manufacturer or his service agent. + Inthe event of a leak, please contact your installer and take any precautionary measure to avoid possible ingestion of the fluid by users, especially young children and vulnerable people. + When scrapping the heater, follow the regulations concerning the disposal of fluid Disposing of the packaging + The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations. Processing waste of electronic and electric devices at Life-cycle end. This image indicates that this product must not be disposed of with unsorted home trash. À system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved En organisations. For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

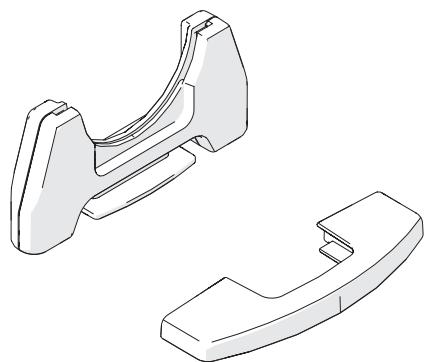

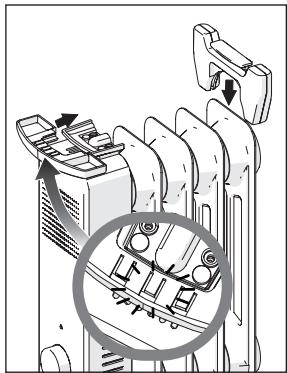

INSTALLATION Feet Assembly + Insert the 2 feet until they are clipped. Connection + This device is mobile type and can be moved while respecting the safety instructions. + Place the radiator on a dry, stable and clean surface. + Aminimum distance of 1m must be provided between the walls of the appliance and any obstacle (furniture or walls for example) to allow good air circulation.

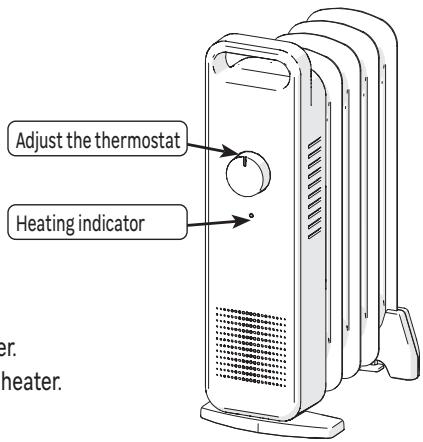

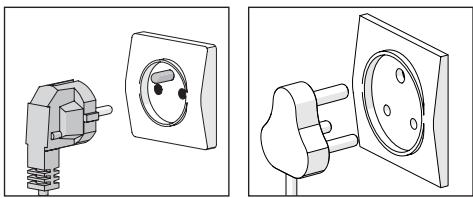

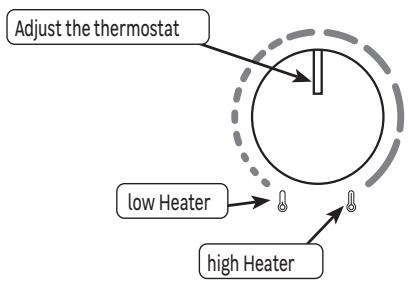

+ The appliance must be earthed. + Connect the plug to a 220-240V-,50-60Hz wall socket + Unplug the appliance whenit is not in operation USE Adjustthe thermostat | Adjustthe thermostat Nw/4 ) 1 A Heatingindicator high Heater ann + Place the button on desired position to start the heater. + Place the button to the lowest position to turn offthe heater. Thermostat adjustment :

Placebuttononmax power | Waituntilthedesiredroom | Turslowiythebutton until The appliance wil heat as soon as the room temperatures reached the appliance suitches of {the | temperature drops to maintain this set heatingindicator goes out) temperature An anti-tilt switch is located in the device, it automatically cuts off the power in the event of a fall or movement of the device. Les Athermal cut out protection switches off heating automatically in case of severe overheating. In this case, turn off the device, eliminate the cause of the overheating, and allow it to cool before using again.

CARE + Remove the plug from the socket before cleaning. There is a risk of electric shock. Wait until the oil-filled radiator has cooled down. Otherwise, there is a risk of burn injuries. + Clean the radiator at regular intervals. Use a slightly damp cloth and never use cleaning agents or solvents that react with plastics. TROUBLESHOOTING Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses. Problem Causes, Solutions Check thatthe device is electrically powered. Check that the switch is not in position mini. Check the heater is vertically placed on a stable surface. Check the temperature of the room: ifit is too high compare to the thermostat setting, the unit does not heat. The heater does not turn on. The heater doesn't heat The device makes aliquid | Ling unpacking or installation itis normal to hear the fuid flow within the device. noise when ii handed MAINTENANCE + Maintenance work is required iftthe radiator has been damaged, liquids or objects have got inside the device, the radiator has been exposed to rain or moisture or ifthe radiator is not functioning properly or has been dropped. + If you notice any smoke, unusual noises or smells, switch off the oil-filled radiator immediately and remove the plug from the socket. If this happens, you must stop using the oil-filled radiator until it has been checked by a specialist. + Allmaintenance work should only be carried out by qualified specialists. + Never open the housing of the oil-filled radiator. SPARE PARTS Some parts of this heater can be ordered from your store: Reference toorder Feet kit 3276007376265 Description

CHARACTERISTICS Model Identifier HD988-K5Q(V1) / HD988-K9Q(V1) Rated voltage [220-240v Rated frequency 50-60 Hz Item Symbol Unit Value Heat output K5Q K9Q Nominal heat output Pnom kW 03 04 Minimum heat output (indicative) Pmin kW 0 0 Maximum continuous heat output Pmax,c kW 03 04 lauxitiary Eectricity Consumption At nominal heat output elmax kW 0 0 JAt minimum heat output elmin kW 0 0 In standby mode elsb kw] 0 o Item Unit Type of heat output Manual thermal control ofthe load with integrated thermostat No Manual thermal control ofthe load with reception of information on the temperature of No the room and/or outside Electronic thermal control of the load with information on room and/or outside No temperature [Thermal power can be regulated by fan No Type of heat output/room temperature control Single stage heat output and no room temperature control No Two or more manual steps, no room temperature control No Room temperature control with mechanical thermostat Yes Electronic room temperature control No Electronic room temperature control and daily timer No Electronic room temperature control and weekly timer No Other control options Room temperature control with presence detection No Room temperature control with open window detection No Remote control option No Adaptive activation control No Activation duration restriction No Black globe sensor No Contact Details ADEO Services - 135 Rue Sadi Carnot - 59790 - RONCHIN - FRANCE

WARRANTY Terms and conditions of the ADEO SERVICES manufacturer warranty Adeo Services offers a manufacturer warranty on its products. The scope of the Adeo Services manufacturer warranty: Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services" responsibility to repair or replace it The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it With a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code. Cases excluded from the coverage of the Adeo Services manufacturer warranty: The Adeo Services manufacturer warranty is not intended to apply in the cases listed below + Normal wear and tear of the product and/or its components + Accidental damage (due to dropping the product, impact or improper installation of the product) + Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage) + Damage caused by failure to comply with the product maintenance recommendations. + Damage caused by external sources such as transportation, weather, power failure or power surges. + Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components, + Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale ofthe product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters). + Failures caused by + Negligent use, misuse, mishandling or careless use of the product. + Use not in accordance with the product user manual. e Use of the product for purposes other than normal domestic use in the country where it was purchased. # Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions. # Use of parts and accessories that are not genuine Adeo Services components. 2 Faulty installation or assembly. # Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents. + The warranty will also not be valid ifthe serial number or the nameplate ofthe product (ifthe product has a nameplate) is removed or defaced. + IfAdeo Services receives information from competent public authorities that the product has been stolen. What are the terms and conditions for implementing the warranty? The terms and conditions for implementing the Adeo Services warranty are as follows + The warranty takes effect on the date of purchase (or on the date of delivery if later) + Aproof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note. + Allwork will be performed by Adeo Services or its authorized service providers. + Any replaced part becomes the property of Adeo Services

+ The repair or replacement of your device under warranty does not extend the warranty period. + The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code. + To make use ofthis warranty, you must contact the brand company from which you purchased your product. Date of entry into force of the warranty: The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is Later. Geographic scope of Adeo Services warranty: The warranty is valid in the country of purchase ofthe product. If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis. Fate of Adeo Services warranty in case of resale of the product: In case of resale ofthe product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however: That the proof of original purchase ofthe product is brought along, That the proof of proof of proper functioning of the product at the time ofthe resale is brought along, That the terms and conditions of implementation of the warranty as detailed within the present document are met. Itis specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date ofthe resale.
