USER MANUAL FLAG 4, FA-1-WH, FA-1-WH, FA-1-WH-SA EQUATION

Modèle/Modelo/Modello/MovtÉλo/Model//modél				EAN
2023R08P06-0194	FA-1-WH	FH202-D (White)	FLAG 4	3276007529807
2023R08P06-0208	FA-1-WH	FH202-D (Black)	FLAG 4	3276007529982
2023R08P06-0237	FA-1-WH-SA	FH202-D(White)-SA	FLAG 4	3276007618549

FR Manuel d'Instructions
ES Manual de Instrucciones
PT Manual de Instruções
Manuale di Istruzioni

Installation 52
Use. 53
Care. 53
Troubleshooting 53
Characteristics. 54
warranty. 55
Notes 57

AVERTISSEMENT

UCYHEHHH HECPABHOCTI

HecnpaHocmi yacmo eunukaomb chepe he3naHni npuHn; nepe 3eepneHHm do cepicHO cnyk6u noueimbc HuxeHaedeHy ma6luu. Lte do3eolumb 3aoaadmu bau vac i yhukhy m 3a8ex bumpam.

Hana Hoka3n HaJeXHoI pO60Tu npOyKTu Ha MOMeT nepeepoJaxy;

NobIDomHeNo Ipo BcO cyKyHicTb yMOB peaI3aJI rapaHTI, BvKnlaDeHnx y cMbMy dOKymEnTI;

yka3aHO, 10 nepe npoJax TObApy He BnIbAe Ha rapaTInH TepMiH, 10 3aIIuBcR Ha daTy pepepoJaxy (To6To BnAsnK nepe npoJahoro npOdykTu MoKe BmaraTn 3acTocvBaHnra paapTii Adeo Services y mexax TepmiHy dii, 10 3aIIuWBCd o 3akHueHn dii 3aHaueHoi rapaTti Ha daTy pepepoJaxy).

Дараз Виробниства:

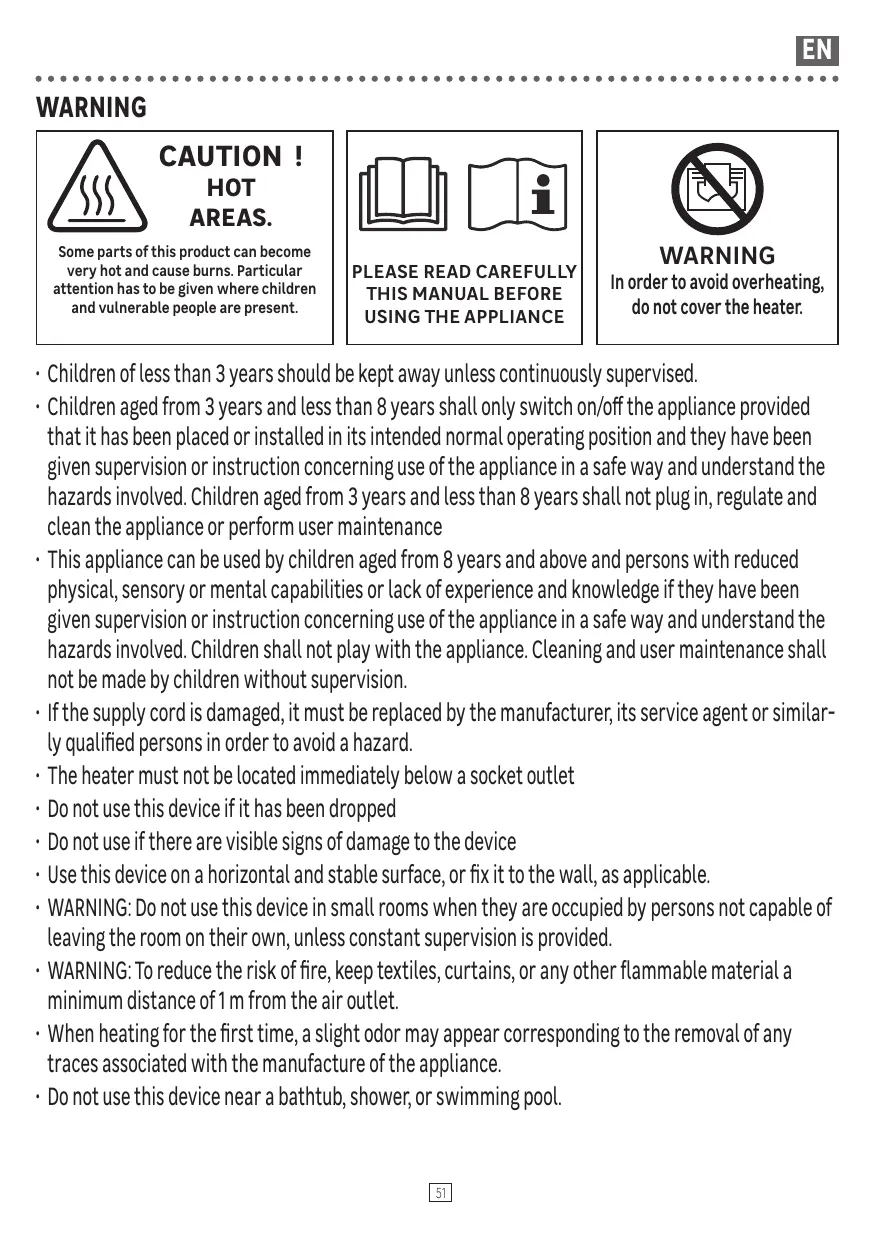

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

WARNING

In order to avoid overheating, do not cover the heater.

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- The heater must not be located immediately below a socket outlet
- Do not use this device if it has been dropped
- Do not use if there are visible signs of damage to the device
- Use this device on a horizontal and stable surface, or fix it to the wall, as applicable.
- WARNING: Do not use this device in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.
- When heating for the first time, a slight odor may appear corresponding to the removal of any traces associated with the manufacture of the appliance.
- Do not use this device near a bathtub, shower, or swimming pool.

Disposing of the packaging

• The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper

disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

INSTALLATION

• This device is mobile type and can be moved while respecting the safety instructions.
• Place the radiator on a dry, stable and clean surface.
• Direct the air flow to optimize the heating of the room. Avoid corners, small spaces, floors and ceilings.
• INDOOR USE ONLY
• Connect the plug to a 220-240V~ 50-60Hz wall socket
• Unplug the appliance when it is not in operation

USE

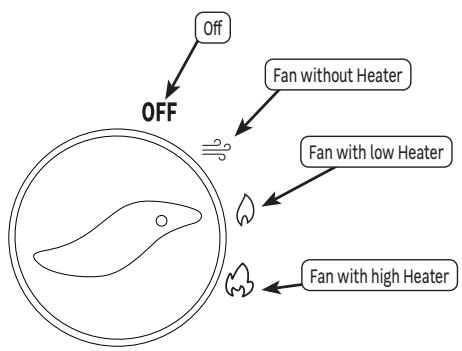

• Place the button on desired position to start the heater.
• Place the button to OFF position to turn off the heater.

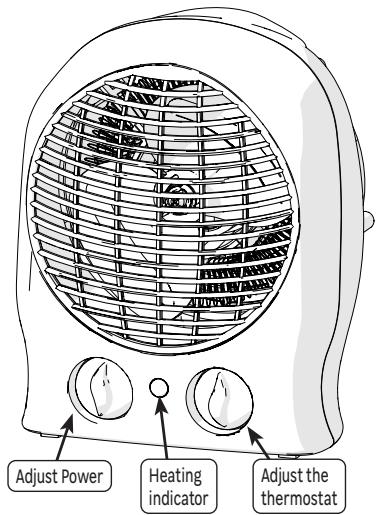

Adjust the thermostat :

OFF (1000W) or (2000W).

Place button on max temperature.

Wait until the desired room temperature is reached.

Turn slowly the button until the appliance switches off (the heating indicator goes out)

The appliance will heat as soon as the room temperature drops to maintain this set temperature.

A thermal safety device automatically cuts the heating element in the event of overheating. In this case, the fan continues to run to cool the device, and the appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established.

CARE

• Use a soft, dry cloth.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

TROUBLESHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

Problem	Causes, Solutions
The device does not turn on.	Check that the device is electrically powered. Check that the switch is not in position mini. Check the heater is vertically placed on a stable surface.
The unit does not heat.	Check the temperature of the room: if it is too high compare to the thermostat setting, the unit does not heat.

CHARACTERISTICS

Model Identifier	FH202-D	Rated voltage		220-240 V~
Power rating	1800-2000W	Rated frequency		50-60 Hz
Electrical protection class	II
Item		Symbol	Value	Unit
Heat output
Rated heat output		P nom	1,8-2,0	kW
Minimum heat output		P min	0,9	kW
Maximum continuous heat output		P max,c	2	kW
Auxiliary Electricity Consumption
At nominal heat output		el max	0.0	kW
At minimum heat output		el min	0.0	kW
In standby mode		el sb	0.0	kW
Item			Unit
Type of heat output
Manual thermal control of the load with integrated thermostat			No
Manual thermal control of the load with reception of information on the temperature of the room and/or outside			No
Electronic thermal control of the load with information on room and/or outside temperature			No
Thermal power can be regulated by fan			No
Type of heat output/room temperature control
Single stage heat output and no room temperature control			No
Two or more manual steps, no room temperature control			No
Room temperature control with mechanical thermostat			Yes
Electronic room temperature control			No
Electronic room temperature control and daily timer			No
Electronic room temperature control and weekly timer			No
Other control options
Room temperature control with presence detection			No
Room temperature control with open window detection			No
Remote control option			No
Adaptive activation control			No
Activation duration restriction			No
Black globe sensor			No
Contact Details	ADEO Services - 135 Rue Sadi Carnot - 59790 - RONCHIN - FRANCE

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

Normal wear and tear of the product and/or its components.
- Accidental damage (due to dropping the product, impact or improper installation of the product)
- Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
- Damage caused by failure to comply with the product maintenance recommendations.
- Damage caused by external sources such as transportation, weather, power failure or power surges.
- Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
- Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
- Failures caused by:

• Negligent use, misuse, mishandling or careless use of the product.
  Use not in accordance with the product user manual.
  Use of the product for purposes other than normal domestic use in the country where it was purchased.
  Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.
  Use of parts and accessories that are not genuine Adeo Services components.

• Faulty installation or assembly.
  □ Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

• The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.
  If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
  Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.
