USER MANUAL GKC1820ST1 GKC1820L20 GKC1820L1 BLACK & DECKER

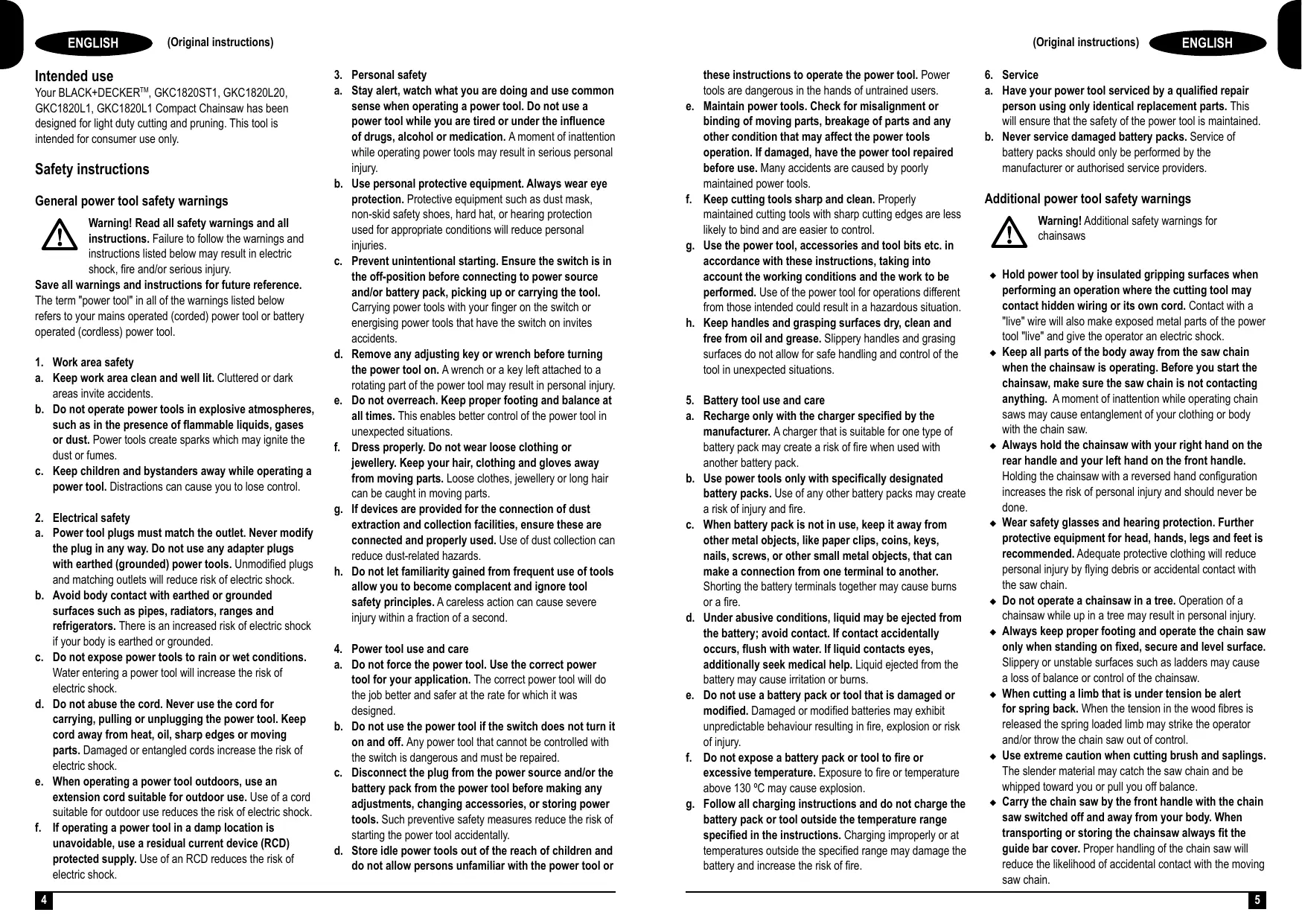

Your BLACK+DECKER™, GKC1820ST1, GKC1820L20, GKC1820L1, GKC1820L1 Compact Chainsaw has been designed for light duty cutting and pruning. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1. Personal safety
   a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
   c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
   h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

2. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasing surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

Additional power tool safety warnings

Warning! Additional safety warnings for chainsaws

Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and give the operator an electric shock.
- Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the chainsaw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the chain saw.
Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw with a reversed hand configuration increases the risk of personal injury and should never be done.
Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
Do not operate a chainsaw in a tree. Operation of a chainsaw while up in a tree may result in personal injury.
Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chainsaw.
- When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chainsaw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback
Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
Cut wood only. Do not use chainsaw for purposes not intended. For example: do not use the chainsaw for cutting plastic, masonry or non-wood building materials. Use of the chainsaw for operations different than intended could result in a hazardous situation.
- The spiked bumper may become sharp during the life of the product. Handle with care.
When handling the product the chain bar may become hot, handle with care.

Additional power tool safety warnings

Warning! Additional safety warnings for compact chainsaws.

The intended use is described in this instruction manual. Do not use the tool for purposes not intended; for example do not use the tool to fell trees. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Wear close fitting and protective clothing including a safety helmet with visor/goggles, ear protectors, non- skid safety footwear, protective bib trousers and strong leather gloves.
Always position yourself out of the path of falling branches.
- The safe distance between a branch to be felled and bystanders, buildings and other objects is at least 2 1/2 times the length of the branch. Any bystander, building or object within this distance is at risk from being struck by the falling branch.
Pre-plan a safe exit from falling branches. Ensure the exit route is clear of obstacles that would prevent or hinder movement. Remember wet grass and freshly cut bark is slippery.
Ensure someone is nearby (but at a safe distance) in case of an accident.
- Do not use the tool while standing in a tree, on a ladder or on any other unstable surface.
Keep proper footing and balance at all times.
Hold the tool firmly with both hands when the motor is running.
Do not let the moving chain contact any object at the tip of the guide bar.
Start cutting only with the chain moving at full speed.
Do not attempt to enter a previous cut. Always make a fresh cut.

Watch for shifting branches or other forces that could close a cut and pinch or fall into the chain.
- Do not attempt to cut a branch when the diameter of the branch exceeds the cutting length of the tool.
Always remove the battery from the tool and place the chain cover assembly over the chain when storing or transporting the tool.
- Keep the saw chain sharp and properly tensioned. Check the tension at regular intervals.
Switch the tool off, allow the chain to stop and remove the battery from the tool before carrying out any adjustment, servicing or maintenance.
Only use genuine replacement parts and accessories.

Causes and operator prevention of kickback

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the chainsaw which could result in serious personal injury.

Do not rely exclusively upon the safety devices built into your chainsaw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and / or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

Maintain a firm grip, with thumbs and fingers encircling the chainsaw handles. With both hands on the chainsaw, position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chainsaw.
- Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations.
- Only use replacement guide bars and chains specified by the manufacturer. Incorrect replacement guide bars and chains may cause chain breakage and/ or kickback.
Follow the manufacturer's sharpening and maintenance instructions for the saw chain.

Decreasing the depth gauge height can lead to increased kickback.

Safety recommendations for the chainsaw

We strongly recommend that first time users obtain practical instruction in the use of the chainsaw and protective equipment from an experienced user. Initial

practice should be completed sawing logs on a saw horse or cradle.

• We recommend that when carrying the chainsaw that you remove the battery and make sure that the saw chain is facing backwards.
• Maintain your chainsaw when not in use. Do not store your chainsaw for any length of time without first removing the saw chain and guide bar which should be kept immersed in oil. Store all parts of your chainsaw in a dry, secure place out of reach of children.
  We recommend you drain the oil reservoir prior to storage
  Be sure of your footing and pre-plan a safe exit from a falling tree or branches.
  Use wedges to help control felling and prevent binding the guide bar and saw chain in the cut.
  Saw chain care. Keep the saw chain sharp and snug on the guide bar. Ensure the saw chain and guide bar are clean and well oiled. Keep handles dry, clean and free from oil and grease.

Kickback can be caused by:

Striking branches or other objects accidentally with a tip of the saw while the saw chain is moving.
Striking metal, cement or any other hard material near the wood, or buried in the wood.
A dull or loose chain.
Cutting above shoulder height.
Lack of attention when holding or guiding the chainsaw while cutting.
Over-reaching. Keep proper footing and balance at all times and do not overreach.
- Do not try to insert into a previous cut. As this could cause kickback. Make a fresh cut every time.
We strongly recommend you do not attempt to operate your chainsaw while in a tree, on a ladder or on any other unstable surface. If you decide to do so, be advised that these positions are extremely dangerous.
- When cutting a branch that is under tension, be alert for spring back so that you will not be struck when the tension is released.

Avoid cutting:

Prepared timber.
Into the ground.
Into wire fences, nails. etc.
Into small sized brush and saplings because slender material may catch the saw chain and be whipped towards you, or pull you off balance.
Do not use your chainsaw above shoulder height.
Ensure someone is nearby (but at a safe distance) in case of an accident.
If for any reason you have to touch the saw chain, make sure your chainsaw is disconnected from the mains.

• The noise from this product can exceed 80 dB(A). We therefore recommend you take appropriate measures for the protection of hearing

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

Injuries caused by touching any rotating/moving parts.
Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool along with the date code:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Do not use your saw in wet conditions or expose it to rain.

Always wear head, hearing and eye protection.

Always wear non-slip safety footwear.

Beware of falling objects. Keep bystanders away

Switch the tool off. Before performing any maintenance on the tool, remove the battery from the tool.

To ensure continued safe operation, check the chain tension as described in this manual after every 10 minutes of use, and adjust back to a clearance of 3 mm as required. Oil the chain after every 10 minutes of use.

Warning! Do not touch chain at the chipping ejection point

Direction of rotation of the chain.

To ensure continued safe operation, the chain and guide bar must only be replaced with original BLACK+DECKER. Replacement chain part number A6158 replacement guide bar part number 90517720.

Additional safety instructions for batteries and chargers

Batteries

Never attempt to open for any reason.
Do not expose the battery to water.
Do not expose the battery to heat.
Do not store in locations where the temperature may exceed 40^ .
Charge only at ambient temperatures between 10^ and 40^ .
Charge only using the charger provided with the appliance/tool. Using the wrong charger could result in an electric shock or overheating of the battery.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
- Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire.

Do not charge damaged batteries.

Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, carefully wipe the liquid off using a cloth. Avoid skin contact. In case of skin or eye contact, follow the instructions below.

Warning! The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

Chargers

Warning! Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.

Warning! Never attempt to replace the charger unit with a regular mains plug.

Use your BLACK+DECKER charger only to charge the battery in the appliance/tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries.
- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKERService Centre in order to avoid a hazard.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
- The charger must be placed in a well ventilated area when charging.

Labels on the charger

The following symbols are found on your charger:

The charger is intended for indoor use only.

Read the instruction manual before use.

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

Features

1. On/off switch
2. Lock-off button
3. Oil cap
4. Oil reservoir
5. Front guard assembly
6. Chain cover assembly
7. Chain tension adjustment screw
8. Chain
9. Guide bar
   10.Battery
   11Chain sheath
10. Charger

Assembly

Warning! Before assembly, remove the battery (10) from the tool.

Fitting and removing the battery (fig. A)

To fit the battery (10), line it up with the receptacle on the tool. Slide the battery (10) into the receptacle and push until the battery (10) snaps into place.
To remove the battery (10), push the release button (24) while at the same time pulling the battery (10) out of the receptacle.

Warning! To prevent accidental operation, make sure that the battery is removed and that the chain sheath (11) is in place on the saw chain (8) before performing the following operations. Failure to do this could result in serious personal injury.

Charging the battery (fig. B)

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 10^ or above 40^ . Recommended charging temperature: approx. 24^ .

Note: The charger will not charge a battery if the cell temperature is below approximately 10^ or above 40^ . The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

To charge the battery (10), insert it into the charger (12). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
Plug in the charger and switch on at the mains

The charging indicator (23) will blink.

The charge is complete when the charging indicator (23)

switches to continuously on. The charger and the battery can be left connected indefinitely. The LED will switch on as the charger occasionally tops up the battery charge.

• Charge discharged batteries within 1 week. Battery life will be greatly diminished if stored in a discharged state.

Leaving the battery in the charger

The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

Installing and removing the saw chain

(fig. C-E, G)

Always wear protective gloves when installing or removing the saw chain (8). The saw chain is sharp and can cut you when it is not running.

Place the tool on a firm and stable surface.
Loosen the two Allen screws (14) using the Allen key (21) provided. Remove the Allen screws (14).
Remove the chain cover assembly (6).
Turn the chain tension adjustment screw (7) counter clockwise to allow the guide bar (9) to recede and to reduce the tension on the saw chain (8).
Remove the old saw chain (8) from the sprocket (15) and the guide bar (9).
Place the new saw chain (8) in the groove of the guide bar (9) and around the sprocket (15). Make sure that the teeth are facing the correct direction by matching the arrow on the saw chain (8) with the arrow on the chain cover assembly (6).
Make sure that the slot (17) in the guide bar (9) is over the location pins (18) and that the hole (20) below the slot is located over the adjustment pin (19).
Fit the chain cover assembly (6) and the 2 Allen screws (14).
Tighten the Allen screws (14) using the Allen key (21) provided.
Adjust the chain tension as described below.

Checking and adjusting the chain tension

(fig. C-F)

Check the saw chain tension. The tension is correct when the saw chain (8) snaps back after being pulled away 3mm from the guide bar (9) with light force from the middle finger and thumb. There should be no 'sag' between the guide bar (9) and the saw chain (8) on the underside.

To adjust the tension:

Loosen the 2 Allen screws (14).
Turn the chain tension adjustment screw (7) clockwise

Warning! Do not over-tension the chain as this will lead to excessive wear and will reduce the life of the bar and chain.

• Once the chain tension is correct, tighten the 2 Allen screws (14).

Warning! When the saw chain is new, check the tension frequently during the first two hours of use as a new saw chain stretches slightly.

Filling the oil reservoir (fig. G)

Remove the oil cap (3) and fill the reservoir (4) with the recommended chain oil. You can see the oil level in the oil reservoir (4). Refit the oil cap (3).
Periodically switch off and check the oil level; if it is less than a quarter full, remove the battery (10) from the tool and refill the reservoir (4) with the correct oil.

Oiling the chain (fig. G)

The saw chain (8) must be oiled before each use and after cleaning using only the correct grade of oil (cat. no. A6027).

Lubricate the saw chain (8) by pressing the bulb on the oil cap (3) twice before making each cut, holding the bulb down for 3-4 seconds.

Use

Switching on and off (fig. G)

Warning! Let the tool work at its own pace, Do not overload. For your safety, this tool is equipped with a double switching system. This system prevents starting the tool inadvertently.

Switching on

Press the lock-off button (2) and at the same time squeeze the on/off switch (1).
Release the lock-off button (2).

Switching off

Release the on/off switch (1).

Warning! Never attempt to lock a switch in the on position.

Pruning trees (fig. H)

Make sure that there are no local by-laws or regulations that would prohibit or control the pruning of the tree limbs.

Pruning should only be undertaken by experienced users there is an increased risk of the saw chain (8) pinching and kickback.

Before pruning consideration should be given to conditions affecting the direction of fall including:

The length and weight of the branch to be cut.
Any unusual heavy limb structure or decay.
Surrounding trees and obstacles including overhead.
The wind speed and direction.
The branch being intertwined with other branches.

The operator should consider access to the tree limb and the direction of fall. The tree branch is liable to swing towards the tree trunk. In addition to the user bystanders, objects and property below the branch will be at risk.

To avoid splintering, the first cut is made in an upward direction to a maximum depth of one third the diameter of the branch. The second cut is made downwards to meet the first.

Light duty cutting (fig. 1)

How you should cut depends on how the log is supported. Use a saw horse whenever possible. Always start a cut with the saw chain (8) running and the spiked bumper in contact with the wood. To complete the cut, use a pivoting action of the spiked bumper against the wood.

When supported along its whole length: Make a downward cut, but avoid cutting the earth as this will blunt your saw chain quickly.
- When supported at both ends: First, cut one third down to avoid splintering and second, cut again to meet the first cut,
When supported at one end: First cut one third up to avoid splintering and second, cut down to prevent splintering.
- When on a slope: Always stand on the uphill side. When using a saw horse (fig. 1):
This is strongly recommended whenever possible. Position the log in a stable position. Always cut on the outside of the saw horse arms. Use clamps or straps to secure the workpiece.

Cleaning, maintenance and storage

• Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.

After use and before storage

Regularly clean the ventilation slots with a clean, dry paint brush.

To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

Remove debris using a hard brush.
Lubricate the chain (8) with oil.

Saw chain sharpening

If you are to get the best possible performance from the tool it is important to keep the teeth of the saw chain sharp.

Guidance for this procedure is found on the sharpener

package. For this purpose we recommend the purchase of the BLACK+DECKER saw chain sharpening kit, available from your BLACK+DECKER service agents (cat. no. A6039).

Replacing worn out or damaged saw chains and guide bars

Replacement saw chains are available through retailers and BLACK+DECKER service agents (pt no A6158), replacement guide bars are only available through BLACK+DECKER service agents (pt no 90517720). To avoid the risk of injury, use only original BLACK+DECKER chains and guide bars. Always use genuine spare parts.

Saw chain sharpness

The saw chain cutters will blunt immediately if they touch the ground or a nail whilst cutting.

Saw chain tension

Regularly check the saw chain tension.

What to do if your chainsaw needs repair.

Your tool is in accordance with the relevant safety requirements. Repairs should only be carried out by a qualified person using original spare parts otherwise this may result in considerable danger to the user. We recommend you keep this user manual in a safe place.

Storage

When the tool will not be used for several months, ideally leave the battery (10) connected to the charger.

Otherwise proceed as follows:

Remove the battery (10) from the tool.
Fully charge the battery (10).
Store the tool and battery (10) in a secure and dry location. The storage temperature must always remain in the range of +10^ to +40^ . Place the battery (10) on a level surface.
Before using the tool after prolonged storage, fully charge the battery (10) again

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials.

Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

		GKC1820ST1 H2	GKC1820L20 H2	GKC1820L1 H2
Voltage	\( V_{\text{cc}} \)	18	18	18
Chain speed (No-load)	\( min^{-1} \)	190	190	190
Weight	kg	2.0	2.0	2.0

Battery		N637662	90617054	N637662
Voltage	Voc	18	18	18
Capacity	Ah	2.5	2.0	2.5
Type		Li-Ion	Li-Ion	Li-Ion

Charger		90642266	90590287-06	90642266
Input Voltage	\(V_{DC}\)	230	100-240	230
Output Voltage	Ah	18	8 - 20	18
Output Current	mA	2000	400	2000

Guaranteed sound pressure level measured according to EN60745:

LpA (sound pressure) 83.0 dB(A), uncertainty (K) 3 dB(A) LwA (sound power) 94.0 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Vibration emission value (ah) = 4.3 m/s2, uncertainty (K) = 1.5 m/s2

EC declaration of conformity

MACHINERY DIRECTIVE

OUTDOOR NOISE DIRECTIVE

GKC1820ST1, GKC1820L20, GKC1820L1 - Compact Chainsaw

Black & Decker declares that these products described under "technical data" are in compliance with:

EN 60745-1:2009 +A11:2010, EN 60745-2-13:2009 +A1:2011

2000/14/EC, Chain Saw, Annex IV

DEKRA Certification B.V. Meander 1051 / P.O. Box 5185

6825 MJ ARNHEM / 6802 ED ARNHEM, Netherlands Notified Body ID No.: 0344

ENGLISH

(Original instructions)

Level of acoustic power according to 2000/14/EC (Article 13, Annex III):

L_WA (measure sound power) 94.0 dB(A)

L_WA (guaranteed sound power) 95.0 dB(A)

These products also comply with Directive 2006/42/EC, 2014/30/EU and 2011/65/EU.

For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of

Black & Decker.

R. Laverick

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

04/01/2019

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Royaume-Uni

04/01/2019

Garantie

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Regno Unito

04/01/2019

Garanzia

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Verenigd Koninkrijk

04/01/2019

Garantie

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Reino Unido

04/01/2019

Garantia

Director de Engenharia

Black & Decker Europe, 210 Bath Road, Slough.

Berkshire, SL1 3YD

Reino Unido

04/01/2019

Garantia

Black & Decker Europe, 210 Bath Road, Slough,

R.Laverick

Engineering Director

Berkshire, SL1 3YD

Storbritannien

04/01/2019

Garanti

Lett kutting (figur I)

Hvordan du skal kutte, avhenger av hvordan trevirket er stottet opp. Bruk en sagkrakk nar dette er mulig. Start alltid sagingen med kjeden (8) i gang og med barkstolen i kontakt med treet For a fullfere kuttet vipper du barkstolen mot treet.

Nar stottet lungs hele lengden: Lag et kutt nedover, men unngà a sage i jorden, ettersom det vil fere til at sagkjedet blur slovt veldig fort.
Nár stottet i begge ender: Først kutter du en trejdedel nedover for a unnga oppsplintring, og deretter kutter du igjen for a mote det fpreste kuttet.
Nár stottet ién Ende: Først kutter du en tredjedel opp for a unnga opsplintring, og deretter kutter du ned for a unnga opsplintring.
I en helling: Stà alltid på oversiden. Vedbru k av sagkrakk (figur I):
Om mulig er dette den beste maten. Plasser trevirket i en stabil posisjon. Kutt alltid pa utsiden av sagkrakkarmene. Bruk skruetvinger eller stropper for a sikre arbeidsemnet.

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannia

04/01/2019

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

04/01/2019

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Hvwévo Baoiεio

04/01/2019

Eyyunon

H Black & Decker éivai σiouvŋ γia tvn ποίσητa tvw πoiovivnskai πoovφéeiotouskataivaawtéseyunon 24 unwv an tonv nnepuomvia ayopac. Autn n eyyunon eivai pooetodikaiuα oskai devzniwve ta voviua dikai wmuαos. H yuyunon ioxuevivtos nctikpateia cTswxpwv meuwv ts Eupwtaikcs Evwons kai tnc Eupwnaikns ZwvnEeuepepv Suvallayw. Tia va urobaletae aifwan baoi ts yvynon, naigwn thpietievaivai ouqwvn me touc Opouc kai npoutoeoeis nCBlack & Decker katoxaipotei va utobaletae atodeiog ayopac stov TTan n oe £ouoiodotnueo avittpoaWTOETIAKEUW.

Mtopeite va atokntoate Touc Opouc kai tpoutnoeic ts
eyyunanc 2 etuw ts Black & Decker kai va maote tvn toto
thetaia tou pannieatepou efouoiobotnevou avtinpooiou
etiokeuov sto Internet sto www.2helpU.com, n etikoiuvwvvtac me to totiko oas ypaepio Black & Decker ot diovuyan
Tou utoideikvuota sto napov eyxepidio.

Iapakaoloue EITIOKEpEITE TNY ITOOIAa muc www. blackanddecker.gr ia va kataxupioTe to veo oac npoiov Black & Decker kai yia va evnuepwoeotyia ta vea npoiovta kai tic iDikc pooopoc.

Belgié/Belgique/Luxembourg www.blackanddecker.be [e-mail]	Stanley Black & Decker Belgium BVBA Egide Walschaertsstraat 16 2800 Mechelen	Tel. NL Tel. FR Fax.	[phone] [phone] [phone]
Danmark	Black & Decker Roskildevej 22 2620 Albertslund	[e-mail] www.blackanddecker.dk
Deutschland www.blackanddecker.de [e-mail]	Stanley Black & Decker Deutschland GmbH Black & Decker Str. 40, D - 65510 Idstein	Tel. Fax	06126 21-0 06126 21-2980
Eλλαδαwww.blackanddecker.gr [e-mail]	Stanley Black & Decker (ΕλλΑΣ) E.I.E ΓΡΑΦΕΙΑ:Σιράβωνος 7 & Bouλιαγμένης 166 74 Γλυφάδα - Αθήνα	Tηλ. Φαξ	210-8981616 210-8983570
SERVICE:	Ημερος Κόπος 2-Xάνι Αδάμ 193 00 Αστρόπιργος - Αθήνα	Tηλ. Service Φαξ	210-8985208 210-5597598
Espana www.blackanddecker.es respuesta([e-mail]	Stanley Black & Decker Ibérica, S.C.A. Parc de Negocis "Mas Blau" Edificio Muntadas, c/Bergadá, 1, Of. A6 08820 El Prat de Llobregat (Barcelona)	Tel. Fax	934 797 400 934 797 419
France www/blackanddecker.fr	Black & Decker (France) S.A.S. 5 allée des Hêtres B.P. 30084 69579 Limonest Cédex	Tel. Fax	04 72 20 39 20 04 72 20 39 00
Helvetia www.blackanddecker.ch [e-mail]	ROFO AG Gewerbezone Seeblick 3213 Kleinössingen	Tel. Fax	026-6749393 026-6749394
Italia www.blackanddecker.it [e-mail]	Stanley Black & Decker Italia Via Energypark 6 20871 Vimercante (MB)	Tel. Fax	039-9590200 039-9590313 800-213935
Nederland www.blackanddecker.nl [e-mail]	Stanley Black & Decker Netherlands BV Holtum Noordweg 35, 6121 RE BORN Postbus 83, 6120 AB BORN	Tel. Fax	[phone] [phone]
Norge	Black & Decker Postboks 4613, Nydalen 0405 Oslo	[e-mail] www.blackanddecker.no
Österreich www.blackanddecker.at [e-mail]	Stanley Black & Decker Austria GmbH Oberlaamerstraße 248, A-1230 Wien	Tel. Fax	01 66116-0 01 66116-614
Portugal www.blackanddecker.pt resposta [e-mail]	Black & Decker Limited SARL Quinta da Fonte - Edificio Q55 D. Diniz Rua dos Malões, 2 e 2A - Piso 2 Esquerdo 2770 - 071 Paço de Arcos	Tel. Fax	214667500 214667580
Suomi	Black & Decker PL47 00521, Helsinki	[e-mail] www.blackanddecker.fi
Sverige	Black & Decker AB Box 94, 431 22 Mölndal	[e-mail] www.blackanddecker.se
Türkiye www.blackanddecker.com.tr	KALE Hırdağ ve Makina AŞ. Defterdar Mah. Savaklar Cad. No:15 Edimekapi / Eyüp / İstanbul 34050	Tel. Fax	0212 533 52 55 0212 533 10 05
United Kingdom & Republic Of Ireland www.blackanddecker.co.uk [e-mail]	Black & Decker 210 Bath Road Slough, Berkshire SL1 3YD	Tel. Fax	01753 511234 01753 512365
Middle East & Africa www.blackanddecker.ea [e-mail]	Black & Decker P.O.Box - 17164 Jebel Ali Free Zone (South), Dubai, UAE	Tel. Fax	[phone] [phone]
