85C - Electric scooter URBAN GLIDE - Free user manual and instructions

Product type	Foldable electric scooter
Brand	URBAN GLIDE
Model	85C
Maximum user weight	100 kg
Battery	Lithium, smart charging with automatic stop at 100%
Charger	Specific charger provided, disconnect after use
Range	Variable depending on use and maintenance
Speeds	3 modes: first (S off), second (S white), third (S red)
Brakes	Left trigger brake + rear mudguard brake
Lighting	Front LED (switchable via power button)
Folding	Yes, with folding button and audible locking 'click'
Handlebar	Height adjustable
Kickstand	Integrated, deploy with foot
Power supply	Rechargeable lithium battery
Maintenance	Clean with a damp cloth and mild detergent; store in a dry place
Recommended protective equipment	Helmet, knee pads, elbow pads, gloves, closed shoes
Repairability	Contact after-sales service; do not disassemble yourself
General information	Imported by PACT Group, 33 rue du Ballon, 93160 Noisy Le Grand, France

Frequently Asked Questions - 85C URBAN GLIDE

How to charge the URBAN GLIDE 85C electric scooter?

Remove the plastic cap from the charging port, plug in the provided charger. The charger is smart and stops automatically at 100%. Remember to put the cap back after charging. It is recommended to charge at least once every 3 months even if not in use.

How to fold and unfold the scooter?

To fold: turn off the scooter, stow the kickstand, press the folding button with your foot or hand and fold the handlebar until it clicks. To unfold: press the button, hold the deck and raise the handlebar until it clicks. Be careful not to pinch your fingers.

How to change the speed of the scooter?

Once the scooter is on, press the On/Off button twice to change mode. The 'S' symbol indicates the mode: off = first speed, white = second, red = third.

What to do if the scooter does not turn on?

Check that the battery is charged (a red light should come on during charging). Make sure the battery connections are properly engaged. If the problem persists, contact after-sales service.

How to clean and maintain my scooter?

Use a damp cloth and mild detergent. Never use alcohol, gasoline or chemical solvents. Store it in a dry, dust-free place away from moisture and sunlight.

What is the maximum allowed load?

The maximum user weight is 100 kg. Do not exceed this limit to avoid any risk of damage or accident.

How to adjust the handlebar height?

Press the button on the stem (handlebar tube) and pull the handlebar up or push down to adjust the height. Release the button to lock.

What does the indicator on the screen mean?

The screen displays the battery indicator in real time. Turn on the scooter with the On/Off button. One press turns on the front LED, two presses change the speed mode as described above.

How to use the brakes correctly?

Use the left trigger on the handlebar for electric braking, or press the rear mudguard with your foot for mechanical braking. Check the brake condition regularly before each use.

Where to find spare parts or technical assistance?

For any spare parts or breakdown, contact after-sales service at the address indicated in the manual or on the website urbanglide.fr. Do not disassemble the scooter yourself as this will void the warranty.

USER MANUAL 85C URBAN GLIDE

URBANGLIDE is a brand imported by the company PACT GROUP, located at 33 rue du Ballon - 93160 Noisy Le Grand - France

Urbanglide.fr

Urbanglide

Urbanglide Channel

UrbanGlide

ENGLISH 5
FRENCH 16
GERMAN 27
SPANISH 40
ITALIAN 52
POTUGUESE 64
DUTCH 75

SUMMARY

SAFETY AND PRECAUTION

Protective equipment 6
Driver's advice 6
Procedures and driving conditions 6
Usage of the charger 7
Battery 7
Maintenance 7
Transport 8
Using the scooter 8
Rebus 8

USE

The different parts 9
9
Unfolding step 10
Using the screen 10
Mounting the handlebar 11
Adjusting of the folding device 11

SAFETY AND PRECAUTION

Please read the manual carefully before using the product and read the risks and safety tips in the manual. The use of an electrical product can be dangerous if the user is not watchful. Misuse and non-respect with the safety instructions does not affect the company in event of accident. Self-judgment and common sense are necessary for users to detect the possible dangers.

Please verify the current regulations and laws in your country to know where and how to use your product legally. You must comply with the rules and laws that applicable to vehicles and pedestrians.

- Protective equipment

Always wear the following protective equipment:

• Approved and certified helmet according to your location
• Knee pads and elbow patches
• Long sleeve t-shirt and long pants
• Gloves
• Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system.

- Driver's advice

This device may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if properly supervised, or if instructions for use of safely, were given to them and the risks were apprehended. Children under 8 must not play with the product. Cleaning and user maintenance should not be performed by unattended children. Do not touch the engine or the brakes of the product immediately after use, these parts may be extremely hot. The maximum weight of use is 120kg .

Procedures and driving conditions

Please verify the current laws and rules in your country before using the product. Look around when using the product and pay attention to all possible risks. It is important to respect the rights and properties of everyone. For your safety do not start the accelerator if you are not on the product. This product is not designed to make jumps,acrobatic tricks and skids.

Never drive on roads, near vehicles, stairs, hills, swimming pools or other streams. Please hold the handlebars with both hands. Never go on the product with more than one person. Be sure to keep your fingers and other body parts away from hot parts during use (Brake, motor, chain). Never use the product with a Mp3 player, or with your smartphone at hand.

Never use the product to pull anything, as this may damage the components and wear out the battery. Never put the product in contact with water, the electrical components can be damaged and create a dangerous situation. Roll only on flat and solid surfaces. Avoid surfaces with gravel, holes, ice, which can lead to loss of control of the product. Do not drive at night or in areas where visibility is reduced. Do not ride indoors where there are carpets as they can interfere.

After each use, verify that each piece is in its proper place, and that it is not damaged. Before each use, verify the following points:

• The brakes are in good condition
• All components are in good condition and in their places
• The parts with defects in the last use have been repaired or replaced according to the manufacturer's conditions.

People who have medical follow-up or treatment such as: cardiac people, pregnant women, irresponsible people, people with back or neck problems, should not use the product.

When not using your scooter, use the kickstand to keep it upright. To do this, straighten the metal bar located under the tray of your scooter. You can adjust the height of the handlebar using the buttons on the sleeve.

Press the button and pull your handlebars up to raise your handlebars.

Usage of the charger

A plastic cap is located on the loading port of your scooter, remove it to load your product, and do not forget to put it back before using your scooter so as not to damage the loading port. Before using the product, it is necessary to charge it. A long charge may be necessary before the first use. Please refer to the battery indicator, you can charge your battery at any time to ensure the constant power. It is not necessary to wait until the battery is completely empty to charge it.

Please do not use the charger of other brand, these can damage the battery of your product. To ensure a normal life cycle, it is important to charge your battery at least once every 3 months, even if you are not using the product. It is imperative to use the supplied charger which is specially designed for this scooter.

Avoid shocks and contact with water, these are factors not covered by the warranty that may damage the battery.

The supplied charger is "smart", it will stop at 100% of the charge and not damage the battery. The charger must be in perfect condition during each use, verify the wires, the condition of connection ends and connectors. If the product does not charge, the charger may be defective, it needs to be replaced.

The charger must be used only by an adult, it is important to unplug it from both sides when not charging.

- Battery

Please do not store the battery in extreme temperatures. Store it below 30^ C and above 0^ C. If you do not use your product for 60-90 days, the battery may get worse. This loss of autonomy is due to lack of use and is therefore not covered by the warranty.

At the end of its cycle, the battery must be discarded separately from the undifferentiated generic waste. Discard the batteries in the containers provided for this purpose. The recovery and recycling of batteries contributes to protect the environment and material resources conservation.

- Maintenance

Please store your product in a dry, dust-free place, and avoid leaving it in a humid area or under the sun for too long. To clean your appliance, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean your appliance, which will damage its appearance and structure.

Constantly verify the condition of components of your product, if any part is damaged, please replace it before using the product. If a part is not working, falling and injuring may occur. Do not disassemble the scooter in case of breakdown, otherwise the warranty will cancel. Before any intervention, it is advisable to turn off your scooter. For all spare parts, please contact your dealer

Transport

If you wish to transport your product by air or other means of transport as well as its battery, please contact the local authorities and the carrier beforehand to obtain the possible prohibitions and limits of transport. Lithium batteries are considered dangerous in many countries. Please make sure that the access and transport are allowed before travelling. International law prohibits the transport of lithium batteries by air.

Using the scooter

To turn on your product, press the Power button, then press the accelerator to advance. To move forward, place both feet on the board, and use the right trigger on your handlebars to advance your scooter. To brake, you can use the left trigger on your handlebar, or press the rear fender with your foot to reduce the speed of your scooter. Before each use, please check that the wheels are not clogged, that the brakes are working and that no warning message is displayed. Using the scooter for long periods can cause vibrations that can be unpleasant, make poses regularly. When stopped, use the stand to stabilize your product. Unfold it with your foot. To warn other users of your presence, use the horn located on the handlebars. Use the LED on the front of your product to light your way in dark places.

Rebus

THIS TROTTINETTE CONTAINS LITHIUM BATTERIES THAT MUST BE RECYCLED SAFELY. Recycling: The battery must be removed before being discarded. Before any work, remember to turn it off and unplug it from the power outlet.

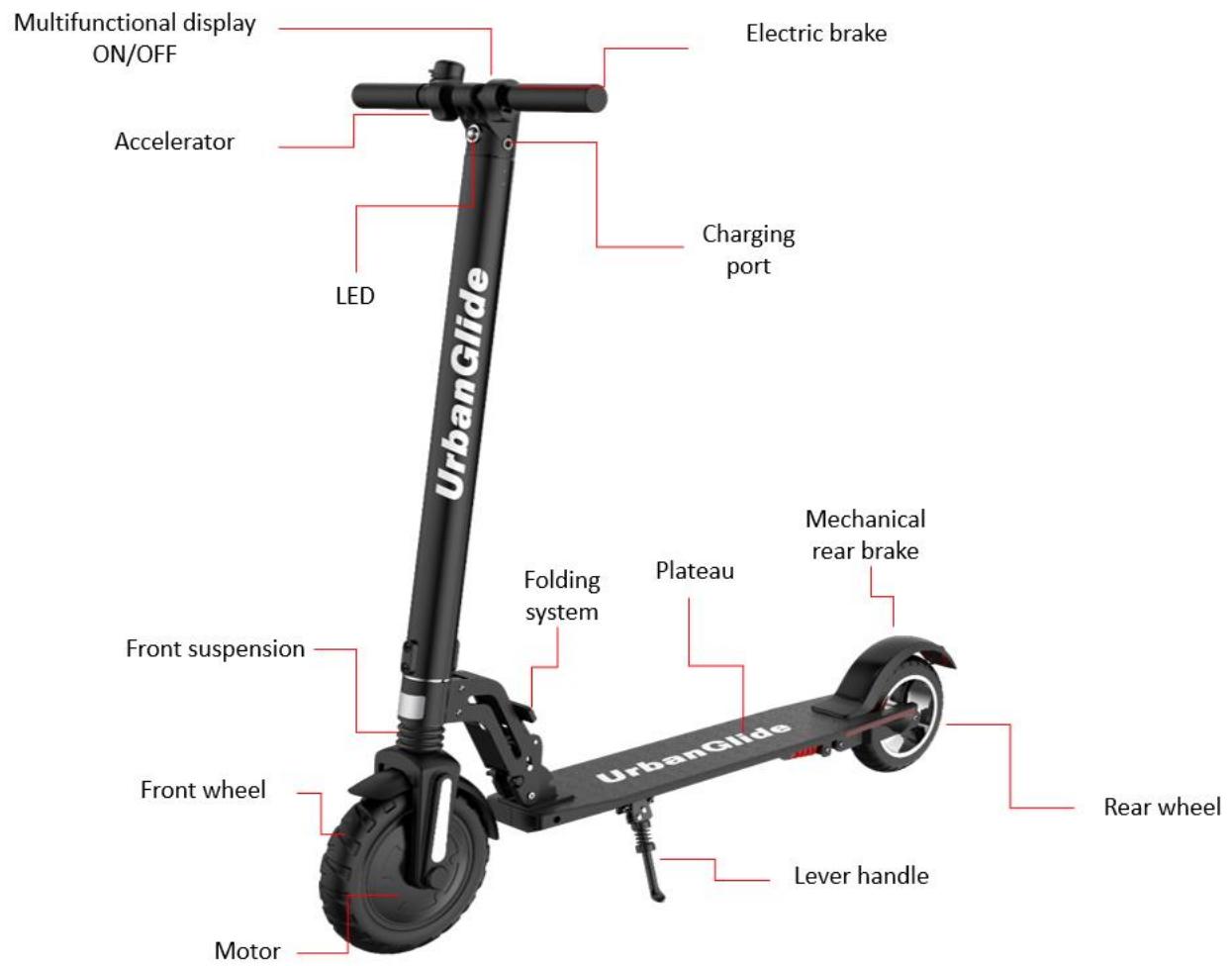

USE The different parts

To move forward, place both feet on the board, and use the right trigger on your handlebars to move your scooter forward.

To brake, you can use the left trigger on your handlebars, or pull the rear mudguard with your foot to reduce the speed of your scooter.

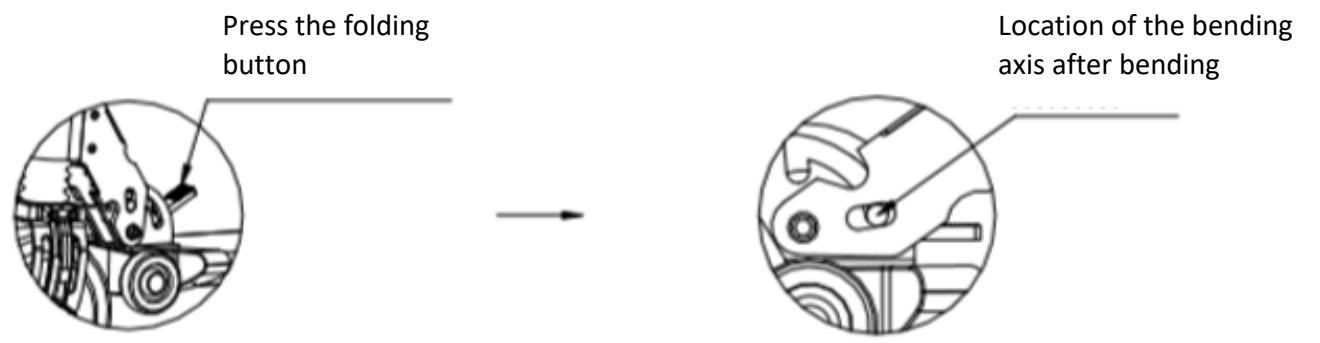

1. Switch off the scooter and store the stand.
2. Press the folding button with your foot or hand and fold the scooter.
3. Continue bending until you hear the "click" sound.

CAUTION: Do not pinch your fingers when folding the scooter!

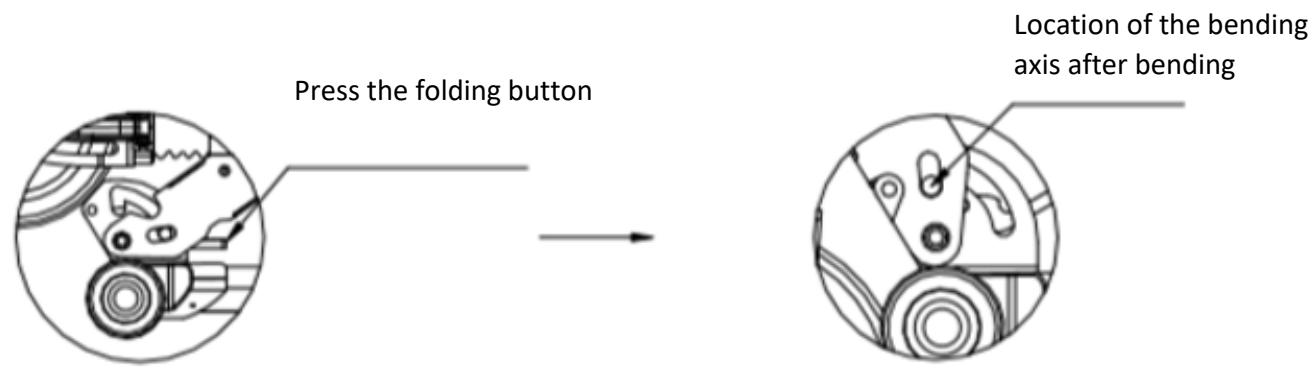

Unfolding steps

1. Press the folding button.
2. Hold the scooter platform and raise the handlebar until you hear the "click" sound. If you have not heard the sound, repeat and hold the folding button with your foot to make it easier to unfold.

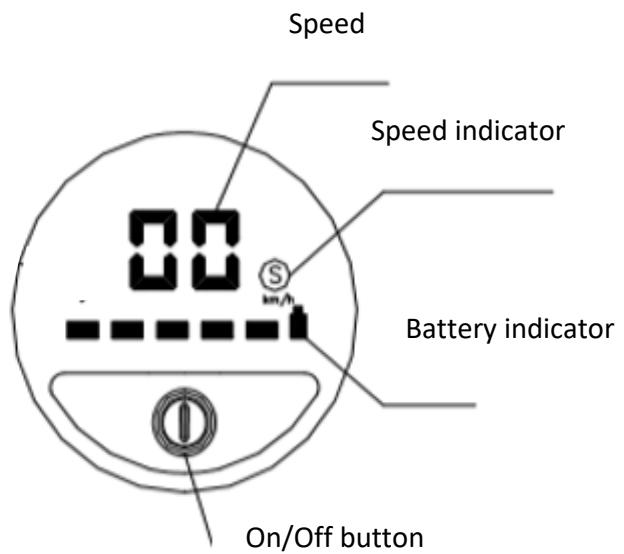

Using the screen

1. The battery indicator shows the remaining battery level in real time.
2. To turn the scooter on, press the On/Off button, to turn it off, press it for 3 seconds.
3. Once turned on, press the On/Off button once to turn on the front light. Press it once more to turn it off.
4. Once turned on, press the On/Off button twice to change the speed mode. When the "S" is not displayed, you are in first gear, when the "S" is displayed in white, you are in speed two, and when it is displayed in red, you are in third gear.

Mounting the handlebar

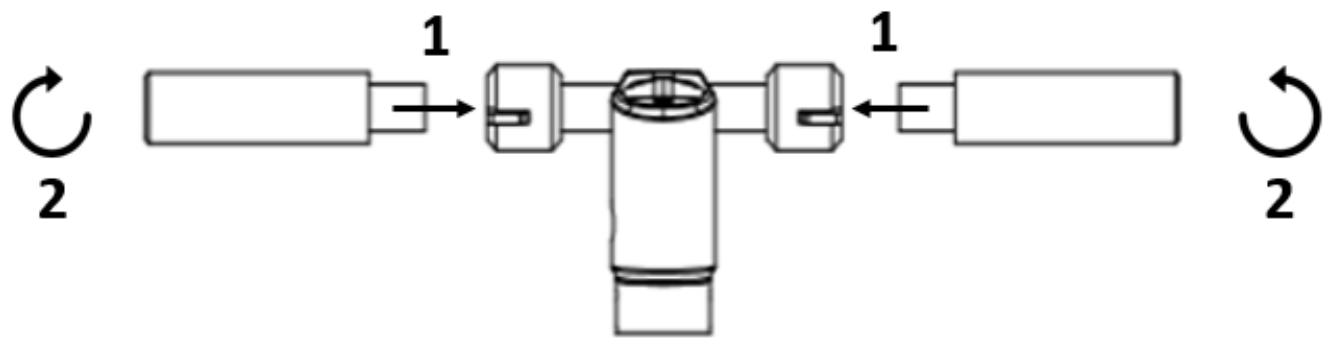

Assembly

To assemble the handlebars of your scooter, follow these steps:

1. Insert the two handles into the handle of your scooter.
2. Screw the two handles

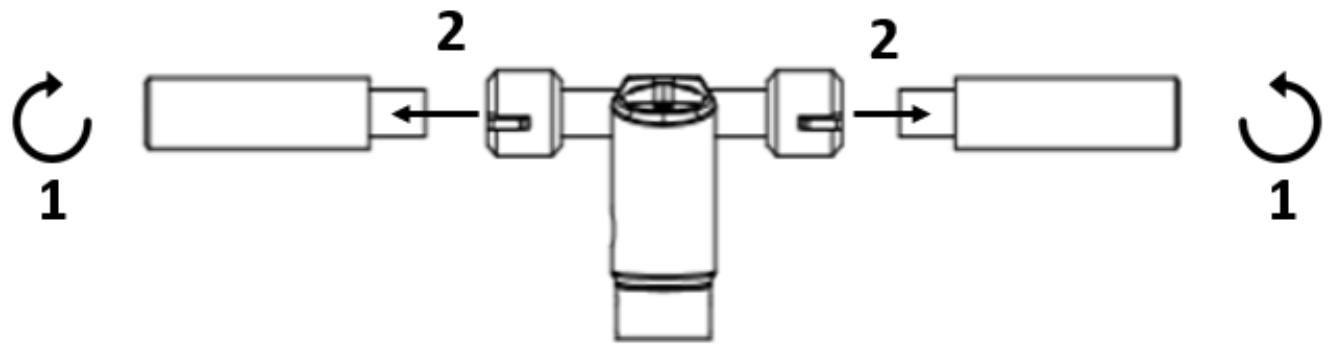

Disassembly

To disassemble the handlebars of your scooter, follow these steps:

1. Unscrew the two handles of the handle of your scooter.
2. Remove both handles.

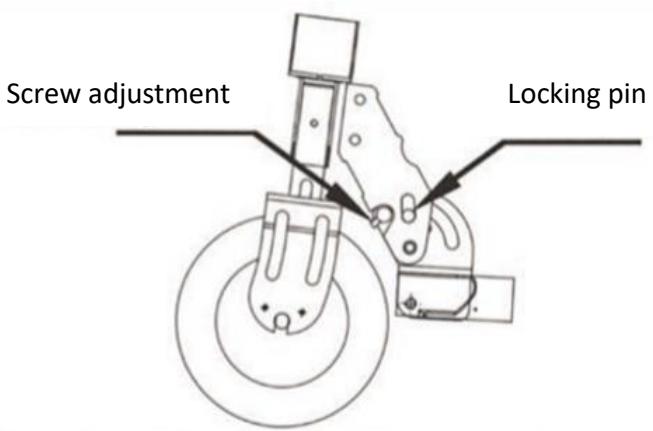

Adjusting of the folding device

1. When the space in the folding device is too large, the upper screw can be turned to the right with an Allen key and the left and right screws must be adjusted.
2. Before adjustment, make sure that the scooter is in the adjustment lock state and after adjustment, that the folding switch is elastic and can be used normally. The locking pin may normally fall down.

TROUBLESHOOTING

Problem	Possible cause	Solution
It does not work	The battery is not charged.	Charge the battery, check if the red light is on.
	Connections or cables are disconnected.	Check that the battery is firmly seated in the product.
It does not work continuously	The battery needs to be charged.	Charge the battery, check if the red light is on.
	The battery is not fully charged.	Make sure the power cable is well connected.
		The battery may need to be replaced.
It suddenly stopped working	Overload, cut-off	Overloading may result in product failure. Turn off the product, wait 15 seconds, then turn it on again.
	Fuse burnt	Overloading can burn fuses, you may have to replace them. For this, contact the after-sales service. Prior to this, check the condition of all cables and connectors.
It is moving slowly	The brakes are not properly adjusted.	Check the condition of the brakes, and try to loosen. If this does not work, please contact the after-sales service.
	It has overloaded	Check that the user weighs less than the previously recommended weight. Check that there are no objects obstructing the proper operation of the product.
	Bad driving condition.	Make sure you are on flat, dry, and constant ground.
	The tires / wheels are damaged.	Check the condition of the wheels of the product.

For any information, contact our after-sales service at the following address:

[e-mail]

You will also find many tutorial videos concerning the maintenance and maintenance of your product on our YouTube channel:

UrbanGlide Channel

Finally, do not hesitate to follow us on our social networks. Instagram and Facebook to follow our news.

Urbanglide.fr

Urbanglide

Urbanglide Channel

We undersigned PACT GROUP hereby declare that the product.

Model: URBANGLIDE RIDE 85 C

Type: Electric scooter

Function: Electric scooter for individual transport

Product description: Electric kick scooter with adjustable speeds for individual transport.

Meets all standards and technical directives below:

DIRECTIVES

2014/30/EU

2014/35/EU

2006/42/EU

2011/65/UE

TESTS STANDARD

EN 61000-6-1 :2007	EN 60335-1:2012+A11:14+A13:17	EN 60335-1:2012+A11:14+A13:17	EN 50581:2012
EN 61000-6-3:2007+A1 :2011		Annex K of EN 60745-1:2009+A11:2010
		EN ISO 12100: 2010

All tests were carried out by the laboratories mentioned below:

Intertek Testing Services Hangzhou

16 No.1 Ave., Xiasha Economic Development District, Hangzhou 310018, China

Contact details of the importer:

PACT GROUP

33 rue du ballon

93160 Noisy le Grand - France

Contact details of the person authorized to edit the technical document:

Fung Nim

33 rue du ballon

93160 Noisy le Grand - France

This declaration shall be issued under the responsibility of the importer on 15/09/2020

Representative of the company:

PACT GROUP

Maurice Bodokh

CEO

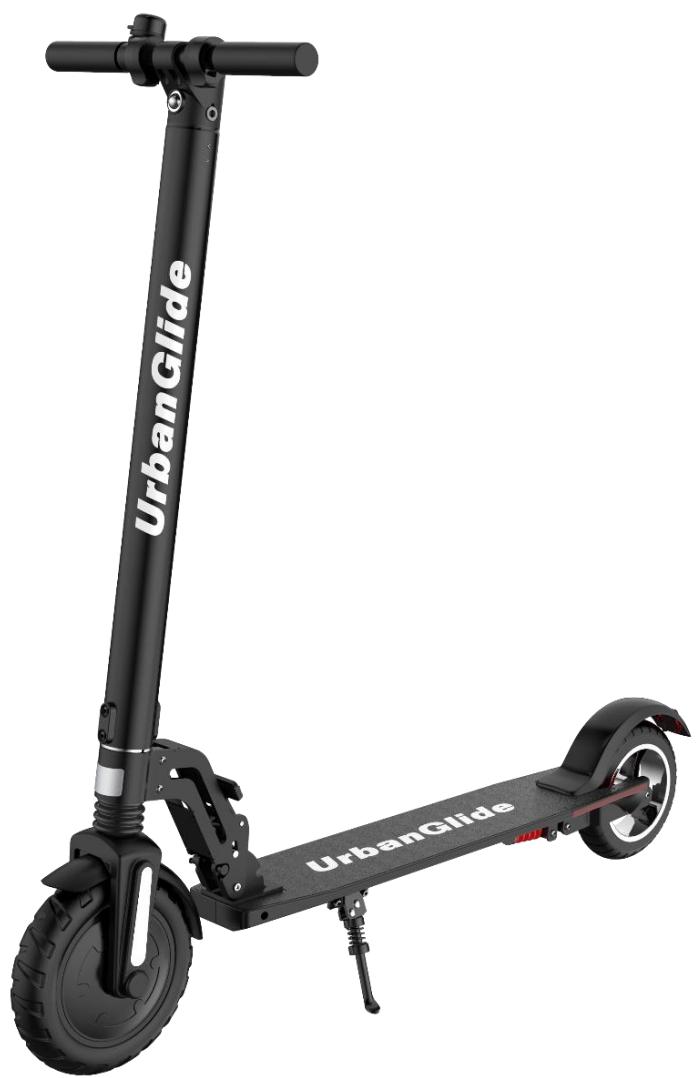

RIDE 85 C

Notice originale

[e-mail]

Intertek Testing Services Hangzhou

16 No. 1 Ave., Xiasha Economic Development District,

Hangzhou 310018. China

[e-mail]

Intertek Testing Services Hangzhou

16 No.1 Ave., Xiasha Economic Development District,

Hangzhou 310018, China

[e-mail]

Intertek Testing Services Hangzhou

16 No.1 Ave., Xiasha Economic Development District,

Hangzhou 310018, China

[e-mail]

Intertek Testing Services Hangzhou

16 No.1 Ave., Xiasha Economic Development District,

Hangzhou 310018, China

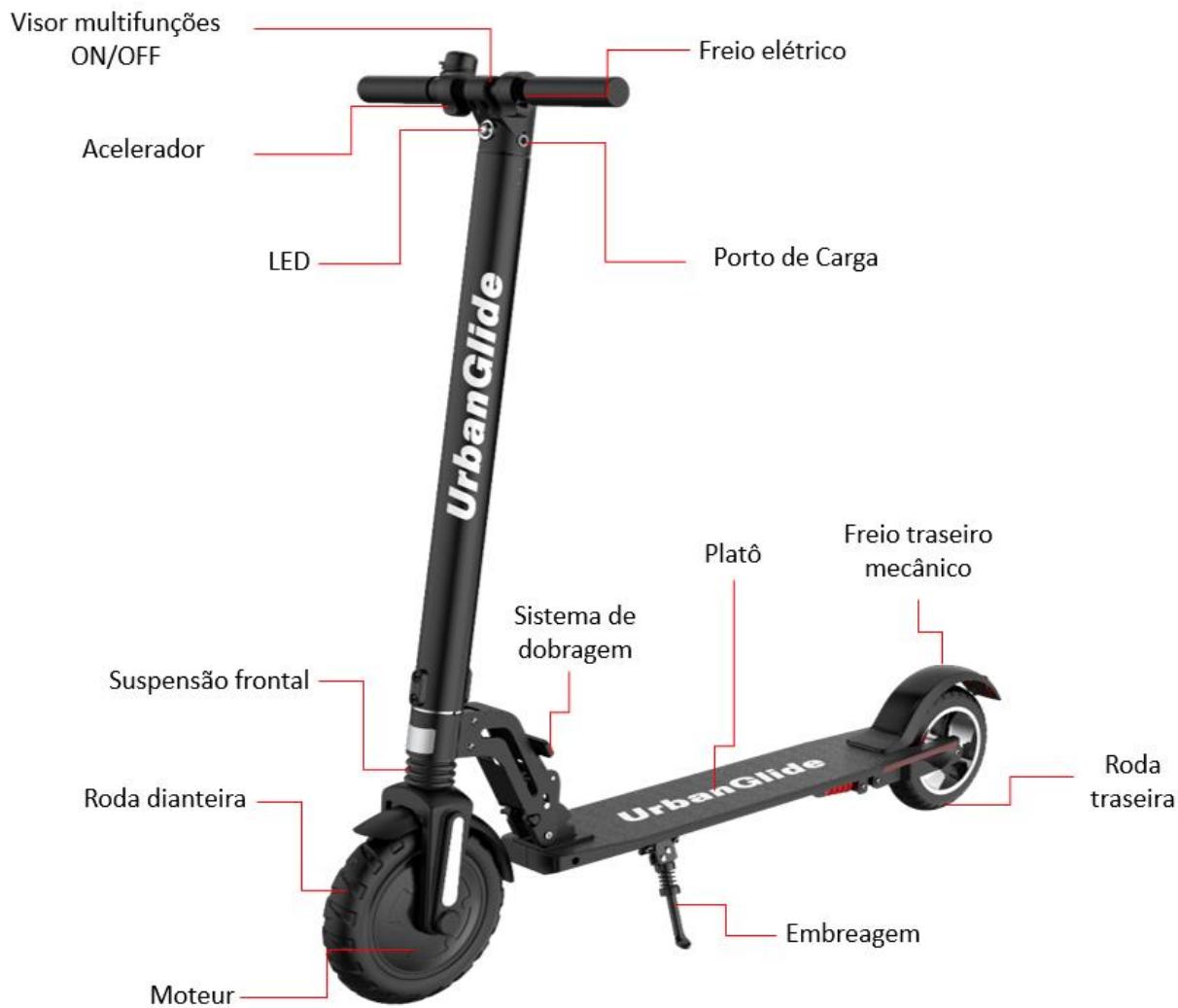

UTILIZACAO As differedes partes
