USER MANUAL Ride 85C+ URBAN GLIDE

MMAAAAXXXXXXXXXXXXXXX

https://urbanglide.com/contact/

1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang

Street, Bao'an District, Shenzhen 518126 P.R. China

COORDONNEES DE L'IMPORTATEUR:

PACT GROUP

29 Promenade Michel Simon

93160 Noisy le Grand - France

COORDONNEES DE LA PERSONNE AUTORISE A EDITER LE DOCUMENT TECHNIQUE :

Fung NIM

29 Promenade Michel Simon

93160 Noisy le Grand - France

URBANGLIDE is a brand imported by the PACT GROUP, Located at 29 Promenade Michel Simon- 93160 Noisy Le Grand - France

Urbanglide.fr

Urbanglide

Urbanglide Channel

Safety and precaution

Follow and read the instructions in this manual on operating procedures, including ignition, starting, braking, maintenance and storage.

Please read the risks and safety advice in the manual. The use of an electrical product can be dangerous if the user is not vigilant. Misuse and non-compliance with safety instructions does not implicate the company in the event of an accident. The user should use self-judgment and common sense to detect potential hazards. Please check your country's regulations and laws to find out where and how to legally use your product. You must obey the rules and laws applicable to vehicles and pedestrians.

- Protective equipment

Always wear the following protective equipment:

Approved and certified helmet according to your location

Knee pads and elbow patches

Long sleeve t-shirt and long pant

Gloves

Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system.

Driver's advice

The user must not be more than 100kg , the size and weight do not fully certify that the user will have full control of the vehicle. It is your responsibility to make sure that all users are aware of the risks. The recommended age for using this product is 12 years. It is your responsibility to put a younger child into consideration by considering their skills, maturity and ability and following the rules. Do not touch the engine or the brakes of the product immediately after use, these parts may be extremely hot.

Security advice

Take the time to learn the basics of practice to avoid any serious accidents during the use of the product, this goes through the following points:

• The age of the driver must be at least 12 years old, for a pleasant ride the hip of the driver must not exceed the handlebars of the scooter, and his visibility must be at least 30cm above the handlebars.
• Get closer to the seller to be directed to an appropriate training organization;
• Avoid high traffic areas or congested areas;
• In all cases, anticipate your trajectory and speed while respecting the highway code, the pedestrian code and the most vulnerable beings;
• Cross the protected passages while walking;
• Do not divert the vehicle from its initial use;
• Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake axle;
• Eliminate sharp edges caused by use;
• Do not modify or transform the vehicle, including the steering tube and sleeve, the stem, the folding mechanism and the rear brake.

General use

C+ traffic involves crossing many obstacles, such as sidewalks or steps. It is recommended to avoid jumping obstacles. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or the risk of skidding they present.

In the event of an accident, get to safety and put on a yellow vest to be spotted on the road, turn off the scooter and call the emergency services.

The maximum speed of the scooter (25 km/h | 15 mph) may vary depending on the weight of the user, the weather conditions and the inclination of the road.

- Proper functioning

To operate this scooter adjustment and maintenance before and after each use is necessary, do not expose yourself to any risk when these operations are carried out, wear personal protective equipment and contact the manufacturer in case of questions or doubts, take into account also from any reasonably foreseeable misuse.

Any load attached to the handlebars will affect the stability of the vehicle, please do not carry heavy loads or attach accessories or additional items not approved by the manufacturer as this may make driving very unstable.

- Procedures and driving conditions

Please check the laws and regulations in your country before using the product. In France, the linear speed on flat ground and a person not exceeding the maximum permissible load is 25km/h . Look around when using the product, and pay attention to any potential hazards. It is important to respect everyone's rights and properties. For your safety, do not engage the accelerator if you are not on the product. This product is not designed for performing jumps, stunts and skids. Never drive on roads, near vehicles, stairs, hills, swimming pools or other bodies of water. Please hold the handlebar with both hands. Never mount more than one person on the product. Be sure to keep your fingers and all other parts of the body away from parts that can heat up during use (brake, motor, chain). Never use the product with an audio player, or with your smartphone in your hand. Never use the product to pull something as this will damage the components and wear out the battery. Never put the product in contact with water, the electrical components may be damaged and create a dangerous situation.

Ride only on flat, solid surfaces. Avoid surfaces with gravel, holes, ice, which can cause loss of product control. Do not ride at night or in areas where visibility is reduced. Also, don't ride indoors, where carpets and rugs can get in the way.

The A-weighted emission sound pressure level at the driving position does not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m/s^2 , the maximum frequency-weighted mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m^2 . (Measurement accuracy uncertain)

After each use, check that each part is in its place and that it is not damaged. Before each use, check the following points:

• Brakes are in good condition

• All components are in good condition and in their places

• The parts having presented anomalies during the last use have been repaired or changed according to the manufacturer's conditions.

Check the tire pressure before the first use, make sure the tire is inflated to 2.4 bars MAX

People who have medical monitoring or treatment such as: cardiac people, pregnant women, non-responsible people, people with back or neck problems, should not use the product.

Usage of the charger

Before using the product, it is necessary to charge it. A long charge may be required before first use. Please rely on the light on the battery indicator. It is possible to charge your battery at any time to ensure constant power, it is not necessary to wait until the battery is completely empty to charge it. Please do not use the charger of other brand, these may damage the battery of your product. It is important to charge your battery at least once every 3 months, even if you are not using the product, to ensure a normal life cycle. Avoid shocks and contact with water, these are factors not covered by the warranty that can damage the battery. The charger provided is "intelligent", it is designed to stop at 100% of the charge and not damage the battery. The charger must be in perfect condition each time you use it, check the wires, the condition of the tips and connectors. If the product does not charge, the charger may be faulty, it is then necessary to change it. The charger should only be used by an adult, it is important to unplug it from both sides when not charging. Do not charge your scooter unattended.

Battery

Please do not store the battery in extreme temperatures. Below 30^ and above 0^ . If you do not use your product for 60-90 days, the battery may be less efficient than when it started. This loss of autonomy is due to lack of use and is therefore not covered by the warranty.

At the end of its cycle, the battery must be disposed of separately from undifferentiated generic waste. Dispos. of the batteries in the containers provided for this purpose. Collecting and recycling batteries helps to protect the environment and conserve material resources. This product contains a Li-ion battery, any fire must be extinguished using a powder extinguisher (Class D fire)

(The battery is an element subject to wear, the warranty covers you from a failure up to 6 months after the purchase of your scooter).

- Maintenance

Please store your product in a dry and dust-free place, and avoid leaving it too long in a humid space or under the sun. To clean your device, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene or other harsh chemical solvents to clean your device, which will damage its appearance and structure.

Constantly check the condition of your product components, if any part is damaged, please replace it before using the product. If a part is not in working order, you risk falling and injuring yourself.

Transport

If you wish to transport your product, as well as its battery, by plane or by other means of transport, please contact the competent local authorities and the carrier beforehand in order to inform you of any prohibitions and restrictions on transport. Lithium batteries are considered dangerous in many countries. Please ensure before a trip that access and transport is authorised. International law prohibits the air transport of lithium batteries.

Use of the product

To turn on your product, press the Power button located on your handlebars. To move forward, give a push with your feet and press the accelerator also located on your handlebars. Place both feet on the product and squeeze the throttle trigger. To brake use the manual brakes located on the handlebars. Before each use, please check that the wheels are free from obstruction, that the brakes are working. In order to make certain basic adjustments, in particular the play of the brake control, come and discover our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL.

The use of this type of product over a long period can cause vibrations which can be unpleasant, take breaks regularly. To warn other users of your presence, use the buzzer located on your handlebars, if your product is equipped with them. Use the front LED to light your way in dark places. When you stop your product, use the stand to stabilize it.

- Scrap

THIS PRODUCT CONTAINS LITHIUM BATTERIES WHICH MUST BE SAFELY RECYCLED : The battery must be removed before disposal. Before any intervention, remember to turn it off and unplug it from the power outlet.

WARNING : As with any mechanical component, a vehicle is subject to high stress and wear. Different materials and components may react differently to wear or fatigue. If the expected life of a component is exceeded, it may suddenly break and risk injuring the user. Cracks, scratches, and discoloration in high-stress areas indicate that the component has exceeded its life and should be replaced.

(This scooter is not intended to be used or parked in public places)

Some parts require replacement depending on the degree of wear and its usage time, you can obtain spare parts at the following address (Section 85 C+):

https://boutique.urbanglide.com

Spare parts	Replacement criteria	Acceptability criteria	Replacement method	References
Tire	Loss of original shape, cracks, splinters or other signs of wear and tear		Online video on YouTube URBANGLIDE Channel	On request to customer service
Disc brake	Abnormal noise when braking, low thickness (<2.5mm)	Drive at 15Km/h Brake on 1m, the scooter must stop.	Online video on YouTube URBANGLIDE Channel	On request to customer service
Brake	Abnormal noises when braking or abnormal rubbing noises		Online video on YouTube URBANGLIDE Channel
Brake cable	Fraying cable		Online video on YouTube URBANGLIDE Channel	On request to customer service
Reflectives sticker	When it comes off		Online video on YouTube URBANGLIDE Channel	On request to customer service
Bearings	Abnormal noises		Contact our customer service	On request to customer service

The serial number has the year of manufacture as a prefix located on the information label of your product.

MMAAAAXXXXXXXXXXXXXXX

Tips for use

It is not advisable to drive in the rain or in bad weather conditions.

When riding on unstable and impassable terrain, reduce your speed.

Get off your scooter when you go through a door, lift or stairs.

For your safety, do not accelerate on the descents.

Do not stand on the mudguard of your product to avoid damaging it.

Leave both hands on your scooter when you ride.

Do not touch the disc brakes after using your scooter, these parts can be hot after a long ride.

Do not go up and down any stairs with only your scooter.

It is forbidden to ride on the road with your electric scooter.

When turning, slow down to avoid any risk of falling.

Do not ride in a puddle more than 2cm high.

It is forbidden to ride in pairs on your scooter or to ride with a child under the age of 12.

Do not depress the accelerator when you are not on the scooter.

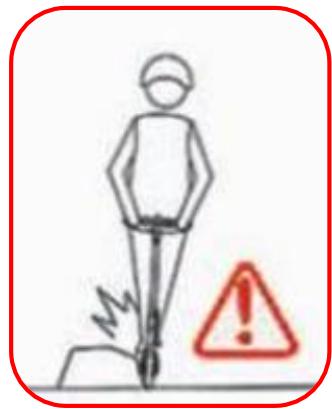

Avoid obstacles when driving

Do not hang anything on your scooter that could affect weight distribution and cause you to fall.

Leave both feet on the tray of your scooter.

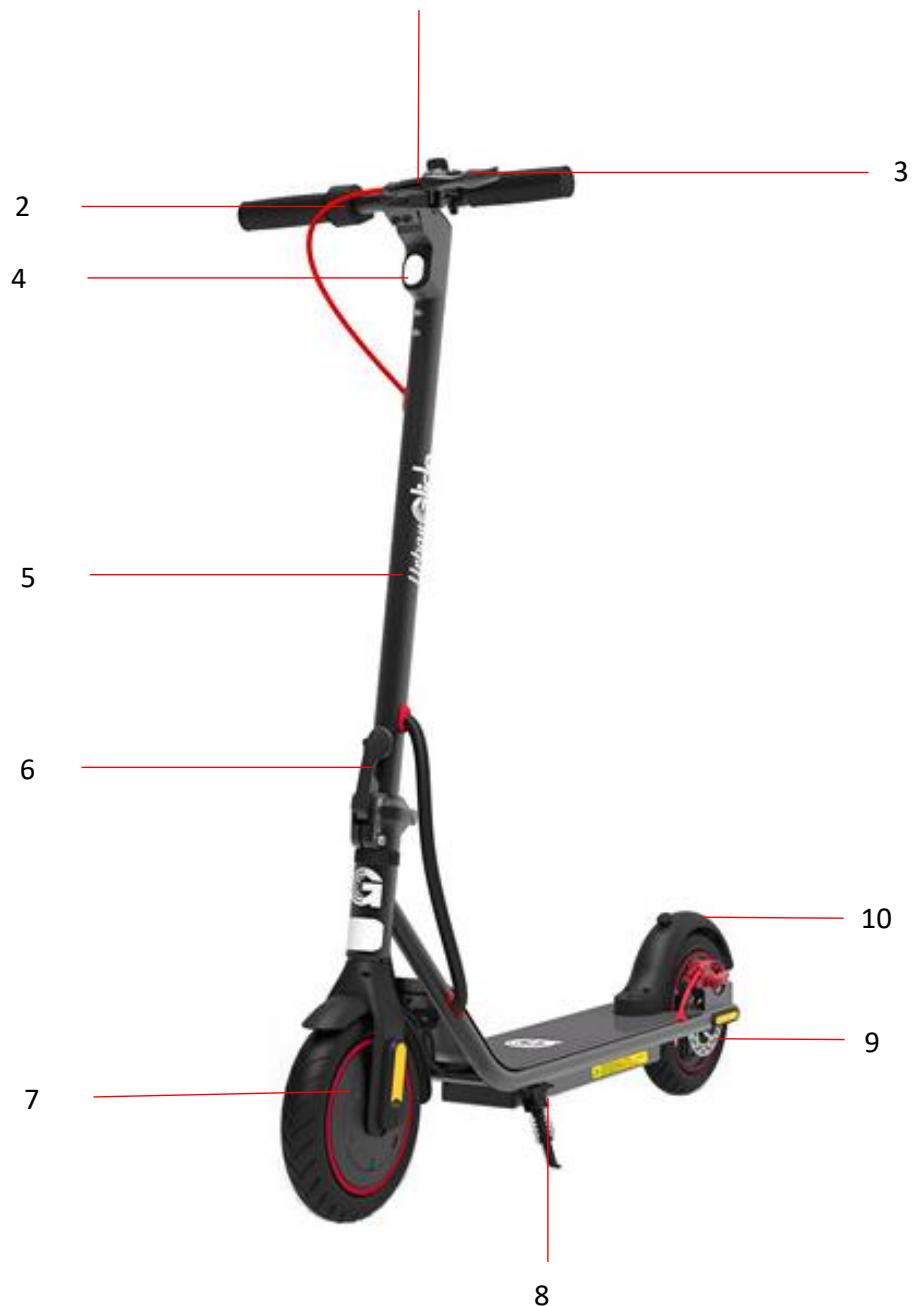

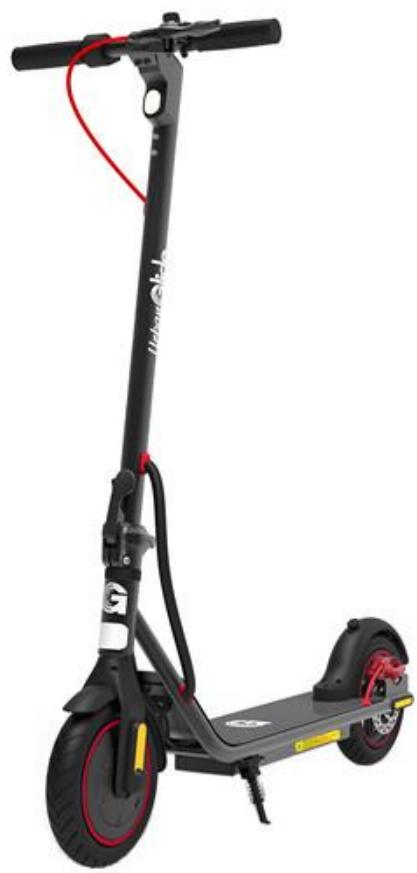

Overview

1 - Screen	6 – Folding system
2 – Acceleration trigger	7 – Motor wheel
3 – Brake	8 – Charging port
4 – Front light	9 – Brake disc
5 – Stem	10 – Rear mudguard

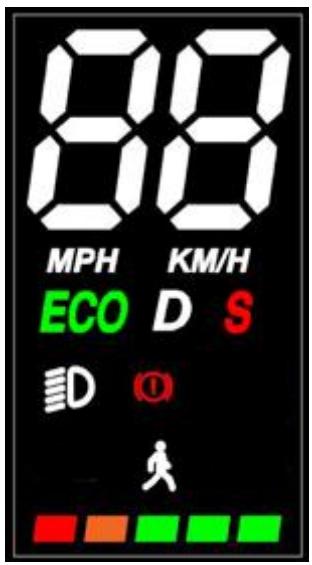

Using the screen

Speed mode

Screen on or off

Brake indicator

Battery indicator

Error codes

ERROR	Description	Troubleshooting
E0	Display / motherboard communication fault	Check the connection cables between the display and the motherboard.
E1	Accelerator fault	Check the accelerator connection.
E2	Brake fault	Check the condition of brake cables and discs.
E3	Engine fault	Check the condition of the engine.
E4	Transistor fault	Check the motherboard connection to the motor.
E5	Motherboard fault	Check the connection cables and the status of the motherboard.
E6	Battery fault	Check the battery.

Problem	Possible causes	Solutions
Your product is not working.	The battery is not charged	Charge your battery and check that your charger shows a red light.
	The connection cables are disconnected.	Check that all cables are securely connected and that none of them are damaged.
Your product doesn't work continuously	The battery needs to be recharged	Charge your battery and check that your charger displays a red light correctly.
	The battery is not fully charged	Check that the motor cable is properly connected.
		The battery may need to be replaced.
Your product has suddenly stopped working.	Overload/Cut	Overloading may cause the product to fail. Please turn off the product, wait 15 seconds, and then turn it back on.
	A fuse dropped	Start by checking the status of all cables first.
Your product is moving slowly	Brakes are not properly adjusted	Check the condition of the brakes and try to release them. If this does not solve the problem, please contact the after-sales service.
	The product is overloaded	Check if the user weighs less than the previously recommended weight. Also make sure that no object interferes with the proper functioning of the product.
	You use your product in inappropriate conditions	Make sure you are on flat, dry and stable ground.
	Wheels and tires are damaged	Check the condition of the product's wheels.

For any information, contact our after-sales service at the following address :

https://urbanglide.com/contact/

You will also find many tutorial videos about the care and maintenance of your product on our YouTube channel :

UrbanGlide Channel

Finally, don't hesitate to follow us on our social networks Instagram and Facebook to follow our news.

You can find the latest update of the manual in digital format by logging on to our website :

www.urbanglide.com

(Model heading concerned).

The paper version will be given to you on simple request to our customer service.

All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks does not constitute a recommendation for use.

Urbanglide.fr

Urbanglide

Urbanglide Channel

ORIGINAL DECLARATION OF CONFORMITY

We, the undersigned PACT Group, hereby declare that the product..

Model:85C+

Type: Electric scooter

Function : Electric scooter for individual transportation

Description of product : Electric scooter 36V 5.2Ah

Manufacturing batch : 082023UG85C+ZZ

Year of manufacture : 2023

Meets all of the following technical standards and guidelines :

DIRECTIVES

2014/30/EU

2006/42/EC

2011/65/EU

STANDARD OF TESTING

EN 17128: 2020	EN ISO 12100:2010	IEC 62321
	EN60335-1-2012+A11 :2014+A13 :2017

All tests were performed by the following laboratories:

Shenzhen NTEK Testing Technology Co., Ltd.

1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang

Street, Bao'an District, Shenzhen 518126 P.R. China

IMPORTER'S CONTACT INFORMATION :

PACT GROUP

29 Promenade Michel Simon

93160 Noisy le Grand - France

CONTACT DETAILS OF THE PERSON AUTHORIZED TO EDIT THE TECHNICAL DOCUMENT :

Fung NIM

29 Promenade Michel Simon

93160 Noisy le Grand - France

This declaration is issued under the responsibility of the manufacturer and, where applicable, his authorised

representative on 24/08/2023

Representative of the company:

PACT GROUP

29 Promenade Michel Simon-

Noisy le Grand France

Maurice Bodokh

CEO

UrbanGlide

CE

85 C+

Manual original
