CMW20SMB - Microwave CANDY - Free user manual and instructions

Product type	Solo microwave
Model	CMW20SMB (also CMW20SMW)
Brand	Candy
Capacity	20 liters
Microwave output power	700 W
Rated input power	1050 W
Voltage / Frequency	230 V ~ 50 Hz
Turntable diameter	255 mm
Dimensions (W x H x D)	440 x 259 x 340 mm
Net weight	Approximately 10.2 kg
Power levels	5 levels (Low 119 W, M.Low 231 W, Med 385 W, M.High 539 W, High 700 W)
Control type	Mechanical (2 rotary knobs: power and timer)
Timer	Up to 30 minutes (estimate)
Defrost function	Yes (M.Low position)
Safety	Door safety lock, grounding required
Cavity materials	Stainless steel or enamel (not specified)
Included accessories	Glass turntable, turntable ring, instruction manual
Cleaning	Damp cloth, avoid abrasive cleaners and metal scrapers
Installation	On countertop, clearance min. 30 cm above, 20 cm on sides
Usage restrictions	Metal containers, whole eggs, sealed foods, unattended
Energy efficiency class	Not specified
Repairability	Spare parts available via authorized service (mica, magnetron, etc.)
Warranty	Manufacturer standard (check conditions)

Frequently Asked Questions - CMW20SMB CANDY

How to set the cooking time?

Turn the timer knob to the desired time. The oven starts automatically. Once the time is up, a bell rings and the oven stops. Always return the knob to 0 after use.

What power levels are available?

Five levels: Low (119 W) for softening, M.Low (231 W) for defrosting, Med (385 W) for stews, M.High (539 W) for rice and poultry, High (700 W) for reheating and boiling.

Can I use metal containers?

No, metal containers or those with metal trim can cause arcing and damage the oven. Use microwave-safe dishes (glass, ceramic, specific plastic).

How to clean the inside of the microwave?

Unplug the appliance. Wipe the cavity with a damp cloth. For stubborn stains, heat half a lemon in 300 ml of water at full power for 10 minutes, then wipe. Do not use abrasive cleaners or metal scrapers.

Why is the oven not heating?

Check that the door is fully closed. If the oven still does not start, check the power outlet, fuse, or circuit breaker. If the problem persists, contact a qualified technician.

Can I run the oven empty?

No, it is dangerous. Running the oven empty can overheat and damage the magnetron. Always ensure there are food items or a glass of water inside.

How to defrost food?

Use the M.Low (231 W) level. Place food in a suitable dish and set the time according to weight. Stir or turn halfway through for even defrosting.

The microwave interferes with the TV, is this normal?

Yes, it is normal. Microwaves can cause interference with TV or radio reception, like other electrical appliances. Move the oven away if possible.

What are important safety precautions?

Never open the door during operation. Use only suitable utensils. Do not heat sealed liquids or eggs in shell. Keep the oven clean to prevent surface deterioration.

Where to find spare parts?

Contact the authorized Candy after-sales service or a specialist dealer. Parts such as the turntable, ring, magnetron, or mica cover are available. Never remove the magnetron cover yourself.

USER MANUAL CMW20SMB CANDY

Read these instructions carefully before using your microwave oven, and keep them carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

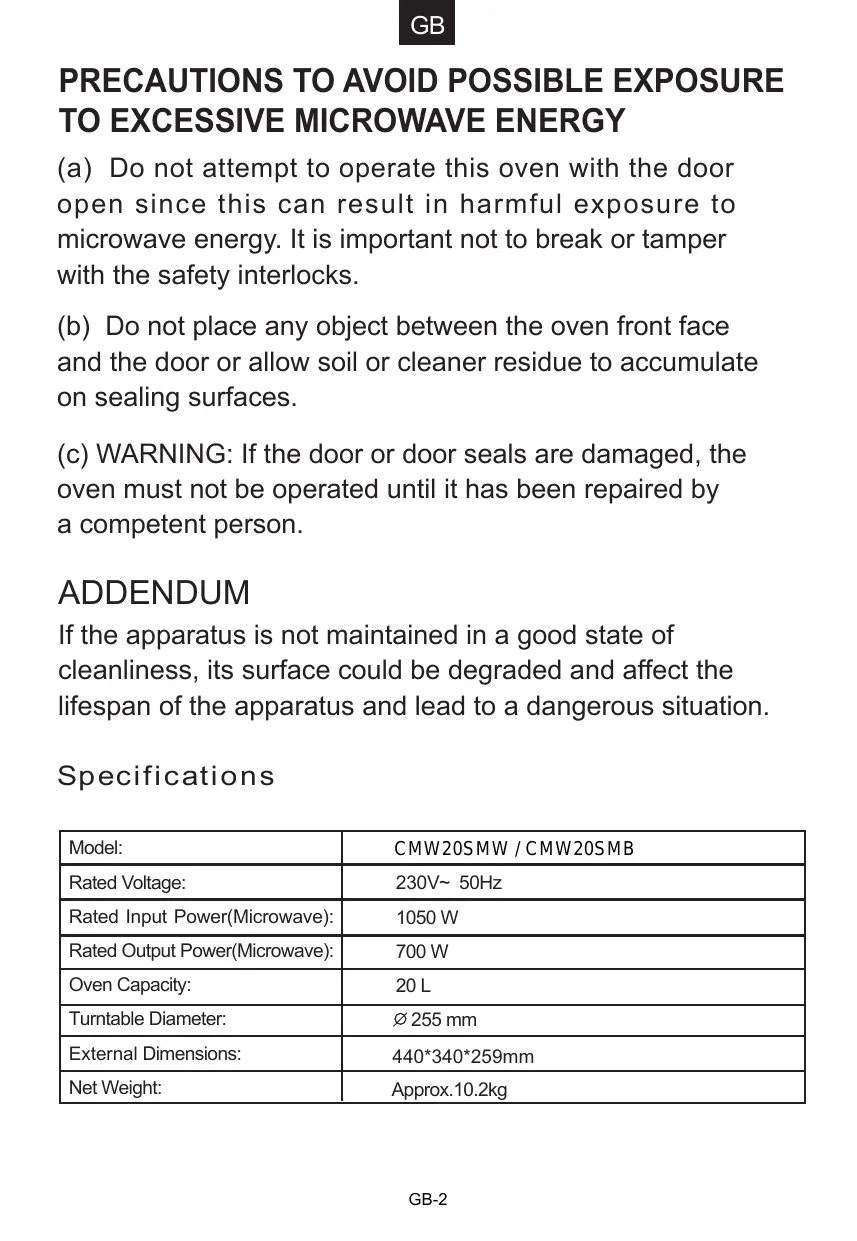

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CMW20SMW / CMW20SMB
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1050 W
Rated Output Power(Microwave):	700 W
Oven Capacity:	20 L
Turntable Diameter:	Ø 255 mm
External Dimensions:	440*340*259mm
Net Weight:	Approx.10.2kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
20. This appliance is intended to be used in household and similar applications such as:
21. staff kitchen areas in shops, offices and other working environments;
22. by clients in hotels, motels and other residential type environments; -farm houses;
23. bed and breakfast type environments.
24. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
25. Metallic containers for food and beverages are not allowed during microwave cooking.
26. The appliance shall not be cleaned with a steam cleaner.
27. The appliance is intended to be used freestanding.
28. The rear surface of appliances shall be placed against a wall.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

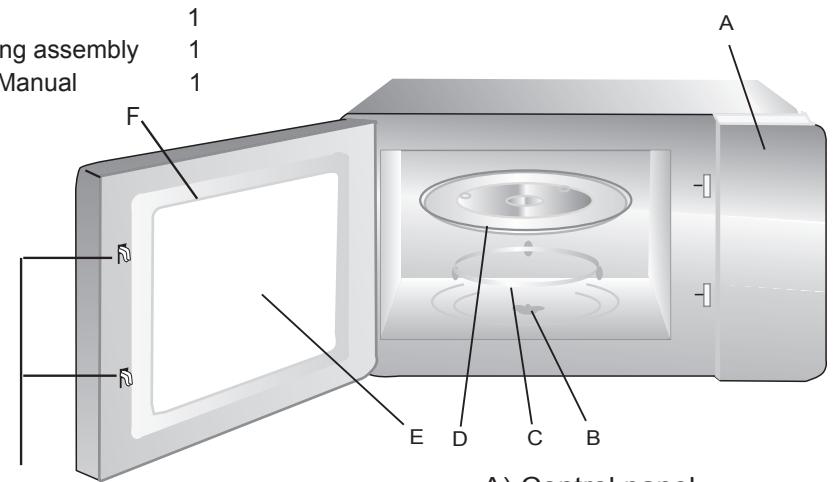

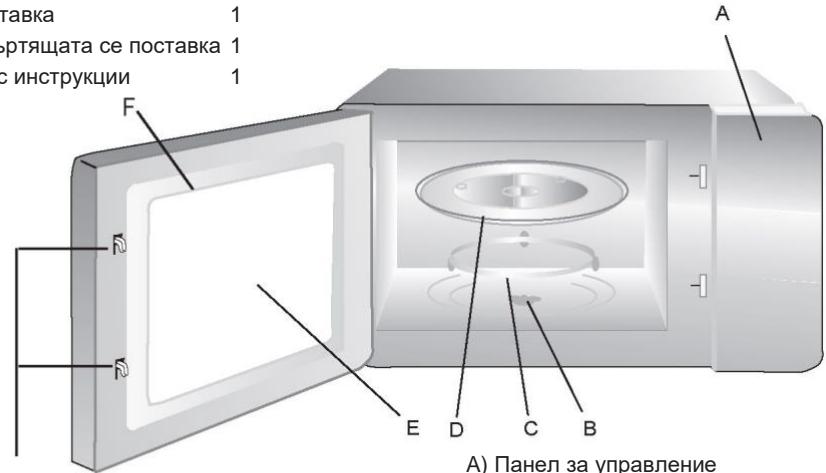

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1, Turntable ring assembly 1, Instruction Manual 1

G

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

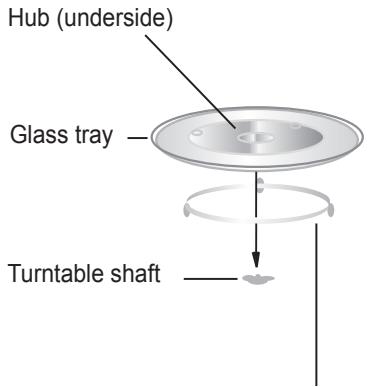

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

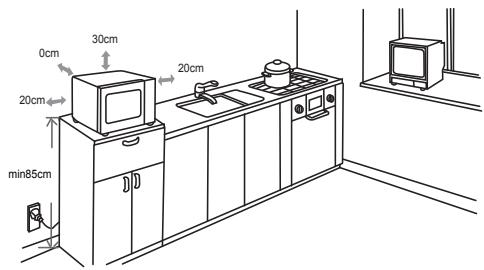

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85 cm. (2) The rear surface of the appliance shall be placed against a wall. Leave a minimum clearance of 30 cm above the oven, and a minimum clearance of 20 cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven. (4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TVs as possible. Operation of the microwave oven may cause interference to your radio or TV reception. 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label.

WARNING: Do not install the oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during oper

ation.

OPERATION

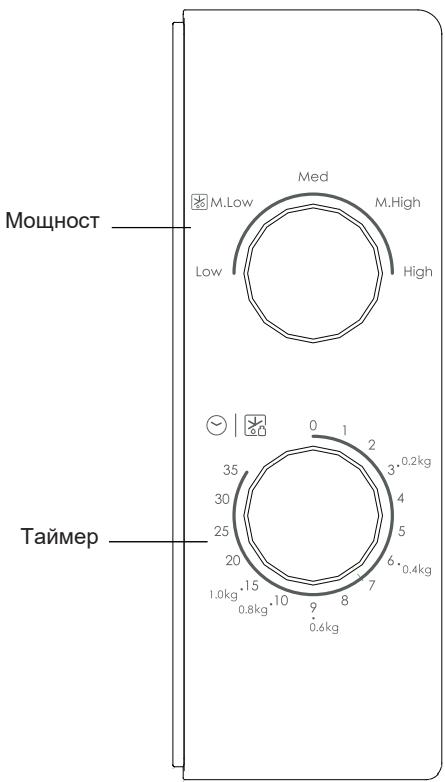

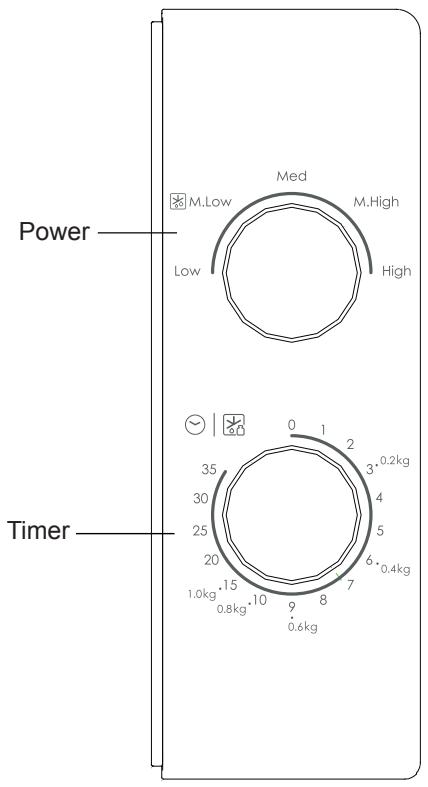

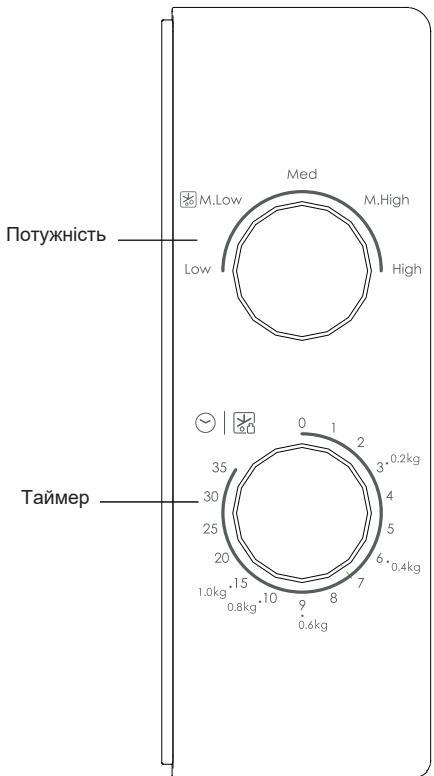

Control Panel and Features

Operation Instructions

1. 1. To set cooking power, turn the power knob to the desired level. 2. To set the cooking time, turn the timer knob to the desired time according to your food cooking guide.
2. The microwave oven will automatically start cooking after the power level and time are set.
3. After the cooking time is up, the unit will "Dong" to stop. 5. If the unit is not in use, always set the time to "0".

Function/Power	Output	Application
Low	119W	Soften ice cream
Med. Low (Defrost)	231W	Soup stew, soften butter or defrost
Med.	385W	Stew, fish
Med. High	539W	Rice, fish, chicken, ground meat
High	700W	Reheat, milk, boil water, vegetables, beverage

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Troubleshooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off,

as long as the appliance is of an equivalent type and has the same functions as the purchased

appliance.

Microwave oven

INSTRUCTION MANUAL

MODEL: CMW20SMW CMW20SMB

TeT 3a npnbopn:

1. Press the button for microwave oven, set to 1 minute and water (250 ml) together with the appliance. 2. Turn on at maximum power for 1 minute. 3. Carefully wipe the appliance. If the appliance is flooded, do not use it for cooking in the microwave oven. 4. Do not exceed the heating time of 1 minute.

Materials you can use in the microwave oven

Operating Instructions 1

G

A) Control panel B) Turntable shaft C) Turntable support D) Glass tray E) Viewing window F) Door components G) Safety interlock system

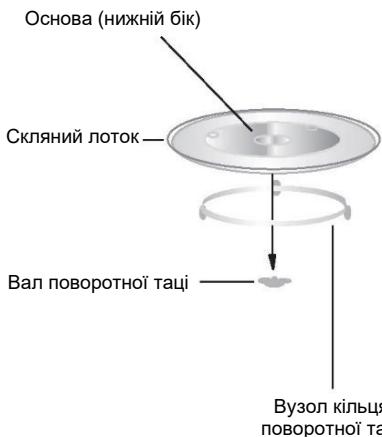

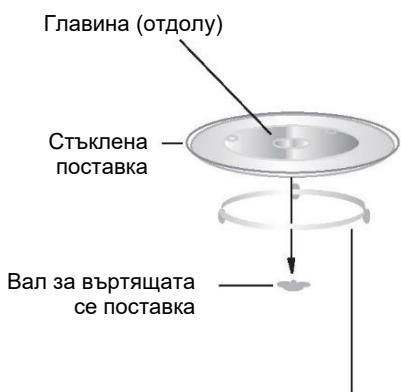

Mounting the turntable

Ring for turntable support

a. NEVER place the glass tray in reverse. The movement of the glass tray must never be restricted. b. During cooking, both the glass tray and the ring for turntable support must be used. c. All food containers must be placed on the glass tray for cooking. d. If the glass tray or the ring for turntable support cracks or breaks, contact the nearest authorized service center.

Mounting the oven

Remove all packaging materials and accessories. Check the oven for damage, such as dents or broken door. Do not install if the oven is damaged.

Cabinet: Remove any protective film from the surface of the microwave oven cabinet. Do not remove the light brown mica plate that is attached to the interior of the oven to protect the magnetron.

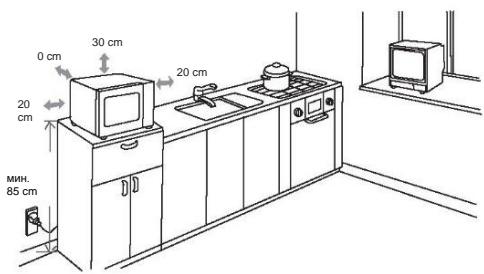

Installation

1. Choose a flat surface that provides sufficient space for the inlet and/or outlet ventilation openings.

(1) The minimum mounting height is 85 cm. (2) The rear side of the appliance must be placed against a wall.

Maintain a minimum distance of 30 cm from the oven, and a minimum distance of 20 cm is required between the oven and adjacent walls.

(3) Do not place the ceramic tray on the bottom of the oven. (4) Blocking the inlet and outlet openings may damage the oven.

(5) Place the oven as far as possible from radios and televisions. The operation of the microwave oven may cause interference with your radio or television reception. 2. Connect the oven to a standard household outlet. Make sure that the voltage and frequency of the current match the rated voltage and frequency of the appliance.

WARNING: Do not install the oven over a cooktop or other heat-generating appliance. If installed near or above a heat source, the oven may be damaged and the warranty will be void.

The outer surface may become hot during operation.

OPERATION

Instructions for using the control panel and functions

1. Set the power level for cooking, then turn the knob to the desired level. 2. Set the cooking time, then turn the timer knob to the desired time according to your cooking guide. 3. The microwave oven will automatically start after setting the power and time. 4. When the cooking time is up, a signal will sound and the oven will stop. 5. If the oven is not in use, always set the timer to "0".

Функция	Изховны мошноct	Пробложения
Low	119 W	Раимеквае на садоlement
Med. Low (размразаamba)	231 W	Затоллесуону на суна, омеквае на масло ули размразаamba
Med.	385 W	Яхни, риба
Med. High	539 W	Ориг�а, пileшко, м借贷ю месо
High	700 W	Повторно подгаявае, млько, кинвае на вoda, зеленчuyaи, нашитки

Warning:

When you remove food from the oven, make sure it is turned off by turning the timer to 0 (zero). If you do not do this and leave the microwave oven operating without food in it, it may cause interruption and damage to the magnetron.

Installation of the turntable

a. Never place the glass tray directly on the bottom. Never obstruct the rotation of the glass tray. b. When preparing food, use the glass tray and the turntable ring. c. All containers placed on the glass tray must be suitable for microwave cooking. d. If the glass tray or the turntable ring is cracked or broken, contact the nearest authorized service center.

Installation of the stand

Check for any damaged materials and accessories. Inspect them for any damage, especially the microwave door. Do not install the device if it is damaged.

Special instructions: remove the protective film that may be on the surface of the microwave oven. Do not remove the brown cardboard cover attached to the ventilation surface: it protects the magnetron.

Installation

1. Choose a flat surface that has enough space for the intake and/or exhaust openings.

(1) Minimum installation height is 85 cm. (2) The rear surface of the device must be placed near a wall.

Maintain minimum clearances

30 cm above the oven, and also 20 cm between the oven and any adjacent walls. (3) Do not place it below the lower part of the oven. (4) Blocking the intake and/or exhaust openings may cause damage to the oven. (5) Position the oven away from radios and televisions. Functioning

The microwave oven may cause interference with radio or television signals. 2. Connect to a standard power outlet. Make sure that the voltage and frequency match the specifications on the rating plate.

WARNING: Do not install the oven near a heat source or appliance that generates heat. If the oven is installed near a heat source or flame, it may be damaged, which will void the warranty.

Accessible surfaces may become hot during operation.

Operation

Operating instructions for the control panel and functions

1. Set the cooking power by turning the power control to the desired level. 2. Set the cooking time by turning the timer knob to the desired time according to the cooking instructions. 3. After setting the power and time, the microwave will automatically start cooking. 4. When the cooking time is complete, a sound signal will be heard and the oven will turn off. 5. If the appliance is not in use, set the timer to "0".

Troubleshooting
