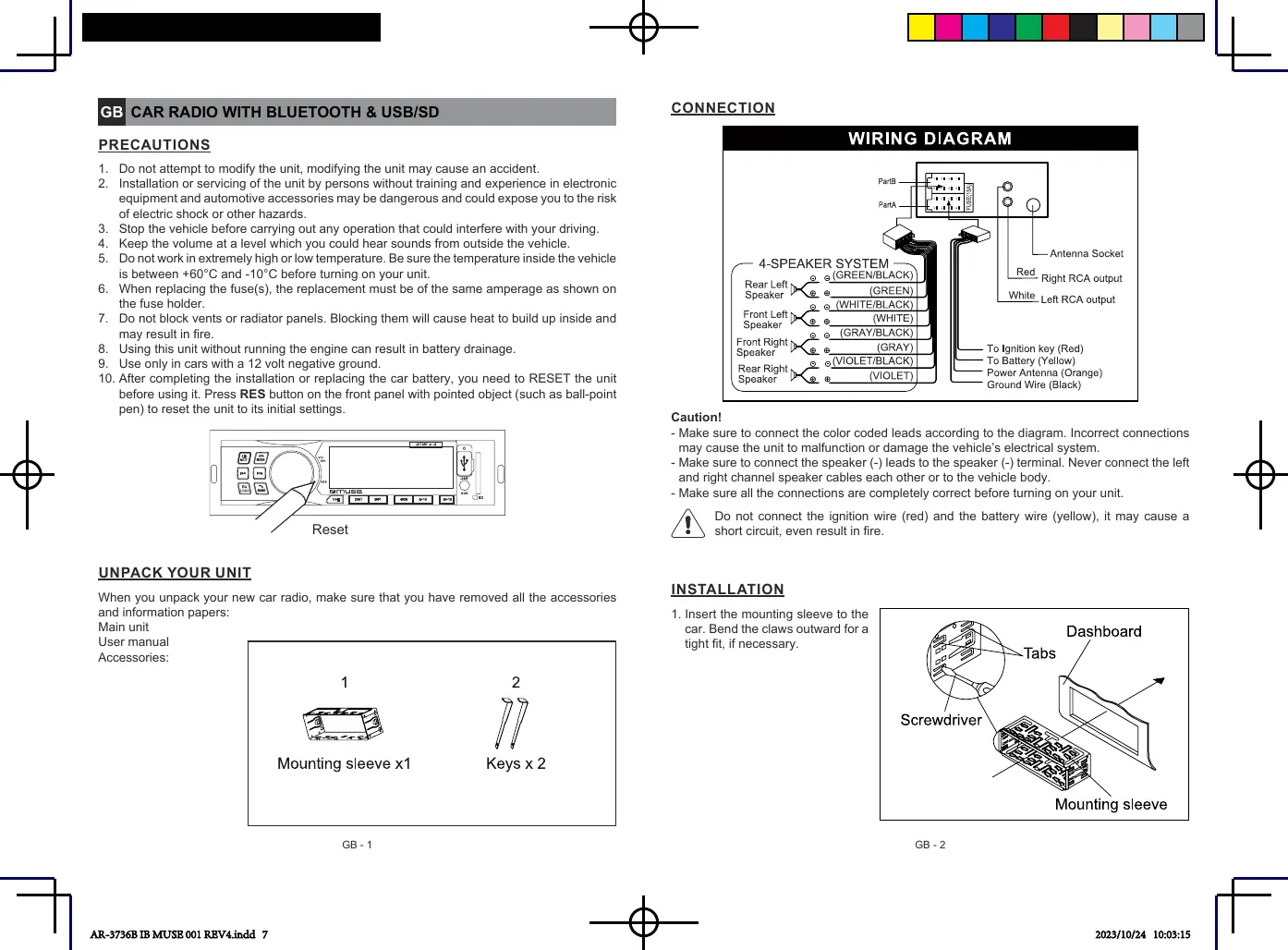

USER MANUAL M-195 BT MUSE

1. Do not attempt to modify the unit, modifying the unit may cause an accident

2._ Installation or servicing of the unit by persons without training and experience in electronic: equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.

3. Stop the vehicle before carrying out any operation that could interfere with your driving

4. Keep the volume at a level which you could hear sounds from outside the vehicle.

6. Donotworkin extremely high or low temperature. Be sure the temperature inside the vehicle

is between +60°C and 10°C before tuning on your unit. 6._ When replacing the fuse(s), the replacement must be of the same amperage as shown on the fuse holder.

7. Do not block vents or radiator panels. Blocking them will cause heat to build up inside and

8. Using this unit without running the engine can result in battery drainage.

9. Use only in cars with a 12 volt negative ground.

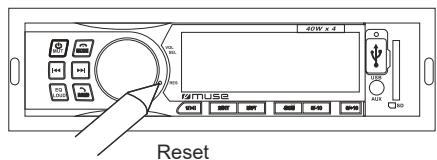

10. After completing the installation or replacing the car battery, you need to RESET the unit

before using it. Press RES button on the front panel with pointed object (such as ball-point pen) to reset the unit to its initial settings.

When you unpack your new car radio, make sure that you have removed all the accessories. and information papers: Main unit User manual Accessories: Mounting sleeve x1 Keys x2

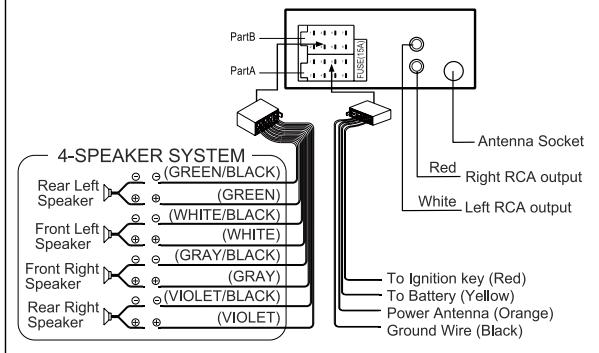

" eEREUCA SRE (GRAN To lnion key (Rod To Battery (Vélo) Pauer Anlenna (Orange) Ground Wir (Back) pes Right Speaker voir Caution! - Make sure to connect the color coded leads according to the diagram. Incorrect connections. may cause the unit to malfunction or damage the vehicle's electrical system. - Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel speaker cables each other or to the vehicle body. - Make sure all the connections are completely correct before tuming on your unit Do not connect the ignition wire (red) and the battery wire (yellow), it may cause a short circuit, even result in fire. INSTALLATION

1. Insert the mounting sleeve to the

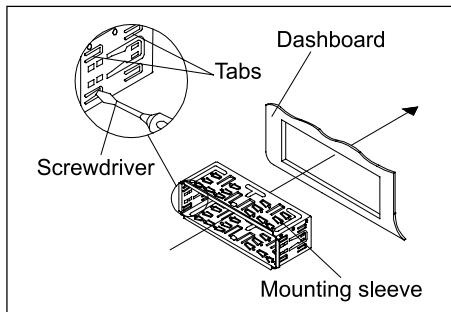

car. Bend the claws outward for a tight ft if necessary. Dashboard Mounting sleeve 8-2 2023/10/24 10:03:15

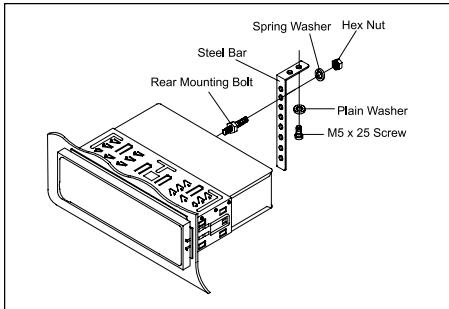

2. Combine mounting blot, steel bar, spring washer and Hex nut. Then combine the unit and

dashboard with screw and plain washer. Rear Mounting Bot fi U U Ï

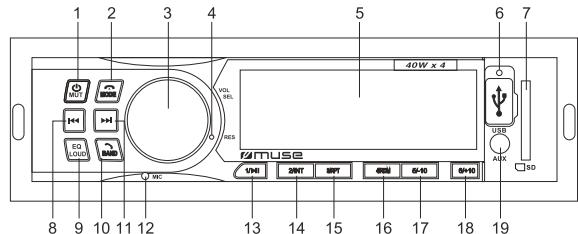

16. 47 RDM button: To select preset channel 4 in radio mode. To start/ cancel random playback

17. 51-40 button: To select preset channel 5in radio mode: To skip backward 10 tracks (mp3 only)

18. 6/+10 button: To select preset channel in radio mode; To skip forward 10 tracks (mp3 only)

BASIC OPERATIONS Turn onfoff the unit Press (D button to turn on the unit. Press and hold this button again to turn off the unit. Selecting the mode When the unit is on, press MODE button repeatedly to select different source mode:

FM —> USB —> CARD —> BT —> AUX

Note: USB, CARD mode can not be selected if no such source was plugged in the unit Current time display Press VOL button to display the current time when unit is ON. Adjust time:

1. When the unit is ON. Press and hold VOL to enter into setting mode.

2. Rotate Volume knob anti-clockwise or clockwise to adjust the hour and minute value. It will

confirm your setting if no key is pressed for 5 seconds. Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. To set the unit to initial status, press RES button on the front panel with a pointed object. When some errors occur in display, you can also reset the unit, but it will erase the clock setting and some memorized functions SOUND FEATURES Volume adjusting: To increase or decrease the sound level, rotate VOL knob clockwise or anti-clockwise. Muting the sound When the unit is ON, press MUT to mute the sound. Press again to restore. Using VOL/SEL knob to select sound feature Repeatediy press VOLISEL knob To select the desired mode for sound setting in the following order: “BAS” (BASS) —> ‘TRE (Treble) —> “BAL” (Balance) —> ‘FAD" (Fader) After selecting the desired mode, you can adjust the level by rotating the volume knob. Preset equalizer (EQ) When you are listening to pop musie, classic music or rock music, use the equalizer to adjust the sound quality. Press EQ button repeatedly to select different equalizer mode in following order: FLAT —> CLASSIC —> ROCK —> POP —> EQ off. 8-4 2023/10/24 10:03:15

Selecting band In tuner mode, repeatedly press BAND button to select bands in following order: FM —> FM2 — FM3 Manual / automatic tuning - Manual Search Choose your radio station with IH or 1 - Automatic search Press and hold for few seconds H4 or »b1 . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing #4 or bb» NOTE: During the search operation, the sound level is automatically muted Scanning and memorizing stations - By BAND button (AMS) In tuner mode, press and hold BAND button for 3 seconds to start scanning for stations and store them automatically in memory. All preset stations are scrolled during few seconds under your selected band. To remain on a station, press again the BAND button: - By number button 1-6

1. Tune to a station by 64 or bb button.

2. Press and hold one ofthe 1-6 number buttons for 2 seconds until LCD shows the corresponding

number, which indicates that station is stored in the corresponding number button.

3. Under radio mode, press 1- 6 Number buttons to listen to stored stations.

4. When you are listening to a station stored on a number button, press and hold another number

button for more than 2 seconds to store the station on this number button. Note: The unit can be stored up to 6 stations for each band DXILOCAL Repeatedly press VOLISEL knob to select “DX/LOCAL” mode. DX MODE: The weak signal out-of-toun stations may be received. LOCAL MODE: the strong signal local stations can be received. STEREO/MONO Repeatedly press VOLISEL knob to select "STEREO/ MON mode. FM listening is generally done in Stereo mode. However, ifthe signal is weak or reception is not as good as you would like, switching to Mono mode usually improves the overall sound quality.

LISTENING TO USB/CARD

To insert an USB device (not included) Connect your USB device to the USB port on front panel. It will switch to “USB” mode and start playback automatically.

AR-3736BIB MUSE 00! REV4indd 9 To insert a SD/ MMC card (not included) Insert a SD/MMC card to the card slot. It will switch to “CARD” mode and start playback automatically. Basic player functions Playlpause: Press the | button to pause playback. Press again to resume playback. Skip/ast search:

1. Press to Skip forward to next song,

2. Press 4 button to play the previous song,

3. Press -10 or +10 to skip to 10 songs backward or forward

4. Long press -10 or #10 to select previous folder or next folder in MP3 mode.

Intro scan: Press INT button to play first 10 seconds of each track, and ‘INT ON” appears on display. Press. again to cancel and ‘INT OFF” appears. Repeat: Press RPT button repeatedly to select a play mode: RPT ONE, RPT DIR, RPT OFF Random playback: Press RDM button to play all files in random order, and *RDM ON" appears on display. Press. again to cancel this function and “RDM OFF” appears. Note: + There are many USB devices or SD/SDHC/MMC card on the market. We cannot guarantee to support all different models. Please try another USB device or SD/ MMC card if your device is not supported. + The unit might not support all the multimedia files stored in SD/ MMC card or USB because it includes some special playback procedure which might not be compatible with the procedure ofthis unit

LISTENING TO AUXILIARY SOURCE

Connect your auxliary source (e.g. mp3 player) to the AUX IN jack. Press () button to turn the unit on. Press MODE to select AUX mode. Start playback from your auxiliary source: Adjust the volume to desired level. Disconnect your auxiliary source from the Aux in jack, press MODE button to select other source. poswns BLUETOOTH FUNCTION The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One SAS is under license. Other trademarks and trade names are those of their respective owners. - Before operate the Bluetooth function, make sure your mobile phone supports Bluetooth function. + For different model of mobile phone, Bluetooth emissive power has some difference. To get the best conversation quality, is recommended that the distance between the mobile phone and the unit is within 3 meters (Max. 10 meters). + Don't put any metal object or any obstacle between the path of the mobile phone and the unit. 8-6 2023/10/24 10:03:15

PAIRING When the unit is ON, press MODE button repeatedly to select BT. Tum on the Bluetooth function of your mobile phone. (Please refer to the instruction manual of your mobile phone on how to operate Bluetooth.) Select the item of searching the Bluetooth device and enter it. Your mobile phone starts to search for Bluetooth devices within range (10 meters). Select this car radio ‘M-195 BT" and confirm it, then you are asked to input a 4-digit password that is “0000”. Enter the password and confirm it, Then the LCD of the car audio system will display *BT READY” Noted: If you have made Bluetooth connectivity before, a list of the previous search results is. displayed. Select "M-195 BT' and confirm Answerl Reject a call When there is incoming cal, the phone number appears on display. Press y to answer a call, the talking time will appear on the display. Rotate volume knob to adjust the BT VOL. Press # to reject a coming call Dialing a Phone Call To redialthe last number retained in the memory ofthe mobile phone, press the % button twice. Notes: + Re-dialing function is unavailable if there is no dial record feature in your mobile phone. + the conversation is not clear, try to move closer to the microphone. Transfer the call between mobile phone and the unit During the talking mode, you can press "2" button to transfer the phone call between the mobile phone and the unit, When making an outgoing call is not possible to transfer if the call is not being answered yet BLUETOOTH AUDIO The unit supports Bluetooth audio function. f your mobile phone can play stereo music, when pairing successful, press MODE to access Bluetooth audio mode, ‘MEDIA” appears on display. The audio file in your mobile phone starts to play via the car radio. Playlpause: Press the button to pause playback. Press again to resume playback. Skip to next or previous track:

1. Press xl to skip forward to next track.

2. Press 4 to play the previous track.

Notes: - This system will not operate or may operate improperiy with some Bluetooth mobile phones. l'audio players. - There are many mobile phones in the market. We cannot guarantee the compatibility of all mobile phones together with the unit. - If you found the conversation is not clear, try to move closer to the microphone. Hereby, NEW ONE S.A.S, declares thatthis MUSE M-195 BT is in compliance with the essential requirements and other relevant provisions of Directive 2014/83/EU, The declaration of conformity may be consulted at www.muse-europe.com 8-7 AR-3736BIB MUSE 001 REV4indd 10 MAINTENANCE Precaution - Clean the front panel with a soft cloth, or damp chamois leather. Never use solvents. - Do not expose to rain or water; - Do not drop or apply shock. - Make sure that you keep your set away from high temperatures. - The use of apparatus in moderate climates. - Do not be exposed to dripping or splashing, and that no object filed with liquids, such as vases, shall be placed on the apparatus. - No naked flame sources such as lighted candies should be placed on the apparatus. Replacing the Fuse Make sure the amperage matches the specified value when replacing the fuses. If the fuse is. blown, check the power connection and replace with a new one. If the same problem occurs, it would be subjected to the malfunction in-house. In such cases, please consul the nearest service dealer.

I the power supply is connected to The car ignition switch is not |the car accessory circuits, but the on engine is not moving, switch the No power. ignition key to “ACC”. The fuse is bloun. Replace the fuse Volume is in minimum Adjust volume to a desired level No sound Wiring is not properiy conneeted Check wiring connection. Press the RES button. Front panel is not properiy fixed into its place. The operation |The buïlt-in microcomputer is keys do not work. | not operating properly The antenna cable is not connected. The radio does not work. The automatic radio station selection does not work. Insert the antenna cable firm The signals are too weak: Select a station manual. c8-s 2023/10/24 10:03:15

SPECIFICATIONS General Power Requirement 12V DC (11-16V allowable) Load Impedance 4 ohms Max. Power Output 40W x4 Tone Controls #10 dB Bass at 100 Hz TTreble at 10 kHz Dimensions Approx. 58 x 140 x 180 (h/w/1) Weight Approx. Approx. 0.550kg FM Tuner Section Tuning Range 87.5-108(MHz) Usable Sensitivity (-30dB) 12dBuV Signal-to-noise Ratio 50dB Stereo Separation 30dB (1 kHz) USB/MP3 Section Signal-to-noise Ratio 60 dB Separation 50 dB Distortion <0.5% Frequency Response 20 - 20000Hz BLUETOOTH Bluetooth Version: V4.2 Bluetooth: 2.402-2.48GHz RF Output Power: 2 dBm Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device) Note: Due to continuous product improvement, specifications and design are subject to change without prior notice:

AR-3736BIB MUSE 001 REV4indd 11 WARNINGS TAUTION | ATTENTION: To reduce the risk of electric shock, do not remove the EMA cover. There are no user serviceable parts inside the unit. Refer all DO NOT OPEN servicing to qualiied personnel. The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit. The exclamation point within the triangle is a warning sign alerting the user of important instructions, WARNING - To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for mm recycing advice. (Waste Electrical and Electronic Equipment Directive) ): If at any time in the future you should need to dispose of this product please note
