USER MANUAL M1229 DAB MUSE

EQ OFF/ROCK/POP/CLASS/FLAT-LOCK

EON (Enhanced Other Networks Information)

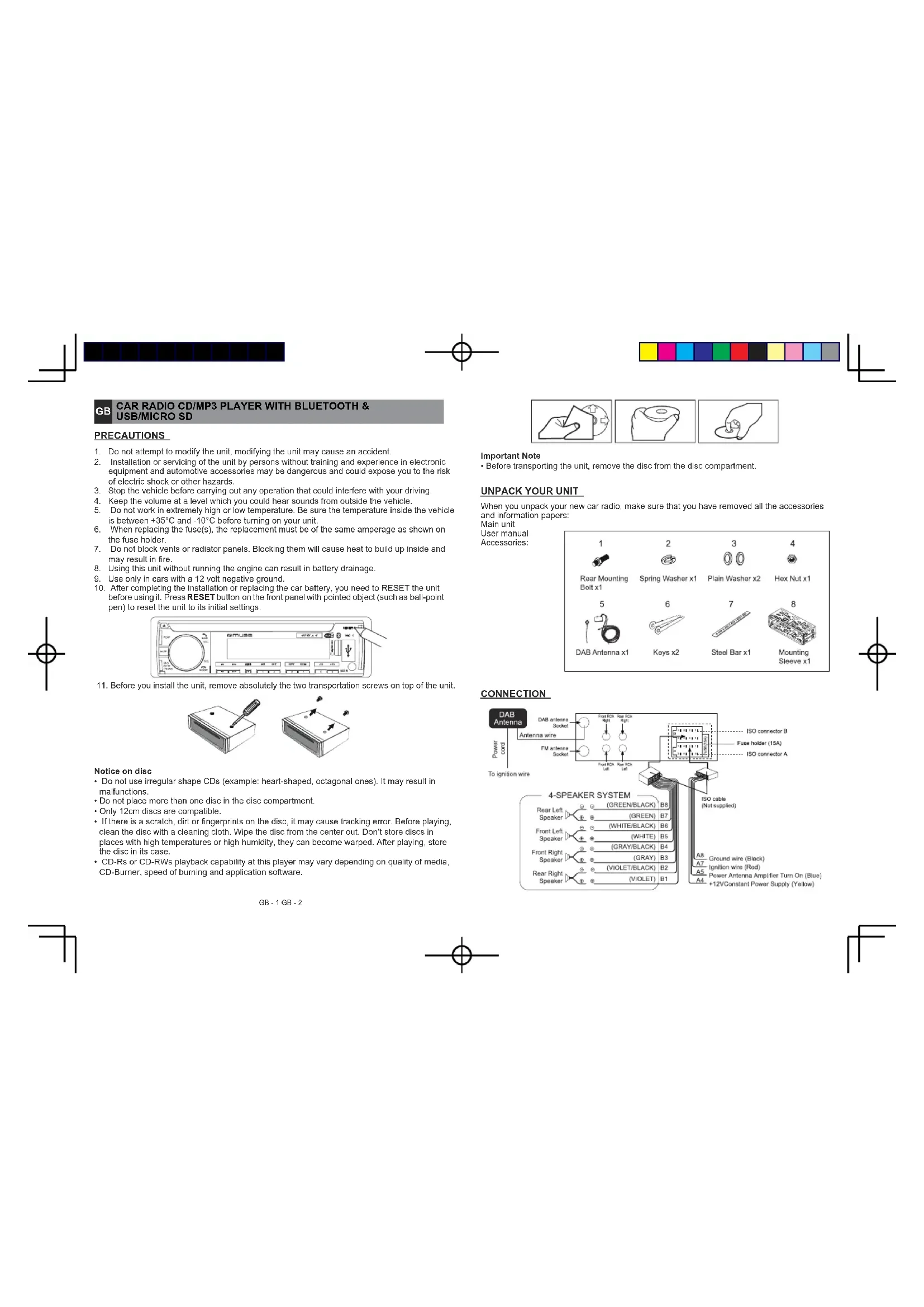

1. Do not attempt to modify the unit, modifying the unit may cause an accident.
2. Installation or servicing of the unit by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.
3. Stop the vehicle before carrying out any operation that could interfere with your driving.
4. Keep the volume at a level which you could hear sounds from outside the vehicle.
5. Do not work in extremely high or low temperature. Be sure the temperature inside the vehicle is between +35^ and -10^ before turning on your unit.
6. When replacing the fuse(s), the replacement must be of the same amperage as shown on the fuse holder.
7. Do not block vents or radiator panels. Blocking them will cause heat to build up inside and may result in fire.
8. Using this unit without running the engine can result in battery drainage. 9. Use only in cars with a 12 volt negative ground.
9. After completing the installation or replacing the car battery, you need to RESET the unit before using it. Press RESET button on the front panel with pointed object (such as ball-point pen) to reset the unit to its initial settings.

11. Before you install the unit, remove absolutely the two transportation screws on top of the unit.

Notice on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
  Only 12cm discs are compatible.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.
• CD-Rs or CD-RWs playback capability at this player may vary depending on quality of media, CD-Burner, speed of burning and application software.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

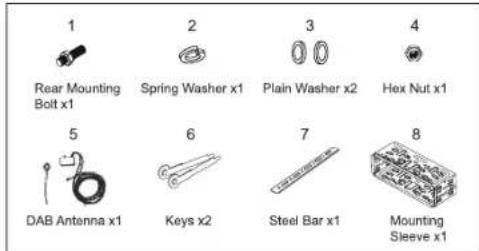

UNPACK YOUR UNIT

When you unpack your new car radio, make sure that you have removed all the accessories and information papers:

main unit

User manual

Accessories:

CONNECTION

You can place the antenna on the windshield near any of 'A', 'B', 'C' and 'D' posts in the car.

Suppose it is place on 'A' post.

1. Assemble the Ground extension cord to DAB antenna box.

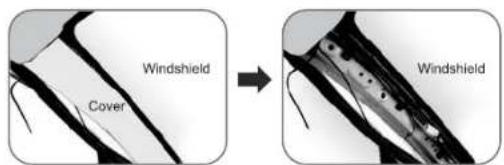

1. Remove the cover of 'A' post.

1. Pear off the transparent sheet from the DAB box. Stick the DAB box and DAB antenna on the windshield next to the 'A' post. Attach the magnet of the ground extension cord to the metal frame of the 'A' post.

GB-3GB-4

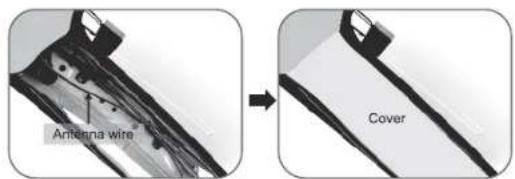

1. Place the antenna wire along the metal frame. Put the cover of 'A' post back in place.

1. Connect the DAB antenna wire plug to DAB antenna socket on the car radio.

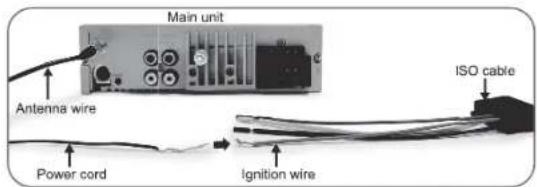

1. The DAB antenna is powered by the core of antenna wire. Connect the power cord of antenna wire to ignition wire of ISO cable. Plug the ISO cable into the connector of main unit.

Caution!

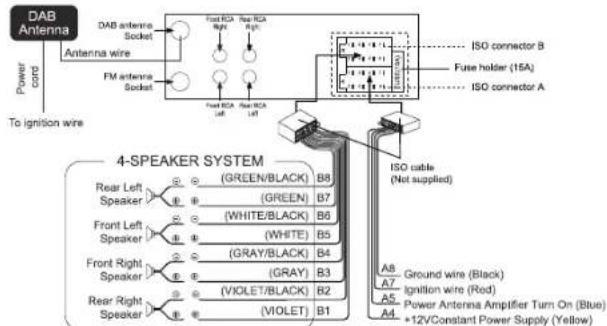

• Make sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage the vehicle's electrical system.
• Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel speaker cables each other or to the vehicle body.
• Make sure all the connections are completely correct before turning on your unit.

Do not connect the ignition wire (red) and the battery wire (yellow), it may cause a short circuit, even result in fire.

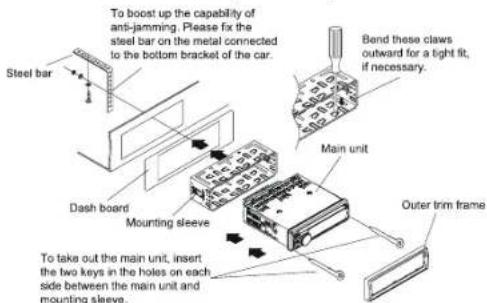

INSTALLATION

The unit is installed to be an anti-thief one. The chassis of the unit wears a sliding metal housing. Please do the connection of the power. Speakers and antenna are according to the requirement of the instruction book. Then install the sliding metal housing in the car as follows:

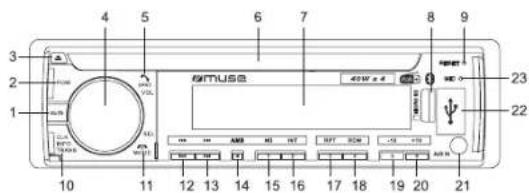

LOCATION OF CONTROLS

GB-5GB-6

1. MUTE button (To mute or restore sound)
2. POW button (To turn on/off the unit)
3. (elect button)
4. VOL/SEL enter knob
   5.BAND button
5. DISC slot
   7LCDdisplay
6. MICRO SD slot
7. RESET button
8. CLK/INFO/TRANS button (To set clock time, To review the setting information, Transfer the call between mobile phone and the unit)
9. MODE button ( End call / To select function mode)
   12.1
   13.按钮
   14.AMS/ button (Automatic storing;Search a track)
10. / 1 button (To select preset channel 1 in radio mode, To start or pause playback.)
11. INT / 2 button (To select preset channel 2 in radio mode, To start/ cancel intro playback.)
    17.RPT/3 button (To select preset channel 3 in radio mode, To repeat playback.)
    18.RDM/4 button (To select preset channel 4 in radio mode, To start cancel random playback)
12. -10 / 5 button (To select preset channel 5 in radio mode, To select 10 track backward.)
13. +10 / 6 button (To select preset channel 6 in radio mode. To select 10 track forward.)
14. AUX IN jack
15. USB port
    23.MIC

BASIC OPERATIONS

Turn on/off the unit

Press POW button to turn on the unit. Press this button again to turn off the unit.

Selecting the mode

When the unit is on, press MODE button repeatedly to select different source mode: FM→ DAB-ENC USB-MICRO-SD AUX BT →

Note: DISC, USB and SD mode can not be selected if no such source was plugged in the unit.

Adjust time:

1. When the unit is on, press and hold CLK button to enter into setting mode. The hour digits will flash.
2. Rotate volume knob anti-clockwise and clockwise to adjust the hour value. Press this button again to confirm the hour value.
3. The minute digits will flash, rotate volume knob anti-clockwise and clockwise to adjust the minute value. Press CLK button to confirm.
   Noted: It will confirm your setting if no key is pressed within 5 seconds.

Time display

Press CLK button to display the current time when unit is ON.
NOTE: It will return to normal play mode if no key is pressed within 5 second.

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. To set the unit to initial status, press RESET button on front with a pointed object. When some errors occur in display, you can also reset the unit, but it will erase the clock setting and some memorized functions.

SOUND FEATURES

Volume adjusting:

To increase or decrease the sound level, rotate volume knob clockwise or anti-clockwise.

Muting the sound

When the unit is ON, press MUTE to mute the sound. Press again to restore.

Using volume knob to select sound feature

Repeatedly press volume knob

To select the desired mode for sound setting in the following order: "BASS" "TRE" (Treible) "BAL" (Balance) "RAD" (Fader) LOUDON/OFF EQ OFF/ROCK /POP

CLASS/FLAT CLOCK.

After selecting the desired mode, you can adjust the level by rotating the volume knob.

When you are listening to pop music, classic music or rock music, use the equalizer to adjust the sound quality. Repeatedly press volume knob to select "EQ OFF" and rotate volume knob to select different equalizer mode in following order: EQ OFF ROCK CLASS PAT.

Switching Loudness On/off

By this function, you can increase the low frequency, which can improve sound sensitivity.

LISTENING TO THE FM RADIO

Selecting band

In FM mode, repeatedly press BAND button to select bands in following order: FM1 FM2 FM3.

Manual/automatic tuning

• Manual Tuning

Press and hold button unTMANUAL" shows on display, then press button or continuously to select a station upward or downward. Press and hold button to tune the station with a faster speed.

Note: it will return to automatic tuning mode if no key is pressed within 4 seconds. "AUTO" will show on display 2 seconds.

Automatic Tuning

Press the radio automatically searches a station upward or downward respectively and plays when it finds a station. Press to stop scanning.

Scanning and memorizing stations

-ByAMS/ button.
1. In timer mode, press and hold AMS / ● button for 3 seconds to start scanning for stations and store them automatically in memory. All preset stations are scrolled during few seconds
2. Press AMS I button once to preview the preset stations. To remain on a station, press again the AMS I button.

-By number button 1-6
1. Tune to a station by button.
2. Press and hold one of the 1-6 Number buttons for 2 seconds until display shows the corresponding number, which indicates that station is stored in the corresponding number button.
3. Under radio mode, press 1-6 Number buttons to listen to stored stations.
4. When you are listening to a station stored on a number button, press and hold another number button for more than 2 seconds to store the station on this number button. Note: The unit can be stored up to 6 stations for each band.

RDS (Radio Data System)

This unit has a built-in RDS decoder system that supports broadcast stations transmitting RDS data. This system can automatically switch to the broadcast station with the best reception as you move on long distances (AF switching). Also if a traffic announcement (TA) or programme type (PTY) is broadcast from a RDS station, no matter what mode you are in, this broadcast is received. Press and hold volume knob, the unit will enter setting menu.
Shortly press volume knob to choose your desire item. Rotate volume knob to choose corresponding setting desired: AF (ON/OFF) TA (ON/OFF) TA REG (ON/OFF)
EON (OFF/ON) -PTY OFF (MUSIC/SPEECH SYN (ON/OFF)

- Alternative frequency (AF)

When the AF switching mode is selected, the radio scans the signal strength of alternative frequencies. A new AF is stronger than the current station, it switches over to that frequency for very short time. (When AF flashes on LCD, it will search for the stronger RDS station.) Segment off: AF switching mode off. Segment on: AF switching mode on, and receive RDS information. Segment flashing: AF switching mode on, but RDS information is not received yet.

- Traffic alarm (TA)

In the TA standby mode, when a traffic announcement broadcast starts, the traffic announcement broadcast is received as top priority regardless of the function mode so you can listen to it. If you select TA mode off, while a traffic announcement broadcast is being received, the traffic announcement broadcast reception is cancelled and the unit goes into the TA standby mode.

-TASEEK/TAALARM

TA SEEK:

When newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which doesn't have the same station (PI) as the last station, but has the TP information. When TP information gets lost at the current station for return time which is set by RETUNE S or RETUNE L, the radio starts to return to next same PI station. When PI station does not catch in one cyclic search, the radio retunes to next station with TP information. Note: In TA SEEK mode, the current station can be changed to the completely different station because the unit searches TP station when the field (signal) strength of the current station is very weak, or the current station has no "TP" signal. (The higher priority is TP rather than PI.)

TA ALARM:

When this mode is selected, any automatic retune mode is not activated. Only double beep sound (ALARM) is output. So, in this mode, the unit keeps the current station anyhow. (The PI priority is higher than TP.)
When newly tuned station doesn't have TP information for 5 seconds, beeps come out. When
P Information gets lost at the current station for return time, the beep sound is output. When newly lured station doesn't have RDS signal, "PI SEEK" is suppressed somewhere

- PI SOUND/PI MUTE

While AF switching is Implemented in C201 station, AF can switch to 100MHz , which is non-genuine AF (where, different PI with same AF) in short "DIP".
If a car cruises that critical area back and forth, an oscillation phenomenon can be occurred, because the different PI code can be received from 100 MHz with "XXX" PI.
The car radio has special procedure to reduce even this kind of unavoidable situation however there is a limit to be escaped from this serious case perfectly.

In that serious case, 2 modes are selectable as follows:

PI SOUND: When above different PI sound (DIP) is heard once in a while, the DIP's sound will be heard for a short time.
PI MUTE: Under above same situation, a mute sound will be heard for a short time.

EON (Enhanced Other Networks Information)

When you select the EON on and receive the EON information. With EON facility, it offers the ability for local stations to "break into" a national station's broadcast for the duration of a Traffic Announcement.

EON (OFF/ON)

ON: When you select "ON", both distance and local stations can be received.
OFF: When you select "OFF", only local station is available.

- Program type selection (PTY)

When PTY is selected, the radio starts to search corresponding PTY information, and stops when the corresponding PTY information is detected.

If corresponding PTY information does not exist any more, PTY is automatically stopped to normal mode.

1. Press and hold volume knob, the unit will enter setting menu. Shortly press volume knob to choose "PTY OFF". Rotate volume knob to choose corresponding desired PTY group.
2. Rotate volume knob to select PTY in following.

MUSIC group

POP M-ROCKM EASYM LIGHTCLASSIGSOTHERM JAZ
COUNTRY NATIONM OLDBES FOLKM

SPEECH group:

NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE
SCIENCEVARIED WEATHER FINANGBC CHILDRENSOCIAL
→RELIGION-PHONE IN TRAVEL LEISURB DOCUMENT

1. After few seconds, the radio automatically searches a station with corresponding PTY information.

LISTENING TO THE DAB/DAB+ RADIO

In DAB mode, repeatedly press BAND button to select bands in following order: D1 B2
D3

The first time you use the radio, or if the station list is empty, the radio automatically performs a full scan to see what stations are available. The display will change to "SCAN 00". The progress of scanning will be showed and the number of stations found will be displayed.
When the scan is complete, the unit will select the first available station and start to play automatically. Stations will be listed in numerical and then multiplex order by default.

You may also need to start a scan manually to update the list of stations for one of the following reasons:

• New stations may become available from time to time.
• Stations close or can no longer be received (In the station list, invalid stations are indicated with a question mark in front of their name).
• If reception was not good for the original scan (for example the antenna was not up), this may result in an empty or incomplete list of available stations.
• If you have poor reception of some stations causing the audio to break up, you may wish to list only stations with good signal strength.

To do a full scan, press AMS button.

Note:
- If no broadcasts are found by DAB/DAB+ scan, "NO SERVICE" appears in the display.
- For a better reception, extend the wire antenna or do the full scan again in another place.
- During the search operation, the sound level is automatically muted.

LISTENING TO DISC/USB/MICRO SD

Load/Remove a disc

Insert the disc into the disc slot with the printed side facing up. Playback starts automatically. To remove the disc, press .

To insert a USB device (not included)

To insert an USB device (not included) connect your USB device to the USB port, the set will switch to "USB" mode automatically. If USB has already been inserted, press MODE button to switch to USB mode.

To insert a Micro SD card (not included)

Insert your micro SD card in the card slot, the set will switch to "SD" mode automatically. If a card has already been inserted, press MODE button to switch to card mode.

Basic player functions

Play/pause: Press to suspend momentarily the playing track. Press again to resume playback.

Skip/fast search:

1. Press skip forward to next track.
2. Press skip backward to previous track.
3. Press and hold to search quickly within a track.
4. Press and hold -10 or +10 to skip to folder backward or forward.

Intro scan:

Repeatedly press INT button to select intro playback mode:

INT ON: To play first 10 seconds of each song.

INT OFF: To cancel intro playback.

Repeat:

Repeatedly press RPT button to select repeat playback mode: RPT ONE / RPT FOLD / RPT ALL (Option: RPT FOLD only for MP3.)

Random playback:

Press RDM button to play all files in random order, and "RDM ON" appears on display. Press again to cancel this function and "RDM OFF" appears.

Searching a track In MP3-CD/USB/Micro SD:

Search by track number:
1. Press AMS / button once, display shows "TRK SCH" and "TRK ★★★★".
2. Rotate volume knob to select desire track. It will switch to selected track and start playback automatically.

Note:

• The total number of MP3 files on the USB device and Micro SD card should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device and Micro SD card.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.

GB-11GB-12

• Do not put anything other than a micro SD card to micro SD card slot of this unit. Other objects may damage the card mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices and micro card in the market. We cannot guarantee to support all different models. Please try another USB device and micro SD card if your device is not supported
• The unit might not support all the multimedia files stored in USB or micro SD card because it includes some special playback procedure which might not be compatible with the procedure of this unit.

ESP function

The ESP (Electronic Shock Protection) works for all formats of discs.

LISTENING TO AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack
2. Press POW button to turn the unit on.
3. Press MODE to select AUX mode
4. Start playback from your auxiliary source,
5. Adjust the volume to desired level.
6. Disconnect your auxiliary source from the Aux in jack, press MODE button to select other source.

BLUETOOTH FUNCTION

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

• Before operate the Bluetooth function, make sure your mobile phone supports Bluetooth function.
• For different model of mobile phone, Bluetooth emissive power has some difference. To get the best conversation quality, it is recommended that the distance between the mobile phone and the unit is within 3 meters (Max: 10 meters).
• Don't put any metal object or any obstacle between the path of the mobile phone and the unit.
• Use the built-in microphone during phone talk.

PAIRING

1. When the unit is ON, press MODE button repeatedly to select BT.
2. Turn on the Bluetooth function of your mobile phone. (Please refer to the instruction manual of your mobile phone on how to operate Bluetooth.)
3. Select the item of searching the Bluetooth device and enter it. Your mobile phone starts to search for Bluetooth devices within range (10 meters). Select this car radio "MUSE M-1229 DAB" and confirm it, then you are asked to input a 4-digit password that is "0000". Enter the password and confirm it. Then the LCD of the car audio system will display LINKED.
   Noted: If you have made Bluetooth connectivity before, a list of the previous search results is displayed. Select "MUSE M-1229 DAB" and confirm.

Answer/Reject a call/Redial

When there is incoming call, the phone number appears on display.

Press to answer a call, the talking time will appear on the display. Rotate volume knob to adjust the BT VOL.

Press reject a coming call.

To redial the last number retained in the memory of the mobile phone, press and hold the button4seconds.

Transfer the call between mobile phone and the unit

During the talking mode, you can press TRANS button to transfer the phone call between the mobile phone and the unit. When making an outgoing call, it's not possible to transfer if the call is not being answered yet.

BLUETOOTH AUDIO

The unit supports Bluetooth audio function. If your mobile phone can play stereo music, when pairing successful, press MODE to access Bluetooth audio mode, "BT MUSIC" appears on display. The audio file in your mobile phone starts to play via the car radio.

Play/pause: Press to suspend momentarily the playing track. Press again to resume playback.
Skip to next or previous track:

1. Press skip forward to next track.
2. Press play the previous track

Notes:

• This system will not operate or may operate improperly with some Bluetooth mobile phones/ audio players.
• There are many mobile phones in the market. We cannot guarantee the compatibility of all mobile phones together with the unit.
• If you found the conversation is not clear, try to move closer to the microphone.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1229 DAB is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

MAINTENANCE

Precaution

• Clean the front panel with a soft cloth, or damp chamois leather. Never use solvents.
• Make sure that you keep your set away from high temperatures.
• The use of apparatus in moderate climates.
• Do not be exposed to dripping or splashing, and that no object filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources such as lighted candles should be placed on the apparatus.

Replacing the Fuse

Make sure the amperage matches the specified value when replacing the fuses. If the fuse is blown, check the power connection and replace with a new one. If the same problem occurs, it would be subjected to the malfunction in-house. In such cases, please consult the nearest service dealer.

TROUBLE SHOOTING GUIDE

SYMPTOM CAUSE SOLUTION
No power.	The car ignition switch is not on.	If the power supply is connected to the car accessory circuits, but the engine is not moving, switch the ignition key to "ACC".
	The fuse is blown. Replace the fuse.
Disc cannot be loaded or ejected.	Presence of CD disc inside the player.	Remove the disc in the player, put a new one.
	Inserting the disc in reverse direction.	Insert the compact disc with the label facing upward.
	Compact disc is extremely dirty or detective disc.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off or until the ambient temperature return to normal.
	Condensation.	Leave the player off for an hour or so and then try again.
No sound.	Volume is in minimum Adjust volume to a desired level.
	Wiring is not properly connected.	Check wiring connection.
Sound skips.	The installation angle is more than 30 degree.	Adjust the installation angle less than 30 degree.
	The disc is extremely dirty or defective disc.	Clean the compact disc and then try to play a new one.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.	Press the RES (reset) button.
The radio does not Work. The radio station automatic selection does not work.	The antenna cable is not connected.	Insert the antenna cable firmly.
	The signals are too weak.	Select a station manually.

SPECIFICATIONSWARNINGS

General

Power Requirement
Load Impedance
Max Power Output
Max. Power O Tane Controls

12V DC (11-16V allowable)
4 ohms
40W×4
±10dB
Bass at 100 Hz
Trebie at 10 kHz

Dimensions

Approx. 175 x 178 x 50 mm (d / w / h)

RADIO

FM
DAB+
Usable Sensitivity (-30dB)
Signal-to-noise Ratio
Stereo Separation

87.5-108 (MHz)
174.928-239.2MHz
12 dBuV
50dB
30dB

CD/USB/MICRO-SD/MP3 Section

Signal-to-noise Ratio
Separation
Distortion
Frequency Response

50dB
40dB
≤0.5%
20-20000Hz

BLUETOOTH

Bluetooth Version:
Bluetooth:
RF Output Power:

V4.2
2.402-2.48GHz
2 dBm

Note:

Due to continuous product improvement, specifications and design are subject to change without prior notice.

CAUTION! This set uses a laser beam. To prevent any accident due to this type of beam, the set should only be opened by properly trained personnel. The unit conforms to the international safety specifications and to guide lines of the European community and also complies with current standards concerning electrical safety and electromagnetic compatibility EMC.

ATTENTION: To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside the unit. Refer all servicing to qualified personnel.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

WARNING - To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

NEWONEAS

AF (ON/OFF) - BA (ON/OFF) TA-REG (ON/OFF) EON (OFF/ON) PTY OFF (MUSIC/SPEECH)-CNC (ON/OFF)

Version Bluetooth:
Bluetooth:
Salida de corrente RF (radiofrequency):

V4.2
2.402-2.48GHz
2 dBm
