YY5569 - Electric coffee maker KRUPS - Free user manual and instructions

Product type	Coffee maker with integrated grinder
Brand	KRUPS
Model	YY5569
Maximum capacity	10 cups
Coffee types	Beans or ground
Adjustable grind	From coarse to fine (wheel)
Delay programming	Up to 24 hours in advance
Keep warm	30 minutes automatic
Automatic shut-off	Yes, after keep warm
Display screen	Digital with clock and indicators (strength, ground coffee, programming, descaling)
Functions	Adjustable coffee strength, ground coffee selection, programmed descaling
Water tank	Transparent with level indicator (cup graduations)
Carafe	Glass with handle, suitable for hot plate
Hot plate	Yes, with residual heat (do not touch)
Safety	Do not immerse, not suitable for children under 8, unplug before cleaning
Cleaning	Brush for grinding shaft, periodic descaling, wipe with a damp cloth
Consumables	Paper filters (standard size)
Spare parts	Available at www.krups.com
Repairability	Repairable by KRUPS during and after the warranty period
Warranty	2 years (international warranty)

Frequently Asked Questions - YY5569 KRUPS

How to set the time on my KRUPS YY5569 coffee maker?

Press and hold the HR button (H6) for 3 seconds. The hours flash, adjust with the same button. Wait 5 seconds. Then press and hold MIN (H7) to set the minutes. The clock is in 24-hour format.

Why is my coffee not brewing?

Check that the machine is plugged in and turned on, that the water tank is not empty, and that there is no power outage. If the clock flashes, reset the time. See the troubleshooting guide.

How to use ground coffee instead of beans?

Open the filter holder, insert a paper filter, add the dose of ground coffee. Close the filter holder, place the carafe, press the ground coffee selection button (H8) to activate the mode, then press On/Off.

What to do if the grinder does not work?

Check that you are not using too oily or greasy beans. Clean the grinding shaft with the brush. Make sure the bean container is properly engaged.

How to descale my coffee maker?

Fill the tank with a descaling solution (vinegar or product). Press the descaling button (H9), then press On/Off. The cycle lasts several minutes. After, rinse with 2 cycles of fresh water.

Why does the coffee taste bad?

Clean the machine. Check the water quality and coffee. Adjust the grind (finer = stronger). Use the recommended dose: one scoop per cup.

How to program delayed start?

Fill water and coffee. Press and hold the program button (H5) for 2 seconds. The icon flashes. Set the time with HR and MIN. Press H5 briefly to confirm. The icon stays on, the machine will start at the programmed time.

What to do if the filter holder overflows?

Clean the filter holder. Use less coffee or a coarser grind. Make sure the paper filter is properly opened and positioned. Insert only one filter.

How to clean the grinding shaft?

Remove remaining beans, place the empty container, insert a paper filter into the funnel, run a grinding cycle to empty residues. Unplug, remove the container, turn the wheel to the 'Open' position, disassemble the upper part of the grinder and brush. Reassemble aligning the arrows.

My display is flashing, what to do?

If the time flashes after a power failure, reset the time. If other indicators flash, see the manual. The device goes into standby after 10 minutes of inactivity, press any button to wake it.

USER MANUAL YY5569 KRUPS

A Coffee bean box cover B Coffee bean box C Grind and brew basket D Upper burr (grinder) E Water tank cover F Grind Adjust Knob G Display

1 Time display 2 Coffee strength indicator 3 Ground coffee indicator 4 Operating indicator 5 Number of cups indicator 6 Descaling indicator 7 Preset time indicator

H Control Panel

1 On/Off button (One coffee cycle) 2 On/Off indicator (One coffee cycle) 3 Number of cups button 4 Coffee strength button 5 Preset time button 6 Time settings (Hour) 7 Time settings (Minute) 8 Ground coffee selection button 9 Descaling button

Water level indicator with the coffee cups' unit

J Carafe K Heating Plate

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS

Please read the instructions for use carefully before using your appliance for the first time to avoid potential injury from misuse and retain them for future reference: Manufacturer cannot accept any liability for non compliant appliance use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger. ■ Your appliance is intended for domestic use inside the home only at an altitude below 2000m. - Do not immerse the appliance, power cord or plug in water or any other liquid. ■ Your appliance is designed for domestic use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Unplug the appliance.
• Do not clean the appliance while hot.
• Clean with a damp cloth or sponge.
• Never immerse the appliance in water or put it under running water.

Always follow the cleaning instructions to clean your appliance and especially parts in contact with food. WARNING: Risks of injuries if you don't use this appliance correctly. ■ WARNING: After use, do not touch the keep warm plate, which is subject to residual heat. Be sure to manipulate only the handle of the glass jar during heating until it cools down. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult. - Keep the appliance and its cord out of reach of children under 8 years of age. This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers. Children should not use the appliance as a toy. The coffee-maker must not be placed in a cabinet when in use. Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed. Any error in the electrical connection will negate your guarantee. Unplug the appliance when you have finished using it and when you clean it. - Do not use the appliance if it is not working properly or if it has been damaged. If this occurs, contact an authorised service centre. All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre. The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge. ■ For your safety, only use the manufacturer's accessories and spare parts designed for your appliance. - Do not pull on the cord to unplug the appliance. - Never put your coffee jug in a microwave oven, on a flame or on electric cooking plates. - Do not fill the appliance with water if it is still hot. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use. Always close the lid when running the coffee maker. For Grinding function: - Switch off the appliance and disconnect from power supply before changing accessories or approaching parts which move in use.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This function shall not be used by children. Keep the appliance and its cord out of reach of children.
• Grinding function can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the grinder function in a safe way and if they understand the hazards involved.
• Children shall not play with the grinder function.

Do not brew coffee if the carafe already has coffee in it. To prevent any overflow, the carafe must be placed on the heated base of the coffee maker, otherwise there could be some overflow of hot water or hot coffee. The coffee maker becomes very hot during the infusion cycle. Please handle it with care. Do not disassemble the appliance. Do not use the jug without the lid. Do not pour hot water in the tanks. The coffee-maker shall not be placed in a cabinet when in use. Do not use too oily beans which may damage your appliance.

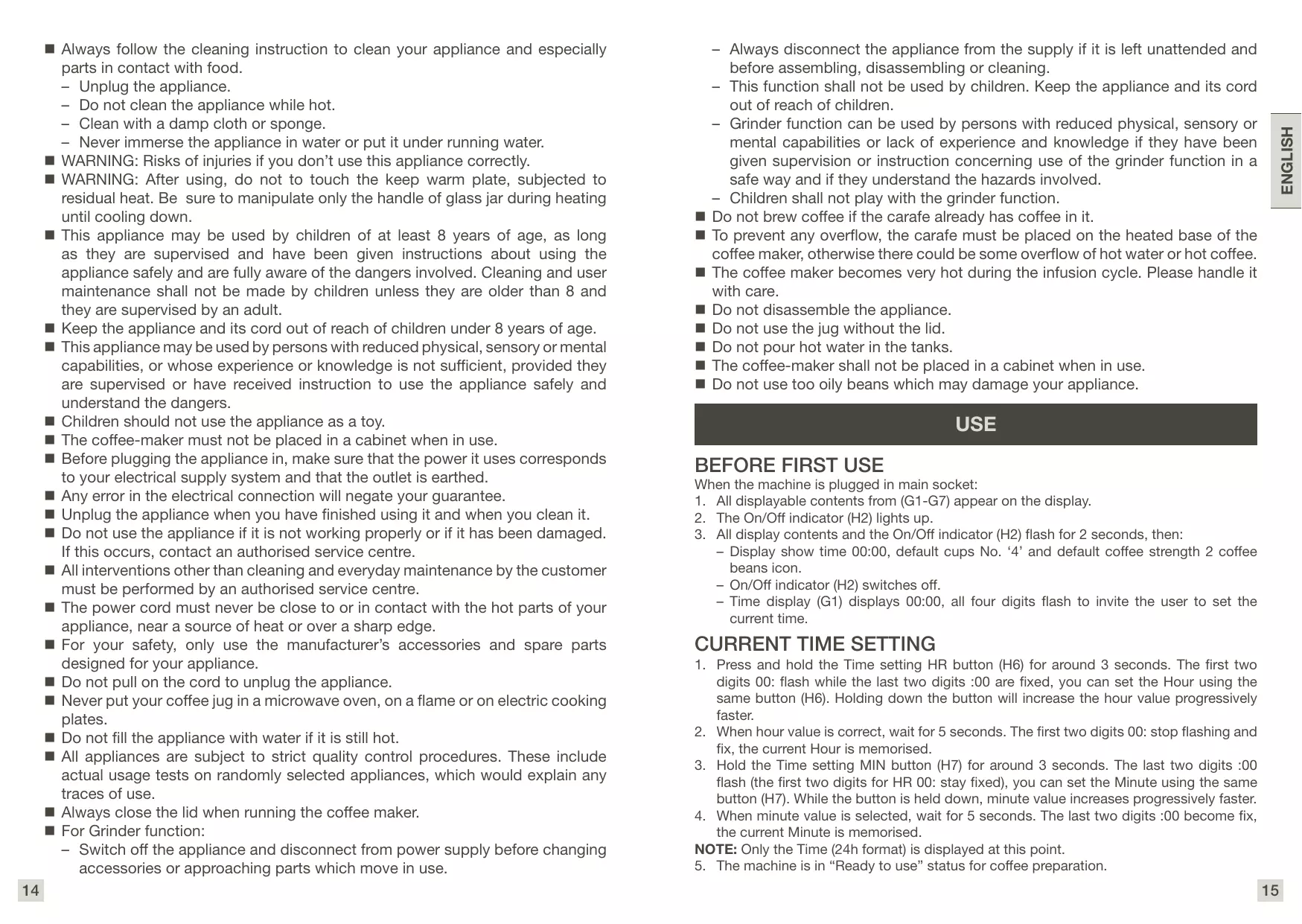

USE

BEFORE FIRST USE

When the machine is plugged in main socket:

1. All displayable contents from (G1-G7) appear on the display.
2. The On/Off indicator (H2) lights up.
3. All display contents and the On/Off indicator (H2) flash for 2 seconds, then:
4. Display show time 00:00, default cups No. '4' and default coffee strength 2 coffee beans icon.
5. On/Off indicator (H2) switches off.
6. Time display (G1) displays 00:00, all four digits flash to invite the user to set the current time.

CURRENT TIME SETTING

1. Press and hold the Time setting HR button (H6) for about 3 seconds. The first two digits 00: flash while the last two digits :00 are fixed. You can set the hour using the same button (H6). Holding down the button will increase the hour value progressively faster.
2. When the hour value is correct, wait for 5 seconds. The first two digits 00: stop flashing and become fixed, and the current hour is memorized.
3. Hold the Time setting MIN button (H7) for about 3 seconds. The last two digits :00 flash (the first two digits for HR 00: stay fixed). You can set the minute using the same button (H7). While the button is held down, the minute value increases progressively faster.
4. When the minute value is selected, wait for 5 seconds. The last two digits :00 become fixed, and the current minute is memorized.

NOTE: Only the time (24h format) is displayed at this point.

1. The machine is in "Ready to use" status for coffee preparation.

COFFEE PREPARATION WITH COFFEE BEANS

1. Fill the coffee bean box with coffee beans. (fig.1)

Beware! Do not use too oily beans, which may damage your appliance.

1. Fill the water level that corresponds to the number of coffee cups you want to drink (fig.2)
2. Open the filter holder.
3. Insert the paper filter. (fig.4)
4. Close the filter holder. (fig.6.1)
5. Place coffee carafe on the keep warm plate. (fig.6.2)
6. Set desired grinding fineness using Grind adjust knob (F). (fig.3) Grind your coffee from coarse to fine by using Grind adjust knob (F) from big point to small point.
7. Set the desired number of cups using Number of cups button(H3). Number of cups (G5) displays the number chosen.
8. Set coffee strength using Coffee strength button (H4). Coffee strength indicator (G2) displays the strength chosen.
9. Press On/Off button (H1) to start the coffee preparation cycle:
10. On/Off indicator (H2) flashes.

Operation indicator (G4) flashes.

• Grinding runs, then hot water goes across the ground coffee freshly prepared by the grinder.
• When the coffee cycle is finished:
• The appliance beeps 3 times when it is switched off.
• On/Off indicator (H2) changes from "flashes" to "lights up".
• Operation indicator (G4) stops and disappears.
• The appliance enters 30 minutes keep warm.
• On/Off indicator (H2) lights off after keep warm.

COFFEE PREPARATION WITH PRE-GROUND COFFEE

1. Open the filter holder.
2. Fill the water level that corresponds to the number of coffee cups you want to drink (fig.2)
3. Insert the paper filter.
4. Put desired quantity of coffee powder into the filter. (fig.5)
5. Close the filter holder.
6. Fill water tank with desired quantity of water. Beware! Do not put coffee powder in the bean container, only in the paper filter, or it may damage your appliance.
7. Place coffee carafe on the keep warm plate.
8. Press the Ground coffee selection button (H8). Ground coffee indicator (G3) appears on the display.
9. Press On/Off button (H1) to start the coffee preparation cycle:
10. On/Off indicator (H2) flashes. Operation indicator (G4) flashes. Ground coffee indicator (G3) lights up.
11. Hot water flows through the ground coffee into the carafe.
12. When the coffee cycle is finished:
13. On/Off indicator (H2) changes from "flashes" to "lights up".
14. Operation indicator (G4) stops and disappears. Ground coffee indicator (G3) disappears.
15. Machine enters 30 minutes keep warm.
16. On/Off indicator (H2) switches off after keep warm.

COFFEE PREPARATION WITH PRESET TIME

1. Fill the water level that corresponds to the number of coffee cups you want to drink (fig.2)
2. Open the filter holder.
3. Insert the paper filter.
4. Close the filter holder.
5. Set grinder parameters or put the desired quantity of coffee powder into the filter.
6. Place the coffee carafe (J) on the keep warm plate.
7. Press and hold the Preset time button (H5) for 2 seconds. The Preset time indicator (G7) appears on the display. The time display (G1) will show the preset timer and flash, indicating that you have entered the preset state. If you do not press the button within 5 seconds, you will exit the preset time setting state.
8. Set the time using the Time settings HR (H6) button to select the hour. The hour value is displayed on the screen (when holding the Time settings HR (H6) button, the hour values advance faster). If the button is not pressed within 3 seconds, you will exit the Time setting state (the setting time has been saved), the Preset time indicator (G7) disappears, and the Time display (G1) shows the current time.
9. In the Preset time setting state (Preset time indicator (G7) flashes), briefly press the Preset time button (H5) to exit the Preset time setting state (the setting time has been saved when adjusting the HR (H6) and MIN (H7) buttons). The preset time indicator (G7) disappears, and the Time display (G1) shows the current time.
10. In the standby state, briefly press the Preset time button (H5). The preset time indicator (G7) flashes, the Time display (G1) flashes to show the preset time for 3 seconds, then the Time display (G1) shows the current time and the preset time indicator (G7) lights up, indicating that the machine starts the preset time.
11. Once the preset time is reached, the coffee preparation cycle starts automatically:
12. Preset time indicator (G7) disappears.
13. On/Off indicator (H2) flashes. Operation indicator (G4) flashes.
14. Hot water flows through the ground coffee into the carafe.
15. When the coffee cycle is finished:
16. On/Off indicator (H2) changes from "flashes" to "lights up".
17. Operation indicator (G4) stops and disappears.
18. Preset time indicator (G7) disappears.
19. Machine enters 30 minutes keep warm.
20. On/Off indicator (H2) switches off after keep warm.

STANDBY MODE

1. If no operation on the machine for 10 minutes, the appliance enters Standby mode for energy saving. All displays switch off.
2. To wake up the machine: Press any button on the front panel.
3. The time (24h format) is displayed.
4. The machine enters "Ready to use" status for coffee preparation.

Cleaning and Care

NOTICES

• Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the appliance. These can damage the surface.
• Clean well the joint level which is located at the inside of brew basket (C).
• If necessary, wipe down the coffee bean box (B) and the cover (A) with a damp cloth.
• Wipe down the housing with a damp cloth. If necessary, use a little mild detergent.
• Check the mains cable regularly for any damage.

Cleaning the Grinding Shaft

1. Remove the coffee beans from the coffee bean box (B). (Apart from the few beans that you cannot reach by hand.)
2. Re-put and lock the empty coffee bean box on the machine.
3. Insert a basket filter paper into the filter insert.
4. Press the button to switch on the appliance. The grinding process will start.
5. Once the rest of the coffee beans have been ground - you can tell this from the change in the grinding noise - stop the grinding process by pressing the button again.

Unplug the Appliance

1. Take out the coffee bean box: To do this, turn it a little anticlockwise until the two axes align and it disengages. Lift it off.
2. Move the grinding fineness dial to the "Open" position.
3. Pull out the top part of the grinder (D).
4. Clean the grinder shaft and the grinder with cleaning brush.
5. Reinsert the top part of the grinder and press it down. Make sure it is in the correct position (arrow marking and line, these two axes are aligned). Then, turn it (D) a little anticlockwise until it engages. Attention: make sure the top part of grinder (D) is engaged mode when the coffee machine works.
6. Adjust the grinding fineness dial back to a grinding fineness. The grinder is locked again.
7. Re-put on the coffee bean box at an angle and turn it clockwise a little until it engages.
8. Dispose the filter paper and clean Grind and brew basket (C).

DESCALING CYCLE

1. Fill water tank with descaling solution (or vinegar).
2. Press Descaling button (H9). Descaling indicator (G6) appears on the display.
3. Press On/Off button (H1) to start the descaling cycle:
4. On/Off indicator (H2) flashes
5. Descaling indicator (G6) flashes
6. Hot descaling solution flows through the empty filter holder
7. When the descaling cycle is finished:
8. On/Off indicator (H2) switches off
9. Descaling indicator (G6) stops and disappears

Note:

• The descaling cycle can last longer. After the descaling cycle, run 2 cycles using a full tank of clear water (10 cups) to rinse the machine.

TROUBLESHOOTING

Problem	Solutions
The coffee does not brew or the appliance does not turn on.	■ Make sure the appliance is well connected to a working outlet and that it is in the “ON” position. ■ The water tank is empty. ■ There is a power outage. ■ Unplug the machine, then plug it back in. ■ The clock should be reprogrammed after a power outage.
The appliance seems to leak.	■ Make sure the water tank has not been filled beyond the maximum limit. ■ Make sure the water tank is not damaged.

Problem	Solutions
Brewing takes a long time.	■ It may be time to descale the appliance. ■ Several minerals can accumulate in the coffee maker's circuitry. Regular descaling of the machine is recommended. This may need to be done more often depending on the hardness of your water. For more information, please consult the “Descaling” section. ■ CAUTION: do not take the appliance apart
The filter holder overflows or the coffee flows too slowly.	■ The coffee maker needs cleaning. ■ There is too much coffee. We recommend using one measuring spoon or one soup spoon of ground coffee per cup. ■ The ground coffee is too fine (e.g., ground coffee for espresso won't work in a drip coffee maker). ■ There is ground coffee lodged between the paper filter and the filter holder. ■ The paper filter is not open properly or is not well placed. ■ Rinse the filter holder before inserting the paper filter so it will adhere to the damp walls of the filter basket. ■ Make sure you have not inserted a paper filter at the same time as the permanent filter. ■ There is more than one paper filter in the filter holder. ■ Make sure the filter holder is pushed down all the way.
You have used ground coffee instead of coffee beans.	■ Use your vacuum cleaner to remove the pre-ground coffee from the coffee bean container.
You put water in the coffee bean compartment.	■ Bring your coffee machine to the customer service.
Coffee grinder doesn't work	■ You maybe have use oily coffee beans (if your coffee beans are very dark, it might be oily). This type of machine does not work with oily coffee beans.
The coffee tastes bad.	■ Clean the coffee maker ■ The ground coffee is not right for your coffee maker. ■ The proportion of coffee and water is not sufficient. Adjust to suit your taste. ■ The quality and freshness of the coffee is not the best. ■ The water is of poor quality.
The coffee does not flow.	■ See if there is water in the water tank. ■ The coffee flow system may be obstructed. You may clean it simply by rinsing with water.
The time is not correct (There is a time difference).	■ The timer is synchronised and depends on your electrical network. If there is a time difference, we recommend that you program the time once a week to be sure it is correct.

If your appliance does not always work properly, call customer service in your country.

European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances are not thrown into the normal flow of municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment.

Help protect the environment!

Your machine contains many recoverable or recyclable materials. Take these to a collection centre, or to an approved service centre for processing.

KRUPS INTERNATIONAL LIMITED GUARANTEE

www.krups.com

This product is repairable by KRUPS during and after the guarantee period

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the

KRUPS internet site www.krups.com

The Guarantee :

This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date (restrictions on the number of cycles per year may be applicable and described, in this case, in the instruction manual supplied with the product or available on www.krups.com).

The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights. The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS's choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. KRUPS's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country's authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address.

KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• damage as a result of lightning or power surges
• scaling (any de-scaling must be carried out according to the instructions for use)
• damages or poor results due to wrong voltage or frequency
• professional or commercial use
• ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects)
• mechanical damages, overloading
• accidents including fire, flood, thunderbolt, etc
• damage to any glass or porcelain ware in the product

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre.

The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:

a. The international KRUPS guarantee does not apply in case of non-conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or non-conformity with other local legal requirements or other local technical specifications.

b. The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS country of usage.

c. In cases where the product is not repairable in the new country of usage, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights:

This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

For Australia only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

*** Please keep this document for your reference should you wish to make a claim under the guarantee

PRODUCT DESCRIPTION

PRECAUTIONS

BEFORE FIRST USE

When the machine is plugged into the mains:

J KyBwIHN K HarpeBaTeBHa nlaactnHa

IMPORTANT SAFETY MEASURES

IMPORTANT SAFETY MEASURES

To avoid injury, before first use of the device, carefully read the instructions and keep them for future reference. The manufacturer is not responsible for incorrect use of the device by the consumer.

The device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or have been instructed regarding the use of the device by a person responsible for their safety. Do not allow children to play with the device. Do not use the device if the power cord or plug is damaged. If the power cord is damaged, for safety reasons it must be replaced by the manufacturer, service center, or a qualified specialist. The device is intended only for domestic use indoors at an altitude not exceeding 2000 m. Do not immerse the device, power cord, or plug in water or any other liquid. The device is intended only for domestic use. The device is not intended for use in the cases listed below, for which the warranty does not apply:

• In kitchen areas intended for store staff, offices, and other work areas;
• On farms;
• By clients in hotels, motels, and other residential places; in bed and breakfasts.

Follow the instructions for cleaning the device, especially for parts that come into contact with food products.

• Disconnect the device from the power supply.
• Do not clean the device while it is still hot. - For cleaning, use a damp cloth or sponge.
• Do not immerse the device in water and do not place it under running water.

WARNING! If the device is used incorrectly, there is a risk of injury. WARNING! After using the device, do not touch hot surfaces until they cool down. Until the glass jug has cooled, hold it only by the handle. The device can be used by children over 8 years of age if they are under supervision, have been instructed in the safe use of the device and fully understand the associated risks. Cleaning and maintenance of the device may be performed by children over 8 years of age under adult supervision. The power cord must be kept out of reach of children under 8 years of age. Use of the device by persons with reduced physical, sensory or mental capabilities, as well as by persons without sufficient experience and knowledge, is permitted provided they are under supervision or have been instructed in the safe use of the device and understand the potential danger. Do not allow children to play with the device. During operation, the coffee maker must not be placed in a cabinet. ■ Before connecting the coffee maker to the mains, make sure that the mains characteristics match the device parameters and that the socket has an earth connection. ■ Incorrect connection of the device to the mains will void the warranty. Disconnect the device from the mains after use and before cleaning. Do not use the device if it is malfunctioning or damaged. In this case, contact an authorized service center. All measures, with the exception of cleaning and daily technical maintenance, must be carried out by an authorized service center. Do not touch hot parts of the device, heat sources or sharp surfaces, and do not place it near any of the above. For safety reasons, use only accessories and spare parts provided by the manufacturer and intended for this device. Do not pull the cord to disconnect the plug from the socket. Do not place the jug with coffee in a microwave oven, on an open flame, or on an electric stove. Do not immerse the device in water until it has cooled down.

All devices undergo strict quality control. Control procedures include operational tests on randomly selected devices, which may leave traces of use on some devices. ■ Before switching on the coffee maker, close the lid. For the grinder function:

• Turn off the device and disconnect it from the mains before changing accessories or approaching parts that move during use of the device.
• Disconnect the device from the mains if it is left unattended, as well as before assembly, disassembly, or cleaning.
• Do not allow children to use the coffee grinder. Keep the device and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the coffee maker.

Do not brew coffee if there is already drink in the jug. To avoid spilling hot water or coffee, the jug should be placed on the hotplate of the coffee maker. During preparation, the coffee maker heats up strongly. Handle the appliance with care. Do not disassemble the appliance. Do not use the jug without the lid. Do not pour hot water into the reservoir. During operation, the coffee maker should not be in a cupboard. To avoid damaging the appliance, do not use coffee beans with a high oil content.

USE

If the appliance does not work properly, contact the after-sales service at the brand's address.

European Directive 2012/19/EC on waste electrical and electronic equipment (WEEE) requires that old appliances must not be disposed of with normal household waste. Old appliances must be collected separately to optimize the recovery and recycling of the materials they contain and to reduce the impact on human health and the environment.

Help protect the environment!

Your appliance contains many materials that can be recycled. Take it to a collection point or an approved service center for processing.

KRUPS INTERNATIONAL WARRANTY

: www.krups.com

This product is serviced by KRUPS during and after the warranty period.

Accessories, consumables and replaceable parts can be purchased, if available locally, as described on the KRUPS international warranty website.

Warranty:

This product is covered by the KRUPS warranty (company contacts and details in the national brochure of the KRUPS International Warranty), which covers any manufacturing defects in materials or workmanship for a period of 2 years from the date of purchase or delivery, limited to the number of claims per year. The warranty may be subject to conditions, in which case the instruction manual supplied with the product or available on www.krups.com applies.

The KRUPS international warranty is in addition to your legal rights.

The international KRUPS guarantee covers all costs related to establishing the correct operation of the product and bringing it back to its original specifications, through repair or replacement of defective parts. If necessary, an equivalent or higher-quality KRUPS product may be provided as a replacement instead of repairing the defective device. The warranty claims and complaints from your side are handled within the framework of this guarantee, either through repair or replacement of the device according to this warranty.

Conditions:

The international KRUPS guarantee applies within the warranty period and for the countries listed in the attached list of countries, and only for products purchased from an authorized KRUPS dealer. The device can be taken directly to an authorized service center or sent, properly packaged, to the KRUPS authorized service center. The full list of authorized service centers for the respective country can be found on the KRUPS website (www.krups.com) or by contacting the customer service, referring to the 'list of countries'.

KRUPS is not obliged to repair or replace products that are not purchased from an authorized dealer or distributor.

This warranty does not cover damage caused by improper use, negligence, failure to follow the KRUPS operating instructions, wear and tear, damage to the surface of the device, modification of the device, or repair by an unauthorized person. The warranty does not cover normal wear and tear of the device, wear and tear of consumable parts, as well as the following cases:

• Use of unsuitable water for the appliance
• Penetration of water, dust, insects into the device (with the exception of devices with a function specifically designed for water or insects)
• Damage or malfunction due to incompatibility with the electrical supply
• In case of fire, flood, etc.
• Damage/breakage of glass or porcelain parts of the device
• Steam (if the appliance has not been descaled regularly according to the operating instructions);
• Use for commercial purposes or other purposes outside of normal household use - mechanical damage, overloading
• Damage resulting from lightning or power surge

The warranty is not valid for damage caused by improper use and storage, poor packaging by the owner, or improper transportation.

In order to provide the best possible after-sales service and to ensure customer satisfaction, KRUPS may contact you to ask for your opinion on the product you have purchased or on the service provided by the authorized service center.

The international warranty of KRUPS does not apply to a product purchased in one country and used in another country, unless the product was purchased in a country and used in the same country.

a. The international warranty of KRUPS does not apply in case of non-compliance between the device and the local standards, or if the device, its accessories, or its use do not comply with other local laws, requirements, or other local technical specifications. b. Repairs of products purchased in another country may differ from the original specifications and may not be possible to perform, which may cause damage to the product or to the user. In such cases, the warranty of KRUPS in the country where the product is used may not apply. c. In case the device cannot be repaired in the country where it is used, the international warranty of KRUPS is limited to the replacement of the device with an equivalent product, if possible, at the discretion of the manufacturer.

Consumer rights (33I):

The international warranty of KRUPS does not affect the consumer rights arising from the national laws of the country where the product was purchased. These rights may vary from country to country. The consumer may have other legal rights that may vary from country to country. The consumer may exercise these rights at their discretion. The commercial warranty does not affect the consumer rights arising from the warranty under articles 112-115 of the Consumer Protection Act. Regardless of the commercial warranty, the seller is responsible for the conformity of the consumer goods with the sales contract, according to the warranty under articles 112-115 of the Consumer Protection Act.

***Please keep this document, in case you need to make a claim under the warranty.

OPIS

A. Coffee bean container lid

1. Coffee quantity indicator 2. Coffee strength indicator 3. Ground coffee indicator 4. Operating indicator 5. Water quantity indicator 6. Descaling indicator 7. Pre-brewing time indicator

H. Control panel

1. On/Off button (one cup of coffee) 2. On/Off indicator (one cup of coffee) 3. Number of cups button 4. Coffee strength button 5. Pre-brewing time button 6. Time setting (hours) 7. Time setting (minutes) 8. Ground coffee selection button 9. Descaling button

I. Water level indicator with coffee cup markings

J. Heating plate

IMPORTANT SAFETY MEASURES

IMPORTANT SAFETY MEASURES

Please read the instructions carefully before using the device, to avoid potential injuries due to incorrect use, and keep them for future reference. The manufacturer is not responsible for damage caused by improper use of the device.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not use the appliance if the power cord or plug is damaged. To avoid hazards, the power cord must be replaced by the manufacturer, its service agent, or similarly qualified persons. This appliance is intended for household use only at altitudes not exceeding 2000 m. Do not immerse the appliance, power cord, or plug in water or any other liquid. Your appliance is intended for household use only. The appliance cannot be used under the conditions listed below, which are not covered by the warranty:

• Kitchen staff areas in shops, offices, and other working environments. - Farmhouses.
• Hotels, motels, and other residential-type environments. - Bed and breakfast type environments.

Turn off the appliance and unplug it. - Do not touch the appliance until it has cooled down. Clean it with a damp cloth or sponge. - Never immerse the appliance in water or hold it under running water.

WARNING. Improper use of the device may cause injury. WARNING. After use, do not touch the heating plate, as it remains hot for a long time. If the device is not cool, touch only the handle of the folded ring. The device can be used by children aged 8 and above if they are under supervision, have been instructed on safe use of the device and fully understand the possible danger. Children are allowed to clean and maintain the device only under adult supervision and provided they are at least 8 years old. Keep the device out of reach of children under 8 years old. The device can be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are under supervision or have received instructions on safe use of the device and understand the possible risks. Do not let children play with the device. The kettle is switched on, it cannot be placed in water. First use: fill the kettle with water, boil it, and pour out the water. Then rinse the kettle with clean water. Do not use the kettle without water. The kettle must be used only with the supplied base. Do not use the kettle if it is damaged or malfunctioning. In such a case, contact an authorized service center. Any repairs, except for cleaning and routine maintenance, must be performed by an official service center. The power cord must never be near or in contact with hot parts of the device, near heat sources or sharp edges. For safety, use only the device and its parts from the manufacturer intended for your device. It is forbidden to disconnect the device from the mains by pulling the power cord. Do not heat the kettle on a gas stove or electric stove. Do not fill the device with water while it is hot. All devices undergo strict quality control. The device is switched on for active use in randomly selected devices, which may show signs of use. Always close the lid before starting the kettle. For the heating function: turn off the device and disconnect it from the power source before changing accessories or touching parts that move during use.

• Always disconnect the device from the mains before it is left without supervision, and also before assembly, disassembly and cleaning.
• This device must not be used by children. Keep the device and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision.

Do not heat up coffee that has already been in the coffee maker.

Make sure the water tank is filled with water before turning on the coffee maker. The coffee maker gets very hot during operation. Be careful when handling it. Do not disassemble the appliance. Do not use the coffee maker without the lid. Do not pour hot water into the reservoir. If the coffee maker is switched on, it cannot be placed on a hot surface. Do not use ground coffee that is too fine, as it may damage your appliance.

USE

TROUBLESHOOTING
