Brand	Electrolux
Model	EFF80680BX
Product type	Range hood
Usage	Domestic, kitchen odor removal
Minimum safety distance	650 mm (some models can be installed lower)
Minimum exhaust duct diameter	120 mm
Number of speeds	3 speeds + timed intensive (6 min)
Intensive function	Yes, timed 6 minutes, automatic return to lower speed
Lighting	LED, intensity adjustable by buttons
Grease filters	Metallic, dishwasher safe every 2 months
Activated carbon filter	Not washable, to be replaced every 4 months
Maintenance alarm	Yes, after 100 h (grease filters) and 200 h (carbon filter)
Remote control	Built-in receiver, activation/deactivation by button A (5s)
Power supply	230 V ~ 50 Hz, with grounding
Appliance class	Class I
Exterior cleaning	Damp cloth and neutral liquid detergent
After-sales service	Use original parts, contact customer service for replacement

Frequently Asked Questions - EFF80680BX ELECTROLUX

How to clean the grease filters?

The metal grease filters should be cleaned every 2 months. They are dishwasher safe or can be washed by hand with a degreasing detergent. After washing, dry them before reinstalling.

When to replace the activated carbon filter?

The activated carbon filter is not washable and should be replaced approximately every 4 months (or more frequently with heavy use). A flashing alarm (button C) reminds you after 200 hours of operation.

How to reset the filter alarm?

Make sure the motor is off. Briefly press button G (button lit for grease filters, flashing for carbon filter). The indication turns off, the alarm is reset.

What to do if the buttons do not respond?

Check if the hood is powered on. If the remote control receiver is disabled (buttons A+C flash twice), activate it by pressing button A for 5 seconds (1 flash). If the problem persists, contact after-sales service.

What is the minimum safety distance between the hood and the cooktop?

The minimum distance is 650 mm. If your gas cooktop instructions specify a greater distance, follow that. This prevents any risk of overheating and fire.

Can I use the hood without external exhaust?

Yes, in recirculation mode with an activated carbon filter. The air is filtered and then returned to the room. In this case, make sure to install the carbon filter and replace it regularly.

How to activate or deactivate the remote control?

Press and hold button A for 5 seconds. A flash of buttons A+C indicates activation (1 flash) or deactivation (2 flashes) of the remote control receiver.

The hood makes noise, is this normal?

A certain noise level is normal, especially on intensive speed. If the noise becomes abnormal, check that the filters are not clogged. Dirty grease filters can increase noise and reduce performance.

Where to find original spare parts?

Visit www.electrolux.com/shop or contact Electrolux after-sales service. Always use original parts to ensure the safety and performance of your hood.

What to do in case of breakdown or malfunction?

Before calling customer service, check the power supply, the condition of the filters, and that the remote control is not disabled. If the problem persists, note the model, product code (PNC) and serial number (on the rating plate) and contact an authorized Electrolux service center.

USER MANUAL EFF80680BX ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• “CAUTION: Accessible parts may become hot when used with cooking appliances.”
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. MAINTENANCE

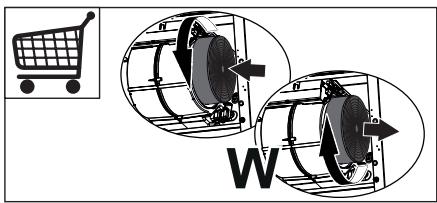

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function	Display
A	Decreases the working speed or exits timed intensive speed.	The number of lighted LEDs decreases.
	Touch and hold the button for 5 seconds to activate/deactivate the Remote control receiver.	1 Flash of button A+C indicates that the Remote control receiver is Activated2 Flashes of button A+C indicate that the Remote control receiver is Deactivated
B	Turns the motor On/Off and displays the speed bar.	The LEDs for the set speed light up.
C	Increases the working speed.	The number of lighted LEDs increases.
	Continuing to touch the button to activate intensive speed, which is timed to run for 6 minutes.At the end of the 6 minutes intensive speed will automatically drop to the level below and the last LED will go out.	LED bar fully on -> Intensive speed activated
D	Decreases the lighting intensity.	-
E	Turns the lighting system Off/On at maximum intensity.	-
	Touch and hold for 5 seconds to enable/disable the Activated Charcoal Filters alarm.	Flash from button C indicates that the Activated Charcoal Filters alarm is activatedFlash from button A indicates that the Activated Charcoal Filters alarm is deactivated
F	Increases the lighting intensity	-
G	With the filter alarm active, press the button to Reset the alarm itself. These indications are only visible when the motor is turned off.	When the procedure terminates, the indication shown previously turns off. Button Lit indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. Button Flashing indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.

When the Hood is switched off, none of the functions is displayed, and only the normal lettering on the control panel is visible.

5. LIGHTING

• For replacement contact technical support.

("To purchase contact technical support").
