USER MANUAL Strip Vetro HF Bianco 90 - 07758051 BEST

Instructions for use

Betriebsanleitung

Mode d'emploi

This model is suitable for GAS hobs with the maximum configuration shown in the drawing below and is suitable for use with all GAS hobs with a total power output not exceeding 12.25 kW.

A = Tasto Stand-by/OFF/Carrello

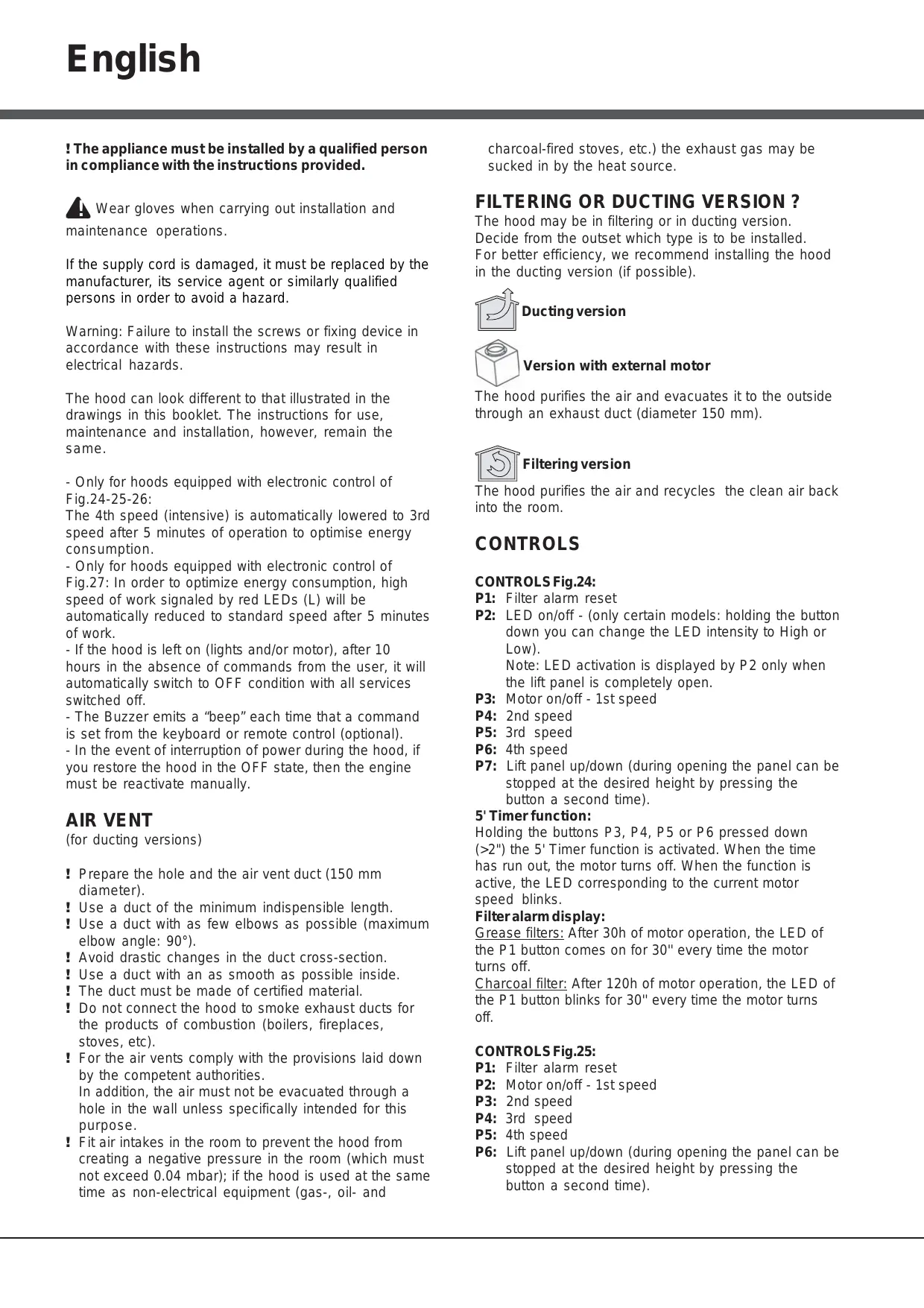

! The appliance must be installed by a qualified person in compliance with the instructions provided.

Wear gloves when carrying out installation and maintenance operations.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• Only for hoods equipped with electronic control of Fig.24-25-26:
  The 4th speed (intensive) is automatically lowered to 3rd speed after 5 minutes of operation to optimise energy consumption.
• Only for hoods equipped with electronic control of Fig.27: In order to optimize energy consumption, high speed of work signaled by red LEDs (L) will be automatically reduced to standard speed after 5 minutes of work.
• If the hood is left on (lights and/or motor), after 10 hours in the absence of commands from the user, it will automatically switch to OFF condition with all services switched off.
• The Buzzer emits a "beep" each time that a command is set from the keyboard or remote control (optional).
• In the event of interruption of power during the hood, if you restore the hood in the OFF state, then the engine must be reactivate manually.

AIR VENT

(for ducting versions)

! Prepare the hole and the air vent duct (150 mm diameter).
! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.
! Do not connect the hood to smoke exhaust ducts for the products of combustion (boilers, fireplaces, stoves, etc).
! For the air vents comply with the provisions laid down by the competent authorities. In addition, the air must not be evacuated through a hole in the wall unless specifically intended for this purpose.
! Fit air intakes in the room to prevent the hood from creating a negative pressure in the room (which must not exceed 0.04 mbar); if the hood is used at the same time as non-electrical equipment (gas-, oil- and

charcoal-fired stoves, etc.) the exhaust gas may be sucked in by the heat source.

FILTERING OR DUCTING VERSION ?

The hood may be in filtering or in ducting version.

Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

Version with external motor

The hood purifies the air and evacuates it to the outside through an exhaust duct (diameter 150~mm ).

Filtering version

The hood purifies the air and recycles the clean air back into the room.

CONTROLS

CONTROLSFig.24:

P1: Filter alarm reset
P2: LED on/off - (only certain models: holding the button down you can change the LED intensity to High or Low). Note: LED activation is displayed by P2 only when the lift panel is completely open.
P3: Motor on/off - 1st speed
P4: 2nd speed
P5: 3rd speed
P6: 4th speed
P7: Lift panel up/down (during opening the panel can be stopped at the desired height by pressing the button a second time).

5' Timer function:

Holding the buttons P3, P4, P5 or P6 pressed down (>2^ ) the 5' Timer function is activated. When the time has run out, the motor turns off. When the function is active, the LED corresponding to the current motor speed blinks.

Filter alarm display:

Grease filters: After 30h of motor operation, the LED of the P1 button comes on for 30'' every time the motor turns off.

Charcoal filter: After 120h of motor operation, the LED of the P1 button blinks for 30'' every time the motor turns off.

CONTROLSFig.25:

P1: Filter alarm reset
P2: Motor on/off - 1st speed
P3: 2nd speed
P4: 3rd speed
P5: 4th speed
P6: Lift panel up/down (during opening the panel can be stopped at the desired height by pressing the button a second time).

5' Timer function:

Holding the buttons P2, P3, P4 or P5 pressed down (>2^ ) the 5^ Timer function is activated. When the time has run out, the motor turns off. When the function is active, the LED corresponding to the current motor speed blinks.

Filter alarm display:

Grease filters: After 30h of motor operation, the LED of the P1 button comes on for 30'' every time the motor turns off.

Charcoal filter: After 120h of motor operation, the LED of the P1 button blinks for 30'' every time the motor turns off.

CONTROLSFig.26:

P1: Motor on/off - 1st speed
P2: 2nd speed
P3: 3rd speed
P4: 4th speed
P5: Lift panel up/down (during opening the panel can be stopped at the desired height by pressing the button a second time).

5' Timer function:

When the motor is on, holding the keys P1-P4 pressed down (depending on the speed set), the 5^ timer function is activated. When this function is active, the LED corresponding to the speed (L1-L4) blinks. When the 5^ have elapsed, the motor turns off.

Filter alarm display:

After 30 hours of motor operation, the LEDs L1-L5 come on for 30^ each time the motor is turned off.

After 120 hours of motor operation, the LEDs L1-L5 blink for 30^ each time the motor is turned off.

To reset the alarm, press any one of the keys P1-P5 for 2" during alarm display.

CONTROLSFig.27:

A = Stand-by/OFF/Slider

When the chimney cooker hood is on, pressing this button will open the slider up to 30~cm . (button blinks rapidly). A second press on of the button will lift the chimney cooker hood to 40~cm . If the chimney cooker hood has not received further commands, Stand-by mode will turn on, which will then automatically turn off after 5 minutes. In Stand-by mode, buttons A will light, and buttons B,C, and F will only be backlit.

When the chimney cooker hood is turned on, holding on the pressed button (>2^ ) will turn off the device (engine, lights, and timer, if it is turned on). Pressing the button while the truck is in motion, the direction is reversed.

Cleanup Mode:

Before cleaning the chimney cooker hood, make sure that the chimney cooker hood is turned off (only button A should be backlit). Pressing and holding the button (>2^) will turn on/off working mode for 3 minutes: during this time the chimney cooker hood must not receive any commands (all buttons are only backlit).

B = Lighting level / OFF button. In order to select high, medium, or low lighting level, or turn the lighting off completely, the button should be pressed several times. Holding on the pressed button (>2^ ) will turn on/off accessory lighting (only available in certain models).

C = engine ON/OFF button. When the engine is not working, pressing the button will turn on the first speed mode of the

engine (lighting slider L area). When the engine is working, pressing this button will turn off the engine.

D = Lower engine speed button

E = Increase engine speed button

L = Slider area for engine speed. Sliding finger on this area (i.e. pressing and sliding finger) will increase or lower engine speed. High speed is signaled by red.

F = Timer. In order to turn the Timer on, an appropriate button should be pressed. Engine will stop automatically after 5 minutes (button blinks rapidly). Pressing the button when the 5-minute Timer is on will turn on the 10-minute Timer (button blinks slowly). In order to turn the Timer off, press and hold the button ( >2^ ).

G = Anti-grease filter (filters) alert. After 30 hours of chimney cooker hood work, the necessity to clean anti-grease filters will be signaled by backliting this button. In order to reset work time, press and hold the button (>2").

H = Charcoal filter (filters) alert. After 120 hours of chimney cooker hood work, the necessity to clean charcoal filters (installed in chimney cooker hoods with this option) will be signaled by backliting this button. In order to reset work time, press and hold the button (>2^ )

ATTENTION

SAFETY SYSTEMS

In order to function correctly the product is equipped with a series of safety devices which are also intended to prevent any injury caused by inappropriate use.

In any case be very careful in using the product, above all the parts in motion.

ALARMONCONTROL(ControlsFig.24-25-26)

1. All LEDs flashing: this means that the telescopic trolley is locked. Wait 30^ and then press the UP/DOWN button to release the trolley
2. UP/DOWN button LED flashing: this means that the front panel of the filters is not closed properly. Reposition it correctly.

ALARMONCONTROL (Controls Fig.27)

1. Flashing arrows (buttons D, E): means that the telescopic trolley is locked. Remove the obstacle and press the A button to reactivate the telescopic trolley.
2. G button blinking: means that the grease filter is not properly latched. Reposition it properly.

To remove the alarm, press the A button (trolley starts reversing the race).
3. Keys A and H blinking: error in the position of the trolley. Press the button to restore the correct position (the trolley is fully closed and reopened).

MAINTENANCE

! Before cleaning or maintenance cut the power.

If the light spot is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

Cleaning the hood

WHEN TO CLEAN IT: clean it at least every 2 months to prevent the risk of fire.

EXTERNAL CLEANING: use a cloth moistened in lukewarm water and neutral detergent (for painted hoods); use specific products for steel, copper or brass hoods.

INTERNAL CLEANING: use a cloth (or brush) soaked in denatured ethyl alcohol.

WHAT NOT TO DO: do not use abrasive or corrosive products (e.g. metal sponges, brushes, too hard brushes, very aggressive detergents, etc.)

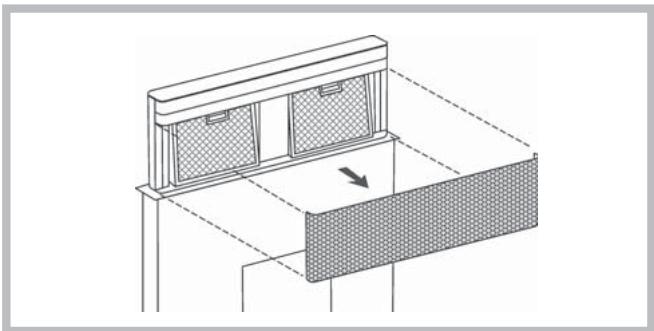

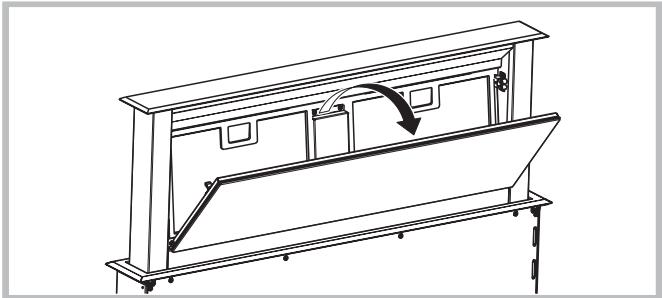

Cleaning the grease filters

WHEN TO CLEAN IT: clean it at least every 2 months to prevent the risk of fire.

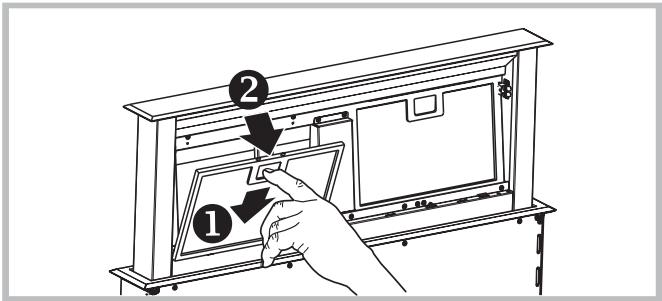

HOW TO REMOVE THE FILTERS: push the catch near the handle towards the rear of the hood and pull the filter downwards

HOW TO CLEAN THE FILTERS: hand wash or in the dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

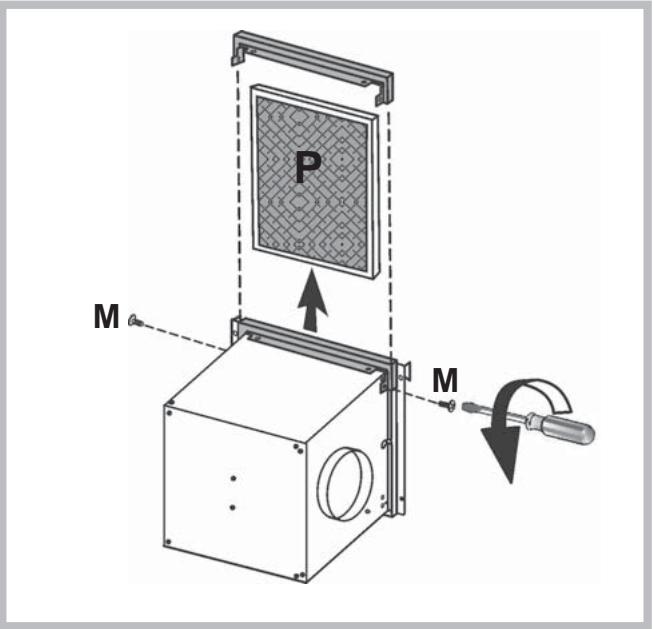

Replacing the charcoal filter (P)

(for filtering version only)

WHEN TO REPLACE IT: replace it at least every 6 months.

HOW TO REMOVE IT: remove the charcoal filter unscrewing (2) screws (M).

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:
  Check that:
• The power has not been disconnected.

• A speed has been selected.

• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.

• The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning: Check that:

• The power has not been disconnected.

• the omnipolar disconnection device has not tripped.
