USER MANUAL CP57IQT542SB BEST

Technical line drawing of a double-door refrigerator with ventilation grilles and doorways (no text or symbols)

CP55IQ, CP57IQT AND CP57E SERIES

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGES 13 AND 14.

BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

7 72371 12754 8

To register your product online or for additional information visit www.BestRangeHoods.com

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn power pack ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

⚠ WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

4. Your power pack motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the power pack serviced.

5. The minimum hood distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.
6. Two installers are recommended because of the large size and weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
8. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.
9. Because of the high exhausting capacity of this unit, you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.
10. To reduce the risk of fire and electrical shock, the Best CP55IQ & CP57IQT Series models should only be installed with their own built-in blowers, and the Best CP57E Series models must only be installed with Best exterior blower models EB6, EB9, EB12 or EB15; or Best in-line blowers models ILB3, ILB6, ILB9, ILB11. Other blowers cannot be substituted.
11. Please read specification label on product for further information and requirements.
12. This power pack is equipped with a RF receiver (optional remote control sold separately). Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this product. The remote control has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and the Canadian ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The remote control generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

1. When used in recirculation mode, to reduce the risk of fire and shock, use only conversion kit model ANKCP55 for CP55IQ series only.

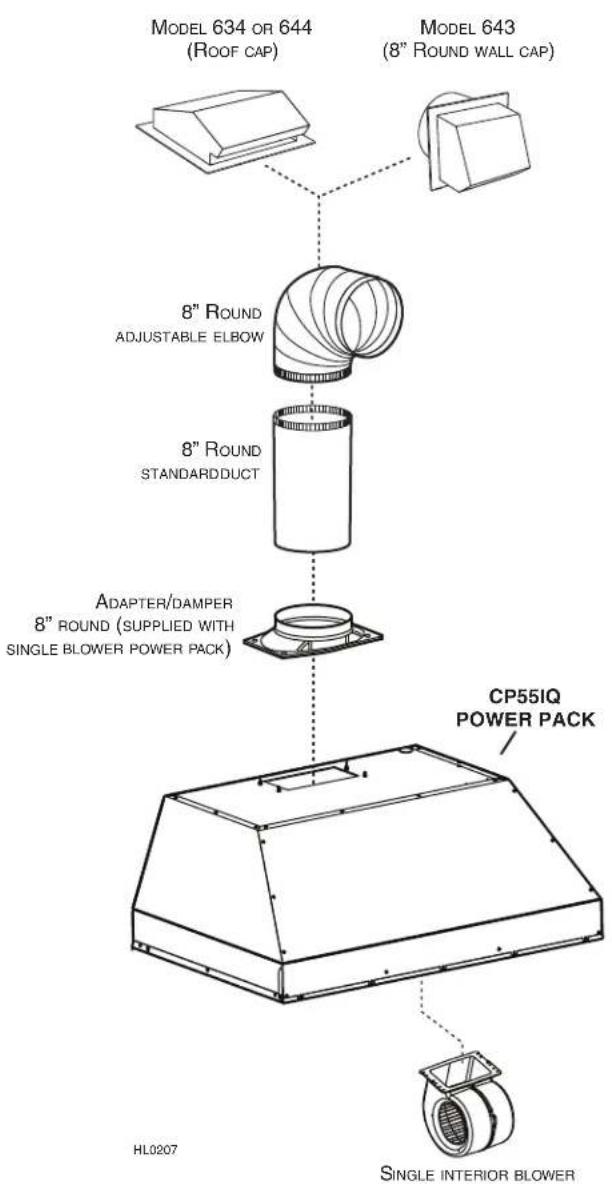

- CP55IQ AND CP57IQT POWER PACK SYSTEMS -

MODEL 634 or 644 (ROOF CAP) MODEL 643 (8" ROUND WALL CAP) 8" ROUND ADJUSTABLE ELBOW 8" ROUND STANDARDDUCT ADAPTER/DAMPER 8" ROUND (SUPPLIED WITH SINGLE BLOWER POWER PACK) CP55IQ POWER PACK HL0207 SINGLE INTERIOR BLOWER

MODEL 437 (HIGH CAPACITY ROOF CAP) MODEL 441 (10" ROUND WALL CAP) MODEL 418 (10" ROUND ADJUSTABLE ELBOW) MODEL 410 (10" ROUND DUCT — 2 FT. SECTIONS) 10" ROUND VERTICAL IN-LINE DAMPER (SUPPLIED WITH DUAL BLOWER POWER PACK) 10" ROUND ADAPTER (SUPPLIED WITH DUAL BLOWER POWER PACK) CP57IQT POWER PACK ACR SERIES REMOTE CONTROL KIT (SOLD SEPARATELY) DUAL INTERIOR BLOWER

1. INSTALL DUCTWORK AND ELECTRICAL WIRING

1.1 NON-DUCTED INSTALLATION (CP55IQ SERIES POWER PACKS ONLY)

CP55IQ Series power packs may be non-ducted. ANKCP55 non-duct kit must be installed (sold separately).

1.2 DUCTED INSTALLATION (ALL POWER PACKS)

For a CP57E Series power pack, either an exterior blower or in-line blower must be used. The CP57E Series power pack must be installed with blower models ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted (blowers sold separately.) Plan where and how the ductwork will be installed.

If installing exterior or in-line blower, refer to instructions packed with blower and follow steps 1 up to 7, 11, 13 and up of this manual.

Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If installing CP55IQ Series power pack, use 8" round ductwork and if installing CP57IQT or CP57E Series power pack, use 10" round ductwork. Use metal foil duct tape to seal duct joints.

NOTE: It is recommended that there be a minimum of 6" of straight duct from the hood to an elbow for 8" duct and 12" for 10" duct.

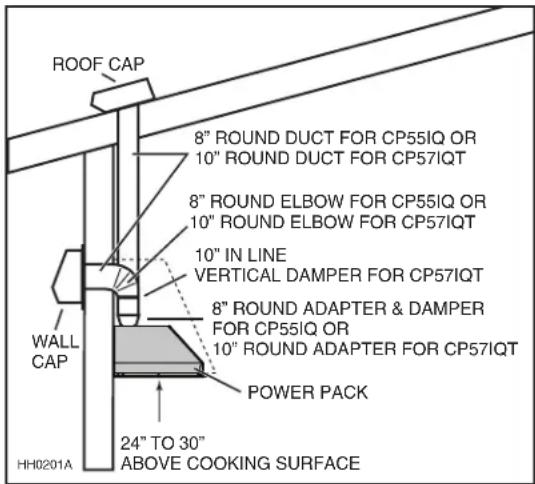

1.3 ALL INSTALLATIONS

The minimum power pack distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.

Distances over 30" are at the installer and users discretion.

Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood.

ROOF CAP 8" ROUND DUCT FOR CP55IQ OR 10" ROUND DUCT FOR CP57IQT 8" ROUND ELBOW FOR CP55IQ OR 10" ROUND ELBOW FOR CP57IQT 10" IN LINE VERTICAL DAMPER FOR CP57IQT 8" ROUND ADAPTER & DAMPER FOR CP55IQ OR 10" ROUND ADAPTER FOR CP57IQT POWER PACK 24" TO 30" ABOVE COOKING SURFACE HH0201A

CP55IQ (SINGLE INTERNAL BLOWER)
OR CP57IQT (DUAL INTERNAL BLOWER)
TYPICAL DUCTWORK

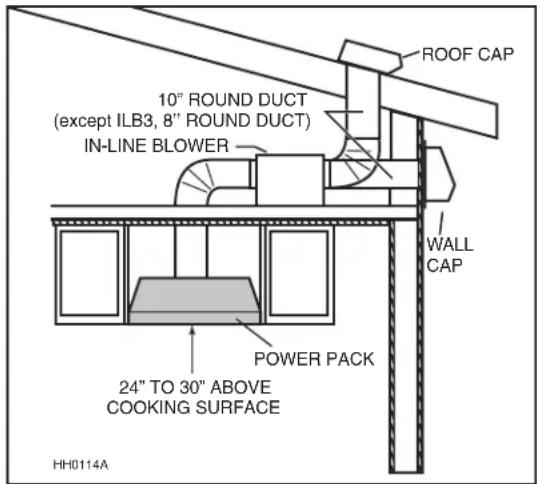

10" ROUND DUCT (except ILB3, 8" ROUND DUCT) IN-LINE BLOWER ROOF CAP WALL CAP POWER PACK 24" TO 30" ABOVE COOKING SURFACE HH0114A

CP57E WITH MODEL ILB3, ILB6, ILB9
OR ILB11 IN-LINE BLOWER TYPICAL DUCTWORK

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

- Power Pack

- Accessories • Hybrid baffle filters with handles (3 for 36" width power pack, 4 for 42" width power pack and 5 for 48" to 66" width power packs)

- 8" round adapter and damper (included with CP55IQ power pack series)

- 10" round in-line vertical damper (included with CP57IQT power pack series)

- 10" round adapter (included with CP57IQT power pack series)

- Bag of parts including: 1 wire clamp, 2 wire connectors, 4 no. 8 x 3/8" screws, 9 no. 8 x 1/2" chrome plated screws, 10 no. 8-32 x 1/4" screws (not used with this product, please discard).

Parts sold separately:

• ACR Series remote control kit
- In-line blower assembly model ILB3, ILB6, ILB9 or ILB11.
- Exterior blower assembly model EB6, EB9, EB12 or EB15.
- Ducts, elbows, wall and roof caps. Refer to page 3 and 4 for a complete list of venting options and model numbers.
• Non-duct kit ANKCP55 Series, mandatory for non-ducted installation.

NOTE: During installation, protect countertop and/or cooktop.

3. CUSTOM HOOD PREPARATION

WARNING

When building a custom hood, always follow all applicable construction codes and standards.

The custom hood must be constructed to fit the size and shape of the CP55IQ, CP57IQT or the CP57E power pack.

See chart and illustration for details.

POWER PACK		TOTAL WEIGHT	POWER PACK DIMENSIONS
MODEL	WIDTH		A*	B*	C
CP55IQ	36"	52 LB.	19 516 "	34 716 "	4 14 "
	42"	62 LB.	19 516 "	40 716 "	4 38 "
CP57IQT	36"	62 LB.	19 516 "	34 716 "	5 38 "
	48"	72 LB.	19 516 "	46 716 "	5 38 "
	48"	72 LB.	22 916 "	46 716 "	5 38 "
	54"	82 LB.	22 916 "	52 716 "	5 38 "
	60"	85 LB.	22 916 "	58 716 "	5 38 "
	66"	88 LB.	22 916 "	64 716 "	5 38 "
CP57E	36"	40 LB.	22 916 "	34 716 "	6"
	48"	53 LB.	22 916 "	46 716 "	6"
	60"	66 LB.	22 916 "	58 716 "	6"

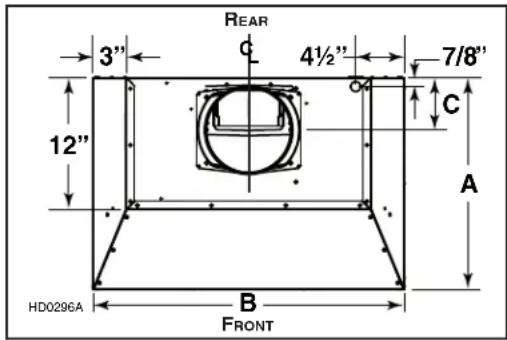

REAR 3" 4½" 7/8" 12" A HD0296A B FRONT

* Dimensions A and B include rivets head.

To minimize the gap around the power pack, take actual width and depth measurements of power pack and add 1/16" to get D and E measurements. Cut the hole in the bottom of the cabinet according to dimensions. See chart and illustration for details.

POWER PACK		CUTOUT DIMENSIONS
MODEL	WIDTH	DE
CP55IQ	36"	19 38 "	34 12 "
	42"	19 38 "	40 12 "
CP57IQT	36"	19 38 "	34 12 "
	48"	19 38 "	46 12 "
	48"	22 58 "	46 12 "
	54"	22 58 "	52 12 "
	60"	22 58 "	58 12 "
	66"	22 58 "	64 12 "
CP57E	36"	22 58 "	34 12 "
	48"	22 58 "	46 12 "
	60"	22 58 "	58 12 "

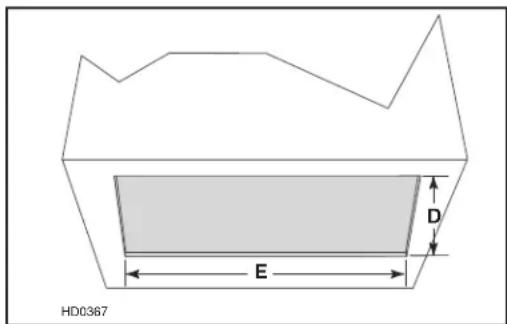

HD0367 E D

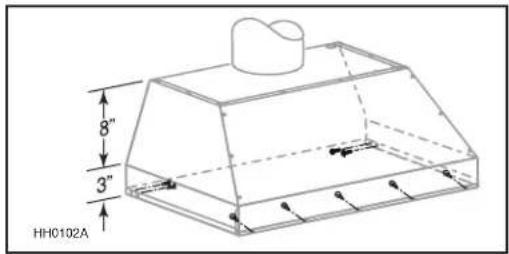

4. MOUNT CUSTOM HOOD INTERNAL FRAMEWORK

WARNING

The wood hood must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of supporting its own weight and the weight of the CP55IQ, CP57IQT or CP57E. Failure to do so may cause personal injury or damage to countertop or cooktop.

The CP55IQ, CP57IQT and CP57E power pack is supported by the custom hood internal framework with screws provided in parts bag.

Since the CP55IQ, CP57IQT and CP57E power pack mounting holes are located in front and rear sides (see illustration at right), plan to install wood frame at front and sides for support.

8" 3" HH0102A

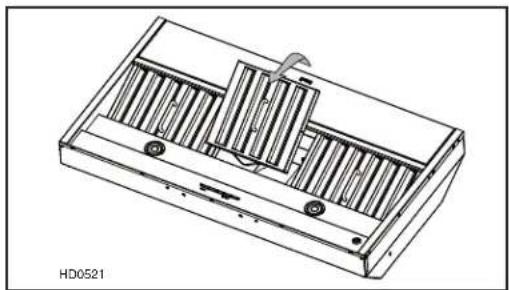

5. REMOVE HYBRID BAFFLE FILTERS

Remove tape on filters. Remove filters from power pack and set aside. It is recommended to start with the center one(s).

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

6. REMOVE GREASE DRIP RAIL

A. Lift grease drip rail to disengage it from the bottom panel.

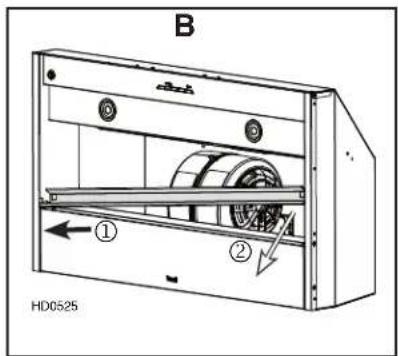

B. Slide grease rail all the way to the left or right (①) and lift the opposite end to disengage the other end from the bottom panel (②). Remove it from the power pack and set aside for later use.

Technical line drawing of a mechanical device labeled A, showing internal components and mounting points (no text or symbols beyond label)

B ① ② HD0525

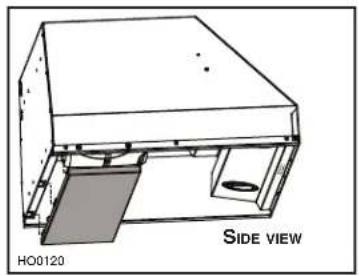

7. REMOVE BOTTOM PANEL

Using a Phillips screwdriver, remove both bottom panel retaining screws and set aside.

RETAINING SCREW LOCATIONS HO00224

Disassemble bottom panel from power pack and set aside.

Technical line drawing of a mechanical housing with a side view indicator (no text or symbols on the diagram itself)

8. REMOVE KNOCK-OUT OPENING (CP55IQ AND CP57IQT SERIES ONLY)

From inside the power pack, remove the wiring box cover by removing 2 retaining screws and set aside. Punch out the electrical knockout hole on top of the power pack. Install the wire clamp (included in parts bag).

Line drawing of a mechanical device with a hammer and handle, no text or symbols present

9. INSTALL THE 8" ADAPTER/DAMPER (CP55IQ SERIES ONLY)

Using 4 no. 8 x 3/8" screws from parts bag, assemble the adapter/damper on the top of the power dampers, remove shipping tape if present. Seal all joints with metal foil duct tape to eliminate air le

MOUNTING SCREW LOCATIONS HJ0016

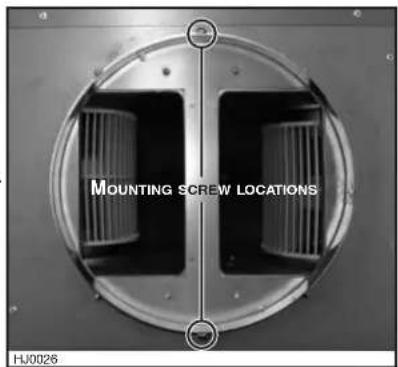

10. INSTALL THE 10" ADAPTER (CP57IQT SERIES ONLY)

Using 2 no. 8 x 3/8" screws from parts bag, assemble the adapter on the top of the power pack. Seal all joints with metal foil duct tape to eliminate air leaks.

MOUNTING SCREW LOCATIONS HJ0026

11. INSTALL THE 10" IN-LINE DAMPER (CP57IQT AND CP57E SERIES, DUCTED INSTALLATION ONLY)

NOTE: For a non-ducted installation, do not install the 10" in-line damper.

Install 10" in-line damper inside the vertical ductwork that will be attached to power pack. Do not install in a horizontal ductwork or it will not open and close properly. Remove shipping tape if present. Secure the damper to the duct with 3 no. 8 sheet metal screws (not provided). Ensure damper opens and closes freely. Seal all joints with metal foil duct tape to eliminate air leaks.

10" min. recommended HJ0073A

12. INSTALL THE ROUGH-IN PLATE FOR EXTERNAL BLOWER

(CP57E SERIES ONLY)

Refer to the instructions included with the selected blower/rough-in kit (sold separately) for details on installing the rough-in plate. Install the rough-in plate so that the wiring box is located on the right side when facing the hood, as specified on the blower housing label.

WIRING BOX COVER LOCK NUTS HD0522

13. CONNECT WIRING (ALL BLOWERS)

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Position the power pack below the installed custom hood.

INTERNAL BLOWERS: Insert the house wiring cable through the wire clamp previously installed in step 8. Tighten the wire clamp to secure the cable. Connect cable into wiring box using wire connectors. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw. DO NOT FORGET TO CONNECT THE GROUND. Reinstall wiring box cover.

IN-LINE OR EXTERIOR BLOWERS: See instructions included with blower.

Diagram of electrical wiring connections with black, white, and green wires (no text or symbols)

14. INSTALL POWER PACK

MODEL CP55IQ ONLY: If the model CP55IQ is to be installed with a non-duct kit, install a 8" to 7" reducer (included in non-duct kit) prior to install the power pack in its custom hood.

CAUTION

Take care not to kink ducting when installing the power pack.

Using provided no. 8 x 1/2" chrome plated screws, install the power pack inside the custom hood. Start with 2 screws on front corners, then use 4 screws for sides and use the remaining screws to finalize securing the front power pack. (See figure at right for mounting screw specific locations.)

Make sure the adapter/damper (or the adapter) enters the ducting. When there is access to the top of the power pack, seal connections with metal foil duct tape.

8" 3" HH0102A

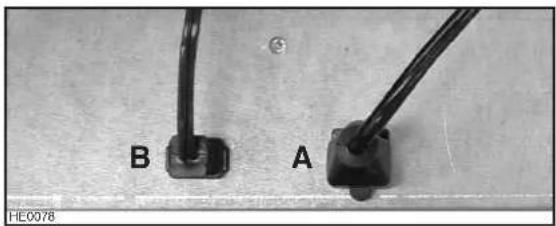

15. PERFORM THE EXTERNAL BLOWER CONNECTIONS (CP57E SERIES ONLY)

WARNING

Do not plug the two cords together.

To install the blower see instructions included with the blower.

Plug the 3-prong plug cord from rough-in plate to the 3-prong male connector inside the power pack (A) and the 2-prong male connector cord from rough-in plate to the 2-prong plug inside the power pack (B).

Close-up of two black electrical connectors labeled A and B, with wires extending upward (no text or symbols on the connectors themselves)

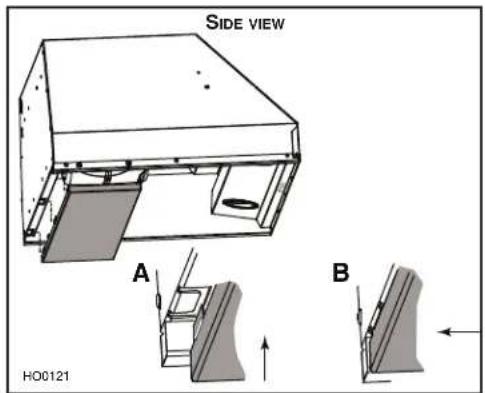

16. REINSTALL BOTTOM PANEL

Lift the bottom panel and engage the power pack metal tabs in bottom panel slots, as shown in details A and B below.

SIDE VIEW A B HO0121

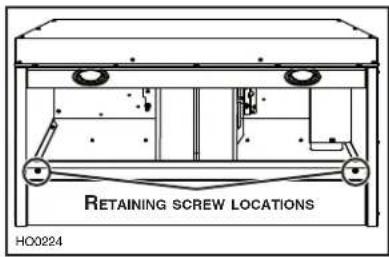

Secure the bottom panel to the power pack using its screws previously removed in step 7.

RETAINING SCREW LOCATIONS HO0224

17. REINSTALL GREASE DRIP RAIL

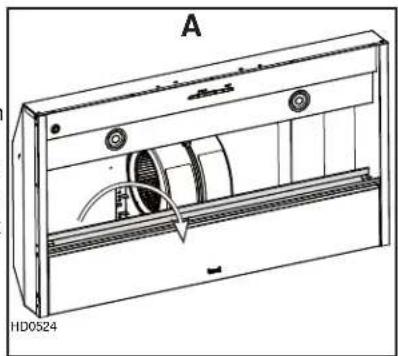

A. Insert one end of grease rail in power pack side (①) while lifting the other end over the bottom panel edge (②).
B. Center the grease drip rail over the bottom panel edge and flip it to snap in place.

A ① ② HD0525

B HD0524

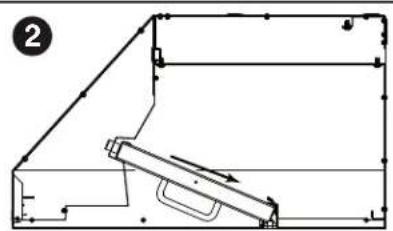

18. REINSTALL HYBRID BAFFLE FILTERS

CAUTION

Remove protective plastic film covering hybrid baffle filters before installing them.

It is recommended to install side filters first and finish with center one(s).

1. Insert one end of hybrid baffle filter into the front channel of the power pack.
2. Raise the other end toward the inside of power pack and insert in the grease drip rail of the power pack.

1 HD0526

Technical line drawing of a mechanical assembly with no visible text or symbols

19. CALIBRATE IQ BLOWER SYSTEM™ (CP55IQ & CP57IQT SERIES ONLY)

NOTE: Calibration is for ducted installations only. Do not calibrate non-ducted installations. After the power pack is installed and wired, engage the calibration process (our Guaranteed Performance System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that all filters and duct system are installed.

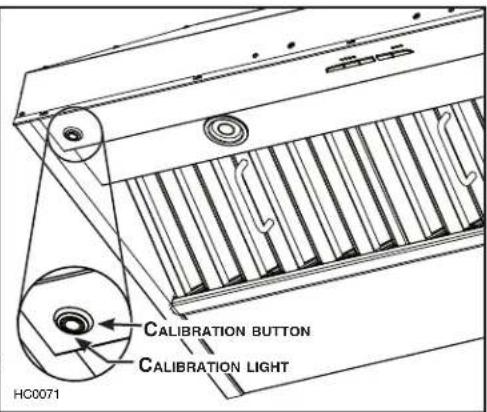

CALIBRATION PROCESS

Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13 minutes. The blower will start and begin the calibration process. When calibration is complete, one of two things will occur:

A. The blower turns off and calibration button light stays on = Successful calibration. Press the button to turn off the LED.

NOTE: The LED will also turn off if you select any blower speed on the control.

B. The blower turns off and calibration button light blinks continuously = Too much restriction in the ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is automatically set to maximum intensity.

CALIBRATION BUTTON CALIBRATION LIGHT HC0071

NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of flex ducting and/or crushed ducting.

Three options are available if your power pack system has too much restriction:

1. Accept airflow as is. Press the calibration button to accept airflow as is. The IQ Blower System™ is now configured to its highest possible performance. The blinking calibration light goes out.

NOTE: The LED will also turn off if you select any blower speed on the control.

1. Correct duct restriction, clear the original calibration data, and repeat the calibration process.

a. Correct the duct restriction.

b. Clear the original calibration data by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.

c. Repeat calibration process from the beginning.

1. Clear calibration data to reset power pack to default factory settings and achieve standard high pressure blower performance by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.

This power pack is equipped with LED lamps which require no maintenance.

WARNING

Do not touch lamps during or soon after operation. Burns may occur.

21. USE AND CARE

Hybrid Baffle Filters

The hybrid baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease — like frying foods or wok cooking.

Remove hybrid baffle filters by pushing them towards the back of power pack and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the power pack.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.

Grease Drip Rail

The grease drip rail should be cleaned frequently. Remove it from the power pack (see step 6 on page 7) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the power pack.

Interior Blower(s) Cleaning

Remove the filters in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water.

Power pack cleaning

Stainless steel cleaning:

Do:Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.Always clean in the direction of original polish lines.Always rinse well with clear water (2 or 3 times) after cleaning.Wipe dry completely.You may also use a specialized household stainless steel cleaner.

Don't:Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.Use any harsh or abrasive cleansers.Allow dirt to accumulate.Let plaster dust or any other construction residues reach the power pack. During construction/renovation, cover the power pack to make sure no dust sticks to stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

22. OPERATION

Always turn your blower on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range.

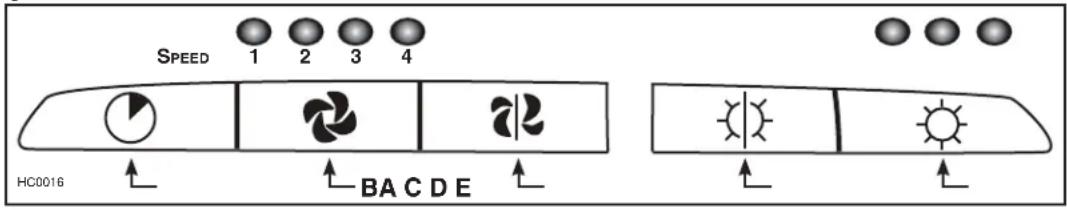

A) Blower delay-off button
B) ON blower/Speed control button
C) OFF blower/
Filter maintenance button
D) OFF lighting
E) ON lighting

SPEED 1 2 3 4 HC0016 BACDE

A. BLOWER DELAY-OFF BUTTON:

When blower is on, press the delay-off button to activate the delay-off function. The corresponding speed indicator LED will start flashing to indicate this function is activated. The fan will continue to operate for 10 minutes and will stop automatically. To cancel the delay-off function, press the blower delay-off button once again; the blower will then work in normal mode.

NOTE: The blower speed can be increased—or decreased—during delay-off mode without starting another 10-minute cycle.

B. ON BLOWER/SPEED CONTROL BUTTON:

Press this button to turn on the blower at the last selected speed. To change the blower speed, press the button again until the desired speed is obtained. Press and hold this button for 2 seconds to decrease the speed level down by one increment. Possible decreases are then: 4 to 3; 3 to 2; 2 to 1 and 1 to OFF.

NOTES: 1. Each time you press the speed control button, the speed changes by increments of 1 (e.g.: speed 1 to speed 2, to speed 3, and then speed 4). From the fourth speed, the speed goes down to level 1.

1. The last speed used is kept in memory so that when the unit is turned on, it will return to the last setting except the fourth, the next time the blower will be turned on, it will return to speed 3. The memorized speed level is also synced with the optional remote control.

HEAT SENTRY™

The power pack is equipped with a protective device that activates when excessive heat is detected inside the power pack. During the Heat Sentry activation, this device takes control of the blower and set it on speed 4; the speed 4 button LED will flash. The blower will remain on speed 4 until the heat is back to normal, it then returns to the speed previously selected.

WARNING

The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the power pack is turned off. In this case, it is impossible to turn the blower OFF with blower button. If you must stop the blower, do it from the main electrical panel.

C. OFF BLOWER/FILTER MAINTENANCE BUTTON:

Press this button to turn off the blower. Pressing this button also cancels the delay-off function (if activated).

NOTE: After 30 hours of operation, the 4 blower speed lights will flash 30 seconds to indicate the filters need to be cleaned in order to maintain efficient power pack operation. Pressing this button will reset the code to indicate that maintenance has been completed.

D. OFF LIGHTING:

Press this button to turn the lamps off.

E. ON LIGHTING:

Press this button to turn the lamps on; all 3 control LED will light on.

NOTE: There is only one light setting.

REMOTE CONTROL:

An optional ACR Series remote control (purchase separately) can be used to operate the power pack.

WARNING

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Best CP55IQ Series (single blower)

BLDC POWER BOARD THERMAL PROTECTION POWER CALIBRATION INTERFACE BLDC HAL M CONTROL BOARD J6 REF RECEI VEA K1 K2 K3 K4 J1 J7 T1 COLOR CODE RED WHITE BLACK BLUE YELLOW RED WHT YELLOW BLUE ORG ORANGE BRK BLK RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BlK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK RED WHT RED BLK

HE0411A

23. WIRING DIAGRAMS (CONT'D)

WARNING

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Best CP57IQT Series (dual blower)
        THERMAL_PROTECTION["THERMAL PROTECTION"]
        BLDC["BLDC"]
        POWER["POWER BOARD"]
    end

    J6["J6"] --> Q1["Q1"]
    Q1 --> LAMP["LAMP"]
    LAMP --> LowVac["LowVac"]
    LowVac --> REF["REF"]
    REF --> J7["J7"]

    T1["T1"] --> BLK["BLK"]
    BLK --> RED["RED"]
    RED --> WHT
    WHT --> BLK
    BLK --> BLK
    BLK --> BLU
    BLU --> WHT
    WHT --> ORG
    ORG --> BLK
    BLK --> BLU
    BLU --> BLU
    BLU --> WHT
    WHT --> ORG
    ORG --> BLK

    T1 --> MAINS_WITCH["MAIN S WITCH"]
    MAINS_WITCH --> BLK
    BLK --> WHT
    WHT --> BLK

    BLK --> LED_LIGHT["LED LIGHT"]
    LED_LIGHT --> YEL["YEL"]
    YEL --> WHT
    WHT --> BLK

    BLK --> CALIBRATION_SWITCH["Calibration Switch"]
    CALIBRATION_SWITCH --> BLDC1["BLDC1"]
    BLDC1 --> HALL1["HALL 1"]
    BLDC1 --> HALL2["HALL 2"]
    BLDC1 --> BLDC2["BLDC2"]
    BLDC2 --> M["M"]
    BLDC2 --> M["M"]

    HOCO_Model["HOOD MODEL WITH 4 LED LIGHTS"]
    HOCO_Model --> RED["RED"]
    RED --> WHT
    RED --> BLK

    COLOR_CODE["COLOR CODE"]
    COLOR_CODE --> BLK_1["BLK"]
    COLOR_CODE --> BLK_2["BLK"]
    COLOR_CODE --> BLU_1["BLU"]
    COLOR_CODE --> BLU_2["BLU"]
    COLOR_CODE --> ORG_1["ORG"]
    COLOR_CODE --> ORANGE_1["ORG"]
    COLOR_CODE --> YEL_1["YEL"]
    COLOR_CODE --> YELLOW["YELLOW"]

    REF: 70120 REV. B

    style Control Board fill:#f9f,stroke:#333
    style Power Board fill:#ccf,stroke:#333
    style Power Board fill:#cfc,stroke:#333
    style Control Board fill:#ffc,stroke:#333
    style Power Board fill:#fcc,stroke:#333

WARNING

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Best CP57E Series

RF RECEIVER CONTROL BOARD K1 K2 K3 K4 J6 MOTOR High Med High Med Low LOW J1 LAMP LowVac REF J7 BLK ORG WHT BLU YEL RED T3 T2 T1 Fuse 8 A COLOR CODE BLK BLACK BLU BLUE BRN BROWN GRY GREY GRN GREEN ORG ORANGE PNK PINK PPL PURPLE RED RED WHT WHITE YEL YELLOW 120 V AC Line Neutral Ground ROUGH-IN PLATE REF: 70121 REV-A BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK Hood Model with 4 GU10 Lights RED WHT 2x21 RED WHT RED WHT GU10 LIGHT GU10 LIGHT GU10 LIGHT GU10 LIGHT GU10 LIGHT GU10 LIGHT

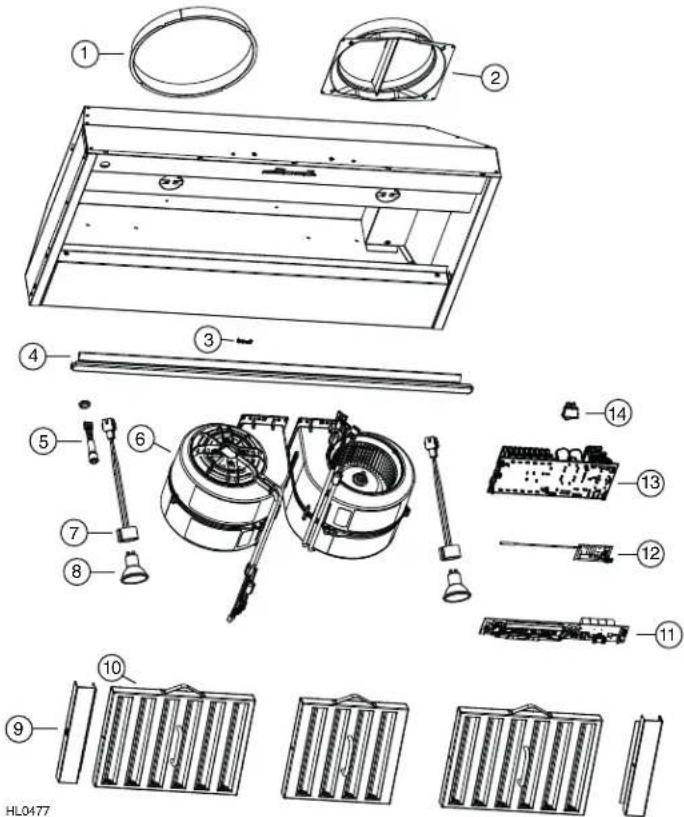

Best CP55IQ & CP57IQT Series

Exploded view diagram of an air conditioner unit with numbered parts and exploded views

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a certified service depot for all replacement parts and repairs.

KEYNO.	PART NO.	DESCRIPTION	QTY. (POWER PACK WIDTH)
			36"	42"	48"	54"	60"	66"
1	SV08541	ADAPTER 10" ROUND (FOR CP57IQT SERIES)	1	-	1	1	1	1
2	SV08543	ADAPTER/DAMPER 8" ROUND (FOR CP55IQ SERIES)	1	1	-	-	-	-
3 S	V05869 B	EST LOGO 1 1 1 1 1
4	SV17871	GREASE RAIL 36"	1	-	-	-	-	-
	SV17872	GREASE RAIL 42"	-	1	-	-	-	-
	SV17873	GREASE RAIL 48"	-	-	1	-	-	-
	SV17874	GREASE RAIL 54"	-	-	-	1	-	-
	SV17875	GREASE RAIL 60"	-	-	-	-	1	-
	SV17876	GREASE RAIL 66"	-	-	-	-	-	1
5	SV20817	CALIBRATION BUTTON	1	1	1	1	1	1
6	S97018985	BLDC BLOWER (FOR CP55IQ SERIES)	1	1	-	-	-	-
		BLDC BLOWER (FOR CP57IQT SERIES)	2	-	2	2	2	2
7 S	V05917 S	OCKET GU10	222	444
8	SV99271689	LED BULBS, GU10 BASE, GREY (PAIR)	1	1	1	2	2	2
9	SV61691	FILTER FILLER (PAIR)	-	1	-	-	-	1
10	SV61639	HYBRID BAFFLE FILTER WITH MICROMESH + HANDLE 8.84" x 8.61" x 1"	1	4	5	3	1	-
	SV61640	HYBRID BAFFLE FILTER WITH MICROMESH + HANDLE 11.84" x 8.61" x 1"	2	-	-	2	4	5
11	SV21411	CONTROL INTERFACE PCB FOR INTERNAL BLOWER	1	1	1	1	1	1
12	SV20816 R	EMOTE CONTROL PCB	1	1	1	1	1	1
13	SV21416	ELECTRONIC DRIVE (FOR CP55IQ SERIES)	1	1	-	-	-	-
	SV20818	ELECTRONIC DRIVE (FOR CP57IQT SERIES)	1	-	1	1	1	1
14	SV08548 B	LACK ROCKER SWITCH	1	1	1	1	1	1
*	SV21418	ELECTRICAL HARNESS (FOR CP55IQ SERIES)	1	1	-	-	-	-
*	SV20824	ELECTRICAL HARNESS (FOR CP57IQT SERIES)	1	-	1	1	1	1
*	SV09022	TRANSFORMER 120 VAC, 9 VOLTS DC	1	1	1	1	1	1
*	SV08542	10" ROUND VERTICAL IN-LINE DAMPER (FOR CP57IQT SERIES)	1	-	1	1	1	1
*	SV21422	INSTALLATION GUIDE	1	1	1	1	1	1
*	SV08545	PARTS BAG: 2 WIRE CONNECTORS, 1 WIRE CLAMP, 4 SCREWS NO. 8 x 3/8",9 CHROME PLATED SCREWS NO. 8 x 1/2", 10 MECHANICAL SCREWS NO. 8-32 x 1/4"	1	1	1	1	1	1

* NOT SHOWN.

Best CP57E Series

Exploded view diagram of an air conditioner unit with numbered parts for identification and assembly.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a certified service depot for all replacement parts and repairs.

KEYNO.	PART NO.	DESCRIPTION	QTY. (POWER PACK WIDTH)
			36" 48" 60"
1 SV05869 BEST LOGO 111
2	SV17871 GREASE RAIL 36" 1 - -
	SV17873 G	REASE RAIL 48" - 1 -
	SV17875 GREASE RAIL 60" - - 1
3	SV61659	AUTOTRANSFORMER AND FUSE KIT (INCLUDING METAL SUPPORT)	1	1	1
4 SV05917 SOCKET		GU10 224
5	SV99271689	LED BULBS, GU10 BASE, GREY (PAIR)	1	1	2
6	SV61639	HYBRID BAFFLE FILTER WITH MICROMESH + HANDLE 8.84" x 8.61" x 1"	1	5	1
	SV61640	HYBRID BAFFLE FILTER WITH MICROMESH + HANDLE 11.84" x 8.61" x 1"	2	-	4
7	SV21412	CONTROL INTERFACE PCB FOR EXTERNAL BLOWER	1	1	1
8	SV20816	REMOTE CONTROL PCB	1	1	1
9 SV13923 F		EMALE CONNECTOR	1	1	1
10	SV13924	MALE CONNECTOR	1	1	1
*	SV20825	ELECTRICAL HARNESS (FOR CP57E SERIES)	1	1	1
*	SV21422 I	INSTALLATION GUIDE	1	1	1
*	SV08545	PARTS BAG: 2 WIRE CONNECTORS, 1 WIRE CLAMP, 4 SCREWS NO. 8 x 3/8";9 CHROME PLATED SCREWS NO. 8 x 1/2", 10 MECHANICAL SCREWS NO. 8-32 x 1/4"	1	1	1

* NOT SHOWN.

FIVE-YEAR LIMITED WARRANTY FOR BEST® PRODUCTS

Warranty Period and Exclusions: Broan-NuTone, LLC (the "Company") warrants to the consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the materials or its workmanship for a period of five (5) years from the date of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for any labor provided on the Product.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, (j) damage caused by fire, flood or other act of God, or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America. This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective Products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions (which may include the Province of Quebec or specific US states) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control.

PRODUCT SPECIFICATIONS

All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone, LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications and models, place of manufacture and to discontinue models or equipment.

Best

Broan-NuTone, LLC- 926 W. State Street, Hartford, WI 53207 1-800-637-1453

Best®, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770) www.bestrangehoods.com

best®

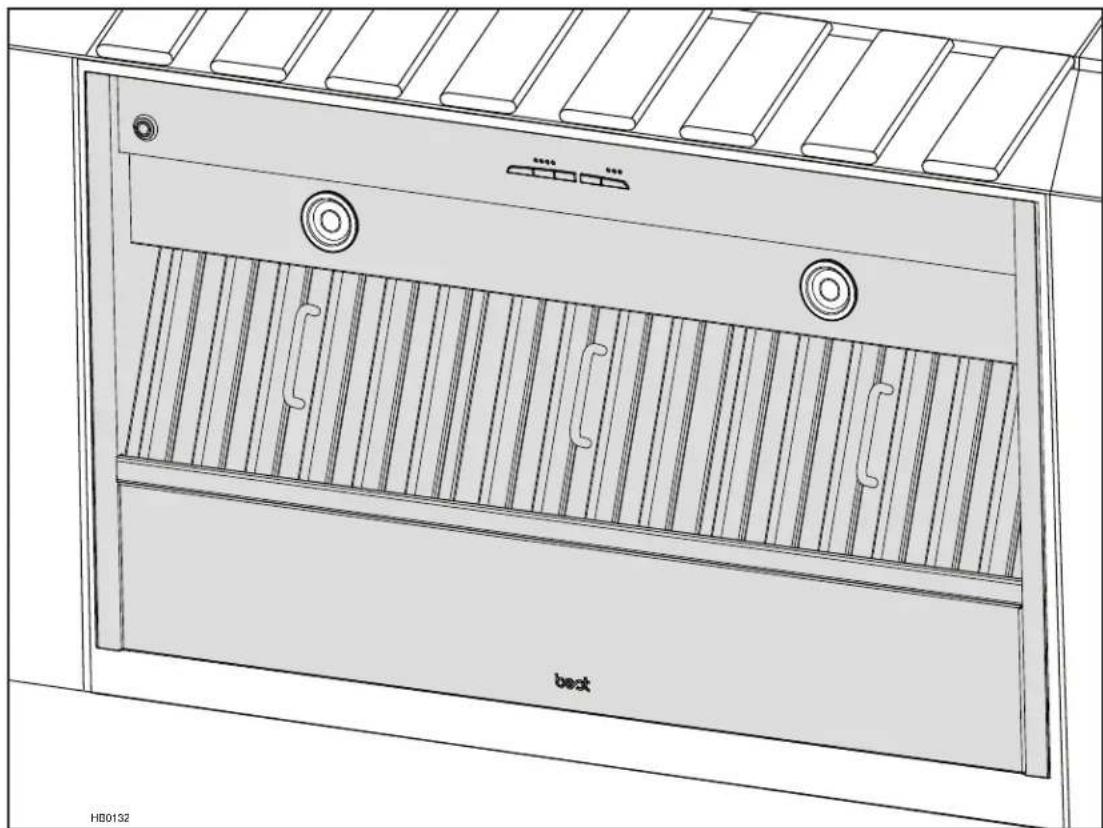

Technical line drawing of a cabinet with ventilation grilles and a labeled door (no text or symbols beyond 'best' label)

SÉRIES CP55IQ, CP57IQT ET CP57E

⚠️CONÇUES POUR USAGE DOMESTIQUE SEULEMENT

LIRE ET CONSERVER CES DIRECTIVES

INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.

PROPRIÉTAIRE : DIRECTIVES D'UTILISATION ET D'ENTRETIEN EN PAGES 33 ET 34.

BEST; Hartford, Wisconsin www.BestRangeHoods.com 800 558-1711

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866 737-7770

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

6. RETIRER LA GOUTTIÈRE

Technical line drawing of a refrigerant unit labeled HD0524, showing internal components and ventilation duct (no text or symbols beyond label)

B ① ② HD0525

7. RETIRER LE PANNEAU INFÉRIEUR

Technical line drawing of a mechanical device with a hammer and hilt, no text or symbols present

9. INSTALLER L'ADAPTATEUR/VOLET DE 8 PO (SÉRIE CP55IQ SEULEMENT)

Diagram of a cable or connector assembly with black, white, and green wires connected to a box (no text or symbols)

14. INSTALLER LA HOTTE ENCASTRABLE

Close-up of two black electrical connectors labeled A and B, with wires extending from them (no text or symbols beyond labels)

16. REMETTRE EN PLACE LE PANNEAU INFÉRIEUR

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

19. CALIBRER LE VENTILATEUR IQ ^NC (SÉRIES CP55IQ & CP57IQT SEULEMENT)

Exploded view diagram of an air conditioner unit with numbered parts for identification and assembly reference.

PIÈCES DE REMPLACEMENT ET SERVICE

Technical diagram of an air conditioner unit with numbered parts for identification and assembly reference.

PIÈCES DE REMPLACEMENT ET SERVICE

SPÉCIFICATIONS DU PRODUIT

Broan-NuTone LLC : 926 W. State Street, Hartford (WI) 53207 1 800 637-1453

Best ^™ , 550, boul. Lemire, Drummondville (Québec), Canada (1 866 737-7770) fr.bestrangehoods.ca

best®

Technical line drawing of a cabinet with ventilation grilles and a labeled door (no text or symbols beyond 'best' label)

SERIES CP55IQ, CP57IQT Y CP57E

⚠️ EXCLUSIVAMENTE PARA COCINAS DOMÉSTICAS

LEA ESTAS INSTRUCCIONES Y GUÁRDELAS

INSTALADOR: ENTREGUE ESTE MANUAL AL PROPIETARIO DE LA CASA.

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

8" 3" HH0102A

5. DESMONTAJE DE LOS FILTROS HÍBRIDOS

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

6. DESMONTAJE DEL RIEL DE VERTIDO DE LA GRASA

Technical line drawing of a refrigerant air conditioner unit (no text or symbols)

B ① ② HD0525

7. DESMONTAJE DEL TABLERO INFERIOR

Technical line drawing of a mechanical assembly labeled 'VISTA LATERAL' with no readable text or symbols beyond the label and identifier (HO0120)

8. DESMONTAJE DE LA ABERTURA DESMONTABLE (SERIES CP55IQ Y CP57IQT ÚNICAMENTE)

Line drawing of a mechanical device with a hammer and hilt, no text or symbols present

Diagram of a cable and plug assembly with black, white, and green wires (no text or symbols)

8" 3" HH0102A

Close-up of two black electrical connectors labeled A and B, with wires attached (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Exploded view diagram of an air conditioner unit with numbered parts for identification

Broan-NuTone, LLC: 926 W. State Street, Hartford, WI 53207 1 800 637-1453

Best®, 550, boul. Lemire, Drummondville (Québec), Canada (1 866 737-7770) www.bestrangehoods.com
