USER MANUAL LR 200 BEURER

(ANSI/AHAM AC-1 2015) (NRCC 54013-2011) 10 m² (ANSI/AHAM AC-1 2015) - 28 m² (NRCC 54013-2011) Zul. Betriebsbedingungen Table of contents

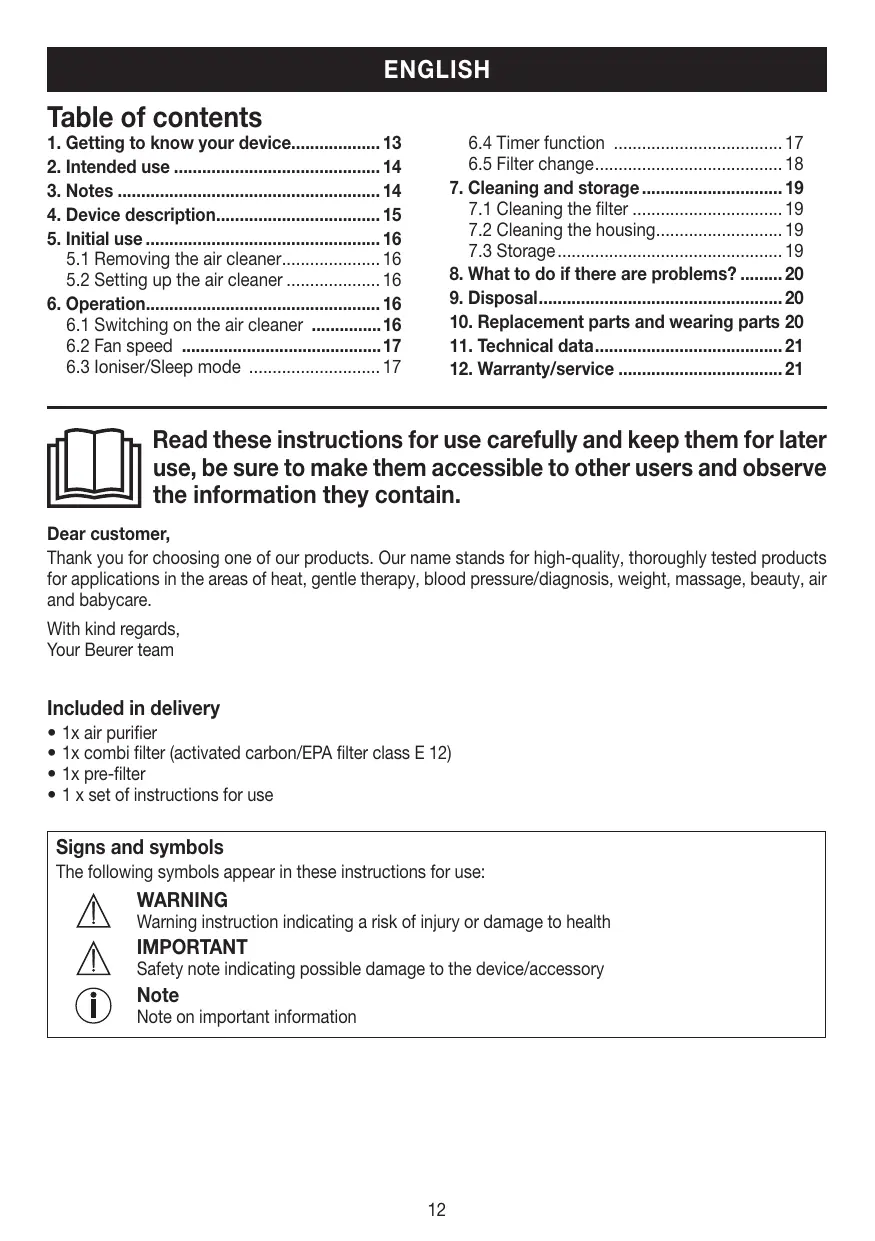

6.4 Timer function ..................................... 17

6.5 Filter change......................................... 18

7. Cleaning and storage............................... 19

7.1 Cleaning the filter................................. 19

7.2 Cleaning the housing............................ 19

7.3 Storage................................................. 19

8. What to do if there are problems?.......... 20

9. Disposal..................................................... 20

10. Replacement parts and wearing parts.20

11. Technical data......................................... 21

12. Warranty/service.................................... 21

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain. Dear customer, Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, gentle therapy, blood pressure/diagnosis, weight, massage, beauty, air and babycare. With kind regards, Your Beurer team Included in delivery

• 1x combi filter (activated carbon/EPA filter class E 12)
• 1 x set of instructions for use Signs and symbols   The following symbols appear in these instructions for use: WARNING Warning instruction indicating a risk of injury or damage to health IMPORTANT Safety note indicating possible damage to the device/accessory Note Note on important information

• This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Disconnect the device from the mains supply during cleaning.
• Clean the device using only the methods specified. Under no circumstances must liquid enter the fan unit.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

1. Getting to know your device

Humans spend a large proportion of their time indoors. The air indoors is often polluted with dust particles, pollen, animal hair, odours, harmful gases as well as various bacteria and viruses. The LR 200 air cleaner cleans the ambient air using a three-layered filter system and an additional integrated ioniser. The LR 200 air cleaner

• Filters air with a combi filter (activated carbon filter against harmful gases and unpleasant odours, EPA ­filter E 12 against particles such as bacteria, viruses, mites, pollen and fine dust)
• has a selectable ioniser
• Operates quietly with three output levels
• Has a timer function (two, four or eight hours)
• Is suitable for rooms from 10 m² 1) - 28 m² 2), in size,
• Switches off automatically when the housing cover is removed.

(ANSI/AHAM AC-1 2015) (NRCC 54013-2011) Principle of air cleaning

1. The air cleaner’s fan sucks in the contaminated air.

2. The pre-filter filters out larger particles such as dust, dirt and hairs.

3. Next, the activated carbon filter filters formaldehyde, benzene and other poisonous gases and unpleasant

odours out of the ambient air.

4. The EPA filter then filters out small particles such as pollen, bacteria or viruses.

5. The ioniser releases ions into the air. These negative ions bind the smallest particles to themselves due to

the pull of the electric charge. Due to this higher concentration and the formation of larger particles, the particles are then collected in the ioniser collector or land on the floor, where they can be vacuumed up.

6. The cleaned air is emitted via the air outlet on top of the air cleaner into the ambient air.

The EPA E 12 filter has a filter performance of ≥ 99.5%. That means that 99.5% of particles (e.g. bacteria, viruses and fine dust) can be filtered out.

Contaminated, unfiltered air can have the following effects:

• Infections and respiratory diseases are more likely to occur
• Damage to health through harmful gases

2. Intended use

This air cleaner is intended exclusively for cleaning the air indoors. The device is intended for private use. WARNING If you suffer from severe respiratory or lung disease, consult your doctor before using the air cleaner. This device must only be used for the purpose for which it was designed and in the manner specified in the instructions for use. Improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or careless use.

3. Notes

Read the notes carefully! Non-observance of the following information may result in personal injury or material damage. WARNING Keep packaging material away from children to avoid danger of suffocation. Electric shock WARNING As with every electrical device, use this air cleaner carefully and cautiously, in order to avoid hazards due to electric shock.

• Therefore, observe the following instructions for use: – do not operate the device at voltages other than those indicated on the device (the type plate is located on the back of the device), – never if it or its accessories show visible signs of damage – not during a thunderstorm
• In the event of defects or operational faults, switch the device off immediately and disconnect it from the mains socket. Do not pull on the mains cable or on the device to disconnect the plug from the socket. Never hold or carry the device by the mains cable. Keep the cables away from hot surfaces.
• Always switch off the device before disconnecting it from the mains.
• Never disconnect the mains plug with wet or damp hands.
• Keep the device away from sources of heat as the housing could melt and trigger a fire.
• Ensure that the openings of the device and the mains cable do not come into contact with water, steam or other liquids.
• Do not use the device in close proximity to flammable or explosive gas mixtures.
• Never reach for a device that has been submerged in water. Disconnect it from the mains plug immediately.
• Do not use the device if it or its accessories are visibly damaged. Repairs WARNING

• Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer.
• Do not open the fan unit. Risk of fire WARNING There is a risk of fire if the device is used improperly or these instructions for use are ignored. Therefore, observe the following instructions for using the air cleaner:
• Never use underneath a cover, such as a blanket, pillow etc.
• Never use near petrol or other highly flammable substances.

Handling IMPORTANT The device must be switched off and disconnected from the mains after every use and before cleaning.

• Do not place any objects in device openings or in rotating parts. Ensure that the moving parts can move freely at all times.
• Do not place any objects on the device.
• Do not expose the device to high temperatures.
• Protect the device against sunlight and impacts and do not drop it.
• Never shake the device.
• Place the device on a firm and level surface.

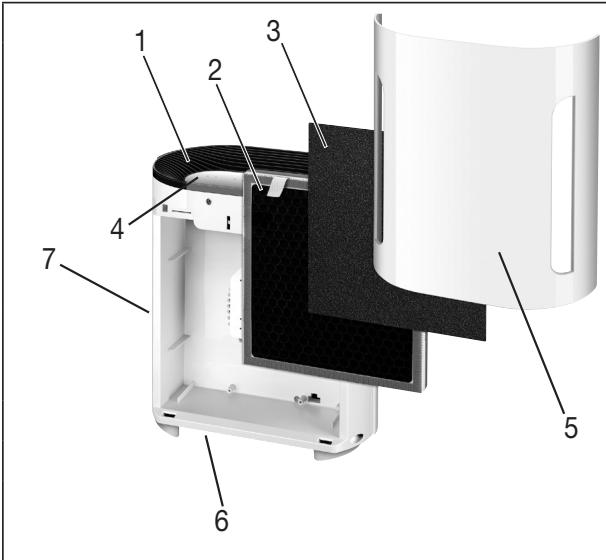

4. Device description

1. Air outlet

2. Combi filter (activated carbon filter/

EPA filter E 12) Activated carbon filter: To counter harmful gases and unpleasant smells EPA filter E 12: Filters particles such as bacteria, viruses, mites, pollen and fine dust

3. Pre-filter

Filters coarse dust and dirt, such as hairs

4. Control panel

5. Housing cover

6. Housing

7. Air inlet

ON/OFF FILTER RESET

1 ON/OFF button 3 Ioniser/Sleep mode Switches the device on/off Switching the ioniser or night mode on/off.. If the light below “Filter reset” is flashing, change the filter. After changing the filter, hold down the on/off button to reset the filter change display. 2 FAN SPEED button 4 TIMER button The air cleaner has three fan speeds: I (low), II The air cleaner features a timer function that you (medium) and III (high). can use to determine the number of hours the air cleaner should run for before it automatically switches itself off. The air cleaner has three timer periods: 2H (two hours), 4H (four hours) and 8H (eight hours).

5. Initial use

5.1 Removing the air cleaner

1. Open the cardboard packaging.

2. Remove the device from the top of the box without opening the film bag.

3. Now remove all plastic films. Remove the combi filter from the device (see “Filter change” section) and

take it out of the plastic film. Then re-insert the combi filter into the device.

4. Check the device, mains plug and cable for damage.

5.2 Setting up the air cleaner

1. Place the air cleaner on a firm, level surface to prevent vibrations and noise.

IMPORTANT If you wish to reposition the air cleaner, only carry it by the handle on the rear of the device.

2. Set up the air cleaner in such a way that there is at least 30 cm clearance on all sides.

3. Make sure that the air inlet and air outlet are never blocked.

6. Operation

6.1 Switching on the air cleaner

1. Always follow the instructions in chapter “5 Initial use”.

2. Insert the mains plug into the socket. Ensure that the cable does not pose a trip hazard.

3. Press the ON/OFF button ( ) to switch on the air cleaner.

Note When starting up for the first time, all of the LEDs initially light up. The air cleaner is then set to the lowest fan speed and the ioniser is activated. Note If the “Filter reset” light above the on/off button is flashing, you must replace the combi filter. To do this, follow the instructions in the “Filter change” section.

6.2 Fan speed

The air cleaner has three fan speeds: I (low), II (medium) and III (high).

• To switch between the individual fan speeds, press the fan speed button set lights up on the control panel. . The fan speed that is currently 4 x press OFF OFF „Sleep“ LED goes out If sleep mode is activated, all the LEDs in the operating panel automatically switch off after 10 seconds. To deactivate sleep mode, press any button on the operating panel.

6.4 Timer function

The air cleaner features a timer function that you can use to determine the number of hours the air cleaner should run for before it automatically switches itself off. The air cleaner has three timer periods: 2H (two hours), 4H (four hours) and 8H (eight hours).

• To switch between the individual timer periods, press the TIMER button ( ) The TIMER period that is currently set lights up on the control panel. The air cleaner will now automatically switch off after the set number of hours has passed.
• To switch off the timer, repeatedly press the TIMER button ( ), until the light above the TIMER button goes out. The air cleaner will now clean for an unlimited period.

6.5 Filter change

The three-layered filter should be replaced with a new one after 4320 operating hours. After 4320 operating hours, the red „Filter reset“ LED flashes above the on/off button. To change the filter, proceed as follows:

1. Press the ON/OFF button to switch off the air 2. Remove the housing cover as shown (magnetic

cleaner, and unplug it from the socket. fastening). First detach the magnetic fastening at the top, and then at the bottom.

3. Pull out the pre-filter. Now, to pull out the combi 4. Insert a new combi filter. To insert the combi filter

correctly, align it with the tabs as shown. Position filter, pull carefully on the side tabs. the pre-filter above it.

5. Re-insert the housing cover as shown until you 6. Insert the mains plug into the socket. Ensure that

see and hear it click into place (magnetic fasthe cable does not pose a trip hazard. Press and tening). First attach the magnetic fastening at the hold the on/off button ( ) for five seconds. The bottom, and then at the top. operating hours counter now resets to 0.

If you wish to change the combi filter at specific personal intervals (e.g. every six months), there is a sticker on the upper edge of the combi filter on which you can enter, for example, the date it was inserted or changed.

7. Cleaning and storage

WARNING Before cleaning, always ensure that the mains plug of the air cleaner has been properly disconnected.

7.1 Cleaning the filter

Regular cleaning of the filter (once a month) is a prerequisite for hygienic and fault-free operation.

• Clean the three-layered filter using the brush attachment of a vacuum cleaner. To carry out a thorough clean, pull out the pre-filter and clean the activated carbon filter located behind it and the EPA filter located at the rear, also using the brush attachment from a vacuum cleaner. Then replace the pre-filter on the EPA filter. Activated carbon filter EPA filter E 12 Front Rear IMPORTANT The three-layered filter should be changed after 4320 operating hours (see “Filter change” section). The three-layered filter cannot be washed.

7.2 Cleaning the housing

Clean the housing of the air cleaner with a damp cloth (water or a mild cleaning solution). When cleaning, do not use any solvents or other aggressive or abrasive cleaning agents, as the surface may become damaged.

7.3 Storage

If you do not plan to use the device for a long period of time, we recommend that you clean it and store it in the original packaging in a dry environment, ensuring it is not weighed down by additional items.

8. What to do if there are problems?

Problem Cause Solution The air cleaner will not switch on The housing cover is not correct- Ensure that the housing cover is ly installed. correctly installed. The three-layered filter is not cor- Ensure that the three-layered filrectly inserted. ter is correctly inserted. The mains part plug is not Plug the mains part plug into plugged in. a suitable socket. Insufficient passage of air Clean the filters (see “Maintenance and storage” section). The filters are dirty The air intake/air outlet is Ensure that the air intake/air outblocked. let is not blocked. Air cleaner is very loud There is a foreign body in the air Remove the foreign body from the air intake/air outlet. intake/air outlet. Clean the filters (see “Maintenance and storage” section). The filters are clogged. The filters are not correctly in- Insert the filters correctly. serted. The air cleaner is positioned on Position the air cleaner on a level an uneven surface. surface.

9. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

10. Replacement parts and wearing parts

Replacement parts and wearing parts are available from the corresponding service address (according to the service address list). Please state the corresponding order number. Designation Item number and/or order number Pre-filter, combi filter (EPA + activated carbon)

11. Technical data

Model LR 200 Mains voltage See type plate on the device Output 60 W Dimensions (L x W x H) 275 x 175 x 308 mm Weight

2.9 kg

Suitable for rooms 10 m² (ANSI/AHAM AC-1 2015) - 28 m² (NRCC 54013-2011) Permissible operating conditions +5°C to +40°C, ≤ 90% relative humidity (non-condensing) Protection class Protection class II / Air flow rate 110 m3/h

12. Warranty/service

In case of a claim under the warranty please contact your local dealer or the local representation which is mentioned in the list “service international”. In case of returning the unit please add a copy of your receipt and a short report of the defect. Subject to errors and changes The following warranty terms shall apply: 1. The warranty period for BEURER products is either 3 years or- if longer- the country specific warranty period from date of Purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Repairs (complete unit or parts of the unit) do not extend the warranty period.

3. The warranty shall not be valid for damages because of

a. improper treatment, e.g. nonobservance of the user instructions. b. repairs or tampering by the customer or unauthorised third parties. c. transport from the manufacturer to the consumer or during transport to the service centre. d. The warranty shall not be valid for accessories which are subject to normal wear and tear (cuff, batteries etc.).

4. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to

the unit is accepted as a warranty claim.
