USER MANUAL EA8320 KRUPS

2 “On/Off” key Setting key Rotating button Hot water key Steam button

Lid for the coffee bean tank

Cup rest grille Steam nozzle or super cappuccino accessory (depending on model) Water level float storage box and lid

Descaling powder (one sachet supplied)

(depending on model)

Accessories (sold separately)

Packet of 10 cleaning tablets (two tablets supplied)

Super-Cappuccino accessory (not supplied)

(depending on model)

This product may differ from the photos

Caution! This machine must only be used with approved accessories for the guarantee to be valid.

L Coffee grinding setting button

M Spout for cleaning tablet N Metal grinding wheel

Water tank handle Water tank Coffee drawer Coffee grounds collector Handle for height adjustable coffee outlets Removable grille and drip tray

1. DESCRIPTION XS 4000 KRUPS Cleaning fluid for

Cappuccino system (not supplied)

1.1 Information on espresso coffee

Dear Customer, Thank you for having purchased this Krups Automatic. We are sure you will enjoy both the quality of the coffee it makes and how easy it is to use. Whether you want a short, strong shot of a ristretto, a good espresso, a larger and milder lungo, or a creamy cappuccino, your automatic coffee / espresso machine has been designed so you can enjoy the same quality at home as at the restaurant, whatever the time of day and right through the week. Thanks to its Thermoblock System, its 15 bar pump and because it uses real coffee beans that are ground just before the coffee is made, your Krups Automatic will give you a drink containing maximum aroma, with a fine creamy golden brown top produced by the natural oils contained in coffee beans. Drink your espresso from small porcelain cups rather than the usual coffee cup or mug. To obtain an espresso at just the right temperature and a nice compact creamy top, we advise you to pre-heat your cup. After a few trial runs you will find the type of mix and roast of the coffee beans that suits your taste. The quality of the water used is obviously another essential factor in the coffee you get. Make sure the water is fresh from the tap (contact with the air tends to make it stale), that it is free from chlorine odours and relatively cold.

Espresso coffee is richer in aroma than a conventional filter coffee. Despite its stronger, longer lasting taste, espresso in fact contains less caffeine than filter coffee (about 60 to 80 mg a cup as compared with 80 to 100 mg a cup). This is due to the shorter percolation time.

Due to the visibility of the containers and its automatic cleaning and scale removal programs, your Espresseria Automatic is extremely easy to use.

1.2 Automatic espresso machines energy saver mode

Your automatic espresso machine has an energy saver mode. The display panel dims when your appliance has not been used for a few minutes. The machine leaves the energy-saving mode when you use the machine again. The display fully lights up again and your automatic machine is ready for use after pre-heating, if necessary.

1.3 Warranty conditions

This appliance is covered by a two year manufacturer's guarantee. Please refer to the guarantee document for details on the guarantee terms and conditions in your country. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. To comply with the warranty conditions, it is essential to perform the descaling and cleaning cycle. The guarantee will not be valid if all the operations or cleaning and descaling instructions are not followed or if cleaning or descaling products that do not comply with KRUPS original specifications are used. The guarantee does not apply if the Claris Aqua Filter System cartridge has not been used according to the KRUPS instructions. Normal wear and tear of the parts (grinding wheel, valves, seals) are exempt from the guarantee as is damage caused by external objects in the coffee grinder (for example: wood, stones, plastic, parts, etc.).

Important : these instructions are provided to protect you, third parties and the appliance. Strict compliance is therefore necessary.

1.4 Safety instructions

Do not immerse the appliance in water. Do not immerse the power cord or plug in water or any other liquid. Any contact between the appliance’s conductive parts and humidity or water can cause fatal injuries due to the presence of electricity! This appliance can only be used in dry locations If the room temperature should change from cold to hot, please wait a few hours before starting the appliance to ensure that it is not damaged due to condensation. Avoid placing the appliance in direct sunlight, or exposing it to heat, cold, ice or humidity. Take care not to place the appliance on a hot surface such as a warming plate or near a naked flame, to avoid any risk of fire or other damage. Keep the appliance out of the reach of children. This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety. Children should not be allowed to play with the appliance. If one of the products supplied with the machine is swallowed, inform your doctor and/or poison centre immediately. This appliance is not suitable for making drinks for babies under the age of 2 years Electrical power supply Danger : Non-compliance with these instructions could cause fatal injuries due to electric shock!

EN Please check that the supply voltage indicated on the name plate of the appliance corresponds to your electrical installation. The appliance should always be plugged into a socket outlet with an earth connection.

Check that the socket outlet can be easily accessed so that the plug can be disconnected easily in the event of a malfunction or during a thunderstorm for example. For the safety of your appliance, remove the plug in the event of a thunderstorm. Do not pull the power lead to remove the plug. Remove the plug immediately if you notice any problem during operation or if there is a problem during percolation. Disconnect the appliance if you are not going to use it over a long period and when cleaning. Do not use the appliance if the power cord or the appliance itself is damaged. If the power cord or plug is damaged, the power cord must be replaced by an approved KRUPS centre. Do not leave the power cord overhanging a table or work surface. Do not leave your hand or power cord on hot parts of the appliance. The power cord must never be close to or in contact with a source of heat or resting on sharp edges. The use of multiple plugs or extension leads is not recommended. Any error in connection will invalidate the guarantee. Appliance With the exception of cleaning and descaling according to the appliance’s instructions, any intervention on the appliance must be performed by an approved KRUPS centre. For your own safety, only use approved KRUPS accessories and spare parts since these are suitable for your appliance. Disconnect the appliance when you leave the room or house for a long period of time. Never open the appliance. Caution, risk of death due to electrical current! Any unauthorised opening of the appliance will negate the guarantee. Do not use your appliance if it is not working properly or if it has been damaged. In this event, it is recommended that you get the appliance examined by an approved KRUPS centre (refer to the list in the KRUPS service booklet). For safety and accreditation reasons, any transformation or modification of the appliance, performed individually, is forbidden, as only tested appliances are accredited and the manufacturer will refuse all liability in the event of damage. For safety reasons, while producing steam for making a cappuccino, heating milk or heating water, take care not to put your hand under the steam nozzle or the super cappuccino accessory, or under the coffee nozzle while making coffee. The steam spout can be very hot, take care not to handle it during or just after use. To avoid dirty water overflowing onto your work-top or running the risk of burning yourself, remember to fit the drip tray and make sure you protect your work-top during the descaling cycles, particularly if it is made of marble, stone or wood. Never put ground coffee into the coffee tank. Do not put water in the coffee beans tank.

This Espresso Automatic Series EA83XX coffee/espresso machine should only be used to make espressos, coffee, hot water or to froth milk. This appliance is intended for domestic use only. It is not intended to be used in the following applications and the guarantee will not apply for: - staff kitchen areas in stores, offices and other working environments - Farm houses, - by clients in hotel, motels and other residential type environments. - Bed and breakfast type environments. The Espresso Automatic Series EA83XX coffee/espresso machine is not intended for commercial or professional use. Use for any purpose other than those described in the present manual does not comply with the instructions and can result in injuries and property damage as well as the deterioration or destruction of the appliance.

2.1 Measuring water hardness

° dH Degree of hardness

Before using the appliance for the first time or if you have noted a change in water hardness, it is advisable to adapt the appliance to the observed water hardness. To determine the water hardness, use the measuring stick delivered with the appliance or get in contact with your water board. The appliance will ask you for the hardness of your water on first use (see First use / Setting machine parameters section page 26).

Water testing: Fill a glass with water and immerse a water testing stick into it. Fig. 1 After 1 minute the hardness measurement will appear (moderately hard water). Fig. 2

Note: Your appliance will give you a message telling you when to replace your Claris - Aqua Filter

To get the best taste from your coffee and extend your appliance’s service life, we advise you to use only the Claris - Aqua Filter System cartridge sold as an accessory.

The cartridge comprises a scale-removing substance and activated carbon that reduces chlorine, impurities, lead, copper, pesticides, etc. that are present in the water. Minerals and trace elements will then be preserved. Filter the water using the Claris - Aqua Filter System cartridge to reduce carbonate hardness by as much as 75 %*, Chlorine – up to 85 %*, Lead – up to 90 %*, Copper – up to 95 %*, Aluminium – up to 67 %*. Mechanism to memorise the month the cartridge was fitted and when to replace it (after 2 months at most). Fig. 3

2.3 Putting the filter in place

To prime the cartridge correctly, follow this procedure every time you fit a cartridge. When using later or replacing the cartridge: Select the "FILTER" function using the Prog button: Maintenance -OK - Filter - OK - Place or change -OK - and follow the instructions on the screen: On first use, screw the filter cartridge into the bottom of the water tank. Fig. 4 Place a 0.6 L container underneath the steam nozzle. Fig. 5

3. PREPARING THE APPLIANCE Note: Do not fill the water tank with hot water, milk or any other liquid.

Pull out and fill the water tank. Fig. 6

Place the lid on the tank to close it. Fig. 7 Open the coffee bean container lid. Add the coffee beans (250g maximum). Fig. 8 Close the coffee bean container lid again. Fig. 9

* indications provided by the manufacturer

EN Important: It is recommended that you do not use oily, caramelised or flavoured coffee beans for this machine. These kinds of beans may damage the machine.

3.1 First use / setting machine parameters

Use the rotating button to select a function, increase or reduce values. Confirm your choice using the OK key. Press to turn your appliance on. Fig. 10 Follow the instructions that appear on the “choice of language” screen. Use the rotating button to choose a language (highlighted). Press the OK key to validate. Select Fig. 11 Confirm Fig. 12 When you first use your appliance, it will ask you to set several parameters. If you unplug your appliance, you will again be asked for some of these parameters. The appliance will ask you to set: Language You can select your chosen language from those offered. Volume Unit Choose either ml or oz as your measurement unit. Date You must set the date. Clock You can choose between 12 hour or 24 hour time display. Auto-off You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments. Auto-on You can automatically start pre-heating of your appliance at your chosen time. Water Hardness You must set your water hardness between 0 and 4. See “Water hardness measurement” page 25 section.

3.2 First use / setting installing the filter

ON first use, the product ask you if you want to change the filter. Press the OK key to validate and then fold the instructions on the display. To install the refill into the machine, screw the filter into the back of the water tank. Adjust the month for installing the refill Fig. 3 by turning the grey band located on the top end of the filter. The month of replacing the cartridge is shown in position 2 as shown. Place a 0.6 L container underneath the steam nozzle.

3.3 Rinsing the circuits

Rinsing out the coffee circuit : Once you have turned the machine on and the preheating stage has completed, you can rinse out the coffee circuit. Place a container under the coffee outlets then select "YES" from the menu proposed. The rinsing cycle will stop automatically after about 40 ml. Rinsing out the steam circuit : Place a container under the steam nozzle. Press the key to rinse the steam circuit. The rinsing cycle will stop automatically after the volume of water displayed has flowed through. Press at any time to display menus to perform rinsing and then select MAINTENANCE => OK => RINSING.

Note: It is best to perform rinsing after the appliance has remained unused for several days.

3.4 Preparing the grinder

Adjust the fineness of your coffee grinding to set the strength of your coffee. The finer the grind setting, the stronger and creamier the coffee will be. Turn the “Grinding fineness setting” button to set the degree of grinding fineness. Adjust the size of the ground beans by turning the ‘Coffee grinding setting’ button (L) on the bean tank. You are advised to do this during the grinding process and gradually. After three preparations, you will notice a very distinctive difference in taste. Turn anticlockwise for a finer grind. Turn clockwise for a coarser grind. Fig. 13

4. PREPARING ESPRESSO AND ORDINARY COFFEE

4.1 Preparing an espresso The quantity of water for an espresso must be between 20 and 70 ml. Each time you plug your machine in, it will carry out an initialisation cycle.

Note: You can press the button once to stop filling your cup.

Press the button, wait for the end of pre-heating and perform a rinsing operation if you wish.

The drink selection menu will be displayed. Put a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups. Use the rotating button to select your drink and confirm by pressing the OK key.

The amount of water required for a coffee is between 80 and 160 ml.

4.3 Making a long coffee

Caution! Do not remove the water compartment before the end of the cycle (that is around 15 seconds after the coffee has finished dripping through).

The amount of water required for a long coffee is between 120 and 240 ml. The machine automatically carries out a double cycle, do not remove your cup before the process has ended.

There is a temperature setting function to control how hot your coffee is (see § Settings page 32).

Note: The appliance will automatically sequence 2 complete coffee making cycles.

Your appliance enables you to prepare 2 cups of coffee or espresso for the following 3 kinds of drink : espresso / strong espresso / coffee. For "Large coffee" drinks, the 2-cup function is not available.

Remember not to remove the cups after the first cycle. The drink select menu will be displayed. Put two cups under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups. Select your drink and confirm by clicking twice on the OK key. A message will appear to tell you that you have chosen two cups.

Caution! AUTOMATIC RINSING OF THE COFFEE NOZZLE Depending on the type of recipes prepared, the machine may carry out an automatic rinsing operation when it is switched off.

5. PREPARING OTHER DRINKS

For drinks with frothy milk or hot water, the drip tray has been specially designed to allow you to fit a large cup under the steam nozzle or the super cappuccino accessory, once the magnetised box has been removed. The cup is ideally positioned to collect the frothy milk or the hot water produced by the nozzle or the super cappuccino accessory. Furthermore, you can use the box as storage for the super cappuccino accessory.

5.1 Making drinks with hot water

Make sure that the steam nozzle is securely fitted on its tip. While the screen displays the drink selection menu, press the “hot water” key

A message will invite you to place a container under the steam nozzle. Again press the “hot water” to produce hot water.

To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle.

Steam froths up the milk to make a cappuccino or a caffe latte, for example, and also heats up liquids. As you need a higher temperature to produce steam than to make an espresso, the appliance runs an additional pre-heating phase for steam.

While the screen displays the drink selection menu, press the “steam” key . Fig. 15. A screen will inform you that the appliance is being pre-heated. Once the pre-heating phase has been completed, a message will ask you to place a container under the steam nozzle. Press the “steam” key again to start generating steam. A little water will be produced first and then steam will start. Use the same key to stop steam generation. Be careful, because the cycle does not stop immediately. Note: We recommend that you use very cold, fresh pasteurised or UHT milk that has been recently opened. Do not use untreated milk.

6.1 Super Cappuccino Accessory (depending on model)

Important: The inlet must not be twisted.

The super cappuccino accessory helps the preparation of a cappuccino or latte.

Attach the various parts together. Fig. 16 Put the beveled end to the milk. Select the cappuccino or caffe latte position on the special nozzle. Fig. 17 Fill up the milk pot and place a cup or a glass underneath the Super-cappuccino nozzle.Fig. 18-19 Press the button to start and then to stop the cycle. Place your cup under the coffee outlets and start a coffee / espresso cycle. Fig. 20

Cleaning and maintenance: remove the accessory and clean the parts using a small brush and, if necessary, a little washing-up liquid. Make sure to carefully clean the parts circled in the photo. The hole in the metal part should not be allowed to become blocked. Fig. 21.

To prevent milk from drying on the auto-cappuccino accessory, it must be cleaned thoroughly after use.. It is recommend that you wash it immediately by carrying out a cycle with steam and the accessory pot filled with water in order to clean the inside of the nozzle. To do so, you can also use liquid cleaner, available as an accessory.

Note: After the steam function has been used, the nozzle will be hot, and we recommend that you wait for a few moments before handling it.

6.2 With the steam nozzle (depending on model)

! Check that the steam nozzle is correctly fitted. Fig. 22 Pour the milk into your milk jug. Only half fill it. Immerse the nozzle in the milk. Immerse the steam nozzle in the milk. Fig. 23 Press the “steam” key Fig. 15 and follow the instructions on the screen. When the nozzle is hot, handle it only with the plastic part. Fig. 24 Again press the “steam” key Fig. 15 to stop the cycle. Be careful, because the cycle does not stop immediately. To achieve a good result: To achieve a good result: Stage 1: While holding the milk container, immerse the steam spout into the milk (about 2 cm) and wait for it to start frothing. Stage 2: Raise the container slightly (about 1 cm). Never immerse the metal tube completely. Stage 3: Lower the container gradually as the foam increases. key.

To remove any remaining milk from the steam nozzle, place a container under the nozzle and press the

Note: To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle.

Let the steam escape for at least 10 seconds and then again press the “hot water” key to stop the process.

You can remove the steam nozzle for thorough cleaning Fig. 25. Wash it using a brush with water and a little non-abrasive washing up liquid. Rinse and dry it Fig. 25-26.Before re-fitting, make certain that the air inlet holes are not clogged by milk residues. Clean out the holes with a needle if necessary Fig. 27.

7. MAINTAINING YOUR APPLIANCE

7.1 Emptying the coffee grounds collector, the coffee cleaning tray and the drip tray After 12 coffees, the machine will ask you to empty the coffee grounds collector and to clean the coffee drawer. Failure to perform these operations correctly can damage your machine. Wait at least for 8 seconds before refitting the coffee drawer and the coffee grounds collector, and follow the instructions on the screen. The drip tray collects the used water and the coffee grounds collector collects the used coffee grounds. The coffee drawer allows you to remove any coffee grounds below the percolation chamber. If the above message appears, remove, empty and clean the drip tray. 1. Remove, empty and clean the coffee grounds collector.Fig. 28 2. Remove the cleaning tray. Fig. 28 First put the cleaning tray back then the coffee grounds collector. The drip tray is equipped with a float to indicate when it needs emptying. Fig. 29

7.2 Machine cleaning program – total duration: about 13 minutes

Press the key to start the automatic cleaning program when the “Cleaning needed” message is displayed. Just follow the instructions shown on the screen. The automatic cleaning program is in two parts – the cleaning cycle itself, then 1 rinsing cycles. Press to perform cleaning at any time and then choose MAINTENANCE => OK => CLEANING from the menus displayed.

Note: If your machine is unplugged when cleaning or if there is a power cut, the cleaning programme will restart at the step in progress when the incident occurred. You will not be able to postpone this operation. This is essential due to water system rinsing reasons. In this case, a new cleaning tablet may be required. Be sure to complete the entire cleaning cycle to avoid any risk of irritation (seek medical advice if cleaning solutions are accidently swallowed). The cleaning cycle is a continuous cycle and the pump can be heard intermittently. Do not put your hands under the coffee outlets during the cycle.

Caution! If your product is equipped with our Claris - Aqua Filter System cartridge F088 Please remove this cartridge during the descaling operation.

7.3 Automatic scale removal program – total duration: about 22 minutes

! The quantity of scale deposited depends on the hardness of the water used. The appliance will automatically warn you with a message when you need to proceed with scale removal. n To perform the scale removal program, you will need a container with minimum capacity of 0.6 litres and a KRUPS (40 g) descaling sachet. Press the key MAINTENANCE => OK => DESCALING to start the automatic cleaning program when the “Scale removal needed” message is displayed. Just follow the instructions shown on the screen, making sure the sachet dissolves fully. The scale removal program is in three parts – the scale removal cycle itself, then 2 rinsing cycles.

Caution! Be sure to complete the entire scale removal cycle to avoid any risk of intoxication.

If a power cut occurs during the cycle or if you unplug your machine, the cycle will re-start at the step in progress when the incident occurred, without the option of postponing this operation

7.4 General maintenance

Caution! Cleaning tray, Drip tray and its grid, Coffee grounds collector and its front part and the water tank are not designed to go into the dishwasher.

Always remove the power supply cord from the socket and let your appliance cool down before cleaning it.

Do not use utensils or cleaning products likely to scratch or corrode the appliance. Wipe the body with a damp non-abrasive cloth. Wipe the display screen carefully with a soft and dry cloth. For optimal hygiene, clean it regularly to prevent condensation from forming and falling into the cup. Clean the coffee grounds, the drip tray and cover with hot water and washing up liquid Fig. 30, 31, 32. Accessories must be dried before replacing. For easy cleaning, remove the drip tray as described above Fig. 31 et 32. Rinse the water tank with tap water Fig. 6.

To access maintenance

To access product information

Return to the previous menu.

To access demonstration mode

KEY Press the key from the drinks choice screen to access the appliance’s other functions menu.

Use the rotating button to browse through menus and options for all settings and validate your choice using the OK button. Press the button to cancel a choice and go back to the drink selection menu PROG

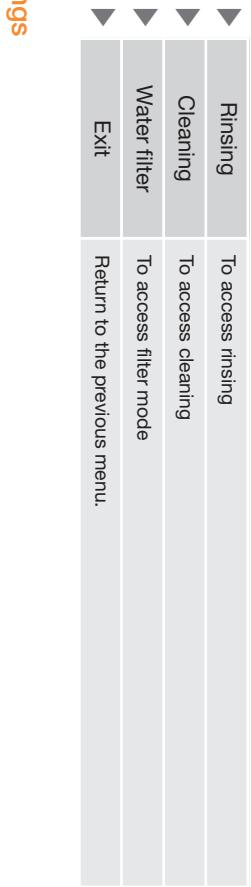

To access filter mode

Return to the previous menu.

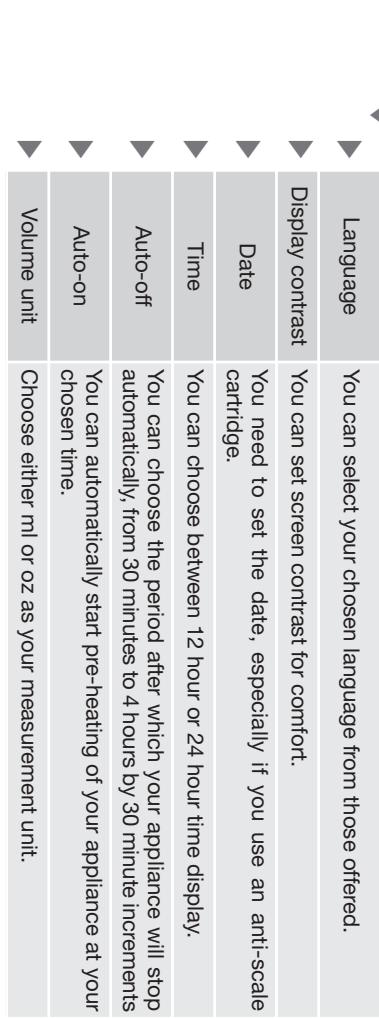

You can select your chosen language from those offered.

You need to set the date, especially if you use an anti-scale cartridge.

You can set screen contrast for comfort.

You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments

You can choose between 12 hour or 24 hour time display.

Choose either ml or oz as your measurement unit.

You can automatically start pre-heating of your appliance at your chosen time.

You can use all the following options to start selected programs. Then follow the instructions on screen

You must set your water hardness between 0 and 4. See “Water hardness measurement” page 25 section.

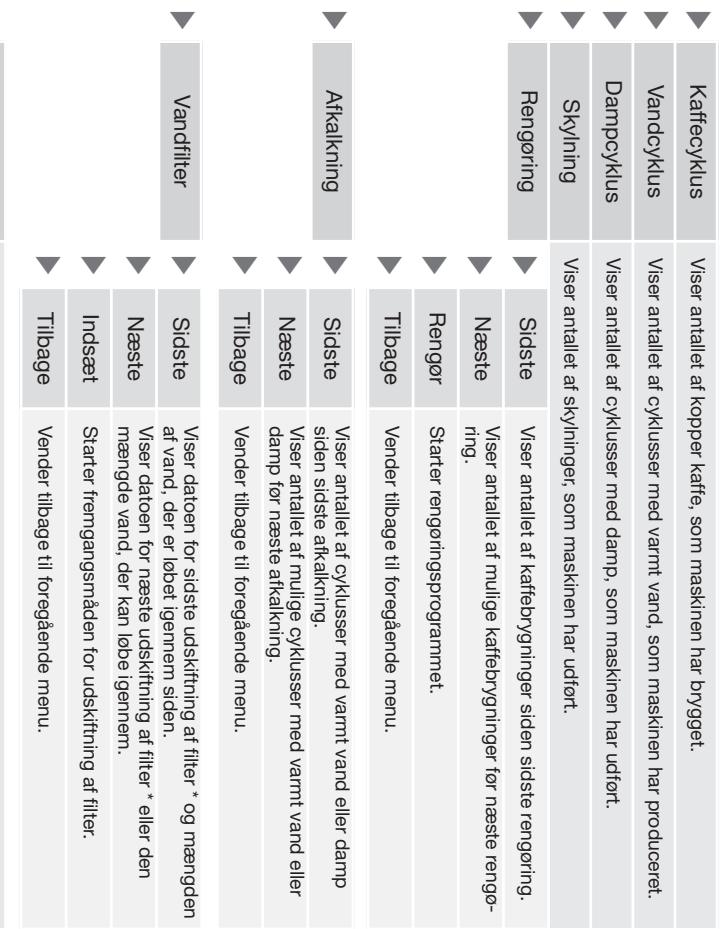

Displays the total number of steam cycles the machine has performed.

Displays the total number of hot water cycles the machine has performed.

Displays the total number of coffees the machine has made.

Return to the previous menu.

You can set the temperature of your espresso or coffee to one of three levels.

Starts the cleaning program.

Clean Return to the previous menu.

Starts the filter change procedure.

Displays the date of the last filter change* and the quantity of water that has run through.

Displays the date for the next filter change* and the quantity of water to run through.

Return to the previous menu.

Displays the total number of hot water or steam cycles made since last scale removal.

Displays the number of hot water or steam cycles that can be made before next scale removal.

Last Next Exit Last Next Install Exit

Return to the previous menu.

Displays the total number of coffees made since last cleaning.

Displays the number of coffees that can be made before next cleaning.

Displays the total number of rinsing cycles the machine has performed.

8.3 Product information

* : You must first have correctly installed a filter through the program accessible via SERVICES => WATER FILTER => INSTALL before being able to access the first two options of the filter information submenu.

8.4 Demonstration mode

When this mode is activated and the screen displays the drink selection menu, the appliance will scroll the various functions available at regular intervals, so you can access them.

9. MOVING THE APPLIANCE Caution! If the unpacked appliance is dropped, it is advisable to take it back to an authorized service centre to avoid any risk of fire or electrical problems.

MALFUNCTION Switch off and unplug the machine, remove the filter cartridge, wait for one minute and start the machine again.

CORRECTIVE MEASURES EN Keep the packing and use it again to move the appliance.

10. ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE Let’s all help protect the environment !

Your appliance contains many recyclable materials that can be recovered or recycled.

Leave it at a local civic waste collection point. HELPLINE If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice: 0845 330 6460 - UK / (01) 677 4003 - ROI or consult our website - www.krups.co.uk

The machine indicates a fault, the software is frozen or your machine is malfunctioning.

Check the fuses and wall socket.

Check that the 2 lead connectors are correctly plugged into the appliance and into the wall socket.

11. PROBLEMS AND CORRECTIVE ACTIONS The appliance does not come on after pressing the

Foreign bodies are present in the grinder.

Disconnect the machine before any intervention. Check whether you can extract the foreign body using your vacuum cleaner.

For preparations made with milk:

We recommend using fresh, pasteurised or UHT milk, recently opened, and we also recommend using a cold container.

When the end piece has been taken off, use hot water to remove the rest of the deposits and make sure that the hole is not obstructed by any milk or calcium residue.

Unblock the holes with the needle supplied with your appliance. If the problem persists, dismantle the nozzle and the steam end piece.

Check that the steam nozzle is correctly positioned on its corresponding end piece.

The grinder is making a strange noise.

The steam nozzle makes a noise.

The steam nozzle of your machine seems partially or completely blocked or clogged. The steam nozzle does not make any or only makes a little frothy milk.

MALFUNCTION CORRECTIVE MEASURES No steam is coming out of the steam spout.

Empty the tank and temporarily remove the Claris cartridge.

Fill the tank with calcium rich mineral water (>100 mg/l) and perform successive steam cycles (5 to 10) into a container until you obtain a constant flow of steam. Re-insert the Claris cartridge into the tank.

The super cappuccino accessory does not make any or makes little foam.

The coffee comes out too slowly.

After emptying the coffee grounds collector and cleaning the coffee drawer, the warning message is still displayed.

When you turn off the appliance, warm water comes out of the coffee nozzles.

There is water under the appliance.

The machine is asking you to empty the drip tray even though it is not full.

At the start or end of the recipe some drops may fall from the steam nozzle.

Turn the grinding setting button to the right for coarser coffee grounds (this can depend on the type of coffee used).

Perform one or several rinse cycles. Launch a clean programme (see” Machine cleaning programme" p.30). Change the Claris Aqua Filter cartridge (see "Filter installation" p.25).

Correctly refit the coffee drawer and the coffee grounds collector, follow the instructions on the screen.

Wait at least for 8 seconds before refitting them.

According to the type of recipe prepared, the machine can carry out an automatic rinsing operation when it is turned off. This cycle lasts only a few seconds and stops automatically.

Before lifting off the tank, wait for 15 seconds after the coffee has run through so that the machine finishes its cycle correctly.

Check that the drip tray is correctly positioned on the machine, it must always be in place, even when your appliance is not being used. Check that the drip tray is not full. The drip tray must not be removed during a cycle.

The machine is programmed to ask for drainage of the drip tray every 12 coffees, irrespective of any intermediate drainage that you may carry out.

Check that the accessory is correctly fitted to the appliance, remove it and then replace it.

Check that the flexible hose is not obstructed or pierced shaped and that it is correctly connected to the accessory to avoid any air entering. Rinse and clean the accessory (refer to the "Super cappuccino accessory" chapter). If the problem persists replace the part surrounded in red on Fig. 21 with the replacement part supplied with your machine.

Water or steam are abnormally coming out of the steam spout.

Check that the tank is correctly positioned in the appliance.

Check and unblock the float if necessary. The float at the bottom of the tank should move freely.

The super cappuccino accessory does not suck up the milk.

After filling the water tank, the warning message remains on the screen.

Increase the temperature of the coffee in the Settings menu.

Heat the cup by rinsing with hot water before starting the preparation.

CORRECTIVE MEASURES The espresso or coffee is not hot enough.

Do not use oily, caramelised or aromatised coffees. Check that the bean tank contains coffee and that it descends correctly. Reduce the volume of the preparation, increase the strength of the preparation. Turn the grinding setting button to the left for finer coffee grounds. Prepare your coffee in two cycles using the two cup function.

MALFUNCTION The coffee is too clear or not coarse enough.

An incident has been detected during the preparation.

The appliance is restarted automatically and is ready for a new cycle.

Only change the grinding setting when in operation.

No coffee is coming out of the machine.

The appliance restarts automatically when reconnected.

The grinding setting button is difficult to turn.

There is a power cut during the cycle.

Danger : Only a qualified technician is authorised to perform repairs on the power cord and the electrical network. If this instruction is not followed, you are at risk of death due to electric shock! Never use an appliance that is visibly damaged!

EN Here are some recipes you can make using your KRUPS Automatic :

• Cappuccino For a cappuccino, the ideal proportions are as follows: 1/3 hot milk, 1/3 coffee, 1/3 milk froth. • Caffe Latte To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 hot milk, 1/5 coffee, 1/5 milk froth • For these milk-based preparations, it is best to use cold skimmed milk straight from the refrigerator (ideally between 6 and 8° C). • To finish off, you can sprinkle with cocoa. • Café Crème • Prepare a conventional espresso in a large cup. • Add a little cream to get a café crème.

(*: Remember, over-indulgence in alcohol is bad for the health.)

• Prepare a cup of espresso as usual.

• Then add 1/4 or 1/2 of a liqueur glass of Cognac to taste. You can also use anisette, brandy, Sambuca, Kirsch or Cointreau. There are many other ways to give some punch to your espresso. Just use your imagination. • Coffee liqueur* • Mix 3 cups of espresso, 250 g of brown sugar candy and 1/2 litre of Cognac or Kirsch in an empty 0.75 litre bottle. • Leave the mixture to marinate for at least 2 weeks. You will obtain a delicious liqueur. A real treat for coffee lovers. • Italian style iced coffee 4 scoops of vanilla ice-cream, 2 cups of espresso with sugar to taste, 1/8 l milk, fresh cream, grated chocolate. • Mix the cold espresso with the milk. • Serve the scoops of ice-cream into the glasses, pour the coffee onto them and decorate with fresh cream and grated chocolate. • Coffee à la frisonne* • Add a small glass of rum to a cup of sweetened espresso. • Decorate with a good layer of fresh cream and serve. • Flambéed espresso* 2 cups of espresso, 2 small glasses of Cognac, 2 teaspoons of brown sugar, fresh cream. • Pour the Cognac into heat-resistant glasses, heat and light. • Add the sugar, mix, pour in the coffee and decorate with fresh cream. • Espresso parfait* 2 cups of espresso, 6 egg yolks, 200g sugar, 1/8 litre of sweetened fresh cream, 1 small glass of orange liqueur. • Beat the egg yolks with the sugar until it forms a thick, frothy mass. • Add the cold espresso and the orange liqueur. • Then mix in the whipped fresh cream. • Pour the mix into saucer champagne glasses or ordinary. • Put the champagne glasses in the freezer.

11. PROBLÈMES ET ACTIONS CORRECTIVES

8. OTRAS FUNCIONES: TECLA PROG PROG A B C D E F G O P Q R S PROBLEMA ANOMALIA ACÇÕES CORRECTIVAS F 088

Åpner programmet Rensing.

Åpner programmet Skylling.
