USER MANUAL XH90 SONY

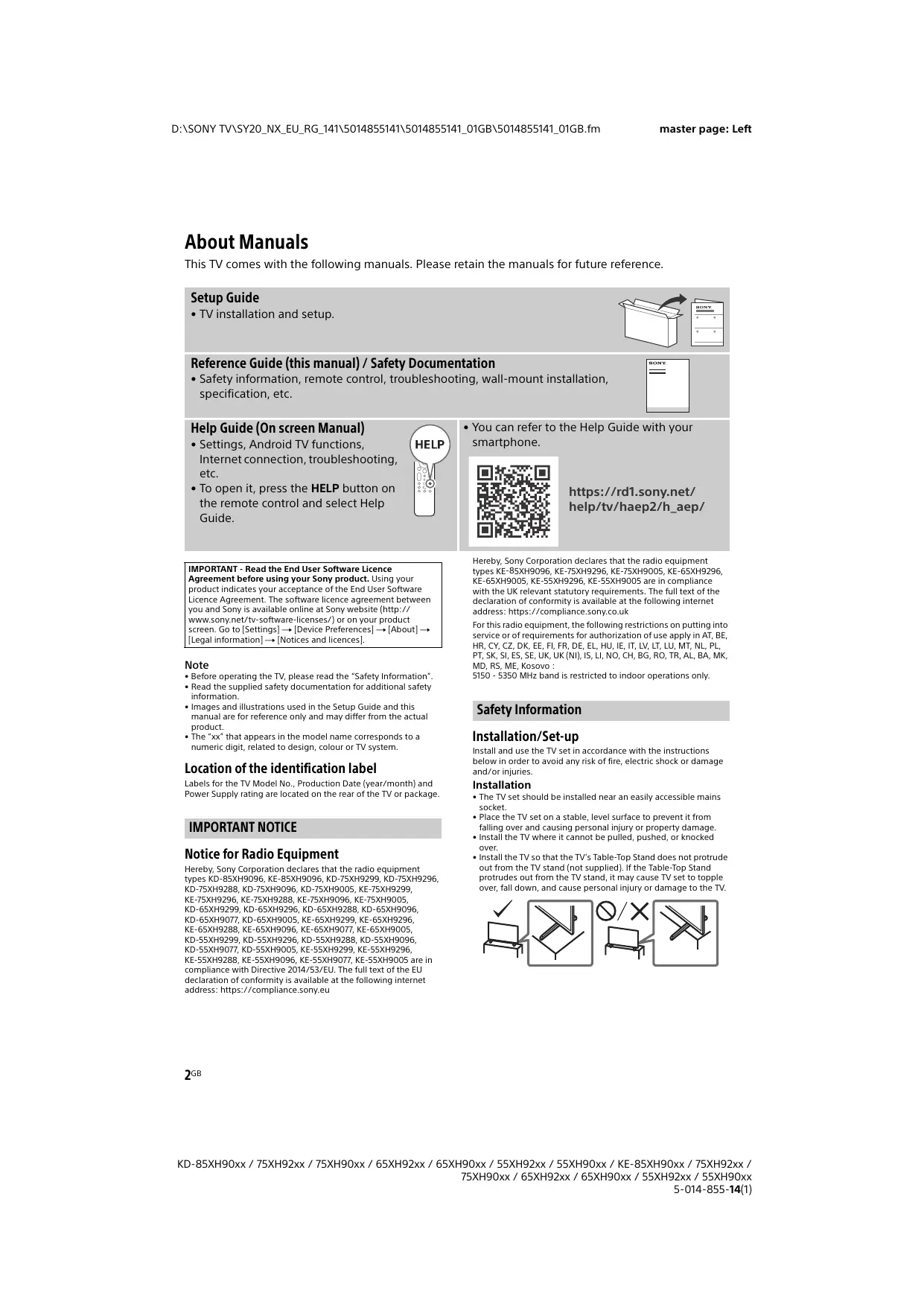

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, Android TV functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

• You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/haep2/h_aep/

IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http:// www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] [Device Preferences] [About] [Legal information] [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
  Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-85XH9096, KE-85XH9096, KD-75XH9299, KD-75XH9296, KD-75XH9288, KD-75XH9096, KE-75XH9299, KE-75XH9296, KE-75XH9288, KE-75XH9096, KE-75XH9005, KD-65XH9299, KD-65XH9296, KD-65XH9288, KD-65XH9289, KD-65XH9288, KD-65XH9096, KE-65XH9299, KE-65XH9296, KE-65XH9288, KE-65XH9096, KE-65XH9077, KE-65XH9005, KE-65XH9299, KE-65XH9296, KE-65XH9288, KE-65XH9096, KE-65XH9077, KE-65XH9005, KD-55XH9299, KD-55XH9298, KD-55XH9288, KD-55XH9096, KD-55XH9077, KD-55XH9005, KE-55XH9299, KE-55XH9296, KE-55XH9288, KE-55XH9096, KE-55XH9077, KE-55XH9005 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment KE-85XH9096, KE-75XH9296, KE-75XH9005, KE-65XH9296, KE-65XH9005, KE-55XH9296, KE-55XH9005 are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NJ), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage
• Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85XH90xx, KE-85XH90xx) are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

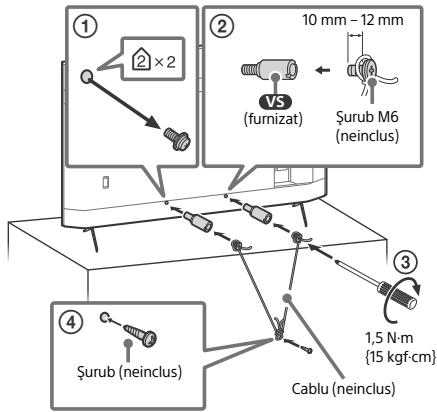

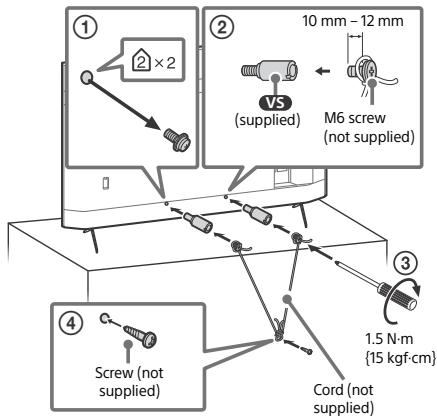

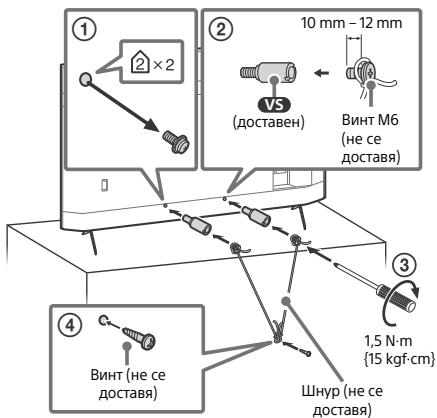

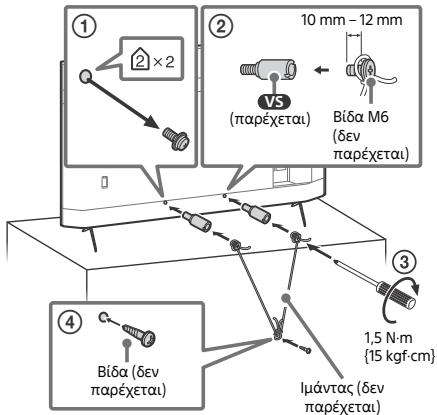

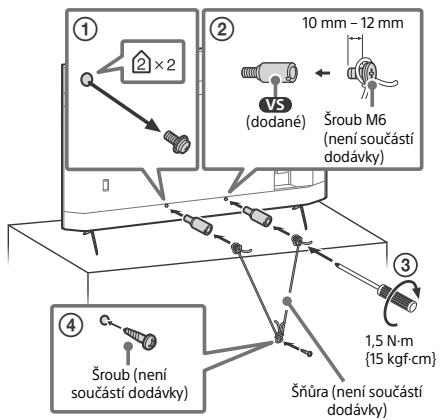

Topple prevention

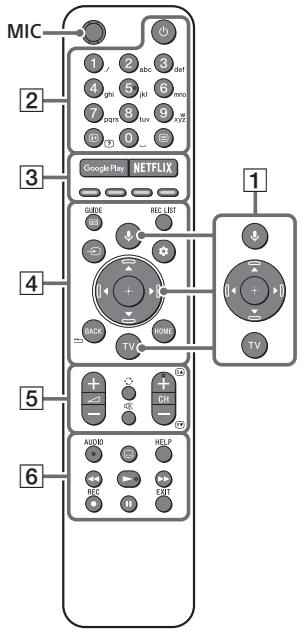

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/ country/TV model.

1 (Microphone): Use the Google Assistant*1*2 or voice search*2. For hints on how to control your TV press (Microphone) button and speak the phrase "voice hints".*1

(\triangle / \nabla / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangle left / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangleleft / \triangle

TV: Display TV channel list or switch to input.

2 (Power)

Number buttons

+/(? (Info/Text reveal): Display information.
(Text): Display text information.

3 Google Play / NETFLIX*1 / Colour buttons
4GUIDE:/Display the digital programme guide of TV or TV box*1*3.

REC LIST: Display the Rec list of USB HDD/ DVR*3.

Input select): Display and select the input source, etc.

Quick settings): Display Quick Settings. BACK/* HOME

[5] + / - (Volume)

(Jump)

※(Mute)*4

CH + / - / 选t: Select the channel, or next (E) / previous (E) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

REC: Record the currently viewed programme on USB HDD/DVR ^+3 .

EXIT

7 (Power)

Remote Control sensor / Light sensor / LED

1 Only on limited region/country/TV model/ language.
2 The Google Assistant or voice search requires an Internet connection.
3 [TV box setup] setting is required.
4 Accessibility shortcut is available by pressing and holding (Mute).

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

Preparing for Wall-Mount Installation

Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
• The screws for Wall-Mount Bracket are not supplied.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:

—Wall-Mount Bracket SU-WL850

—Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
• Only on limited region/country/TV model.

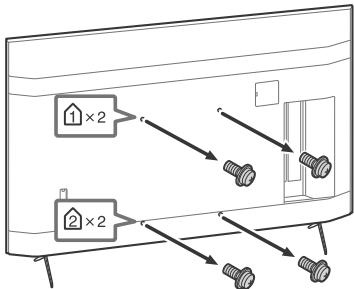

1 Remove the screws from the rear of the TV.

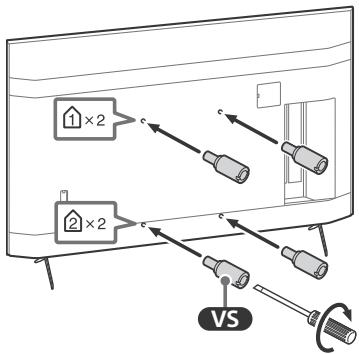

2 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall).

1.5 N·m
{15 kgf·cm}

Note

• If using an electric screwdriver, set the torque at approximately 1.5N· m {15 kgf·cm}.
• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.

Detaching the Table-Top Stand from the TV

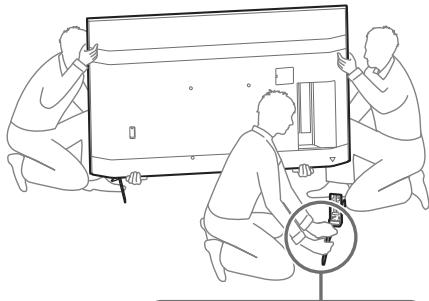

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
• Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.

The parental lock password has been forgotten.

• Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2*1

Satellite*1: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depending on your country/ area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite*1: IF Frequency 950-2,150 MHz

Sound output: 10W + 10W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range	Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth® (TV)
2400-2483.5 MHz	< 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz	< 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna*1

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

/ AV IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz) ^2*3 , 4096 × 2160p

(24Hz)^*2 3840x2160p (50, 60 Hz)*3, 3840 x

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC Formats*4

Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (HDMI IN 3 only)*5

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

(Stereo mini jack) Headphone

1,2 (HDDREC)6

USB device port (2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)
USB port 2 supports Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-85XH90xx: A

KD-75XH92xx / 75XH90xx: A

KD-65XH92xx / 65XH90xx: A

KD-55XH92xx / 55XH90xx: A

Screen size (measured diagonally) (Approx.)

KD-85XH90xx: 214.8 cm / 85 inches

KD-75XH92xx / 75XH90xx: 189.3 cm / 75 inches

KD-65XH92xx / 65XH90xx: 163.9 cm /

65 inches

KD-55XH92xx / 55XH90xx: 138.8 cm /

55 inches

Power consumption

In [Standard] mode

KD-85XH90xx: 223 W

KD-75XH92xx / 75XH90xx: 182 W

KD-65XH92xx / 65XH90xx: 143 W

KD-55XH92xx / 55XH90xx: 116 W

In [Vivid] mode

KD-85XH9096:340W

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096 / 75XH9005:299W

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077 / 65XH9005:236 W

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077 / 55XH9005:195 W

Annual energy consumption*7

KD-85XH90xx: 309 kWh per year

KD-75XH92xx / 75XH90xx: 252 kWh per year

KD-65XH92xx / 65XH90xx: 198 kWh per year

KD-55XH92xx / 55XH90xx: 161 kWh per year

Standby power consumption*8*9

0.50 W (25 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB1

5V---, 500mA MAX

USB2

5V----,900mA MAX

Dimensions (Approx.) (w× h× d) (cm)

with Table-Top Stand

Standard position:

KD-85XH90xx, KE-85XH90xx: 189.9 × 116.2 × 44.1

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167.4 × 103.4 × 41.0

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145.0 × 90.3 × 33.8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123.1 × 78.0 × 33.8

Narrow position:

KD-85XH9096, KE-85XH9096: 189.9 × 116.2 × 44.1

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 167.4 × 103.4 × 41.0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077: 145.0 × 90.3 × 33.8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077: 123.1 × 78.0 × 33.8

without Table-Top Stand

KD-85XH90xx, KE-85XH90xx: 189.9 × 108.9 × 7.2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167.4 × 96.1 × 7.1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145.0× 83.3× 7.0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123.1 × 71.0 × 7.0

Stand width (Approx.) (cm)

Standard position:

KD-85XH90xx, KE-85XH90xx: 152.7

KD-75XH92xx / 75XH90xx, KE-75XH92xx / 75XH90xx: 132.1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 112.8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105.3

Narrow position:

KD-85XH9096, KE-85XH9096: 65.2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55.8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47.0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45.0

Mass (Approx.) (kg)

with Table-Top Stand

Standard position:

KD-85XH90xx, KE-85XH90xx: 47.7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 34.4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:23.2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 17.5

Narrow position:

KD-85XH9096, KE-85XH9096: 47.7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE- 75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34.4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23.2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17.5

without Table-Top Stand

KD-85XH90xx, KE-85XH90xx: 45.8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32.9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22.2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 16.5

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 (KD-75XH92xx

/ 75XH90xx / 65XH92xx / 65XH90xx /

55XH92xx / 55XH90xx, KE-75XH92xx /

75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx

/55XH90xxonly)

Wall-Mount Bracket: SU-WL450

Operating temperature: 0^ - 40^

Operating humidity: 10% - 80% RH

(non-condensing)

1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.
2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].
3 To support 18 Gbps, set [HDMI signal format] to [Enhanced format].
4 Refer to the online Help Guide for details.
5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.
6 Only on limited region/country/TV model.

7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
8 Specified standby power is reached after the TV finishes necessary internal processes.
*9 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant.
  Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC CODECs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

• Netflix is a registered trademark of Netflix, Inc.
• DiSEqCTM is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

KE-85XH9096 (355595), KE-75XH9299 (355596), KE-75XH9296 (355597), KE-75XH9288 (355598), KE-75XH9096 (355604), KE-75XH9005 (355605), KE-65XH9299 (355606), KE-65XH9296 (355607), KE-65XH9288 (355608), KE-65XH9096 (355609), KE-65XH9077 (355610), KE-65XH9005 (355611), KE-55XH9299 (355612), KE-55XH9296 (355613), KE-55XH9288 (355614), KE-55XH9096 (355615), KE-55XH9077 (355618), KE-55XH9005 (355619).

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

Analogue: UHF/VHF/Cable

ARC (Audio Return Channel) (HDMI IN 3 quintuple)*5

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

https://www.sony.eu/support

Digital: UHF/VHF/Cable

DIGITAL AUDIO OUT (OPTICAL)

Toma digital optica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)

ninitoma estereo)

Auricular

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Anchura del soporte (Aprox.) (cm)

Posión estáar:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

Posión estrecha:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Peso (Aprox.) (kg)

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

https://www.sony.eu/support

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

KD-85XH9096, KE-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx /
55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx /
65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.1 Gen 1)

…

75XH9288 / 75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077: 123,1 × 78,0 × 33,8

ohne Tischständer

KD-85XH90xx, KE-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

https://www.sony.eu/support

4096×2160p(50,60Hz)23,4096×2160p

(24Hz)^2 3840× 2160p(50,60Hz)^3 3840×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*4

Áudio:

PCM linear do canal 5,1:32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bits, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (Apenas

HDMI IN 3)*5

PCM linear de doit canais: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital otica (PCM linear deinous

canais: 48 kHz 16 bits, Dolby Audio, DTS)

(Mini-tomada estereo)

Auscultador

-1, -2 (HDD REC)*6

Porta do dispositivo USB (2 dispositivo

USB HDD para a funcionalidade REC)

A porta USB 1 suporta High Speed USB

(USB 2.0)

A porta USB 2 suporta Super Speed USB

(USB 3.1 Gen 1)

1

Ranhura CAM (Modulo de Accesso Condicional)

LAN

Conector 10BASE-T/100BASE-TX (Dependondo ambiente de operacao da rede, a

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

KD-85XH9096, KE-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE- 75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

sem suporte de fixacao para mesas

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Outros

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

PCM line are due canali: 48kHz 16 bit, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

Se Hjalpguiden for mer information.

75XH9288 / 75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:145,0×90,3×33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077: 123,1 × 78,0 × 33,8

utan bordstativ

KD-85XH90xx, KE-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

Stativets bredd (Ca.) (cm)

Standardposition:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:105,3

Inskrankt position:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47.0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Vikt (Ca.) (kg)

med bordsstativ

Standardposition:

KD-85XH90xx, KE-85XH90xx: 47,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:34,4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 23,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 17,5

Inskrankt position:

KD-85XH9096, KE-85XH9096: 47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

utan bordstativ

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 16,5

Övrigt

Valfritt tillbehör

Väggfeste: SU-WL850 (Endast KD-75XH92xx /

75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx

/55XH90xx, KE-75XH92xx / 75XH90xx /

65XH92xx / 65XH90xx / 55XH92xx /

55XH90xx)

Vaggfaste: SU-WL450

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineaer PCM:

48 kHz 16 bit, Dolby Audio, DTS)

Stereo-minijack)

Hovedtelefoner

1 ， 2 (HDDREC)6

USB-port (2 USB HDD-enhed for REC-funktion)

USB-port 1 understotter High Speed USB (USB 2.0)

USB-port 2 understøtter Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module)-holder

LAN

10BASE-T/100BASE-TX-stik

Māl (Ca.) (b × h × d) (cm)

Inkl. TV-fod
Standardposition:
KD-85XH90xx, KE-85XH90xx: 189,9 × 116,2 × 44,1
KD-75XH92xx / 75XH90xx, KE-75XH92xx / 75XH90xx: 167,4 × 103,4 × 41,0
KD-65XH92xx / 65XH90xx, KE-65XH92xx / 65XH90xx: 145,0 × 90,3 × 33,8
KD-55XH92xx / 55XH90xx, KE-55XH92xx / 55XH90xx: 123,1 × 78,0 × 33,8

Smal position:
KD-85XH9096, KE-85XH9096: 189,9 × 116,2 × 44,1
KD-75XH9299 / 75XH9296 / 75XH9288 / 75XH9096, KE-75XH9299 / 75XH9296 / 75XH9288 / 75XH9096: 167,4 × 103,4 × 41,0
KD-65XH9299 / 65XH9296 / 65XH9288 / 65XH9096 / 65XH9077, KE-65XH9299 / 65XH9296 / 65XH9288 / 65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8
KD-55XH9299 / 55XH9296 / 55XH9288 / 55XH9096 / 55XH9077, KE-55XH9299 / 55XH9296 / 55XH9288 / 55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

Uden TV-fod

KD-85XH90xx, KE-85XH90xx: 189,9 × 108,9 × 7,2 KD-75XH92xx / 75XH90xx, KE-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1 KD-65XH92xx / 65XH90xx, KE-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0 KD-55XH92xx / 55XH90xx, KE-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Stativets bredde (Ca.) (cm)

Standardposition:
KD-85XH90xx, KE-85XH90xx: 152,7
KD-75XH92xx / 75XH90xx, KE-75XH92xx / 75XH90xx: 132,1
KD-65XH92xx / 65XH90xx, KE-65XH92xx / 65XH90xx: 112,8
KD-55XH92xx / 55XH90xx, KE-55XH92xx / 55XH90xx: 105,3

Smal position:
KD-85XH9096, KE-85XH9096: 65,2
KD-75XH9299 / 75XH9296 / 75XH9288 / 75XH9096, KE-75XH9299 / 75XH9296 / 75XH9288 / 75XH9096: 55,8
KD-65XH9299 / 65XH9296 / 65XH9288 / 65XH9096 / 65XH9077, KE-65XH9299 / 65XH9296 / 65XH9288 / 65XH9096 / 65XH9077: 47,0
KD-55XH9299 / 55XH9296 / 55XH9288 / 55XH9096 / 55XH9077, KE-55XH9299 / 55XH9296 / 55XH9288 / 55XH9096 / 55XH9077: 45,0

Vægt (Ca.) (kg)

Inkl. TV-fod

Standardposition:

KD-85XH90xx, KE-85XH90xx: 47,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:34,4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 23,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:17,5

Smal position:

KD-85XH9096, KE-85XH9096: 47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

Uden TV-fod

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Andre

Ekstraudstyr

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Jalustan leveys (Noin) (cm)

Vakioasento:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:105,3

Kapea paikka:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Paino (Noin) (kg)

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx /

55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx /

65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

hurtiginnstillinger.

BACK/

HOME

5 + / - (Volum)

(Hopp)

※ (Demp)^*4

CH + / - / 巴 / 巴 : Velg kanal, ellr neste ( ) / forrige ( ) side.

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

←/→/→/11

REC: Ta opp programmet som vises pÅ USB HDD/DVR*3.

EXIT

7 (Strøm)

8 Fjernkontroll-sensor / Lyssensor / LED

https://www.sony.eu/support

Forberede veggmontering

Tokenals linear PCM: 48 kHz 16 biter, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokenans lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

(minijack, stereo)

Hodetelefon

1,2 (HDDREC)6

KD-85XH9096, KE-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE- 75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

uten bordstativ

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 16,5

Annet

Tilleggsutstyr

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty
komputerowe*4

Audio:

5,1 kanałów, liniowe PCM: 32/44,1/48/88,2/

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

KD-85XH9096, KE-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

bez podstawy

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Inne

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

• Pfi pfnasei televizor dbeje na to, abi do nieho nenarzil nebo nadmene nevibroval.
• Gestižte verzete tevdizor do opravy, nebo ho stéhujete, vždy ho bazalte do originalír krabice a obalověho materiaúly.

Ochrana preddprevracenim

https://www.sony.eu/support

75XH9288 / 75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:145,0×90,3×33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077: 123,1 × 78,0 × 33,8

bez stolniho stojanu

KD-85XH90xx, KE-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

Sifka stojanu (pribl.) (cm)

Standardí poloha:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

Uzkapoloha:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

https://rd1.sony.net/help/tv/haep2/h_aep/

DOLZEJTE -Pred pouzit myrobko Sony i prectajte licencnú zmulnu t'ykajcu s a softveru koncového pouzivatelva.

Použivanie vásho vyrobku znaměna, Že suhlasite s licencnou zmluvou týkajcusao sa softveru koncového použivatela. Licencna zmluva týkajcua sa softveru medzi varmi a spolcnostou Sony je k disposici online na webovej strárne spoclocosti Sony (http://www.sony.net/tv-software-licenses/) alebo na obrazovke vásho vyroblu. Prejdite na [Nastavenia] [Predvolby zariadenia] [Informácie] [Právn informácie] [Upozornenia licence].

Poznámka

• PRED uvedenin toto televneho prijima do cinnosti si prefcjtaje, Informacao o bezpecnostn"
• Prećiţaje si dovanu bezpečnostnu dokumentáci uhofam dodatocnych bezpečnostnych informáci.
• Obrazky a ilustracie pouzité v Spirevodcovi nastavením a v totom návode slúzia len na referençné účely a možu sa lišit od samotného produktu.
  Znak.xx", ktory sa uvadza v náze modelu, zodpovedá ciselnemu znaku, ktory sa týka konstrukcie, farby alebo systému televisionneho vysielania.

Umiestnenie identifikacao neho stitka

Stitky s cislom modelu, datumom vroby (rok/mesiac) a s udajmi o napajac zrodji sa nachadzaju na zadnej casti TV prijima calebo na baleni.

DOLEZITE UPOZORNENIE

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

Pri prenăsăi a preaprve chrante tevizni prijimač pred nárazmi alebo nadernymi vibráciami.
Pri preparate do opragy alebro pri stahovani zabafte tevizny prijima' do povodného Kartonu a baliaceho materialiu.

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formáty PC*4

Audio:

5,1 lineárny kanál PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bitov, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (Len model HDMI IN 3)*5

Dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Sirka stojana (Pribl.) (cm)

Standardná poloha:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

Zúěná poloha:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

KD-85XH9096, KE-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

bez stolového stojana

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Iné

Volitehné prisluşenstvo

Montázna konzola na stenu: SU-WL850 (Len model KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx) Montázna konzola na stenu: SU-WL450

Prevadzková teplota: 0^ - 40^

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Allvanyszelesssege (Kb.) (cm)

Standard pozcio:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

Szuk pozićó:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Tömeg (Kb.) (kg)

asztali allyvannyal

Standard gezimento:

KD-85XH90xx, KE-85XH90xx: 47,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:34,4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 23,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:17,5

Szuk pozcioio:

KD-85XH9096, KE-85XH9096: 47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 65XH90xx

• Feriti televizor de socuri mecanice.si de vibrazioni prea puternice in timpul transportului.
  Cand ducei aparatul la reparat sa nd vata muti, folosi umbalajul original.

Asigurarea stabilitàti

https://www.sony.eu/support

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2*1

Satelit*1: DVB-S/DVB-S2

Sistemculoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*FrecventaIF950-2.150MHz

lesire audio: 10W + 10W

Tecnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formate PC*4

Audio:

PCM liniar pe 5,1 canale: 32/44,1/48/88,2/

96/176,4/192 kHz 16/20/24 biti, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (Numai HDMI IN 3)*5

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Lāṭime suport (aprox.) (cm)

Positia standard:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

Positia ingusta:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Masa (aprox.) (kg)

cu suport de masă

Pozitia standard:

KD-85XH90xx, KE-85XH90xx: 47,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:34,4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 23,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:17,5

Positia ingusta:

KD-85XH9096, KE-85XH9096: 47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

fara suport de masa

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Altele

Accesorii optionale

Dispositiv de montare pe perete: SU-WL850 (Numai KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx) Dispositiv de montare pe perete: SU-WL450

Temperatura de utilizes: 0^ - 40^

Umiditate de fonctionare: UR 10% - 80% (fãrã condens)

https://rd1.sony.net/help/tv/haep2/h_aep/

BAXH0 - Ppei da n3nOanBa Bauim npDykt Sony, npoTeTe IuehenHOHToCnopaZMeHne 3a coTpye c KpAHHNoTOpBeTEn. H3noN3BaHToH BAuim npDykt O3HaAUBe,YePiWaeMteIueHN3IOHOHT CoP3aMeHne 3a coTpye c KpAHHNoTOpBeTEn. IueHN3IOHOHT CnpaZMeHne 3a coTpye mexKyBacN SoY eJoCTbIHO OnHaai na HeBaCeAa HA SoY (http://www.sony.net/ tv-software-licenses/)wn Ha ekpana Ha BaunippoDKy. OtIndete Ha [HaTcPoRikn] [PpeIIOvHTAnHa 3a yCTpOyCTBO] [INHOPMaia] [PiPaBHa INHOPMaia] [YBeDomLeHn I nuIeHn].

3a6eJekka

• Пгдд да заочену песьота с телевизора,mоля,npoчетete "VHnФошмуна за заesh�аСоHT".
  I-PoIpyeteetadeHahadetaDOKUymaTACua 3a 6eOanachCT3a DOpblJHInTeHN CBeHEna 3a 6eOanACHCTa.
• IVo6paxEHnRA tA nIIOCTpaumnte, m3PON3BaHn B PbKOBOCTBTO 3a HcTPOKa I B TOBA PbKOBOCTBO, Ca cAmO 3a CnPABKa I MOKe Da ce pa3NlUaBAt OT DeJcHTBtEnHnI npOyKT.
  3'Zhakb'T"XX",KOJTO CNE NOBBA B IMETO HA MODENA, CBOTBETCTBA HA NOHEM,CbP3aH CIM3aHA,UBETA INN CNTEMATA HA TENEHE3Opa.

MЯСТоHaДeHTnФИKaIaIOnHnIeETnKet

EtHKETTRE 3a HOMep Ha MoDeta, Data Ha pOni3B0dCTBO (roDinHa/ Meceu) I KnaC Ha 3axPaHBaCe, Ha pa3nOJIOKeHn Ha Tpb6a Ha TeneBu3Opa IINI ONAKOBkATA.

BAKHA 3A6EJIEXKA

3a6eJekka 3a paIIO o6OpyDbaHe

C NahtoToyonoCorporation.deKnapa,teTnoBete padioooobopydbane KD-85XH9096,KE-85XH9096,KD-75XH9299, KD-75XH9296,KD-75XH9288,KD-75XH9096, KE-75XH9299,KE-75XH9296,KE-75XH9288,KE-75XH9096, KE-75XH9005, KD-65XH9299,KE-65XH9296, KD-65XH9288,KE-65XH9077, KD-65XH9005, KE-65XH9299, KE-65XH9296,KE-65XH9288,KE-65XH9096,KE-65XH9077,KE-65XH9299, KE-65XH9005, KD-55XH9299, KD-55XH9296, KD-55XH9288, KD-55XH9096, KD-55XH9077, KD-55XH9005, KE-55XH9299, KE-55XH9296,KE-55XH9288,KE-55XH9096,KE-55XH9077,KE-55XH9005, KE-55XH9299, KE-55XH9288,KE-55XH9077,KE-55XH9005, KE-55XH9077, KE-55XH9005, KE-55XH9077, KE-55XH9005, KE-55XH9288, KE-55XH9288, KE-55XH9288, KE-55XH9077, KE-55XH9005, KE-55XH9288, KE-55XH9288, KE-55XH9288, KE-55XH9077, KE-55XH9005, KE-55XH9288, KE-55XH9288

3a Toba padno obopuydahe Baxat cneHnite orpaunuehna 3a bBbEJdane B ecknoataua nla 3a papeuene 3a yntp6eBa AT, BE, HR, CY, CZ, DE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kocobo : 5150 - 5350 MHz yectota e orpaunueha camo 3a paobota ha 3akrntto.

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx /

55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx /

65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

• Пигпесане He n3laigte TeleBn3o4 Na cbtpcehenia II INI ppeKanen HnB6paun.
  Korato npnehacate Tetebn30pa npn pemOHNT nnn npn cMnaHa naJNJIeTeO, NaekTnpaIte Ro, KATO n3NOB3BaTE opnHnHaHtanaONKoBAu MATEpNaJN 3a NaekTnpaHE.

IpeodTbpaTaBaHeHa napaHe

ARC (Audio Return Channel) (camo HDMI IN 3)*5

ДыkaHaJIeH LInHeeH PCM: 48 kHz 16 6nta,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

LΦOB OINTUeH JAK (ДВУКАЛЕн ЛИНЕH

PCM: 48 kHz 16 6nTa, Dolby Audio, DTS)

(CTepeo MmHn JkaK)

CnyuzaJIkn

1. 2 (HDD REC)*6

nopT 3a USB yctpoictBO (2 USB HDD

yctpoCTBO3aФункцЯREC)

USB nopr1 noDbpxka High Speed USB

(USB 2.0)

USB nopr2 noiNbpbxa Super Speed USB

(USB 3.1 Gen 1)

…

CAM (MOyI 3a yCIOBEN DOCTbI) rHe3do

LAN

10BASE-T/100BASE-TX KOHeKTop (B

3aBnCIMOCT OT yCNOBnTa Ha pa6Ota Ha

MpeXaTa,CKOpocTtHa NpeHOC Ha daHHnTe

MOXe da ce pa3nUaBa. KaauTeTbT n

KaheCTBOTO Ha KOMyHnKaLnaTHe Ca

「rapaTnpaHn.)

3axpaHbAhe, fniuHa npOyKta ndpTu

U3nCKBaHmna 3a 3axpaHbHaHeTo

220V-240VAC,50Hz

EheprnneKnaC

KD-85XH90xx: A

KD-75XH92xx / 75XH90xx: A

KD-65XH92xx / 65XH90xx: A

KD-55XH92xx / 55XH90xx: A

Pa3mep Ha ekpaHa (i3mepen IIO dnafoHa) (np16n.)

KD-85XH90xx: 214,8 cm / 85 inHua

KD-75XH92xx / 75XH90xx: 189,3 cm / 75 inHu

KD-65XH92xx / 65XH90xx: 163,9 cm / 65 inHu

KD-55XH92xx / 55XH90xx: 138,8 cm / 55 inhua

KohcymaциЯ ha eheprnja

B [CTaHdapTeH] pexIM

KD-85XH90xx: 223 W

KD-75XH92xx / 75XH90xx: 182 W

KD-65XH92xx / 65XH90xx: 143 W

KD-55XH92xx / 55XH90xx: 116 W

B [Rpbk] pexmm

KD-85XH9096:340W

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096 / 75XH9005:299W

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077 / 65XH9005:236 W

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077 / 55XH9005:195 W

TOniunha KOHCymaunHa eheprn7

KD-85XH90xx:309kWh rodiuHo

KD-75XH92xx / 75XH90xx: 252 kWh roДишо

KD-65XH92xx / 65XH90xx: 198 kWh roДишо

KD-55XH92xx / 55XH90xx: 161 kWh roДишо

KohcymaunHa eheprnB pexmM

TOTOBHOCT*8*9

0,50 W (25 W B pexim Ha aKtyaIIm3aIgnaHacOΦTyepe/EPG)

Pe3oJIOZnHa DNcPJIeR

3840 toky (no xopn3oHTana) × 2160 peda

(noBepTikana)

U3XoDHN HOMHaHn DaHHN

USB1

5V = = 500mA（maKc.)

USB2

5V = = 900mA（maKc.)

Pa3mepn (npn6π.) (w×B×d) (cm)

C NOCTaBka 3a Maca

CtanhapTHo noJIOXeHne:

KD-85XH90xx, KE-85XH90xx: 189,9 × 116,2 × 44,1

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 103,4 × 41,0

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 90,3 × 33,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:123,1×78,0×33,8

CTecHeNo pIoJoxHeHne:

KD-85XH9096, KE-85XH9096: 189,9 × 116,2 × 44,1

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 167,4× 103,4× 41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:123,1×78,0×33,8

6e3 nocTaBka 3a Maca

KD-85XH90xx, KE-85XH90xx: 189,9× 108,9× 7,2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

UmpnHa Ha cToiKaTa (npu6J.) (cm)

CtahapTHo noJIOXeHne:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 105,3

CTecHeNo noJIOXeHne:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Terno (npn6n.) (kg)

C NOCTaBka 3a Maca

CtahapTHo noJIOXeHne:

KD-85XH90xx, KE-85XH90xx: 47,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:34,4

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 23,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:17,5

CTecHeNo nIoJoxKeHne:

KD-85XH9096, KE-85XH9096: 47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:17,5

6e3 nocTabka 3a Maca

KD-85XH90xx, KE-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx:32,9

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:22,2

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:16,5

Друн

Доиьлнтелпн ancecoapn
KoH3OJa 3a 3akpeINBaHe KbM CTeHa:
SU-WL850 (caMo KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx)
KoH3OJa 3a 3akpeINBaHe KbM CTeHa:
SU-WL450

Pa60Tha TempepaTya: 0^ - 40^ Pa60Tha BnaXHocT: OTHOCnTeJHa BnaXHocT 10% -80% (6e3 o6pa3yBaHe Ha KOHN3)

1 He BCNUKNI TENEBU3Op INMAT DVB-T2 INIIN DVB-S/S2 TEXHOJIOGRN IINI KOHEKTOP 3a CATENTHa aHTeHa.
2 Korato ce nojaba 4096 × 2160p n [Lshipokoekepaeneh pekim] e hacTpoeh Ha [HopmaIeH], pe3oIIOuIyra Tc noka3Ba KATO 3840 × 2160p. 3a noKa3BaHe ha 4096 × 2160p cnoXete hAcTPOiKata [Lshipokoepekaneh pekim] Ha [TbIeH 1] nIi [TbIeN 2].
3 3a noДьрхане Ha 18 Gbps HabstpoЯTe [Формат на HDMI сигнана] Ha [Поюбөн φормат].
4 3a NOBueH INHΦopMaζη BNXTe OHληH ΠΟΜΟΥΗΟ pьΚΟΒΟДΤΒΟ.
5 CbþkxeTe ayDINO CNTCTeMaTa CN KbM HDMI IN 3, 3a Da HAcOHTe TEJIeBn3IOHNNra AyDINO CMHJAL KbM BaUATA ayDINO CNTCTeMa.
6 Camo 3a onpejeleni pernoHn/ctpaHn/MoJenI TeneBnOpr.
*7 FOnuHnHa KOHcymaunHa eHeprnB kWh e 6a3nupHa Ha KOHCyMaunrTa Ha TEJEBM3Op, KOITo paOTo 4 Yaca Ha DeH, 365 dHn. JeCTbNtEnHaT a KOhCymaunHa eHeprnA 3abCSn OT TOBA KaK ce n3IOn3Ba TEJEBN3Op.
8 Yka3aHaTate KOHCyMaJna Ha eHeprJBa PeximM TOTOBHOCT ce DoCTnra cNeJ Kato TeBEnB3OpBT pNKPJIIOH NeOe6XoDMITE BbTpeHNI pOUEcN.
9 KOCHymaunraHa eheprna B pexmm FOTOBHOCT ue CE yBeenuu, KORATO BAunr TeneBu3Op cCbbp3Ah KbM MPecka.

3a6eJexKa

HannuHeta H aONbIbnHTeNn A kCEcoaPn 3aBcN oT bJpbKaBaTa/perNoHa/MoJeJa Ha TeJeBu3opa n HauJIuHocCTta.
Ди3aHbT n cneuФнkaunite noIeJkaT ha npomHa 6e3 ppeynpeJxdeHnE.
- Moxe Za c n3nckBAT aboHaMeHTn 3a ycnyr n npINOxehn mOarT Da c npINarat IOnbInHtJIHc spOKOB, YCLOBN y/nn TAKCN pn H3nON3BaHe Ha Google ACnCTeNT.
Пюдунови Кши В това рьковогдъв e за ДелегИРANЕ ПЕЛМЕNT (EC) 1062/2010 HA KOMICNЯТА. Виктое уебаима за мнформача отноcho (EC) 2019/2013.

3a6eJka 3a cHpOBAta yHKcnaHa TeLeBn3opa

LcHpOBA TeIeBn3n (DVB Ha3emHo, caTeJIHTHO n Ka6eJIHO), INHTepaKTbHN yCnyr n MpeXOBu FyHKUIM MoKe Da He Ca IOCTbHn BB BCNUKn CTpaHn NIn paNoH. HrkON FyHKUIM MoKe Da He ca AKTbNpuHn NIn MoKe Da He pa6OTn PpaBUNoC HrkON IOCTaBvUIN MpeXOBu CpeJn. HrkON IOCTaBvUIN Ha TeIeBn3IOHn YCnyr MoKe Da NaHCJIbAR TaKCa 3a YCnyrTe CN.
To3n TeIeBn3Op noIbIbPka zIuΦpOBO npedaahe, nI3noI3BaIaKn MPEG-2, H.264 / MPEG-4 AVc n H.265 / HEVC KoIeuz, Ho He moKe da 6bJe rapaHTnpaHa cBbMeCTmMocTt a C BcNChc nIraHaN Ha oIepaTOpN/ycIyN, KOITMOKe Da ce IpOmeHrT C TeueHne Ha BpeMeTO.

HΦopMaζηa 3a TbProBCKn MapK

• TepMNInTe HDMI n INTepFcEnc 3a MyNTIMeDnC BVCoka pa3dEnITeNHa cnoc6bOcT HDMI (HDMI-High-Definition Multimedia Interface), kakto nIloroTo HDMI ca 3ana3eHn MapKn Ha HDMI Licensing Administrator, Inc. B CbeEinHeHnTe 7atn n dpyrN DpbxKabn.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, И симьOLT на двоиото "D" ca Tьровский Маркн на Dolby Laboratories. Пожибendeно по ліцен Ha Dolby Laboratories. Конфicientsецални Неникий Trудов. Альторско право © 2012-2018 Dolby Laboratories. BCчkn права заразеши.
• Gracenote, Логото и Логоти NBт Gracenote, К akто и логото "Powered by Gracenote" ca PeructupaHи ТьproBCKn МарКи Ил TьproBCKn МарКи Ha Gracenote, Inc.В CAU n/ Ил Дуги Дьржави.
• Google, Google Play, Chromecast, YouTube, Android TV und pyrgu cBbpr3aHn Mapkn n Iora ca 3anaeHn Mapkn Ha Google LLC.
  3a DTS nateHn, BnKte http:// patents.dts.com. PpOIN3BeDeHNo pIuIeH3 Ha DTS, Inc. DTS, CmBBoJbT, DTS u CmBBoJbT 3aEJHo n Digital Surround ca perncTpnpaHn TbproBCKn MapKn IIn TbproBCKn MapKn Ha DTS, Inc., B CAU n/nn dpyrn cTpaHn. @ DTS, Inc. BcNchn npaba 3ana3eHn.
• Netflix e peRncTpnpaHa TbPROBcKa MaPkHa NetfliX, Inc.

DiSEQCTM eTbproBcKa Mapka Ha EUTELSAT. To3n TeIeBn3Op nOJIbPjKa DiSEqC 1.0.To3n TeIeBn3Op He npeJHa3NaueH 3a ynpabVJIeHne Ha aHTeHn C MOTOP.
TUXERA e peRncTpnpaHa TbprOvBcKa Mapka Ha Tuxera Inc. B CALU n npyrn cTpaHn.
- BCNUKn IpyrN TbproBCKn MapKn Ca npITexKaHHe Ha CbOTBeTHNe IM CO6CTBeHnU.

Pernctpaunohen Hoomep Ha npoodykta (DEJIENPAH PEGIAMEHT (EC) 2019/2013 HA KOMNCYTA)

KE-85XH9096 (355595), KE-75XH9299 (355596), KE-75XH9296 (355597), KE-75XH9288 (355598), KE-75XH9096 (355604), KE-75XH9005 (355605), KE-65XH9299 (355606), KE-65XH9296 (355607), KE-65XH9288 (355608), KE-65XH9096 (355609), KE-65XH9077 (355610), KE-65XH9005 (355611), KE-55XH9299 (355612), KE-55XH9296 (355613), KE-55XH9288 (355614), KE-55XH9096 (355615), KE-55XH9077 (355618), KE-55XH9005 (355619).

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx /
55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx /
65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

Kata nI metafoap, mnu utroaaLente tvn tleopaoan oE xutnmuata n utepoauokc kpaadouoc.
OtaV metaPepete TnV Tnlepaan via etiakueh nTav TnV metapepe Tc alx wuo, Ocukeuete TnV xnpauotouwvTac toxipko xaptoKouto kaluaIkAc uokaeiaac.

Anotponn ntwonc

75XH9288 / 75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:145,0×90,3×33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077: 123,1 × 78,0 × 33,8

Xupic Baoen enitpaneiziac tonotheonnc

KD-85XH90xx, KE-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1× 71,0× 7,0

https://rd1.sony.net/help/tv/haep2/h_aep/

Sony Corporation, KD-85XH9096, KE-85XH9096, KD-75XH9299, KD-75XH9296, KD-75XH9288, KD-75XH9096, KD-75XH9005, KE-75XH9299, KE-75XH9296, KE-75XH9288, KE-75XH9096, KE-75XH9096, KE-75XH9005, KD-65XH9299, KD-65XH9296, KD-65XH9288, KD-65XH9288, KD-65XH9096, KE-65XH9299, KE-65XH9288, KE-65XH9096, KE-65XH9077, KE-65XH9005, KD-55XH9299, KD-55XH9296, KD-55XH9288, KD-55XH9096, KD-55XH9299, KD-55XH9296, KD-55XH9077, KD-55XH9078, KD-55XH9096, KD-55XH9077, KD-55XH9005, KD-55XH9078, KD-55XH9096, KD-55XH9077, KD-55XH9005, KD-55XH9078, KD-55XH9077, KD-55XH9005, KD-55XH9078, KD-55XH9077, KD-55XH9078, KD-55XH9077, KD-55XH9078, KD-55XH9077, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078, KD-55XH9078

Bu radyo ekipmani icin kullanima alma hususunda asaigidaki kisitlamar veya kumanim yetkisi gereksinlimeri sunlar icin geceleridir: AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosova : 5.150 - 5.350 MHz bandi, sadece ic mekan islemlerliye sinirlandirilmistr.

Güvenlik Bilgileri

Montaj/Kurulum

KD-85XH90xx, KE-85XH90xx

KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx /

55XH92xx / 55XH90xx, KE-75XH92xx / 75XH90xx /

65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

https://www.sony.eu/support

Duvara montaj hazirligi

Dijital: UHF/VHF/Kablolu

Uydu*1:IF Frekansi 950-2.150 MHz

Ses cikisi: 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formatlan*4

Ses:

5,1 kanal dogrusal PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bit, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (sadece

HDMI IN 3)*5

65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx: 123,1 × 71,0 × 7,0

Sehpa genisiologi (yakl.) (cm)

Standart konum:

KD-85XH90xx, KE-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx, KE-75XH92xx /

75XH90xx: 132,1

KD-65XH92xx / 65XH90xx, KE-65XH92xx /

65XH90xx:112,8

KD-55XH92xx / 55XH90xx, KE-55XH92xx /

55XH90xx:105,3

Dar konum:

KD-85XH9096, KE-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096, KE-75XH9299 / 75XH9296 /

75XH9288 / 75XH9096: 55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077, KE-65XH9299 /

65XH9296 / 65XH9288 / 65XH9096 /

65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077, KE-55XH9299 /

55XH9296 / 55XH9288 / 55XH9096 /

55XH9077:45,0

Aigrlik (yaki.) (kg)

https://www.sony.eu/support
