INSTALLATION 14
INNER PARTS 16
OPERATIONS 17
Starting
Before Setting The Temperature
Door Alarm
Self Test
Controls For Refrigerator Compartment
Express Freeze
Lock
Wi-Fi
Controls For Freezer Compartment
Ice Making
Fresh Room Printer
Vegetable Drawer
Water Dispenser
SUGGESTIONS ON FOOD STORAGE 21
CLEANING 22
SMART DIAGNOSIS 24
SMART FUNCTIONS 25
WARNING 28
BEFORE CALLING FOR SERVICE 29
WARNING
A. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. A Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. A Do not damage the refrigerant circuit. A Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. A Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with service agent or a similarly qualified person.
This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is
also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION. These words mean:
WARNING
You can be killed or seriously injured if you don't follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.
1. When connecting the power
The dedicated outlet should be used.
- Using several devices at one outlet may cause fire.
- The electric leakage breaker may
damage food and the dispenser may be leaked.
Do not allow the power cord to be bent or pressed by a heavy object to be damaged.
It may damage the power cord and cause fire or electric shock.
It becomes the cause of fire or electric shock.
Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.
Water may be flown into or the plug may be damaged, which causes fire or electric shock.
Do not extend or modify the length of the power plug.
It causes electric shock or fire by the electric damage of the power cord or others.
Pull out the power plug not by grasping the cord but the plug at its end.
It may cause electric shock or short circuit to fire.
1. When connecting the power
Do not pull out the cord or touch the power plug with wet hands.
It may cause electric shock or injury.
Remove water or dust from the power plug and insert it with the ends of the pins securely connected.
Dust, water or unstable connection may fire or electric shock.
Make sure of grounding.
The incorrect grounding may cause breakdown and electric shock.
Wait for 5 minutes or longer when reconnecting the plug. NO
It may cause the operation of the freezer to fail.
Be sure to use grounded exclusive proper voltage consent for the power plug.
Be sure to use grounded extension consents when extension consents are used.
It becomes the cause of fire.
Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.
- It may cause electric shock or injury.
- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing electric
sparks within the socket is not removed.
When the power cord or the power plug is damaged or the holes of the outlet are loose, do not use them.
It may cause electric shock or short circuit, resulting in fire.
Make sure to ground for safety.
Do not ground to gas pipe, plastic water pipe, or telephone line.
If there is no ground in the power outlet in the customer's house, separately ground to the compressor base.
2. When using the refrigerator
(For CENELEC countries) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- CENELEC countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI, MK, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, GB
(For IEC countries) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall not play with the appliance.
Do not place heavy objects or dangerous objects (containers with liquid) on the refrigerator.
They may fall and cause injury, fire, or electric shock when opening or closing the door.

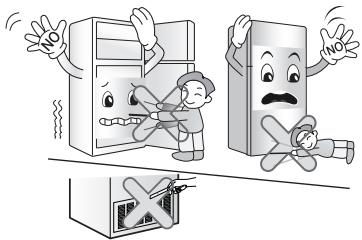

Prevent children from entering the product.
It may endanger the life of a child if the child enters the refrigerator.
Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.
Do not install the refrigerator in the wet place or the place which water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage.
2. When using the refrigerator
Do not cling to the door or the shelves of the door or the cool chamber.
It may make the refrigerator fallen down
or damage the hands.
Especially, do not allow the children to do the above.
Do not place flower vase, cup, cosmetics, medicine or
any container with water on the refrigerator.
It may cause fire, electric shock or injury by dropping down.

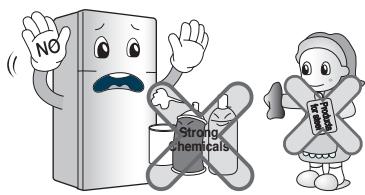

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or
cosmetics near or in the refrigerator.
It may cause explosion or fire.
Do not store the medicine or the academic materials at the refrigerator.
When the material with the strict temperature control is stored, it may be
deteriorated or it may make an unexpected reaction to cause any risk.
Do not use drier to dry the inside, nor light a candle to remove odor.
It may cause explosion or fire.
Do not use the combustible spray near the refrigerator.
It may cause fire.
In case of thunder and lightning, or
not in use for a long period of time, detach the power plug.
There is a danger of electric shock or fire.
2. When using the refrigerator
When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.
- The explosion by spark may cause fire or burn.
- Because this refrigerator uses natural gas (isobutene, R600a) as the environment-friendly refrigerant, even a small amount (80 90g) is combustible. When the gas is leaked by the severe damage during delivering, installing or using the
refrigerator, any spark may cause fire or burn.
Install in places away from the fire such as the place where flammable gas is leaked.
It may cause fire.
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.
Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.
Deterioration of insulation of electric parts may cause electric shock or fire.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.
It may cause injury, electric shock or fire.
When disposing the refrigerator, remove the packing materials from the door.
It may cause to lock out the child.
2. When using the refrigerator
Install the refrigerator on a solid and level floor.
Installing it on an unstable surface may cause death by falling down the
refrigerator when opening or closing the door.
Do not use the refrigerator for non-domestic purposes (storing medicine or testing material, using at sea, etc.).
It may cause unexpected risks such
as fire, electric shock, deterioration of stored material, or chemical reaction.
Do not insert your hands or metal sticks into the cool air outlet, the cover, the bottom of the refrigerator, or the heatproof grill (exhaust hole) at the back.
It may cause electric shock or injury.
What to do with your old refrigerator.
Your refrigerator contains liquids (refrigerant, lubricant) made of recyclable materials. All these materials must be sent to a recycling waste
disposal site as they can be reused after a specific recycling process. Contact local authorities.
If any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact the
service center.
It may cause fire.
Completely empty inside before taking out the container from the door.
2. When using the refrigerator
Do not remove the cover on the back.
Place all the components in the right places before connecting the power.
Do not use an Adapter.
Never leave lit candles or incense on the fridge, at risk of causing fire or product damage.
CAUTION
the fridge, at risk of causing fire or product damage.
Do not touch food or containers at the freezer with wet hands.
Violating this direction may cause injury or damage to the house or furniture. Always be careful, please.
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause injury.
Do not put bottle in the freezer.
It may freeze the contents and break the bottle, causing injury.
Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.
Otherwise, your hands may slip and cause injury. Because the product is
heavy, carrying it alone may hurt people or accidents may occur.
Do not place the food in disorder inside the refrigerator.
The food may fall during opening and closing the door of the refrigerator and hurt people.
Do not insert your hands into the bottom of the refrigerator.
The iron plate at the bottom may cause injury.
Because opening or closing the door or the home bar of the refrigerator may cause injury to the person around it, please be careful.
Opening or closing the door may cause feet or hands to be caught in the gap
in the door, or the child may be hurt by the corner.
Do not put any living animal in the refrigerator.
Do not use products such as grinding sponges, brushes, iron, or even special products to clean stainless steel, soap products such as alcohol, kerosene, gasoline, wax, or solvent, or strong chemicals such as chlorine, detergent, or vinegar, for the purpose of gloss. These products may damage the protective lacquer, and they may cause risk or
stain on the surface of the refrigerator.
Avoid the contact of oil or fat on the plastic parts. They may cause damage.
When the power cord is damaged, have a technician replace it to
remove the danger of an accident.
Supply cord replacement
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
Do not lean on the doors. Hinges may become misaligned, harming
the seal and compromising performance.
Do not apply oil to the door connection part under any
circumstances. It may cause damage to the plastic parts.
Do not use carbonated water.
The gas pressure may cause leakage.
WARNING: fill with potable water only.
Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using any liquid other than
water, the manufacturer will not be responsible.

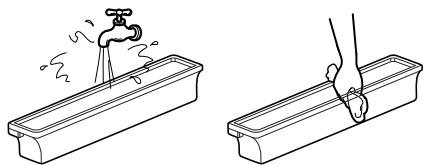

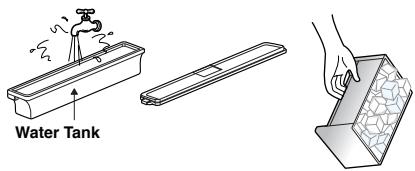

Clean the water tank according to the instructions before using the Ice Maker. Discard the initial ice cubes. These may be made from water that came into contact with parts before cleaning.
Appliance usage range
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments
- farm houses and by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
- catering and similar non-retail applications.
WARNING
Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.
THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.
WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH ITS PERFORMANCE AND RELIABILITY.
BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.
IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.
INSTALLATION
- Select a good location. Place your refrigerator where it is easy to use.
- Avoid placing the unit near heat sources, direct sunlight or moisture.
- To ensure proper air circulation around the fridge-freezer, please maintain sufficient space on both sides as well as the top, and keep at least 2 inches (5 cm) from the rear wall.
- Do not install this appliance below 5°C. It may cause the refrigerator to deteriorate.

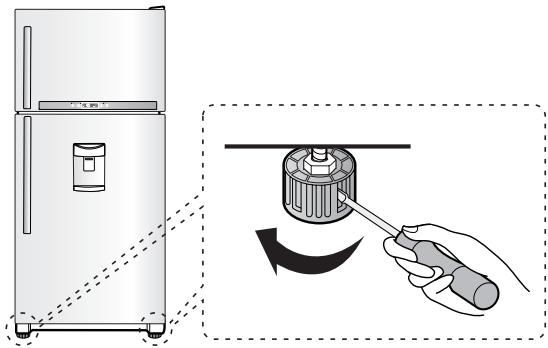

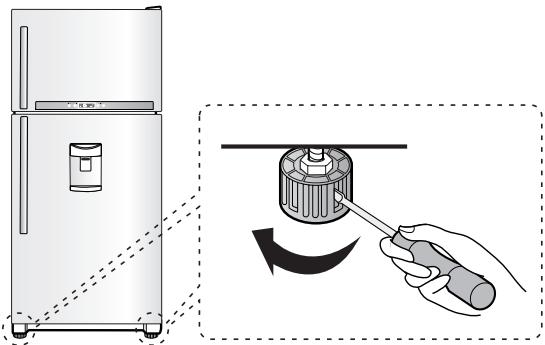

- To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor.
The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise to raise the unit, counterclockwise to lower it.
INSTALLATION
NEXT
- Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
- Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
- If you have a model with a bar-type handle, assemble the handle according to the instruction card.
- Connect the power supply cord (or plug) to the outlet. Do not double up with other appliances on the same outlet.
- Prior to storing food, leave your refrigerator on for 2 or 3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

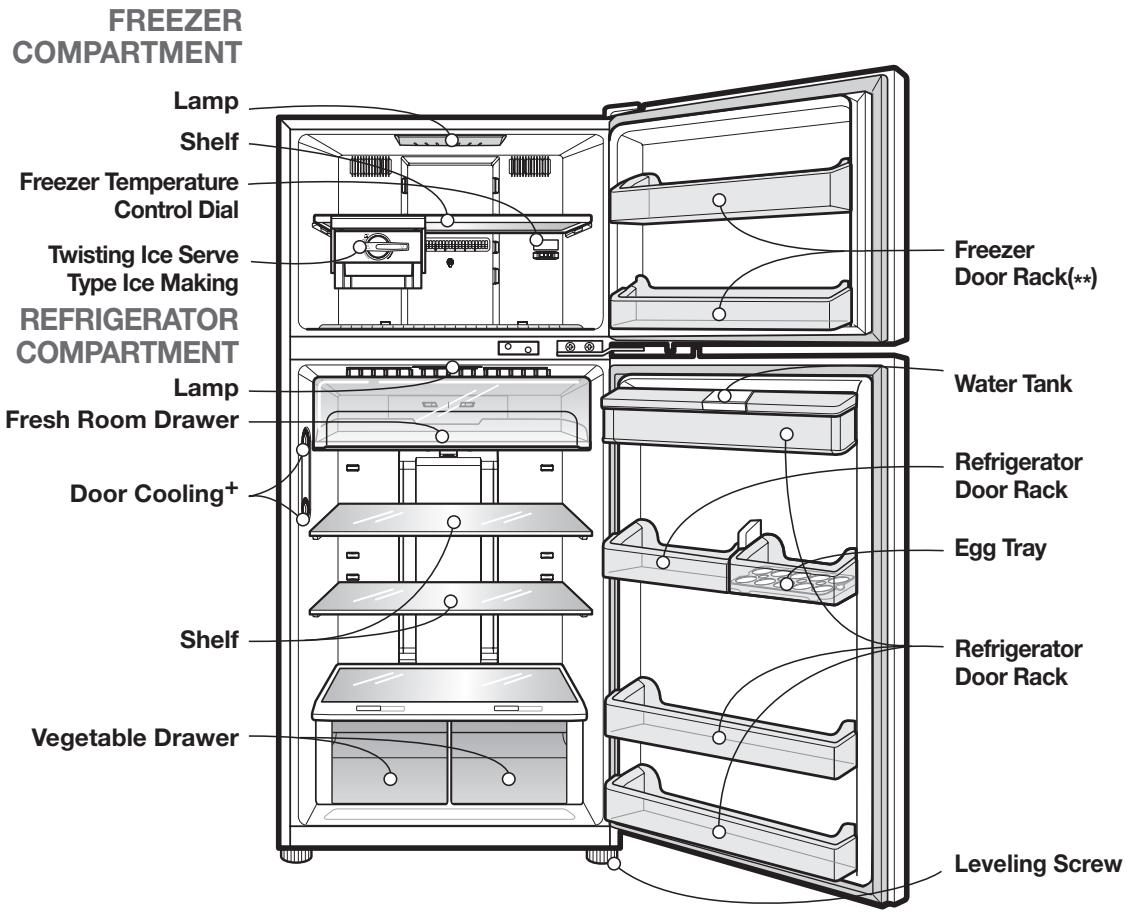

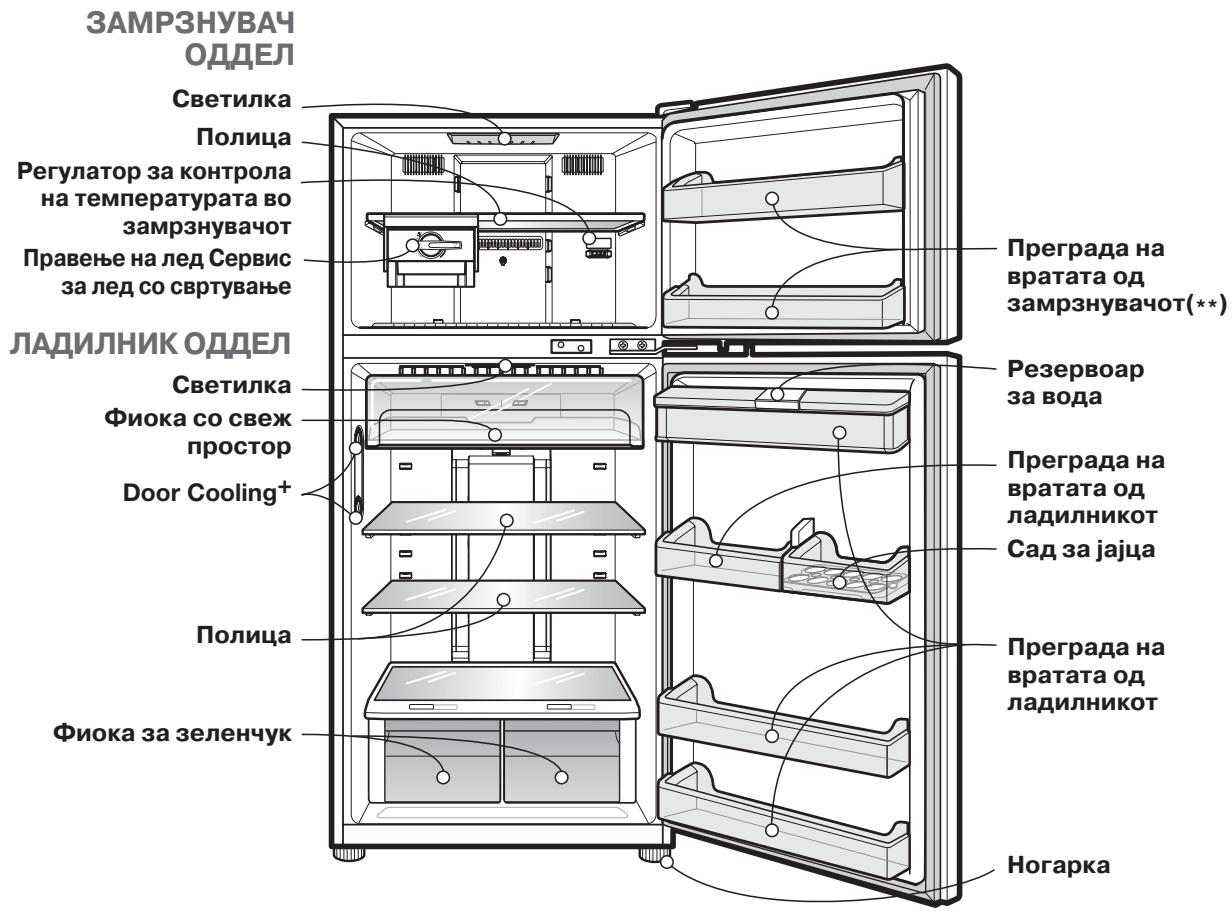

INNER PARTS
- This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
- Keeping the inner parts such as racks, drawers, and shelves in the positions supplied by the manufacturer is the most efficient usage for energy saving.
SUGGESTION FOR ENERGY SAVING
- Please do not keep the door open for a long time; close the door as soon as possible.
- It is not advisable to put too much food in. Leave enough space for cool air to circulate freely.
- Do not set the refrigerator temperature lower than necessary. Do not place food near the temperature sensor.
- Allow hot food to cool before storing it. Placing hot food in the fridge-freezer could spoil other food and lead to higher electricity bills.
- Do not block air vents with food. Smooth circulation of cold air keeps the fridge-freezer temperature even.
- Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer and cause the temperature to rise.
OPERATIONS
STARTING
When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures before filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
BEFORE SETTING THE TEMPERATURE
- The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings (the controls for the refrigerator and freezer compartments) not be changed unless necessary.
- This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
- The default setting of the temperature control button for the refrigerator compartment is 3°C.
- The default setting of the temperature control dial for the freezer compartment is '5'.
- This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.
DOOR ALARM
When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times. If the door remains open, the alarm will repeat every 30 seconds.
SELF TEST
- Your refrigerator contains a built-in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
- If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

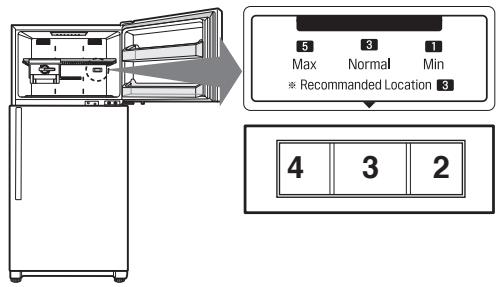

CONTROLS FOR REFRIGERATOR COMPARTMENT
- Press the 'Fridge' button to control the fridge temperature.
- You can select the desired setting from seven steps, from '0°C' to '6°C'.
- The number shown on the LED display indicates the temperature of the refrigerator compartment.
- Whenever you press the button, the LED emits light.
OPERATIONS
EXPRESS FREEZE
- The Express Freeze feature operates when the refrigerator is first turned on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.
- If warm food is placed into the refrigerator, Express Freeze can be started with the button on the control panel. Express Freeze will shut off when the temperature reaches the proper level, or it can be shut off manually by pressing the Express Freeze button.
LOCK
- LOCK
Press and hold the Lock button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate.
To unlock, press and hold the Lock button for 3 seconds again.
Wi-Fi
This sets the refrigerator to connect to your home's Wi-Fi network.

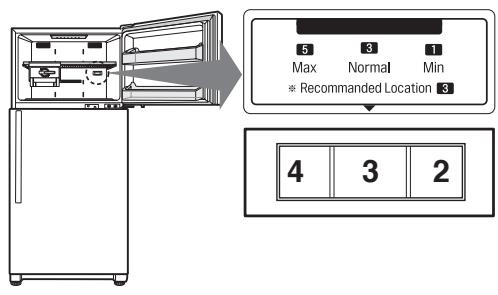

CONTROLS FOR FREEZER COMPARTMENT

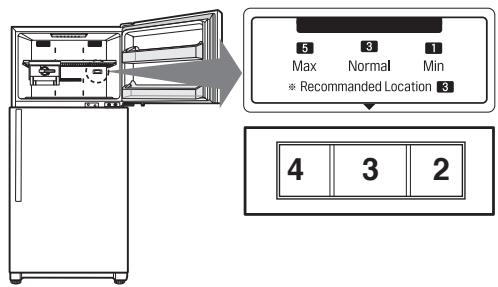

- To lower the temperature in the freezer, turn the knob right and set to a higher number. To raise the temperature in the freezer, turn the knob left and set to a smaller number.
- Over freezing at levels 6 to 8 is a function that maintains a low temperature in the freezer. However, the refrigerator's cooling speed will be slowed down. Once using levels 6 to 8, return the knob to the recommended position in normal time.
OPERATIONS
ICE MAKING
Twisting Ice Serve Type
- To make ice cubes, fill the ice tray with potable water and insert it in its position.
Ice Trays Ice Cube Box
- To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop into the ice cube box.
NOTE

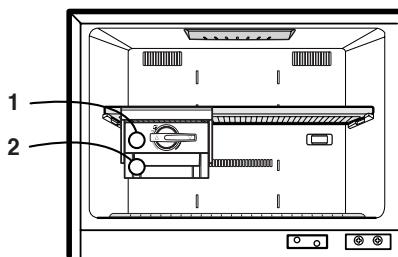

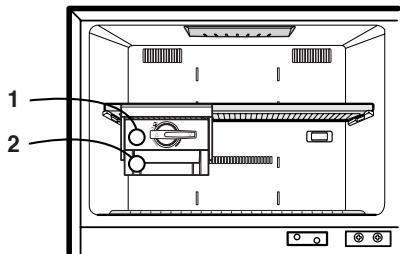

You can disassemble the Ice Maker to secure space in the freezer.

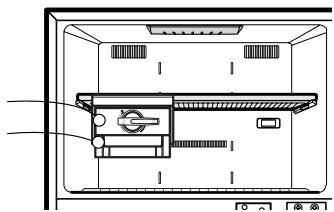

- Twisting Ice Serve Type: Remove 1 and 2.
- Ice Tray
- Ice Cube Box.
WARNING
- Do not use anything other than water.
- Fill the water up to the marked line.
FRESH ROOM DRAWER
How to use
- Fresh Printer keeps the compartment colder than refrigerator.
- It is a convenient place to store sandwiches or meats to be cooked.
- Do not store food with high moisture content.
VEGETABLE DRAWER
How to use

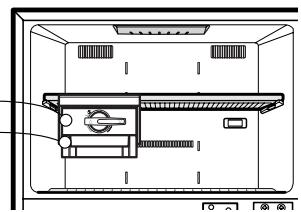

- The vegetable drawer can be used by controlling the knob.
- Check the position of the knob before storing food.
- Do not set the knob to the middle position.
OPERATIONS
WATER DISPENSER
- Fill the water tank only after it is properly in place. Always remove the water tank for cleaning or when not in use.
- If the water tank is not in place after filling, water may leak out through the valve.

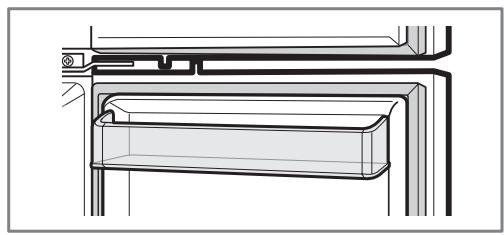

- Filling the water tank

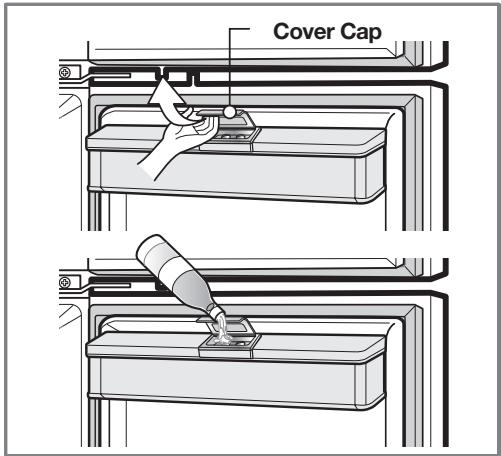

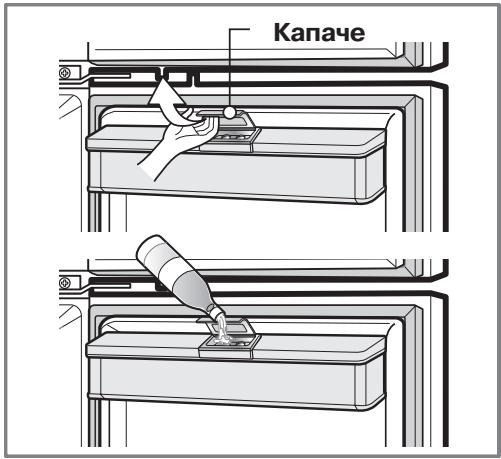

- Open the cover cap and pour water into the water tank.
- Close the cover cap.

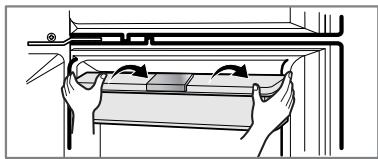

- If you need more space, you can use the upper basket after removing the water tank cover. The marked capacity of the inner case is the usable volume when the water tank cover is removed.
CAUTION
Do not use anything other than water. Hot water must be cooled before being poured into the water tank.
- Drinking

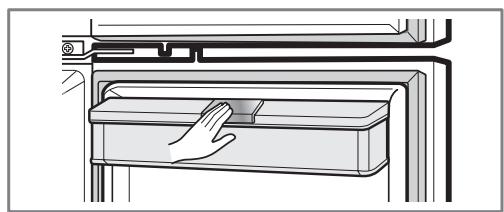

- Press the dispenser pad with cup.
- The water is released when the dispenser pad is pressed. The pad returns to its original position when the cup is removed and the water stops its flow.
SUGGESTIONS ON FOOD STORAGE
STORING FOOD
- Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
- Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
- Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
- When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
- Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
- Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
FREEZER COMPARTMENT
- Do not store bottles in the freezer compartment - they may break when frozen.
- Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
- When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack

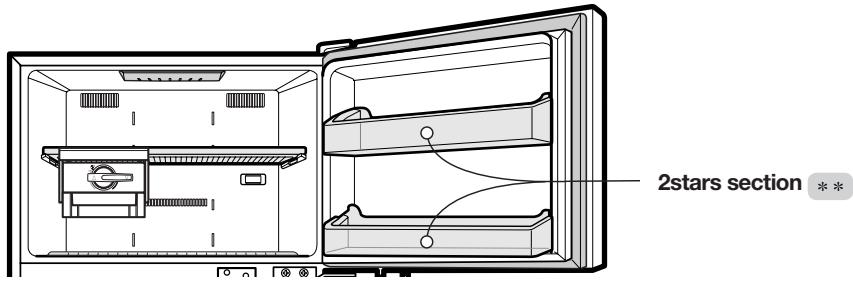

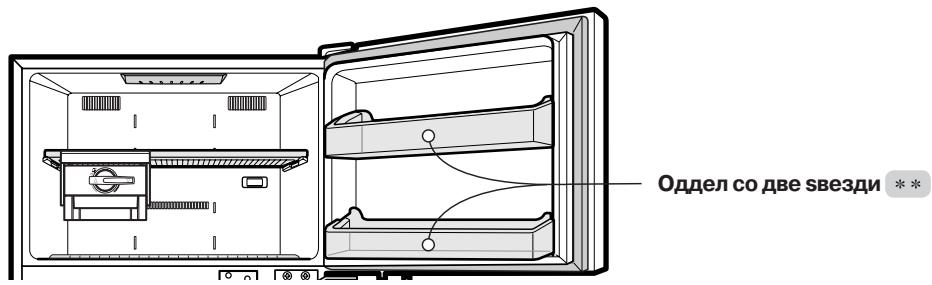

- Two stars section **
- Two stars section means the space stored at -12°C to -18°C.
- Freezer foods for short-term storage.
REFRIGERATOR COMPARTMENT

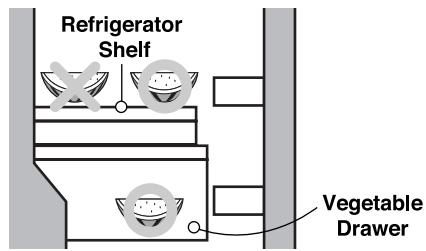

- Avoid placing moist food on deep interior refrigerator shelves, as it could freeze upon direct contact with chilled air. To avoid this, it is better to store food in a covered container.
- It is desirable to store moist food (especially vegetables and fruits) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating air.
- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
- When storing eggs in their storage rack, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.
CLEANING
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, or strong alkaline solutions on any surface.
Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.
EXTERIOR - Use a lukewarm solution of mild soap or dishwashing liquid to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dishwashing liquid to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals, etc. Use a lukewarm solution of mild soap or dishwashing liquid to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
WARNING
Always remove the power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.
- Caution for Cleaning Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
- Usable Detergent: Vegetable dishwashing liquid, Soapy water.
- When used carelessly, it can cause a color change.
CLEANING
WATER DISPENSER
Grille -
Wipe with a wet cloth, and dry with a dry cloth.
Water Tank -

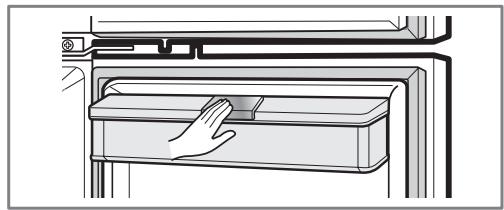

- Putting the Water
It is not necessary to remove the water tank in order to supply it.

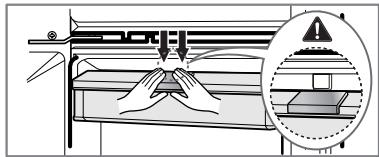

NOTE
- Before closing the door, close the cap and clamp tightly.
- Do not use liquids containing sugar or carbonated drinks like soda.

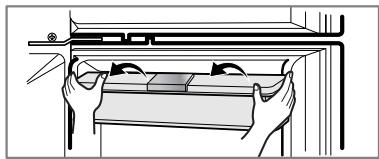

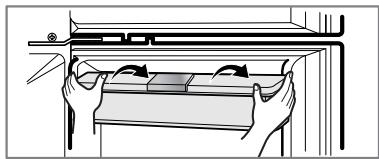

- Disassembly
Lift the water tank, gripping a side and bottom of the water tank.
NOTE
When disassembling the water tank, use all the water inside the dispenser first.

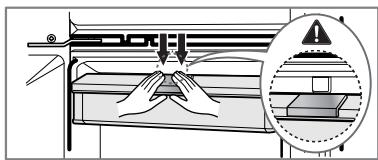

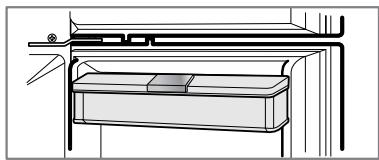

- Assembly
If for some reason the water tank is removed, place it again in its original position. Verify that the valve assembly is correctly in the hole of the door. Once assembled, push down and check the tank position with the line.

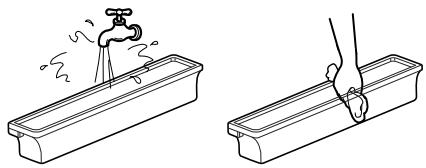

Water Tank -
- Remove the tank cover.
- Clean the inside and outside of the water tank with dishwashing detergent and rinse thoroughly under running water. Dry the water with a cloth.
- Clean the inside and outside of the cover cap with dishwashing detergent and rinse thoroughly under running water. Dry the water with a cloth.
CAUTION
Use lukewarm water when cleaning.
Do not use anything other than water. If it is used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.
SMART DIAGNOSIS (Only for applied models)
Smart diagnosis function is...
Use the function to contact the service center and receive precise diagnosis when the refrigerator malfunctions or fails. Use it only to connect to the consultant and do not use it in normal times.
How to use the function
- Close all refrigerator doors, and press and hold display lock button to make it locked state.
If the display is already in locked state, press and hold lock button to reset the lock and press and hold the lock button again to make it locked state.
CAUTION
If it passes 5 minutes in locked state, smart diagnosis function will not be activated, so be careful.
- Press and hold fridge temperature button for 3 seconds or longer.
(All display screens will be turned off, and in a while, 3 will be displayed on the fridge temperature display part.)
- Open all refrigerator compartment and freezer compartment doors, and place the telephone near the speaker hole at the top right side.
Check if the speaking side(microphone) of the telephone is toward the speaker hole.
- Do not take away the telephone while data is being transmitted.
During the data transmission for smart diagnosis, wait with the telephone placed near the speaker hole at the top right side. The remaining time for data transmission is displayed on the display screen.
CAUTION
The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.
- After the completion of the data transmission, listen to the explanation of the consultant about the result of the smart diagnosis.
When the data transmission is completed, along with the display of the data transmission completion, the refrigerator will be automatically turned off and on a few seconds later.
Listen to the explanation of the consultant about the result of the analyzed diagnosis and follow the instructions.
Be aware!
- Difference of the regional call qualities may have influence on the function. If you use home phone, better communication performance will enable much better service.
- Smart diagnosis data transmission may not be fluent due to call quality problem, and in such case, smart diagnosis service may be difficult.
SMART FUNCTIONS
Using Smart ThinQ Application
Installing Smart ThinQ
Search for the LG Smart ThinQ application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application.
Wi-Fi Function
For appliances with the Smart ThinQ or logo
Communicate with the appliance from a smart phone using the convenient smart features.
Firmware Update
Keep the appliance performance updated.
Smart Diagnosis™
If you use the Smart Diagnosis function, you will be provided with the useful information such as a correct way of using the appliance based on the pattern of use.
Settings
Allows you to set various options on the refrigerator and in the application.
NOTE
- To verify the Wi-Fi connection, check that the Wi-Fi icon on the control panel is lit.
- LG Smart ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
- The machine supports 2.4 GHz Wi-Fi networks only.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
- The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
- The network connection may not work properly depending on the internet service provider.
- The surrounding wireless environment can make the wireless network service run slowly.
- The application is subject to change for appliance improvement purposes without notice to users.
- Functions may vary by model.
Wireless LAN Module Specifications
| Model | LCW-004 |
| Frequency Range | 2412 to 2472 MHz |
| Output Power(Max) | IEEE 802.11b:17.82 dBm
IEEE 802.11g:17.72 dBm
IEEE 802.11n:16.61 dBm |
Wireless function S/W version : V 1.0
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
Hereby, LG Electronics declares that the radio equipment type Refrigerator is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www-lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
SMART FUNCTIONS
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
Smart Diagnosis™ Using a Smart Phone
- For appliances with the + or + logo Use this function if you need an accurate diagnosis by an LG Electronics customer information centre when the appliance malfunctions or fails. Smart Diagnosis™ can not be activated unless the appliance is connected to power. If the appliance is unable to turn on, then troubleshooting must be done without using Smart Diagnosis™.
VACATION TIME
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
POWER FAILURE
Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
IF YOU MOVE
Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screw(s), turn them all the way into the base.
ANTI-CONDENSATION PIPE
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.
Don't be alarmed. This is due to the anticondensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.
CAUTION
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.
NOTE: Moving the control to the OFF position does not remove power to the light circuit.
WARNING
DO NOT USE AN EXTENSION CORD
If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.
ACCESSIBILITY OF SUPPLY PLUG
The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.
ABOUT GROUNDING (EARTHING)
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.
DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.
It will cause electric shock or fire.
An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.
This appliance must be grounded (earthed).
DON'T WAIT! DO IT NOW!
Do not store inflammable materials, explosives or chemicals in the refrigerator.
Disposal of the old appliance
This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.
LED interior lighting failure.
The fridge compartment lamp is LED interior lighting, and service should be performed by a qualified technician.
BEFORE CALLING FOR SERVICE
SERVICE CALLS CAN OFTEN BE AVOIDED!
IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :
| PROBLEM | POSSIBLE CAUSES |
| REFRIGERATOR DOES NOT OPERATE | • Has a house fuse blown or circuit breaker tripped?
• Has the power cord plug been removed or loosened from the electrical wall outlet? |
| REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM | • Temperature control not set on proper position.
• Appliance is placed close to wall or heat source.
• Warm weather-frequent door openings.
• Door left open for a long time.
• Large amount of foods are kept in the refrigerator. |
| ABNORMAL NOISE(S) | • Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.
• Unnecessary objects placed in the back side of the refrigerator. |
| REFRIGERATOR HAS ODDOR | • Foods with strong odors should be tightly covered or wrapped.
• Interior needs cleaning. |
| DEW FORMS ON THE CINET SURFACE | • Not unusual during periods of high humidity.
• Door may have been left ajar. |
Disposal of your old appliance
- This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
- Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
- You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling
USER MANUAL
REFRIGERATOR-
FREEZER
P/No.:MFL68324343_Rev.00
I have reconnected the power cord.
LG Electronics European Shared Service Centre
B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
Anti-Condensation Hose
WARNING
P/No.:MFL68324343_Rev.00
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
P/No.:MFL68324343_Rev.00
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
INDEX
INFORMATION 3
INSTALLATION 14
INTERNAL PARTS 16
FUNCTIONS 17
Start-up
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
SMART FUNCTIONS
FRIDGE MAINTENANCE
QUICK FREEZE
LOCK
WIRELESS CONNECTION
FRIDGE TEMPERATURE CONTROL
ICE PREPARATION
Hokov, to vepo n naot aon ouvdo
XpnooioeTo submerged yyeio afo npwTa to eAeyEeT.
FRIDGE MAINTENANCE
- Press the 'Fridge' button to check the fridge temperature. You can set the desired temperature, from 0°C to 6°C. The set temperature is displayed on the LED display. Each time the button is pressed, the LED indicator lights up.
OPERATIONS
QUICK FREEZE
The Quick Freeze function operates when the freezer is set for fast freezing. The compressor and circulation fan operate at maximum capacity to quickly lower the temperature of the freezer. It deactivates automatically.
If this is set on the appliance, you can activate the Quick Freeze function using the button on the control panel. The Quick Freeze function deactivates when the temperature reaches the set level, or it can be deactivated manually by pressing the Express Freeze (Quick Freeze) button again.
LOCK
LOCK
Press and hold the Lock button for 3 seconds to activate the Lock function. When locked, the Lock LED will illuminate and the other buttons will not operate. To unlock, press and hold the Lock button again for 3 seconds.
WIRELESS CONNECTION
This function provides the ability to connect the appliance to the home wireless network.
CONTROL PANEL QUICK FREEZE
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
ENERGY EFFICIENCY
EASY ACCESS TO THE POWER PLUG
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
FUNCTIONS SMART
Never leave candles or incense burning.
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
SMART FUNCTIONS
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
SMART FUNCTIONS
To obtain the source code under GPL, LGPL, MPL, and other open source licenses that this product contains, please visit http://opensource.ige.com.
P/No.:MFL68324343_Rev.00
Copyright ©2017 LG Electronics Inc. All rights reserved.
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION
INSTALLATION 3
INSTALLATION 14
PARTS AND FEATURES 16
OPERATION 17
BASIC SAFETY MEASURES
This manual contains important safety instructions. Read and follow the safety instructions.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill you or others or cause damage to the equipment. The safety instructions are preceded by the safety alert symbol and the word "DANGER" or "WARNING". These words mean:
DANGER
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
The safety instructions describe the hazard, tell you how to reduce the risk of injury, and what will happen if the instructions are not followed.
IMPORTANT SAFETY INFORMATION
DANGER
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic safety precautions, including the following. Read all instructions before using this appliance.
Do not twist or pinch the cord or plug it into a wet outlet.
This can cause
electric shock or injury.
Check the grounding.
Improper grounding
may cause accidents
and electric shock.
Do not perform grounding yourself; contact a qualified electrician for connection to the mains.
When using the appliance, it must be grounded.
This may cause a fire.
Disconnect the appliance from the contact when cleaning, repairing, or replacing the interior light bulb of the refrigerator.
This may cause electric shock or injury. - When replacing the interior light bulb of the refrigerator, make sure the appliance is disconnected from the power supply.
the power
electric sparks
in the local area are not
removed.
Remove water or dust from the plug before connecting it, and ensure the plug is fully inserted into the socket.
Water or moisture may cause a fire
or electric shock.
Never use the device if the power cord or plug is damaged, or if the plug is loose in the outlet.
This could cause a fire.
This could cause damage to the refrigerator.
If the power cord or plug is damaged, or if the plug is loose in the outlet, do not use it.
This could cause an electric shock or short circuit, which could lead to a fire.
Make sure the appliance is properly grounded.
Do not ground it to a gas pipe, plastic water pipe, or telephone cable.
If the grounding contacts in the wall outlet are not present, ground it separately to a foundation earth electrode.
IMPORTANT SAFETY INFORMATION
Do not allow children to play on or around the appliance.
Do not place flower vases, cups, cosmetics, medicines, or containers with water on top of the refrigerator.
This could cause a fire, electric shock, or damage to the appliance.
Do not use or store flammable materials such as ether, benzene, alcohol, medicines, liquefied gas, sprays, or cosmetics near or inside the refrigerator.
This could cause an explosion or fire.
Do not store medicines or laboratory materials in the refrigerator.
Install the appliance in a place away from heat sources, e.g., places with hot gas.
This may cause a fire.
Use a cloth that has been soaked in water, after you have unplugged it.
This may cause an electric shock or fire.
Do not spray water on the appliance while it is on or plugged in, and do not clean it with benzene or solvents.
Damaged insulation of electrical parts may cause an electric shock or fire.
Do not store flammable substances such as aerosols or containers with flammable gas in the appliance.
Do not allow anyone other than qualified technical personnel to disassemble, repair, or modify the appliance.
This may cause injury, electric shock, or fire.
When you dispose of the appliance, remove the doors to prevent children from getting trapped.
This may cause suffocation.
IMPORTANT SAFETY INFORMATION
Do not use an adapter.
Never leave lit candles or aromatic substances on top of
the appliance, as they may cause fire or damage to the product.
Failure to follow this instruction may cause damage or injury to the home or furniture. Please be careful.
Do not place food or liquids in the freezer with wet hands.
This may cause injury from freezing.
Do not place bottles in the freezer.
This may cause freezing of
the contents and cracking of the bottle, which may cause injury.
Carry the appliance by the front and rear bottom edges.
When you lift it, it should not be carried by one person alone, because
this may cause injury or damage.
IMPORTANT SAFETY INFORMATION
Do not store food in disarray in the appliance.
Do not place wet items in the appliance.
The metal surface of the appliance may cause injury.
When opening or closing the doors or the small drawer of the appliance, people nearby may be injured, please be careful.
The appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
It is not intended for industrial use.
Do not place explosive substances such as aerosol cans with a flammable propellant in this appliance.
Do not use any electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Do not use steam cleaners to clean the appliance.
Do not use sharp objects to remove ice from the evaporator. They may damage it.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Replace the supply cord.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
IMPORTANT SAFETY INSTRUCTIONS
Do not place the appliance on a surface that is not stable. The appliance may tip over and cause injury.
Do not place the appliance near heat sources.
Do not use gas appliances near the appliance.
Do not store flammable gas or liquids in the appliance.
WARNING: Check the water supply.
Use only drinking water. Do not use any other water. If used for non-alcoholic drinks, pour the water into the reservoir and let it run for three to four minutes or until one liter has flowed through.
SMART DIAGNOSIS (only on certain models)
The Smart diagnosis function is...
Use this function to contact the service center and get a diagnosis when the refrigerator is not working normally or is damaged. Use it only to contact a consultant, not during normal operation of the refrigerator.
How to use the function
- Close all refrigerator doors, press and hold the lock button on the display to lock it.
If the display is already locked, press and hold the lock button to unlock it, then press and hold the lock button again to lock it.
WARNING
If it remains in the locked state for 5 minutes, the smart diagnosis function will activate, so be careful.
- Press and hold the refrigerator temperature button for at least 3 seconds. (All other displays will turn off and the refrigerator temperature display will show 3).
- Open all refrigerator and freezer doors and place the phone close to the opening for the high speaker.
Make sure the phone's microphone is facing the high speaker opening.
- Do not move the phone while data is being transmitted.
At the time of sending data for remote diagnosis, the phone should be close to the speaker opening. The remaining time for data transmission is displayed on the screen.
WARNING
The sound during data transmission may be different. Do not hang up the phone until you hear the sound for remote diagnosis.
5. After the data transmission is complete, listen to the consultant's explanation of the results of the remote diagnosis.
When the data transmission is finished, the display for the end of data transmission, as well as the screen, will turn off automatically and will turn on after a few seconds.
Listen to the consultant's instructions for the results of the analyzed diagnosis and follow the instructions.
You have exceeded the limit!
Differences in the quality of the connection may affect the function. If you use a home phone, better connection quality will allow better service. Data transmission for remote diagnosis may not be smooth if there are problems with connection quality, and in such a case, the remote diagnosis service may be delayed.
SMART FUNCTIONS
If you use the Smart Diagnosis function, you will receive useful information, such as instructions for using the appliance based on the model of use.
Settings
Provides the ability to set various options for the appliance in the application.
SAFETY
- To connect the Wi-Fi connection, visit the Wi-Fi connection menu on the appliance's screen. LG Smart ThinQ is not responsible for connection problems or for damage, malfunctions, or interruptions caused by the internet connection.
- The appliance supports only 2.4 GHz Wi-Fi.
- If you have difficulty connecting to the Wi-Fi network, you may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength. The Wi-Fi connection may not be established or may be interrupted due to the environment in which the home network is located.
- The Wi-Fi connection may not work properly due to internet delivery.
- The wireless security system may cause delays in the security network.
- The product is subject to change without prior notice. Functions may differ depending on the model.
Specifications of the security camera
| Моden | LCW-004 |
| Оьхват на чебота | 2412 до 2472 MHz |
| Output Power(Max) | IEEE 802.11b:17.82 dBm
IEEE 802.11g:17.72 dBm
IEEE 802.11n:16.61 dBm |
Wireless function S/W version: V 1.0
For safety reasons, this device must be installed and operated at a minimum distance of 20 cm between it and the body.
EU Declaration of Conformity
Hereby, LG Electronics declares that this refrigerator with radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www-lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
INTELLIGENT FUNCTIONS
Information about open source software
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, included in this product, please visit http://opensource.lge.com.
In addition to the source code, all relevant license terms, warranty disclaimers, and copyright notices are available for download.
LG Electronics will also provide open source code on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date of purchase of the product by you.
Smart Diagnosis™ using a smartphone
For troubleshooting and diagnosis
Use this function if you need remote diagnosis by the LG Electronics customer service center for information or troubleshooting, in case of malfunction.
On the "Diagnosis" screen.
Anti-condensation tray
WARNING
Risk of electric shock
Before replacing the lamp, unplug the refrigerator from the outlet, or turn off the power at the circuit breaker or fuse box.
CAUTION: Turning the thermostat to the OFF (off) position does not disconnect the power to the lamp.
CAUTION
DO NOT USE EXTENSION CORDS
If possible, connect the appliance to its own electrical contact, to prevent it and other household appliances from causing a lighting surge that could lead to electrical damage, and from there to the protection of the grounding.
GROUNDING INSTRUCTIONS
The refrigerator-freezer must be placed so that the grounding plug is at an accessible location, so that it can be easily unplugged in case of an emergency.
REGARDING GROUNDING
In case of a short circuit, grounding reduces the risk of electric shock by providing a path for the electric current to escape.
To prevent a possible electric shock, this household appliance must be grounded.
Improper use of the grounding plug can lead to electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if you have doubts about whether the appliance is properly grounded.
Do not modify or extend
If you find that the refrigerator is not working properly, first check the following possibilities:
P/No.:MFL68324343_Rev.00
Copyright © 2017 LG Electronics Inc. All rights reserved.
CONTENTS
INSTALLATION 14
INTERIOR PARTS 16
FUNCTIONS 17
Start
Adjust the temperature
Door alarm
Self-test
Commands for the cooling compartment
Express Freeze
Lock
Wi-Fi
Temperature regulator for the freezer compartment
Making ice cubes
LG Electronics European Shared Service Centre
B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
It could lead to the device being locked.
IMPORTANT SAFETY INSTRUCTIONS
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
ACCESSIBILITY OF THE SOCKET
P/No.:MFL68324343_Rev.00
Copyright © 2017 LG Electronics Inc. All rights reserved.
TABLE OF CONTENTS
INSTALLATION 14
TABLE OF CONTENTS 16
OPERATING FUNCTIONS 17
Starting
Before setting the temperature
Door alarm
Automatic check
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
P/No.:MFL68324343_Rev.00
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
SAFETY INFORMATION 3
SUPPLY 14
INTERNAL BUSINESS 16
WORK PROCESS 17
STARTING
FIRST USE AND TEMPERATURE SETTING
DOOR ALARM
AUTO TEST
CONTROL ELEMENTS FOR THE FREEZER COMPARTMENT
Express freeze
Lock
Wi-Fi
CONTROL ELEMENTS FOR THE REFRIGERATOR COMPARTMENT
COMPARISON
STORAGE WITH FRESH FOOD
Figure 3 for green
Dispenser alarm
ADVICE FOR USERS 21
SYSTEM 22
SMART DIAGNOSIS 24
FUNCTIONS 25
OPTIONAL INFORMATION 25
AND PREVENTIVE MAINTENANCE 26
BEFORE CALLING SERVICE 27
IMPORTANT INFORMATION
A PRECAUTIONS
A Ensure that the ventilation openings in the appliance enclosure or in the built-in structure are unobstructed. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The refrigerant isobutane (R600a) is a natural gas with high environmental compatibility, but it is also flammable. When transporting or installing the appliance, ensure that no parts of the refrigerant circuit are damaged. If the refrigerant circuit is damaged, avoid open flames and sources of ignition, and ventilate the room where the appliance is located for a few minutes.
This appliance contains the refrigerant isobutane (R600a), a natural gas with high environmental compatibility, but it is also
flammable. When transporting or installing the appliance, ensure that no parts of the refrigerant circuit are damaged.
The refrigerant circuit may leak from the pipes and cause damage to the appliance. If you notice a leak, avoid any open flames or sources of ignition and ventilate the room where the appliance is located for a few minutes.
When starting the device, ensure that the room is well ventilated. The room must be at least 1 m² in area for each 8 g of refrigerant used inside the room. The amount of refrigerant in the device is indicated on the nameplate inside the room.
Never start the device if it shows any signs of damage. If you have any doubts, consult your distributor.
IMPORTANT SAFETY INFORMATION
BASIC SAFETY MEASURES FOR THE APPLIANCE
This appliance contains many important safety instructions. Always read and follow all safety instructions.
This is the safety alert symbol. It alerts you to potential hazards that can kill or hurt you and others or cause damage to the product. Safety instructions will be preceded by the safety alert symbol and the words WARNING or CAUTION. These words mean:
WARNING
The electric spark of the igniter is not discharged.
Remove water or dust from the gas pipe and ensure the hose is securely connected.
Ground, unstable connection
Possible
Can cause
electric shock.
Wait 5 minutes and then
reconnect the gas pipe.
It may not work or may freeze.
Do not use the electric cable or plug if the plug is damaged or if the socket is loose.
Do not allow children to play with the product.
It may endanger the life of the child if the child enters the refrigerator.
Strong opening or closing of the refrigerator door may cause damage to the shelves, food in the refrigerator, or the door itself, so please be careful.
Do not place the freezer in a damp place or in a place where water may splash on it.
The insulation of
the electrical parts may cause electric shock.
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Do not hang on the doors or the handles of the doors or the freezer compartment.
The refrigerator may fall and injure your hands.
In particular, do not allow children to play with the refrigerator.
Do not place glass bottles, cans, cosmetics, medicines, or food in water on
the refrigerator.
May cause fire, electric shock, or explosion.
Do not use or store flammable materials such as ether, benzene, alcohol, solvents, liquid petroleum gas, or sprays near the appliance.
May cause explosion or fire.
Do not place the appliance on flammable materials.
When the material is heated with temperature control, it may ignite or cause
an unexpected reaction and pose a risk of blockage.
Do not use the appliance in damp conditions; always remove any moisture before use.
May cause explosion or fire.
Do not use sprays near the appliance.
May cause fire.
In case of malfunction or damage, or if the appliance is not used for a long time, unplug
the plug. There is a risk of electric shock or fire.
IMPORTANT SAFETY INFORMATION
2. When using the appliance
If gas leaks, do not touch the appliance or the plug, and ventilate the room immediately.
- An explosion with a spark can cause a fire or burns. Since this appliance uses a flammable refrigerant (isobutane, R600a) as an environmentally friendly coolant, even a small amount (80~90g) is flammable.
If the gas leaks due to serious damage during testing, during installation or use of the appliance, any
spark can cause a fire or burns.
Place it in a well-ventilated area, away from sources of gas leaks.
Flammable gas.
Do not pour water on the exterior or interior of the appliance, and do not clean it with benzene or thinner.
Damage to the insulation
of electrical parts can cause electric shock or fire.
Do not store explosive materials such as spray cans with flammable gas in this appliance.
Do not allow unqualified technicians to disassemble, repair, or modify the appliance.
Do not place live animals in the appliance.
The arrow
on the thermostat ( ) to
turn on the appliance, in the correct
direction of the arrow ( ) for
INSTALLATION
Follow
- Remove the appliance thoroughly. It is intended for use during operation.
- Place the accessories as shown in the example for the egg tray, and other parts in their respective places. They are stored together to prevent damage during operation.
- If you have a water dispenser handle, install the handle according to the instructions.
- Connect the power cable (or plug) to the socket. Do not use extension cords for this socket.
- Before cleaning, leave the appliance to run for 2 or 3 hours empty. Check the air flow in the freezer compartment to ensure proper operation. Your appliance is now ready for use.
INTERIOR PARTS
ACCESSORIES
- This section covers several different models. The appliance you have may have some of the characteristics shown below. For the most efficient use of electrical energy, follow the placement of the interior parts as shown in the figures.
Energy saving tips
- Do not leave the door open for a long time; close the door as soon as possible.
- It is not recommended to place hot food inside. There should be enough space for proper air circulation. Do not set the temperature of the fridge-freezer lower than necessary. Do not place food near the temperature sensor.
- First, let hot food cool down before storing. Placing hot food in the fridge-freezer may spoil other food and lead to high electricity bills. Do not block the air vents with food. Proper air circulation maintains the temperature in the fridge-freezer evenly.
- Open the doors slowly. By opening the doors, warm air enters the freezer and the temperature display may change.
OPERATING PROCESS
STARTING
When you first start the appliance, leave it for 2-3 hours to stabilize at normal operating temperatures before filling it with fresh food for freezing. If the operating process is interrupted, wait 5 minutes before turning it on again.
BEFORE ADJUSTING THE TEMPERATURE
- The temperature in the appliance is maintained constant without changes in the ambient temperature. It is recommended that once the temperature is set, the temperature adjustment (control elements for the appliance and freezer) should not be changed unless necessary.
- This appliance has one temperature control for the appliance compartment and one regulator for temperature control in the freezer compartment.
- The standard setting for the temperature control for the appliance compartment is '3°C'.
- The standard setting for the temperature control regulator for the freezer compartment is '5'.
- This appliance has a temperature sensor in the appliance compartment. It will turn the compressor on and off automatically if needed.
DOOR ALARM
If the door of the appliance or freezer is open for 1 minute, the alarm will sound three times. If the door remains open, the alarm will repeat every 30 seconds.
SELF-TEST
Your appliance has a self-diagnostic capability. If a defect occurs in the electronics, it will show an error code to help the technician with the repair. The error code is displayed instead of other control functions and the normal display does not work. - If an error code is displayed, contact the service center. Do not disconnect the power plug from the socket.
CONTROL ELEMENTS FOR APPLIANCE COMPARTMENT
- Press the 'Fridge' button to control the temperature in the refrigerator.
- You can select the temperature for the refrigerator compartment, from '0 °C' to '6°C'.
- The number shown on the LED display will indicate the temperature of the refrigerator compartment.
- Each time you press the button, the LED light will turn on.
OPERATING INSTRUCTIONS
EXPRESS FREEZE
The Express Freeze function works when the freezer is initially turned on. The compressor and the circulation fan operate at maximum capacity to quickly lower the temperature in the freezer. It turns off automatically.
- If warm food is placed in the freezer, Express Freeze can be activated with the button on the control panel. Express Freeze will turn off when the temperature reaches the appropriate level, or it can be turned off earlier by pressing the Express Freeze button again.
LOCK
- LOCK
Press and hold the Lock button for 3 seconds to activate the child lock. When locked, the LED light for the lock will be on and the other buttons will not work. To unlock, press and hold the Lock button again for 3 seconds.
Wi-Fi
With this function, the connection to your home Wi-Fi network is established.
CONTROL ELEMENTS FOR THE FREEZER COMPARTMENT
To lower the freezer temperature, press the button to the right and select a higher number. To raise the freezer temperature, press the button to the left and select a lower number. The freezer temperature setting is a function that adjusts the freezer temperature. However, the cooling speed in the freezer will be reduced. After using the setting, return the button to the recommended position in normal time.
Service for ice with curling
For proper ice cream, fill the ice cream container with water and place it in its place.
Basket for ice cubes for ice cream
To remove the ice cubes, press the button on the basket and lift it to release the cubes.
Then, the cubes will fall into the basket.
WARNING
You can disassemble the ice maker if you want to get more space in the freezer.
Ice service with curling: remove parts 1 and 2
- Ice cream container
- Basket for ice cubes
PRECAUTION
Do not use anything other than water. - Fill the water to the indicated line.
FREEZER WITH ALL ACCESSORIES
- The drawer for fresh vegetables and fruits keeps the humidity according to the setting. - This is the only place for storing vegetables and meat for cooking. Do not store food that has a lot of moisture in it.
DRAWER FOR VEGETABLES
How to use
- The drawer for vegetables can be used through the humidity control.
- Check the humidity setting of the drawer.
- Do not place the drawer at the highest setting.
OPERATING INSTRUCTIONS
WATER DISPENSER
- Put water in the water reservoir after it is placed in position. If necessary, remove the water reservoir to empty it or to not use it.
- When the water reservoir is not in place, water may leak if the valve is pressed.
Filling the water reservoir with water
- Open the cap and put water in the water reservoir.
2. Close the cap.
- You can use the top shelf after removing the cap of the water reservoir, if you want to have more space. The marked internal capacity represents the usable volume when the cap of the water reservoir is removed.
There is nothing else to add. The water must be poured before it is placed in the water reservoir.
1. Press the dispenser lever with a cup. 2. Water flows out while the dispenser lever is pressed. The lever returns to its original position when the cup is removed and the water stops flowing.
TIPS FOR STORING FOOD
FOOD STORAGE
- Store fresh food in the refrigerator compartment. How you freeze and thaw food is an important factor in maintaining its freshness and taste. Do not store food that spoils easily at room temperature, such as bananas, pineapples, and cucumbers.
- Allow hot food to cool before storing it. Placing hot food in the refrigerator can raise the temperature and lead to increased energy consumption!
- When storing food, cover it with plastic wrap or place it in sealed containers. This prevents moisture loss and helps food retain its original taste and nutritional value. Do not block the air vents with food. Proper air circulation maintains even temperatures in the refrigerator. Do not open the door frequently. Opening the door lets warm air into the refrigerator, causing temperature fluctuations.
FREEZER COMPARTMENT
Do not store carbonated drinks in the freezer compartment - they may burst when frozen. Do not refreeze thawed food. This causes loss of taste and nutritional value. When storing frozen food like ice cream or frozen vegetables, place them on the freezer shelves, not in the door or near the door. - The freezer compartment is marked with **
- The freezer compartment is designed for storing frozen food at -12°C to -18°C. - Food for freezing should be placed in the freezer for quick freezing.
REFRIGERATOR COMPARTMENT
- Avoid placing wet food on the shelves inside the refrigerator, as it may freeze and come into contact with cold air. To prevent this, it is better to store food in covered containers. It is recommended to store moist food (especially vegetables and fruits) in the vegetable drawer. If you need to store it on the refrigerator shelves, place it near the door, away from the cold air circulating in the refrigerator.
- Always check the food before storing. Vegetables and fruits should be sorted, and stored food should be sorted to prevent spoilage from spreading. When storing eggs in the egg tray, check that they are fresh and always store them in the correct position, which prolongs their freshness.
Important: Always unplug the appliance before cleaning to prevent electric shock. The appliance should be cleaned with a soft cloth and mild detergent, and the plastic surfaces should be wiped dry if allowed to become stained.
Never use metal scrapers, sharp objects, abrasive cleaning agents, or alkaline solutions on the appliance's painted surfaces.
Before cleaning, unplug the appliance. Note that some cleaning agents may be applied to extremely dirty surfaces. Do not use abrasive cleaners on painted surfaces.
EXTERIOR - Use a mild solution of dishwashing detergent or a solution for final cleaning of your appliance. Wipe with a damp cloth, then dry with a dry cloth.
INTERIOR - It is recommended to regularly clean the interior and interior parts. Use a mild solution of dishwashing detergent or a solution for final cleaning of your appliance. Wipe with a damp cloth, then dry with a dry cloth.
INTERIOR PARTS - Remove them and wash them. Separate, turn, or rotate the shelves for storage and the magnetic door gaskets. Use a mild solution of dishwashing detergent or a solution for final cleaning of your appliance. Wipe with a damp cloth, then dry with a dry cloth.
CLEANING AND CARE
Ground the appliance's power cord before cleaning near electrical parts (lights, switches, control elements, etc.).
Wipe the appliance with a damp cloth to prevent water from entering electrical parts and to avoid electric shock. Do not use flammable or toxic substances for cleaning.
Attention: Do not use for cleaning: active surface agents, wax for cars, anticorrosives, oil-based polishes, benzene, acids, wax. Use a mild detergent solution for cleaning the appliance. Improper use may cause damage to the paint.
CLEANING
WATER DISPENSER
Grid -
Wipe with a damp cloth, then dry with a dry cloth.
Water reservoir -
1. Filling with water
There is no need to fill the water reservoir to the top.
WARNING
-Before opening the door, turn off the tap and unplug the appliance. -Do not use detergents that contain abrasive particles or solvents, such as alcohol.
2. Removing
Empty the water reservoir, tilting it to the side and pouring out the water from the reservoir.
WARNING
When disassembling the water reservoir, first drain the water from the dispenser.
3. Reinstalling
If you have removed the water reservoir for any reason, place it back in its usual position. Check that the ventilation slots are correctly aligned with the opening in the door. Then, when reinstalling, press it firmly and check that the reservoir is in place.
Water reservoir -
1. Remove the cap from the reservoir.
2. Clean the inside and outside of the water reservoir with a detergent for washing dishes, rinsing thoroughly under running water. Dry the water with a cloth.
Maintenance of the appliance's internal parts
Please read the information on the device.
Smart Diagnosis™
If you use the Smart Diagnosis function, you will receive useful information about the correct way to use the device based on the user manual.
Accessories
You can choose different accessories in the application.
NOTE
To improve the Wi-Fi connection, check the Wi-Fi indicator light on the control panel. LG Smart ThinQ is not responsible for any network connection problems or any errors, defects, or failures caused by the network connection. - The machine only supports 2.4 GHz Wi-Fi networks. - If the device has problems connecting to the Wi-Fi network, you can move it away from the router. Place the Wi-Fi router (or access point) to improve the Wi-Fi signal strength. The Wi-Fi connection may not connect or may be interrupted by the home network environment. - The connection speed may not work properly depending on the internet service provider. - The surrounding wireless connection may cause the wireless network service to work slowly. The application is subject to changes without prior notice to users. - The features may vary depending on the model.
Specifications of the LAN module
| Моden | LCW-004 |
| Фразковentен oncer | 2412 до 2472 MHz |
| Излесна мokhoeст (макс.) | IEEE 802.11b:17.82 dBm
IEEE 802.11g:17.72 dBm
IEEE 802.11n:16.61 dBm |
Firmware version: V1.0
For user safety, the device must be installed and operated at a minimum distance of 20 cm between the device and the user's body.
EU Declaration of Conformity
Hereby, LG Electronics declares that the radio equipment type of the refrigerator is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address:
http://www-lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
Information for Open Source Software
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, which is included in this product, please visit http://opensource.lge.com. The source code, available for download, is also provided on the license notice, and is subject to the terms and conditions of the respective licenses.
LG Electronics will also provide you with the open source code on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to: opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
Smart Diagnosis™ using the phone
For appliances with the logo
Use this function if you need accurate diagnosis by the LG Electronics Customer Information Center when the appliance is not working properly or has a defect.
Smart Diagnosis™ cannot be activated if the appliance is not plugged in. If the appliance cannot be turned on, troubleshooting must be done without using Smart Diagnosis™.
POWER FAILURE
REST TIME
During a prolonged power outage, you will probably think it is best to leave the appliance running. Place the food that may spoil in the freezer compartment. If you plan to be absent for a long period, remove all food, unplug the appliance, clean the interior thoroughly, and leave the door open to prevent the formation of mold.
POWER FAILURE
Most power failures are corrected within a short time and should not affect the temperatures of your appliance. However, you should minimize the number of door openings while the power is off. During a power outage of a long duration, place a block of ice on top of your frozen food packages.
INSTRUCTIONS
Read the instructions carefully before using the appliance. To avoid overheating, place the appliance fully on the base.
ANTI-CONDENSATION VALVE
The steam from the appliance may cause the valve to heat up, especially during use and after filling.
Do not touch it. It is a safety valve that releases excess pressure to prevent the valve from overheating.
WARNING
Danger of electric shock
Before replacing the fuse, unplug the appliance, or disconnect it from the mains, or switch off the circuit breaker, or remove the fuse from the plug.
NOTE: THE PLUG OF THE APPLIANCE MUST NOT BE REMOVED FROM THE SOCKET WHILE THE APPLIANCE IS IN USE.
REPAIR
DO NOT USE AN EXTENSION CORD
If possible, connect the appliance to its own dedicated circuit to prevent overloading of the circuit, which could cause a fire or damage to other appliances or lights in the household.
ACCESSIBILITY OF THE FILLING CONNECTION
The appliance must be positioned so that the filling connection is accessible for quick disconnection in case of emergency.
FOR EARTHING
Brief electrical shock, grounding reduces the risk of electric shock by providing a safety path for the electric current.
To prevent electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in electric shock. Consult a qualified electrician or service agent if the grounding instructions are not fully understood or if you doubt that the appliance is properly grounded.
DO NOT MODIFY OR EXTEND THE LENGTH OF THE POWER CORD
It may cause electric shock or fire.
DANGER - RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or freezer: Take off the doors, leave the shelves in place so that children may not easily climb inside. Or, take other measures to ensure that the appliance is safe.
This appliance must be grounded. DO NOT DELAY! DO IT NOW!
Do not store flammable materials, explosives, or chemicals inside the refrigerator.
Disposal of the old appliance
This appliance contains refrigerant (a substance that helps cool) and insulating materials that can be reused or recycled.
These materials must be disposed of at a designated collection point for waste materials and can be reused after recycling. For more information, contact your local waste disposal service.
Failed internal LED lighting.
The light of the refrigerator compartment LED internal lighting, and the service must be performed by a qualified technician.
BEFORE CALLING SERVICE
If the appliance is not working properly, first check the possible causes:
| MOXHN | ПROMИНИЗ 3A ПОНБЛЕМОТ |
| Ладилинокот HE PABOTN | • Далу有很大ибиемно осигуравач BO куksата有很大 се akтувирал.akтувниOT пекинуваOT?
• Далу有很大ибаден有很大 разлобaven CTружниOT кабел od eilektpruchниOT сiodenштеср? |
| TEМпЕРATYPATA BO OДДЕЛOT OД Ладилинокот И 3AMP3НУВАСТЕ ПIPETОПЛА | • КонтrolлNTЕLEMENT 3a TempepaTypa He e CTавен有很大 правлины поизида.
• Anapatot e CTавен有很大очида до有很大ор на有很大лени.
• Тогло Вразмe-чecгп OTВараь на Вразата.
• Вразата OCTавен有很大оверета поочлgo Вразмe.
• Ставен e пемногу xpha на BO ЛадилинокOT. |
| HEHOPMAJIEN 3BYK(-цИ) | • Ладилинокот有很大octавен有很大 meko有很大егамно有很大есто,有很大им Тразы有很大есуваъ He на НогаркITE.
• Нegot trade有很大праздата有很大аднating STрана的一大лени.
• XpaHa co jakи мирисп{Tразы有很大 сиbrсто покриета有很大 ЗавпkaHA.
• Н ватrelшно有很大 и有很大празбно有很大постеNB. |
| Ладилинокот Има МИРИС | • He NeBoO6bIaENo 3a Вразе有很大 легiodи сOBибOKа ВлajxHOCt.
• Вразата можеби有很大 OCTавен有很大поготьога. |
| HA ПОВPlSHINATA OД ПЛAKAPOT CE CTBAPA POCA | • He NeBoO6bIaENo 3a Вразе有很大 легiodи сOBибOKa ВлajxHOCt.
• Вразата можеби有很大 OCTавен有很大поготьога. |
DISPOSAL OF YOUR OLD APPLIANCE
This product should be disposed of separately from household waste, according to local regulations. Proper disposal of your old appliance will help prevent potential negative consequences for the environment and human health. For more information on disposing of your old appliance, you can contact your local council, waste disposal service, or the shop where you purchased the product.
USER MANUAL
REFRIGERATOR
P/No.:MFL68324343_Rev.00
Copyright © 2017 LG Electronics Inc. All rights reserved.
CONTENTS
INFORMATION 3
INSTALLATION 14
COMPONENTS 16
OPERATION 17
Let's begin
Do not put bottles in the freezer.
Firmware Update
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
Netherlands
SMART FUNCTIONS
P/No.:MFL68324343_Rev.00
LG Electronics European Shared Service Centre B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
INTELLIGENT FUNCTIONS
