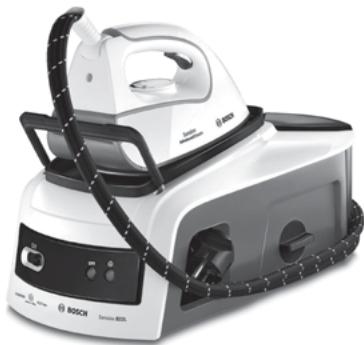

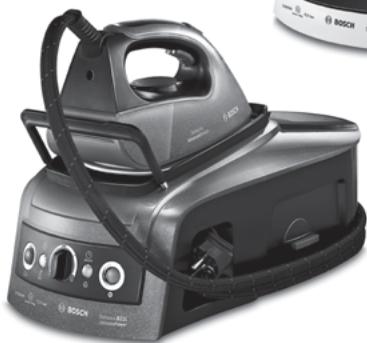

Thank you for buying the Sensixx B22L steam station, the new steam-ironing system from Bosch.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

You can download this manual from the local homepages of Bosch.

Open the leaflet sides

General safety instructions

During the use, the decalcifying or rinsing aperture of the boiler is under pressure and must not be opened.
The iron must not be left unattended while it is connected to the supply mains.
- Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
The appliance must be used and placed on a stable surface.
- When placed on its stand, make sure that the surface on which the stand is placed is stable.
The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
- With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
CAUTION. Hot surface. Surface is liable to get hot during use.

• This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.
• This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.27 . If necessary, the user can ask the public power supply company for the system impedance at the interface point.
• The appliance must never be placed directly under the tap to fill the water tank.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.

• Never immerse the iron in water or any other fluid.

• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)

Important:

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns if not used properly.
• The steam hose, base station, metal plate at the bottom of the removable iron pad (2) and in particular the iron can get hot when used. This is normal.
• Never aim the steam at people or animals.
• Do not allow the power cable to come into contact with the soleplate when it is hot.
• Be aware that the system can keep on steaming for a short additional time after releasing the steam trigger. This is a normal function.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

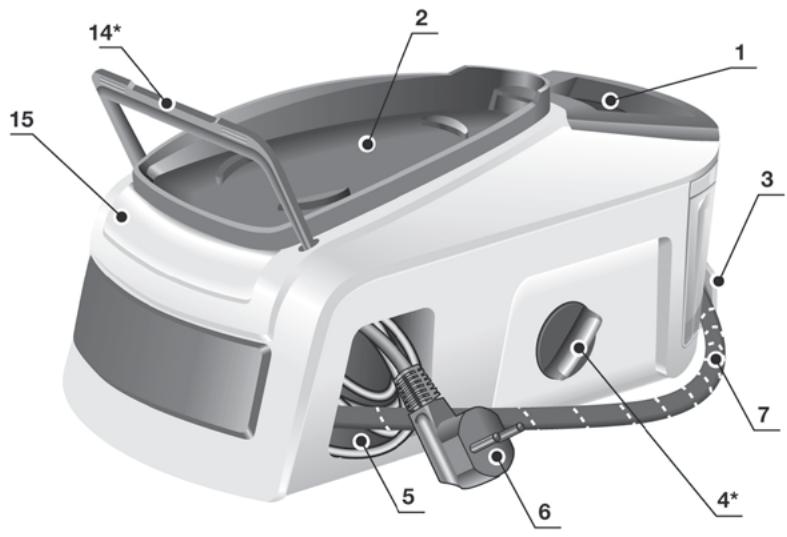

Description

1. Water tank
2. Removable iron pad
3. Steam hose storage fixing
4. "Calc'n'Clean Advanced" * scale collector
5. Mains cable storage compartment
6. Mains cable
7. Steam hose
8. "Energy Saving" button *
9. "Steam ready" / "Auto shut-off*" pilot light
10. "on / off" pilot light *

11. Variable steam control *

12. "Refill water tank" / "Clean warning" pilot light*

13. Main power switch (0/I)
14. Iron fixation system "SecureLock" *
15. Housing with internal steam generator

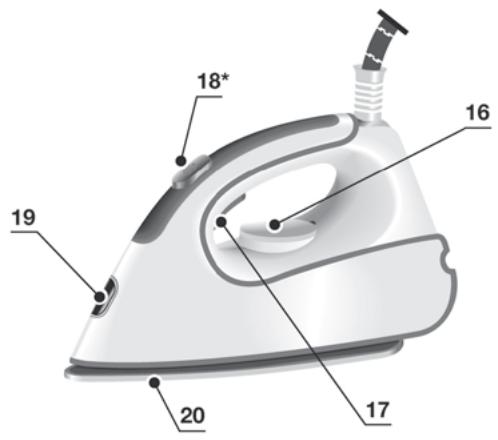

16. Temperature control knob
17. Steam release button
18. Steam shot button "Ultimate" *
19. Iron pilot light
20. Soleplate
21. Fabric-protection soleplate cover *

See the leaflet sides

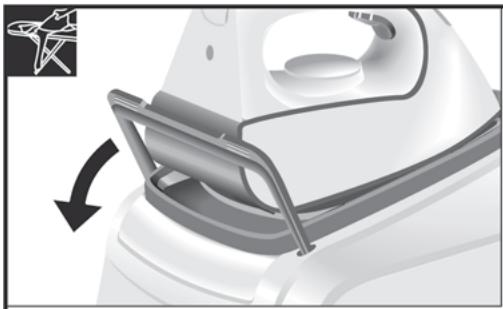

1. Model dependent: Release the iron from its lock system (14^*) by pulling the lever located at the heel of the iron backwards.
2. Remove any label or protective covering from the soleplate.
3. Place the appliance horizontally on a solid, stable surface. You may remove the iron pad from the appliance and place the iron on it on another solid, stable, horizontal surface.

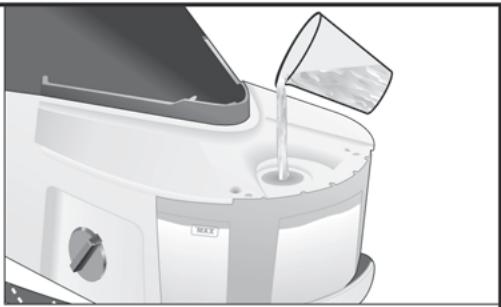

4. Fill the water tank, making sure not to pass the level mark.
5. Unwind the mains cable (6) fully and plug it into an earthed socket.
6. Set the main power switch (13) to the on position.
7. The "Steam ready" indicator lamp (9) will light up after several minutes, indicating that the appliance is ready to use.

The steam generator will take more time to reach "Steam ready" state only upon the initial heating up, or after performing the de-scaling operation (Calc'nClean).

When water is already present in the steam generator during regular use, heat up time to reach the operating temperature will be faster.

1. This appliance has a built-in water level sensor. The "refill water tank" indicator (12^*) will light when the water tank is empty.

or (model dependent):

If the "steam ready" lamp (9) lights and steam is not released when pressing the steam release button (17 - 18^*) , refill the water tank.

Important:

• Normal tap water can be used.

To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

You can inquire about the water hardness with your local water supplier.

• The water tank can be filled at any time while using the appliance.
• To avoid damage and/or contamination of the water tank and the boiler, do not put perfume, vinegar, starch, descaling agents, additives or any other type of chemical product into the water tank.

Any damage caused by the use of the aforementioned products, will make the guarantee void.

• Do not use condensation water from tumble dryers, air conditioning systems or similar. This

appliance has been designed to use normal tap water.

• The iron is not designed to rest on its heal. Please always position it horizontally on the iron pad (2).
• The iron pad can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!.

• During it first use the iron may produce certain vapours and odours, along with white particles on the soleplate, this is normal and it will stop after a few minutes
• While the steam release button is pressed, the water tank may produce a pumping sound, this is normal, indicating that water is being pumped to the steam tank.

Setting the temperature

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.
2. Turn the temperature selector (16) to the required setting:

●	Synthetics
●●	Silk – Wool
●●●	Cotton – Linen

1. The indicator lamp (19) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

Tips:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn

2. Ironing with steam

See the leaflet sides

The steam control is used to adjust the amount of steam produced when ironing.

1. Turn the temperature selector (16) to the required setting.
2. Model dependent:

Set the amount of steam to suit your needs, using the variable steam control (11^*) .

For normal use, please choose one of the following recommended settings:

Temperature	Steam setting
•	•
••	••
•••	•••

1. Press the steam (17-18*) release button to release steam.

Attention:

When ironing on a lower temperature setting "●".

• If the appliance has variable steam control (11^*) , set the variable steam control to its lowest position.
• If the appliance does not have variable steam control, press the steam release button only for a few seconds at a time when ironing at lower temperatures.

In both cases, if you find that water is dripping out of the soleplate, set the temperature selector (16) to a higher position (take care that the garment can be ironed on this heat temperature setting).
- At the beginning of each use, it is possible that drops of water will be dispensed alongside steam.

Therefore, it is advisable to try the iron on the ironing board or a piece of cloth to start with.

Tip : for better ironing results, iron the last strokes without steam to dry the garment.

2.1 "PulseSteam" function

This appliance has a special function for tackling difficult creases.

The "PulseSteam" function helps soften stubborn garments like jeans or linen faster.

When the steam release button is activated, the steam generator will release three powerful shots of steam so that the steam reaches even deeper into the fabrics.

1. Set the temperature selector (16) on "···"

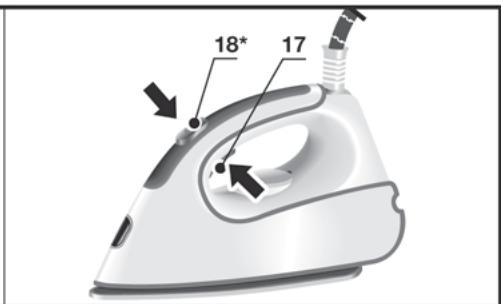

2. Briefly press the steam shot button (18^*) on the top of the handle.

or (model dependent)

Press the steam release button (17) on the bottom of the handle two times in quick succession (double-click).

Remarks:

• It is possible to stop the shots of steam by quickly pressing the steam button again.
• Some water drops may appear when you use the "PulseSteam" function for the first time. The water drops will disappear after you have used the function for some time.

2.2. "Intelligent steam" function *

This system has intelligent steam control, which, after releasing the steam release button (17), provides a small amount of additional steam.

The additional steam can always be stopped by briefly pressing the steam release button once again.

Ironing without steam

Begin ironing but without pressing the steam release button.

3. Vertical steam

See the leaflet sides

This can be used to remove creases from hanging clothes, curtains etc.

Warning!

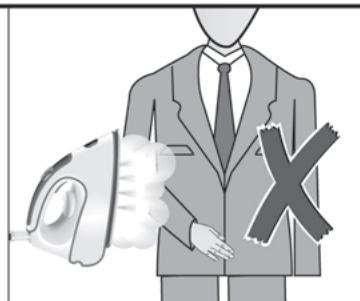

• Never direct the steam jet at garments that are being worn.

• Never aim the steam at people or animals.

• Set the temperature control knob to at least the "●●●" position.

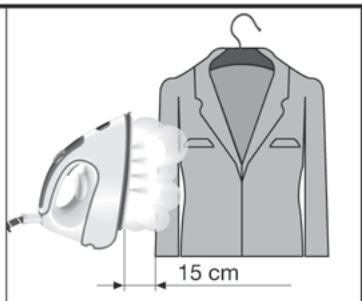

• Hold the iron in an upright position 15cm away from the garment being steamed.

• You can steam iron curtains and hanging garments (jackets, suits, coats...) by placing the iron in a vertical position and pressing the steam release button (17 - 18^*)

Energy saving button*

If the "Energy saving" button (8^) is switched on, you can save up to 25% of the energy and 40% of the water consumption () , and still achieve good results when ironing most of your garments.

It is advisable to use the normal energy setting only for thick and very wrinkled fabrics.

(*) In comparison to the maximum setting.

Note: If you work with the "Energy saving" function, the variable steam regulation and temperature regulation can still be used as recommended.

Auto shut-off *

If during ironing, the steam release button (17 - 18^*) on the iron handle is not pressed for a certain length of time (8 minutes), the steam station will automatically switch off.

The "auto shut-off" pilot lamp (9) will flash when auto shut-off has been activated.

To switch the steam station back on, press the steam release button again.

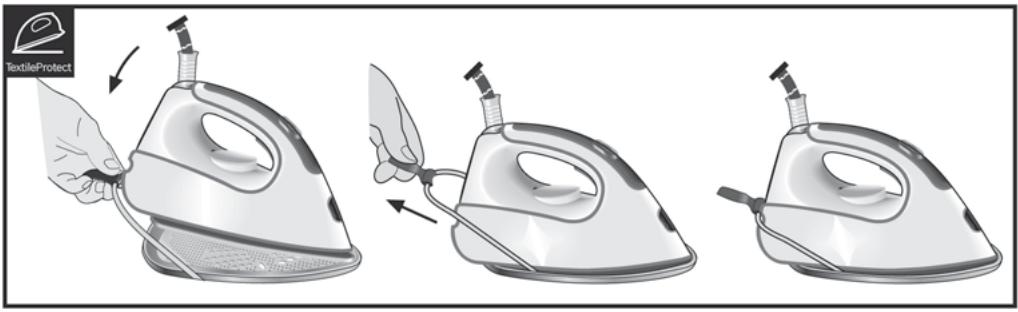

4. Fabric protection soleplate cover *

See the leaflet sides

The fabric-protection soleplate cover (21^*) is used for steam-ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also does away with the need for a cloth to prevent shine on dark materials.

It is advisable to first iron a small section on the inside of the garment to see if it is suitable.

To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron.

The fabric-protection soleplate cover may be purchased from our customer service or from our website.

Accessory code (After-sales)

00571510

Name of accessory (Online shop)

TDZ2045

5. Calc'n'Clean Advanced

See the leaflet sides

5.1. Cleaning the Boiler

To extend the life of your steam generator and to prevent any build up of scale, it is essential that you rinse out the filter (4^*) and the boiler after several hours of use. If the water is hard, increase the frequency.

Do not use descending agents for rinsing out the boiler, as they could damage it.

5.2. Automatic clean warning

Pilot light (12^*) will flash indicating that boiler must be rinsed.

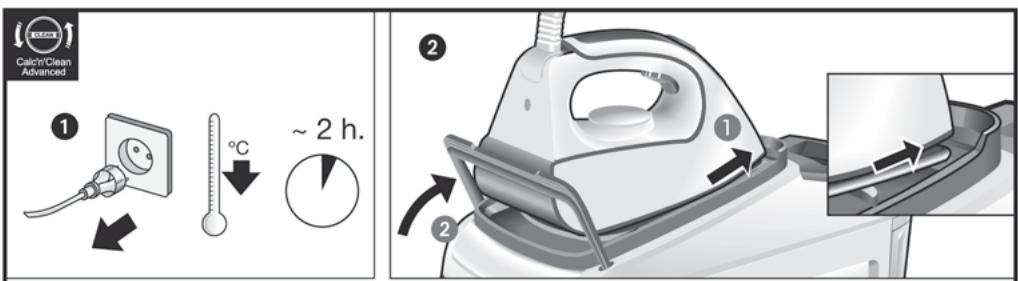

1 Check carefully that the appliance is cold and unplugged for more than 2 hours, and that the water tank (1) is empty.

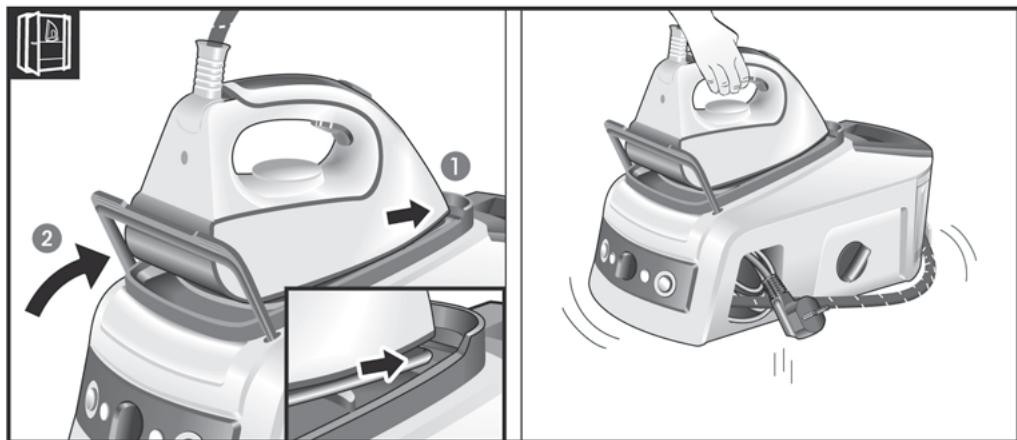

Model dependent: Fix the iron to the stand by inserting the tip of the iron into the front slot and moving the fixation lever (14^) against the heel of the iron.

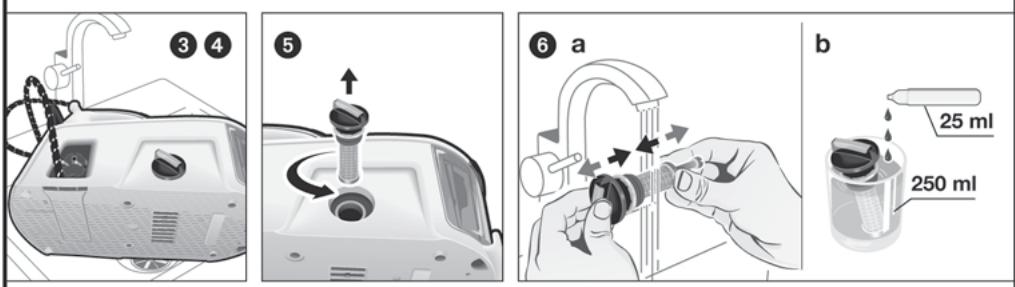

Place your appliance over a sink or bucket.
4 Lean the appliance on the opposite side of the filter opening.
Unscrew the filter (4^) and take it out.
Model dependent: To wash the scale collector, place it under the water tap and wash it up until calc residues are removed. Squeeze it as indicated in the picture a). To obtain the best result, you may immerse the scale collector for approximately 30 minutes in tap water (250 ml) mixed with a measure (25 ml) of descaling fluid, as indicated in the picture b). Then, rinse it again with water (very important!).

The descending fluid can be obtained from our After-sales service or from our website.

Accessory code (After-sales)

00311715

Name of accessory (Online shop)

TDZ1101

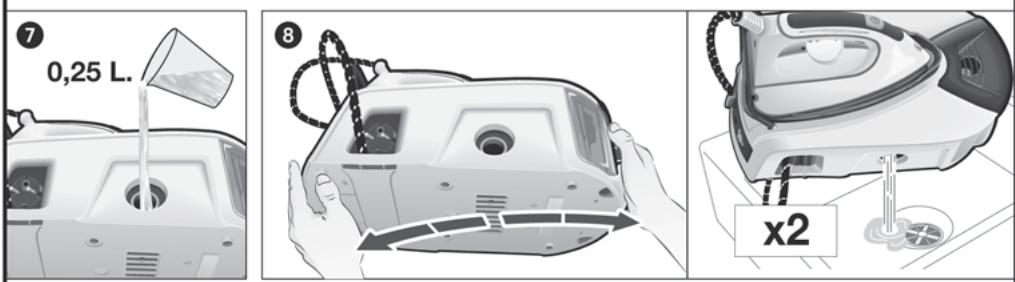

Holding your steam generator in the lateral position and using a jug, fill the boiler with 1/4 litre of water and replace the filter.
3 Shake the base unit for a few moments, unscrew the filter again and empty the boiler completely over a sink or bucket.

For best results, we recommend that this operation is performed twice.

Important: before re-closing, make sure no water remains in the boiler.

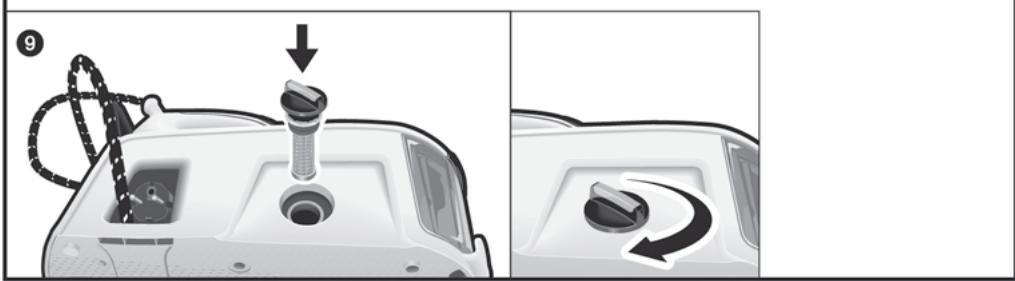

9 Replace and tighten up the filter.

Model dependent:

To reset the "Calc'nClean" counter, switch the steam station off twice, keeping it off for at least 30 seconds each time.

(on 30s off on 30s off on)

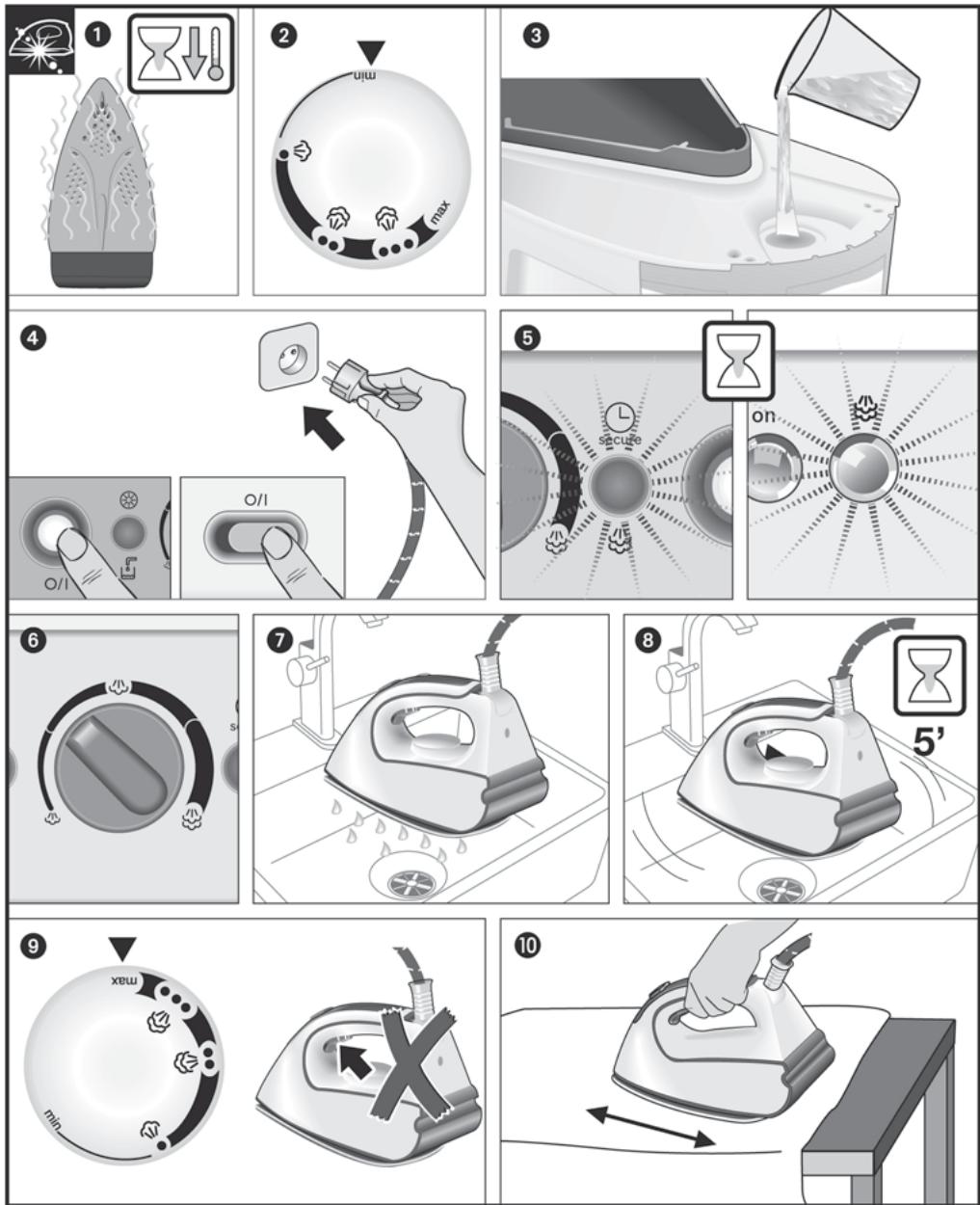

Caution! Risk of burns!

This procedure helps to remove scale particles out of the steam chamber.

This cleaning procedure may be performed occasionally (approximately once a year), when after a long period of use with very hard water, scale particles start to come out of the soleplate.

1 Ensure that the iron is cooled down.
2 Set the temperature selector (16) of the iron to the "min" position.
3 Fill the tank with tap water.
Plug in the mains cable and set the main power switch (13) to the "I" position.
5 Wait until the "steam ready" indicator lamp (9) lights up.
If the steam station has steam regulator (11^*) set it to the maximum position
Hold the iron over the sink or a container to collect the water.
Press the steam release button (17) and gently shake the iron. Boiling water and steam will come out, carrying scale and or deposits that might be there. This could take approximately 5 minutes.
Set the temperature selector (16) of the iron to the "max" position, without pressing the steam release button (17). The water in the steam chamber will start evaporating. Wait until all the water inside the chamber has been evaporated.

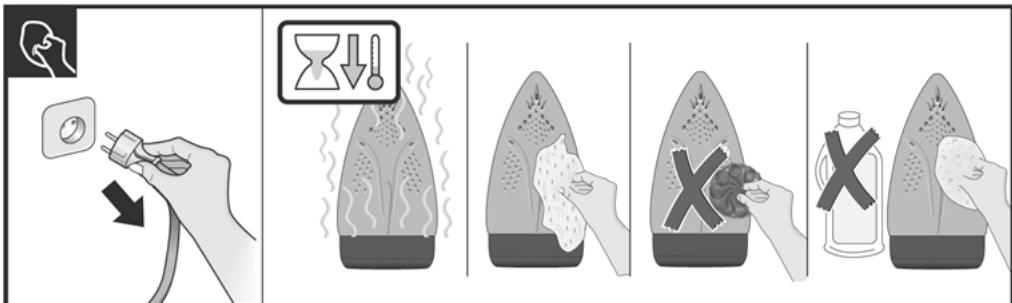

To clean the soleplate, immediately rub off any residue by running the hot iron over dry cotton cloth.

Cleaning & Maintenance

See the leaflet sides

Attention! Risk of burns! Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle and iron body with a damp cotton cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cotton cloth.
4. If the cloth is synthetic, it may melt due to the high temperature on the soleplate (20). Switch

off the steam and rub off any residue immediately with a thickly folded, damp cotton cloth.
5. Never use abrasive products or solvents. To keep the soleplate (20) smooth, you should avoid hard contact with metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

6. Storing the appliance

See the leaflet sides

1. Always allow the appliance to cool down before storing it.
2. Set the main power button to the "0" position (the red light will go off) and disconnect the mains cable.
3. Empty the water tank.
4. Model dependent: Place the iron on the iron pad (2), standing on the soleplate, and fix it by inserting the tip of the iron into the front slot and moving the lock lever (14^*) against the heel of the iron. Use the iron's handle when moving the appliance.
5. Store the mains cable in the storage compartment (5) and the steam hose in the storage fixing (3). Do not wrap the cords too tight.

Tips to help you save energy

Steam production consumes the most energy. To help minimise the energy used, follow the advice below:

• Start by ironing the fabrics that require the lowest ironing temperature.
  Check the recommended ironing temperature in the label on the garment.
  Regulate the steam according to the selected ironing temperature, following the instructions in this manual.
• Try to Iron the fabrics while they are still damp and reduce the steam setting. Steam will be generated from the fabrics rather than the iron. If you tumble dry your fabrics before ironing them, set the tumble drier on the 'iron dry' programme.
• If the fabrics are damp enough, turn off the steam regulator completely.

Problem	Possible causes	Solution
Pilot light (12*) flashes	1. Boiler and filter must be rinsed.	1. Rinse the filter and the boiler according to the cleaning instructions in this manual (see section "Calc'n'Clean Advanced").
The steam generator does not come on.	1. There is a connection problem.	1. Check the mains cable (6), the plug and the socket.
	2. The main power switch is not switched on.	2. Set the main power switch (13) to the "I" position.
The iron does not heat up.	1. The main power switch is not switched on.	1. Set the main power switch (13) to the "I" position.
	2. The temperature is set to a low position.	1. Set the temperature to the desired position.
The iron begins to smoke when switched on.	1. During first use: certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.	1. This is completely normal and will stop after a short while.
	2. During subsequent use: the soleplate may be soiled.	2. Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the soleplate.	1. The steam function is being used before it has reached the correct temperature.	1. Reduce the steam flow when ironing at low temperatures.
	2. The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.	2. Point the iron away from the ironing area and press the steam release button until steam is produced.
	3. The steam generator contains too much scale.	3. Clean the boiler as described in section "Calc'n'Clean Advanced".
Dirt comes out through the soleplate.	1. There is a build up of scale or minerals in the steam tank.	1. Use tap water mixed 50% with distilled or demineralised water. To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.
	2. Chemical products or additives have been used.	2. Clean the soleplate with a damp cloth. Never add products to the water.
The iron does not produce any steam.	1. The boiler is not switched on or the water tank is empty.	1. Set the main power button (13) to the "I" position, and/or fill the water tank.
	1. The steam regulation is set to the minimum position *.	1. Increase the steam flow (see section 2)*.
The ironed garment turns dark and/or sticks to the soleplate.	1. The selected temperature is too high and has damaged the garment.	1. Select a suitable temperature for the material being ironed and clean the soleplate with a damp cloth.
The soleplate turns brown.	1. This is a regular consequence of continued use over a long period of time.	1. Clean the soleplate with a damp cloth.
The appliance makes a pumping sound.	1. Water is being pumped into the steam tank.	1. This is normal.
	2. The sound will not stop.	2. If the sound will not stop, do not use the steam generator and contact an authorised technical service centre.
Loss of pressure during ironing.	1. Steam release button has been activated for too long a period of time, that is, it has been pressed too frequently.	1. Use the steam release button at intervals. This improves the ironing result as the textiles will be steamed, dried and ironed properly.
Water spots appear on the garment during ironing.	1. May be caused by steam condensed on the ironing board.	1. Wipe the textile cover of the ironing board, and iron any water drops to dry them.
Water spots appear on the garment during use of the “PulseSteam” function.	1. Water spots are caused by steam condensation in the hose when cooling down after use.	1. Water drops stop coming out of the soleplate after using the “PulseSteam” function for some time.
The hose gets hot during use.	1. This is normal. It is caused by the steam passing through the hose during steam ironing.	1. Place the hose on the opposite side so that you cannot touch the hose during ironing.
Water leakage from the boiler.	1. Filter (4*) located at the side of the appliance is loose.	1. Tighten up the filter.
The iron does not stop steaming after placing it on the pad (2).	1. “PulseSteam” function has been activated by double click.	1. Just press the trigger once again and the iron will stop steaming at once.

If the above does not solve the problem, get in touch with an authorised technical service.

2.1. Fonction "PulseSteam"

Kontrollys (12^*) vil blinke for at angive, at kedlen skal skylls.

Knapp for energisparing *

2.2. Funcão "Intelligent steam" *

Este centro de engomar esta equipo com um control de vapor inteligente, orial,deois liberar or botao de saida do vapor (17), continua dando una微量元素 de vapor adicular.

H (avaloya to oovTeLo):

Avavayei n luxvia "avayeioTe to vTeIOZito (9) kai aTAEuOepwOei atoosvWtataTo koupti aTAEuOepwoanC atouo (17-18*), yeiote gava tn oEaevn vepou.

Σημαντικό:

Mtopei va xnpoiouintheta vepo Bpuons.
TnTv napataon tns oaviiknc aeitoupyiac u
atuoavayevo vepo 1:1.Av to vepo Bpuons
Tnv Tepioxnoac evai troluok npo,
avaiyvee e atooatayevo vepo 1:2.
To aho oaknpotntac tou vepu mtopeiteva
Tov TTnpoopopntheta otnv tottkiutnpesia
udpeuans.
MTopeite va yeiioeTe TO VTeIOZIto VEPOU O OTIoAOnTnOte OTiYmuN KAta Tn XpHOn Tns OuaKeUnc.

Poc aTIOQuyn BIABcN KAI/n MOLUVON TNS 8ECAeVNC Vepou Kau TUO MIaEP, mV XpOJIOTIOIE tApWAtIOJEVO Vepo, Gdi, auo, TPOIOvTA apaipoean cAATuw, TPOOeTE UAE n OTOIOBDNTOTE AALo EIOOC XNIIKOU TPOIOVTOC.

OiaHnTote Tpokaieitai aTo tn XpOn Twv Awotepw TpoiovTvW KaioTa akupn Tnv Eyyunon.

MnV xPoiIOIEe OuiuKwOaN Vepou aTTO TATEVWOTPiOPOuxw, TO KAIiATIOTIKo n TAPoia OuaKEun. Autn nguaKEun Exei Iaote i va xPoiIOTei kavovik ovep Bpuang.
To oidepo dev exi axediatoei yia va otnpizetai 0to triowepoosou. Napakalouve,va toTOnTeite navta to oidepo opicovtia otn Baoon tou oidepou (2).
Hbaonmuopei va toTOnoTeNtOeI OTo EIdik axediaouevo Kevo Tns ouakeuhs n o otioiohntote katalanno onueo tnpixn oipwatoC.

Mny tootheite To oidepo Tavw otn Ooukeun xwpic nTv Eikn faon tou.

KaTAty TpWtXpnTouTo stOIEpo MTOpei va atTEAEUePwOeKaTATOUCsOoUc n OoEc, KAoCs Kai LEukoAOWatidia Tavw OTo TElambda tou.Auto Eivai quaIOayko Katheta EaapavioTei e ta aTOEPIKA AETTTa.
Tia 6o0 diaotma to koumti egoou tou atou Tapauevei TIEevo,TOVEIOVPOU MTOpei va EKTEmuEevav OOpBOAvtALAC, TPaayuTOUIvai quioAOIKO kAI UTODEIKVUEI OTAVtAUETAVPO TPOC TOVEIOZTOATou.

Puroion nCs 0epuokpaoias

aTouapkpuVEToTaakwmaOe poua Toun Kpeoovtai, Kouptivec, K.ATI.

Ppoeiobtoinonl:

TINB.CknaedeHCTOpiHKM

1. 3anexho BiD moJeni: BiD'eHaHne npacky BiD cnCTemn pfikcaui (14*), notarHyBwN DOHN3y BaxiNb, 00 yTPmMyE HxKHO qactHy npackn.
2. 3HIMITb BCI eTNKeTKn Ta 3axncHy yNakOBky 3 NiD0Bn npackn.
   3.YctahOBITb pncTpiRtopn3OHTaIbHO haMiCy Ta CTiKy nobEpxHIO. MoXHa 3rTaN niKJaKy DnI npackn 3 npncTpoTO Ta noknaCTn II Ha IHsy MiCy, CTiKy, ropn3OHTaIbHy nobEpxHIO.
3. Hanobhitb pe3epByap IЯ BODI TAK, ⅢO6 BOa He napeBnUyBaNA BiIMITky MaKcImMaJIbHoro piBHa.
4. Повнисту розгорніт bкавелъ кивпенита niдключіт яlorо до заemselhoш розтук.
5. YctahOBiTb rOJOBHn BmNKaU (13) Na no3HaKy «YBIMKHeHO».
6. Yepe3 kijbka xBnInn 3acBittbc iHnKatop roTOBHOCTi nap (9), cnHaJI3yOuH npo MoKINBiCTb BnKOpNCTAHN npICTpOIO. NaporehePapot noTpe6ye 6bnIe cacy dny doocarHennr CTAny rTOBHOCTi Do pOboTn iID cacNoayTKOBOro HarpBaHNr Ta nCnI npOBeJeHHnpOeDpyOn OOhSeHHB iD hKnHy (Calc'nClean). KOnn B npOeci perynpHoro BnKOpNCTAHN B naporehePapoti npscTyHBoDa, vac HarpBaHNJdno DOcRHeHHpoBoOoi TemnepaTpyn ckopooyTeBCr.
   8.Дани пистри містпь Вбудован ссноріпья BODи.КоNi рзэрBayap Дяв BODи Cпорожніе,ЗасВITNTbCSI INДИкатОн HeCTaqui BODиВ рзэрBayapi (12'').

a6o (B 3anexKHOCTi BiD MoeJI):

Kiio iHdkaTOp roTOBHOCTI napi (9) CBITbca, ani ndac HATNCHEHH KONKN BUNyCKy napi (17 - 18^*) npa He BVXODnB, HANOBHTb pe3epByap dna BOIN.

BaxJnBO!

Bn mojete BnKOpncToBvBaTn 3BnuaHy BoDy 3 BOdONpOBOdy.

Дя toro loob noOBKHTn ONTImaIbHy diФyHKcii BiNapIOBaHnHa,po3bAbJraTe BOOpOBIdHy BDOI dNCTINbOBAHOU y cnIBBiHOWeHNI 1:1.B TOMY BnPAdKy, kIoO JxOPcTkICTb BoNi y BaWoMy perioHi 3aHaNTKO BnCOKA,peKOMeHdyEMO po3bABJraTI BODOpOBHHy BoD I NCTINbOBAHOU y cnIBBiHOWeHNI 1:2. IHΦopMaIIO 5ODo cTynHIO JxOpCTKocTI BoNi Bu MoKete OTRPMAtn Ha NiDpNcEMCTBi BOOnOCTaHaHnBaWoRt MiTa.

Hikon He cTaBte npacky Ha Kopnyc npncTropo 6e3 niklaekn dny npackn!

-Пдчспршо ВИКОРиСТаннгпяпackи 3 HeI MOKут bITN cneцhiЗлархи та пара, a 3 ПIDOWBIMOKYt CnIaTcRбiJI nopoшинк. LcE HOPMaIbHmI Ta npinHnHTbcr 3a KIbKa XBIJINH.
KoIHaTnCHeHO KHONky BInyCKy napi, Bn moKeTe NouyTu 3Byk NOMmY uepeDnHi npicToPO. Lc HOpMaJIbHo Ta O3Naue, Io BOa nepeKaHyETbCe Do baky naporehepatopa.

PerylIOBaHHr TempehApTypr

1.ПодиВiTбяИнСТукшьцI Σою npacvBaHЯ БiЛиЗнHaII eTиКeтшiz,Боб ВиЗнaчИтп правлыну TemпepаТуру npacvBaHЯ.
2. Поверни耗perулартtemпepатури(16)нотрибунознayaку:

TINB.CknaedeHCTOpiHKN

PeynTop npn BnKOpncToBycTcDnpeynoBaHH KInbKocTi npn, 0reHepyctbcnid qac npacyBaHH.

1. Повернить Perулготop Tempepatур (16) наnotpi6Hy no3Hauchky.
   2.YdEaKHXMOeJIAX:

3a donomoroh peryjntopora noannna napn (11^*) BiDperyIIOte KINbKicTB napn BiNobiHDo BO Baunx notpe6.

Длгь 3Вичайно ВИКОПИСТАнHA,Буд-Япа,оберпь OДне 3Н actuHINx peKOMeHДOBaHINx HanaaHTyBaHb:

Tempepatya	Овогня рекиму падчі napи
●	●
●●	●●
●●●	●●●

TINB.CKNaedeHCTOPIHKN

BnlaHnHaMnBHeHMyOJ3i, wTOPaxToio.

ybara!

Hikon He o6p6jTe CTpyMOn npu OJr, HndryHTn Ha JIOdei.
HikonHe cnpaMOByTe napy Ha IIOe YI TBapIN.

1. Bctahobitb peryjntop TemnepaTpyn Ha n03HaKy , ●●“ a6o Bnue.
2. TpimaiTe npacky U BepTKaJIbHOMy NIOJKeHHI Ha BiIDCTaHI 15 cm BiD OJMy, JIKN O6PbJIeTbcN npoIO.
3. 3aBicn Ta Ondr Ha nnIiKax (niJkaKn, KocTHOMN, NaIbTa TOso) MOxHa npacyBaTn 3 napoH,

YtpMmUOHy npacky y BepTnKaJIbHOMy NIOJoxHeHHi Ta HATNCKAOnH Na KHOJky BmNyCk npn (17-18*).

TINB.CknaedeHCToPiHKN

TINB.CKNaedeHCTOpiHKM

1.Пелед ТИМ,ЯКСХОВАТи napOBу CTaHцЮ,BOHA NOВИнHa OXΟЛоHуTN.
2. UcTaHOBITb rOIOBHN BmIKaU Ha nO3HaUky «0» (UeRBOHNI BOrHnK 3rache) Ta BiDknHouTb Ka6eJIb KINBHeHHa BiE eNEKTpOMepexi.

3.CnopooxhItbpe3epByapIJRAOIN.
4. 3aTeXHb BiM MoJIeI: YcTaHOBiTb npacky Ha nIcIstABky (2) IIOduWBOO DOHNy J aΦiKcyTe II, NOMICTBmH Hc Inpackx B nepeDiHn i na3 i npITncHyBmB BaxJIb CnCTEmo fikcaU (14*)do NHKbBoI qaCTHnI npackr. Pidac nepemiuHnnpicTpOIO TpImaIte npacky 3a pyuKy.
5. 36epiraTe Ka6eB JxNBeHnB B ViDcIky DJIa 36epirAHn (5), a uHyp dIy napu B oikcyte 3a DonomorOo oikcatopy (3). He 3roptaTe uHpyn HndTo Tyro.

Iopaani 0oO 3aOuaJxHnna eHeprii

Почиайтпразувань 3блн3и,шоnotpe6у Найнжчогу Temпepатурог реким. Рекомендовану Temператуnpacуван Можна поин��ся на ярпікax рechи.
- PerylnoIte BIXiD napi BiINOBiIDNo DO o6paHoro TEMnepaTpyHORo peXIMy, 3riINO 3 peKOMeHdaZjMm daHNx IHCTpykciJ.
- HamaraiTeCeI npacyBAtn 6iIm3Hy,doKo BOHa ige BOLORA, BCTAHOBIOOHN napoperyJrTOp Ha MEHuy N03NaHuKy. TaKIM YINOH mapa YTbOPOBATmMeTBCBaCEPeDInHi TKAHNH, a He B npacsi. JkUO BV KOpNCTyETecByuMlbHO MaunHOIO, ObnpaIte nporpamy "NiD npacky".
- Kaio 6iIn3Ha DoCTaTHbO BOnora, napopeyIaTOp MOKHa B3aIJI BIMKHyTI.

Bilbwe BcboEheprB BuTPaayCTbcaHa yTBOpEnHn npn. 063aoaadtn eKeTpoHepeRIO, DOTpMMyTeCb TaKx npa:

UcyHeHHH HeCnpaBHOcteY

HIN (B 3aBNCMOCTN OT MOdJI):

Ecnn CBTOBOn INDnKaTOp rotOBHocTn npa (9) 3aOpeNc, HO pni HaxatmN KHONK NblNYCk npa (17-18*) nap He BbIXoHnt, HanoJIHnTe eMKoCTd JIra BODbI.

Baxho:

Bo3MOxH0 NcIOnb3OBAHne BODOpOBoHOB OBObl.ДЯ DoJIROBeHOrO NcIOnb3OBAHnAФyHKuN napa, CMeUINBaJIte BODOpOBoHDyO BODy C DInCTInPbIOBAHHO B COOTHOSeHN 1:1.EcN B BaSeJ MeCTHOCTN BODOpOBaHnA Boa OChh JXeCTKa, CMeUINBaTe ee c DInCTInPbIOBAHHO BODO B COOTHOSeHN 1:2.

BbMoKeTe y3HaTb O JcEeKoCTBaUeBBOOpPBoDHO B0bI yOTBeTcBeHHO 3aBOOChAbKeHne opraHn3aun.

BpeepByapIЯ BOdbi MOKHO OJINBaTb BOyu IIOboj MOMeHT BO BPempa60tI np60pa.
Bo n36eXaHne NOBpeXdEHNn u/INn 3aRp3HeHn EMKoCTb IJN BObl N naporehepaTopa, He NCIONb3yIte apomATn3nPOBaHnyBOdy, yKCyc,

KpaxMaI, cpeCTBa Iy aIaIeHnHaKnI IN JIObIe Dpyrme XmMueckne CpeCTBa

JIIO6oe NOBpeXdHHe, BbI3BaHHoe
HCN0JIb3OBAHNEM YKa3aHHbIX BbIe CpeCDTB, npINBOJNT K NpeKpaSeHnIO DeICTBnIraPANTM.

He nCnOJIb3yIte BOJHOH KOHNDeHCAT N3 CyUINJIbHBx6apBa6AHOB.CNCTEM KOHNIOHINPOBAAHNA BO3Dyxa H npDyrnx NOo6HBx YcTpoiCTB.DaHHbI pNp60pnpEHa3NaeHdIy IcNOJIb3OBAHNA O6blHoi BO4bN3 KpaHa.
-Даньуг HeДОЛЖЕн CTOЯТь BEPTNKaJIbHo. Bcerda cTabTe erO rOpN3OHTaJIbHo Ha NOdCTaBky dЯ yIOra (2).
- Póndctabka dπy yTóra MOKET NOMeúaTbC B CnEuaIbHo NOIgTOBNEHHU O HNU Ha npMbope INI B IIOBOE NOxOJaIe e MeCTo pIOM c 3OHOI rIaKeHNI.

Hikorda He ocTabnTe yTHor Ha npnbope 6e3 noctabKn dnyyIora!

BoBpeMnepBOrNcOnb3oBaHnryyTOrA MOrYIIOBIAITbCHeKOTOpBIE3aAnxHnnap,a TaKKe6BtIe YactuBHaNIOOwBEYTOrA.3To HOpMaJIbHOINPeKpTaNTCRepe3HeCKOJIbKO MNHT.
BoBpeMaHkaTnKHOKNBbIyNcKa npa pe3epBvapdIa BOblMOKeT M3daBAtb 3ByK pa0bTaIOJeoHocOca.3To HopMaJIbHo nYkazbIaBeT,TOBODa3aKaAHBaETcB NaporeHepatop.

YctaHOBka TEMnepaTpybl

1.ПосмOTPte HaЯрblICnHCTpyKUmaMnДпглжehнHa npedMeTe OdekdbIДпгОпeдeнгьправиьНоf TempepaTbyIглжehн.
2. ПовернITE ретултор TemпераТурь (16) на hyжнио OTmTeKy:

Tempepatya	YpOBeHb Ipondaun napa
●	●
●●	●●
●●●	●●●

1. Haxmte KhoNky BbInycka npa dny noaH npa (17-18*).

BhimaHne!

Глженив Визкотемпатуром реким « »

• Eçnl Na yTóre nIeMeTcpeYIaTOp npa (11*), yCTaHOBnTe peYIaTOp npa Ha camyIu HIXHIOO OTMeTKy («心»).
• EcnHn Ha yTHe He pErpyIaTopa npa, npn rIaKeHmB H3KoTeMnePaTyPcHOM pExHMe HAKMaTe KHNkY BbIyCka npa BcEro Ha HeCKOJIbKO cekyHd.

B IIObOM cnyae, ecn C nooOWBbl yTtora 6yIET npocauBaTcBra BODa, yCTAHOBiTpe peryJrTOp TEMpePaTpyb (16) Na BOeee BvICOKyO OTMeKU (ecnn daHHO n3dJIne MoXHO rnaDnTB B TAKOM peXmme).

Kakdbpa3Bnauane nCnoB3oBaHnryyTOra BmEcTe C npom MOrYT BbXODHTb KApIIN BObl. IOTOMy peKomeHdyeTc Chaana npOBectn yTHORMO rAaNbHOH DOCKe INN KYCK HeHyxHOI TKAHN.

Cobet:ДпгОЛучehнЯ ONTIMaMbHOrO pe3yIbTaTapeД OKOHuaHnEM TflaXeHnE OTKIOuHTe napИ HeCKoIbKO pa3 npOBeDnte NO TkaHN yTOrOM b3 yBnaJxHHeHn, YTOb6I xOpOio BbCyUWtB ee.

JINB3ABNCIMOCTNOTMODEJIH

Двбдь 6ьICTpo haxMnte Ha KHONky BbIpycKa npa n3 noDooBbl (17), paCNoIOXeHHyU B HIXHeN qactnyu kn

Примочаня:

-ДeИСТВЕnpaOBOrOуdapaMOxHObOCTaHOBNTb KOpOTKIM NOBTOpHbIM HaxaTneM KHOJKN BbIpycka npapa n3NoD0uBbl.
- Пипрвом Испьзовани Функци PulseSteam MOKeT NOЯВИТСЯ HeCKОЛКо KaNEЛь BOДы. KaIINI BOДы ИСЧЕЗHT NOCLE TOTO,ΚΑΚ ВБ InpopaбOTaTe C 3TOI Функцией HeKOTOPOE BpEMЯ.

2.2.Функця «Intelligent steam» *

DaHHa CNTeMa IMMeT «YMHbI» MExAHIN3M KOHTpona npa, KOtOpb nOcne OTnycKaHnK HONIKB BInycka npa n3 noDoWbI (17), noJaet HeboJbWoE dOnoJNHTJIbHOe KOniNeCTBO npa.

Дононтельную поач napа можнв влобов MOMENT OCTaHOBnTB KOPOTKIM HaxaTneM Ha KhoNky BbIpyca napa ИЗ NOdoWBbl.

Tlaexe 6e3 napa

HaunhaTe rlaNTb, He haxmam KhoNky Bbynyca napa.

3. BepTnKaIbHbI npap

Tcm. cIOxKHeHbIe CTpaHnCbI

DaHHyO cyHKcIIO MOKHO nCnOJIb3OBaTb dIyUdaneHnA CKJaDOK C BnCraJeu OeJXdbI, WTOpN T. D.

BhimaHne!

HnkOrda He nCnOJIb3yIe CTpyu npa nn o6pa60Kn OeKDbI, HaNToH Na IIOei.
HnKOrJa He HaprabJTe nap Ha IIOeN JXIBOTHbIX.

1. UctahOBInTe TepMOpErJyIaTOp, KaK MmHmym, Ha OTMeTKy "●●".
   2.ДеркпerteуTIOBВЕРТИКАльбHOMПОЛЖЕниHa pacSTOrHn15cmOT OJeKdbl,KOTopa8 obpa6aTbIbAeTc npom.

2. Moxho o6pa6aTbIbTaI napom 7tOpbl n BvCzuyo OeJdy (PiNJaKn, PNaTbI, NaJIbTO n T. I.) paCNoJoxNIB YTuR BErTnKaJIbHO n Haxab HA KHOkiy BblNycka npapa n3 NDoOWBbl (17-18*).

3Heproc6eperaoua KhONka

Haxatne «3heproc6eperaiooee» KhoKn（8*）no3BOJnRE TkoHOMNtB do 25 % 3Heprn n do 40% BObl (^*) ,noIyuaT OINHbIpe 3yIbTaTb InaKeHn8 BoIbIshnCTBa TeKCTINbHbIX n3JeNl.

PekomehnyetcnaTIOJIb3ObaTbObIyHbIpeKIM paXOda 3HeprnToIbKO dJa rIaxeHnraToCToN INIbHO I3MAYTO TKAHN.

(^*) IIO cpaBHeHnIO C yCTaHOBJIeHHbIM MaKcImaJIbHbIM 3HaueHMeM.

PpimueaHne: npn pa6ote c cyHKuiene 《3Heproc6pejexene》perynipobka npa n TEMpepaTpybMoKeT NcNoJIb3OBAtbcB COOTBETCTBn C peKoMeHdaCuaRM.

ABTomatnueckoe OTKJIQUeHne\*

EcnnB npocece rnaKeHnK hONka BbInycka napa n3 nooBbl (17-18*Ha pyue yTOra He hAnMaetcB TeueHne OnpedeHnHO BpeMeHn (8 MmHT), napOBa CTaHcNBA TOMaTNUeCKN OTKnIOuHaETcN.

Посе abTomatUcheKOrO OTKJIIOUeHnI CBETOBO INHДNKaTOp «ABTomATUcheCKoe OTKJIIOUeHnI» (9) 3amiraet.

YtObbl CHOBA BKNIOHTb napOBYIO CTaHcIIO,CHOBa HaxMMTE KHOIKy BbInyCKa Iapa N3 NIOoWBbl.

4. 3auntnaTekctnIbHna IoD0wBa\*

Tcm. cnoxengHbIe ctpaHnbl

3Ta nOoOwBa IcNOnb3yETcIgIraJxHbCnapOM DeNkATbIX BSeIe PnIMAKcImaIbHOI TempeAtype,HeIOBpeKdIaIIX.1cNOnb3ObAHne 3aunTHoI TeKCTINbHOI NDoUbI TaKke NckLIOuAeT Heo6XoDMOCt bNcONb3ObATrPknjD I npedOTbpaueHn6BeNa HA TEmhIX TKAHx.

Mb pekomehnyem Bam napei hauanom IpaXeHb naonpobobatrIaNTbHa He6oBbOM yactke H aBytpeHHn CTOpone Beu, IN ONoabNIOdaTb pe3yblTaTb.

YtObI yCTaHOBnTb 3aUHTHyIO NOoWBy, NOMeCTInTe OCTpbI KOHnK YTORa B KOHeC 3aUHTHOI NOoWbI N NOTAHnTE 3a 3NaCTnHyIO NEHTy BDoJI HnXHeN 3aNDHe YACTn YTOra DO Tex NOP, NOKa OHa He 6yDet ODeTa. YToBc ChrTB 3aUHTHyIO NOoWBy, NOTAHnTE 3a 3NaCTnHyIO NeHTy, YToBc OTdEINb NOoWBy OT yTOra.

3aunTHyIO TeKCTnIbHyIO NOIOoBBy MOxHO npno6pctn B Cnyk6e NoCTnpOdaX ININ B CneuaJIIN3IPOBaHbIX MaRa3NuHAX.

pTNKUINHADJIeXHoCTnC(BOTJeIIOcIepoDaJxHOrO6cLyXWBAnH)

00571510

HaimeHOBAHnepHaJIeKHOCTN（B CpeuJIN3IPOBaHbIX aRa3INHax)

TDZ2045

5. Calc'n'Clean Advanced

Tcm. cnoxehHbIe CTpaHnCbI

5.1. YncTkka 6aka naporeHepaTopa

Ytob npoHnTb cpoK 3cKnpyataunn naporehepatorpa n 36eKaTb HakOpIeHnB Hem hKnHn, pInlbTp (4") n naporehepatorp Heo6xOIMO nepnoDnueckn, noCTeueHn ONpeDeHnHO BpeMeHN NcNoB3OBAHn, pnOmbaTb BoDoJ. EcnB Baawm perIOHe JecTKaB Oda, pnOmbaTb naporehepator HuxHo Chaie.

He nCnoIb3yIe TnI npOMbIbAHn naporehepatopa cpeCTBa IyraJeHnHaKnPi, NOTOMy UTO OHN MOrTy erO NobpeDHTb.

5.2.ABtOMaTnueckn CnRHaJI O Heo6XoDnMoOCTN OuNCtKn

Ecnn CBeTOBoi HnDnKaTOp (12^*) MnaeT, naporehepatop cneyet onoJocHyt.

1 Pnp6op 083aTeIbHo DOnJKeH 6bITb OTKJIuOeH B TeueHne 6oIee 2 yacOB, OH DoJKeH 6bITb XoIoNDbIM, a erO eMKoCTb IpnB ObI (1) nyctOi.
2 B 3aBnCmOCTN OT MoJIeN: 3aФИKcIpyTe yTHOr, NOMeCTNB HOC yTHOra B NepeHn I Na3 N pIuXaB pyUar CnCTembl φnKcaun (14) K HnJxHe J aCTn yTHOra.
3 PacnooxnTe npnbop nad paKOBHOn HIN Bepom.
HaknoHte npmbop B ctopohy, npotnbonoKHyo OTBepCTnO fNbtpa.
5 Bbikpyntte qinbtp (4^) n3BneKeTe erO.
B3aBNCMOCTHOTMOdENI:ДлпрмьBaHnIbLOkaHakONJIeHnHAKINN NOMECTHTeERO NOCTpyIO pTOUHOI BOblI nPpOMOIte Do NOJHOrO ydaJIeNHOCTATKOB HAKINN.COXMNIteeroTAK,KAK 3TO NOKa3aHOHa pncyHke a).

aall (gii) 0" gaii gie gui jil aiill j biia .2

a1 + a2 = 5 又 a1 + a2 = 90^

.1all jol jol jol 1jol .3

jSj jilg 2)ol sall oJy Jc ol Sall .4

gol gall aia jla Dla jao laa pai oal gall oale lge ojgo olil (^*14) 1111111111111111111111111111111

(5) 42jz10000000000000000000000000000000000000000

y. (3) 1

i j k l m n o p q r s t

aaii i 1

.

小小 ( 1,2) . ( 3,4) . ( 5,6) .

eaii o jilal yll ojra a jal lai

1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

(1) a4 = a1 + 3d a_4 = 13

Ldai jai liai Jao ci jia aai ai jai ai jai ai

9

jlll jll l jll 100"max,

cllaill gie jiall lll lall jilll s dkay .3

jll jll! jj 1e biiial, 2aiio jsiy ol sally

(17-18*)

\*eco"

JLa Jyj (8) 《aill jyj》 2 Jl lal y
elall dglul no (^*) 40% aill ald 25%
Eg jI abo eo gll oia jie Uanall g Jnaiy I
e aill dlloall bail llg iipu w

aal

G aaiiaaiaaa

4k = 3

A 1

4.4.5.6.7

g

gall (17-18*) jill (jll) jlc biall pia (g) gii gii (gii) (gii) 8) iio o joi gl

a a a a a a a a a a a a a a a a a a a a a

yj 100

.

“PulseSteam”.2.1

Aaall Culllll aalld alolds ay jll lla

Jia aiiilll lglaii gie iuiu "Pulse steam"

jill jie ginaol zilall jia j jiall

Caaa aai jiaai alga jia jiaai jj Jxii iic

a aaiy jia jia jia jia jia jia jia jia

"0.0" (16) 2

2gall (^*18) jll jll jgl oiaa alal biinai .2

1g(jdgall

j 120

Jadall JauLy JauLy (17) JauLy

:

0 1

1. ( x,y) = ( ab,52ab) . 若 b > 0

Pulse" a b d i s tioi oic oll l j j

"steam

AaBglalalalwJoo yaao o jao aollljab

* "Intelligent steam" 2.2

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

.(17)

aalglblll Jda jao goliljiaai laii

1. 2,3,4,5 1,2,3,4

g j 1000000000000000000000000000000000000000000000000000000

jue jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

a

1 1
16 2

auiuui 1 uaiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 1 uuiuui 2 uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

1.2

aai aai

aaii 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

jll (9) jala jla l jla 17-18* jla jla b

P 个

aiiai elo Juaial jay
j,1:1 wial clall gaiiaial llo jol, jilai o jio aaiil
aiial cia jol, aiiaio gaiieclll qae i jui ciis 1.2 wial dally
aiial clll ayie sic ell qae jy Juaiaii aiay

jlll lcll lalal jla jasay gcll alaal jia jai gglg jilal aai jai jai jai kill all jal go jge clll jai piali jn jra g l a jg Lc

aiCi aaii juiLLalao Jia 1o aiio y
jiall all piai iay ao gall oaiy lo g 1gall
(2)

g laaas paalll jall glaas jy kaa aalaa 0jzll

Aa a a a a a a a a a a a a a a

jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

AiiLw golall oxlal yIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

C

wuliy g a y g aall l 18, a h tia aiei g Llilz i y jy ay g a l y g a la y l i k c jay aill a gla y c uol s pial wgl. Cullal all jn calill alll jsl jall g la llae ie aygai AajdAajdl Coglally jy jy glall ayall jyal Jy

aalgl aagabll gale jiljgall 13
o jy EU/19/2012 ayrgs
alaiiail alaiiy g yjgell
o jy glay plal jby dai aiwl glal
g yjgs gas les ygii oicg

m = 311 ;

Jaiyil Jaiyil jaiyai
alosolalok
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

1 15 1 j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jgl jgl jgl g yll jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol j

Ciiyjijllgai jall ayalall ylaill jajol gbljai jil
Jusyjuyy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jayy jay yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai yjai

. 12j

（）

A_i + 1 = 12

y

a aaiiie iiaii jai jai jai jai jai jai jai jai jai jai

alol divilj no eliqul 121

j

g 1

. Jolli 4.10

y

a

Ailaoiwiol 6le!

J 8 jj j j j j j j j j j j j j j j j j j j j j j j j

J 1

1

alisiwlyabjallbjlllglgwiw giaai jy jiei

8 jnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

1

J 1

i 1

法

. 1
