THE BALL - Speaker SCANDYNA - Free user manual and instructions

Product type	Powered subwoofer
Brand	SCANDYNA
Model	THE BALL
Power	40 W + 2 x 20 W (Class D)
Power supply	100-240 VAC
Inputs	Stereo RCA jack
Frequency response	-3 dB at 48 Hz, -6 dB at 40 Hz
Low-pass filter	Adjustable from 40 to 140 Hz
Phase	Switchable 0° or 180°
Volume control	Digital (360° type)
Remote control	Yes (on/off, volume, mute)
Protections	Short circuit, overvoltage, overheating
LED	Power indicator (solid blue), standby (dim blue), mute (flashing blue)
Cleaning	Lint-free dust cloth, no detergents
Safety	Do not expose to rain or moisture; do not open; no user-serviceable parts
Shape/Material	ABS enclosure, spherical design
Recommended use	With The Amp amplifier, The Dock or V-Dock dock, and Minipod, The Drop, Micropod SE speakers
Warning	Do not sit on the device

Frequently Asked Questions - THE BALL SCANDYNA

Where should I place The Ball for the best sound?

For an optimal listening experience, place The Ball in a corner or near a wall. The bass will be stronger than in an open position. Experiment to find the ideal position in your room.

How do I clean the The Ball speaker?

Use only a lint-free dust cloth. Never use detergents or chemical cleaners.

What should I do if the device does not turn on?

Check that the power cord is properly plugged into a working outlet. Ensure the plug matches the polarization (wide blade in wide slot). If the problem persists, contact your dealer or Scandyna.

What do the different LED colors mean?

Solid blue LED: device on. Dim blue LED: standby or off. Flashing blue LED: mute or volume adjustment (flashes until maximum or minimum is reached).

How do I adjust the volume and crossover frequency?

Use the volume knob on the panel (360° rotation) or the remote control. The crossover frequency is adjustable between 40 and 140 Hz. Adjust it to the point where the bass from your front speakers drops off for a seamless transition.

Can I use The Ball with any amplifier?

The Ball is designed to be used with Scandyna products (The Amp, The Dock, The V-Dock) and compatible speakers (Minipod, The Drop, Micropod SE). It can be connected to other amplifiers via the RCA input, but follow the manufacturer's recommendations.

What should I do in case of overheating?

The device has over-temperature protection. Turn it off, unplug it, and let it cool down. Ensure the ventilation openings are not blocked and it is placed away from heat sources.

How do I use the remote control?

The remote control allows you to turn the device on/off, adjust volume, and activate mute. Point it towards the front of The Ball. Actions are confirmed by the LED (flashing for volume, etc.).

Can I repair the device myself?

No, the device contains no user-serviceable parts. Do not open the enclosure. For any repairs, contact a qualified technician or Scandyna customer service.

Which speakers are compatible with The Ball?

The Ball is designed to work with a pair of Minipod, The Drop, or Micropod SE, in combination with The Amp, The Dock, or The V-Dock. Visit www.podspeakers.com for more information.

USER MANUAL THE BALL SCANDYNA

Modern spherical device with black and white casing, three legs, and a central circular button (no text or symbols visible)

UK

DE

DK

ES

FR

KR

JP

CN

CN

The owner's manual

Brugervejledning

Bedienungsanleitung

Manual del Usuario

Manuel Utilisateur

사용설명서

ユーザー取り扱い説明書

用户手册

使用者說明書

The ball

Close-up of a black circular object with a white rim, resembling a stylized face or button (no text or symbols visible)

Exterior view of a modern white and black spherical device with three legs (no text or symbols visible)

The owner's manual

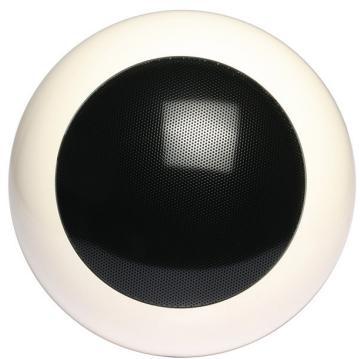

Thank you for choosing the ball. The ball is a digitally amplified subwoofer which combines unique design with high quality audio for reproducing precise and deep bass.

The ball is easy placeable and for maximum sound experience we recommend you to experiment to find the best place in your listening room for getting the optimal sound from the ball. Please note that the bass will seem louder when the ball is placed in a corner or close to a wall than if it stands alone.

We created the ball specially for use with the amp, the dock and v dock together with a pair of Minipod, the drop or Micropod SE. Please visit us at www.podspeakers.com for more information on our products.

Important!

Please read the section on safety before operating your unit.

Before turning the power on, it is important that all connections between your components have been completed.

Also note!

This apparatus should only be cleaned with a lint free dust cloth. Never use cleaning detergents.

Do not sit on the ball!

The ball

Safety Instructions

Warning - To reduce the risk of fire or shock, do not expose this appliance to rain or moisture.

Caution - To reduce the risk of fire or shack, do not remove the cover, or back. No user serviceable parts inside. Refer servicing to qualified service personnel. Caution - To prevent electric shock, match wide blade of plug to wide slot, fully insert.

The lightning Flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance

Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

Retain Instructions

The safety and operating instructions should be adhered to.

Heed Warnings

All the warnings on the appliance and in the operating instructions should be adhered to.

Follow Instructions

All operating and use instructions should be followed.

Water and Moisture

The appliance should not be used near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

Ventilation

The appliance should be situated so that it's location or position does not interfere with its proper ventilation. Far example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings: or placed in a built-in situation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

Heat

The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

CAUTION

FISK OF ELECTRIC

ATTENTION:

RIOQUE DE CHOC ELECTRIQUE ME SING CENTER

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

Power Sources

The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

Grounding or polarization

Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.

Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked an or pinched by items placed on or against them, paying particular attention to cards at plugs, convenience receptacles, and the point where they exit from the appliance.

Cleaning

The appliance should be cleaned only as recommended by the manufacturer.

Power Lines

An outdoor antenna should be located away from power lines.

Non-Use Periods

The power cord of the appliance should be unplugged from the outlet when left unused for long periods of time.

Object and Liquid Entry

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Damage Requiring Service

The appliance should be serviced by qualified personnel when: a) the power supply cord or the plug has been damaged: b) objects have fallen, or liquid spilled into the appliance: c) the appliance has been exposed to rain: d) the appliance does not appear to operate normally or exhibits a marked change in performance: or e) the appliance has been dropped, f) the enclosure damaged.

Servicing

The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Product Servicing

If your system fails to operate properly, please contact the dealer where you purchased the unit. Or you may contact Scandyna directly for further assistance.

The ball

Technical specifications

Power:	60 Watt Class D
Shape:	Abs enclosure conceived to compliment the drop, the minipod or the micropod SE
Voltage:	100-240 VAC
LED light:	Power on, standby, mute
Inputs:	Stereo RCA Jack
Drive unit:	612 “ long throw – 4 layer woofer
Frequency:	minus 3 db at 48 Hz, minus 6 db at 40 Hz
Input sensitivity:	Input @ 100Hz 200mVrms; 1.5% @ rate power
S/N (rated power):	>70dB
THD:	<0.3% @ 1 Watt, 1.5% @ rate power output
Functions:	Cross-over frequency adjust range 40Hz to 140Hz variable, phase: 0dg or 180dg (switchable), digital volume control (360 dg type)
Remote control:	Volume, mute, on/off
Protections:	Short-circuit protection, over current protection, over temperature protection

The ball remote control and LED behaviour

Power Key:	ON, OFF (Power ON/ LED Blue light full, Power OFF LED Blue light less bright)
Mute:	ON, OFF ( Mute ON/ LED Blue Light blinking)
Volume:	When adjusting the volume, the LED Light will blink, until the volume is MAX or MIN.
REMARK:	After 10-15 minutes without signal the ball will go in standby mode/ LED Blue light les bright.

subwoofer control unit

the ball

The ball

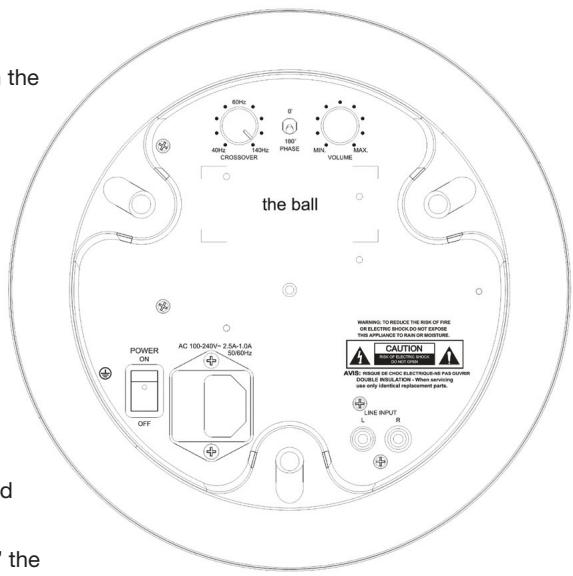

The ball bottom panel
