USER MANUAL THE BALL 2.1 SCANDYNA

Thank you for choosing the ball 2.1. The ball 2.1 is digitally amplified compact soundsystem that combines unique design with high quality audio for Hi-Fi stereo listening and also reproducing precise and deep bass with its built-in subwoofer.

You can connect the sound source of your choice to the ball 2.1, fore example your mac, pc, cdplayer, mp3, television or tuner through the stereo input.

The ball 2.1 is easy placeable and for maximum sound experience we recommend you to experiment to find the best place in your listening room for getting the optimal sound from the ball 2.1. Please note that the bass will seem louder when the ball 2.1 is placed in a corner or close to a wall than if it stands "alone".

We created the ball 2.1 specially for use together with a pair of Minipod, the drop or Micropod SE.

Please visit us at www.podspeakers.com for more information on our products.

Important!

Please read the section on safety before operating your unit

Before turning the power on it is important that all connections between your components have been completed.

Also note!

This apparatus should only be cleaned with a lint free dust cloth. Never use cleaning detergents.

Do not sit on the ball 2.1!

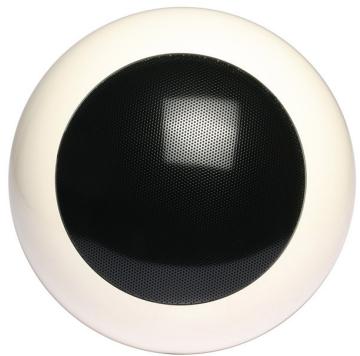

The ball 2.1

Safety Instructions

Warning - To reduce the risk of fire or shock, do not expose this appliance to rain or moisture.

Caution - To reduce the risk of fire or shack, do not remove the cover, or back. No user serviceable parts inside. Refer servicing to qualified service personnel. Caution - To prevent electric shock, match wide blade of plug to wide slot, fully insert.

The lightning Flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance

Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

Retain Instructions

The safety and operating instructions should be adhered to.

HeedWarnings

All the warnings on the appliance and in the operating instructions should be adhered to.

Follow Instructions

All operating and use instructions should be followed.

Water and Moisture

The appliance should not be used near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

Ventilation

The appliance should be situated so that it's location or position does not interfere with its proper ventilation. Far example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings: or placed in a built-in situation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

Heat

The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK,DO NOT REMOVE COVER (OR BACK).NO

USER SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL

Warning: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

Power Sources

The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

Grounding or polarization

Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.

Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked an or pinched by items placed on or against them, paying particular attention to cards at plugs, convenience receptacles, and the point where they exit from the appliance.

Cleaning

The appliance should be cleaned only as recommended by the manufacturer.

Power Lines

An outdoor antenna should be located away from power lines.

Non-Use Periods

The power cord of the appliance should be unplugged from the outlet when left unused for long periods of time.

Object and Liquid Entry

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Damage Requiring Service

The appliance should be serviced by qualified personnel when: a) the power supply cord or the plug has been damaged: b) objects have fallen, or liquid spilled into the appliance: c) the appliance has been exposed to rain: d) the appliance does not appear to operate normally or exhibits a marked change in performance: or e) the appliance has been dropped, f) the enclosure damaged.

Servicing

The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Product Servicing

If your system fails to operate properly, please contact the dealer where you purchased the unit. Or you may contact Scandyna directly for further assistance.

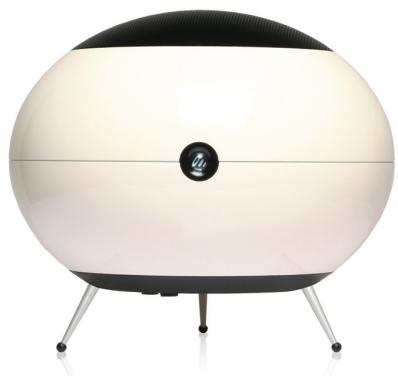

The ball 2.1

Technical specifications

Power: 40 Watt + 2 x 20 Watt Class D

Shape: Abs enclosure conceived to compliment the drop, the Minipod or the Micropod SE

Voltage: 100-240 VAC

LED light: Power on, standby, mute, volume adjust

Inputs: Stereo RCA Jack

Outputs: Left-right for front speakers

Drive unit: 612 " long throw -4 layer woofer

Audio response: 20Hz-20kHz

Frequency: minus 3 db at 48Hz , minus 6 db at 40Hz

L,R channel noise: < 1.0mv

Sub channel noise: < 1.2mv

L,R input sensitivity: Input @ 1kHz 450mVrms @ rate power output

Sub input sensitivity: Input @ 1kHz 270mVrms @ rate power output

S/N L,R (rated power): >70dB

S/N sub (rated power): >70dB

THD: <0.3% @ 1 Watt, 1% @ rate power output

L,R audio separation: 1kHz > 50dB

Functions: Crossover frequency adjust range 60Hz to 160Hz select, digital volume control (360 dg type)

Remote control: Master volume, sub volume, mute, on/off

Protecions: Short-circuit protection, over current protection, over temperature protection

The ball 2.1 remote control

Power Key: ON, OFF (Power ON/ LED Blue light full, Power OFF LED Blue light less bright)

Mute: ON, OFF (Mute ON/LED Blue Light blinking)

Master Volume: When adjusting the volume, the LED Light will blink, until the volume is MAX or MIN.

Sub Volume: When adjusting the volume, the LED Light will blink, until the volume is MAX or MIN.

REMARK: After 10-15 minutes without signal the ball 2.1 will go in standby mode/ LED Blue light les bright.

master volume

sub volume

the ball 21

The ball 2.1

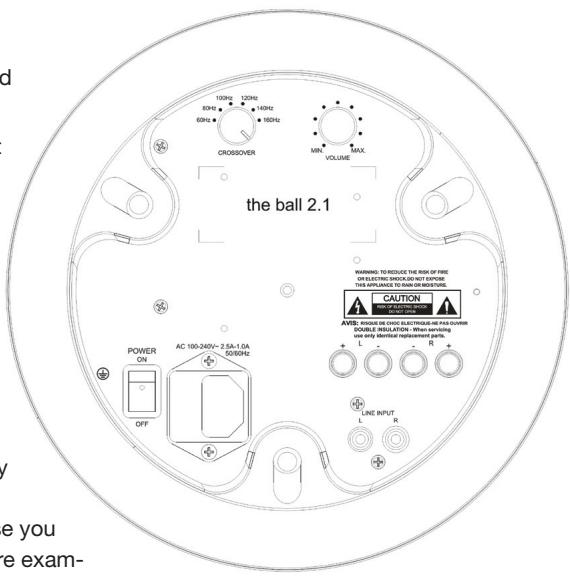

The ball 2.1 bottom panel

Connect your front speakers to the left and right output.

Connect your sound source to the line left and right input.

For adjusting the overall sound, put on a familiar piece of music. While listening you should adjust the subwoofer level to the front speakers. When you have found the right balance, the subwoofer level will automatically follow the mastervolume level when turned up or down.

You should adjust the crossover frequency to the point where the bass of your front speakers are "giving up". The more precise you are able to find this point which can be fore example 100Hz - the more precise the overall sound will be.

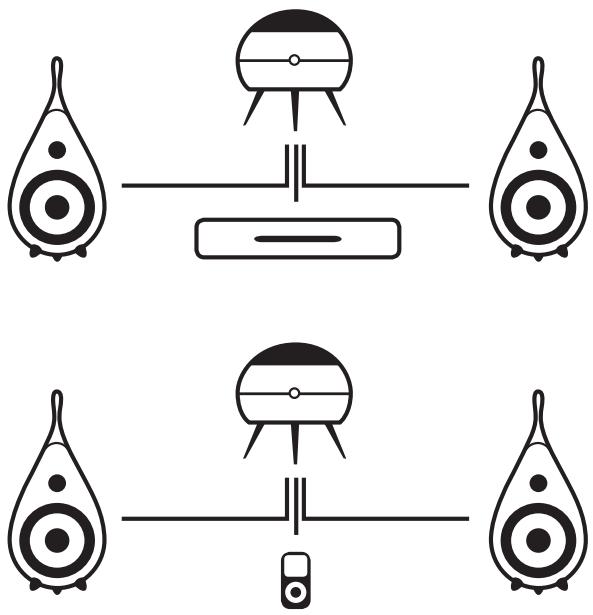

Set up suggestions

The ball 2.1
