USER MANUAL SmallPod SCANDYNA

White and black studio speakers with foam spools, no visible text or symbols

LANGUAGES /

4 English

10 Français

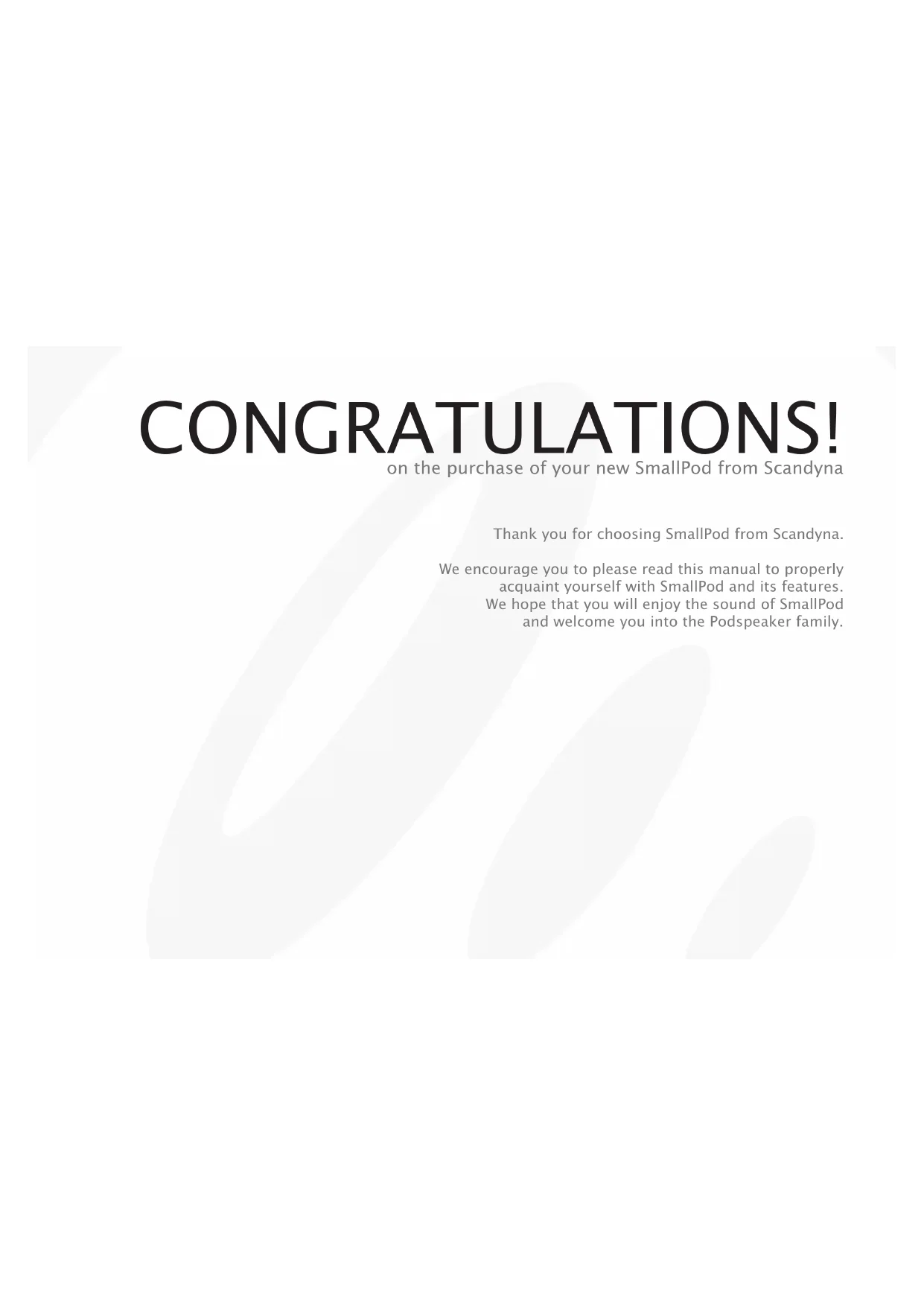

CONGRATULATIONS!

on the purchase of your new SmallPod from Scandyna

Thank you for choosing SmallPod from Scandyna.

We encourage you to please read this manual to properly acquaint yourself with SmallPod and its features.

We hope that you will enjoy the sound of SmallPod and welcome you into the Podspeaker family.

ENGLISH /

5 Welcome to a new world of sound

Loudspeaker positioning

6 Home Theatre Systems

Magnetic interference

7 Connecting your loudspeakers

Running-in period

Care and cleaning

Environmental information

8 Limited warranty

SmallPod

Speakers

ENGLISH / Welcome to a new world of sound

SmallPod is best used with the tweeters approximately at ear level when seated.

Spikes are enclosed and wall mounting is optional and offers opportunity for optimizing the sound through selecting the height and angle of the loudspeaker position.

If you place the loudspeakers on a shelf or furniture unit, the enclosed feet or spikes should be attached for protection from unwanted resonances and from scratches.

ENGLISH / Loudspeaker positioning

Variations in placement of SmallPod can produce significant differences in the way the music sounds.

No listening rooms are the same and therefore we encourage you to spend some time experimenting with which placements work best in your listening room. - Trust your ears and be willing to experiment freely.

You can start with our basic recommendations illustrated on the following page:

Fig. 1 / stereo 2.1 Fig. 2 / surround 5.1 Fig. 3 / surround 6.1 Fig. 4 / surround 7.1

ENGLISH / Home Theatre Systems

SmallPod can be used as front channels in a surround sound home theatre system.

Positioning the front loudspeakers within approximately 1 metre of the sides of your TV will create the best sound image in scale with the visual image. The height of SmallPod should ideally be between the centre and top of the TV screen. If the loudspeakers are to be used for reproducing the surround channels in a multi channel home theatre system, we suggest you place them as illustrated in Figures 2 to 4 depending on the number of channels.

ENGLISH / Magnetic interference

SmallPod tweeter and woofer drive units are magnetically shielded ensuring that the magnetic field outside the cabinet, except the front, is too low to cause distortion of the TV picture, and you can place SmallPod as close to the TV screen as possible without causing visual interference or electromagnetic interference.

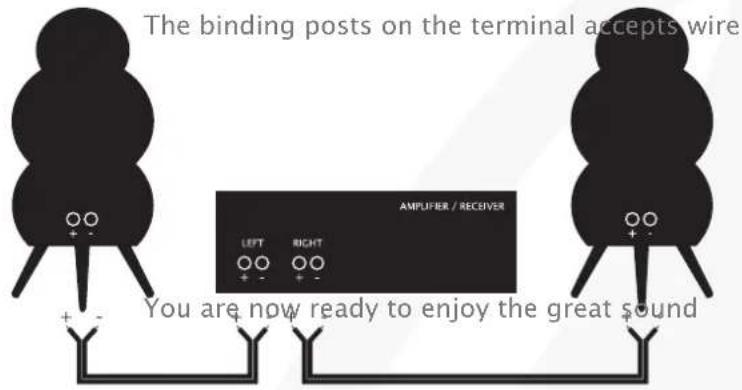

ENGLISH / Connecting your loudspeakers

We recommend that you read the manual of your amplifier or av-receiver carefully before connecting your SmallPod loudspeakers. Please switch off all equipment when connecting SmallPod.

The binding posts on the terminal accepts wire AMPLIFIER / RECEIVER LEFT RIGHT + - + - You are now ready to enjoy the great sound

up	to	∅	4mm	or	cable
Make	sure		that	the	positive
posts on	SmallPod (+) are connected to the positive output terminal binding amplifier and that the negati
SmallPod	(-) are connected to output terminal on the ampli

of SmallPod.

ENGLISH / Running-in period

We recommend a running-in period of your new SmallPod loudspeakers of approximately 15-20 hours at normal listening level before you decide on the final positioning of the loudspeakers. During the running-in period, the drive units will settle in and perform as intended.

ENGLISH / Care and cleaning

We strongly advise against the use of any solvents or cleaners on the lacquered SmallPod cabinets. The cabinet surface usually only requires dusting or cleaning with a damp soft cloth (only use cold clean water). Avoid touching the drive units, especially the tweeter, as damage may result.

ENGLISH / Environmental information

SmallPod complies with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE) - the crossed bin symbol Indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

ENGLISH / Limited warranty

Dear Customer

This product has been designed and manufactured to the highest quality standards, however if something goes wrong with this product, Scandyna A/S and the country distributor, warrants free replacement parts or repair by the official Scandyna distributor.

This limited warranty is valid for the original owner for a period of one year from the date of purchase and it is not transferable.

What is covered by the limited warranty:

The limited warranty covers all production and material defects of the product, except for the damages stated below.

What is not covered by the limited warranty:

• Damages caused by packing and transport.
- Defect caused by accidents, misuse, normal wear and tear, mis-maintenance, voltage variation and overloading.
- Damages caused by incorrect installation or operation.
- Damages caused by modification or repair by a non-authorized service center and use of non-original spareparts.
- Other damages due to the conditions beyond Scandyna's control such as fire, rain, stroke of lightning, war and other force majeure events.

How to claim parts or repair under warranty:

To have your product serviced under warranty, you must contact the dealer from where you bought the SmallPod loudspeakers.

You will need to produce this warranty booklet completed and stamped by your dealer on the date of purchase. Alternatively you will need the original sales invoice or other proof of ownership and date of purchase.

The supplier is liable only to repair or replace defective parts or products. The supplier is not responsible for indirect losses or damages arising from the use of this product.

Transportation costs for servicing are not covered by this warranty.

A service repair or replacement cannot exceed the value of the product under warranty. In no event shall the supplier be responsible or liable for special incidental, consequential or indirect damages.

Date of purchase

Dealer name and stamp

FRANÇAIS /

Close-up of white and black studio speakers with large earbuds (no text or symbols visible)

Scandyna A/S

Designs and specifications are subject to change without notice.
