Product type	Corded electric lawn mower
Models	DLM532Z, DLM533Z
Brand	Makita
Rated voltage	230 V ~ 50 Hz
Rated power	1,100 W (DLM532Z) / 1,300 W (DLM533Z)
No-load speed	2,900 min⁻¹
Cutting width	330 mm (DLM532Z) / 370 mm (DLM533Z)
Cutting height adjustment	3 positions: 20 mm, 40 mm, 55 mm
Grass collection bag capacity	27 L (DLM532Z) / 35 L (DLM533Z)
Net weight	13.1 kg (DLM532Z) / 14.9 kg (DLM533Z)
Guaranteed sound power level	96 dB(A)
Sound pressure level (LpA)	75.4 dB(A) (DLM532Z) / 77.6 dB(A) (DLM533Z), K=3 dB(A)
Guaranteed vibration	0.672 m/s² (DLM532Z) / 0.917 m/s² (DLM533Z), K=1.5 m/s²
Protection rating	IPX4
Double insulation	Yes
Handle type	Foldable, with upper and lower handle
Bag level indicator	Yes, mechanical indicator
Blade	Stamped steel, sharpenable, replacement necessary
Replacement blade	Makita 263001422 (DLM532Z) / Makita 263001414 (DLM533Z)
Blade screw tightening torque	20 – 25 Nm
Power via extension cord	Minimum cross-section 1.0 mm², outdoor use
Safety device	Lock button + switch handle, automatic stop upon release
Cleaning	Cloth or brush, do not spray water
Authorized use	Lawn, grass, flat or moderately sloped ground
Warranty	Compliant with EU directives (refer to manual)
Disposal	Recycling according to WEEE directive, do not dispose with household waste

Frequently Asked Questions - DLM532Z - DLM533Z MAKITA

How to start the Makita DLM532Z / DLM533Z lawn mower?

Press the lock button (1) and at the same time pull the switch handle (2) towards you. Keep holding the handle during use. Release it to stop the motor.

How to adjust the cutting height?

Insert each wheel into the corresponding hole on the housing. The height between the blade and ground can be set to 20 mm (position 1), 40 mm (position 2) or 55 mm (position 3). All wheels must be at the same height.

What to do if the grass bag does not fill?

Check the cutting height (reduce it if necessary), mow dry grass, clean the bag grid and the ejection chute. If the problem persists, have the blade sharpened or replaced by an authorized service center.

How to replace the blade?

Unplug the lawn mower, unscrew the blade screw (tightening torque 20-25 Nm) and remove the old blade. Install a new Makita blade 263001422 (DLM532Z) or 263001414 (DLM533Z) with the cutting edges oriented in the direction of motor rotation.

The lawn mower vibrates abnormally, what to do?

Immediately stop the motor and unplug the appliance. Check that the blade is not unbalanced or damaged. Do not use the appliance if vibration persists and contact a Makita authorized service center.

Which extension cord to use?

Use an extension cord for outdoor use with a cross-section of at least 1.0 mm². Check that it is not damaged and keep it away from the blade.

How to clean the lawn mower?

Unplug the appliance before any cleaning. Use a cloth or brush to remove debris. Do not spray water on the lawn mower to avoid damaging the motor and electrical components.

What regular maintenance is required?

After each use, clean the grass bag and housing. Sharpen the blade regularly and check its balance. Before the mowing season, inspect the wheels, handle and power cable.

Can I mow wet grass?

It is not recommended to mow wet grass as it can clog the ejection chute and reduce cutting quality. Wait for the grass to dry for best results.

What to do in case of motor failure?

First check that the extension cord is properly plugged in and not damaged. Try mowing an area where the grass is short. If the motor still does not start, take the lawn mower to a Makita authorized service center.

USER MANUAL DLM532Z - DLM533Z MAKITA

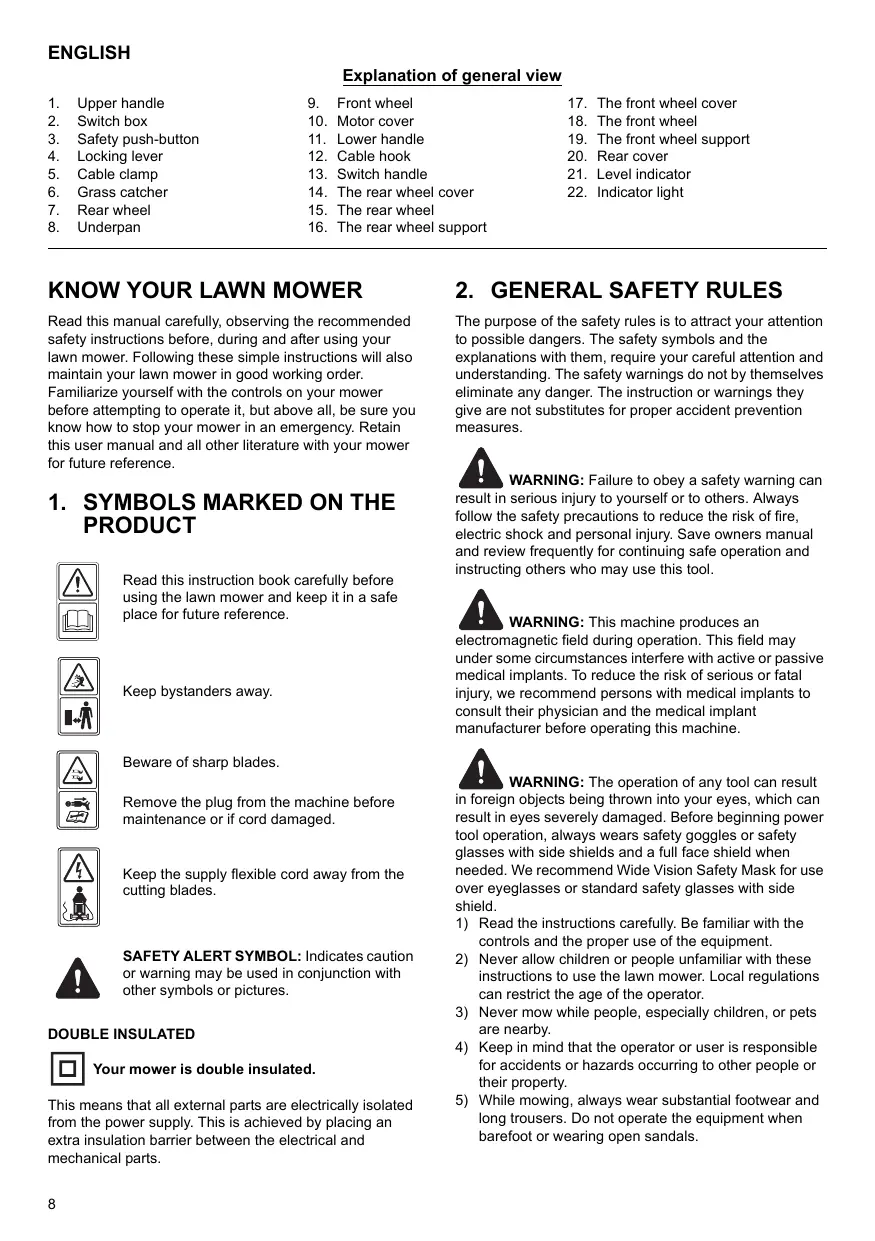

Explanation of general view

1. Upper handle
2. Switch box
3. Safety push-button
4. Locking lever
5. Cable clamp
6. Grass catcher
7. Rear wheel

8. Underpan

9. Front wheel

10. Motor cover
11. Lower handle
12. Cable hook
13. Switch handle
14. The rear wheel cover
15. The rear wheel

16. The rear wheel support

17. The front wheel cover

18. The front wheel
19. The front wheel support
20. Rear cover
21. Level indicator
22. Indicator light

KNOW YOUR LAWN MOWER

Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn mower. Following these simple instructions will also maintain your lawn mower in good working order.

Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency. Retain this user manual and all other literature with your mower for future reference.

1. SYMBOLS MARKED ON THE PRODUCT

Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference.

Keep bystanders away.

Beware of sharp blades.

Remove the plug from the machine before maintenance or if cord damaged.

Keep the supply flexible cord away from the cutting blades.

SAFETY ALERT SYMBOL: Indicates caution or warning may be used in conjunction with other symbols or pictures.

DOUBLE INSULATED

Your mower is double insulated.

This means that all external parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts.

2. GENERAL SAFETY RULES

The purpose of the safety rules is to attract your attention to possible dangers. The safety symbols and the explanations with them, require your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instruction or warnings they give are not substitutes for proper accident prevention measures.

WARNING: Failure to obey a safety warning can

result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. Save owners manual and review frequently for continuing safe operation and instructing others who may use this tool.

WARNING: This machine produces an

electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING: The operation of any tool can result in objects being thrown into your eyes, which can cause eyes severely damaged. Before beginning powertrain operation, always wears safety goggles or safety with side shields and a full face shield when wearing sunglasses or standard safety glasses with side reflections.

1) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
2) Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
3) Never mow while people, especially children, or pets are nearby.
4) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
5) While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

6) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine.
7) Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
8) Mow only in daylight or in good artificial light.
9) Avoid operating the equipment in wet grass, where feasible.
10) Always be sure of your footing on slopes.
11) Walk, never run.
12) For wheeled rotary machines; mow across the face of slopes, never up and down.
13) Exercise extreme caution when changing direction on slopes.
14) Do not mow excessively on steep slopes.
15) Use extreme caution when reversing or pulling the lawn mower towards you.
16) Stop the blade if the lawn mower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawn mower to and from the area to be mowed.
17) Never operate the lawn mower with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place.
18) Start or switch on the motor carefully according to instructions and with feet well away from the blades.
19) Do not tilt the lawn mower when starting switching on the motor, except if the lawn mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
20) Do not start the motor when standing in front of the discharge chute.
21) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
22) Never pick up or carry a lawn mower while the motor is running.
23) Stop the motor and disconnect the plug:

• before clearing blockages or unclogging chute;
• before checking, cleaning or working on the lawn mower;
• after striking a foreign object. Inspect the lawn mower for damage and make repairs before restarting and operating the lawn mower;
• if lawn mower starts to vibrate abnormally (check immediately).

24) Stop the mower:
- whenever you leave the lawn mower.
25) Keep all nuts, blots and screws tight to be sure the equipment is in safe working condition.
26) Check the grass catcher frequently for wear or deterioration.
27) Replace worn or damaged parts for safety.
28) Do not use the lawn mower if the cords are damaged or worn.
29) Do not connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. A damaged cord can lead to contact with live parts.
30) Do not touch the blade before the machine is disconnected from the supply and the blade have come to a complete stop.

31) To keep extension cords away from the blade. The blade can cause damage to the cords and lead to contact with live parts.
32) To disconnect the supply (i.e. pulling the plug from the socket):

• whenever leaving the machine unattended;
• before clearing a blockage;
• before checking, cleaning or working on the machine;
• after striking a foreign object;
• whenever the machine starts vibrating abnormally.

33) Children should be supervised to ensure that they do not play with the appliance.
34) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
35) If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
36) Instructions for the safe operation of the appliance, including a recommendation that the appliance should be supplied via a Residual Current Device (RCD) with a tripping current of not more than 30mA .
37) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
38) Always allow the machine to cool before storing.
39) When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
40) Replace worn or damaged parts for safety; Use only genuine replacement parts and accessories.
41) Be careful during adjustment of the appliance to prevent entrapment of the fingers between moving blades and fixed parts of appliance.
42) Before use check the supply and extension cord for signs of damage or worn. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn.
43) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. PARTS DESCRIPTION (Fig. 1)

4. TECHNICAL DATA

Model:	ELM3311	ELM3711
Rated voltage:	230 V~	230 V~
Rated frequency:	50 Hz	50 Hz
Rated power:	1,100 W	1,300 W
No load speed:	2,900/min	2,900/min
Cutting width:	330 mm	370 mm
Guaranteed sound power level:	96 dB (A)	96 dB (A)
LpA (SPL) at the site of the user:	75.4 dB (A), K=3 dB (A)	77.6 dB (A), K=3 dB (A)
Guaranteed vibration:	0.672 m/s², K=1.5 m/s²	0.917 m/s², K=1.5 m/s²
Grass catcher capacity:	27 L	35 L
Net weight:	13.1 kg	14.9 kg
Degree of protection against liquid:	IPX4	IPX4
Height adjustment :	20/40/55 mm, 3 adjustment	20/40/55 mm, 3 adjustment

5. ASSEMBLY

5-1 ASSEMBLE THE WHEEL

Insert the axle of front and rear wheel cover into the wheel and then screw into the hole of wheel support. (Fig. 2)

WARNING: All wheels must be at the same

height.

5-2 ASSEMBLE THE FOLDING HANDLE

A) Insert the lower handlebars into the fixed holes of the underpan, and then fixed with supplied screw by a screwdriver. (Fig. 3, Fig. 4, Fig. 5)
B) Connect the upper handle and the lower handle with the locking lever. (Fig. 6, Fig. 7)
C) Position the cable over the handle shaft. Clamp it around the middle of lower handle by the cable clamp and make sure the cable is fixed on the outside of the handle. Otherwise the cable may be pinched by opening/closing the rear cover. (Fig. 8)

5-3 ASSEMBLE THE GRASS CATCHER

1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 9, Fig. 10, Fig. 11)
2. To remove: Grasp and lift the rear cover, remove grass catcher.

There is a level indicator on the top of the grass catcher that shows whether the catcher is empty or full (Fig. 12A, Fig. 12B):

• The level indicator inflates if the catcher is not full during the moving. (Fig. 12B)
• If the catcher is full, the indicator collapses. Once this happens, stop moving immediately and empty the catcher, make sure it is clean and ensure its meshwork is ventilated. (Fig. 12A)

IMPORTANT

If the position of indicator opening is very dirty, the indicator will not inflate. In this case, clean the position of indicator opening immediately.

6. ADJUSTMENT OF CUTTING HEIGHT

The cutting height is adjusted by attaching the wheels to the required hole.

All wheels must be at the same height.

The height (the blade to the ground) can be adjusted from 20mm to 55mm (3 height positions). (Fig. 13)

The lowest adjustment: 20mm (position (1)); the middle adjustment: 40mm (position (2)); the highest adjustment: 55mm (position (3)).

WARNING: Disconnect the electric cord from the upply.

WARNING: Make this adjustment only when the

blade is stopped.

7. SAFETY PRECAUTIONS

a) Always operate with the deflector or grass catcher in the correct position.
b) Always stop the motor before removing the grass catcher or adjusting the height of cutting position.
c) Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. (Fig. 14)
d) Never lift the rear of the mower while starting the motor or during normal operation. (Fig. 15)
e) Never place your hands or feel underneath the underpan or into the rear discharge chute while the motor is running. (Fig. 16)

8. STARTING

Before connecting up the lawn mower to the electric power supply, make sure that the mains supply voltage is 230V 50Hz

Before start the lawn mower, fix the extension cord into the cable hook. (Fig. 17)

When the lawn mower power on, the indicator light will turn on. (Fig. 18)

Start the motor as follows. (Fig. 19)

a) Press the safety push-button (1).
b) And meanwhile, pull the the switch handle (2), and keep it in grasp.

Push the lawn mower manually when the motor is running.

If you release the switch handle, the motor will stop.

CAUTION: The blade starts turning as soon as

the motor is started.

WARNING: Cutting elements continue to rotate

after the motor is switched off.

9. BLADE

The blade is made of pressed steel. It will be necessary to reshape it frequently (with a grind wheel).

Ensure that it is always balanced (an unbalanced blade will cause dangerous vibrations). To check for balance, insert a round rod through the central hole and support the blade horizontally. (Fig. 20) A balance blade will remain horizontal. If the blade is not balanced the heavy end will rotate downwards. Reshape the heavy end until the blade is currently balanced. (Fig. 21) To remove the blade (2), unscrew the blade screw (3). (Fig. 22, Fig. 23, Fig. 24)

Check the conditions of the fan (1), and replace any parts, which are damaged. (Fig. 22)

When reassembling, make sure that the cutting edges face in the direction of the motor rotation. The blade screw (3) must be tightened to torque 20-25 Nm.

WARNING: For service, replace the blade with:

MAKITA 263001422 (for ELM3311) and MAKITA

263001414 (for ELM3711) only.

10. EXTENSION CORDS

You should only use extension cords for outdoor use, ordinary duty with a cross sectional area not less than 1.0mm^2

Before using, check the supply and extension cords for signs of damage during use, disconnect the cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn. Keep extension cord away from cutting elements.

WARNING: Always ensure that the ventilation

openings are kept clear of debris.

11. MAINTENANCE AND CARE

WARNING: Before performing any maintenance

or cleaning work, always pull out the mains plug!

Do not spray the unit with water. Ingress of water may destroy the switch-plug combination unit and the electric motor. Clean the unit with a cloth, hand brush, etc.

Expert inspection is required, do not make any adjustment by yourself, must contact Makita authorized service centre:

a) if the lawn mower strikes an object.
b) if the motor stops suddenly.
c) if the blade is bent (do not align!).
d) if the motor shaft is bent (do not align!).
e) if a short-circuit occurs when the cable is connected.
f) if the gears are damaged.
g) if the V-belt is defective.

12. TROUBLESHOOTING

WARNING: Before performing any maintenance

or cleaning work, always pull out the mains plug and wait until the cutter has come to a standstill.

Fault	Remedial action
Motor does not run	Check mains connection cable. Start on short grass or on an area which has already been mown. Clean discharge channel/housing-the mowing blade must rotate freely. Correct the cutting height.
Motor power drops	Correct the cutting height. Clean discharge channel/housing. Have mowing blade resharpened/replaced → authorized service centre.
Grass catcher is not filled	Correct the cutting height. Allow the lawn to dry. Have mowing blade resharpened/replaced → authorized service centre. Clean the grille on the grass catcher. Clean the discharge channel/housing.
Wheel drive does not function	Adjust the flexible cable. Check the V-belt/gears → authorized service centre. Check the drive wheels for damage.

CAUTION: Faults which cannot be rectified with

the aid of this table may be rectified by Makita authorized service centre only.

13. ENVIRONMENTALLY FRIENDLY DISPOSAL

According to EU directive 2002/96/EC on electric and electronic equipment and its implementation into national law, all electric tools must be separately collected and environmentally friendly recycled. Alternative disposal: If the owner of the power tool does

not return the tool to the manufacturer, he is responsible for proper disposal at a designated collection point that prepares the device for recycling according to national recycling laws and regulations.

This does not include accessories and tools without electric or electronic components.

For European countries only EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine: Lawn Mower

Model No./Type: ELM3311, ELM3711

Specifications: See "4. TECHNICAL DATA" are of series production and

Conforms to the following European Directives: 2004/108/EC, 2006/42/EC, 2000/14/EC & 2005 EC, 2006/95/EC

And are manufactured in accordance with following standards or standardized documents: EN 60335, EN 62233, EN 55014, EN 61000

The technical documentation is kept by: Makita International Europe Ltd., Michigan Drive, Tongwell, Milton Keynes, MK15 8JD, England

The conformity assessment procedure required by Directive 2000/14/EC was in Accordance with Annex VI. Notified Body:

TÜV SÜD Industrie Service GmbH
Westendstraße 199, D-80686 München
Identification Number: 0036

Model: ELM3311

Measured Sound Power level: 87.7 dB (A)
Guaranteed Sound Power level: 96 dB (A)

Model: ELM3711

Measured Sound Power level: 91.0 dB (A)
Guaranteed Sound Power level: 96 dB (A)

1. 1. 2012

Tomoyasu Kato Director

Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi, 446-8502, JAPAN

Descriptif

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Angleterre

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

1. SYMBOLE AM PRODUKT

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inghilterra

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

5-2 DE INKLAPBARE HANDGREEP MONTEREN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

Richtlij 2000/14/EC was is Overeenstemming met Annex VI.

Officèle instantie:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglaterra

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Descrição geral

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglaterra

Corpo notifications:

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Pas pa skarpe knife.

2004/108/EF, 2006/42/EF, 2000/14/EF og 2005/88/EF, 2006/95/EF

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

IpooeTe TIG KOPTepes AaEs.

ApaiaeToBuaaAtoTounxavnaTpirV atoTicEpyaiesOuvtnpansnEavTaei Znua to Kaawdo.

KpatnoTe To EukauTTo Kaawio Taopoxns peuatoa paia ato tic aes kottns.

IPOEIAOIOIHTIKO SYMBOAO

6. PYOMIESH TOY YPOYE KONHSE

To uoos kootns puthetaietai meow tn s ouvoeans twv tpoxov otnv attaitouveyn trutia.

IPOEIAOIOIHs: Ia to oεpβiC,

avikataotntnla ma: MAKITA 263001422 (yla ELM3311) kai MAKITA 263001414 (yla ELM3711) mvo.

2004/108/EK, 2006/42/EK, 2000/14/EK & 2005/88/

EK, 2006/95/EK

Kai kataoekuaovtai oumuwva e Ta napakatw npotutta

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

H diaiokaia ekiunong oumuoppwong nou aattieitai ato tv Odyia 2000/14/EK ekteleotnke ouuwova e to Iapaprtna VI.

Koivotoinuevo opavioo6:

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Ingiltere

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

Uppmatt ljudeffektniva: 91,0 dB (A)

Garanterad ljudeffektniva: 96 dB (A)

1. 1. 2012

Tomoyasu Kato

Direktör

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

1. SYMBOLENE PÅ PRODUKTET

2004/108/EF, 2006/42/EF, 2000/14/EF & 2005/88/

EF, 2006/95/EF

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

12.PROBLEMU NOVERŠANA

BRIDINAJUMs: Pirms veikt apkopi vai tirisanu

vienmér atvienojiet kontaktdakšu no elektroapgădes tikla un pagaidiet, lidz griesanas ierice apstajas.

Bojăjums	Risinăjums
Motors nedarbojas	Pârbaudiet elektroapgădes tîkla kabeli. Săciet Îsă zălê vai laukumă, kas jau ir nopăuts. Iztîriet izlaides kanālu/korpusu — plauşanas asmenim brîvī jagriežas. Mainiet plauşanas augstumu.
Samazinăs motora jauda	Mainiet plauşanas augstumu. Iztîriet izlaides kanālu/korpusu. Atkãrtoti uzasiniţ/nomainiet plauşanas asmeni → pilvarotă akpopes centră.
Zăles uztveřëjs nav piepildîts	Mainiet plauşanas augstumu. Laujet Žălajam noțūt. Atkãrtoti uzasiniţ/nomainiet plauşanas asmeni → pilvarotă akpopes centră. Nottîriet zăles uztveřëja režigi. Iztîriet izlaides kanālu/korpusu.
Nedarbojas riteŋu piedziŋa	Noregulëjiet elastîgo kabeli. Pârbaudiet V veida siksnu/mehanismus → pilvarotă akpopes centră. Pârbaudiet, vai riteŋu piedziŋaìn nav bojăjumu.

UZMANIBU: Problemas, ko nevar noverst,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

Atbilstibas novertejuma procedura, ko nosaka Direktiva

2000/14/EK, veiktatabilstosi VI pielikumam.

Pilvarotā iestāde:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Bendrasis aprasymas

1. Virsutine rankena
2. Skirstomoji dézé
3. Apsauginis mygtukas
4. Fiksavimo svirtis
5. Laido spaustukas
6. Zoles gaudykle
7. Galinis ratas

8. Dugnas

9. Priekinis ratas

10. Variklio dangtis
11. Apatine rankena
12. Kabliukas kabeliui
13. Jungiklio rankena
14. Galinio rato gaubtas
15. Galinis ratas

16. Galinio rato atrama

17. Priekinio rato gaubtas

18. Priekinis ratas
19. Priekinio rato atrama
20. Galinis gaubtas
21. Lygio indicatorius
22. Kontroline lemupte

VEJAPJOVES APRAŠYMAS

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglismaa

Vastavushindamise protseduur direktiivi 2000/14/EU

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Objasnienia do widoku ogolneo

Michigan Drive, Tongwell,

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia.

3. POPIS SUCASTI (Obr. 1)

4. TECHNICKÉ UDAJE

2004/108/ES, 2006/42/ES, 2000/14/ES a 2005/88/

ES, 2006/95/ES

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglicko

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

2004/108/ES, 2006/42/ES, 2000/14/ES a 2005/88/ES, 2006/95/ES

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

Procedura de evaluates a conformitài cerutá de Directa

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Ioarchenna K obseemy Bndy

1. BepxHry pyKoRTka
2. Blok nepeknoatele
3. Khonka 3KCTpeHHORO OTKJIIOHHeHH
4. CtonopnbI pybIar
5. Ka6eJbHbI 3axnM
6. Bynkep nra c6opa tpaBbl
7. 3aJHee KJneco

8. PoiDOn

9. IpepeHnee Koneco

10. Kanot
11. HIXHry pyKoRTka
12. KaebnbHbI KPOHHTeIN
13. Pukac BbIKJIOuATEJeM
14. Orpaxdenehe 3aHero kOleca
15. 3aJHee Koneco

16. Onopa 3aDHeRo kOleca

17. OrpaKdHeHne nepeDHeRo kOleca

18. IpepeHnee KOleco
19. Onopa nepeDhero kOleca
20. 3aHnKpbIka
    21.Инданкатор уровья
    22.Инданкатор

3HAKOMCTBO C ГАЗОHOKОСИКОД

BHNMaTeNbNo npOHTNe DaHHepe pyKOBODCTBO n CneDyIte Yka3aHnM No TeXhNke 6e3oNaChOCTn Nepeed NaHaIOM paObTb, Bo BpeM He e N OcNe OKOHauHn IcNOb3BaHnA ra3OHOKOciNKn. BbIOnHne H3TNx HecNOxHbIX INCTpyKcPi NMOxET TaKKe TIOndepKmBA Tb NaDHexKaUyO paOToCnOCbHocTb ra3OHOKOciNKn. Po3NaKOMbTEcB c OprAhAm YuPabLeHnra Ra3OHOKOciNKn Do HaJala 3KnPLnyatau, Ho Camoe IpaBHe -y3NaIte, KaK BbIKLIOHTb ra3OHOKOciNKy B 3kCTpeHHo CIITyauNi. CoxpaHIne PyKOBODCTBO nONb3ObaTeY n IpOuyo DOKyMeHtAUu NO ra3OHOKOciNke dJa daJIbHeJeero IcNOb3BaHnIA.

1. MAPKINPOBKN HA N3DEJINN

BHNMaTeNbHpoOHTne DaHHeo pyKOBOCTBNOpeN HauaONM 3KcNpyTaUmN ra3OHOKOCINKNIO COxApaTHeEro BHaJedxHOM Mecte dnn daNbHeuWero INCNb3OBAHn.

He donyckaTe noctopohnHex K MeCTy pa6oT.

BepenTeb ocTpbix ne3Bn.

Perepe BblonHHeHem TexHHuecKOrO
obcyuBbAHnI INB Cnyae NobpeJeHNHa
KaBeR OTOeOMHInTE pazbem OT MaSHnHbI.

PacnonarataIte ngkki Ka6eIb nItaHnHa pacctOraHn OT HOKeI.

3HAK PENEUYIPEXKDEHNO IOTEHENJIbHOI ONACHOCTN:

Yka3bIaET Ha NO6XoDnMocTb CO6IIOJeHnna OCTOPOKHOCTN B COeTaHN C DpyrMMN CmBBOJAMNI INN INO6paxEHNMn.

ДВОИHA N3ОЛЯЦА

Bawa ra3oHokocnka ochaeHa dBoiHOI n3OJIaCneI.

3To 03Naaet, Yo BCE BHeUHMe DeTaJIIMeHOT 3NeKTPOn3OJIaMIO OT NCTOCHNKA NITAHNI. 3To DCtIraeTcny Tne NOMeUeHnI DOnOJIHTeJIbHOrO 3NJ3OIaUNHO 6apBaepa MekJy 3NeKTPuCeckMNIM mexAHueckMNl DeTaJIaMn.

2. OБциЕ ПРавиЛА TEXHИКИBE3ОПАСHOCKTIN

Ha3haueHne npabnl Texnki 6e0naococtn - npnbIeYb BaIe BHNMAHNE K BO3MOXhBIM ONaCHOCTM. CmBBoJI texnki 6e0naocOCTn IN ONGEHN K HIM TpeSyIOT BaIero BHNMAHNI INOHMAHNI. IpeDynpKDeHNA camn no Cebe N yctpaHAnOT anoCHoCTb. IHCTpykUnn nI npdeynpKDeHNA He 3aMeHJrT MepONpRnTnNo npedotBpaUeHHIO HeCuaCTbIX cnYaeB.

ПЕДОCTEPEXFEHNE: Hecneobanne

npedynpexdeHNO NO TexHKe 6e3oNaCHOCTMOKET npBecTn K cepb3eHNo TpaBME OonepTaOpA INO OKpykaUoIuXn.Bo N36eKaHne PnCKa BO3rOpAHN, npAoxEe3JeKTPnuCeckM TOKOM INIO NOnIPOyehN TpaBmbl CLeNyet C05JIoDaTb npABuJa TExHHK 6e3oNaChOCTn. CoxPahnte DaHHOe pykoBOcTBO nON3OBATEJN INepNOdUneCKn IPOCMAtpRuBaIte erO, uTO6bI o6eCneHTb 6e3oNaCHyU 3KcPIyatauIO INHCTpykTIPoBAtB dpyuNx NpIb3OBaTeNe JdaHHOrO IN3dEJI.

IPEIOCTEPEXEHNE:BoBpemra6oTbI

daHHeO yCTPOIcTBo CO3JaET aJIeKtPOMaHHTHOe nOJe. B HekOTOpbIX CnUayAix 3TO nOJe MOKeT CO3dAbTaB NOMexn DnRA AKTNBbIX INN nACCMBbIX MeDINCHCKNX IMnPaHTaTOB. TOb6I yMeHbUnTb Pnck TReKeJIoN INN CMEpTeNbHO TpaBMbl, nepei HaJAM O KcPnJaYatauIMyCTPOCTBA JIOdAm C MeDINCHKmM INMnPaHTaAMn peKomeHdyETcPOKOHcyJBTIPOBaTcBcC BpaQHOM INPON3BOIDNTeEM IMnJaHTaTA.

IPNEIOCTEPEXHEHNE:3KcnIyataaunJIO6o

HnCTPymeTA MoKET nPIBecTNI KOnpAanHIOHOpOdBHX npEmTeoB B rna3a, YTO MOKET NocIyKnITb pnuHNOI TaeNoRo yuepeBa 3peHIO. Pepeh NaHaoLam paObTo bC

HCTpymEHOM 063aTeNbHO HADeBaIte 3aUHTbIe OCHN IIN OUYK C 6OKBbIMN UITKAMN, IIN6O 3aUHTHyO Macky (ecNI HeoBxOdIMO). PeKOMEnHyETcN cONPb3OBaTb 3aUHTHyO MACKy C yBeJIuYeHHbIM YrTIOM OB3Opa -Y Hee MHORo pIpeMMyIeCTB Nc CpABHeHIO C OUYkAMN IIN CTaHApTHbIMN 3aUHTbIMN OUYkAMN C 6OKBbIMN UITKAMN.

1) BnHmATEbHo npOuTnAte HNCTpyKU. O3NaKoMbTeCb coBcMeOpraHaM ynpaBnEtna npaBnIaM npabInbHO 3ckPnlyataCm 3ndEiJa.
2) He pa3peuaiTe DeTAM INIiZAM, He 3NaKOMbIM c DaHbIMN INCTPYKUINMM, PJIb3OBAbTCBra3OHOKoCNIKO. B MecTHOM 3aKHOdaTeNBcTBe MOrYt CyueCTBOBaTb Bo3pACTHbE OrpaHNeHn DnIe OnePaTOPOP.
3) 3aIpeuaeTc8 kcnIpyaIropoBaT ra3OHOKOCUNky, eCNI no6JIHIOCTn HAOJITc8 IIOIN (B OCO6eHHOCTn Detn) nIJN JXIBOTbYe.
4）ПOMHHTe，чToОпаTpOp/NoIb3ObATEnB HeCET OTBETCBEHNOCTb 3a pOmcSueCTBnI N OaChbIe CNTyauCm CdpYHMN IIOdbM NIN INX CO6CTBEHHOCTbIO.
5）HaBpemrCTPnKnnra3OHaOB3aTeNbHOHaedeBaIte npOHyOByBnNIIINHbIe b6pOKn.He nOJIb3yIITcBc OobpyoBAHmEoCkOMMnNBIOTKpbTbIX caHdAIIJX.
6) TuaTeNbHO OCMOTnPte MeCTo, Ie 6yET nCOnb3OBAtBcra OOBpyDobAHMe, u ydAnITE BCE npEmdTbI, KOTOpbIE MOrT 6bITb OTbOPOWeHb MaunHoN.
7) Ipepe nCnoIb3ObaHnem oBraTeIeBHO OcMoTpuTe Ie3Bn, 6oNTbI KpEJIeHnIe3BnI pExyUuI yEaI Ha npEMeT I3OcA IIOBpeXJdeHn. 3aMeHnIe I3HOUeHbI INI NOBpeXJdeHbI e3BnI 6oNTbI KOMIIeKtAmI, YTObI He dOnyCTNb HapUSeHn I banaHCnpOBKn.
8) CtrnKyyra3OHOBBbIIOHJIteToIbKO BdHeBHOBePmI INI npxOPOeM NCKyCCTBEHHOMOCBESeHIM.
9) ПО ВЗМоЖнон He ИспОььуTe obopудоване на мokро Травe.
10) Co6nIouaTe octopoXHOCTb Ha cKnloHax.
11)пелеваяпесьшaram,небаerte.
12)Пи ИСПОЛьЗВАМИ NОЕСТБИХ POTAZIOHNOHBIX MAДИН CTРИЖК YСКLOHOB BИПОЛNHЯTE TOЛБКО ПОЕК, HO HN B KOEM CNYAчЕ Н ВЕРХ I AND HE BHIN NO CKLOHY.
13)Co6nIouaTe oc6oyuOcTOPOXKHOCTb,MeHЯ HappaBHeHne DmIXKeHnHa CKIOHax.
14) He bblonHnIe cTpNkKy Ha uepeCyp kpytbix CKNoHax.
15)C6bIIOaIte OcObIyO OCToPoxHocTb pIu DVBIXeHHN 3aDnHM XODOM IINI IOITraIIBa Ra3OHOKoCNKy K ce6e.
16)O63aTeIbHO BvIKIOaJIte Ne3BVE,ecnn ra3OHOKoNlKy Heo6XoJIMMo HAKNoHITb IpaTHcNOPrTOpOBKn IO NOBepxHOCTn,OTNIuHOIOT TpaBbI,JIIOo pIraHCNOPTOpOBKe Ra3OHOKoNlKn K MeCTy EKnJIpyatauNN O6patHO.
17)3aŋpezaetc3kCπIyataHpOBaT ra3oHOKocnIky c HEnCnpaBbIMn ORpaJxdeHnMn Nn 6e3 3aunTHbIX npncocO6bHeN, HapmPme, DeΦneKTopOB Nn ByhKePa nIg c6Opa TpaBbI.
18)BkIIOuHaTe N BbIKIOUaTe 3NeKtpOMOTOP OTOPOXHO,B COOTBeTCTBn C INHCTpyKUJMAH, HON

PnI 3TOM DoJIKNbI HAXOJITcR KaK MOXHO daJIbSe OT Je3BvI.

19) He haknohnye ra3oHOKocnky npn BkIIOHeHH n3KeKTPOMOTpa, 3a IckNoHcHEmC nCyaaB, KOrDa 3To npedycmOTpeNO dna3aNcyka dBiratena. B 3tOM cCyaae haknoHnye ee Ha MNHMajbHbI yrO, nODHMajTe TOnbKO daNbHIOOT OtnepaTopa qactb.

20) He BkIIOuAaIte 3IeKtpomOTop, cTOr IpePeD pa3rpy3OHybIM JKeIo6oM.

21) He nOmeuaiye pyKn IINH HOrN NOI Bpaiaooiuece TaTAn NIIb6nn3nHx. B JIOBcNtuaCNI He cTAHOBIECTe neped aarpyr30HbIM OTBepCTHEM.

22) He noDnHMaIte n He nepeHocInTe ra3oHOKocNkCy c pa60taOuM m DnBraTeJeM.

23)Выклочи Te 3IeKtpomotop n OTOeENHInTe BnIKy: -петд устраненmЗаоров u ydaJIenHemпрdmetOB,ЗakynopNBuxx KeNo6;

• pepe npOBeRkoI, ONUCTKOINII NIO OBcnyKINBaHnEM ra3OHOKOcNIKN;

• nocne ynapa o noctopohnni npedMe. OcMOTpnte ra3OHOKOncnky Ha npedMeT NOBpeXdEnH IN yCTpaHNTe HeCNpabNHOCTb, npexDe Yem BKJIIOUaTb N 3KcNPlyaTnpoBaTb r3OHOKOncnky;

-eCnHauaacbHeHOpMaJIbHaB Wb6paZna Ra3OHOKoCNIK（HEMeDJIeHNO npOBepeTe).

24) BbIKJIouaIe rα3OHOKOcIMKy:

• octabnnae ee 63 npncmoTpa.

25)Bce raiKn,60ntbI IN BHTbl DOJNkhbl 6bItb HaedxHOb3aTarytB-3TO oBeOcneuHT Be3oNaCHOCtB nPabotocnoC6HOCTb.

26) PernoDnueckn npObepeIe 6bHKeP dIa c6Opa TpaBbHa npEeMTe n3HocA nCHNeKHeN 3KcPnyaTaunOHbIX KaueCTB.

27)Uto6bI o6ecneuHTb 6e3oNaChocTb,3aMeHnTe m3HOWeHHbIe NIOBpeXdEHHbIe DeTaII.

28) He nCIOJIb3yIte rA3OHOKOCNIky C NOBpeXDeHHbIM IIN IIN3HOUeHHbIM Ka6eJIem.

29) He nodklouaTe noBpeKdHbI Ka6eIb K NcTocHnky nITAHn I He npKacaiTeCb K NOBpeKdEHOMy Ka6eJIIO do Tex nop, nOKa OH he 6ydt OTcoeINHeN OT nCTOCHNA kNTAHn. NoBpeKdEHb K Ka6eIb MoKet pNIBEChN K KOHTaKTy C DeTaTaNMa, HxOJaUIMMsc nOD nAPRJKeHMeM.

30) He kacaiTeBcIeNBe3nIa Do Tex Nop, Ioka MaunHa He 6byet OTOeOeINHeA O NTocUHnKa PITAHn, I ne3Bne NOHOCbHO He OCTaHOBNTC.

31) Pacnojarai Te yDInHntBHe k6einn B cToPoHE ot Je3Bn. Je3Bne MOKeT NOBpeINt b Ka6einn KOChyTbCd Detaleyn ND HapJxKeHNEM.

32)OTcoeINHnIteNCTOCHNKPiTahnra(T.e.I3BnEkaTe BnIKy n3po3ETKN):

• octabnmaunHy be3 npncmToPa;
• neped yctpaenhenem 3acopa;
• napei npovepko, ouhctko nn noobcnykBaHneM yctpoiCTba;
• nocne ynda o noctopOHnI npedMeT;
• pnpnoBnEnHn HHeOpMaIbHOB B6paun.

33) CneJyET CneJntb 3a MaIeHbKIMN DeTbMn, YTO6bl OHI He IcNoJIb3OBAII N yCTpoIcTB BO KauEcTBe INrpyuKN.
34)Данhoeуctpoitreв He npeHa3HauEHO,IЯнMCNoIb3ObaHNIOIbDMB(KBIOUaJTeNc)C OрганчeHbIMnФИЗMuECKMIM,CEHOCPbHMnIJI

YMCTBHeHHbIMN BO3MOJXHOCTaMI, NIOBO HE IMMeOuIcMI COOTBETCTBYUcero ONBtA ININ 3HAnHm, 3a INKIIIOHcEN CnPyaeB, KOrDa OHNI DeCTByOT NOI PYKOBODCTBOM ININ NOCNE HADJIeXaIeERO INHCTpykTAka IIONCNb3OBAHNIO YCTPOINCTBa CO CTOPoHbI NlCa, OTBETCTBeHHORIO 3a INX Be3ONACHOCTb.

35)B clyae nopeJeHnna KaIeI nIaTHn erO He6xOdMIO 3aMeHInb CteIaIIbHIM Ka6eIeM IyIYlOM, KOTOpI npNo6PeTaTcR y npOn3BOJntTeN IIN B CepBCHOM CEHTpe.
36)Инструкши no 6e3oanachо ᶥкспуатушу уструйства, БКИнчая рекOMeHДаши no nitsaMuNo уструйства Урете nctOчHM octatochuroTo kota (RCD) с токOM OTKIOHcEHnHa He bOJIe 30 mA.
37)CobIoudaIteOctoPoXHocTb npn peryIuPobKe MaunHbI, YTObI He DOnyCTNtB 3aXBaTA naJIbceM EMeKy DnBxUyIMNCJ LE3BvIMN H NeIOBvXHbIMN DetAJIIMMa MauINHbI.
38)Пелед постановков нахранене дайу усторь OCTытб.
39)При обсnyхвани Левий снедуET NOMHNT,ЧToЛевая могут ДИВЯТСДдже пп OTКЛЮЧЕНМОпТAHIN.

40)UTo6bI o6ecnHtB 6e3oNaCHocTb,3aMeHJTe m3HOWeHHbIe NOBpeXdeHHbIe DetAIn. IcNoNb3yTe ToJIbKO oprINHaJIbHbIe 3aNpACTn I dONoHNHTeJIbHbIe npInaDJIeXHooCTn.
41) Co6nOdaIte octopoxhocTb npn peryIinpOBeV yCTPOIcTBa, YTObBi He NOcyCTINb 3axBaTa nAJIbceB MEJky DBHXyUIMNCAIE3BXIIMN HENOdBHXHbIMN DETaJIaYy UCTPOIcTBa.
42) Pered nauanom 3KcNpyataun npOBepbTe cTeBOW uYdINHnTeNbI Ka6eNHa npEaMeT NOBpeXDeHn IInu n3HocA. B Cnyae NoBpeXDeHn Ka6eN BO Bpem paObToI HeMeDJIeHNO OTCoeDNIte Ka6eNb OT nCTOUnKaPiTaHn. HE KACAI TECb KA6EJIa DO OKJIIOUChENr OT nCTOCHNKA PiTAHn. He nCNoIb3yIte yCTpoJcTBQ, eCIn Ka6eNb NOpeXDeHn IInu n3HOuEH.
43) Ecni shynp ntnaHn noBpeKdEn, BO n36eKaHne pncscaero cneJyET 3aMeHnTb y npO3BODnTeR, B er oceBvCHOH cnyXBe NINn ObaPHTbcr K IuCy, HndeneHOMy aHaONrNcHBMN NONHOUMnMn.

3. ONICAHNE DETAJEN (Pnc. 1)

4. TEXHnueCKNE DAHHbIE

IPEDOCTEPEXEHNE: Bce koneca donjkhbl

6bItb yCTaHOBnEhbl Ha OndHOB BbICOTe.

5-2 COBEPITE CKJIADHyU PYKOKTky

A) BCTaBtE NHXHHe KOHcIb pyKoRTKn BOTBePCTNa NODoHa, 3aTeC nOMObIy OTBePTrk 3aФИКСИРуTe npINrAraeMbIM BHITOM. (Pnc.3,Pnc.4,Pnc.5)
B) CoeINHInTe BepXHIO N HIXHOpyKoRtKn CTOnOpHBm pbIaROM. (Pnc. 6, Pnc. 7)

C) PpOJoxHte KaBbIO oC npyKoTKn. 3aФNcPpyTe erO BOKpyr HnXhNe pyKoTKn C nOMOuIbIO KaBbHOrO 3axmHa N y6eINTecb, 4TO KaBb paCnONaeraTcB B cTOpOHe OT pyKoTKn. B I pOtnBHom cnyae KaBb MOKeT 6bTB 3aUeMnE h pN OTKpBTMN/3akpBTMN 3aDHe KpbIuKN. (Pnc.8)

5-3 CБОРКА БУНKEРА ДЛЯ СБОРAPTPABbl

1. YctahOBka: PtoHnIMHTe 3aDHHO KpbIuKy npncoeiHnHte 6yHke pIa c60pa TaBbBa 3aDneH actn Ra3oHOKoCINKn. (Pnc.9, Pnc.10, Pnc.11)
   2.CHrTHe:Bo3bMnTEcB 3a 3adHIO kpbIbKU n
   noDHNMMITE ee, 3aTeM OTcoEHNITe 6bHKep.
   B BepxHneJtAcN 6bHKepa DnA C6opA Tpabbl
   PpeyCmOTpeH INdIKaTOp yOboH 3aONHHeHb6bHKepa
   (Pnc.12A,Pnc.12B):

2. INHINKATOP yOBNBAyBENHBAETC, ECNI BynKepeIc6opa TpaBb He 3aONHe BO BPem nepeMeeHn. (Pnc. 12B)

3. Ecnn6bukepIJIa c6opaaTpaBbIIOHbI,INHdkatOp yMehshaTaC. B 3tOM Cnyae HEmeJneHNO npkepatNTe nepemeueHHe N OPOXHNTE 6bHKep. Y6eINTecb, YTO OH uCTbA, aero cetka BeHTnNpyETc.(Pnc.12A)

BAXHO

Ecnn OTbEpCTNe INdMkATopora CnblBO 3aqrpaHENO, OH He 6ydet YbeNnuNbTaBcR. B 3tOM cnyae HemeIeHNO OOCHNTe OTbEpCTNe INdMkATopora

6. HACTPOIKA BbICOTbl CPE3AHNIA

BbICota Cpe3aHnHaCTpaHnBaetcnyTem yCTaHOBKn KOeC B HxKHe OTBepCTne.

Bce koneca doJnxbI bIty cTaHOBJeHbHa oJHO BbcOTE.

BbICOTy (Ie3BnO rT 3eMnI) MoXHO OTpeYPiPoBaTb B dana3oHe OT 20 MM - 55 MM (3 nOIOKeHnY BbICOTbl). (Pnc.13)

KpaHnHnHnpeyInpOBka:20MM (noLoXeHne(1));
cpeHnpeyInpOBka:40MM (noLoXeHne(2)); KpaHnHerBepxHnpeyInpOBka:55MM (noLoXeHne(3)).

IPEINOCTEPEXEHNE: OTCoeDInHte Ka6ebn

OT NCTOUYHnKa NITaHnA.

IPENOCTEPEXEHNE: BbInonHnTte

perynipOBky TOnbKO Nocne octaHOba Jle3Bna.

7. ПРавILA TEXHINКИБЕЗПАСHОCTИ

a) 3KcNpyaTpyre N3dEne TOnbKO c npabBnbo yctaHOBnEHbIM DePNeKTOpOM INI 6yHKepOM dIpa C6opa TpAbI.
b) O63aTeIbHb BvblKluHayIte 3eNkTPOMOT nped CHaTnem 6yHKepa Ira nCobpa TpaBb IuI nped HactPoiKb BvCtBt Cpe3AHny.
c) Ipeed nauanom o6pa0ktn ra0ha ydaJIne T c Hero BCE noCTOPOHnE npdeMeTb, KOtOpBe MOyT 6b1b OTbpoWeHb MaunHO. Bo Bpemr o6pa0ktn ra0ha o6paaIe Tb BHMAnHe Na IIObIe NoCTOPOHnE npdeMeTb, KOtOpBe MOrNb 6b1b npOnyueHb npn nepBOM nOncke. (Pnc. 14)
d) 3aIpeuaaTcN IOHIMMaTb 3aIHOU qACTb rAOHOKOCINK INPn 3aIeCKtEPOMOTaI IN B o6bIyHOM pEKmE 3KcPiNytaaUN. (Pnc.15)
e)Пи работаюцем 3нектpoв ratate He nomeшауpyк поюдон Ил в 3адни paarpyzoHyн кениб. (Pnc.16)

8. NYCK

PpeepnoDkHNoCHEnEM Ra3OHOKoUJKN KIOCTOHNKy 3NeKtponTuHnue y6eIntecb, YTO hApJxKeHneB C cTeN COCTaBnEET230 B \~ 50 Fu.

Ipeed 3anyckom ra3oHOKocnkn yctahOBNTe ydHHnteJIbHbI Ka6JIb Ha Ka6JIbHbI KPOHHTeH. (Pnc.17)

IPEDOCTEPEXEHNE: Ipeed BbIOJIHeHnEM

JIIObIx paobTo NO o6cIyKmbAHIO u yxOdy o6aTeIbHO OTOeINHЯTe Bnky OT cTe!

He 6bpI3raIte Ha yCTpoIeCTBO BDOI. IPOHNIKHOBHeNHE BYHTb BOIbI MOXET BbIBeCTn I3 CTPOI NEpeKJIIOUaTeIb N 3JIeKTpOMOTop. OuIIaIe YeCTpoIeCTBO TkaHbI, pyHuOH SEtKOn n T.I.

B cneyuohnx cnuyaixTre6yetcra ocmotn3dennia CneuaJIACTOM, He BbIOnHJIte HnKakHe NaCTPOKn camOToTaeJIbHO,ObpaauTecbJn 3TOrOB oounlaNbI bI cepBncbI cyENTp Makita:

a) ecnra30HOKOJIka ydapnilacb O npedMeT;
b）ecnIeKtpomToBHe3aHOBbIKJIOHINcra;
c) ecn ne3Bne nOHyNoCb (He BbInpmaTb!);
d) ecnB aan 3neKtpomotopa norgyIcra (He BbIPrAIMJIb!);
e) ecn pnocxoINT KOPOTKoe 3aMbKaHne npi NOkJIouChEN KabeI;
f) ecn noBpeKdHebl WeceTpHn;
g）ecnIMeIOrTaIeΦeKTbKJINHOBOrPeMHRA.

12. ПОИСК И YYSTPAHEHNE HENCPPABHOCTEIN

IPEIOCTEPEXEHNE: Ipeed BbINONHeHnEM

IIObixpabot NO6cNyKbAHuHIO ININ OChCTKe 083aTeBNoOTcoeHNHTe BnIKY OT cETn IdoXdntEc b IOJIHO OCTaHOBKn HOXA.

IPEDYNPEXDEHNE:HeinpaBHOCTN,

KOTOpbIe He ydaTcra YcTpaHnTb C NOMOuBIO 3ToT TabInuB, MOrTy 6bItb INPpAbeNbI ToBko BO OoNuaJIbHOM cepBnCHOM ueHTpe Makita.

13.ЗКОЛОГИЧЕСК БЕЗПАСHAУ YТИПИЗAUÇИA

Cornacho dinpekntbE EC 2002/96/EC no 3NeKtpnueckomy n 3NeKtpoHnOmy 6obopyoBaanIO ne ee peAlaunuBn HauOHOJbHOM 3aKOHOaTeNbCTBe BCE 3NeKtpoHnCTpymEtbl Heo6xoMnO co6bpaTb OTdEBHoN cDabatb Na KOnOFOneCKn

6e3oNaChyU nepepabotky. DpyroB BapnAHT yTNIN3aumn: ECbn NbaIadeneu 3JeKTPOINHCTPymEna He Bo3BaPaauet INHCTPymENT npOn3BOIDNTeIO, OH necET OTBcTcBeHHOCb 3a NaIeJekaUO yTNIN3aUO B ONpeDeENHBx IynHKTaX c60pa, de npOnCXoNDt NOdROTOBka IaIeNk K nepepaBOTke B COOTBcTcBmC HauNoHaJIbHbIM 3aOKHAMn INpAbINAMn NO nepepaBOTke. 3To He paNCPOCTpaHReTcH a DonOpINHeJIbHbIe pInHaIaNKeJHOCTN INHCTPymEtbl 6e3 3NeKTPnuecknx I 3NeKTPoHNbIX KOMNOHETOB.

ToIbko dIy eBpOeNcKnx cTpaH

Deknapaun o COOTBETCTBUN EC

Makita Corporation, JBnBcOTBeTCTBeHHbIM

PpOn3BODHTeJIeM,3aABJnEeT,HTO CNeIyUoIe

yctponCTBa Makita:

0603haueHne yctpoiCTBa:Ta3OHOKoNlka

No moden/Tin: ELM3311, ELM3711

Texnueckne xapaKtepncTkn: Cm. pa3den

"4. TEXHUNECKNE DAHHbIE" ABJIANTc cepnHbIMN

m3dJIyMnI

COOTBETCTBYIOT CJIeDyUOuIM DnpeKTHiBAM EC:

2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/

EC, 2006/95/EC

I IN3ROTOBHeHbB COOTBETCTBnC CTeJyUOzIMN

CTaHdaptamNJIHOPMaTbHBIMDOKyMeHTaM:

EN 60335, EN 62233, EN 55014, EN 61000

Texnuecka Dokymentauia xpaHntcno apecy:

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

IpoceDpya OceHKn COOTBeTCTBnA CORJIaCHO DnpeKTeB

2000/14/EC 6bila npoBeHa B COOTBETCTBn C

PnIIOXKeHHem VI.

YnOJIHOMOeHHbI opaH:

I3MepeHHbI yPOBeH 3ByKOBO MOUHOCTN:

87,7 dE (A)

TapaHTnPoBaHHbI yPoBeHb 3ByKOBoM OMuHOCtN:

96 D5 (A)

Modèle: ELM3711

13MepeHHbI yPoBeHb 3ByKOBo MoUHocTn:

91,0 d5 (A)

「rapaHTnpoBaHHbIyPoBeHb3ByKOBoMooHOCn:

96 έδ (A)

1. 1. 2012

Tomoyasu Kato (Tomoiy KaTo)

DinpekTop

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

IorcheHHa3araanbHoro BuRJaDy

1. Bēpxhrypuγka
2. BnOK BnMMKaay
3. Khonka 6e3neken
   4.ФikcyuohnyBaxiNb
4. 3aTnckaydnyKpinneHHKa6eHIO
5. TpaBo36ipHnK

6. 3aʌnHe kɒlæco
   8.Пддон

7. IpepeHne Koneco

8. Kpimka DmryHa
9. Huxnypuka
10. RaK dnn Ka6eJIO
11. Puyka Bvmikaa
12. Kpnska 3aHbOro kOleca
13. 3aʌnHe kɒlæco

14. Onopa 3aɪnɪbɒrə kɔjʊca

15. Kpnska nepednboro koleca
    18.переднколесо

16. Onopa nepednboro koneca
17. 3aɪnɪ kɪpɪsɪkə
18. IHHaKATop pIBHra
    22.лампаиндигаТopa

ДИЗHAΙΝΕСΥ ПО CΒΟΥ ΤΑ3ΟΗΚΟΚΑΡΚΥ

YBaKHo npOHTaIe Tc iHCTpykui Ta BVKOHyTe BKA3IBKN 3TexHik6be3NEKnpePeoNATKOMpoBOTn i3 ra3OHOKocapKO, a ToKoN iD qacTa nicLa II BVKOpNCtAHHa. DToPmYBaHHra UxnpOCTnx HCTpykui TaKoK dOnOMOKe 36epertn Bauy RaOHOKocapky u HaneXHOmy pOboOUMy cTahi. O3haNOMTEc3 eNeMeHTAMn KepyBaHHra RaOHOKocapKn, nepu HIX NOHNATn Ii BVKOPNCTOByBATn; ane hacaMnepeD nepeKohAteC, uO Bu 3NaCTe, kY3ynHHTn ra3OHOKocapKy u Ha3DbuaHHn CNTyaUci. 36epekitb ci IHCTpykui 3 EcNpNyatauTi TaIHsi DokymEtN, uO BXoJrBo KO CMPTJE TY NocTaaHHa RaOHOKocapKn, OCKInBkn BOH MoKyTu 3HaNoBntncBam y maiByhOMy.

1. MAPKYBAHHA HABNPOBI

Ipeed noatakom pobotn 3ra3oHOKocapo ybaXho npouHTaIte ci HcTpykuII Ta 3bepejItb ix dny noaJbworo BIKOPNCTAHNA.

TpmaTe nIcTaHciIO BiD CTOpOHIX IIOdeI.

CtepekeTbcra roctporo pikyoro nonoTHa.

BiD'6HyIe 5tTencbHy BnIky BiD IHCTPymeHa nepe npoBedeHnM TexHiHOrO obcnyroByaHHa a0y paisi OnKoDxehnHa shHpya XmBHeN.

TpMaIte rHyckn IHyp kNbEnHn noJani BID pIXyUro nONoTHa.

3HAK B3NEKN: Yka3yE Ha 3aCTepExeHHa bO nonpeDxEHnTa MOKe BVKOpNCTOByBaTmCpa3OM iHUsMMI 3HaKaMn a60 3o6paKeHHaMn.

IIOBIMHA I3OJIaIe

Baasa ra3oHokocapka Mae noDbIHy izonlaio.

Lc 03aHaac, 10 Cb 30BHiHd eTani iOJbOaHi Bid eNeKTPnHOro XKnBneHH. Lc 3a63eNeHyCtcb 3aBdAni DoaTkoBMy 10JIuIiHOMy 1paM iKeKTPnHIMi i MexahiHIMm DetaTAMN.

2. 3AΓΑЛьНΙ ΠРАВИЛА БЕЗПЕКИ

MeTa HabeDeHnX y uXh IHcTpKcIg X npaBn - npmbepHyTn Bawy yBary Do dJxepen MoKJIbOi He63neKn. 3NaKn 6Be3neKn Ta tXHi NOrCHeHn NoTpe6bIOTb BaWoI NlNbHOI yBarn Ta pO3ymHH. JInSe TINbKn HAReBHicTb 3aTepeKeHbNo He63neKcY He nopepeJaac BHNKHeHn H6e3neuHnx CtTuayi. Ll IHcTpKcII a60 6yIb-aki 3aTepeKeHHe He 3aMHIIOb co6oIO haneKHi 3axoDi 3TexHki 6Be3neKn.

YBAGA: Y paazi irHOpyBaHHa HabeJeHHx

3aCtepekeH npo He6e3neKy Bn a6o iHsi oOcbn MoKeTe OtpMaTHn cepnoHi TpABMn. 3aBxdi DToPmMyTecr npabuI TexHikc 6be3neK, u6o 3HNHTn PnIK BnHkHeHH NOKExi, ypaXeHH eNEKTPnuHm CTrpOMb A6o TpABMyBaHH. 36peKitb ci iNCTpyKuII Ta 3BeptaTaeCdo HIX, JAKUo Bam HeoBXiDHO yTOCHNTn PnpabuHa 6e3neHoI eKnIyatauii INCTpymenta a6o HadaTI nHIMM OOC6AM KOHCyIbTaQII UoO Ioro BVKOpNCtAHH.

3ACTEPEXEHH: HecnpaBHOCTi, kHe

BdAeTbCn CaMOTyKn yCyHyTn 3a DonOMoTOO cIx
iHCTpyKcII, MOXINBO, BdAeTbCn yCyHyTn y
ABTopN3OBaHOMy cepBichOMy ceHTpi Makita.

13. EKOLOГИHObE3ПЕЧHA YTNJI3AUCIЯ

13/14

3riHNO 3 dIupeKTHBOO EC 2002/96/EC CTOCOBHO eNEKTPMUNHO I eNEKTPoHORO 6bnaHaHHra Ta II peaIaIcIoo y epKabHOMy 3aKOHObABCTBI yci eNEKTPoPnIaIIN NOBHHI 3bipatnck OKePMo I nepeop6bnTcA kIM YHOMN, UoB He 3aBdabATu KKOdi

HABKOMINHbOMy cepeOBNu. AInbTePHaTnBHa yTnIaUz: JAnIO BnachN EneKTPoPnAHy He NOBepTaC npNCtpi BNPO6hNkY, Bi IN Hece BiIDNoBdAalbHCTb 3a 3dauy npNCtpoD O npIm3NaHeHO rNHTy 3bnpaHH CmITr, y kAKOM pncTpi NiDroTyTO nepepeObKn BiIDNoBIDHO do dEpkabHnx 3akOHi HOpM.

LHe He nooHrpOeTbcHa npnlaIaI npncTpoIbe3 eNeKtpuHHnx ab0 eNeKtpoHHNX KOMHOHeNTIB.

Tinbkn dny kpaH EbpOnn

Eknapaia npo BiNobiDhicb tcaHdpTAM EC Mn, KOMNAHIA Makita, kB iDnOBiDaIbHni BnO6HnK 3aBnE Mo, 3a3NaueHe HxKue O6naHaHHa Makita:

no3haeHnnaO6IaHaHnra:Ta3oHOKocapKa

No mojedi/Tun: ELM3311, ELM3711

TEXHHiXapaKTePrcNTnKi:DNB.“4.TEXHHiDAHI" cepiHMM BnPo6HnTbOM Ta

BIDNOBIDAe TaKIM EbponecBKM DnpekTtBaM:

2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/

EC, 2006/95/EC

Ta BINOToBJIeHO BiINOBiIDHO Do TaKnx CTaHdApTIB a6o

CTaHdapTn3OBAHnx DOKyMeHTiB:

EN 60335, EN 62233, EN 55014, EN 61000

TexhiHa DOKyMaTeTaIaY BeDeTbC:a

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Ahrnir

IpoceDypaOuziHOBaHHBIDNObiDHOCTi,IAKOBIbMaRe

Директуba 2000/14/EC, BiDbynacя BiNobiДно do

Доатку VI.

YnOBHObaXeHn OprAH:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Makita Corporation

Anjo, Aichi, Japan

ELM3311-23L-1012

www makita.com

ALA
