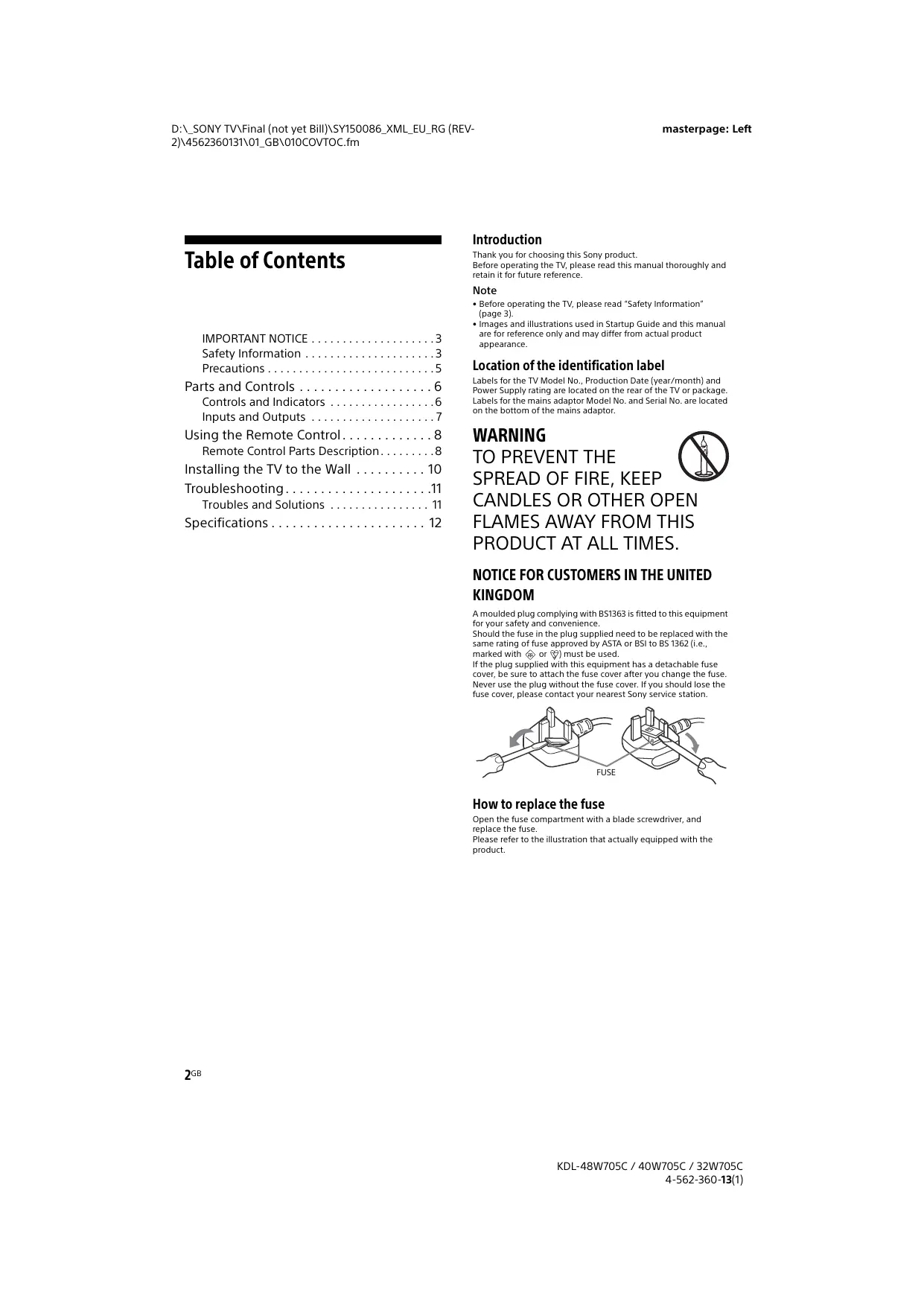

Table of Contents IMPORTANT NOTICE ......... Safety Information ............. Precautions Parts and Controls ........ Controls and Indicators ..…...... Inputs and Outputs : Using the Remote Control..... Remote Control Parts Description Installing the TV to the Wall Troubleshooting... Troubles and Solutions ........... Specifications ...................... Introduction Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference. Note + Before operating the TV, please read “Safety Information” {page 3). + Images and illustrations used in Startup Guide and this manual are for reference only and may differ from actual product appearance. Location of the identification label Labels for the TV Model No, Production Date [year/month) and Pewer Supply rating are located on the rear of he TV ar package. Labels for the mains adaptor Model No. and Serial No. are located en the bottom of the mains adaptor. WARNING

SPREAD OF FIRE, KEEP

CANDLES OR OTHER OPEN

FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

NOTICE FOR CUSTOMERS IN THE UNITED

KINGDOM A moulded plug complying with B51363 is ftted to this equipment for your safety and convenience Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI 0 ES 1362 (Le. marked with @ or SP) must be used. Ifthe plug supplied with this equipment has a detachable fuse caver, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. I you should lose the fuse cover, please contact your nearest Sony service station, How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse. Please refer to the ilustration that actually equipped with the product KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)}\SY150086_ XML_EU_RG (REV- 2)4562360131\01_GB\01OCOVTOC.fm IMPORTANT NOTICE This product has been manufactured by or on behalf of Sony. Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 1, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate Notice for Wireless Signal Hereby, Sony Corporation declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www compliance sony. de/ Notice for customers: the following information is oniy applicable Lo equipment sold in countries applying EU directives. TVwireless system may be operated in following countries: AT, BE, HR, CY, CZ, DK EE, F, FR, DE, GR, HU, IE, IT, LV, LT LU, MT, NL PL, PT, SK, SES, SE, GB, S, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, R$, ME, Kosovo This equipment can be operated in other non-European countries. CE © Safety Information WARNING Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Installation/Set-up instal and use the TV set in accordance with the instructions below in order to avoid any risk of fie, electrical shock or damage and/or injures, Installation + The TVset should be installed near an easily accessible mains socket Place the TV set on a stable, level surface to avoid it from falling down and cause personal injury or damage to the TV. + On qualified service personnel should carry out wall installations, + For safety reasons, itis strongly recommended that you use Sony accessories, including Wal-Mount Bracket —SU-WL450 + Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Mounting Hooks to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Mounting Hook The diameter and length of the screws differ depending on the Wal-Mount Bracket model Use of screws other than those supplied may result in internal damage ta the TV set or cause it to fall etc. Emm-12mm

Screw (supplied with the Wall-Mount Bracket) Mounting Hook Hock attachment on rear ofTVset masterpage: Right Transpoi + Before transpoñting the TV set, disconnect al cables.

• Tuo or three people are needed to transport a large TV set. + When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the + When transporting the TV set, do not subject it to jolts or excessive vibration. + When transporting he TV set for repairs or when moving, pack it using the original carton and packing material Ventilation + Never cover the ventilation holes or insert anything in the cabinet + Leave space around the TV set as shown below. It is strongiy recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation. Installed on the wall 30cm 10cm 10 cm

Leave at least this space around the set Installed with stand 30cm 10cmp Sem

Leave at least this space around the set. 10cm + To ensure proper ventilation and prevent the collection of dirt or dust: — Do not lay the TV set lat, install upside down, backwards, or sideways. — Do not place the TV set on a shelf, rug, bed or in a closet. — Do not cover the TV set with a cloth, such as curtains, or items. such as newspapers, etc. — Do not install the TV set as shown below. Air circulation is blocked.

D:\_ SONY TV\Final (not yet Bill)}\SY150086_ XML_EU_RG (REV- 2)4562360131\01_GB\01OCOVTOC.fm Mains lead Handle the mains lead and socket as follows in order to avoid any risk of fie, electrical shack or damage and/or injuries — Use only mains leads supplied by Sony, not ther suppliers. — Insert the plug fuly into the mains socket. — Operate the TV set on a 220 V - 240 V AC supply onty. — When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables. — Disconnect the mains lead from the mains socket before wrking on or moving the TV set — Keep the mains lead away from heat sources. — Unplug the mains plug and clean it regulariy.Ifthe plug is covered with dust and i picks up moisture, its insulation may deteriorate, which could resuk in a fire. Note + Do not use the supplied mains lead on any other equipment. + Do not pinch, bend, or twistthe mains lead excessively. The core conductors may be exposed or broken + Do not modify the mains lead. + Do not put anything heavy on the mains lead. + Do not pull on the mains lead itself when disconnecting the mains lead + Do not connect too many appliances to the same mains socket. + Do not use à poor fitting mains socket

NOTE ON MAINS ADAPTOR

Warning Fo reduce te ik offre ar electric shock, do not expose this apparatus to rain or most Fo prevent fre or shock hazard, not place objects filed th qui, such 3e vases, on the apparatus, Do not sal is equipment in a confned space auch 3 à book or imiar ant. # Please ensure that the mains socket is installed near the equipment and shall be easy accessible + Be sure to use te supplied mains adapror and mains lea 2 Do not use any other mains adaplo. my cause 2 mallnciion + Connect te mains adaptor to an easy accessible mains socket, 2 De not col tre mains lead round the mains adaptor The core wire maybe eut À and/or may cause a mafunction of the med meer + Do not touch the mains adaptor with wet hands.

• If you notice an abnormalty in the mains adaptor, disconnect it from the mains socket immediately. + The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned of. + AS the mains adaptor will become warm when is used for à long time, you may feel hot when touching it by hand Do not install/use the TV set in locations, environment or situations such as those listed below, or the TV set may malfunction and cause à fre, electrical shock, damage and/or inuries. Location: + Outdoors (in direct sunlight} at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke: + Ifthe TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulphur, et. + For best picture quality, do not expose the screen to direct illumination or sunligh. + Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation: This may cause the TV to show poor picture and/or poor colour. Should this oceur, allow maisture to evaporate completely before powering the TV on.

masterpage: Left Environment: + Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc}. The TV set shall not be exposed ta dripping or splashing and no objects filed with liquids, such as vases, shall be placed on the TV. + Do not place the TV in a humid or dusty space, or in a room with oily smoke or . steam (near cooking tables or humidifiers). Fire, electric shock, or warping may resuit + Do not install the TVin places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction. Situation: + Do notuse when your hands are wet, with the cabinet removed, er with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms. je not install the TV s0 that it sticks out into an open space. Inury or damage from a person or object bumping into the TV may result. . Broken pieces: 2 Do notthrow anything at the TV set. The screen glass may break y the impact and cause serious injury. ifthe surface of he TV set crack, do not touch it until you have unplugged the mains lead. Otherwise electric shock may resu. When not in use + Hyou will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons. + As the TV set not disconnected from the mains when the TV setis just turned off, pull the plug from the mains to disconnect the TV set completely. + However, some TV sets may have features that require the TV et to be left in standby to work correctiy. For children + Do not allow children to climb on the TV set + Keep small accessories out of the reach of children, so that they are not mistakeny swallowed. Ifthe following problems occur. Turn off the TV set and unplug the mains lead immediately if any ofthe following problems occur. Ask your dealer or Sony service centre to have it checked by aualfied service personnel When: — Mains lead is damaged — Poor fitting of mains socket. — TV sets damaged by being dropped, it or having something throun at it. — Any liquid or solid object fall through openings in the cabinet About LCD Monitor Temperature When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there bythe hand. KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)}\SY150086_ XML_EU_RG (REV- 2)4562360131\01_GB\01OCOVTOC.fm Precautions Viewing the TV + Vieur the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes. + When using headphones, adjust the volume s0 as to avoid excessive levels, as hearing damage may result LCD Screen + Although the LCD screen is made with high-precision technolagy and 99.99% or mare of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantiy on the LCD screen. This is a structural property of the LCD screen and s not a malfunction. + Do not push or scratch the frant fier, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged. + this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises. + Ghosting may occur when stl pictures are displayed continuousiy. it may disappear after a few moments. + The screen and cabinet get warm when this TV set is in use. This. is not a malfunction + The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal. Handling and cleaning the screen surface/ cabinet of the TV set Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning, To avoid material degradation or screen coating degradation, observe the following precautions. + To remove dust from the screen surface/cabinet, wipe gentiy with à soft cloth. 1 dust is persistent, wipe with à soft cloth Slightiy moistened with à diluted mild detergent solution. + Never spray water or detergent directly on screen or exterior parts and enter the TV ] et and may cause damage to the TV set SR + Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, hinner or insecticide. Using such materials or maintaining pralanged contact with rubber or vinyi materials may result in damage ta the screen surface and cabinet material + Periodic vacuuming of he ventilation openings is recommended to ensure to proper ventilation. + When adusting the angle of the TV set, move it slowiy s0 as to prevent the TV set from moving or slipping off from its table Stand. Optional Equipment + Keep optional components or any equipment emiting electromagnetic radiation away from the TV set. Otherwise Picture distortion and/or noisy sound may occur. + This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters. Recommendation of F-type plug Prajection of the inner wire from the connection part must be less than 1.5 mm,

{Reference drawing ofthe F type plug) mm max masterpage: Right Wireless Function of the unit + Do not operate this unit near medical equipment (pacemaker, etc.) as malfunction of the medical equipment may result. + Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible or any trouble as à result. Caution about handling the remote control + Observe the correct polarity when inserting batteries. + Do not use different types of batteries together or mix old and new batteries. + Dispose of batteries in an environmentall friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority. + Handle the remote control with care. Do not drop or step on it, er spil liquid of any kind onto. + Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room. Disposal of the TV set Disposal of Old Electrical & Electronic Equipment (Applicable the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates hat this product shall not be treated as household waste, Instead it shal be handed ver ta the applicable collection paint for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correct, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product, The recycling of materials will help to canserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, vaur household waste disposal service or the shop were you purchased the product. Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided it this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correct, you wil help prevent potentialy negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials wil help to conserve natural resources. In case of products {hat for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, his battery should be replaced by qualified Service staf only. To ensure that he battery wi be treated prapery, hand aver the product at end-of-life to the applicable £olection paint for the recycling of electrical and electronic equipment. or ll other batteries, please view the section an hour to remove the battery from the product safely. Hand the battery over t the applicable collection point for the recycling of waste batteries, For more detailed information about recycling of this product or battery, please contact vour local Civic Office, your household waste dispesal service or the shop where you purchased the product

D:\_ SONY TV\Final (not yet Bill)\SY150086 XML_EU_RG (REV- masterpage: Left 2)4562360131\01_GB\0200PT.fm Parts and Controls Controls and Indicators [] 1/0 (Power) [2] CH +/- (Channel) A #1- (Volume) 5] -© (Input select}/C (Select/Confirm) Display and select the input source. (In the Home Menu, this button works as € (Select/Confirm).) [4 HOME Display TV Home Menu (In Home Menu, [2] buttons works as #/+/+/#.) [5] Remote Control sensor*!/Light sensor“l/Illumination LED The Illumination LED lights up or blinks according to the status of the TV. + White When turning on the TV/picture off mode/software update, etc. Cyan When connecting with a mobile device wirelessly. Pink”? Recording/pause mode. + Amber Timer is set. “1° Do not place anything near the sensor. +2 Only on limited region/country/TV model.

masterpage: Right DIGITAL AUDIO OUT (OPTICAL)|

[2] DIGITAL AUDIO OUT (OPTICAL) G>

+ For a composite connection: Use AV2 Æ), and -© (L/R) or COMPONENT IN 3/9". + For a component connection: Use Y, Pe, Pa, and -© (L/R). 5] & (cam) Provides access to pay TV services.

You can connect your MHL (Mobile High- definition Link) device using an HD quality MHL cable.

To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] — [Sound] —+ [Headphone/Audio Out] and then select the desired item.

=> USB 1 (HDD REC)/2

Connecting a large USB device may interfere with other connected devices beside it. [©] HDMI IN 2/3/4 If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 2. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) G> is necessary. AT (RE input) Connect to your cable or antenna (aerial).

[1 -O/® (Input select/Text hold) In TV mode: Display and select the input source. In Text mode: Hold the current page. RELATED SEARCH When the TV is connected to the internet. Search for related content while watching various content on the TV*1. 1/0 (TV standby) Turn on or turn off the TV (standby mode). DIGITAL/ANALOG Switch between digital and analogue mode. TV/RADIO Switch between TV or Radio broadcasts. [2] Number/Alphabet buttons EXIT Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service. © (Text) Display text information. [3] Colour buttons Execute correspondent function at that time. @/Q@ (Info/Text reveal) Display information. NETFLIX*2 Access the “NETFLIX" online service. 2/i-MANUAL Display the on-screen instruction manual [4] SEN/aPPs Open the Apps category of the Home Menu: DISCOVER Bring up Discover to search for content. #3 GUIDE*? Display the digital programme guide. RETURN/:< BACK Return to previous screen. OPTIONS Display a list of contextual functions. HOME Display the TV Home Menu 4/#/+/9/Q (Item select/Enter) KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)\SY150086 XML_EU_RG (REV- masterpage: Right 2)4562360131\01_GB\0200PT.fm [5] -- +/- (Volume) EN

Adjust the volume. © (ump) Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected. ox (Muting) Mute the sound. Press again to restore the sound.

In TV mode: Select the channel. In Text mode: Select the next (EA) or previous page (E%) [6] AUDIO Change the language for the programme currently being viewed ©) (Subtitle setting) Turn subtitles on or off (when the feature is available). SOCIAL VIEW Enjoy watching TV with friends far and near, using social network services. ST LU | Operate media contents on TV and connected BRAVIA Sync-compatible device. @/REC Record the current programme with the USB HDD recording function. SYNC MENU Display the BRAVIA Sync Menu. TV PAUSE Pause the currently viewing programme. FOOTBALL Turn Live Football Mode on or off (when the feature is available). +! What you can search depends on your region/ country or other circumstances The location, availability and function of remote control button may vary depending on your country/region/TV model. gce KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)\SY150086 XML_EU_RG (REV- masterpage: Left 2)4562360131\01_GB\030ADD.fm

Installing the TV to the Wall This TV's instruction manual only shows the steps on preparing the installation of the TV before installing to the wall. To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractor: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation. Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Troubleshooting When the Illumination LED is flashing red, count how many times it flashes (interval time is three seconds). Ifthe Illumination LED flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV. Ifthe problem persists, contact your dealer or Sony service centre with the number of times the Illumination LED flashes red (interval time is three seconds). Disconnect the mains lead, and inform your dealer or Sony service centre. When the Illumination LED is not flashing, check the items as follows. You can also refer to [Troubleshooting] in the i-Manual or perform self-diagnosis by selecting 7? [Help] — @ [Customer Support] —+ [Self Diagnostics]. If the problem persists, have your TV serviced by qualified service personnel. Troubles and Solutions There is no picture (screen is dark) and no sound. + Check the antenna (aerial)/cable connection + Connect the TV to the AC power (mains), and press 1/0) on the TV or remote control. Some programmes cannot be tuned. + Check the antenna (aerial)/cable connection or dish + The satellite cable might be short-circuited or there might be connection problems ofthe cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again. + The frequency that you entered is out of range. Consuit the received satellite broadcasting company. There is no Cable TV services (programmes) found. + Check the cable connection or tuning configuration. + Attempt the [Digital Auto Tuning] by selecting [Antenna] instead of [Cable] The remote control does not function. + Replace the batteries. + Your TV may be in SYNC mode. Press SYNC MENU, select [TV Control] and then select [Home (Menu)] or [Options] to control the TV. masterpage: Right The [Parental Lock] password has been forgotten. + Enter 9999 for the PIN code. (PIN code 9999 is always accepted.) The TV surrounds become warm. + When the TV is used for an extended period, the TV surrounds become warm: You may feel hot when touching there by the hand. Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons. + Perform a simple reset of the TV by unplugging the mains lead for two minutes, then plug it in again. Thel/C, CH +/-, 1 +#/-, #/4/#/9, 5), and HOME buttons cannot be located on the TV. + See below illustration for location of the buttons on the TV. Rear of TV The illumination LED is turned on. + Ifyou do not wish to light up the illumination LED, vou can turn it off. Press HOME, then select & [Settings] —+ 8 [System Settings] —+ [General Set-up] —+ [lllumination LED] + [Off]. You can also press OPTIONS, then select [llumination LED] —+ [Off] Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup). + Ifyou use WEP security, select [Easy] —+ [Wi-Fi] —+ [Connect by scan list], Then, select the network name (SSID) you want to connect. Cannot find the required network name in network setup. + Select [[Manual Entry]] and press © to enter network name. 11e KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)}\SY150086 XML_EU_RG (REV- 2)\4562360131\01_GB\040TRO.fm

Specifications System Panel system LCD {Liquid Crystal Display) Panel, LED backlight TV system Depending on your country/area selection Analogue: 8/6, D/K, L, 1, M Digital: DV8-T/DVB-C DV8-72 Satellite: DVB-S/DVB-S2 Colour/video system Analogue: PAL, SECAM, NTSC3,58 (Video only), NTSCA.43 (Video only) Digital: Refer to the i-Manual Channel coverage Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF/Cable, Depending on your country/area selection. Satellite: IF Frequency 950-2,150 MHz Sound output

masterpage: Left MHL (common with HDMI IN 1) Video: 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i Audio: 5.1 channel linear PCM: 32, 441 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL) ©»

Digital optical jack (Two channel linear PCM, Dolby Digital) AUDIO OUT G>/{? (Stereo mini jack) Headphone, Audio output, Subwoofer

Ÿ USB 1 (HDD REC), Ÿ USB 2

USB HDD device port (Ÿ USB 1 only), USB port “CAM (Conditional Access Module) slot DC IN 19.5 V e-€-© AC adapter input LAN &°5 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE- TX communication rate and communication quality are not guaranteed for this TV.) Others Optional accessories Wall-Mount Bracket: SU-WL450 Wireless subwoofer: SWF-BR100 MHL cable: DLC-MC10/DLC-MC20 Operating temperature o°c-40°c Operating humidity 10 % - 80 % RH (non-condensing) Power and others Power requirements

19.5 V DC with AC adapter

Rating: Input 220 V - 240 V AC, 50 Hz Energy Efficiency Class KDL-48W705C/FWL-48W705C: A++ KDL-40W705C/FWL-40W705C: A+

Display resolution 1,920 dots (horizontal) x 1,080 lines (vertical) Dimensions (Approx.) (w x h x d) with Table-Top Stand KDL-48W705C: 108.9 x 67.1 x 19.5 cm KDL-40W705C: 92.4 x 57.9 x 17.9 cm KDL-32W705C: 73.8 x 46.9 x 16.2 cm without Table-Top Stand KDL-48W705C: 108.9 x 63.2 x 5.7 cm KDL-40W70SC: 92.4 x 54.0 x 5.7 cm KDL-32W705C: 73.8 x 43.5 x 5.9 cm Mass (Approx.) with Table-Top Stand KDL-48W705C: 11.7 kg KDL-40W705C: 9.1 kg KDL-32W705C: 6.8 kg without Table-Top Stand KDL-48W705C: 11.3 kg KDL-40W705C: 8.8 kg KDL-32W705C: 6.5 kg *!_ Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. #2 Specified standby power is reached after the TV finishes necessary internal processes. Note + Optional accessories availability depends on countries/region/TV model/stock. + Do not remove the dummy card from TV CAM (Conditional Access Module) slot other than to insert à smart card fitted in CAM + Design and specifications are subject to change without notice. + This TV set incorporates MHL 2. masterpage: Right Notes on Digital TV function + Any functions related to Digital TV (DV3) will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/ DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV. + Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business. + This TV set complies with DVB-T/DVB-T2 and DVB-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed. + Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctiy with some providers. Trademark information + The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. + DLNA, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. “BRAVIA and BRAVIA are trademarks of Sony Corporation. + TrackID is a trademark or registered trademark of Sony Mobile Communications AB. 13c KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)

D:\_ SONY TV\Final (not yet Bill)}\SY150086 XML_EU_RG (REV- masterpage: Left 2)M4562360131\01_GB\O40TRO.fm + Gracenote, Gracenote eyeQ, Gracenote VideolD, Gracenote Video Explore, Gracenote MusiciD, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries. Opera? Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved. Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance. MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. Designed with UEI Technology" Under License from Universal Electronics Inc. Portions © UEI 2000 - 2014 DiSEqC" is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas. 14e KDL-48W705C / 40W705C / 32W705C 4-562-360-13(1)
