USER MANUAL SPEAKER ANYWHERE 200 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

INTRODUCTION

Congratulations on your purchase of the Marmitek Speaker Anywhere 200. The Speaker Anywhere200 is a wireless 863MHz stereo speaker system that can easily be connected to your audio sources (Radio, TV, Hi-Fi and CD-/MP3-/MP4-/Dvd-player). This way, you can enjoy the Music of the audio source anywhere in and around the house.

The Marmitek products are manufactured with the utmost precision and are of high quality. Please read this manual first and follow the instructions so you can enjoy the possibilities of this product optimally.

CONTENT

1x Audio Transmitter
2x Wireless Speakers
3x Power adapters
1x Jack adapter 3.5mm to 6.3mm
1x RCA cable to 3.5mm jack

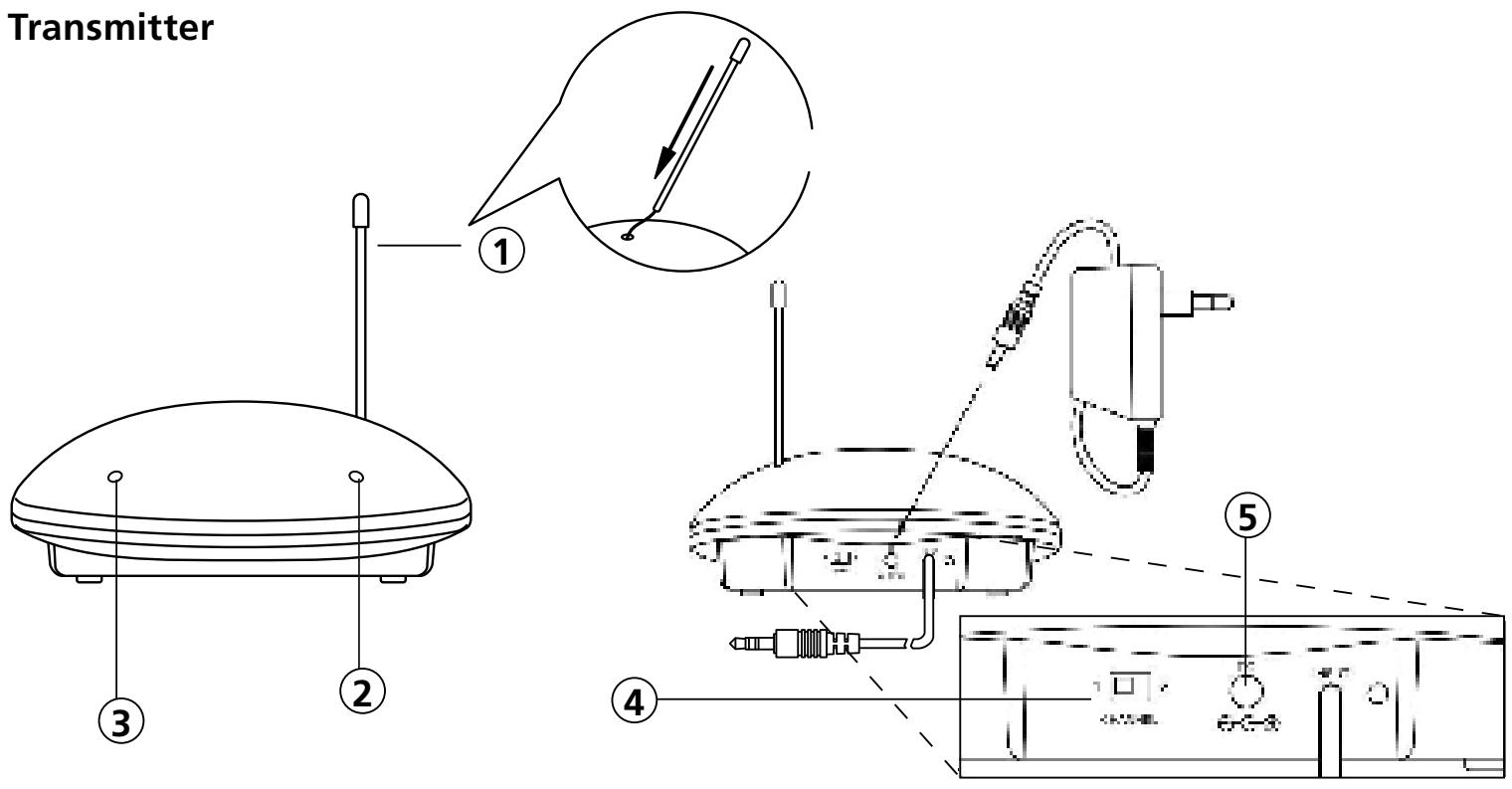

INSTALLATION

1. Antenna
2. Power indication LED (Red)
3. Signal indication LED (Green)
4. Channel switch

5. Power connection (DC IN)

6. Put the antenna tube over the antenna wire.

7. Plug the supplied AC power adapter in the Power connection (DC IN), located on the rear of the transmitter.
8. The back of the transmitter has an audio cord that can be connected to audio output (normally indicated with or AUDIO OUT) of i.e. TV, PC, Radio, CD-/MP3-/MP4-/DVD player. To connect the transmitter to an audio source without 3.5mm jack Audio out, you can use the supplied 6.3mm jack or RCA adapter.

Plug the power adapter in the electrical wall outlet and the Power LED ( Ⓞ ) will light up. As soon as the transmitter is receiving the audio signal, it will automatically switch on and the Signal LED ( Ⓞ ) will illuminate.

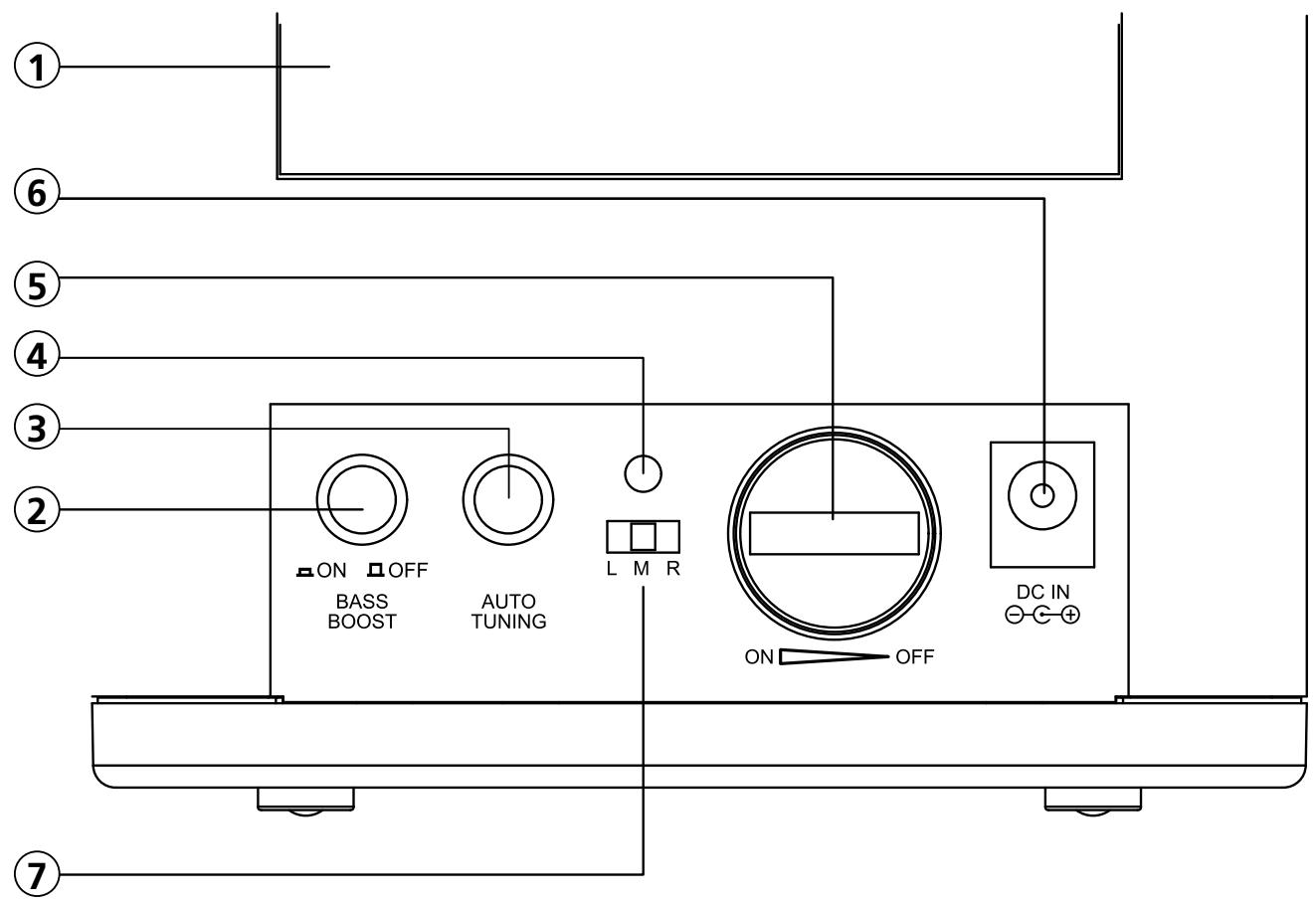

Speaker receivers

1. Battery Compartment
2. Normal/Bass Boost
3. Auto Tuning
4. Power (red) / Stereo (green) LED
5. Volume ON/OFF button
6. Power connection (DC IN)

7. L/M/R selector (Left/Mono/Right)

8. The speakers are dual power:

a. With batteries

Insert 6 pieces 'AA' size ALKALINE battery into the battery compartment with correct polarity. For using the batteries, make sure the Power adapter is not connected.

b. With supplied power adapter

Connect the 12V power adapter to the Power connection (DC IN) on the rear of each speaker, then plug it to the electrical wall outlet.

Note: batteries will not be charged by the speaker.

1. Switch on the speakers by turning up the VOLUME ON / OFF button towards ON direction. The POWER / STEREO LED will light up. Switch off the speakers by turning down the VOLUME ON/OFF button towards OFF direction until a "click" sound is heard.

OPERATION

Switching ON

1. Turn on the audio source (TV, PC, Radio, CD-/MP3-/MP4-/DVD player) to which the transmitter is connected. The signal LED on transmitter will light up (Green).

2. Select the L/M/R selector on the speaker receivers, one to L(eft) and the other to R(ight) for the best stereo reception.

Note: In case the audio device only provides Mono audio signal, select the L/M/R selector to M(ono) for the best mono reception.

1. Turn on the ON/OFF VOLUME button on the speaker and adjust the volume to the desired level.

Tipp: for crystal clear sound, put the volume of the audio source higher and adjust the volume of the speakers to the desired level.

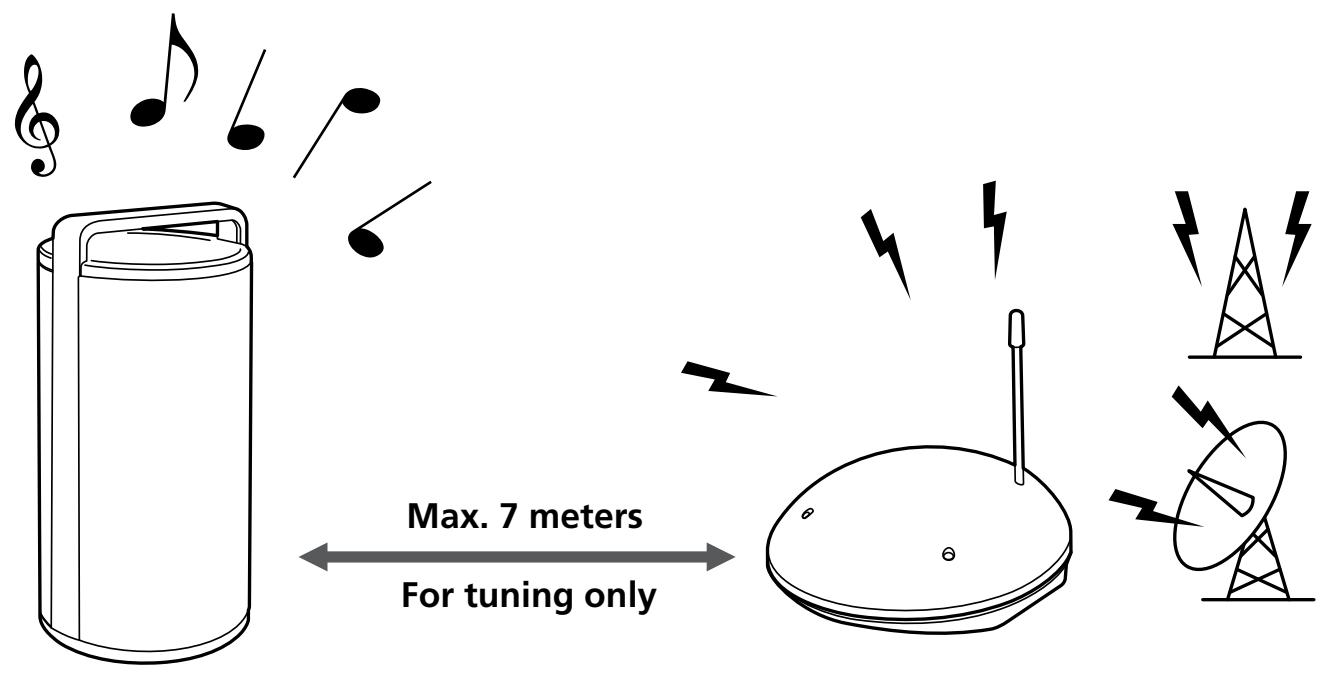

1. For the best audio reception, you need to tune the set. Therefore put the speakers and transmitter together (max 7 meters in-between). Push the "AUTO TUNING" button. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER / STEREO LED will change from red to green.

Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the back of the transmitter, and then press the "AUTO TUNING" button on the speaker again.

1. The BASS BOOST button can be used to enhance the bass sound. Turn bass/boost effect ON simply by pressing the button down, and pressing it once again to OFF.

Switching OFF

1. Turn the VOLUME ON/OFF button until the click sound is heard to turn off the speaker and the LED light goes off.
2. For protection of the transmitter and power saving, the transmitter will shut down automatically if there is no/weak input signal from audio source for 4 minutes.
3. If the signal comes back, the transmitter will work again automatically.

Frequently ASKED QUESTIONS

No Sound

Ensure;

• the speaker is switched ON.
• the audio source is switched ON and playing.
• the volume of the audio source and speakers is high enough.
• the power adapter is fully inserted into the wall outlet and the Power connection (DC IN) on the transmitter and speaker.
• the battery capacity is sufficient. Replace with new batteries or connect a power adapter to the speakers.

Distorted sound

• Press the "AUTO TUNING" button on the speakers to tune the right frequency.
• Select an other channel (1 or 2) on the transmitter and press on the "AUTO TUNING" button on the speakers.
• Check the battery capacity. Replace with new batteries or connect a power adapter to the speakers.
• The speaker is too far from the transmitter, move closer.
• Input level of the audio source is too high or too low. Adjust the volume of the audio source until the sound is received correct.

TECHNICAL DATA

Transmission Mode: UHF stereo

Frequency: 863 MHz

Range: Up to 100m free field, up to 30m through walls and ceilings

Power Transmitter: DC 12V 200mA

Power Speaker: 6 X 'AA' size Alkaline batteries or DC 12V 500mA adapter

Frequency Response: 30Hz - 11KHz

Distortion: 1.5%

S/N Ratio: 55dB (typical)

Channel Separation: 30dB (Typical)

Output Power: 2 × 3.5 ~W (RMS)

Dimensions Transmitter: 45 × 0 mm

Dimensions Speaker: 230 × 0.107 ~mm

Specifications may be modified without prior notice.

OPTIONAL ACCESSORIES

Infrared extension

Marmitek offers several products to operate your devices, even when these are placed in a closed cupboard or in a different room. This as well wired as wireless. More information about these so called infrared extenders can be found at www.marmitek.com.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose

of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

S/N Ratio: 55dB (typico)

Kanaalafstand 30dB (typico)

VEILIGHEIDSWAARSCHUWINGEN

Voeding Zender: DC 12V 200mA

Voeding Speaker: 6 X 'AA' Alkaline batterijen of DC 12V 500mA adapter

Frequentie Response: 30Hz - 11KHz

Vervorming: 1,5%

S/N Ratio: 55dB (typical)

Kanaalafstand 30dB (typical)

Output vermogen: 2 × 3.5 ~W (RMS)

Afmeting Zender: 45 × 0110 ~mm

Afmeting Speaker: 230 × 0107 ~mm

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this SPEAKER ANYWHERE200 is in compliance with the essential requirements and other relevant provisions of the following Directives:
Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Hiermit erklart Marmitek BV die Übereinstimmung des Gerätes SPEAKER ANYWHERE200 den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinien:
Richtlinie 1999/5/EG des Europäischen Parlaments und des Rates vom 9. März 1999 über Funkanlagen und Telekommunikationsendeinrichtungen und die gegenseitige Anerkennung ihrer Konformität
RICHTLINIE 2004/108/EG DES EUROPÄISCHEN PARLAMENTS UND DES RATES vom 15. Dezember 2004 zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträglichkeit
Richtlinie 2006/95/EG des Europäischen Parlaments und des Rates vom 12. Dezember 2006 zur Angleichung der Rechtsvorschriften der Mitgliedstaaten betreffend elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen
Richtlinie 2002/95/EG des Europäischen Parlaments und des Rates vom 27. Januar 2003 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten
Par la presente Marmitek BV déclare que l'appareil SPEAKER ANYWHERE200 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directives:
Directive 1999/5/CE du Parlement européen et du Conseil, du 9 mars 1999, concernant les équipements hertziens et les équipements terminaux de télécommunications et la reconnaissance mutuelle de leur conformité
DIRECTIVE 2004/108/CE DU PARLEMENT EUROPEEN ET DU CONSEIL du 15 décembre 2004 relative au rapprochement des législations des États membres concernant la compatibilité electromagnétique
Directive 2006/95/CE du Parlement européen et du Conseil du 12 décembre 2006 concernant le rapprochement des législations des États membres relatives au matériel électrique destiné à être employé dans certaines limites de tension
Directive 2002/95/CE du Parlement européen et du Conseil du 27 janvier 2003 relative à la limitation de l'utilisation de certaines substances dangereuses dans les équipements électriques et électroniques
Marmitek BV declares que este SPEAKER ANYWHERE200 cumple con las exigencias esenciales y con lasdemas reglas relevantes de la directriz:
Directiva 1999/5/CE del Parlamento Europeo y del Consejo, de 9 de marzo de 1999, sobre equipos radioeléctricos y equipos terminales de Telecomunicación y reconocimiento mutuo de su conformidad
DIRECTIVA 2004/108/CE DEL PARLAMENTO EUROPEO Y DEL CONSEJO de 15 de días de 2004 relativa a la aproximación de las legislaciones de los Estados miembrlos en materia de compatibiliad electromagnética

Directiva 2006/95/CE del Parlamento Europeo y del Consejo de 12 de diciembre de 2006 relativa a laapproximacion de las legislaciones de los Estados miembrs sobre el material electrico destinado autilizarse con determinados limites de tension
Directiva 2002/95/CE del Parlamento Europeo y del Consejo de 27 de enero de 2003 sobre restricciones a la realizacion de determinadas sustancias peligrosas en aparatos electricos y electronicos
Con ciò, Marmitek BV, dichiara che il SPEAKER ANYWHERE200 è conforme ai requisiti essenziali ed alter disposizioni relative alla Direttiva :
Direttiva 1999/5/CE del Parlamento europeo e del Consiglio, del 9 novembre 1999, riguardante le apparecchiature radio e le apparecchiature terminali di telecomunicazione e il reciproco riconoscimento della loro conformità
DIRETTIVA 2004/108/CE DEL PARLAMENTO EUROPEO E DEL CONSIGlio del 15 dicembre 2004 concennte il rav vicinamento delle legislazioni degli Stati membri relative alla compatibilità elettromagnetica
Direttiva 2006/95/CE del Parlamento europeo e del Consiglio del 12 dicembre 2006 concernente il ravvicinamento delle legislazioni degli Stati membri relative al materiale elettrico destinato ad essere adoperato entro taluni limiti di tensione
Direttiva 2002/95/CE del Parlamento europeo e del Consiglio del 27 gennaio 2003 sulla restrizione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche
Bij deze verklaart Marmitek BV, dat deze SPEAKER ANYWHERE200 voldoet aan de essentièle eisen en aan de overige relevante bepalingen van Richtlijnen:
Richtlij 1999/5/EG van het Europees Parlement en de Raad van 9 maart 1999 betreffende radioapparatuur en telecommunicatie-eindapparatuur en de wederzijdse erkenning van hun conformiteit
RICHTLIJN 2004/108/EG VAN HET EUROPEES PARLEMENT EN DE RAAD van 15 deember 2004 betreffende de onderlinge aanpassing van de wetgevingen van de lidstaten inzake elektromagnetische compatibilititeit
Richtlijn 2006/95/EG van het Europees Parlement en de Raad van 12 december 2006 betreffende de onderlinge aanpassing van de wettelijkke voorschriften der lidstaten inzake elektrisch materiaal bestemd voor gebruik binnen bepaalde spanningsgrenzen
Richtlijn 2002/95/EG van het Europees Parlement en de Raad van 27 januari 2003 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur
