USER MANUAL XDOM RMV EDOBE

Receiver Wall-Mounted Shutter Module

User guide 5
Bedienungsanleitung 8
Gebruiksaanwijzing 11
Anvandermanual 14
Guideutilisateur 17
Guia del uso 20
Manual do'utilizar 23
Manuale per l'utente 26

General Security Note

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues.

Please take care to set up the device correctly - consult your user guide. WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Important: the product must be used according the instructions in this manual and is not suitable for other purposes.

Please avoid the following: strong mechanical wear and tear, high temperature, strong vibrations, and high humidity.

Please also respect the additional security notes in the various user guide chapters. To ensure correct set up please read the manual and security notes carefully.

Please bear in mind to shut off general mains in the electrical panel.

To connect the in-wall switch.

CONNECTING BLOCK

Connect all wires as indicated (refer to wiring diagram 1)

How to connect Live + Neutral Input

L:stands for input Live 230V - 50 Hz N:stands for input Neutral 230V - 50Hz

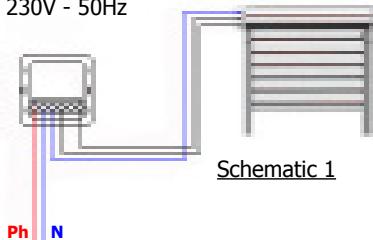

Wiring up Live + Neutral outputs

N: Neutral

LIVE UP output to Motorization

LIVE DOWN output to Motorization

Schematic 1

C: Never connect C: only for low voltage

How to install wall mount switch.

Wall insert box : dia. 65mm, 40mm deep

1.Gently take off paddle from wall switch.
2.Wire up Wall Switch within wall insert box, then fix receiver along with provided screws again wall insert box.

Please note that the general mains in the electrical panel should be turned on again before you start programming.

To learn one address on wall switch (unique addressable control)

An address is made of a HOUSE code and UNIT code, please refer to the manual of the transmitter to properly fix the code to learn by the receiver.

The following procedure consists of learning one (or even more than one) address from the transmitter into the receiver RMV.

FYI：

• Once powered on, the RMV receiver is in the mode to acknowledge X10 standard controls (To secure communication between transmitter and receiver pls refer to step 4).

• The RMV receiver responds to any RF command received from any transmitter, and translates this to X10 commands on the power line.

1. Take off the paddle of the receiver.
2. Shortly press the PROG key, a green LED blinks quickly showing the receiver is awaiting an order from any transmitter (can be either RF or PLC mode).
3. Choose and press the chosen key of a remote or transmitter (RF remote, PLC command / programmer) to automatically learn the address. Green LED turns off to acknowledge the order.
4. The unique address is now confirmed.
5. In case of you would like to learn more than one command (RF remote, PLC command / programmer) just proceed same way from step 2 up to 4.
6. Once learning is complete, just put the paddle back onto the receiver. NOTE : For proper installation, make sure the ebode logo shown on the paddle is positioned on the bottom right side.

To switch from standard to secure communication protocol.

The secured ebode protocol can be enabled when needed. When enabled ONLY ebode transmitters like the TPC, EM and IMRF can be used to control ebode modules like RMA, RMV and RPT.

The ebode communication protocol can be associated with the professional security communication protocols, mostly used in alarm systems.

1. Take off the paddle of the receiver.
2. Press and hold the PROG key till LED lights up green (after 3 seconds).
3. Release PROG key.
4. Press/release minimum 10 times the key PROG, the LED starts blinking for 5 times then to blink off. You are now in secured mode.
5. Just put on again the paddle (make sure ebode logo is located on the bottom right side).

To erase all recorded addresses on the receiver (overall RESET). This procedure consists of erasing all addresses you may entered over time which are not valid to control your Home Automation system.

1. Take off the paddle from the receiver.

1. Press and hold the PROG key till LED lights up green (after 3 seconds).
2. Release PROG key. Both green and red LEDs blinks quickly on, to turn off after several seconds (LED to blink orange). Time to erase depends on the number of entered valid addresses.
3. All addresses are now erased, receiver goes back in X10 standard communication protocol.
4. Put on again the paddle (make sure ebode logo is located on the bottom right side).

Operating the RMV receiver

Gently press the upper key (ON) to go up.
Gently press the lower key (OFF) to go down.

Use a X10 compatible remote control, RF wall switch or programmer to check remote control of the shutter, roll blind or motorized screen.

Troubleshooting: please check FAQ and technical support on www.ebodeelectronics.eu.

RMV cannot be controlled anymore from either an RF or PLC remote/programmer?

• Check and/or change the battery of your remote.
• Go for an overall RESET of the receiver as it may have lost the address due to too many manipulations (starts from point 5), then re-initialize transmitter and receiver RMV both together (starts from point 3).

Red or Green LED blinks randomly even if no commands are given: RF or PLC interference may occur (ie Fluo lamps, Reversible A/C, PC monitor) please add either a filter FD10 in the main control panel or a plug in module FM10 to filter the product in cause.

Inboowdoors : diameter 65mm, 40mm diep

1. Retire a tampa do receptor.

CE DECLARATION OF CONFORMITY

UK - We, BMB Electronics BV, Kortakker 10 - 4264 AE Veen - The Netherlands, herewith declare that the following designated product RMV, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Device: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Batteries: Do not dispose of used batteries in the household rubbish! They should be deposited at a collection point for used batteries.

Also available from ebode electronics:

On-Wall Modules

Product	Description
EM	2-position RF wall switch, ideal for retro fit installations to e.g. control blinds, shutter, home cinema screens but also lighting or appliances.
IMRF	Single position RF wall switch, ideal for retro fit installations to e.g. control applications or an inside or outside light.
RMV	Control your shutter, blind or e.g. cinema screen via the front panel keys, or remotely via any ebode / X10 compatible controller.
RMA	Control your appliance, light or e.g. pump via the front panel keys, or remotely via any ebode / X10 compatible controller.
RPA, RPL, RPT	Ideal for retro fit installations, the classic X10 plugin module in a new and stylish jacket. Control your appliance or lamps etc, via any ebode or X10 compatible controller via PLC AND RF!
TPC/ TMML	New stylish RF remote to control any ebode or X10 compatible RF receiver.

In-Wall Modules

Product	Description
EMML	2-position RF in-wall module to install behind any mechanical wall switch. The EMML is battery operated.
RMML	In-wall RF receiver, ideal for any switches lights and appliances up to 300W.
PMML	A package containing both the EMML and the RMML.

Under development

Product	Description
RMP	Update on existing RMV with dry contact output. Ideal to control e.g a motorized gate.
RMSN	In-wall RF receiver without Neutral for light applications including incandescent, halogen, fluorescent, LED (even 0.5W charge).
