USER MANUAL XDOM PAIR OF SPEAKERS EDOBE
State-of-the-art LIGHT & SOUND
One LightSpeaker® installs in minutes!
OWNER'S MANUAL
Note: The LightSpeaker® is an add-on unit to an existing LightSpeaker® System. You need a LightSpeaker® Transmitter to supply audio and control the lights on this unit. The Transmitter and Remote discussed in the manual are sold separately.

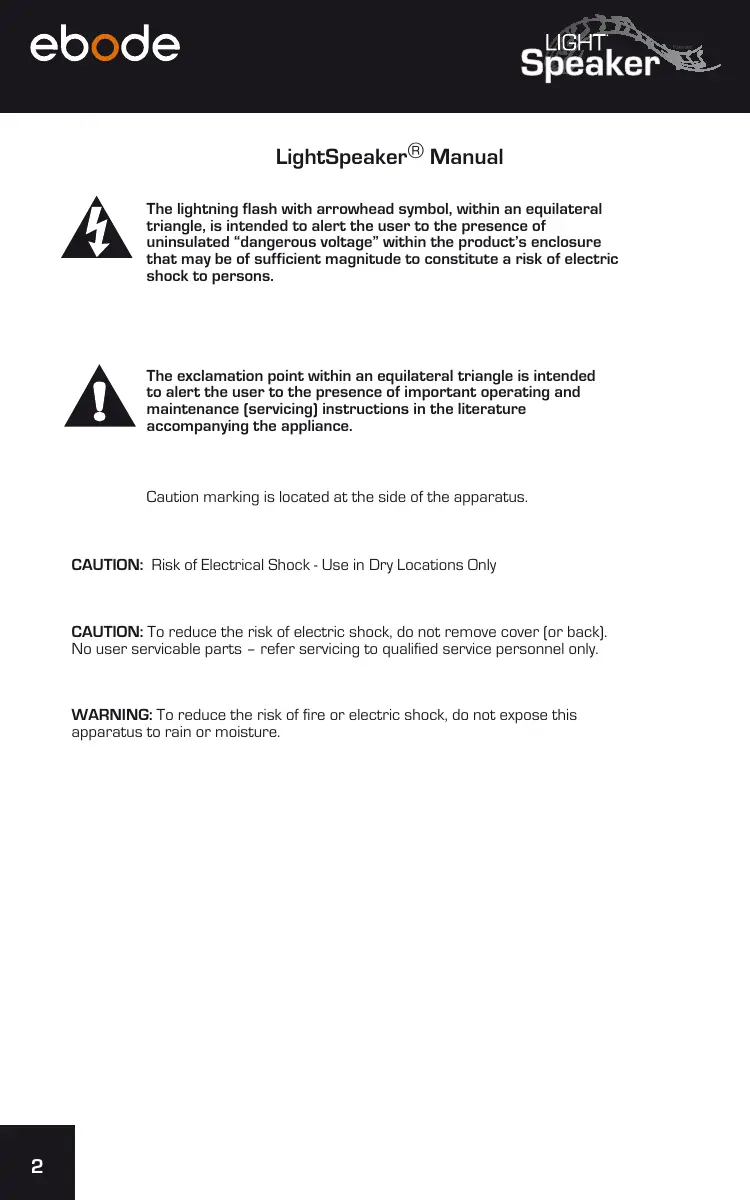

User guide 2
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance [servicing] instructions in the literature accompanying the appliance.
Caution marking is located at the side of the apparatus.
CAUTION: Risk of Electrical Shock - Use in Dry Locations Only
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user servicable parts - refer servicing to qualified service personnel only.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions. Keep these instructions. Heed allWarnings. Follow all instructions.
- Do not use this apparatus near water. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- The lamp holder is used as disconnect device. The lamp holder of apparatus should not be obstructed OR should be easily accessed during intended use. To completely disconnect the power input, the lamp holder of the apparatus shall be disconnected from the mains.
- Only use attachments/accessories specified by the manufacturer.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Added weight of the device may cause instability of a free-standing portable lamp. Use only with portable table lamps in which the distance from the bottom of the base to the top of the lampholder does not exceed three [3] times minimum base width. Use only with portable table lamps which are provided with lamp shades or the equivalent.
- This device is not intended for use with emergency exit fixtures or emergency exit lights
- NOT FOR USE WHERE EXPOSED TO THE WEATHER
- NOT FOR USE IN TOTALLY ENCLOSED RECESSED LUMINAIRES
Congratulations

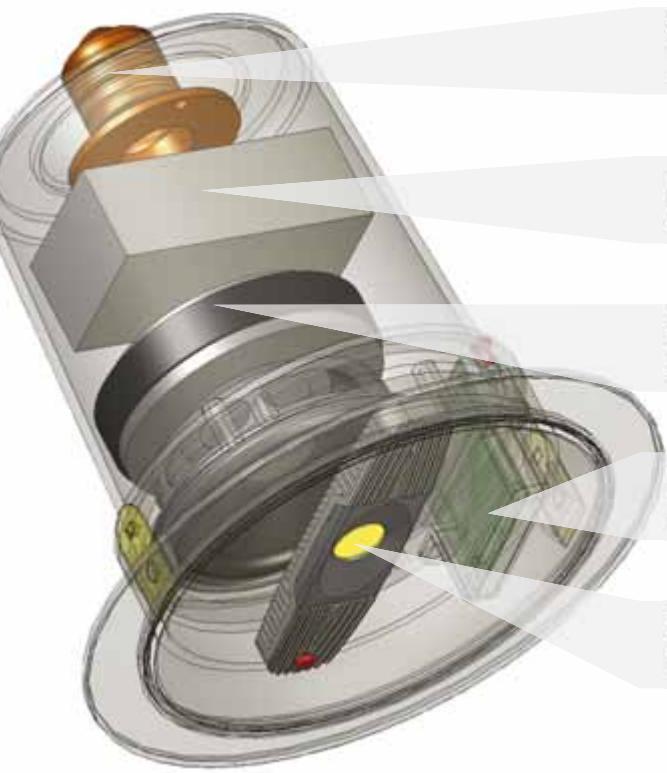

Thank you for choosing a LightSpeaker® from ebode electronics. You have chosen one of the most unique, patented, audio systems in the world. With proper installation and operation, you will enjoy years of trouble-free use. ebode electronics sells numerous products for use inside or outside your home. To see the complete ebode electronics product assortment, visit us on the internet at: www.ebodeelectronics.eu.
SCREWS IN 15 minute installation
AMPLIFIER Replaces your 4D Ib amplifier
SPEAKER Replaces bulky speakers.
WIRELESS No more cords and wiring.
LED LIGHT
Repaces up to 65 watt bulb.**
Table of Contents
LightSpeaker® Overview. 6
What is in this box. 8
Step 1 - Where will you install. 9
Step 2 - Check your connector type. 9
Step 3 - Test fit your LightSpeaker® .10
Step 4 - Setting the zone and stereo switches. 11
Step 5 - Pairing your LightSpeaker® 11
Step 6 - Enjoy your Lightspeaker® 11
Installing and removing the Lens. 12
Specifications. 14
Possible causes of interference. 16
Warranty. 17
Questions? 18
CE Declaration. 146
Technical Support Information............Back Cover

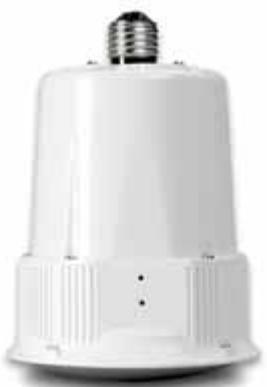

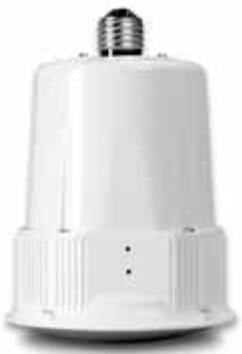

LightSpeaker® Overview
This wireless LightSpeaker® System is intended to install into any home easily and without any expensive and complicated wiring. You can install a typical system in your home in a few minutes and not have to worry about repairing walls or ceilings. Plus there is no climbing into attics or wriggling into crawl spaces! LightSpeakers® deliver great sound into any room in
your house. You screw it in like a bulb into most recessed fixtures, table lamps, and pendants, fitting a standard E27 Edison screw socket.
This unique patented LightSpeaker® has full bandwidth audio and “green” lighting together in one small package. Part of what makes this possible is the use of a 10W LED to provide the equivalent light of a 60W incandescent bulb while using 80% less power than the light bulb it replaced. Consider also that you may never have to replace this light; an operating life of 25,000 to 40,000 hours means that with average use this light should easily last 15 to 25 years.
Your system can use up to 4 pairs of LightSpeakers® to provide audio and lighting to your entire home. You can even divide your home into two unique areas where
Remote and transmitter sold separately.
different music sources, sound and lighting control allow you to add music with integrated "green" lighting to places you only dreamed of having it before.
There's no wiring and no big [or small] boxes. The wireless transmitter can be centrally located which will provide audio and, together with the remote, allow you to control your LightSpeakers® from anywhere in your home.
To expand your system, additional LightSpeakers® wireless AudioRocks® and/or subwoofer are separately available. Please go to www.ebodeelectronics.eu for more information.
This incredible patented system provides even greater flexibility to you as the owner; since you can take this system with you if you move; and when you do, it leaves no trace (holes that need to be covered) that the system was ever installed and used.
Please take a few moments to copy down the serial number and model number found on the side of your product box or on the product itself onto the 'Questions' page at the end of this manual.
Take just a minute to be sure you have everything you need to install your additional wireless distributed audio LightSpeaker® from ebode electronics.
Large & Small Trim Rings
Lens
LightSpeaker®
Note: The LightSpeaker® is an add on unit to an existing LightSpeaker® System. You need a LightSpeaker® Transmitter to supply audio and control the lights on this unit. The Transmitter and Remote discussed in the manual are sold separately.
Instruction Manual
Step 1: Decide which light will be replaced with LightSpeaker®.
Your ebode electronics LightSpeakers® have been specifically designed to cover large areas, however if the location of your fixtures allow you to do so, you should think about how you use your room and where you are likely to spend most of your time. Then choose the fixtures that are most evenly spaced to your preferred listening position.
WARNING!
Turn off circuit breakers to all lighting fixtures you are working on!
A) Turn off the circuit breaker and light switch, to the bulb you intend to replace with a LightSpeaker®.
B) Remove the existing light bulb.
Step 2: Check your connector type. Your ebode electronics LightSpeaker® is designed to fit into a standard E27 socket. It will not fit any other type connector.
STOP!
Check your connector!
Step 3: Fit your LightSpeaker®.
Your LightSpeaker® is designed to fit directly into most recessed fixtures, table lamps and pendants by simply removing the existing light and, in the same manner as a light bulb, re-installing your LightSpeaker® in its place.
Because of all the technology packed into LightSpeaker®, it is much larger than a normal light bulb, both in length and width. The best way to use Lightspeaker® is in a fitting where you cannot actually see the sides of the product at all. As long as the front grille is unrestricted so you can hear the music and see the light, you do not really want to see where the sound and light comes from. In general this means that the ideal is a long, slim lampshade rather than one short and wide.
Please give this some thought when choosing a fitting for your LightSpeaker®.
Please note - between the front edge of the E27 socket in your fitting and the front grille of LightSpeaker® you need to have a shade/fitting that will be at least 15 cm long and 14 cm wide
At www.ebodelectronics.eu you can find a selection of lampmodels that will work with LightSpeaker®.

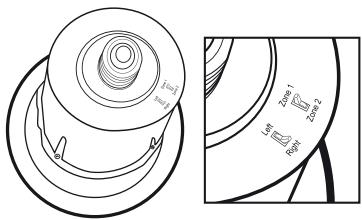

Step 4: Setting the Zone and L/R Stereo Switches.
A) Set the zone switch on the back of the LightSpeaker® to one, unless you are setting up a two zone system. For more on zones see Complete System Manual or go to www.ebodeelectronics.eu.
B) Set the left/right stereo switch. "L" if it is the left speaker, "R" if it is the right speaker.
C) Your LightSpeaker® system allows you to install up to 4 pairs of (or 8 total ) speakers. If you are installing more than one pair of LightSpeakers® you will probably want to divide your home into zones. See Complete System Manual or go to www.ebodeelectronics.eu.
Step 5: Pairing The Transmitter to the speakers: See Complete System Manual or go to www.ebodeelectronics.eu.
Step 6: Enjoy your Lightspeaker®!
Helpful Hints
Installing and Removing the Lens:
A) Removal BEFORE your LightSpeaker® is installed.
1) While holding the LightSpeaker® in the palm of your hand, rotate the unit until one of the holding tabs is facing up.
2) Using a fingernail, common screwdriver or other small flat object, gently push down and then out on the tab, easing it out through the opening in the LightSpeaker® housing.
CAUTION: Do not touch the LED or Speaker Baffle with the lens off when the unit is hot, allow the unit to cool down before touching the baffle.
3) When the lens pops up, gently pry it away from the housing, being gentle and making sure not to
break the tabs.
B) Removal of the lens AFTER your LightSpeaker® has been installed.
1) There are three small indentations around the lens; with a small tip common screwdriver, nail file, paper clip or similar object, gently slip the tip into the indentation and pry the lens outward until the retaining tabs pull free.
2) To re-install the lens, align the tabs and the hole for the pairing LED, then push gently until the locking tabs snap into place.
Specifications
LED Light
- 10W super bright LED provides a sharp crisp light that is easy on the eyes.
- LED outputs the light suitable to replace up to a 65W incandescent bulb
- Long Lasting LED is rated for over 25,000 to 40,000 hours of use (15 to 20 years average use)
- LED Light is fully dimmable and is controlled from either the remote or the light button on the transmitter
Wireless Transmitter
Receives a 2.4 GHz wireless stereo signal broadcast from the Transmitter and depending on the zone assigned to the speaker and the left or right audio channel selected, the receiver sends the correct signal to each LightSpeakers® on-board digital amplifier.
Digital Amplifier & Switch Mode Power Supply
- The E27 standard Edison Screw allows the unit to attach to any standard light fixture socket.
- The high efficiency switch mode power supply delivers power to the LED and the digital amplifier without generating a lot of heat.
- 20W high performance low distortion digital amplifier provides energy efficient sound
- The on-board Digital Signal Processing delivers customized audio to each LightSpeaker® giving big speaker sound in a small speaker.
Loud Speaker
- 2.5" high performance custom engineered woofer with Micro Cellulose Polymer treated cone material provides even coverage and smooth natural sounding audio reproduction
- Integrated high frequency disperser.
Accessories
- Frosted Lens is acoustically transparent
5" LightSpeaker® Specifications
Woofer 2.5" Micro Cellulose
Light Brightness 10W LED
Wireless Reception 2.4 GHz proprietary signal
Frequency Response [+/- 3dB] 90 Hz - 20 kHz
Amplifier Power 20W
Max SPL 93 dB SPL
Dimensions
LightSpeaker® depth [w/out Edison Screw] 135.3 mm (5.3")
LightSpeaker® diameter [without Flange] 130.0 mm (5.1")
LightSpeaker® diameter [with Flange] 182.8 mm (7.2")
Depth without socket - no lens 140.0 mm (5.5")
Depth with Socket - no lens 167.2 mm [6.6"]
Depth without socket with lens 153.8 mm (6.1")
Depth with Socket with lens 181.0 mm [7.1"]
OD of 6" Flange 192.0 mm [7.6"]
OD of 5" Flange 171.2 mm (6.7")
Weight 1.14 kg [2.51 lbs]
Possible causes of interference with your LightSpeaker®
A] Metal studs, in fact any metal wall material, can cause the signal to be diminished or lost. This may also be a problem if your wall paper happens to be a foil type or have metal fibers in it.
B) Microwave ovens, when operating, may degrade or interrupt the signal from your transmitter. Usually this will only be a problem for those speakers in close proximity to the microwave. For best results, do not locate the transmitter near your microwave.
C) Certain portable phones operating in the 2.4 Ghz range, wireless computer routers, and other consumer electronics and toys using 2.4 Ghz may cause interference when operated too close to either the transmitter or the speakers.
Warranty - Home and Commercial Audio
Limited Liability
ebode electronics warrants its lighting and loudspeaker products to the original purchaser to be free of manufacturing defects in material and workmanship for a period of two years from date of purchase. This warranty is subject to the following additional conditions and limitations.
The warranty is void and inapplicable if ebode electronics deems that the product has been used or handled other than in accordance with the instructions provided by the manufacturer, including but not limited to damage caused by accident, mishandling, improper installation, abuse, negligence, or normal wear and tear, or any defect caused by repair to the product by anyone other than ebode electronics.
To obtain warranty service, please visit your dealer. A factory return authorization number will be sent to you. Do not return any unit without first receiving written authorization and shipping instructions from your dealer.
There are no other warranties, including without limitation, either express or implied warranties of merchantability or fitness for a particular purpose, with respect to the product.
Repair or replacement as provided under this warranty is the exclusive remedy of the consumer/purchaser. ebode electronics shall not be responsible for any incidental or consequential damages except to the extent provided [or prohibited] by applicable law.
Some COUNTRIES do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from COUNTRY TO COUNTRY.
Questions? Contact your local dealer!
Have a question about your Lightspeaker speakers?
Talk to the people who know them best!
WRITE THE MODEL NUMBER AND SERIAL NUMBER FROM YOUR PRODUCT BOX HERE
Model Number:
Serial Number:
Replaces bulky speakers.
WIRELESS
No more cords and wiring.
LED LIGHT
Replaces up to 65 watt bulb.**
Inhoudsopgave
Controller de fitting!
Stap 3: Uw LightSpeaker® bevestigen
OD van 6" Flens 192,0 mm [7,6"]
OD van 5" Flens 171,2 mm [6,7"]
Replaces bulky speakers.
WIRELESS
No more cords and wiring.
LED LIGHT
Replaces up to 65 watt bulb.**
Inneháll
C)党的建设 LightSpeaker® you can connect your system to the LightSpeaker®. It's easy to set up a connection with the LightSpeaker® and use it in your home.
Replaces bulky speakers.
WIRELESS
No more cords and wiring.
LED LIGHT
Replaces up to 65 watt bulb.**
Indices
Replaces bulky speakers.
WIRELESS
No more cords and wiring.
LED LIGHT
Replaces up to 65 watt bulb.**
Indices
Instalar e Remover as Lentes:
A) Remover ANTES do seu LightSpeaker® ser instalado.
Edison] 135.3 mm [5.3"]
Diametro do LightSpeaker® [sem Rosca] 130.0 mm
Diametro do LightSpeaker® [com Rosca] 182.8 mm
Replaces bulky speakers.
WIRELESS
No more cords and wiring.
LED LIGHT
Replaces up to 65 watt bulb.**
Indices
Woofer 2,5" in micro-cellulosa
OD 6" flangia 192,0 mm
OD 5" flangia 171,2 mm
Peso 1,14 kg [2,51 libbre]
DECLARATION OF CONFORMITY
Hereby, BMB Electronics BV, declares that this LightSpeaker is in compliance with the essential requirements and other relevant provisions of the following Directives:
Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using
Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
C
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein
Product category: general consumer (category 3).
English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
For more detailed installation instructions go to www.ebodeelectronics.eu
LightSpeaker Technical Support
Contact your local dealer!
If you want to expand your light and sound system to additional rooms, replace existing lights with LED lights only or enjoy the same music outdoors as well as indoors, visit www.ebodeelectronics.eu.
Protected under multiple US and or international issued and pending patents
