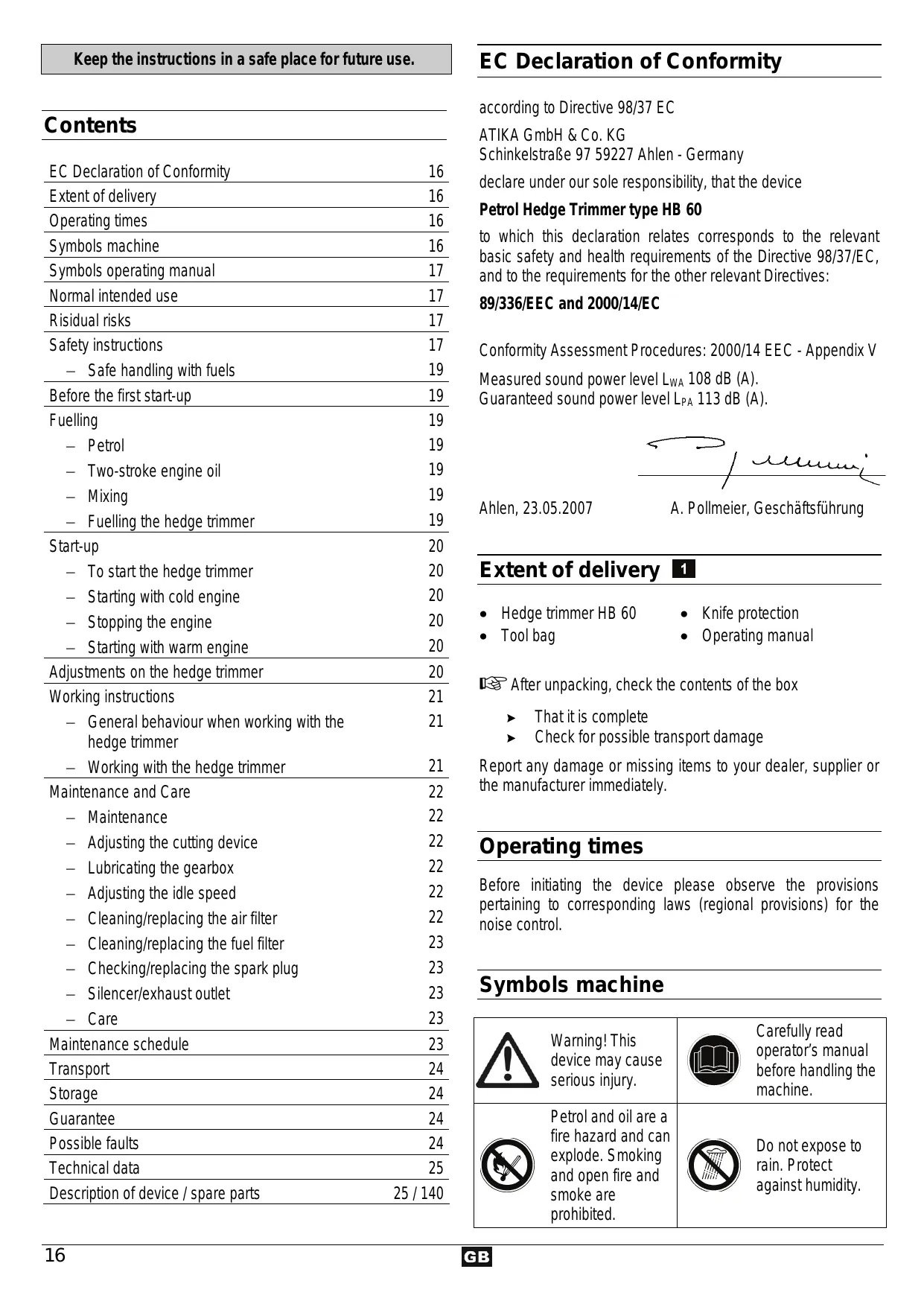

USER MANUAL HB 60 ATIKA

EC Declaration of Conformity	16
Extent of delivery	16
Operating times	16
Symbols machine	16
Symbols operating manual	17
Normal intended use	17
Risidual risks	17
Safety instructions	17
- Safe handling with fuels	19
Before the first start-up	19
Fuelling	19
- Petrol	19
- Two-stroke engine oil	19
- Mixing	19
- Fuelling the hedge trimmer	19
Start-up	20
- To start the hedge trimmer	20
- Starting with cold engine	20
- Stopping the engine	20
- Starting with warm engine	20
Adjustments on the hedge trimmer	20
Working instructions	21
- General behaviour when working with the hedge trimmer	21
- Working with the hedge trimmer	21
Maintenance and Care	22
- Maintenance	22
- Adjusting the cutting device	22
- Lubricating the gearbox	22
- Adjusting the idle speed	22
- Cleaning/replacing the air filter	22
- Cleaning/replacing the fuel filter	23
- Checking/replacing the spark plug	23
- Silencer/exhaust outlet	23
- Care	23
Maintenance schedule	23
Transport	24
Storage	24
Guarantee	24
Possible faults	24
Technical data	25
Description of device / spare parts	25 / 140

EC Declaration of Conformity

according to Directive 98/37 EC

ATIKA GmbH & Co. KG

declare under our sole responsibility, that the device

Petrol Hedge Trimmer type HB 60

to which this declaration relates corresponds to the relevant basic safety and health requirements of the Directive 98/37/EC, and to the requirements for the other relevant Directives:

89/336/EEC and 2000/14/EC

Conformity Assessment Procedures: 2000/14 EEC - Appendix V

Measured sound power level L_WA108 dB (A).

Guaranteed sound power level LPA 113 dB (A).

Ahlen, 23.05.2007

Extent of delivery 1

Hedge trimmer HB 60
- Tool bag

Knife protection
- Operating manual

After unpacking, check the contents of the box

That it is complete
Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately.

Operating times

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control.

Symbols machine

Warning! This device may cause serious injury.	Carefully read operator's manual before handling the machine.
Petrol and oil are a fire hazard and can explode. Smoking and open fire and smoke are prohibited.	Do not expose to rain. Protect against humidity.
Wear eye protection	Wear ear protection.
Wear protective gloves.	Wear safety shoes.
Choke position for "cold start"	Choke position for "warm start and working"

Symbols Operating instructions

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling of the hedge trimmer. Not observing this instruction can lead to faults in the hedge trimmer.

User information. This information helps you to use all the functions of the hedge trimmer optimally.

Assembly, operation and servicing the hedge trimmer. Here you are explained exactly what to do.

Normal intended use

• The hedge trimmer is only suitable for the private use in the house and hobby garden.
• As hedge shears for the private house and hobby garden are considered such devices that are not applied in public facilities, parks, and sports facilities as well as in the agriculture and silviculture.
• The device shall not be used for cutting grass, grass borders or in order to chop for composting. Otherwise, there is a risk of injury.
• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
• Any other use is deemed not to be intended use. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
• Unauthorized modifications to the hedge trimmer preclude any liability of the manufacturer for resulting damages of any kind.
• The machine may only be equipped, used and serviced by persons who are familiar with it and have been instructed on the hazards. Repair work may only be performed by us or authorized service centres.
• The machine may not be used in a potentially explosive environment or be exposed to rain.
  Metallic parts (wires etc.) have unconditionally to be removed from the material to be cut.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety information" and the "Intended usage" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Injury by catapulted parts.
• Breaking or catapulting of knife pieces.
• Carbon monoxide poisoning when using the device in closed or poorly ventilated rooms.
• Burning when touching hot parts.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

Before starting this device, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Keep these security advices (operating instructions) always together with the hedge trimmer.

The hedge trimmer shall only be operated by persons with sufficient experience.

Give or lend the hedge trimmer only to persons who are familiar with the hedge trimmer and its operation. Give always the operating instruction to take with them.

Repair works on the device must be carried out by the manufacturer or by companies appointed by the manufacturer respectively.

Primary users

Persons working for the first time with the hedge trimmer must obtain a practical instruction to the use of the hedge trimmer and the operator protection equipment by an experienced operating person.

• Be attentive. Be careful what you do. Behave sensibly when working. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions. Insufficiently informed operators may put at risk their own and the health of other persons.

• Do not use the machine for unsuitable purposes (see "Normal intended use").

• Avoid abnormal posture. Provide a safe standing position and keep at any time the balance.

• Wear suitable work clothes:

• Do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
  Gloves and slip-proof shoes
  Hairnet in case of long hair

• Wear protective clothing:

-ear protection
- protective goggles or face protection
- protective gloves
- safety boots
- certificated hardhat in situations where injuries to the head must be expected.

• We recommend to wear a leg protection and a safety jacket.

• Keep your workplace in an orderly condition! Untidiness can result in accidents.
  Take into consideration environmental influences:

• Do not expose the hedge trimmer to rain.

• Do not use the hedge trimmer in a damp or wet environment.
• Delay the work in case of disadvantageous weather (rain, snow, ice, wind) – increased risk of accidents!
• Provide for good illumination.

• Do not use the hedge trimmer near inflammable liquids or gases.

• Familiarize yourself with your environment and pay attention to possible dangers which you may not be able to hear because of the motor noise.

• Never leave the hedge trimmer unattended.
• For breaks the hedge trimmer has to be put down in such a manner that no person will be endangered. Assure the hedge trimmer against unauthorised access.
• Persons under the age of 18 must not operate the device.
• Keep other persons away.
• The operator is responsible for accidents or risks which occur to other persons or their properties.
• The operator is responsible to third persons within the area of operations.
• Keep children away.
• Do not allow other persons, especially children, to touch the tool or motor.
• Keep them away from your working area.
• Do not use a blunt, broken or otherwise damaged cutting device.
• Be sure that the cutting device already moves before you start cutting.
• Do not overload the machine! You work better and safer in the given performance range.

• Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.

• Do not modify the device or parts of the device respectively.

• Do not use any knives which do not comply with the indicated characteristics of this instruction manual.

The use of other tools and other accessories can signify a risk of injury for you.

• Stop the machine and remove the spark plug connector from the spark plug when

• the hedge trimmer had contact with soil, stones, nails or other foreign substances
  checking the device for damages

• carrying out repair works
• maintenance and cleaning
• carrying out servicing and repair works, removal of faults (including blocking of knives)
• transport and storage

• leaving the hedge trimmer (also for short-term interruptions)

• Maintain your hedge trimmer with care:

• Keep your tools sharp and clean in order to be able to work better and safer.

• Keep handles dry and free of oil and grease.
  Follow the maintenance instructions.

• Check the machine for possible damage:

• Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function.

• Check whether the movable parts function perfectly and do not stick or whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the hedge trimmer.
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.

• Damaged or illegible safety labels should be replaced immediately.

• Do not allow any tool key to be plugged in!

Before switching on, check always that wrenches and adjusting tools are removed. Before switching on, check always that wrenches and adjusting tools are removed.

• Store unused equipment in a dry, locked place out of the reach of children.
• Do not repair the device unless you are qualified for such kind of work.

Do not carry out repair operations on the machine other than those described in section "Maintenance" but contact the manufacturer or authorized customer service centres.
Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.
Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Safe handling with fuels

Fuels and fuel vapours are inflammable and may cause serious injury on the skin or when inhaled. Therefore be careful and provide sufficient ventilation when handling with fuels.

• Stop the engine and allow the device to cool down before fuelling it.
• Do not smoke and avoid open flames when fuelling.
• Wear gloves when fuelling.
• Do not fuel in closed rooms.
• Avoid spilling of fuel or oil. Clean the hedge trimmer immediately when you have spilled fuel or oil. Change your clothes immediately when you have spilled fuel or oil on them.
  Make sure that no fuel can come into the soil.
• Carefully close the tank cap after fuelling and check that it does not get loose during operation.
• Check that there is no leakage on the tank cap and fuel lines. If there are leaks this device may not be started.
• Only transport and store fuels in containers approved and identified for this.
• Keep children away from fuels.
• Do not handle and store fuels close to combustible and highly inflammable materials as well as sparks and open flames.
• Go away at least three metres from the fuelling place to start the device.

Before the first start-up

The hedge trimmer is supplied without fuel.

Fuel the hedge trimmer as described under "Fuelling".

Fuelling

This device is operated by a mixture from regular petrol (unleaded) and two-stroke engine oil.

Utmost care is required when handling fuel and oil. Keep away smoke and open flames (risk of explosion).

Petrol

Petrol: Octane number at least 91 ROZ unleaded

• Do not fill in leaded petrol, diesel or other non-approved fuels.

• Do not use petrol having a smaller octane number than 91 ROZ. This may lead to severe engine damages due to increased engine temperatures.
  If you frequently operate the device at high speeds, you should use petrol with a higher octane number.

• The use of unleaded petrol is recommended for environment protection reasons.

Two-stroke engine oil:

acc. to JASO FC or ISO EGD specifications

Do not use

• four-stroke oil or two-stroke oil for water-cooled outboard engines,
• mixtures ready for use from petrol stations.

Mixing

Ratio of mixture: 50:1

Petrol	Two-stroke engine oil 2% (50:1)
1 litres	0.02 litres
2 litres	0.04 litres
5 litres	0.10 litres
10 litres	0.20 litres

• Measure the oil quantity accurately as a small deviation of it has a large effect on the ratio of mixture in particular for small fuel quantities.
• Do not change the ratio of mixture. This will lead to more residues of combustion, a higher fuel consumption, a decrease of output or damages to the engine.

Mix petrol and oil in a clean container approved for petrol and appropriately identified. Use a fuel container with overfill protection.

1. At first fill in half the quantity of petrol to be mixed.
2. Then fill in the total amount of oil.
3. Shake the fuel mixture.
4. Fill in the remaining quantity of petrol.

Fuels have only a limited shelf-life, they are subject to ageing. Outdated fuels and fuel mixtures may result in starting problems. Therefore, mix only that quantity of fuel which you can use within a month.

Only store fuels in containers approved and identified for this. Keep fuel containers in a dry and safe area.

Make sure that fuel containers are kept out of the reach for children.

Fuelling the hedge trimmer

• Stop the engine and allow it to cool down.
• Wear protective gloves.
• Avoid eye and skin contact.

• Strictly follow the instructions under "Safe handling with fuels".

• Only fuel the hedge trimmer in the open or in sufficiently ventilated rooms.

• Clean the area around the filler neck. Contamination in the tank may result in malfunction.

• Shake the container once more before pouring the fuel mixture into the tank.

• Carefully open the tank cap (10) to allow possible overpressure to relax. 2
• Carefully fill the fuel mixture up to the lower edge of the filler neck.
• Close the tank cap. Check that the tank cap is tight.
• Clean the tank cap and the area around it.
• Check the tank and the fuel lines for leaks.
• Operate the fuel pump (24) if required.
• Before starting the engine go away at least three metres from the fuelling place.

Start-up

You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and completely and properly assembled the machine!

• Make sure that the ON/OFF switch (3), the locking knob (2), the throttle lock-out switch (1) and the throttle trigger (6) function perfectly.
• This hedge trimmer is only allowed to be started after it is completely assembled.
• Support the hedge trimmer when starting and hold it firmly. Make sure that the cutting device can move freely.

To start the hedge trimmer:

1. Keep a safe distance to flammable materials.
2. Have a safe standing position.
3. Place the hedge trimmer on the ground in front of you, with the cutting device showing away from your body. 3
4. Put the right foot tip in the rear handle.
5. Hold the front handle with your left hand.

Starting with cold engine

1. Slide the ON/OFF switch (3) to the START position. 4
2. Press the throttle lock-out switch (1) and operate the throttle trigger (6).
3. Press the locking knob (2) to lock the throttle lever. Now, you can release the throttle lever and the throttle lock-out switch.
4. Carefully press on the fuel pump (24) several times until fuel comes into the pump. 2
5. Slide the choke (22) to 5
6. Slowly pull the cranking rope with its handle (11) until you feel a resistance. 3
7. Pull the cranking rope quickly and then guide it back slowly.
   A Do not fully pull out the cranking rope and do not allow that the cranking handle strikes against the engine.

8. When the engine starts slide the choke (22) to 5

9. Then, fully press the throttle lever.

The locking knob is released.

1. Release the throttle trigger.
   The engine runs in idle mode.
2. Allow the device to warm up for approx. 1 minute before starting the work.

Stopping the engine 4

1. Release the throttle trigger.
2. Slide the ON/OFF switch (3) to the STOP position.

Starting with warm engine

1. Slide the ON/OFF switch (3) to the START position. 4
2. Press the throttle lock-out switch (1) and operate the throttle trigger (6).
3. Press the locking knob (2) to lock the throttle lever. Now, you can release the throttle lever and the throttle lock-out switch.
4. Slide the choke lever (22) to Z. 5
5. Hold the cranking handle (11) and pull the cranking rope until the engine starts. 3

Throttle lock-out switch

1. Hold the hedge trimmer on its rear handle (24) and press the throttle lock-out switch (1).
2. Hold the front handle (13) with your other hand.
3. Press the throttle trigger (6).
4. The cutting device will start moving.

If you release the throttle trigger, the cutting device will stop and the engine will idle.

If the cutting device runs in spite of non-pressed throttle trigger, you have to reduce the idle speed. (See "Maintenance".)

Adjustments on the hedge trimmer

Adjusting the rear handle (4). 6

To make working with the hedge trimmer easier it is possible to choose one of the 5 working positions of the rear handle.

When adjusting the throttle lock-out switch (1) can not be pressed.

1. Use your left hand to hold the hedge trimmer on its front handle (13).
2. Pull the handle unlocking device (5).
3. Turn the handle to your desired position.
4. Release the handle unlocking device. Make sure that the unlocking device engages again and that the handle is secured.

Working instructions

Carry out the following checks before starting and regularly during working with the hedge trimmer:

Is the hedge trimmer assembled completely and properly?
Check also that all nuts and screws are tightened.
Screws on the cutting device: See "Maintenance".
Is the hedge trimmer in good and safe condition?
Do all safety devices properly work?
Is the fuel tank filled?
Is the cutting device undamaged and sharpened?
Are engine and silencer free from deposits, leaves or emerging lubricants.
Is handhold clean and dry - free of oil, grease and resin?
Is workplace free of risks to stumble?
Do you wear the required protective equipment?
Did you read and understand all advices?
Is the throttle trigger easy-running and the locking knob functioning?
Does the ON/OFF switch properly work?
Does the cutting device always stop in idle mode?
If the cutting device moves during idling the idle speed must be reduced (see "Adjusting the idle speed").
Check that the gearbox is sufficiently lubricated (see "Maintenance").

General behaviour when working with the hedge trimmer

• Never work alone. Another person should stay close enough to hear calls for help.
• Keep children, bystanders and animals at a distance (15m min.) from your working area.
• Do not work on snow, ice or other slippery ground - slip hazard.
• Do not work under insufficient light conditions (e.g. fog, rain, snow flurry or twilight).
• Scare animals off the hedge before starting to cut in order to prevent them from being injured.
• Provide for a safe and cleaned workplace. Remove from the working area objects which might be thrown off.
• Avoid abnormal posture. Keep at any time the balance. Do not work with the upper part of the body leaned forward.
  Operate the hedge trimmer only with safe standing position.
• Stop the hedge trimmer when moving to another work place.
• Keep hands and feet away from the cutting device when it moves.
• Hold the hedge trimmer so that you do not inhale exhaust gases. Do not work in closed rooms.

• Do not use the hedge trimmer to pick up or remove wood pieces or other objects.

• Remove unconditionally any foreign objects out of the hedge (e.g. wires) as these can damage the knives of the hedge trimmer.
  Hold the hedge trimmer always firmly with both hands, left hand on the front handhold and right hand on the rear handhold). 7
  If you release the throttle trigger the cutting device will after-run for a short time (free wheeling effect).
  Start trimming with the cutting device moving.

• Never touch the cutting device with your hands during operation.
  Never work

with stretched arms
on hardly accessible places
too far bent forward

Never work with the hedge trimmer above shoulder height.
- Never get in contact with the running cutting device with metallic fences or the ground.
- Stop the engine and pull the spark plug connector:

• when you notice changes in the device's behaviour,
  to remove jammed material,
• to check the cutting device after it had contact with stones, nails or other hard objects,
  to eliminate faults,

• for work breaks,
  before leaving the hedge trimmer.

• Do not place a hot hedge trimmer in dry grass or onto inflammable objects.
  Before starting your work make sure that:

• no other persons or animals stay within the working area,
  you can always step back without any barriers,

• your standing area is free from foreign objects, brushwood and branches,
  you have always a secure standing position.

If persons who have blood circulation problems are too often exposed to vibrations damages to the nervous system or to blood vessels may occur.

You can reduce vibrations
by thick and warm working gloves,
shorter working time (have longer breaks).

See a doctor if your fingers swell, you don't feel well or your fingers become numb.

Working with the hedge trimmer

Hold the hedge trimmer with both hands on a safe distance from the body.

• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.
  Due to its double sided knives the hedge trimmer can be guided forward and backward or by oscillating movements from one to another side. 8 9

At first cut the sides of the hedge and then the upper edge. 8
Cut the hedge from the bottom up.
Cut the hedge in trapezium shape. 10
- Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.
- Trim in several passes if you have to cut down a large portion of the hedge.
Best time for hedge trimming:

Leaved hedge: June and October
Conifer hedge: April and August
Quickly growing hedge: from May and then every 6 weeks

• Pay attention to breeding birds in the hedge. If so, put off hedge trimming or leave this area out.

At any case pay attention to all safety instructions.

Maintenance and Care

Before each maintenance and cleaning work

• Stop the engine.
• Wait until the cutting device does not longer move.
• Stop the engine and pull off the spark plug connector (with the exception of idle speed adjustment).

Do not carry out maintenance work close to open flames. Risk of fire.

Maintenance and repair work other than those described in this chapter is only allowed to be carried out by service staff.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Maintenance

In order to aviod possible injuries wear gloves.

To guarantee a long and reliable usage of the hedge trimmer carry out the following maintenance works regularly.

Check the hedge trimmer for obvious defects such as

• loose fastening elements
• worn or damaged components
  deformed, broken or damaged cutting device
  leaks from the fuel tank cap or fuel lines

Check the hedge trimmer after each application for

• wear and tear, in particular sliding play of the cutting device
• correct assembly and faultless covers and protective devices.

Necessary repair or maintenance operations have to be carried out before the usage of the hedge trimmer.

Adjusting the cutting device

Readjust the sliding play if cut material is clamped between the blades or the play has increased due to normal wearing of the cutting device after a longer period of use.

To obtain good cutting results the free motion between the blades and the sword must be correctly adjusted.

For this proceed as follows: 11

1. Loosen the nuts (A) on the top surface of the cutting device.
2. Slightly tighten the screws (B) on the underside (if required loosen them previously).
3. Turn the screw back anticlockwisely by a quarter up to a half turn.
4. Use a screwdriver to hold the screw and firmly tighten the nuts.

The sliding play is correctly adjusted if the washer under the screw head can just be freely moved back and forth by hand.

1. Lubricate the cutting device using environmental-compatible lubricating oil.

If the play is too small, this may cause a great extent of heating and thus damage to the device.

Lubricating the gearbox 12

Lubricate the gearbox every 10 to 20 operating hours.

1. Put the grease gun onto the zerk fitting (25).
2. Force some grease into the zerk fitting.

Use SHELL ALVANIA RL3, for example, or an equivalent grease brand.

Adjusting the idle speed 13

If the cutting device continues to run while the engine idles, you have to correct the idle speed.

1. Allow the engine to run warm for 3-5 minutes (no high speed).
2. Turn the adjusting screw (C):

clockwisely idle speed increases (+)

counterclockwisely idle speed decreases (-)

Contact the manufacturer if the cutting device still continues to run in idle mode.

Do not continue working with the hedge trimmer in such a condition.

Cleaning / replacing the air filter 14

Clean the air filter from dust and dirt on a regular basis to prevent

• starting problems,
  loss of output,
  too high fuel consumption.

Clean the air filter every 8 operating hours, or more frequently in dusty environments.

1. Put the choke (22) to to prevent dirt particles from coming into the carburettor.
2. Remove the air filter cover (20).
3. Remove the air filter (23).
4. Wash the air filter in a luke warm soapy solution.

Do not blow out dirt particles, otherwise there is a risk of eye injury.

1. Clean the air filter interior using a brush.
2. Allow the air filter to dry well and reinsert it.
3. Re-mount the air filter cover.

Replace the air filter on a regular basis.

Damaged air filters must be replaced without delay.

Cleaning/replacing the fuel filter 15

Check the fuel filter (9) if required. A contaminated fuel filter restricts the fuel supply.

Open the tank cap (10) and pull the fuel filter through the opening using a wire hook.

Slight contamination:

Pull the fuel filter from the fuel line and clean it in petroleum ether.

Bad contamination:

Replace the fuel filter.

Checking / replacing the spark plug

Do not touch the spark plug (18) or the spark plug connector (17) when the engine runs. High voltage!

Risk of burning on the hot engine. Wear protective gloves.

Check the spark plug and the spark gap on a regular basis.

For this proceed as follows: 16

1. Pull the spark plug connector from the spark plug.
2. Remove the spark plug using the supplied spark plug wrench (26).

The spark gap must be 0.6 to 0.7mm

Clean the spark plug when it is contaminated.

Replace the spark plug:

• once in a month if the device is often used
• when the insulating body is damaged,
• when the electrodes show excessive erosion,
• when the electrodes show excessive dirt or oil.

Use the following spark plug type:

NGK-BM6A

BOSCH WS8E

Champion CJ8

Checking the ignition spark

1. Pull the spark plug connector from the spark plug.

2. Remove the spark plug using the supplied spark plug socket spanner.

3. Remove the spark plug.
4. Firmly connect the spark plug connector.
5. Use an insulated pair of tongs to press the spark plug against the engine body (away from the spark plug hole).
6. Slide the ON/OFF switch to the START position.
7. Firmly pull the cranking rope on the cranking handle.

A spark between the electrodes is a sign of proper functioning.

Silencer / exhaust outlet 17

Do not retighten the silencer screws when the engine is hot.

1. Check the tight seat of the screws (D) on the silencer (7) on a regular basis.

If they are loose, tighten them hand-tight.

1. Clean the exhaust outlet (E) on a regular basis.

Care

Clean the hedge trimmer thoroughly after each application so that the faultless function is kept.

Wear protective gloves when cleaning the cutting device.

Clean the case with a soft brush or a dry cloth.

Water, solvents and polishing agents shall not be applied.

Check that the ventilation slots for the motor cooling are free (risk of overheating).

Clean the cutting device on a regular basis using a brush or a cloth.

Never clean the knives with water (Risk of corrosion!)

Clean and oil all moving parts regularly.

Never use any grease!

Use for instance environmentally acceptable spray oil.

Maintenance schedule

Operation	Maintenance interval
Adjust the cutting device	If required
Adjust the idle speed	If required
Tighten the silencer screws	If required
Clean/replace the fuel filter.	If required
Clean/replace the air filter	Every 8 hours of operation (more frequent in case of dusty environments)
Lubricate the gearbox	Every 20 hours of operation, at least once in a year

Transport

To transport the device stop the engine and wait until the cutting device does not longer move. Attach the protective cover.

• Carry the device with the front handle.
• When transporting the device within a car put it in the boot or on a separate loading area. Secure the hedge trimmer against tipping over, damages and fuel spillage.

Storage

• Store unused devices with attached protective cover in a dry, locked place out of the reach of children.
• To extend the service life of the hedge trimmer and guarantee smooth operation, before storing for a longer period

thoroughly clean the device
treat all movable parts with an environmentally friendly oil

i Never use any grease!

Slide the protective cover on the cutting device.
Remove the spark plug connector.
Empty the fuel tank completely.

① Dispose of remaining fuel in an environmentally compatible manner.

Operatethe engine until the carburettor is empty.

Guarantee

Please observe the enclosed terms of guarantee.

Possible faults

Fault	Possible cause	Remedy
Hedge trimmer does not work.	·No fuel supply ·Fault in the fuel line ·Fuel filter clogged ·Spark plug defective ·Carburettor defective ·Internal fault.	·Check the fuel quantity ·Check the fuel line for kinks or damages ·Clean/replace the fuel filter ·Replace the spark plug ·Manufacturer or responsible customer service must be called ·Manufacturer or responsible customer service must be called
Hedge trimmer cuts with interruptions	·Internal fault. ·ON / OFF switch defective.	·Manufacturer or responsible customer service must be called ·Manufacturer or responsible customer service must be called
Engine is running, cutting device does not move	·Cutting device blocked ·Internal fault. ·Clutch defective	·Remove object ·Manufacturer or responsible customer service must be called ·Manufacturer or responsible customer service must be called
Cutting device gets hot	·Missing lubrication => friction ·Not enough play ·Cutting blades are blunt	·Oil the cutting device ·Adjust the sliding play ·Have the cutting device sharpened

Technical data

Typ	HB 60
Model	HB 60
Max. engine output at a certain speed	740 W / 6500 min-1
Cubic capacity	21.7 cm3
Cylinder bore	34.0 mm
Stroke	27 mm
No-load speed n0	2700 rpm
Max. engine speed with cutting device	9000 rpm
Ignition system	electronic ignition
Spark plug	TORCH-BM6A or equivalent
Spark gap	0.6 – 0.7 mm
Fuel tank capacity	0.6 l
Fuel consumption at max. output	0.55 l/h
Ratio of mixture (fuel/two-stroke oil)	50:1
Hand arm vibration acc. to EN 1033/DIN 45675
- Front handle (full load)	avhw = < 11.7 m/s2
- Rear handle (full load)	avhw = < 14.6 m/s2
Cutting length	540 mm
Cutting thickness	28 mm
Knife speed	1.88 m/s
Weight (tank empty, without protective cover)	approx. 5.1 kg
Sound pressure level LPA at the workplace (according to regulation 2000/14/EG)	95 dB(A)
Sound power level LwA (according to regulation 2000/14/EC)	measured sound power level 108 dB (A) guaranteed sound power level 113 dB (A)

Description of device / spare parts

Pos.	Order-No.	Denomination
1		Throttle lock-out switch
2		Locking knob
3		ON / OFF-switch
4		Rear handle
5		Handle unlocking device
6		Throttle trigger
7		Silencer
8	362965	Engine covering
9	362969	Fuel filter
10	362972	Fuel tank cap
11		Cranking handle
12	362966	Cranking rope with handle
13	362964	Front handhold
14		Hand guard

15	362973	Protective cap
16		Cutting device
17		Spark plug connector
18	362976	Spark plug
19	362970	Wing screw
20		Air filter cover
21		Gas cable with sleeve cpl.
22	362974	Choke
23	362975	Air filter
24		Fuel pump
25		Zerk fitting (grease fitting)
26	362963	Spark plug socket spanner
27	362962	Safety label

A. Pollmeier, Jednatel

Obsah dodávky

• Plotové núzky HB 60
  Sacek s naRADim

• Chránic listy

• Návod k obsluze

A sövénynyíró部分地区有地层发育的岩溶, including the silted sandstone, which is composed of sand, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone, sandstone

89/336/CEE e 2000/14/CE.

89/336/EWG i 2000/14/EG.

Metoda oceny zgodnosci: 2000/14/EG - zaćznik V

89/336/EGS in 2000/14/ES.

Postopek za ugotavljanje skladnosti: 2000/14/ES – Priloga V
