USER MANUAL FLEXSCAN SX3031W EIZO

Important: Please read PRECAUTIONS, this Setup Manual and the User's Manual stored on the CD-ROM carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference.

Installationshandbuch

*4 Recommended resolution (Set this resolution)

*1 Für Dualanzeige

^*2 SIGNAL 2

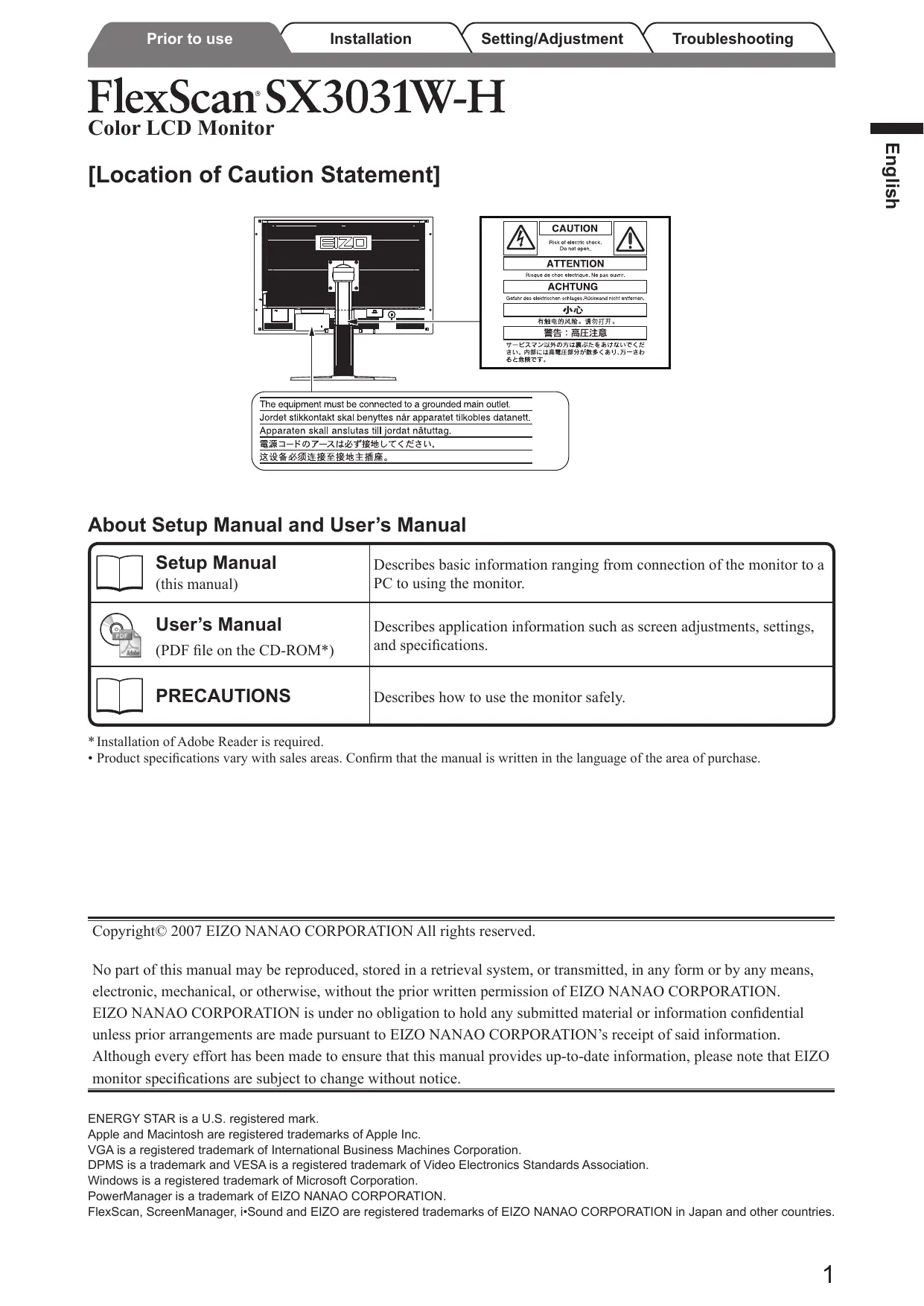

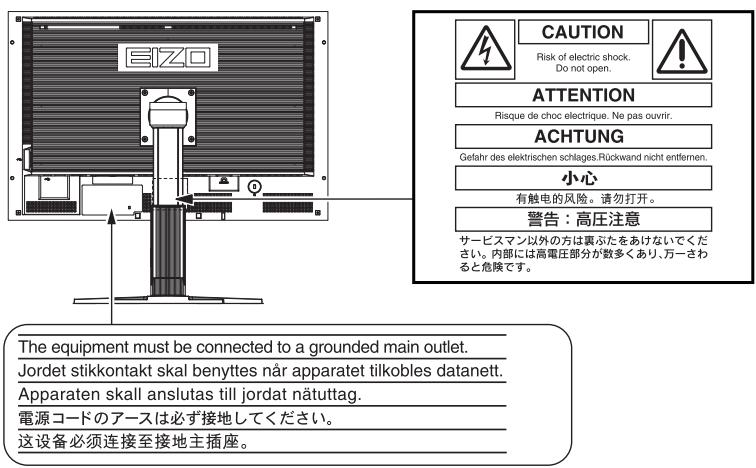

[Location of Caution Statement]

About Setup Manual and User's Manual

Setup Manual (this manual)	Describes basic information ranging from connection of the monitor to a PC to using the monitor.
User's Manual (PDF file on the CD-ROM*)	Describes application information such as screen adjustments, settings, and specifications.
PRECAUTIONS	Describes how to use the monitor safely.

• Installation of Adobe Reader is required.
• Product specifications vary with sales areas. Confirm that the manual is written in the language of the area of purchase.

Copyright © 2007 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information.

Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association.

Windows is a registered trademark of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

FlexScan, ScreenManager, iSound and EIZO are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

Package Contents

Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer.

NOTE

• Please keep the packaging box and materials for future movement or transport of the monitor.

Monitor
Power Cord

Signal Cable (Dual Link): DD200DL-BK

Signal Cable: FD-C39

EIZO USB Cable: MD-C93

EIZO LCD Utility Disk (CD-ROM)
- User's Manual
Setup Manual (this manual)
PRECAUTIONS
Limited Warranty
Recycling Information
Mounting Screws (M4 x 12, 4 pcs.)

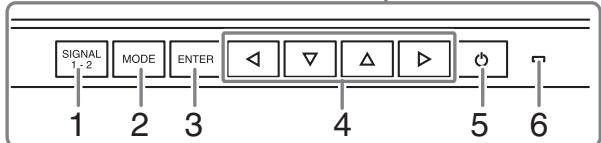

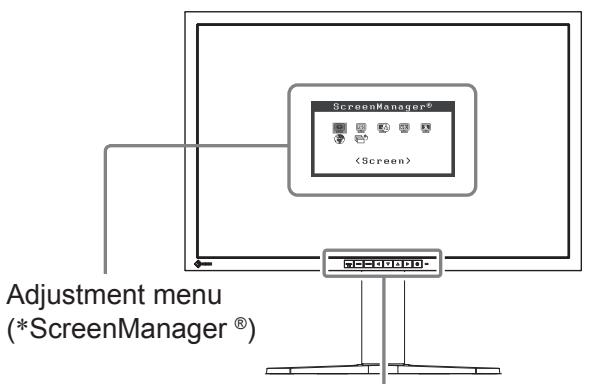

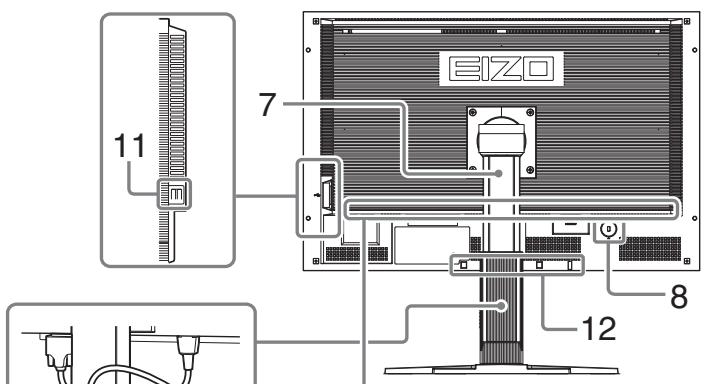

Controls and Functions

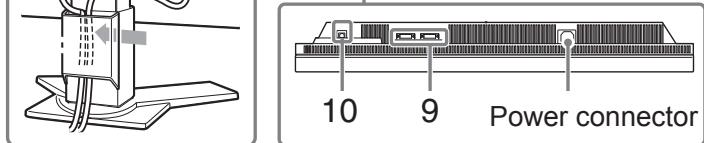

Push the cable into the cable holder.

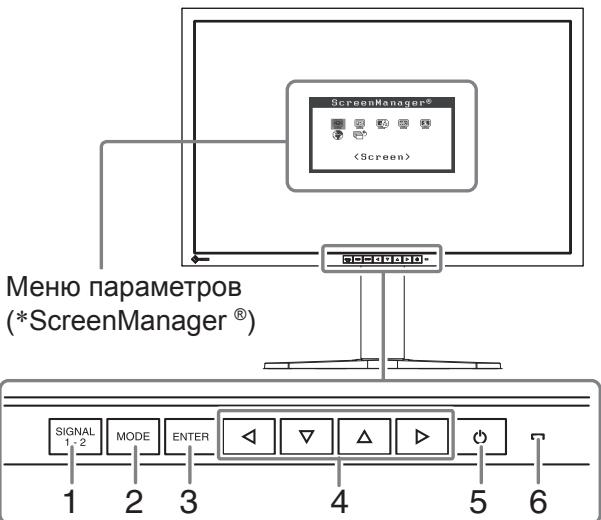

1	Input Signal Selection button	Switches input signals for display images.
2	Mode button	Displays the FineContrast menu (page 5).
3	Enter button	Displays the Adjustment menu, determines an item on the menu screen, and saves values adjusted.
4	Control buttons (Left, Down, Up, Right)	•□ or □ button: Displays the brightness adjustment window (page 5). • Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the Adjustment menu (page 5).
5	Power button	Turns the power on or off.
6	Power indicator	Indicates monitor's operation status. Blue : Operating Off : Power off Orange : Power saving
7	Tilt adjustable stand	Used to adjust the angle of the monitor screen.
8	Security lock slot	Complies with Kensington's MicroSaver security system.
9	Input signal connectors	Left: DVI-D connector (SIGNAL1 DUAL LINK)/Right: DVI-D connector (SIGNAL2)
10	USB port (Up)	Connects the USB cable to use the ScreenManager Pro for LCD software (for Windows). For how to use it, refer to the User's Manual on the CD-ROM.
11	USB port (Down)	Connects a peripheral USB device.
12	Option speaker (i·Sound L3) mounting holes	Used to attach the option speaker (i·Sound L3).

• ScreenManager® is an EIZO's nickname of the Adjustment menu. (For how to use ScreenManager, refer to the User's Manual on the CD-ROM.)

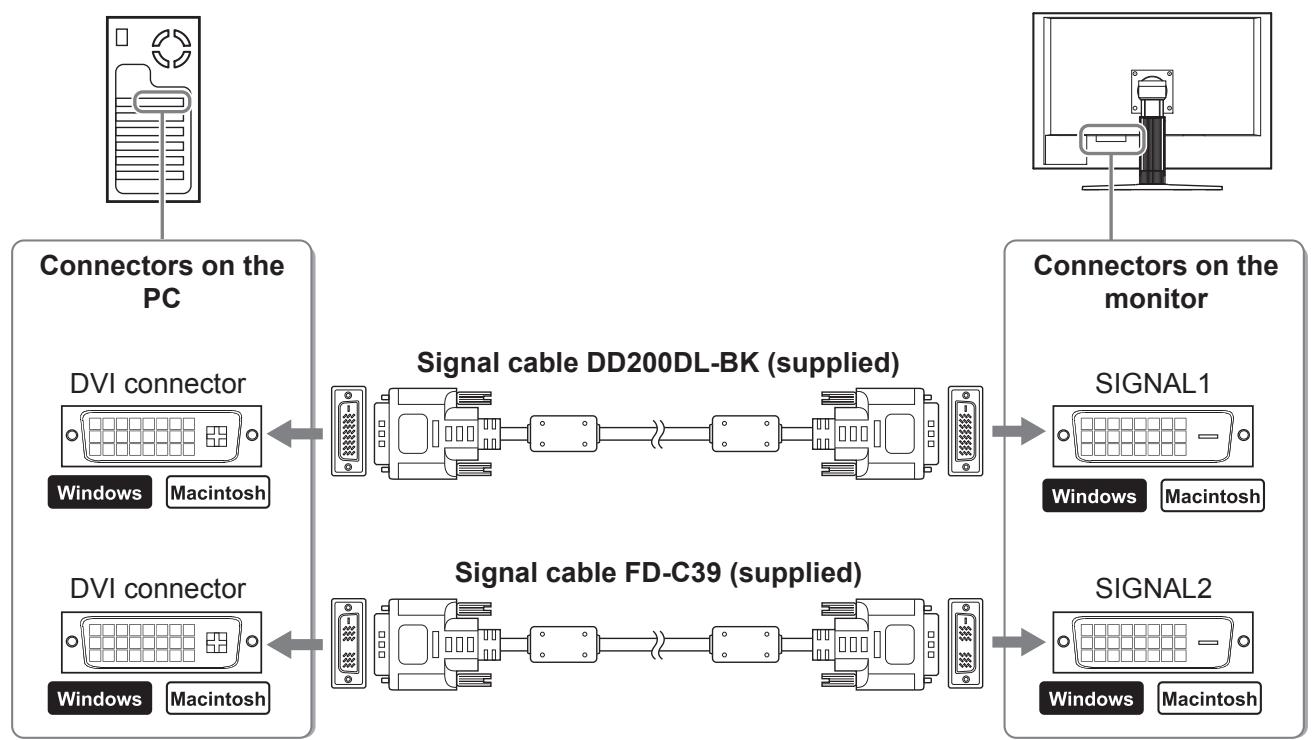

Connecting Cables

Attention

• When replacing the current monitor with a SX3031W-H monitor, be sure to change the PC settings for resolution and vertical frequency to those which are available for the SX3031W-H monitor referring to the resolution table (back of cover page) before connecting the PC.

1 Check that the monitor and the PC are powered off.

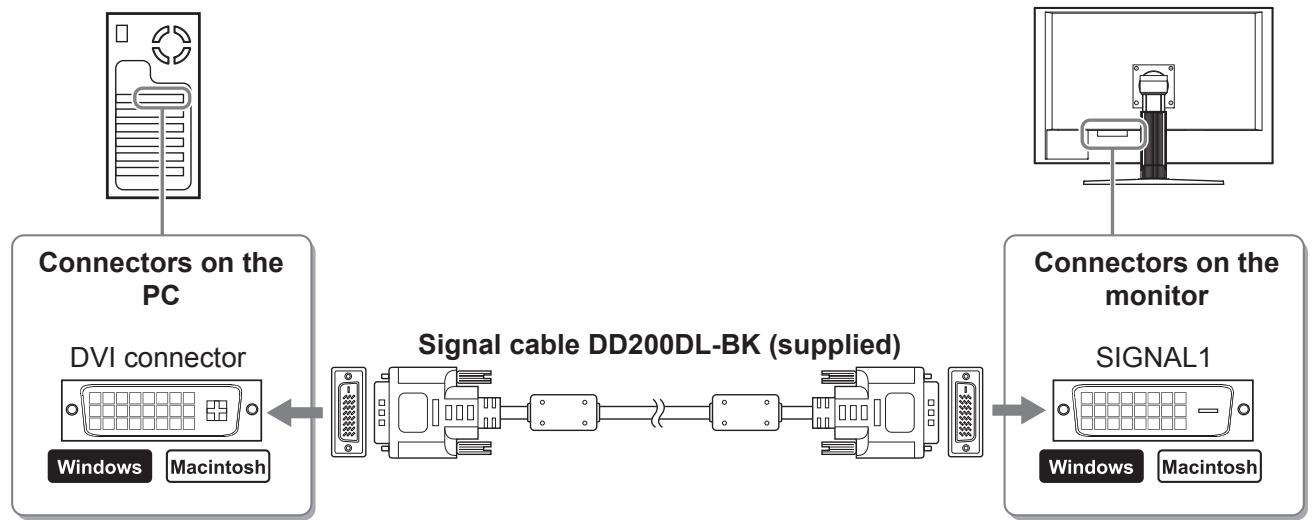

2 Connect the monitor to the PC with a signal cable that matches the connectors.

After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.

• When the resolution of the graphics board on your PC is applicable to 2560 × 1600 (Single display);

• When the resolution of the graphics board on your PC is not applicable to 2560 × 1600 (Dual display); Dual display (simultaneous left and right sides display) is available by using a dual DVI-D system graphics board or any two graphics boards.

Dual display with 1200 × 1600 resolution is the maximum display size.

3 Plug the power cord into a power outlet and the Power connector on the monitor.

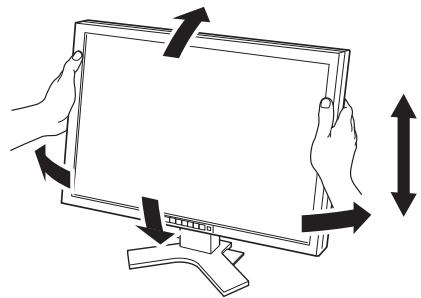

Adjusting the Screen Height and Angle

Adjust the screen height, tilt and swivel the screen to the best condition for working.

Setting the Screen Display

1 Check that the monitor and the PC are powered off.
2 Press with holding down to set the display mode.

Single display: Choose .
Dual display: Choose .
3 Press ENTER

Attention

• Initial setting for the display mode is set to .

Displaying the Screen

1 Turn on the PC.

The screen image appears.

Attention

• Turn off the monitor and PC after using them. Unplugging the power cord completely shuts off power supply to the monitor.
• When setting the display mode between single display and dual display, be sure to turn off your PC.

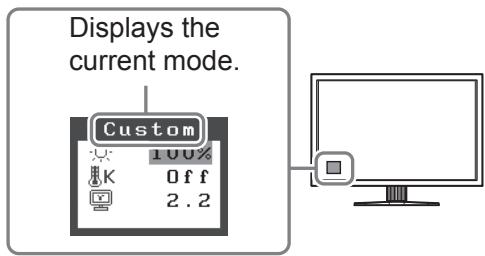

Selecting Display Mode

FineContrast allows you to select the best display mode easily according to monitor's application. For details of FineContrast, refer to the User's Manual on the CD-ROM.

FineContrast Mode

Custom	Available for making desired setting.
sRGB	Suitable for color matching with sRGB compatible peripherals.
Text	Suitable for displaying texts for word processing or spreadsheets.
Picture	Suitable for displaying images such as photos or picture images.
Movie	Suitable for playing back animated images.

1 Press MODE

The FineContrast menu appears.

2 Press MODE again while the FineContrast menu is displayed.

Each time the button is pressed, the mode on the screen switches. (Refer to the FineContrast Mode table.)

3 Press ENTER at the desired mode.

The selected mode is set.

FineContrast menu

Adjusting Brightness

1 Press or .

The brightness adjustment window appears.

2 Adjust the brightness with or .

Press to increase screen brightness or press to decrease.

3 Press ENTER at the desired brightness.

The specified brightness is saved.

Brightness menu

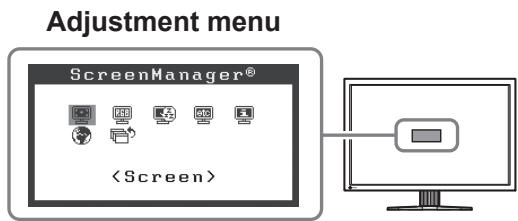

Performing Advanced Settings/Adjustments

Advanced adjustments for the color and various settings are available using the Adjustment menu.

For details of each adjustment function, refer to the User's Manual on the CD-ROM.

The basic settings and adjustments are completed. For advanced settings/adjustments, refer to the User's Manual on the CD-ROM.

If no picture is displayed on the monitor even after the following remedial action is taken, contact your local dealer.

1. Check the Power indicator.

Symptom	Status	Possible cause and remedy
No picture	Power indicator does not light up.	Check whether the power cord is correctly connected. Press Ⓞ.
	Power indicator lights blue. Power indicator lights orange.	Switch the input signal with SIGNAL 1-2.
		Press a key on the keyboard or click the mouse.
		Turn on the PC.

2. Check the error message that remains on the screen.

These messages appear when the input signal is incorrect even if the monitor is functioning.

Symptom*	Status	Possible cause and remedy
Signal Check Signal 1 fH: 0.0kHz fU: 0.0Hz	The input signal is not received.	Check whether the PC is turned on.
		Check whether the signal cable is properly connected to the PC.
		Switch the input signal with SIGNAL 1-2.
Signal Error Signal 1 fD:272.0MHz fH:100.0kHz fU:60.0Hz	The signal frequency is outside the specification. Incorrect signal frequency is shown in red.	Change the mode to an appropriate mode using the graphics board's utility software. Refer to the manual of the graphics board for details.

• When the display is set to dual display mode, or appears on the error message display to show the error display.

FlexScan SX3031W-H

LCD-Farbmonitor

EuaviEaI n Eikova Tns oOvns.

Ppoooxn

KLeioTe Tnv oOvN kai Tov uTIOLOyIOTn mEa Tn xPOn. H aPapEoTou KaLwOoiu TpoQoOoiac diakOtTEi Tnv TApoxn pEUMatoC Otv OOvN.
Otau aaaaet en aeitoupyia oovns e myn n dian oovn, baaowite Tpota ot uioooyiotc saeivai klaotoc.

Bndeo3eKeTropHnKi (Video Electronics Standards Association).

Windows yBJIeTc3apeRncTpnpoBaHHbIM TOBapHbIM 3HaKOM Microsoft Corporation.

PowerManagerявсяетс товарьим 3нakом EIZO NANAO CORPORATION.

FlexScan, ScreenManager, i\~Sound n EIZO yBJIIOCT3apeRicTpnpoBaHHbIMn TOBAPHbIMn 3naKamn Kopnpaunn EIZO NANAO

CORPORATION B JIIOHIN I dpynx cTpaHax.

Copexmoe ynaKOBKn

Y6eIHTecb, YTO BCE CJJeIyIOUINE KOMIOHENTbI HMEOTcB YIaKOBKe. IOnkaJIyIcTa, O6paIIaIITecb K IpOJaBHy 3a IOMOIIbHO, ecJIN YTO-JIbO H3 IIpeueHcJIeHHORO HNKe OTCytCTByET HJIIOBpeKJDeHO.

ПОНМЕЧАНЕ

• Coxpanhte ynapokBky n MaTePnAblI dnyuTo nepemueeHn nnpeBo3KMOHITopa.

MoHHTOp
□山Hyp nHTaHnI

CnHaBnKa6eB (Dual Link): DD200DL-BK

CnHnJIbHbI Ka6eJIb:FD-C39

Ka6eB USB EIZO: MD-C93

EIZOLCD Utility Disk (CD-ROM)
-PykoBoIDCTBO noIb3ObaTeia
PykoBOdCTBO no yctahOBke (daHHoe pykoBOdCTBO)
MEPbI INPEIOCTOPOXHOCTN
OrpaHnueHHna rapaHTnA
CBeHeHnIOyTNJIn3aun
KpeNekHbIe BnHTbl (M4x12,4uT.)

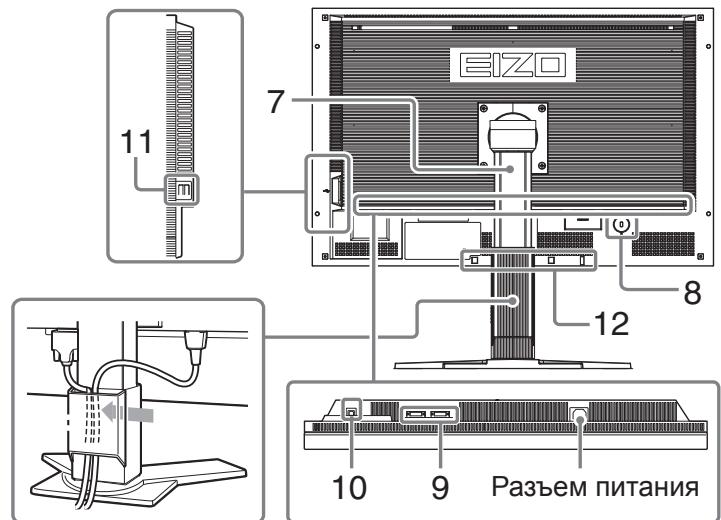

CpeidcTba ynpaBJIeHnI nIX ha3NaueHne

BCTaBbTe Ka6eJb B DepKaTeJIb.
