Product Type	Monitor
Brand	EIZO
Model	FlexScan EV2750
Screen Size	27 inches (68.5 cm)
Resolution	2560 x 1440 (WQHD)
Panel Type	IPS (In-Plane Switching)
Brightness	350 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Response Time	5 ms (gray-to-gray)
Viewing Angles	178° / 178°
Connectivity	1x USB-C (DisplayPort Alt Mode, 60W), 1x DisplayPort, 1x HDMI, 1x DVI-D
USB Hub	Upstream: USB-C; Downstream: 2x USB 3.0
Ergonomics	Height adjustable (150 mm), tilt (35° up / 5° down), swivel (344°), pivot (90° clockwise)
Power Consumption	Typical: 24W, Max: 84W, Standby: <0.5W
Dimensions (with stand)	615 x 350 x 230 mm (W x H x D)
Weight (with stand)	About 8.5 kg
VESA Mount	100 x 100 mm
Speakers	2 x 1W (built-in)
Energy Efficiency Class	A+ (EU 2019)
Warranty	5 years (including panel) in select regions

Frequently Asked Questions - FlexScan EV2750 EIZO

How do I connect my laptop to the Eizo FlexScan EV2750 using USB-C?

Use a USB-C cable that supports DisplayPort Alt Mode. Connect it from your laptop's USB-C port to the monitor's USB-C port. The monitor will transmit video, audio, and can charge your laptop up to 60W.

Can I mount the monitor on a VESA arm?

Yes, the monitor supports VESA 100x100 mm mounting. Remove the stand by pressing the release button and attach a VESA-compatible arm or bracket.

How do I clean the screen without damaging it?

Turn off the monitor and unplug it. Use a soft, lint-free microfiber cloth slightly dampened with water. Gently wipe in one direction. Do not spray liquid directly on the screen. Avoid using alcohol, ammonia, or abrasive cleaners.

What is the recommended resolution and refresh rate?

The native resolution is 2560 x 1440 at 60 Hz. For best image quality, set your computer to this resolution and refresh rate.

How do I adjust the height, tilt, and pivot?

Height: hold the screen and press down or lift. Tilt: gently push the top forward or backward. Pivot: rotate the screen clockwise. Ensure cables have enough slack before pivoting.

Does the monitor have built-in speakers?

Yes, it has two 1W speakers. Audio is transmitted via DisplayPort, HDMI, or USB-C. You can adjust volume using the monitor's OSD (On-Screen Display) menu.

How do I enable or disable the blue light reduction feature?

Go to the OSD menu, select 'Color' or 'EcoView', then find 'Paper Mode' or 'EyeCare' settings. Adjust the blue light level to reduce eye strain.

What should I do if the monitor does not detect a video signal?

Check that the cable is securely connected at both ends. Verify your computer is outputting a supported resolution (e.g., 2560x1440). Try another cable or port. If using a hub, connect directly to your computer.

Can I daisy-chain multiple monitors using this model?

No, the FlexScan EV2750 does not support DisplayPort Multi-Stream Transport (MST) for daisy-chaining. Each monitor must be connected directly to a video source.

How do I update the monitor firmware?

EIZO periodically releases firmware updates. Download the firmware and the 'EIZO Monitor Utility' from the official EIZO website. Connect the monitor to your PC via USB and follow the instructions in the utility.

USER MANUAL FlexScan EV2750 EIZO

Please read PRECAUTIONS, this User's Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the monitor.
• The latest User's Manual is available for download from our web site:

http://www.eizoglobal.com

EIZO

Location of Caution Statement

This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.

EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Notice for this monitor

This product is suited to general purposes like creating documents, viewing multimedia content (Assuming usage of approximately 12 hours per day).

If using this product for the following kinds of applications, where an extremely high degree of reliability and safety is required, then measures should be in place to maintain safety while using this product.

• Transportation equipment (ships, aircraft, trains, and automobiles)
• Safety devices (Disaster prevention systems, security control systems, etc.)
  • Life-critical devices (medical devices, such as life-support devices and operating room devices)
  • Nuclear energy control devices (Nuclear energy control systems, security control systems of nuclear facilities, etc.)
  • Major system communication devices (operation control systems of transportation systems, air traffic control systems, etc.)

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable when the following are used:

- Power cords provided with the product

- Signal cables specified by us

Only use optional products manufactured or specified by us with this product.

If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use.

It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.

Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a stable display.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to "Cleaning" (page 4)).

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.

The backlight of the LCD panel has a fixed lifetime. Depending on the usage pattern, such as usage for long continuous periods, the lifespan of the backlight may run out sooner, requiring replacement. When the screen becomes dark or begins to flicker, please contact your local EIZO representative.

Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

Cleaning

Attention

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image.
- Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.

Note

- The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.

The stains on the cabinet and panel surface can be removed by moistening part of a soft cloth with water.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Notice for this monitor ....3

Cleaning 4

To use the monitor comfortably....5

CONTENTS......6

Chapter 1 Introduction....7

1-1. Features 7

1-2. Controls and Functions 9

Mont 9

Dear....10

1-3. Supported Resolutions....11

1-4. Setting the Resolution 12

Windows 8.1 / Windows 8 / Windows 7....12

Windows Vista....12

Mac OS X 12

Chapter 2 Basic Adjustment/Setting....13

2-1. Switch Operation Method 13

2-2. Switching Input Signals....14

2-3. Switching Display Modes (Color Modes)....15

Display Modes....15

2-4. Conserving Energy....16

2-5. Adjusting Brightness 18

2-6. Adjusting Volume....19

Chapter 3 Advanced Adjustment/Setting....20

3-1. Basic Operation of the Setting menu 20

3-2. Setting Menu Functions....21

Color Adjustment....21

Signal Settings 25

Reference Settings 28

Language 30

Information 31

Chapter 4 Administrator Settings....32

4-1. Basic Operation of the "Administrator Settings" Menu....32

4-2. Functions of the "Administrator Settings" Menu ....33

Chapter 5 Troubleshooting....35

5-1. No picture 35

5-2. Imaging problems....36

5-3. Other problems....38

Chapter 6 Reference 39

6-1. Attaching the Optional Arm....39

6-2. Detaching/Attaching Stand Base 42

6-3. Attaching/Detaching the Cable Holder 45

6-4. Making Use of USB (Universal Serial Bus) 47

Required System Environment 47

●Connection Procedure (Setup of USB Function) 47

6-5. Specifications 48

Outside Dimensions....50

Main Default Settings....51

Accessories....51

Chapter 7 Glossary 52

Appendix 55

Trademark 55

License / Copyright 56

ENERGY STAR 56

TCO 56

FCC Declaration of Conformity 59

LIMITED WARRANTY....61

Recycling Information 70

China Measures for RoHS Compliance in ChinaRoHS....75

Chapter 1 Introduction

Thank you very much for choosing an EIZO color LCD monitor.

1-1. Features

• 27.0" wide format LCD
• Native Resolution 2560 × 1440 supported
• IPS panel with 89^ horizontal and vertical viewing angles
  • Supports three digital signal input interfaces (DisplayPort × 1, DVI-D (Dual Link/Single Link) × 1, HDMI × 1)

DisplayPort (8-bit support)

The DisplayPort input receives both image signals and audio signals via a single DisplayPort cable.

*1 When transmitting an audio signal using the DisplayPort cable, the graphics board must support audio output.

See "6-5. Specifications" (page 48).

HDMI

Supports PC signals via HDMI input.

The HDMI input receives both image signals and audio signals via a single HDMI cable.

- Equipped with "Picture by Picture (PbyP)" function that allows simultaneous display of multiple signals

Eliminates the need for changing between signals and leads to increased work efficiency.

See "2-2. Switching Input Signals" (page 14).

- The Color Mode function allows the user to select the display mode optimum to the displayed image.

The Paper mode reproduces a printed paper effect on the monitor. In Paper mode, the amount of blue light emitted from the screen is reduced by changing the color tone and controlling the brightness.

See "2-3. Switching Display Modes (Color Modes)" (page 15).

• Power saving functions

Suppressing power consumption ^2 reduces carbon dioxide emissions. This product is equipped with power saving functions.

- 0 W power consumption when the main power is off

Equipped with a main power switch.

When not using the monitor, you can turn off the main power supply so that the power is cut completely.

- Auto EcoView

The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level. Excessively high brightness may increase power consumption and cause unwanted environmental effects. It may also lead to eye fatigue. The range of automatic adjustment can be configured to personal preference.

See "Auto EcoView" (page 17).

- EcoView Optimizer 2

The monitor automatically adjusts the screen brightness according to the white level of the input signal. This function can reduce power consumption while maintaining the brightness specified by the input signal.

See "EcoView Optimizer 2" (page 17).

*2 Reference values:

Maximum power consumption: 67 W (when a USB device is connected, speaker working)

Standard power consumption: 22 W (brightness 120 cd/m ^2 , DisplayPort input, when no USB device is connected, speaker not working, at default settings)

- Equipped with a USB Hub function that supports USB 3.0

Achieves high-speed data transfers of up to 5 Gbps, which enables transfers of large amounts of data to and from USB-connected devices in a short amount time. See "6-4. Making Use of USB (Universal Serial Bus)" (page 47).

• High degree of flexibility for installation

- Stand with wide range of movement. The monitor can be adjusted to a position that provides a comfortable and less tiring work environment. Tilt: 35° up/5° down, swivel: 344°, vertical rotation: left 90° / right 90°, adjustable height: 145 mm (tilt: 35°) / 155 mm (tilt: 0°)

- A thin bezel provides a virtually seamless viewing experience in multiple monitor environments. Mounting the monitor on an arm allows the screen to be installed rotated by 180° (flipped vertically).

Example settings

- Change the orientation of the Setting menu when using the monitor screen in the portrait display position (see "Menu Rotation" (page 28)).

- Displays HDCP (High-bandwidth Digital Protection) ^3 protected contents.

^3 Supports HDCP Version 1.x

- Supports the “ScreenManager Pro” software for adjusting the screen using the mouse and keyboard. The software can be downloaded from our web site (http://www.eizoglobal.com).

- Supports the "EIZO Monitor Configurator" software for creating monitor configuration files When installing multiple units of this monitor, this software allows users to apply a single configuration file to all monitors at the same time. This increases the efficiency of monitor installation work by eliminating the need for configuring each monitor individually. Please refer to our web site (http://www.eizoglobal.com) for more details.

1-2. Controls and Functions

Font

1. Ambient light sensor	Detects ambient brightness (Auto EcoView function (page 17)).

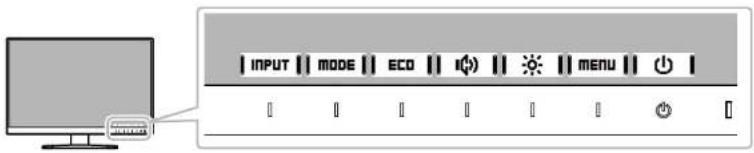

2. Operation switches	Displays menus. Operate the buttons according to the operation guide.
3. Power switch Turns the power on or off.
4. Power Indicator	Indicates the monitor's operation status. White: Single screen displayOrange: Power saving modeOFF: Main power / power off

*1 For details on usage, see "3-1. Basic Operation of the Setting menu" (page 20).

Roar

5. Handle This handle is used for transportation.
6. Security lock slot	Complies with Kensington's MicroSaver security system.
7. Speakers Outputs audio.
8. USB downstream port	Connects to a peripheral USB device.
9. Headphone jack Connects to headphones.
10. Stand ^2	Adjusts the height and angle (tilt, swivel, and rotation) of the monitor.
11. Main power switch	Turns the main power on or off.
12. Power connector	Connects the power cord.
13. Input signal connectors	Left: DVI connectorMiddle: HDMI connectorRight: DisplayPort connector
14. USB upstream port	Connects to the USB cable when using software that needs a USB connection, or when using the USB Hub function.
15. Stereo Mini Jack	Connects to a stereo mini jack cable.
16. Cable holder ^3	Holds the monitor cables.

*2 An optional arm (or an optional stand) can be attached by removing the stand section (see "6-1. Attaching the Optional Arm" (page 39)).
*3 For the cable holder attachment procedure, see "6-3. Attaching/Detaching the Cable Holder" (page 45).

1-3. Supported Resolutions

The monitor supports the following resolutions.

Resolution Applicable Signals		Vertical Scan Frequency	DisplayPort HDMI DVI
			Single screen display	PbyP display	Single screen display	PbyP display	Single screen display	PbyP display
640 × 480 VGA/CEA-861 59.94 Hz√√√√√√√√
640 × 480 CEA-861 60 Hz√√√√√√√√
720 × 400 VGA TEXT 70.09 Hz√√√√√√√√
720 × 480 (4:3)	CEA-861	59.94 Hz/60 Hz	√	√	√	√	-	-
720 × 480 (16:9)	CEA-861	59.94 Hz/60 Hz	√	√	√	√	-	-
720 × 576 (4:3)	CEA-861	50 Hz	-	-	√	√	-	-
720 × 576 (16:9)	CEA-861	50 Hz	-	-	√	√	-	-
800 × 600	VESA	60.32 Hz√√√√√√√	√√
1024 × 768	VESA	60 Hz√√√√√√√
1280 × 720	VESA CVT	59.86 Hz√√√√√√√
1280 × 720	VESA CVT RB	59.98 Hz√√√√√√√
1280 × 720	CEA-861	50 Hz	-	-	√	√	-	-
1280 × 720	CEA-861	59.94 Hz/60 Hz	√	√	√	√	-	-
1280 × 800	VESA CVT	59.81 Hz√√√√√√√
1280 × 1024	VESA	60.02 Hz√√√√√√√
1280 × 1440	VESA CVT RB	59.9 Hz	-	√	-	√	-	√
1600 × 900	VESA RB	60 Hz	√	-	√	-	√	-
1600 × 1200	VESA	60 Hz	√	-	√	-	√	-
1680 × 1050	VESA CVT	59.95 Hz	√	-	√	-	√	-
1680 × 1050	VESA CVT RB	59.88 Hz	√	-	√	-	√	-
1920 × 1080	CEA-861	50 Hz	-	-	√	-	-	-
1920 × 1080	CEA-861	59.94 Hz/60 Hz	√	-	√	-	√	-
1920 × 1200	VESA CVT	59.89 Hz	√	-	√	-	√	-
1920 × 1200	VESA CVT RB	59.95 Hz	√	-	√	-	√	-
2560 × 1440	VESA CVT	29.94 Hz	-	-	√	-	√	-
2560 × 1440*	VESA CVT RB	59.95 Hz	√	-	√	-	√	-

* Recommended resolution
Note
- Only the progressive scan type is supported.

1-4. Setting the Resolution

If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution, follow the procedure below.

Windows 8.1 / Windows 8 / Windows 7

1. For Windows 8.1 / Windows 8, click the "Desktop" tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click "Screen resolution".
4. On the "Screen Resolution" dialog box, select the monitor.
5. Click "Resolution" to select the desired resolution.
6. Click the "OK" button.
7. When a confirmation dialog box is displayed, click "Keep changes".

Windows Vista

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Personalize".
3. On the "Personalization" window, click "Display Settings".
4. On the "Display Settings" dialog box, select the "Monitor" tab and select the desired resolution in the "Resolution" field.
5. Click the "OK" button.
6. When a confirmation dialog box is displayed, click "Yes".

Mac OS X

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays" for "Hardware".
3. On the displayed dialog box, select the "Display" tab and select the desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. If you are satisfied with the selected resolution, close the window.

Chapter 2 Basic Adjustment/Setting

This monitor enables users to change the brightness according to personal preference or to suit the usage environment and reduce power consumption to conserve energy.

This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor.

For advanced adjustment and setting procedures using the Setting menu, see "Chapter 3 Advanced Adjustment/Setting" (page 20).

2-1. Switch Operation Method

1. Displaying the operation guide

1. Touch any switch (except ⬆)

The operation guide appears on the screen.

2. Adjusting/setting

1. Touch a switch for adjustment/setting.

The Adjustment/Setting menu appears.

(A submenu may also be displayed. In this case, select the item for adjustment/setting using | ▲ || and select .) | ENTER |

1. Perform adjustment/setting with the switches and select to accept the changes.

(To cancel the adjustment/setting and return to the menu, select |CANCEL|)

3. Exiting

1. Select | OK | or | EXIT | to exit the menu.

2. When no menu is displayed, the operation guide will automatically disappear after a few seconds if no switches are operated.

2-2. Switching Input Signals

When a monitor has multiple signal inputs, the signal to display on-screen can be changed.

Note

- By selecting PbyP (Picture by Picture) display when a monitor has multiple input signals, windows can be displayed side-by-side.

Because 2 windows can be displayed on a single monitor, the need for changing between signals is eliminated, which leads to increased work efficiency.

By selecting PbyP display, the combination of the signals to display on the left and right windows can be switched.

PbyP display image

2-3. Switching Display Modes (Color Modes)

This product is preinstalled with color modes for various display purposes.

Switch the mode according to the purpose and content for display. This allows the monitor to display images in a manner appropriate to the display content.

Display Modes

Color Mode Purpose
User1User2	Select either of these modes to set a user-defined display mode.
sRGB	This mode is suitable for matching color reproduction with peripheral devices that support sRGB, such as when printing photos taken using a digital camera.
Paper	This mode uses color tones and contrast similar to that of paper to produce a printed paper effect. It is suitable for displaying images from media such as books and documents.
Movie	This mode displays moving images brightly and with a clear-cut three-dimensional appearance. It is suitable for playing back video content.
DICOM	Allows for display with gradation characteristics compliant with the DICOM Part 14 standard.

Note
- "ScreenManager Pro" allows you to select the color mode automatically according to the application in use. ("ScreenManager Pro" is software for adjusting the screen using the mouse and keyboard. This software can be downloaded from our web site (http://www.eizoglobal.com).)
- The color mode can be set for each input signal that has been set in "2-2. Switching Input Signals" (page 14).
- When using PbyP display, the color mode can be set for the left and right windows individually.

2-4. Conserving Energy

This monitor is equipped with EcoView functions to enable users to conserve energy.

Use this function to curtail unnecessary power consumption and save on electricity expenses. Saving power also reduces CO_2 emissions.

Level of power saving

Note

• The power saving level (Power Reduction, CO_2 Reduction, and Eco Performance Level) can be checked on the "EcoView Settings" menu. The more indicators that light up representing the Eco Performance Level, the higher the power saving level attained.
• Power Reduction: the reduction in the backlight's power consumption as a result of the adjusted brightness value.
• CQ Reduction: converted from the "Power Reduction" value, this is an estimate of the quantity of CO_2 emissions reduced when using the monitor for 1 hour.
  * The numeric value is a result of calculation based on a default setting (0.000555 t -CO2/kWh) determined by a Japanese ministerial ordinance (2006, Ministry of Economy, Trade and Industry, Ministry of Environment, civil code article 3) and may differ depending on country and year.

Chapter 2 Basic Adjustment/Setting

Function Setting Range			Description Note
Auto EcoView On			Off	The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level using the Auto EcoView function. The power consumption of the backlight can be curtailed by adjusting the brightness to an appropriate level. This function can also mitigate eye strain and tiredness caused by a screen that is too bright or too dark.Use the “Advanced Settings” to set the automatic adjustment range to suit the monitor’s usage environment or personal preference.	·Be careful not to block the ambient light sensor on the lower side of the monitor when using the Auto EcoView function.·Even when the Auto EcoView setting is “On”, the operation switch on the front of the monitor or color adjustment can be used to change the “Brightness” to suit your personal preference. Moreover, the manner in which the Auto EcoView function changes brightness also differs according to the changed value.·When “DICOM” is selected for the color mode, the Auto EcoView setting is turned “Off”.
Advanced Settings	Maximum Minimum	Brightness 0 to	100 Set the range for automatic brightness adjustment.By setting the maximum value and minimum value of the adjustment range in advance, the brightness will be adjusted automatically within the set range.	·The maximum and minimum brightness values cannot be set to the same value.
		Ambient Light B	BrightStandardDark	Using the default setting is recommended.(Default setting: “Bright” for maximum value, “Dark” for minimum value)	·For details on the “Ambient Light” setting, refer to our web site (http://www.eizoglobal.com).
	Reset		-	Return the advanced settings to their default values.	-
EcoView Optimizer 2 On			Off	The monitor automatically adjusts the screen brightness according to the white level of the input signal.This function can reduce power consumption while maintaining the brightness specified by the input signal.	·The setting is turned “Off” in the following cases:- When “sRGB”, “Movie” or “DICOM” is selected for the color mode- During PbyP display·When set to “On”, the appearance of pale colors may change. If this bothers you, set this function to “Off”.

2-5. Adjusting Brightness

The brightness of the screen can be adjusted to suit the installation environment or personal preference.

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Setting Range

0 to 100

Note

• When "DICOM" is selected for the color mode, the brightness cannot be changed. ⚙ is not displayed on the operation guide or menu.
• When Auto EcoView is set to "On", the adjustment range is restricted as follows. (For details on Auto EcoView, see "Auto EcoView" (page 17).)
• The brightness setting cannot be increased or decreased past the maximum and minimum brightness values specified in the advanced settings of Auto EcoView.
• "Brightness" adjustment may not be possible when the installation environment of the monitor is excessively bright or dark.

2-6. Adjusting Volume

The volume of the speakers and headphones can be set individually.

Setting Range

0 to 30

Note

- When "DICOM" is selected for the color mode, ❖ is not displayed on the operation guide or menu.

Chapter 3 Advanced Adjustment/Setting

This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu.

For basic functions, see "Chapter 2 Basic Adjustment/Setting" (page 13).

3-1. Basic Operation of the Setting menu

1. Menu display

1. Touch any switch (except ⏻ The operation guide appears.
2. Select | .menu | The Setting menu appears.

2. Adjusting/setting

1. Select a menu to adjust/set with | and select . | | ENTER | The Sub menu appears.

1. Select an item to adjust/set with | and select . | | ENTER | The Adjustment/Setting menu appears.

1. Perform adjustment/setting with | ▲ || ▼ | | ◀ || ▶ | and select | to accept the changes. The Sub menu appears. Selecting |CANCEL| during adjustment/setting will cancel the adjustment/setting and restore the state prior to making changes.

3. Exiting

1. Select |RETURN| The Setting menu appears.
2. Select | .EXIT | The Setting menu quits.

3-2. Setting Menu Functions

Color Adjustment

The color mode setting status can be adjusted according to personal preference.

Attention

• It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after power to the monitor has been turned on before adjusting the monitor.
• The same image may be observed in different colors on multiple monitors due to monitor-specific characteristics. Make fine color adjustments visually when matching colors across multiple monitors.

Note

- Using "ScreenManager Pro" allows you to perform color adjustment with the mouse and keyboard on your PC. The adjusted state can also be saved and loaded as color data. "ScreenManager Pro" can be downloaded from our web site (http://www.eizoglobal.com).

Chapter 3 Advanced Adjustment/Setting

Function	Color Mode (Functions that can be adjusted differ depending on the color mode.) √: Adjustable -: Not adjustable					Setting Range	Description Note
	User1 User2	sRGB	Paper Movie	DICOM
Screen Selection Left Screen						Right Screen Whole Screen	Enabled only during PbyP display. Select the application range for each setting of the color adjustment. When using PbyP display, select this range first. “Left Screen” The setting is applied only to the left screen. “Right Screen” The setting is applied only to the right screen. “Whole Screen” The setting will be applied to both the left and right screens.	For details on PbyP, see "2-2. Switching Input Signals" (page 14).
Color Mode √√√√√User1						User2 sRGB Paper Movie DICOM	Select the desired mode according to the monitor application. The color setting status can also be adjusted according to personal preference. Select the mode for adjustment and perform adjustment using the relevant functions.	· For details on the adjustment status of each mode, see "2-3. Switching Display Modes (Color Modes)" (page 15).
Brightness √√√√ - 0 to 100 The screen brightness is adjusted by changing							the brightness of the backlight (light source from the LCD back panel).	· If the image is too dark even when the brightness is set to 100, adjust the contrast.

Chapter 3 Advanced Adjustment/Setting

Function		Color Mode (Functions that can be adjusted differ depending on the color mode.) √: Adjustable -: Not adjustable					Setting Range	Description Note
		User1 User2	sRGB	Paper Movie		DICOM
	Contrast √ - - √ - 0 to 100 The brightness of the screen is adjusted by varying the video signal level.								A contrast of 50 displays every color gradation.When adjusting the monitor, it is recommended to perform brightness adjustment, which does not lose gradation characteristics, prior to contrast adjustment.Perform contrast adjustment in the following cases.- If the image is too dark even when the brightness is set to 100. (Set the contrast to higher than 50.)
	Temperature √ - √ √ - Off					4000 K to 10000 K (specified in 500 K units, includes 9300 K)	Adjust the color temperature.The color temperature is normally used to express the hue of "White" and/or "Black" with a numerical value. The value is expressed in degrees "K" (Kelvin).The screen becomes reddish at low color temperatures and bluish at high color temperatures, similar to the temperatures of a flame. A gain preset value is set for each color temperature setting value.	The value shown in "K" is available only as a reference."Gain" allows you to perform more advanced adjustment.If set to "Off", the image is displayed in the preset color of the monitor (Gain: 100 for each RGB channel).When the gain is changed, the color temperature setting changes to "Off".
	Gamma √ - - - - 1.8					2.02.22.4	Adjust the gamma.While the brightness of the monitor varies depending on the input signal, the variation rate is not proportional to the input signal.Maintaining the balance between the input signal and brightness of the monitor is referred to as "Gamma correction".	If "Paper" is selected for the color mode, "Paper" is displayed for the gamma value.If "DICOM" is selected for the color mode, "DICOM" is displayed for the gamma value.

Chapter 3 Advanced Adjustment/Setting

Function			Color Mode (Functions that can be adjusted differ depending on the color mode.) √: Adjustable -: Not adjustable					Setting Range	Description Note
			User1 User2	sRGB	Paper Movie	DICOM
	Smart Resolution √ - √ - Standard							Low Off	Image blur can be reduced by enhancing its outline.	-
	Advanced Settings	Overdrive √ - - - Enhanced						Standard Off	This function allows you to set the overdrive intensity based on the use of the monitor. Image lag can be reduced by using the “Enhanced” setting when displaying moving images.	-
		Hue	√	-	-	√	-	-50 to 50	Adjust the hue.	• Using this function may make some color gradations unavailable for display.
		Saturation	√	-	-	√	-	-50 to 50	Adjust the color saturation.	• Using this function may make some color gradations unavailable for display. • The minimum value (-50) changes the screen to monochrome.
		Gain	√	-	-	-	-	0 to 100	The brightness of each red, green, and blue color component is referred to as “Gain”. The hue of “white” can be changed by adjusting the gain.	• Using this function may make some color gradations unavailable for display. • The gain value changes according to the color temperature. • When the gain is changed, the color temperature setting changes to “Off”.
	Reset		√	√	√	√	-	-	Reset any color adjustments for the currently selected color mode back to the default settings.	-

Signal Settings

Set the method for outputting the signal input from the PC to the monitor.

Function	Input Signal(The setting range of each function differs depending on the input signal.)v: Settable -: Not settable				Setting Range Description Note
	DisplayPort	HDMI		DVI
		PCsignal	Vidossignal
Screen Selection Left	Screen				Right Screen	Enabled only during PbyP display.Select the application range for the signal settings.When using PbyP display, select this range first."Left Screen"The setting is applied to the left screen."Right Screen"The setting is applied to the right screen.

Chapter 3 Advanced Adjustment/Setting

Function	Input Signal(The setting range of each function differs depending on the input signal.)√: Settable -: Not settable				Setting Range Description Note
	DisplayPort	HDMI		DVI
		PC signal	Video signal
Picture Expansion √√	-√ Full Screen				Aspect RatioDot by Dot	The screen size of the monitor display can be changed."Auto"The monitor automatically changes the screen size according to the aspect ratio and resolution information from the PC."Full Screen"Images are stretched to full screen. Since aspect ratios are not maintained, images may be distorted in some cases."Aspect Ratio"Images are enlarged to full screen without changing the aspect ratio. Since aspect ratios are maintained, blank horizontal or vertical borders may appear."Dot by Dot"Displays the image at the set resolution or size specified by the input signal.	Example settings- Full Screen- Aspect Ratio- Dot by Dot (input signal)
	--√ - Auto				Full ScreenAspect RatioDot by Dot
Input Color Format √	-- Auto				YUVRGB	The color format of the input signal can be specified.Try changing this setting if colors are not displayed correctly.	This setting is required when a DVI device is connected to the monitor via the HDMI connector port using a DVI-HDMI conversion connector.This setting is fixed to "RGB"when receiving a DVI signal from the DVI connector.
	-√ -- YUV 4:2:2				YUV 4:4:4RGB
	--√ - Auto				YUV 4:2:2YUV 4:4:4RGB

Chapter 3 Advanced Adjustment/Setting

Function	Input Signal(The setting range of each function differs depending on the input signal.)√: Settable -: Not settable				Setting Range Description Note
	DisplayPort	HDMI		DVI
		PC signal	Video signal
Range Extension √ - √ - Auto					OnOff	Depending on the PC, black and white of the video level of the signal output to the monitor may be limited. If a limited signal is displayed on the monitor, black will appear faint and white will appear dull, leading to a reduction in contrast. The output range of such signals can be extended to match the actual contrast ratio of the monitor."Auto"Automatically identifies the brightness range of the input signal and displays the image accordingly."On"Extends the signal output range through 0 to 255 and displays the image."Off"Extension of the signal output range is not performed.	Example settings- OffThis setting is fixed to "Off" for DVI signal input.
	- √ -- On				Off
Sound Source √ --- Stereo Mini Jack					DisplayPort	The audio source can be changed when receiving DisplayPort signal input or HDMI signal input.	This setting is fixed to "Stereo Mini Jack" when receiving DVI signal input or HDMI (PC signal) input.
	-- √ - Stereo Mini Jack				HDMI

Preference Settings

The monitor's settings can be configured to suit the usage environment or personal preference.

Function Setting Range Description Note
Menu Rotation 0°	90°270°	Change the orientation of the Setting menu when using the monitor screen in the portrait display position.	Make sure that the cables are correctly connected.Make sure to turn the monitor screen after pulling the screen up to the uppermost position of the stand and tilting the screen upward.When using the monitor screen in a portrait position, a graphics board that supports portrait display is required. When placing the monitor in a portrait position, the settings of your graphics board need to be changed. Refer to the User's Manual of the graphics board for details. Please refer to our web site (http://www.eizoglobal.com) as well.The menu cannot be rotated by 180'. To install the monitor rotated by 180', perform monitor adjustment/settings before rotating the monitor.
Menu Position Center	Upper RightLower RightLower LeftUpper Left	The display position of the Setting menu can be changed. -

Chapter 3 Advanced Adjustment/Setting

Function Setting	Range Description	Note
Power Save On	Off	The monitor can be set to enter power saving mode according to the state of the PC.The monitor changes to power saving mode about 15 seconds after signal input ceases to be detected.When the monitor has shifted to power saving mode, images are not displayed on the screen.Exiting power saving mode- If the monitor receives input, it automatically exits power saving mode and returns to the normal display mode.	· At the time of shifting to power saving mode, a message that indicates the transition is displayed 5 seconds in advance.During PbyP display, the monitor only enters power saving mode after both PCs have entered power saving mode or have been switched off.When not using the monitor, you can turn off the main power supply or disconnect the power plug so that the power is cut completely.When the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, power consumption of the monitor varies with connected devices even in power saving mode.Power consumption varies even when the stereo mini jack cable is connected.
Eco Timer Off	0, 1, 2, 3, 5, 10, 15, 20, 25, 30, 45 min, 1, 2, 3, 4, 5 h	The monitor can be turned off automatically after a specified amount of time has passed in power saving mode.Select the time to wait before turning off power to the monitor.	-
Power Indicator On	Off	The power indicator (white) can be turned off during screen display.	-
Audio Selection (PbyP) Left Screen Right Screen		Select the source of audio to output from the monitor during PbyP display."Left Screen"Outputs the audio source from the left screen."Right Screen"Outputs the audio source from the right screen.	-
Monitor Reset - Restore all settings to their default values except for the following settings.PbyP Picture SetupSettings on the "Administrator Settings" menu			· For details on default settings, see "Main Default Settings" (page 51).

Language

The display language for menus and messages can be selected.

Setting Range

English, Deutsch, Français, Español, Italiano, Svenska, Japanese, Simplified Chinese, Traditional Chinese

Attention

- The display language of the "Administrator Settings" menu cannot be changed.

Information

Monitor information (product name, serial number, usage time, resolution, and input signal) can be checked.

(Example)

- Single screen display • PbyP display

Chapter 4 Administrator Settings

This chapter describes how to configure monitor operation using the "Administrator Settings" menu.

This menu is for administrators. Configuration on this menu is not required for normal monitor use.

4-1. Basic Operation of the "Administrator Settings" Menu

1. Menu display

1. Touch ☐ turn off the monitor.
2. While touching the leftmost switch, touch ⏻ for more than 2 seconds to turn on the monitor.

Diagram showing a computer monitor connected to a control panel with switches and buttons (no text or symbols present)

The "Administrator Settings" menu appears.

2. Setting

1. Select the item to set with | and select . | | ENTER | The Adjustment/Setting menu appears.

1. Set with | and select . | OK | The "Administrator Settings" menu appears.

3. Applying and exiting

1. Select "Apply" and select |ENTER | The settings are applied and the "Administrator Settings" menu exits.

Attention

- The language (English) of the "Administrator Settings" menu cannot be changed.

4-2. Functions of the "Administrator Settings" Menu

Function Setting	Range Description	Note
Auto Input Detection On	Off	This monitor recognizes the connector through which PC signals are input and displays images on the screen accordingly. When a PC is turned off or enters power saving mode, any other available signal is displayed automatically.When this function is set to "Off", the monitor displays the signal from the selected connector regardless of whether a signal is input or not. In this case, select the input signal to display using the | INPUT | operation switch on the front of the monitor.	·When set to "On", the monitor only enters power saving mode after all connected PCs have entered power saving mode or have been switched off.·This function is not available during PbyP display.
Compatibility Mode On	Off	When a PC is connected via the DisplayPort connector, window and icon positions may shift when power is turned off/on or after recovering from power saving mode. If this happens, set this function to "On".	·This setting can also be changed using the operation switches on the front of the monitor.1. Turn on the monitor.2. When the operation guide is not displayed, touch the leftmost switch for more than 3 seconds.Each time an operation is executed, the setting changes between On/Off.(When the setting changes, "Compatibility Mode : ON" / "Compatibility Mode : Off" is displayed on the screen.)

Chapter 4 Administrator Settings

Function Setting	Range Description	Note
Auto PbyP Resolution On	Off	This product automatically changes the resolution according to the screen layout when changing to PbyP display.Set this function to "Off" to prevent the resolution from changing automatically when changing to PbyP display. In this case, change the resolution manually.	· If the resolution does not change correctly during PbyP display, it is recommended to change this setting to "Off".
On-Screen Logo On	Off	When the monitor is turned on, the EIZO logo appears on the screen.When this function is set to "Off", the EIZO logo does not appear.	-
Key Lock On	Off	In order to prevent changes to settings, the operation switches on the front of the monitor can be locked.	· The following operation is available even if the switches are locked:- Turning the monitor on or off with the Power switch- Display and operation of the "Administrator Settings" menu

Chapter 5 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local EIZO representative.

5-1. No picture

Problem Possible cause and remedy
1. No picturePower indicator does not light up.	Check whether the power cord is connected properly.Tum the main power switch on.Touch ⏻.Turn off the main power, and then turn it on again a few minutes later.
Power indicator is lighting white.	Increase "Brightness", "Contrast", or "Gain" in the Setting menu (see "Color Adjustment" (page 21)).
Power indicator is lighting orange. Switch the input signal.	Move the mouse or press any key on the keyboard.Check whether the PC is turned on.
Power indicator is flashing orange.	The device connected to the DisplayPort has a problem. Resolve the problem, turn off the monitor, and then turn it on again. Refer to the User's Manual of the output device for further details.
2. The message below appearsThe message shows that the input signal is out of the specified frequency range.Example:	This message appears when the signal is not input correctly even though the monitor is functioning properly.Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see "1-3. Supported Resolutions" (page 11)).Reboot the PC.Select an appropriate setting using the graphics board's utility. Refer to the User's Manual of the graphics board for details.

5-2. Imaging problems

Problem Possible cause and remedy
1. The screen is too bright or too dark.	Adjust the “Brightness” or “Contrast” in the Setting menu (see “Color Adjustment” (page 21)). (The LCD monitor backlight has a limited life span. When the screen becomes dark or begins to flicker, contact your local EIZO representative.)If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView” (page 17)).
2. “Brightness” cannot be adjustedCannot increase/decrease setting value (“◀” or “▶” is displayed in gray)- “Brightness” adjustment menu via operation switch / - “Brightness” adjustment menu in color adjustment / Cannot increase/decrease setting value (“◀” and “▶” are displayed in gray)- “Brightness” adjustment menu via operation switch - “Brightness” adjustment menu in color adjustment	When Auto EcoView is set to “On”, “Brightness” may not be adjustable due to the advanced settings of Auto EcoView.The bright adjustment range of the Auto EcoView function can be limited to ensure that the screen is neither too bright nor too dark. When the adjustment range is limited, values outside the range cannot be set. If you want to set a value outside the range, try changing the following settings.- Change the maximum and minimum values for “Brightness” in the Auto EcoView advanced settings.- Set Auto EcoView to “Off”.For details on Auto EcoView settings, see “Auto EcoView” (page 17).Brightness adjustment may not be possible when the installation environment of the monitor is excessively bright or dark. In this case, try changing the following settings.- Change the maximum and minimum values for “Ambient Light” in the Auto EcoView advanced settings.- Set Auto EcoView to “Off”.For details on Auto EcoView settings, see “Auto EcoView” (page 17).
3. Text is blurred	Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “1-3. Supported Resolutions” (page 11)).When an image is displayed with a resolution other than recommended, text or lines in the displayed image may blur. Try adjusting “Smart Resolution” on the Setting menu (see “Smart Resolution” (page 24)).
4. AfterImages appear	Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time.Use the screen saver or power saving function to avoid displaying the same image for extended periods of time.

Chapter 5 Troubleshooting

Problem Possible cause and remedy
5. Green / red / blue / white dots or dark dots remain on the screen.	This is due to LCD panel characteristics and not a malfunction.
6. Interference patterns or pressure marks remain on the screen.	Leave the monitor with a white or black screen. The symptom may disappear.
7. Noise appears on the screen.	In the Setting menu, set “Overdrive” to “Off” (see “Overdrive” (page 24)).When inputting HDCP system signals, normal images may not be displayed immediately.
8. (When using DisplayPort signal input) Position of windows and icons is shifted when turning power off/on or recovering from power saving mode.	Set the “Compatibility Mode” setting to “On” using one of the following methods.- Change the setting using the operation switch on the front of the monitor.Turn on the monitor.When the operation guide is not displayed, touch the leftmost switch for more than 3 seconds.Each time an operation is executed, the setting changes between On/Off.(When the setting changes, “Compatibility Mode : On” / “Compatibility Mode : Off” is displayed on screen.)Y8DX]- Change the setting for “Compatibility Mode” on the “Administrator Settings” menu (see “Compatibility Mode” (page 33)).

5-3. Other problems

Problem Possible cause and remedy
1. The Setting menu does not appear.	Check whether the switch operation lock function is active (see “Key Lock” (page 34)).
2. No audio output.	Check whether the stereo mini jack cable is connected properly.Check whether volume is set to 0.Check the PC and audio playback software to see whether they are configured correctly.Check the “Source” setting when using DisplayPort input or HDMI input (see “Sound Source” (page 27)).Check the “Audio Selection (PbyP)” setting during PbyP display (see “Audio Selection (PbyP)” (page 29)).
3. USB devices connected to the monitor do not work.	Check whether the USB cable is connected correctly (see “6-4. Making Use of USB (Universal Serial Bus)” (page 47)).Try changing to a different USB port. If the PC or peripheral devices work correctly by changing the USB port, contact your local EIZO representative. (Refer to the manual of the PC for details.)Reboot the PC.If the peripheral devices work correctly when the PC and peripheral devices are connected directly, contact your local EIZO representative.Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.)Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.)

Chapter 6 Reference

6-1. Attaching the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizoglobal.com

Attention

• When attaching an arm or stand, follow the instructions of the respective User's Manual.
• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard. Use the optional VESA mount screws when attaching.
• Clearance between screw holes: 100 mm × 100 mm
• VESA mount of the arm or stand, external dimensions: 122 mm x 122 mm or less
• Plate thickness: 2.6 mm
• Strong enough to support weight of the monitor unit (excluding the stand) and attachments such as cables.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
• Up 45°, down 45° (landscape display, and portrait display rotated 90° clockwise or counterclockwise)
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.

Attaching the Optional Arm (Optional Stand)

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

2. Remove the stand.

As shown below, keep the lock button pressed down (1) and slide the stand towards the stand base until it stops (2). Then, lift the stand up (3).

1. Attach the arm or stand to the monitor.

Use the optional VESA mount screws when attaching the arm or stand.

Attaching the original stand

1. Detach the fixing screws on the optional arm (or optional stand) and remove the optional arm (or optional stand).

2. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

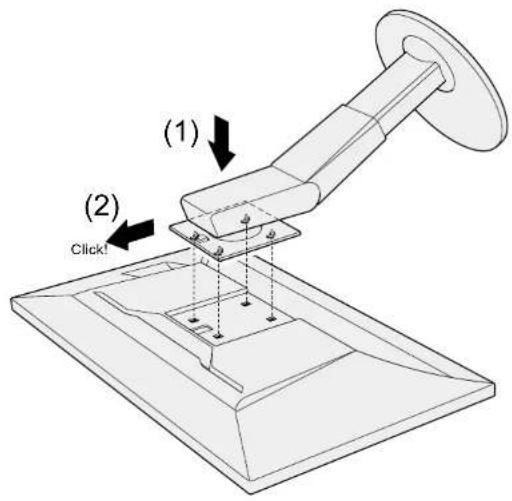

3. Attach the original stand.

As shown below, insert the four tabs on the stand to the square holes on the back panel (1) and slide the stand towards the upper portion of the monitor until it makes a clicking sound (2).

6-2. Detaching/Attaching Stand Base

Detachment procedure

The stand base that was attached during setup can be detached using the following procedures.

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2. Raise the lever on the bottom of the stand base.

Technical line drawing of a circular mechanical component with internal components and a directional arrow (no text or symbols)

1. Turn the stand base in the counterclockwise direction to detach it.

Technical line drawing of a mechanical component with cross-sectional view and detail view (no text or symbols)

Attachment procedure

The once removed the stand base can be attached to the monitor again with the following procedures.

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

Pure technical line drawing of a mechanical assembly with no text or symbols

1. Attach the stand base onto the stand brace.

Illustration of hands holding a circular component with an arrow indicating rotation (no text or symbols)

1. Turn the stand base clockwise until it makes a clicking sound.

6-3. Attaching/Detaching the Cable Holder

A cable holder is supplied with this product. Use the cable holder to organize the cables connected to the monitor.

Attachment procedure

1. Pass the cables through the cable holder.
2. Close the opening in the cable holder.

Diagram of a mechanical component with curved lines and a rotating arrow, no text or symbols present

1. While holding the cable holder closed, attach it onto the stand.

Illustration showing a mechanical component being inserted into a circular base, and the same view of a computer monitor (no text or symbols present)

Note

- The cable holder can be inserted either perpendicular or parallel to the stand. Change the direction of the cable holder according to the condition of the cables.

Two diagrams showing cable installation on a circular base, no text or symbols present

Detachment procedure

1. Close the opening in the cable holder.
2. While holding the cable holder closed, remove it from the stand.

Diagram showing cable routing and cable attachment on a device, with no visible text or symbols

6-4. Making Use of USB (Universal Serial Bus)

This monitor is equipped with a USB hub. It functions as a USB hub when connected to a USB-compatible PC, allowing the connection of peripheral USB devices.

Note

- This product supports USB 3.0. When connecting to peripheral devices that support USB 3.0, high-speed data communication is possible (however, only when the USB cable used to connect the PC and peripheral device is USB 3.0 compliant).

Required System Environment

• A PC equipped with a USB port
• Windows 8.1 / Windows 8 / Windows 7 / Windows Vista, Mac OS X 10.2 or later, Mac OS 9.2.2
  • EIZO USB cable (UU200SS (USB 3.0))

Attention

• This monitor may not work depending on the PC, OS, or peripheral devices to be used. For USB compatibility of peripheral devices, contact their manufacturers.
- When the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, power consumption of the monitor varies with connected devices even in power saving mode.
- When the main power of the monitor is off, a device connected to the USB downstream port will not operate.

Connection Procedure (Setup of USB Function)

1. Connect the monitor first to a PC using the signal cable, and start the PC.
2. Connect the USB cable between the USB downstream port of the PC and the USB upstream port of the monitor.
   The USB hub function is set up automatically upon connection of the USB cable.
3. Connect a peripheral USB device to the USB downstream port of the monitor.

6-5. Specifications

LCD Panel Type IPS (Anti-Glare)
		Backlight LED
		Size 68.5 cm (27.0 inch)
		Native Resolution 2560 dots × 1440 lines
		Display Size (H × V) 596.7 mm × 335.7 mm
		Pixel Pitch 0.233 mm
		Display Colors 8-bit colors: 16.77 million colors
		Viewing Angle (H × V, typical) 178° / 178°
		Response Time (typical) Gray-to-gray: 15 ms (overdrive setting: Off)5 ms (overdrive setting: Enhanced)
Video Signals	Input Terminals	DisplayPort (HDCP) × 1, HDMI (HDCP) *1 × 1, DVI-D (HDCP, Dual Link / Single Link) × 1
	Digital Scanning Frequency (H / V)	31 kHz to 89 kHz / 29 Hz to 31 Hz*2, 59 Hz to 61 Hz (49 Hz to 61 Hz for HDMI) (VGA TEXT: 69 Hz to 71 Hz)
	Max. Dot Clock	241.50 MHz
USB	Port	Upstream port × 1, downstream port × 2
	Standard USB Specification Revision 3.0
	Communication Speed	5 Gbps (super), 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)
	Supply Current	Downstream: Max. 900 mA per port
Audio	Audio Input Format	DisplayPort: 2 ch linear PCM (32 kHz / 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz)
		HDMI: 2 ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)
	Speakers	1 W + 1 W
	Headphones	2 mW + 2 mW (32 Ω)
	Input Terminals	Line: Stereo mini jack × 1
		DisplayPort × 1, HDMI × 1 (shared with video signal)
	Output Terminals	Headphones: Stereo mini jack × 1

*1 HDMI CEC (or mutual control) is not supported.
*2 For details on applicable signals, see "1-3. Supported Resolutions" (page 11).

Chapter 6 Reference

Power Input 100 - 240	VAC ±10 %, 50 / 60 Hz 0.70 A - 0	.35 A
	Maximum Power Consumption 67	W or less
	Power Save Mode 0.5 W or less (DisplayPort input, no USB device connected, default settings)
	Standby Mode 0.5 W or less (no USB device connected, default settings)
Physical Specifications	Dimensions 611.6 mm × 399 mm	to 544 mm × 259 mm (W × H × D) (Tilt: 35°)
		611.6 mm × 390.2 mm to 545.2 mm × 245 mm (W × H × D) (Tilt: 0°)
	Dimensions (Without Stand) 611.6 mm × 359 mm × 48.5 mm (W × H × D)
	Net Weight Approx. 7.9 kg
	Net Weight (Without Stand) Approx. 5.1 kg
	Height Adjustment Range 145 mm (Tilt: 35°) / 155 mm (Tilt: 0°)
	Tilt Up 35°, down 5°
	Swivel 344°
	Vertical Rotation	Left 90°, right 90°
Operating Environmental Specifications	Temperature	5 °C to 35 °C (41 °F to 95 °F)
	Humidity	20 % to 80 % R.H. (no condensation)
	Air Pressure	540 hPa to 1060 hPa
Transportation/ Storage Environmental Specifications	Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	10 % to 90 % R.H. (no condensation)
	Air Pressure	200 hPa to 1060 hPa

Outside Dimensions

Main Default Settings

Picture Setup Single
Auto EcoView On
EcoView Optimizer 2 On
Color Mode User1
Picture Expansion DisplayPort input Aspect Ratio
		HDMI (PC signal) input Aspect Ratio
		HDMI (video signal) input Auto
		DVI-D input Aspect Ratio
Input Color Format DisplayPort input Auto
		HDMI (PC signal) input RGB
		HDMI (video signal) input Auto
Menu Rotation 0°
Menu Position Center
Power Save		On
Eco Timer		Off
Language		English
Power Indicator		On
Audio Selection (PbyP)		Left Screen
Auto Input Detection		On
Compatibility Mode		Off
Auto PbyP Resolution		On
On-Screen Logo		On
Key Lock		Off

A●accessories

Signal cable	DD200DL (DVI-DVI)HH200HS (HDMI-HDMI)
Cleaning Kit	EIZO "ScreenCleaner"

For the latest information about accessories, refer to our web site.

http://www.eizoglobal.com

Chapter 7 Glossary

DICOM (Digital Imaging and Communication in Medicine)

The DICOM standard was developed by the American College of Radiology and the National Electrical Manufacturer's Association of the USA. The DICOM compatible device connection enables to transfer the medical image and information. The DICOM, Part 14 document defines the digital, grayscale medical image display.

DisplayPort

This is the interface standard for image signals standardized in accordance with VESA. It was developed with the aim of replacing the conventional DVI and analog interfaces, and it can transmit high resolution signals and sound signals, which DVI does not support. The standard size and mini size connectors have been standardized.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power saving function. The "Monitor ON (operating mode)" and "Active Off (power saving mode)" are indispensable for DVI DMPM as the monitor's power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called "Gamma Characteristic". When the gamma value is low, the middle tone area is displayed brighter, and darker when high. Changes to the gamma value will not affect contrast. A gamma value appropriate for the display content should be selected.

HDCP (High-bandwidth Digital Content Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc.

This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side.

Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

HDMI (High-Definition Multimedia Interface)

HDMI is a digital interface standard, developed for consumer electrical appliance or AV device. This standard is issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC and a monitor. The projected image, sound and control signal without compressed enable to be transmitted with one cable.

Overdrive

This technology enhances response speed by increasing the potential difference at the time of motion of liquid-crystal pixels, and it is used for liquid-crystal TV sets and others in general. It provides clear-cut three-dimensional display with little afterimage, by improving response speed of the intermediate graduation range that frequently appears in moving images.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of horizontal 2560 pixels and 1440 vertical pixels. At a resolution of 2560 × 1440 , all pixels are illuminated as a full screen (1:1).

sRGB (Standard RGB)

International standard for color reproduction and color space among peripheral devices (such as monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet, colors can be displayed using tones close to those of the transmission and reception devices.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000 K: Slightly reddish white

6500 K: White referred to as daylight-balanced color

9300 K: Slightly bluish white

TMDS (Transition Minimized Differential Signaling)

A signal transmission system for digital interface.

Appendix

Trademark

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association.

Acrobat, Adobe, Adobe AIR, and Photoshop are registered trademarks of Adobe Systems Incorporated in the United States and other countries.

AMD Athlon and AMD Opteron are trademarks of Advanced Micro Devices, Inc.

Apple, ColorSync, eMac, iBook, iMac, iPad, Mac, MacBook, Macintosh, Mac OS, PowerBook, and QuickTime are registered trademarks of Apple Inc.

ColorMunki, Eye-One, and X-Rite are registered trademarks or trademarks of X-Rite Incorporated in the United States and/or other countries.

ColorVision and ColorVision Spyder2 are registered trademarks of DataColor Holding AG in the United States.

Spyder3 and Spyder4 are trademarks of DataColor Holding AG.

ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries.

GRACoL and IDEAlliance are registered trademarks of International Digital Enterprise Alliance.

Linux is a registered trademark of Linus Torvalds.

NEC is a registered trademark of NEC Corporation.

PC-9801 and PC-9821 are trademarks of NEC Corporation.

NextWindow is a trademark of NextWindow Ltd.

Intel, Intel Core, Pentium, and Thunderbolt are trademarks of Intel Corporation in the U.S. and/or other countries.

PowerPC is a registered trademark of International Business Machines Corporation.

PlayStation is a registered trademark of Sony Computer Entertainment Inc.

PSP and PS3 are trademarks of Sony Computer Entertainment Inc.

RealPlayer is a registered trademark of RealNetworks, Inc.

Red Hat is a registered trademark of Red Hat, Inc.

TouchWare is a trademark of 3M Touch Systems, Inc.

Windows, Windows Media, Windows Vista, SQL Server, Xbox 360, and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and other countries.

YouTube is a registered trademark of Google Inc.

Firefox is a registered trademark of the Mozilla Foundation.

Kensington and MicroSaver are registered trademarks of ACCO Brands Corporation.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.

ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Re/Vue, Screen Administrator and UniColor Pro are trademarks of EIZO Corporation.

All other company and product names are trademarks or registered trademarks of their respective owners.

License / Copyright

A round gothic bold bit map font designed by Ricoh is used for the characters displayed on this product.

ENERGY STAR

As an ENERGY STAR Partner, EIZO Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

TCO

This product has acquired the TCO standard that relates to the safety, ergonomics (EcoView Optimizer 2: Off), environment and so forth of office equipment. For details, see the following pages.

Congratulations!

This product is TCO Certifi ed – for Sustainable IT

TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.

This product has been verified to meet all the criteria in TCO Certified, including:

Corporate Social Responsibility

Socially responsible production – working conditions and labor law in manufacturing country

Energy Efficiency

Energy efficiency of product and power supply. Energy Star compliant, where applicable

Environmental Management System

Manufacturer must be certified according to either ISO 14001 or EMAS

Minimization of Hazardous Substances

Limits on cadmium, mercury, lead & hexavalent chromium including requirements for mercury-free products, halogenated substances and hazardous flame retardants

Design for Recycling

Coding of plastics for easy recycling. Limit on the number of different plastics used.

Product Lifetime, Product Take Back

Minimum one-year product warranty. Minimum three-year availability of spare parts. Product takeback

Packaging

Limits on hazardous substances in product packaging. Packaging prepared for recycling

Ergonomic, User-centered design

Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets)

Acoustic performance – protection against sound spikes (headsets) and fan noise (projectors, computers)

Ergonomically designed keyboard (notebooks)

Electrical Safety, minimal electro-magnetic Emissions

Third Party Testing

All certified product models have been tested in an independent, accredited laboratory.

Appendix

A detailed criteria set is available for download at www.tcodevelopment.com, where you can also find a searchable database of all TCO Certified IT products.

TCO Development, the organization behind TCO Certified, has been an international driver in the field of Sustainable IT for 20 years. Criteria in TCO Certified are developed in collaboration with scientists, experts, users and manufacturers. Organizations around the world rely on TCO Certified as a tool to help them reach their sustainable IT goals. We are owned by TCO, a non-profit organization representing office workers. TCO Development is headquartered in Stockholm, Sweden, with regional presence in North America and Asia

For more information, please visit

www.tcodevelopment.com

FCC Declaration of Conformity

For U.S.A. , Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party EIZO Inc.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product Trade name: EIZO
	Model: FlexScan EV2750
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.* Reorient or relocate the receiving antenna.* Increase the separation between the equipment and receiver.* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Appendix

Note

Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.

• AC Cord
• Shielded Signal Cable (enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

EIZO Corporation (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to as the 'User's Manual').

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the "Warranty Period"). EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of seven (7) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of the sensor;
(d) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(e) Any defect of the Product caused by external equipment;
(f) Any defect of the Product on which the original serial number has been altered or removed;
(g) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g. buttons, rotating parts, cables, User's Manual, etc.); and
(h) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD panel.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

BEGRENZTE GARANTIE

This product, when disposed of, is supposed to be collected and recycled according to your country's legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an affiliate in your country.

The contact addressees are listed on the EIZO website below.

http://www.eizoglobal.com

For recycling information for customers in Switzerland, please refer to the following website.

http://www.swico.ch

China Measures for RoHS Compliance in ChinaRoHS

关于电子信息产品污染控制标识
