Product Type	LCD Monitor
Screen Size	22 inches (55.9 cm)
Resolution	1680 x 1050 (WSXGA+)
Aspect Ratio	16:10
Panel Type	IPS
Brightness	270 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Response Time	6 ms (gray-to-gray)
Viewing Angles (H/V)	178° / 178°
Color Support	16.7 million colors
Inputs	DVI-D, DisplayPort, USB Upstream
Power Consumption	Max 60 W, Standby < 1 W
VESA Mount	100 x 100 mm
Dimensions (with Stand)	478 x 377 x 235 mm
Weight (with Stand)	Approx. 7.5 kg
Special Features	Color calibration sensor, hardware calibration, 8-bit color depth
Power Supply	AC 100-240 V, 50/60 Hz (built-in)
Tilt Adjustment	0° to 30°
Swivel Adjustment	344°
Height Adjustment	Not available
Pivot Adjustment	Not available

Frequently Asked Questions - CG223W-BK EIZO

How do I clean the screen of my Eizo CG223W-BK?

Use a soft, dry cloth. For stubborn smudges, lightly dampen the cloth with water or a mild cleaner designed for LCD screens. Avoid using alcohol, ammonia, or abrasive materials as they may damage the screen.

What is the native resolution of the CG223W-BK?

The native resolution is 1680 x 1050 (WSXGA+). For best image quality, set your computer to output this resolution.

How do I calibrate the monitor?

Use the built-in calibration sensor or an external device. Press the menu button, go to "Tools" > "Calibration", and follow the on-screen instructions. For hardware calibration, use EIZO’s ColorNavigator software.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA mount 100 x 100 mm. Remove the stand by unscrewing the four screws at the back, then attach a compatible wall mount arm.

Why is there no signal on my display?

Check that the cable is securely connected to both the monitor and the computer. Ensure the correct input source is selected using the button on the front panel. If using DVI, verify the cable type (DVI-D single link).

How do I enable the color calibration sensor?

Press the menu button, navigate to "Sensor" > "Calibration Sensor", and set it to "On". The sensor will automatically adjust the screen based on ambient lighting.

What are the power saving modes?

The monitor supports Energy Star standards. It enters standby mode (< 1 W) when no signal is detected. You can also set a sleep timer in the menu under "Power Management".

How do I adjust brightness and contrast?

Press the menu button to access the on-screen display. Use the "Brightness" and "Contrast" sliders in the "Color" or "Picture" submenu. You can also use the auto-calibration feature.

What cables are included with the monitor?

The package typically includes a DVI-D cable, a DisplayPort cable, a USB cable, a power cord, and a quick start guide.

Is the monitor compatible with Mac computers?

Yes, the CG223W-BK works with Macs that have a DVI or DisplayPort output. For Macs with USB-C, you may need an adapter. The monitor supports both Windows and macOS.

USER MANUAL CG223W-BK EIZO

Calibration Color LCD Monitor

Important

Please read PRECAUTIONS, this User's Manual and Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please read the Setup Guide (separate volume)
• The latest User's Manual is available for download from our site:
  http://www.eizo.com

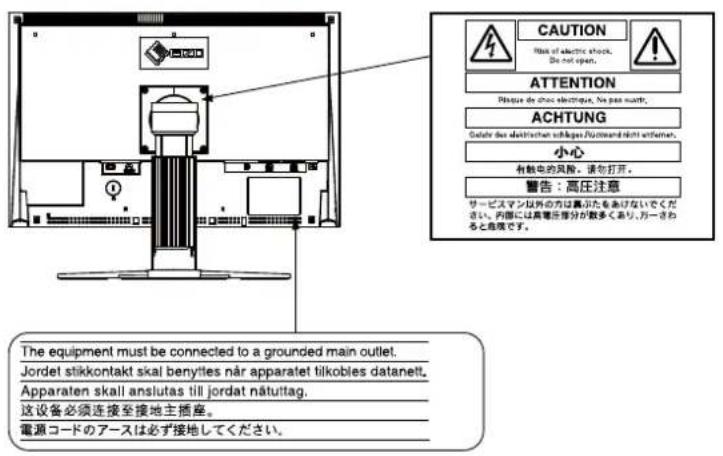

[Location of Caution Statement]

Ex. CG243W

Product specifications may vary with sales areas.

Confirm the specifications in the manual written in the language of the region of purchase.

This product has acquired TCO standard that relates to safety, ergonomics, environment and so forth of office equipment. For overview of the TCO, refer to our website.

http://www.eizo.com

Copyright© 2009 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information.

Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Apple, Macintosh, Mac OS and ColorSync are registered trademarks of Apple Inc.

VGA is a registered trademark of International Business Machines Corporation.

Windows and Windows Vista are registered trademarks of Microsoft Corporation.

The round gothic bold bit map font used for this product is designed by Ricoh.

DisplayPort icon and VESA are trademarks and registered trademarks of Video Electronics Standards Association.

PowerManager, ColorNavigator and UniColor Pro are a trademark of EIZO NANAO CORPORATION.

EIZO, EIZO Logo and ColorEdge are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

Notice for this monitor

Aside from creating documents, viewing multimedia content, and other general purposes, this product is also suited to applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority.

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable for power cords and signal cables specified by us.

Use optional products manufactured or specified by us with this product.

As it takes about 30 minutes for the performance of electrical parts to stabilize, adjust the monitor 30 minutes or more after the monitor power has been turned on.

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. (Refer to “Cleaning” on the next page.)

The LCD panel is manufactured using high-precision technology. However, note that the appearance of any missing pixels or lit pixels does not indicate damage to the LCD monitor. Percentage of effective pixels : 99.9994% or higher.

The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in the display malfunction, such as the interference patterns, etc. If pressure is continually applied to the LCD panel, it may deteriorate or damage your LCD panel. (If the pressure marks remain on the LCD panel, leave the monitor with a white or black screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the LCD panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation disappears, otherwise it may cause some damages to the monitor.

Cleaning

Attention

- Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, disinfectant, and abrasive cleaner, which may damage the cabinet or LCD panel.

LCD Panel

• Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning paper.
• If necessary, stubborn stains can be removed by using the provided ScreenCleaner, or moistening part of a cloth with water to enhance its cleaning power.

Cabinet

- Clean the cabinet with a soft cloth dampened with a little mild detergent.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Cover 1

Notice for this monitor .... 3

CONTENTS 5

Chapter 1 Introduction ...... 6

1-1. Features 6

1-2. Controls and Functions 7

1-3. Utility Disk 8

Disk contents and software overview 8

To use ColorNavigator 8

1-4. Basic Operation and Functions 9

Basic operation of Adjustment menu 9

Showing Button Guide ....10

Functions ....11

Chapter 2 Adjusting Screen .... 12

2-1. Setting Screen Resolution ....12

Compatible Resolutions/Frequencies ....12

Setting Resolution ......13

Windows 7....13

Windows Vista 13

Windows XP 13

Mac OS X 13

2-2. Displaying Screen Correctly 14

Digital Input 14

Analog Input 14

2-3. Color Adjustment 18

To select the display mode (Color Mode) .....18

To perform advanced adjustments .....19

- Adjustment items in each mode ....19

To adjust the brightness [Brightness] 20

To adjust the contrast [Contrast] 20

To adjust the color temperature [Temperature]... 20

To adjust the gamma value [Gamma] .....21

To adjust the hue [Hue] 21

To adjust the color saturation [Saturation] .....21

To enhance the outline of the image [Outline Enhancer] 22

To adjust the gain value [Gain] 22

To adjust the black level [Black Level] 22

To adjust six colors [6 Colors] 23

2-4. Displaying Lower Resolutions 24

To change screen size [Screen Size] 24

2-5. Configuring moving image performance [Overdrive] (CG243W) 24

Chapter 3 Setting Monitor 25

3-1. Enabling/Disabling Mode Selection [Mode Preset] 25

3-2. Locking Buttons [Key Lock] 25

3-3. Setting the EIZO Logo Display [Logo] ..... 26

3-4. Setting Orientation [Orientation] 26

3-5. Setting Language [Language] 27

3-6. Setting Range of Frequency [Signal Bandwidth] 27

3-7. Setting the Display Position of the Adjustment Menu [Menu Position] 28

3-8. Restoring the Default Setting 28

To reset color adjustment values [Color Reset].... 28

To reset all adjustments to the factory default settings [All Reset] 28

Chapter 4 Power Saving Function ...... 29

4-1. Setting the Power Saving [Power Save] ..... 29

4-2. Setting Power Indicator [Power Indicator]... 30

4-3. Setting Monitor's Automatic Brightness Adjustment [Auto EcoView] 30

Chapter 5 Troubleshooting .... 31

Chapter 6 Reference 34

6-1. Attaching an Arm 34

6-2. Connecting More than Two PCs to the Monitor 35

To switch the input signal 35

To set input signal selection [Input Selection] ... 36

6-3. Making Use of USB (Universal Serial Bus) ...37

Required System Environment 37

- Connection Procedure (Setup of USB Function) ...37

6-4. Displaying Monitor Information 38

- Displaying monitor information by pressing ... 38

- Displaying signal information [Signal Info] ..... 38

- Displaying monitor information [Monitor Info] ... 38

6-5. Specifications 39

6-6. Glossary 45

6-7. Preset Timing 47

About TCO' 03 ....48

FCC Declaration of Conformity 49

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

• 22" wide format LCD (CG223W) / 24" wide format LCD (CG243W)
• Wide color gamut of 95% of Adobe RGB (CG223W) / 98% (CG243W)
• Resolution 1680 dots x 1050 lines (CG223W) / 1920 dots x 1200 lines (CG243W)
  • HDCP (High-bandwidth Digital Content Interface)
  • Frame Synchronous mode supported : 47.5 - 61Hz (CG223W)
  : 23.75 - 30.5Hz, 47.5 - 61Hz (CG243W)
• Applicable to DisplayPort (applicable to 8 bit or 10 bit, not applicable to audio signals)
• 3 signal input terminals (DVI-I x 2, DisplayPort x 1)
• Color Mode function reproduces color gamut and gamma compliant with [EBU/REC.709/SMPTE-C] broadcasting standards as well as the [DCI] digital cinema standard
  "2-3. To select the display mode (Color Mode)" (page 18)
• Attaching the “Adjustment Certificate” to describe the grayscale and uniformity characteristics of the monitor individually

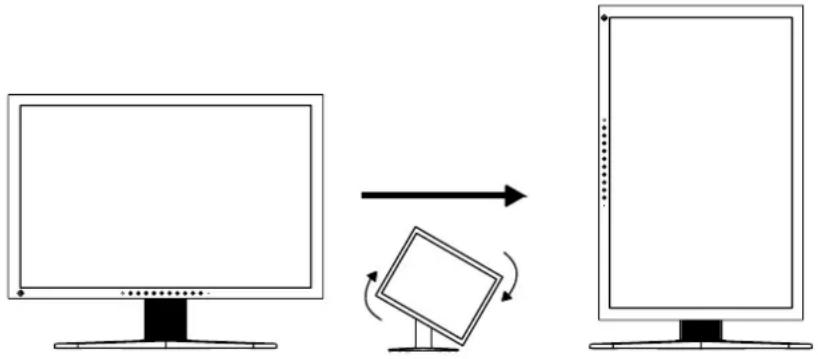

• Portrait/Landscape display available (rotate 90 degrees clockwise)
  • Monitor hood attached
• The provided “ColorNavigator” calibration software enables you to calibrate monitor characteristics and generate color profiles
  "1-3. Utility Disk" (page 8)
  • Color Vision Deficiency Simulation Software "UniColor Pro" supported
  This software can be downloaded from http://www.eizo.com
  • Power saving function
  This product is equipped with power saving function.

- Power Consumption when main power switch is Off: 0W Equipped with main power switch. Turning off the main power switch completely shuts off power supply to the monitor while the monitor is not used.

- Auto EcoView function

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably.

Excessively high brightness may lead a damage to the natural environment as well as to your eyes. Suppressing the excessively high brightness will be helpful to reduce the power consumption and the damage to your eyes.

"4-3. Setting Monitor's Automatic Brightness Adjustment" (page 30)

NOTE

• This monitor supports the Portrait/Landscape display. This function allows you to change the orientation of the Adjustment menu when using the monitor screen in vertical display position. (Refer to “To set the orientation of the Adjustment menu [Orientation]” on page 26.)
• For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When using the monitor with “Portrait” position, the setting needs to be changed depending on the graphics board used in your PC. Refer to the manual of the graphics board for details.

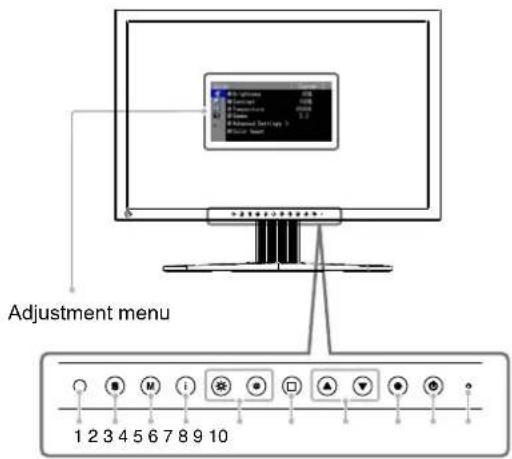

1-2. Controls and Functions

Ex. CG243W

1 S	Sensor (AutoEcoView) Detects ambient brightness. Auto EcoView function
2	S button	Switches input signals for display when more than two PCs are connected to the monitor.
3	M button	Allows you to switch the Color Mode.
4	I button	Displays the information about monitor or input signals.
5	*● button	Adjusts the brightness.
6	□ button	Cancels the adjustment/setting or exit the adjustment menu.
7	▲▼ buttons	Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the Adjustment menu.
8	● button	Displays the Adjustment menu, determines an item on the menu screen, and saves values adjusted.
9	◎ button	Turns the power on or off.
10	Power indicator Indicates m	Monitor's operation status.Blue : OperatingFlashing blue : When the timer is set for ColorNavigator, notifies(2 times for each) that a recalibration is required (for CAL mode).Orange : Power savingOff : Power off
11	Main Power switch	Turns the main power on or off.
12	Power connector	Connects the power cord.
13	Input signal connectors	Display Port Connector x 1
14	Input signal connectors	DVI-I Connector x 2
15	USB port (Up)	Connects the USB cable to use the software that needs USB connection, or to use USB Hub function.
16 U	SB port (Down) Connects a peripheral USB dirive.
17	Stand	Used to adjust the height and angle of the monitor screen.
18	Security lock slot	Complies with Kensington's MicroSaver security system.
19 C	Cable holder Covers the monitor cables.

1-3. Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with the monitor. The following table shows the disk contents and the overview of the software programs.

- Disk contents and software overview

The disk includes application software programs for adjustment, and User's Manual. Refer to "Readme.txt" or the "read me" file on the disk for software startup procedures or file access procedures.

Item Overview For		Windows	For Macintosh
A “Readme.txt” or “read me” file		√	√
ColorNavigator An	application software for calibrating monitor characteristics and generating ICC profiles (for Windows) and Apple ColorSync profiles (for Macintosh).(A PC must be connected to the monitor with the supplied USB cable.) Refer to the description later.	√	√
Screen Adjustment Utility	Monitor pattern display software used when adjusting the image of the analog input signal manually.	√	-
Screen adjustment pattern files	Used when adjusting the image of the analog signal input manually. If the Screen Adjustment Utility is not applicable to your PC, use this pattern files to adjust the image.	√	-
User’s Manual (PDF file)		√	√

To use ColorNavigator

Refer to the corresponding User's Manual on the CD-ROM disk in order to install and use the software. When using this software, you will need to connect a PC to the monitor with the supplied USB cable. For more information refer to the "6-3. Making Use of USB (Universal Serial Bus)" (page 37).

1- 4. Basic Operation and Functions

Basic operation of Adjustment menu

1 Displaying Adjustment Menu

Press

The adjustment menu appears.

2 Adjusting/Setting

1. Choose a menu to adjust/set with ▲ and press .

1. Choose an item to adjust/set with and press.

1. Adjust/set the selected item with ▲ and press .

3 Exiting

Press Ⓞ few times.

The adjustment menu finishes.

Showing Button Guide

Press the front buttons (except Ⓞbutton), the button guide appears above the button. (When using the monitor with "Portrait" position, the button guide appears next to the button.)

NOTE

• The button guide will continue to appear while the Adjustment menu or Mode menu is showing.
• The button guide is displayed differently depending on the selected menu or status.
• In CAL mode, although Button Guide are displayed above the ⚙ and ⚙ buttons, the brightness cannot be adjusted.

Functions

The following table shows all the Adjustment menu's adjustment and setting menus.

Main Menu	Item	Adjusting/Setting
Color	Brightness	"2-3. Color Adjustment" (page 18)
	Contrast
	Temperature
	Gamma
	Advanced Settings	Hue Saturation Outline Enhancer Gain Black Level 6 Colors
	Color Reset	"3-8. Restoring the Default Setting" (page 28)
Screen	Screen Size	"2-4. Displaying Lower Resolutions" (page 24)
	Analog Adjustment	Auto Adjustment Range Adjustment Clock Phase Hor.Position Ver.Position
PowerManager	Power Save	"4-1. Setting the Power Saving" (page 29)
	Auto EcoView	"4-3. Setting Monitor's Automatic Brightness Adjustment" (page 30)
	Power Indicator	"4-2. Setting Power Indicator" (page 30)
Menu Settings	Language	"3-5. Setting Language" (page 27)
	Orientation	"3-4. Setting Orientation" (page 26)
	Menu Position	"3-7. Setting the Display Position of the Adjustment Menu" (page 28)
Tools	Input Selection	"6-2. Connecting More than Two PCs to the Monitor" (page 35)
	Overdrive (CG243W)	"2-5. Configuring moving image performance" (page 24)
	Mode Preset	"3-1. Enabling/Disabling Mode Selection" (page 25)

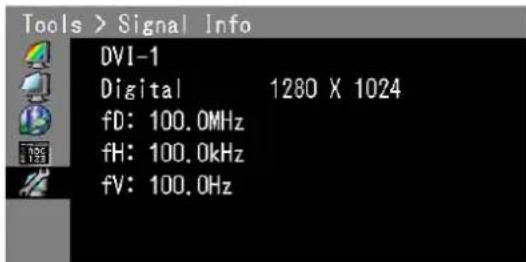

	Signal Info	"6-4. Displaying Monitor Information" (page 38)
	Monitor Info
	All Reset	"3-8. Restoring the Default Setting" (page 28)

* The adjusting/setting function on the menu depend on the selected Color mode (page 19). The above table shows the sub menus when the "Custom" mode is selected (See "2-3. Color Adjustment" (page 18)).

Chapter 2 Adjusting Screen

2-1. Setting Screen Resolution

Compatible Resolutions/Frequencies

The monitor supports the following resolutions.

Analog Input

Resolution Applicable signal Frequency Dot Clock CG223W CG243W
640×480 VGA 60Hz			170MHz(Max.)	√	√
720×400 VGA TEXT 70Hz				√	√
800×600 VESA 60Hz				√	√
1024×768	VESA 60Hz			√	√
1024×768	VESA	~ 75Hz		√	—
1024×768	VESA 85Hz			√	—
1152×864	VESA	75Hz		√	—
1280×960	VESA 60Hz			√	√
1280×1024	VESA 60Hz			√	√
1600×1200	VESA	60Hz		—	√
1680 × 1050*1	VESA CVT 60Hz			√	√
1680 × 1050*1	VESA CVT RB	60Hz		√	—
1920 × 1200*2	VESA CVT RB	60Hz		—	√

Digital Input (DVI/DisplayPort)

Resolution	Applicable signal	Frequency	Dot Clock	CG223W	CG243W
640×480	VGA	60Hz	164.5MHz(Max.)—	√	√
720×400	VGA TEXT 70Hz			√	√
800×600	VESA	60Hz		√	√
1024×768	VESA	60Hz		√	√
1280×960	VESA	60Hz		√	√
1280×1024	VESA	60Hz		√	√
1600×1200	VESA	60Hz		√	√
1680 × 1050*1	VESA CVT 60Hz				√
1680 × 1050*1	VESA CVT RB	60Hz		√	√
1920 × 1200*2	VESA CVT RB	60Hz		—	√

A graphics board in conformance with VESA standard is required.
*1 Recommended resolution (CG223W : Set this resolution).
*2 Recommended resolution (CG243W : Set this resolution).

Setting Resolution

When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

Windows 7

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Screen resolution".
3. On the "Screen Resolution" dialog, select the monitor.
4. Click "Resolution" to select the desired resolution.
5. Click the [OK] button.
6. When a confirmation dialog is displayed, click [Keep changes].

Windows Vista

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Personalize".
3. On the "Personalization" window, click "Display Settings".
4. On the “Display Settings” dialog, select the “Monitor” tab and select desired resolution in the “Resolution” field.
5. Click the [OK] button.
6. When a confirmation dialog is displayed, click [Yes].

Windows XP

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Properties".
3. When the "Display Properties" dialog is displayed, click the "Settings" tab and select desired resolution for "Screen resolution" under "Display".
4. Click the [OK] button to close the dialog.

Mac OS X

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog is displayed, click "Displays" for "Hardware".
3. On the displayed dialog, select the "Display" tab and select desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. When you are satisfied with the selected resolution, close the window.

2-2. Displaying Screen Correctly

Digital Input

When digital signals are input, images are displayed correctly based on the preset data of the monitor. When performing advanced adjustment, see “2-3 Color Adjustment” (page 18) and subsequent pages.

Analog Input

Attention

- Wait 30 minutes or more from monitor power on before starting adjustments. (Allow the monitor to warm up for at least 30 minutes before making adjustments.)

The monitor screen adjustment is used to suppress flickering of the screen or adjust screen position and screen size correctly according to the PC to be used.

The auto adjustment function works when filling/satisfying all of the following conditions

• When a signal is input into the monitor for the first time or when the resolution or Vertical/Horizontal Frequency not displayed before is set
• When signals with the vertical resolution over 480 are input

If the screen is not displayed correctly even after performing the auto adjustment, perform the screen adjustments according to the procedures on the following pages to use the monitor comfortably.

[Adjustment Procedure]

1 Perform the auto adjustment.

To adjust flickering, screen position, and screen size automatically [Auto Adjustment]

Procedure

1. Choose from the Adjustment menu, and press .
2. Choose from the menu, and press .
3. Choose , and press Ⓞ
   The auto adjustment function works (the message “In Progress” appears) to correctly adjust the flickering, screen position, and screen size correctly.
   When the auto adjustment is completed, a message appears. Select "OK" to confirm the new settings or "Cancel" to restore the previous settings, and press .

Attention

• This function works correctly when an image is fully displayed over the Windows or Macintosh display area. It does not work properly when an image is displayed only on a part of the screen (command prompt window, for example) or when a black background (wallpaper, etc.) is in use.
• This function does not work correctly with some graphics boards.

If the screen is not displayed correctly even after adjusting in step 1 above, perform the adjustments according to the procedures on the following pages. When the screen is displayed correctly, go to step 5 “To adjust color gradation automatically [Range]”.

2 Prepare the display pattern for the analog display adjustment.

Windows

1. Load the "EIZO LCD Utility Disk" to your PC.
2. Start the "Screen Adjustment Utility" from the startup menu. If it cannot be started, open the screen adjustment pattern files.

Other than Windows

Download the "Screen adjustment pattern files" from our site: http://www.eizo.com

NOTE

- For details and instructions on opening the "Screen adjustment pattern files", refer to "Readme.txt" file.

3 Perform the auto adjustment again with the analog screen adjustment pattern displayed.

To adjust flickering, screen position, and screen size automatically [Auto Adjustment]

Procedure

1. Display Pattern 1 in full screen on the monitor using the "Screen Adjustment Utility" or the screen adjustment patternfiles.

1. Choose from the Adjustment menu, and press ⚙
2. Choose from the menu, and press Ⓞ

To proceed with the subsequent adjustments, select an item in of the menu.

1. Choose , and press Ⓞ

The auto adjustment function works (the message “In Progress” appears) to adjust the flickering, screen position, and screen size correctly.

When the auto adjustment is completed, a message appears. Select "OK" to confirm the new settings or "Cancel" to restore the previous settings, and press Ⓞ

If the screen is not displayed correctly even after adjusting in step 3 above, perform the adjustments according to the procedures on the following pages. When the screen is displayed correctly, go to step 5 "To adjust color gradation automatically [Range]".

4 Perform advanced adjustments for the following using the menu of the .

Adjust the clock, phase and position, in this order.

● To eliminate vertical bars [Clock]

Procedure

1. Choose from the menu, and press Ⓞ
2. Adjust the clock with ⬆ or . ⬇

Press slowly so as not to miss the adjustment point.

1. Press to exit the adjustment.

When blurring, flickering or bars appear on the screen after adjustment, proceed to [Phase] to remove flickering or blurring.

- Remove flickering or blurring [Phase]

Procedure

1. Choose from the menu, and press Ⓞ
2. Adjust the phase with ⬆ or . ▼
3. Press Ⓞ exit the adjustment.

Attention

Flickering or blurring may not be eliminated depending on your PC or graphics board.

To correct screen position [Hor.Position] [Ver.Position]

NOTE

- Since the number of pixels and the pixel positions are fixed on the LCD monitor, only one position is provided to display images correctly. The position adjustment is made to shift an image to the correct position.

Procedure

1. Choose or from the menu, and press Ⓞ.
2. Adjust the position with ⬆ or . ▼
3. Press Ⓞ exit the adjustment.

5 Adjust the color gradation.

● To adjust color gradation automatically [Range Adjustment]

Every color gradation (0 to 255) can be displayed by adjusting the signal output level.

Procedure

1. Display Pattern 2 in full screen on the monitor using the "Screen Adjustment Utility" or the screen adjustment pattern files.

1. Choose from the menu, and press ⚙

The color gradation is adjusted automatically.

When the auto adjustment is completed, a message appears. Select "OK" to confirm the new settings or "Cancel" to restore the precious settings, and press .

1. Close the Pattern 2. When using the "Screen Adjustment Utility", close the program.

2-3. Color Adjustment

- To select the display mode (Color Mode)

Color Mode allows you to select easily the adequate mode suitable for the monitor's application.

Color Mode

Mode Purpose
1-Custom	Available for the color settings according to your preference.
2-sRGB	Suitable for color matching with sRGB compatible peripherals.
3-EBU	Suitable for reproducing the color gamut and gamma as set forth by EBU (European Broadcasting Union) standards.
4-REC709	Suitable for reproducing the color gamut and gamma as set forth by the ITU-R Rec. 709 standard.
5-SMPTE-C	Suitable for reproducing the color gamut and gamma as set forth by SMPTE-C standards.
6-DCI	Suitable for reproducing the color gamut and gamma as set forth by DCI standards.
7-CAL18-CAL29-CAL3	Displays the screen adjusted by calibration software.

Attention

• “CAL” mode can be adjusted only by Calibration Software “ColorNavigator”.
• With default settings only one CAL mode can be selected for every input signal displayed.
• A CAL mode will be chosen by the ColorNavigator in accordance with the displayed input signal.
• Avoid operating any function of the monitor while using ColorNavigator.

The mode menu appears.

Procedure

1. Press Ⓜ

Mode menu appears at the lower left of the screen.

1. The mode among the list is highlighted in turn each time impressed.

You can switch the current mode with ▲ or ▼ while the mode menu is being displayed.

→Custom←→sRGB←→EBU←→REC709←→SMPTE-C←→DCI←→CAL1←→CAL2←→CAL3←

NOTE

• The Adjustment menu and the Mode menu cannot be displayed at the same time.
• You can disable a specific mode to be selected. For more information, refer to “3-1 Enabling/Disabling Mode Selection” (page 25).

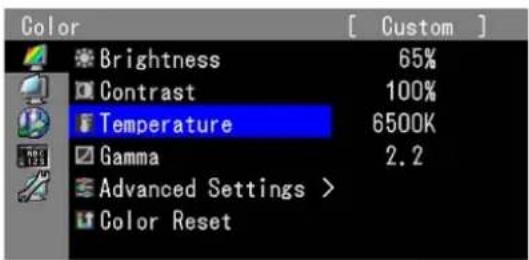

To perform advanced adjustments

The menu of the Adjustment menu allows you to set and save the independent color adjustment for each mode.

Attention

• Wait 30 minutes or more from monitor power on before starting the color adjustment. (Allow the monitor to warm up for at least 30 minutes before making adjustments.)
• Perform the range adjustment first when adjusting color for analog input signals. (Refer to “To adjust color gradation automatically” on page 17).

- The same image may be seen in different colors on multiple monitors due to their monitor-specific characteristics. Make fine color adjustment visually when matching colors on multiple monitors.

NOTE

The values shown in “%” or “K” are available only as reference.

- Adjustment items in each mode

According to the mode selected, the adjustable function differs.

(You can not select any function unavailable for adjustment or setting.)

The adjustments or settings made for each mode are applied to all input signals.

For the adjustment method of each function, refer to subsequent pages.

√: Adjustment available —: Invalid for adjustment

Icon Function		Color Mode
		1-Custom	2-sRGB	3-EBU 4	REC709 5-S	MPTE-C 6-DCI		7-CAL18-CAL29-CAL3
	Brightness	√√√	√√	√				—
	Contrast	√—		—	—	— — —
	Temperature	√	√√√	√	√			—
	Gamma	√	√√√	√	√			—
	Hue	√	— —	—	—	— —
	Saturation	√	— —	—	—	— —
	Outline Enhancer	√	√√√	√	√			—
	Gain	√	— —	—	—	— —
	Black Level	√	√	√	√	√	√	—
	6 Colors	√—		—	—	—	— —
	Color Reset	√√√	√√	√				—

● To adjust the brightness [Brightness]

The screen brightness is adjusted by changing the brightness of the backlight (Light source from the LCD back panel).

Adjustable range: 0 to 100%

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Adjust the brightness with .
4. Press to exit the adjustment.

NOTE

• You can also adjust the brightness using Ⓢnd . Ⓜ
• When your feel the image is bright even if the brightness is set to 0% , adjust the contrast.

● To adjust the contrast [Contrast]

The luminance of the screen is adjusted by varying the video signal level.

Adjustable range: 0 to 100%

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Adjust the contrast with ⬆ or . ⬇
4. Press to exit the adjustment.

NOTE

• In the contrast of 100% , every color gradation is displayed.
• When adjusting the monitor, it is recommended to perform the brightness adjustment which may not lose the gradation characteristics, prior to the contrast adjustment.
• Perform the contrast adjustment in the following cases.
• When you feel the image is bright even if the brightness is set to 0%. (Set the contrast to lower than 100%).

● To adjust the color temperature [Temperature]

The color temperature can be adjusted. The color temperature is normally used to express the hue of “White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin). In the same way as the flame temperature, the image on the monitor is displayed reddish if the color temperature is low and is bluish if the color temperature is high. The gain preset values are set for each color temperature setting value.

Adjustable range: Standard, Native, 4000K-10000K (specified by every 500K unit, including 5400K, 9300K)

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Adjust the color temperature with ⬆. ▼
4. Press to exit the adjustment.

NOTE

• [Gain] allows you to perform more advanced adjustment (See “To adjust the gain value” on page 22).
• If you set to [Native], the image is displayed in the preset color of the monitor (Gain: 100% for each RGB).
• When changing the gain value, the color temperature adjusting range is changed to "User".
• The default setting for each sRGB/EBU/REC709/SMPTE-C/DCI mode is set to "Standard", which is the temperature in conformity with each standard.

● To adjust the gamma value [Gamma]

The gamma value can be adjusted. The luminance of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the luminance of the monitor is called as “Gamma correction”.

Adjustable range: 1.8-2.6

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Adjust the gamma value with ⬆ . ⬇
4. Press to exit the adjustment.

NOTE

- The default setting for each sRGB/EBU/REC709/SMPTE-C/DCI mode is set to "Standard", which is the gamma in conformity with each standard.

To adjust the hue [Hue]

This function allows you to adjust the hue.

Adjustable range: -100 to 100

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose , and press Ⓞ
4. Adjust the hue with ⬆ or . ⬇
5. Press to exit the adjustment.

Attention

This function does not enable to display every color gradation.

● To adjust the color saturation [Saturation]

This function allows you to adjust the saturation of the color on the monitor.

Adjustable range: -100 to 100

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose , and press Ⓞ
4. Adjust the saturation of the color with ⬆r . ⬇
5. Press to exit the adjustment.

Attention

This function does not enable to display every color gradation.

NOTE

Setting the minimum (-100) turns the image to a monochrome screen.

To enhance the outline of the image [Outline Enhancer]

OutlineEnhancer functions to emphasize outline of the images by emphasizing the color difference between pixels composing the images. This may improve the texture of the material and its feel of the images.

On the contrary, it also functions to reproduce the images smoothly by gradating its outline.

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose and press
4. Select the display status in the range from -3 to 3 (soft to sharp) with ⬆ as desired.
5. Press Ⓞ to exit the adjustment.

To adjust the gain value [Gain]

Each luminance of red/green/blue composing the color is called "Gain". The gain adjustment may change the color tone of the "White" (when the max input signal for each color is obtained)

Adjustable range: 0 to 100%

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose , and press Ⓞ
4. Choose the color for adjustment among , , or to adjust, and press Ⓞ
5. Adjust the gain with ⬆ . ▼
6. Press ☐ to exit the adjustment.

NOTE

• The setting invalidates this setting.
• The gain value may change depending on the value of the color temperature.
• When changing the gain value, the color temperature adjusting range is changed to "User".

To adjust the black level [Black Level]

The brightness of black and chromaticity can be adjusted based on the respective black level of red, green and blue. Adjust the black level by showing images with black background. Adjustable range:0 to 100%

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose , and press ⚙
4. Choose the color for adjustment among , , or to adjust, and press Ⓞ
5. Adjust the black level with ▲r . ▼
6. Press Ⓞ exit the adjustment.

NOTE

• To further darken the black when the value of the black level is 0, lower the brightness value.
- Lowering the contrast value will not change the brightness of the black level.

● To adjust six colors [6 Colors]

The hue and saturation can be adjusted for each of six colors: Magenta, Red, Yellow, Green, Cyan, and Blue.

Adjustable range: -100 to 100

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Choose <6 Colors>, and press Ⓞ
4. Choose the color for adjustment among , , , , , or , and press Ⓞ
5. Select or , and press Ⓞ
6. Adjust the 6 colors with ▲ or . ▼
7. Press ☐ exit the adjustment.

2-4. Displaying Lower Resolutions

● To change screen size [Screen Size]

The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using from menu.

Menu Function
Full (default setting)	Displays an image in full screen. Images are distorted in some cases because the vertical rate is not equal to the horizontal rate.
Enlarged Displays an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Normal Displays images with the specified resolution.

Example: Image size 1280 x 1024 in case of CG243W

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select "Full Screen," "Enlarged," or "Normal" with ⚠️. ▼
4. Press to exit the adjustment.

2-5. Configuring moving image performance [Overdrive] (CG243W)

By using the setting, the extent to which fast moving images produce visible afterimages can be reduced. This setting is set to "On" by default, but while turned "On" noise and afterimages may instead be more noticeable. In such a case, please set the setting to "Off".

Procedure

1. Choose from the Adjustment menu, and press ⬤
2. Choose from the menu, and press ⬤
3. Select "On" or "Off" with ⬆r . ▼
4. Press Ⓞ exit the adjustment.

Chapter 3 Setting Monitor

3-1. Enabling/Disabling Mode Selection [Mode Preset]

Allows you to select the specified modes only.

Use this function when all the display modes are not available or when keeping the display mode unchanged.

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select the mode to change its settings with ⬆, and press .
4. Select "On" or "Off" with ⬆. ▼
5. Press Ⓞ to exit the adjustment.

Attention

You cannot set all the modes disable. Set at least one mode to "On".

3-2. Locking Buttons [Key Lock]

This function allows you to lock to prevent changing the adjusted/set status.

Procedure

1. Press ⓑ turn off the monitor.
2. Press holding down for at least 2 seconds to turn on the monitor.
   The Optional Settings menu appears.
3. Choose from the menu, and press Ⓞ
4. Select "Off", "Menu", or "All" with ▲, and press .

Settings Buttons that can be locked
Off (Initial settings) None	(All buttons are enabled)
Menu	button
All	All buttons excluding ⏻

1. Select "Finish" with ⬆r . ▼

2. Press Ⓞ exit.

The Optional Settings menu is closed.

3-3. Setting the EIZO Logo Display [Logo]

The EIZO logo appears on the display when turning on the monitor. This function allows you to display, or not, the EIZO logo.

Procedure

1. Press ⓑ turn off the monitor.

2. Press holding down at least 2 seconds to turn on the monitor. The Optional Settings menu appears.

3. Choose from the menu, and press ⬤

4. Select "On" or "Off" with ⬆, and press .

5. Select "Finish" with ▲ . ▼

6. Press ⬆ exit the Optional Settings.

The Optional Settings menu is closed.

3-4. Setting Orientation [Orientation]

This function allows you to change the orientation of the Adjustment menu when using the monitor screen in vertical display position. (Default settings : Landscape)

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press .
3. Select "Landscape" or "Portrait" with ⬆.

4. Press ☐ to exit the adjustment.

5. When selecting "Portrait", turn the monitor screen 90° in clockwise direction.

Attention

Be sure that the cables are correctly connected.

NOTE

- For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When placing the monitor in a "Portrait" position, settings of your graphics board need to be changed. Refer to the manual of the graphics board for details.

3-5. Setting Language [Language]

This function allows you to select a language for the adjustment menu or displaying message.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese /Simplified Chinese/Traditional Chinese

Procedure

1. Choose menu from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press .
3. Choose a language with ⓐr . ⬇
4. Press Ⓞ exit the adjustment.

3-6. Setting Range of Frequency [Signal Bandwidth]

Depending upon your operating environment, it may be necessary to set the frequency that corresponds to your graphics board. If you install it for the first time or change environment, set the monitor.

NOTE

• Refer to the manual of the graphics board.
- These environment described below can be set regardless of whether or not the computer is running.
- Only digital input signals can be set up.

Procedure

1. Press ⓑ turn off the monitor.

2. Press holding down at least 2 seconds to turn on the monitor.
   The Optional Settings menu appears.

3. Choose from the menu, and press .

4. Select "Normal" or "Wide" with ⚠, and press .

Use ▲ or ▼ to select (or just confirm) the frequency that corresponds to your graphics board.

Setting CG223W CG243W
	Horizontal scanning frequency (kHz)	Vertical scanning frequency (Hz)	Horizontal scanning frequency (kHz)	Vertical scanning frequency (Hz)
Normal 31	-65 59 - 61 26 - 78 59	-61
Wide	31 - 65	47.5 - 61	26 - 78	23.75 - 63

1. Select "Finish" with ⬆r . ⬇

2. Press Ⓞ exit the Optional Settings.

The Optional Settings menu is closed.

3-7. Setting the Display Position of the Adjustment Menu [Menu Position]

Adjust the menu position using the following procedure.

Procedure

1. Choose from the Adjustment menu, and press ⚙
2. Choose from the menu, and press ⚙
3. Select a menu position with ▲r . ▼
4. Press Ⓞ exit the adjustment.

3-8. Restoring the Default Setting

There are two types of Reset. One is to reset the color adjustment only to the default settings, and the other is to reset all the settings to the default settings.

Attention

After resetting, you cannot undo the operation.

NOTE

- For main default settings, refer to “Main default settings (factory settings)” on page 41.

● To reset color adjustment values [Color Reset]

Only the adjustment values in the current mode will revert to the default settings (factory settings).

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu and press ♟
3. Select "Execute" with ⬆r . ▼
4. Press

The color adjustment values revert to the default settings.

- To reset all adjustments to the factory default settings [All Reset]

Reset all adjustments to the factory default settings.

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select "Execute" with ⬆r . ▼
4. Press

All setting values revert to the default settings.

Chapter 4 Power Saving Function

4-1. Setting the Power Saving [Power Save]

This function allows you to set the monitor into the power saving mode according to the PC status.

When the monitor enters the power saving mode, no image is displayed on the screen.

Attention

• Turning off the main power switch or unplugging the power cord completely shuts off power supply to the monitor.
• Devices connected to the USB port (upstream and downstream) work when the monitor is in power saving mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode.

Power Save is compliant with the following standards for the respective signal inputs.

signal inputs Standard
Analog signal VESA DPMS
Digital signal DVI DVI DMPM
		DisplayPort DisplayPort Standard V1.1a

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select "On" or "Off" with ⬆. ▼
4. Press to exit the adjustment.

Power Saving System

The monitor enters the power saving mode in conjunction with the PC settings.

PC Monitor Power		Indicator
Operating		Operating	Blue
Power saving	STAND-BY SUSPENDED OFF	Power saving	Orange

4-2. Setting Power Indicator [Power Indicator]

The brightness of the power indicator (blue) when the screen is displayed can be adjusted (default setting is set to light up when power is turned on, and brightness is set to 4).

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select the indicator brightness "Off" or in the range from 1 to 7 with ⬆ as desired.
4. Press Ⓞ exit the adjustment.

4-3. Setting Monitor's Automatic Brightness Adjustment [Auto EcoView]

The sensor on the lower side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function.

Attention

• The Auto EcoView function is not available in CAL mode.
• Be careful not to block the sensor on the lower side of the monitor when using the Auto EcoView function.

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press Ⓞ
3. Select "On" or "Off" with ⬆. ▼
4. Press ☐ to exit the adjustment.

Chapter 5 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

• No-picture problems → See No.1 - No.2.
• Imaging problems (digital input) → See No.3 - No.8.
• Imaging problems (analog input) → See No.3 - No.12.
• Other problems → See No.13 - No.16.

Problems Possible cause and remedy
1. No picturePower indicator does not light.•	• Check whether the power cord is connected correctly.• Turn off the main power, and then turn it on again a few minutes later.• Turn the main power switch on.• Press ⏻
Power indicator lights blue.• Set each adjusting value in	,Brightness>,,andto higher level. (page 20, 22)
Power indicator lights orange.•	• Switch the input signal with ⒽOperate the mouse or keyboard.• Check whether the PC is turned on.
2. The message below appears.• This messages appear when app signals are set someExample:	This message appears when the signal is not input correctly even when the monitor functions properly.• PCs do not output the signal soon after power-on.• Check whether the PC is turned on.• Check whether the signal cable is connected properly.• Switch the input signal with Ⓗ
• Check whether the signal setting of sigma PS out of these specified frequency range. (Such signal frequency is displayed in red.)Example:	• the resolution and the vertical frequency settings for the monitor. (refer to the Setup Manual “Setting Screen Resolution”)• Reboot the PC.• Select an appropriate display mode using the graphics board’s utility. Refer to the manual of the graphics board for details.fD: Dot Clock(Displayed only when the digital signal inputs)fH: Horizontal FrequencyfV: Vertical Frequency
3. The screen is too bright or too dark.	• Adjust usingor.(The LCD monitor backlight has a fixed life span. When the screen becomes dark or begins to flicker, contact your local dealer.)• Turn on the Auto EcoView function. The monitor detects the environmental brightness to adjust the screen brightness automatically.
4. Characters are blurred	· Check whether the signal setting of your PC matches the resolution and the vertical frequency settings for the monitor. (refer to the Setup Manual “Setting Screen Resolution”)· Adjust using. (page 22)
5. Afterimages appear	· Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time.· Use the screen saver or power save function to avoid displaying the same image for extended periods of time.
6. Green/red/blue/white dots or defective dots remain on the screen.	· This is due to LCD panel characteristics and is not a failure.
7. Interference patterns or pressure marks remain on the screen.	· Leave the monitor with a white or black screen. The symptom may disappear.
8. Noise appears on the screen.	· When entering the signals of HDCP system, the normal images may not be displayed immediately.
9. Display position is incorrect.	· Adjust image position usingor. (page 16)· If the problem persists, use the graphics board's utility if available to change the display position.
10. Vertical bars appear on the screen or a part of the image is flickering.	· Adjust using. (page 16)
11. Whole screen is flickering or blurring.	· Adjust using. (page 16)
12. Upper part of the screen is distorted as shown below.	· This is caused when both composite sync (X-OR) signal and separate vertical sync signal are input simultaneously. Select either composite signal or separate signal.
13. The adjustment menu does not appear.	· Check whether the operation lock function works. (page 25)
14. Mode menu does not appear.	· Check whether the operation lock function works. (page 25)
15. The auto adjust function does not work correctly.	· This function does not work when digital signal is input.· This function is intended for use on the Macintosh and on AT-compatible PC running Windows. It may not work properly in either of the following cases. It does not work properly when an image is displayed only on a part of the screen (command prompt window, for example) or when a black background (wallpaper, etc.) is in use.· This function does not work correctly with some graphics boards.
16. The monitor connected with the USB cable is not detected. / USB devices connected to the monitor does not work.	Check whether the USB cable is connected correctly. (page 37)Change the USB port to another one. If the PC or peripheral devices works correctly by changing the USB port, contact your local dealer. (Refer to the manual of the PC for details.)Reboot the PC.If the peripheral devices work correctly when the PC and peripheral devices are connected directly, please contact your local dealer.Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.)Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.)

Chapter 6 Reference

6-1. Attaching an Arm

The stand can be removed and replaced with an arm (or another stand) to be attached to the monitor. Use an arm or stand of EIZO option.

Attention

• When attaching an arm or stand, follow the instructions of their user's manual.
• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard.
• Clearance between the screw holes: 100 mm × 100 mm
• Thickness of plate: 2.6 mm
• Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables. Use the screws as described below.
• CG223W: The screws fixing the stand to the monitor
• CG243W: The screws supplied with this monitor (M4 × 12mm)
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
• Up 45 degrees, down 45 degrees (horizontal display, and vertical display rotated 90 degrees clockwise)
• Connect the cables after attaching an arm.
• Do not adjust the height of the stand removed from the monitor. When adjusted without attached monitor, it causes the personnel injury or the damaged to the stand.
• Since the monitor and arm are so heavy, dropping them may result in injury or equipment damage.

[Attachment Procedure]

1 Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2 Remove the stand.

Prepare a screwdriver. Unscrew the four screws securing the unit and the stand with the screwdriver.

3 Attach the monitor to the arm or stand.

Secure the monitor to the arm or stand using the screws specified in the user's manual of the arm or stand.

6-2. Connecting More than Two PCs to the Monitor

More than two PCs can be connected to the monitor through the DVI-1 and the DisplayPort connector on the back of the monitor.

Connection examples

To switch the input signal

The input signal switches each time is pressed.

When the signal is switched, the active input port name appears at the top right corner of the screen.

● To set input signal selection [Input Selection]

The monitor recognizes the connector through which PC signals are input.

Priority setting Function

Auto When a PC is turned off or enters the powersaving mode, the monitor automatically displays another signal.

Manual The monitor detects only the PC's signals currently displaying automatically. Select an active input signal with S

Procedure

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press ⚙
   The menu appears.
3. Select "Auto" or "Manual" with ⬆r . ▼
4. Press to exit the adjustment.

Attention

- When “Auto” is selected for , the monitor’s power-saving function works only when the all PCs are in the power-saving mode.

6-3. Making Use of USB (Universal Serial Bus)

This monitor has a hub compatible with USB. Connected to a PC compatible with USB or another USB hub, this monitor functions as a USB hub allowing connection to peripheral USB devices.

● Required System Environment

1. A PC equipped with a USB port or another USB hub connected to a USB compatible PC
2. Windows 2000/XP/Vista/7 or Mac OS 9.2.2 and Mac OS X 10.2 or later
3. EIZO USB cable (MD-C93)

Attention

• This monitor may not work depending on PC, OS or peripheral devices to be used. For USB compatibility of peripheral devices, contact their manufactures.
  • Devices connected to the USB port (upstream and downstream) work when the monitor is in power saving mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode.
• When the main power switch is Off, device connected to the USB port will not operate.

- Connection Procedure (Setup of USB Function)

1. Connect the monitor first to a PC using the signal cable, and run the PC.
2. Connect the supplied USB cable between the downstream USB port of a USB compatible PC (or another USB hub) and the monitor's upstream USB port.
   The USB hub function is set up automatically upon connection of the USB cable.
3. Connect the peripheral USB device to the USB port (downstream) of the monitor.

6-4. Displaying Monitor Information

- Displaying monitor information by pressing

The Ⓐ displays the information about the monitor and the current input signals displayed. (Example)

- Displaying signal information [Signal Info]

This function displays the information about the current input signals displayed.

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press The Signal Info screen appears.

(Example)

- Displaying monitor information [Monitor Info]

This function displays the information about the monitor.

1. Choose from the Adjustment menu, and press Ⓞ
2. Choose from the menu, and press The Monitor Info screen appears.

(Example)

Attention

The usage time is not always "0" due to factory inspection when you purchase the monitor.

6-5. Specifications

CG223W

LCD Panel Size	22.0-inch (560 mm) TFT color		LCD
	Surface treatment Anti-Glare		Hard Coating
	Surface hardness 3H
	Viewing angle Viewing angle		Horizontal 178°, Vertical 178° (CR:10 or more)
	Dot Pitch 0.282 mm
	Response Time Approx. 12ms
Horizontal Scan Frequency	Analog 24-82 kHz
	Digital 31-65 kHz
Vertical Scan Frequency	Analog 47.5-86 Hz (1280 × 1024: ~ 76 Hz, 1680 × 1050: ~ 61 Hz)
	Digital 47.5-61 Hz (VGA TEXT: 69-71 Hz)
	Frame Synchronous mode	Analog 47.5-61 Hz
		Digital	47.5-61 Hz
Resolution			1680 dots × 1050 lines
Recommended Brightness 120 cd/m			2 or less (with color temperature of between 5000K to 6500K)
Max. Dot Clock	Analog 150 MHz
	Digital		120 MHz
Max. Display Color			Approx. 1073.74 million colors (DisplayPort 10bit)
Display Area (H × V)			473.76 mm × 296.1 mm
Power Supply			100-120/200-240 VAC ±10%, 50/60Hz, 0.85A/0.45A
Power Consumption	Screen Display On		85W or less (with USB load)75W or less (without USB load)
	Power saving mode		0.9W or less (for DVI-I (Analog) single signal input, without USB load,[Input SelectionI] : "Manual")
	Power button Off		0.7W or less (without USB load)
	Main Power switch Off		0W
Input Signal Connector			DVI-I connector (Applicable to HDCP) × 2
			DisplayPort (Standard V1.1a, applicable to HDCP)
Analog Input Signal (Sync)			Separate, TTL, positive/ negativeComposite, TTL, positive/ negative
Analog Input Signal (Video)			Analog, Positive (0.7Vp-p/75Ω)
Digital Signal (DVI) Transmission System TMD			S (Single Link)
Max. Video Signal Memory	Analog		45 (preset: 12)
Plug & Play			Analog / Digital (DVI-I) : VESA DDC 2B / EDID structure 1.3Digital (DisplayPort) : VESA DisplayPort / EDID structure 1.4
Dimensions	Main unit		511 mm (20.1 inch) × 347.5-521.5 mm (13.7 – 20.5 inch) × 240.5 mm (9.5 inch)
	Main unit (without stand)		511 mm (20.1 inch) × 333 mm (13.1 inch) × 85 mm (3.35 inch)
Mass	Main unit		Approx. 9.6 kg (21.2 lbs.)
	Main unit (without stand)		Approx. 6.6 kg (14.6 lbs.)
Movable range Tilt 30° Up, 0° Down
Environmental Conditions	Temperature Operating temperature: 0 °C - 35 °C (32 °F - 95 °F)Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)
	Humidity Operating humidity: 20% - 80% R.H. (no condensation)Storage humidity: 10% - 80% R.H. (no condensation)
	Pressure Operating: 700 to 1 060 hPaStorage: 200 to 1,060 hPa
USB Standard	USB Specification Revision 2.0
	Port Upstream port × 1, Downstream port × 2
	Communication Speed 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)
	Supply current Downstream: Max. 500mA/1 port

CG243W

LCD Panel Size	24.1-inch (610 mm) TFT color		LCD
	Surface treatment		Hard Coating
	Surface hardness		3H
	Viewing angle		Viewing angle : Horizontal 178°, Vertical 178° (CR:10 or more)
	Dot Pitch		0.270 mm
	Response Time		Approx. 13ms
Horizontal Scan Frequency	Analog		24-76 kHz
	Digital		26-78 kHz
Vertical Scan Frequency	Analog		47.5-86 Hz(1600 × 1200, 1920 × 1200: 49-61 Hz)
	Digital		23.75-63 Hz (VGA TEXT: 69-71 Hz)
	Frame Synchronous mode	Analog	47.5-61 Hz
		Digital	23.75-30.5 Hz, 47.5-61 Hz
Resolution			1920 dots × 1200 lines
Recommended Brightness			120 cd/m2 or less (with color temperature of between 5000K to 6500K)
Max. Dot Clock	Analog		170 MHz
	Digital		164.5 MHz
Max. Display Color			Approx. 1073.74 million colors (DisplayPort 10bit)
Display Area (H × V)			518.4 mm × 324.0 mm
Power Supply			100-120/200-240 VAC ±10%, 50/60Hz, 1.0A/0.5A
Power Consumption	Screen Display On		95W or less (with USB load)85W or less (without USB load)
	Power saving mode		0.9W or less (for DVI-I (Analog) single signal input, without USB load,[Input Selection] : “Manual”)
	Power button Off		0.7W or less (without USB load)
	Main Power switch Off		0W
Input Signal Connector			DVI-I connector (Applicable to HDCP) × 2
			DisplayPort (Standard V1.1a, applicable to HDCP)

Analog Input Signal (Sync) Separate, TTL, positive/ negativeComposite, TTL, positive/ negative
Analog Input Signal (Video) Analog, Positive (0.7Vp-p/75Ω)
Digital Signal (DVI) Transmission System TMDS (Single Link)
Max. Video Signal Memory	Analog 45 (preset: 9)
Plug & Play Analog / Digital (DVI-I) : VESA DDC 2B / EDID structure 1.3Digital (DisplayPort) : VESA DisplayPort / EDID structure 1.4
Dimensions	Main unit	566 mm (22.3 inch) × 456-538 mm (18.0 – 21.2 inch) × 230 mm (9.1 inch)
	Main unit (without stand) 566	mm (22.3 inch) × 367 mm (14.4 inch) × 85 mm (3.4 inch)
Mass Main unit	Approx. 10.7 kg (23.6 lbs.)
	Main unit (without stand) Approx.7.1 kg (15.7 lbs.)
Movable range Tilt 40° Up, 0° Down
		Swivel
		Adjustable height
		Rotation
Environmental Conditions	Temperature	Operating temperature: 0 °C - 35 °C (32 °F - 95 °F)Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)
	Humidity	Operating humidity: 20% - 80% R.H. (no condensation)Storage humidity: 10% - 80% R.H. (no condensation)
	Pressure	Operating: 700 to 1,060 hPaStorage: 200 to 1,060 hPa
USB	Standard USB Specification	Revision 2.0
	Port	Upstream port × 1, Downstream port × 2
	Communication Speed 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)
	Supply current	Downstream: Max. 500mA/1 port

Main default settings (factory settings)

Color Mode	Custom
PowerManager	On
Input Selection	Manual
Screen Size	FullI
Auto EcoView	Off
Outline Enhancer	0
Menu Position	Center
Language	English

Outside Dimensions

CG223W

Unit: mm (inch)

Outside Dimensions

CG243W

Unit: mm (inch)

Connector Pin Assignment

- DVI-I connector

Pin No.	Signal	Pin No.	Signal	Pin No.	Signal
1 T.M.D.S. Data 2- 11 T.M.D.S.		Data1/3	Shield 21 NC*
2 T.M.D.S. Data 2+ 12 NC* 22 T.M.D.S. Clock shield
3 T.M.D.S. Data2/4 Shield 13 NC* 23 T.M.D.S. Clock+
4 NC* 14 +5V Power			24 T.M.D.S. Clock-
5 NC* 15 Ground (return for +5V,			Hsync, and Vsync)	C1	Analog Red
6	DDC Clock (SCL)	16	Hot Plug Detect	C2	Analog Green
7	DDC Data (SDA)	17	T.M.D.S. Data0-	C3	Analog Blue
8	Analog Vertical Sync	18	T.M.D.S. Data0+	C4	Analog Horizontal Sync
9	T.M.D.S. Data1-	19	T.M.D.S. Data0/5 Shield	C5	Analog Ground(analog R,G,&B return)
10 T.M.D.S. Data1+		20 NC*

(NC*: No Connection)

- DisplayPort connector

Pin No.	Signal	Pin No.	Signal	Pin No.	Signal
1	ML Lane3-	8	Ground	15	AUX CH+
2	Ground	9	ML Lane1+	16	Ground
3	ML Lane3+	10	ML Lane0-	17	AUX CH-
4	ML Lane2-	11	Ground	18	Hot Plug Detect
5	Ground	12	ML Lane0+	19	Return
6	ML Lane2+	13	CONFIG1	20	DP PWR
7 ML	Lane1-	14	CONFIG2

- USB port

Upstream

Series B connector

Downstream

Series A connector

Contact No.	Signal	Remarks
1	VCC	Cable power
2	- Data	Serial data
3	+ Data	Serial data
4	Ground	Cable ground

6-6. Glossary

Clock

The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display. This is called clock adjustment. If the clock pulse is not set correctly, some vertical bars appear on the screen.

DisplayPort

VESA provides the digital interface standard for the digital display device. DisplayPort can transfer the video signal up to 16 bits for each channel of RGB, and the audio signal too. (This monitor supports the 8-bit video signal only.)

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC's digital data without loss. This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power-saving function. The “Monitor ON (operating mode)” and “Active Off (power-saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value produces a highcontrast image.

HDCP (High-bandwidth Digital Contents Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via DVI terminal on the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

Phase

Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment is made to adjust the timing. It is recommended that phase adjustment be made after the clock is adjusted correctly.

Range Adjustment

Range adjustment controls the signal output levels to display every color gradation. It is recommended that range adjustment be made before color adjustment.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of 1680(CG223W) / 1920(CG243W) horizontal pixels and 1050(CG223W) / 1200(CG243W) vertical pixels. At a resolution of 1680 x 1050(CG223W) / 1920 x 1200(CG243W), all pixels are illuminated as a full screen (1:1).

sRGB (Standard RGB)

"International Standard for Red, Green, and Blue color space" A color space was defined with the aim of the color matching between applications and hardware devices, such as monitors, scanners, printers and digital cameras. As a standard default space, sRGB allows Internet users to closely match colors.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000K: Slightly reddish white (usually used in print industry)

6500K: White called daylight color (suited for web browsing)

9300K: Slightly bluish white (usually used for television)

TMDS (Transition Minimized Differential Signaling)

A signal transmission system for digital interface.

VESA DPMS (Video Electronics Standards Association - Display Power Management Signaling)

VESA provides the standardization of signals from PC (graphics board) for power saving of PC monitors. DPMS defines the signal status between PC and monitor.

6-7. Preset Timing

The following table shows factory preset video timing (for analog signal only).

Attention

• Display position may be deviated depending on the PC connected, which may require screen adjustment using Adjustment menu.
• If a signal other than those listed in the table is input, adjust the screen using the Adjustment menu. However, screen display may still be incorrect even after the adjustment.
• When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the Adjustment menu.

Resolution	Applicable signal	Frequency Polarity					CG223W	CG243W
		Dot clock : MHz	Horizontal : kHz	Vertical : Hz	Horizontal	Vertical
640 × 480 VGA	25.18 31.47	59.94			Negative	Negative	√	√
720 × 400 VGA	TEXT 28.32	31.47	70.09		Negative	Positive	√	√
800 × 600	VESA	40.00	37.88	60.32	Positive	Positive	√	√
1024 × 768	VESA	65.00	48.36	60.00	Negative	Negative	√	√
1024 × 768	VESA	75.00	56.48	70.07	Negative	Negative	√	—
1024 × 768	VESA	78.75	60.02	75.03	Positive	Positive	√	—
1024 × 768	VESA	94.50	68.68	85.00	Positive	Positive	√	—
1152 × 864	VESA	108.00	67.50	75.00	Positive	Positive	√	—
1280 × 960	VESA	108.00	60.00	60.00	Positive	Positive	√	√
1280 × 1024	VESA	108.00	63.98	60.02	Positive	Positive	√	√
1600 × 1200	VESA	161.99	75.00	60.00	Positive	Positive	—	√
1680 × 1050	VESA CVT	146.25	65.29	59.95	Negative	Positive	√	√
1680 × 1050	VESA CVTRB	119.00	64.67	59.88	Positive	Negative	√	—
1920× 1200	VESA CVTRB	154.00	74.04	59.95	Positive	Negative	—	√

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000
• Restrictions on

• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements includes in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product Trade name: EIZO
	Model: ColorEdge CG223W / CG243W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.* Reorient or relocate the receiving antenna.* Increase the separation between the equipment and receiver.* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NoteUse the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.- AC Cord- Shielded Signal Cable (Enclosed)
Canadian NoticeThis Class B digital apparatus complies with Canadian ICES-003.Cct appareil numérique de le classe B est conforme à la norme NMB-003 du Canada.
