USER MANUAL HAND BLENDER SET MORPHY RICHARDS

Please read and keep these instructions

www.morphyrichards.com

IMPORTANT SAFETY INSTRUCTIONS CONTENTS The use of any electrical appliance requires the following basic common sense safety rules.

Important safety instructions

Electrical requirements

Unpacking your hand blender

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

Assembling the attachments

WARNING: Danger to the person!

Using the hand blender

IMPORTANT: Damage to the appliance!

Using for Ice crushing

Other safety considerations •

In addition we offer the following essential safety advice. •

Location Trouble shooting Wall mounting bracket

Getting the best from your new appliance...

Safety Take care when handling blades they are very sharp. Operation The hand blender is designed for intermittent use. Do not use non stop for more than 1 minute at a time. Allow to cool down for a minimum of 5 minutes before further use. WARNING: Do not blend in the chopping bowl or damage will occur to the blender blade and spindle. Use the plastic measuring beaker provided.

Remove all packaging and retain for future reference. Ensure the appliance is used on a firm, flat surface. Do not use the appliance outdoors or in a bathroom. Do not place the appliance on a highly polished wooden surface as damage may occur to the surface. Do not place the appliance on or near a hot surface such as a hot plate or radiant rings or near a naked flame. Do not let the mains lead overhang the edge of the table or work-top, or touch hot surfaces.

Never allow a child to operate this appliance. Teach children to be aware of dangers in the kitchen, warn them of the dangers of reaching up to areas where they cannot see properly or should not be reaching. Young children should be supervised to ensure that they do not play with the appliance

www.morphyrichards.com

Avoid touching moving parts. Keep hands, hair, clothing as well as spatulas and other utensils away from chopper blades during operation, to prevent personal injury and/or damage to the appliance. WARNING: To protect against risk of electric shock NEVER immerse the appliance body in water or in any other liquid and always

ensure the electrical connections are kept dry. This appliance is not intended for use by young children or infirm person unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

Disconnect the appliance from the mains supply when not in use, before taking off attachments and before cleaning. Never pull on the cord to unplug the appliance. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. The power cord cannot be replaced. Contact Morphy Richards for advice. The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury. Do not use the appliance for other than its intended use.

Product Specific Safety •

WARNING: The blender blades are very sharp. Handle with care when using and cleaning.

ELECTRICAL REQUIREMENTS Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current). If the socket outlets in your home are not suitable for the plug supplied with this appliance, the plug should be removed and the appropriate one fitted. WARNING: The plug removed from the mains lead, if severed, must be destroyed as a plug with bared flexible cord is hazardous if engaged into a live socket outlet. Where used, should the fuse in the 13amp plug require replacement, a 3 amp BS1362 fuse must be fitted. This appliance does not need to be earthed, as it is a double insulated product.

www.morphyrichards.com

WARNING: Carefully unpack your hand blender, blades are very sharp.

The chopper attachment can be used for meat, hard cheese, nuts, herbs, boiled eggs, dry bread etc.

Wash all parts before first use, see cleaning instructions page 6.

WARNING: Blades are very sharp.

Assembling the attachments

Insert by pushing the blending leg, whisk gearbox or the chopping bowl lid into the blender body, until it clicks into place.

Using the chopper attachment

Unpacking your hand blender

Your hand blender is designed to help you prepare

everything from soups to chocolate mousse, crush

ice quickly and chop a variety of food with minimal effort. The hand blender can be used with the measuring beaker or a saucepan.

WARNING: Make sure that the hand blender is switched off and unplugged from the mains. 1

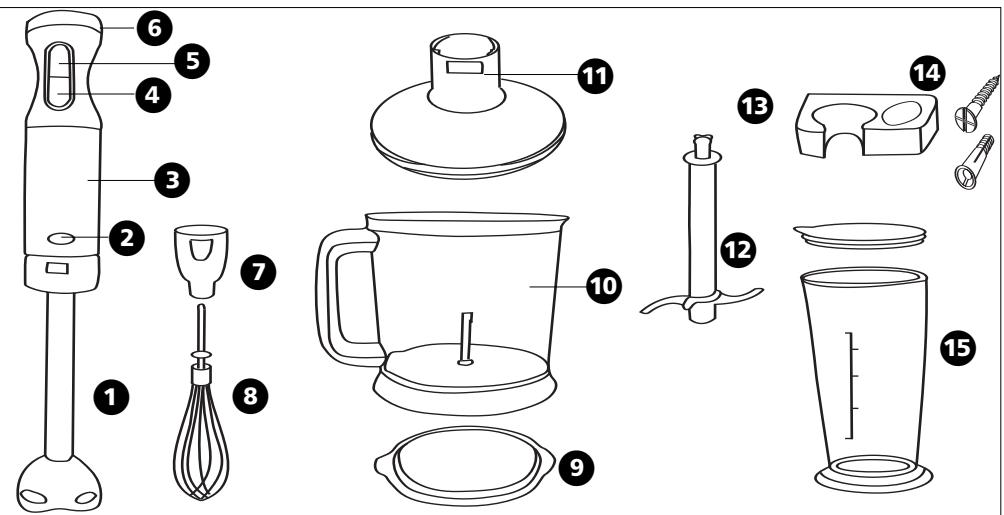

Blender leg Release button Blender body Turbo switch On/off switch 8 Speed control Whisk gearbox Whisk attachment Chopping bowl base (also storage bowl lid) Chopping bowl Chopping bowl operating lid Chopper blade Wall mounting bracket Wall mounting screw and wall plug x2 Plastic Measuring beaker with storage lid

Place the chopping bowl onto the chopping bowl base. This will prevent the jug from slipping C. Fit the chopping blade into the chopping bowl D. Add food to be chopped. Place the chopping lid on top, making sure that it is correctly fitted on the chopping blade E. Place the blender body onto the top of the chopping bowl lid until it has clicked into place. Plug the blender into the mains socket and press the on/off switch, holding the blender and jug firmly on the work surface. Note: Your hand blender is not suitable for grinding coffee beans.

A B WARNING: Do not blend in the chopping bowl or damage will occur to the product. Use the plastic measuring beaker.

The blender leg is fitted with a special blade suitable for crushing ice. It can be used to crush ice cubes to produce fine ice for cocktails, cold drinks etc.

D Place a maximum of 4 ice cubes in the plastic measuring beaker. Press firmly down on the ice cubes with the blender using a plunging action until the ice cubes are fine ice pieces.

Using for Ice crushing

Place the blending leg into the food to blend, select the required speed for your food on the speed control, then press the on/off button B. Release the on/off to stop blending. After use, unplug the blender and remove the blending leg by pressing the release button and pull gently away. Give the blending leg a rinse with cold water. If the main body has been splashed just give it a wipe with a damp cloth.

Clean the blending attachment before using it for the first time with a damp cloth. Insert the blending leg into the main housing and click into place A. The hand blender can now be plugged in and is ready to use.

When chopping meat ensure that all the bones have been removed, before adding to the bowl.

C WARNING: Your hand blender is designed for intermittent use. Do not use non-stop for more than 1 minute. Allow to cool down for a minimum of 5 minutes before further use.

www.morphyrichards.com

Using whisk attachment 1 2

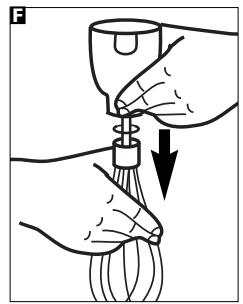

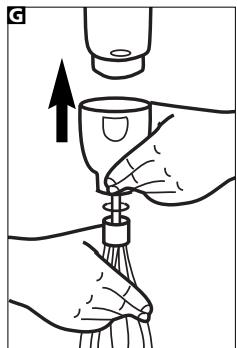

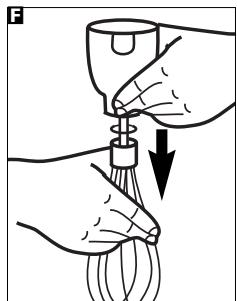

Insert the whisk attachment into the whisk gearbox F. Place the whisk gear box and whisk attachment onto the blender body, by aligning the release button indent on the gearbox until it has clicked into place G. To avoid splashing, start whisk on speed 1 and increase to speed 3 if required. Do not use ‘Turbo’.

Cleaning Before cleaning and maintenance, switch the appliance off and unplug it.

Is the plug itself or the socket faulty? Check this by plugging in another appliance.

WARNING: Handle the blades with care as they are sharp. • 1

When blending foods with strong colour (eg. carrots) the plastic parts of the appliance may become discoloured. Wipe with cooking oil to clean any discoloured parts. For blending and chopping, select a slow speed for soft ingredients, increase the speed to produce the consistency required. Select a high speed for chopping or blending hard ingredients. When using the blending leg, start the process by plunging the blender into the ingredients. This will ensure all the ingredients are pulled into the blade to be processed. Continue this movement until the mixture is to the desired consistency. Do not lift the blender head out of the mixture as splashing may occur.

The whisk gearbox and chopping bowl lid should be wiped over with a warm soapy cloth. Do not immerse these parts in water. Clean the main housing with a damp cloth and dry all the parts thoroughly.

WARNING: Never immerse main housing in water or any other liquid.

Appliance not working. The removable blender attachment has not been fitted correctly. Detach the attachment and replace as described in ‘Assembly’.

WARNING: Always ensure you are not drilling into the wall adjacent to any electrical wires or pipes such as water or gas. 1

Chopping bowl capacities

Below, there are a few guidelines. These may vary according to the quantity and the consistency of the food. Do not process for more than 1 minute at a time.

Find a suitable position on the wall or cupboard where the blender is to be positioned. Mark the fixing points through the bracket. If you are fixing to a solid brick or block wall use a suitable size masonary drill and drill to a depth of 25mm. If fixing to a wood or cupboard surface, drill a 2mm pilot hole or use a bradawl.

www.morphyrichards.com

This 5 year guarantee is only valid when registered directly with Morphy Richards. If you do not register your product it is guaranteed for 2 years

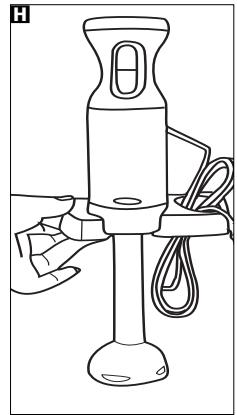

The hand blender can be wall mounted for convenient storage H.

For UK customers If you have any difficulty with your appliance, do not hesitate to call. We are more likely to be able to help than the store from where you bought it. Please have the following information ready to enable our staff to deal with your enquiry quickly: • •

Name of the product Model number as shown on the underside of the appliance or rating plate Serial number

H For UK customers only

Appliance gets very hot. Blender has been used continuously for too long. Leave the appliance to cool.

Wall mounting bracket

YOUR FIVE YEAR GUARANTEE Check the plug is in its socket and the switch is in the ‘on’ position.

To validate your 5 year guarantee, there are 2 easy ways to register: Telephone our consumer helpline 0870 060 2609. Once you have registered your product you will receive written confirmation from Morphy Richards, please retain this information. Alternatively, log on to www.morphyrichards.com and register online. You will receive an email confirmation, please print off and retain this information.

YOUR TWO YEAR GUARANTEE It is important to retain the retailers receipt as proof of purchase. Staple your receipt to this back cover for future reference. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product. Model no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced. If the fault develops after 28 days and within 24 months of original purchase, contact your local service centre at the address shown. You will be asked to return the product (in secure, adequate packaging) to the address below along with a copy of proof of purchase. Subject to the exclusions set out below (see Exclusions) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt. If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain

www.morphyrichards.com

your original till receipt or invoice to indicate the date of initial purchase. To qualify for the guarantee the appliance must have been used according to the instructions supplied.

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault has been caused by power surges or damage caused in transit. The appliance has been used on a voltage supply other than that stamped on the products. Repairs have been attempted by persons other than our service staff (or authorised dealer). Where the appliance has been used for hire purposes or non domestic use. Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.
