USER MANUAL M404002EE MORPHY RICHARDS

Please read and keep these instructions

Easy Blend Deluxe

The use of any electrical appliance requires the following common sense safety rules. Please read these instructions carefully before using the product.

• This appliance shall not be used by children. Keep the appliance and its cord out of the reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Unplug from the outlet when not in use, or when left unattended, and before assembling, disassembling or cleaning.
• Only use for the maximum time specified in the manual before allowing to cool.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Location

• This appliance is intended to be used in household and similar applications.
  • Do not use outdoors or in a bathroom.

Personal safety

- Avoid touching moving parts. Keep hands, hair and clothing, and utensils away from the blender attachment blades during operation, to prevent personal injury and/or damage to the appliance.

Other safety considerations

• The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.
• Do not use the appliance for anything other than its intended purpose.

Product specific safety

• WARNING: The blender blades are very sharp. Handle with care when using, emptying and cleaning.
• WARNING: To protect against fire, electric shock and personal injury, do not immerse the cord, plug or blender in water or other liquid.
• Do not clean the attachments under running water while they are in position.
  • Do not use the appliance if the Juice Filter is damaged.
  • Make sure the blender is switched off before connecting to or disconnecting from the mains supply and when left unattended.
• Switch off the appliance and disconnect from the supply before changing accessories or approaching parts that move in use.
• Do not use hot liquids in the blender as it can be ejected out of the appliance due to sudden steaming.

Electrical requirements

• Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).
• Should the fuse in the mains plug require changing, a 3 amp BS1362 fuse must be fitted.

Introduction

Thank you for purchasing your new Morphy Richards Easy Blend Deluxe.

Your Easy Blend Deluxe will allow you to create an extensive selection of sauces, dips, rubs and drinks.

Please read the instructions thoroughly before use.

Remember to visit www.morphyrichards.co.uk to register your products two year guarantee.

ML MAX 700 morphy richords P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Diagram of a container with scattered items and a lid, no text or symbols present

Technical diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

morphy richards

13 morphy richards

P O I II 14

morphy richards 15 O P I II

Technical line drawing of a mechanical component with circular motion indicators (no text or symbols)

morphy richards P

17 morphq richords P i

Simple line drawing of a wall-mounted electrical outlet with a plug and cable, no text or symbols present.

750 8 600 8 100 mm 19

morphy richards

20 morphy richards

Water is needed to be added to be added to the container

Technical line drawing of a blender with handle and lid, no text or symbols present

Contents

Health and Safety	2
Introduction	3
Features	7
Before First Use	7
Using The Easy Blend Beakers	7
Safety Seal	8
Usage	8
Crushing Ice	8
Grinding Spices	8
Using The Easy Blend Juicer	8
Suitable Foods	8
Beakers, Lids And Jug	9
Blending In The Jug	9
Blades	9
Hints And Tips For Juicing	9
General Hints And Tips	9
Care And Cleaning	10
Contact Us	10
Guarantee	10

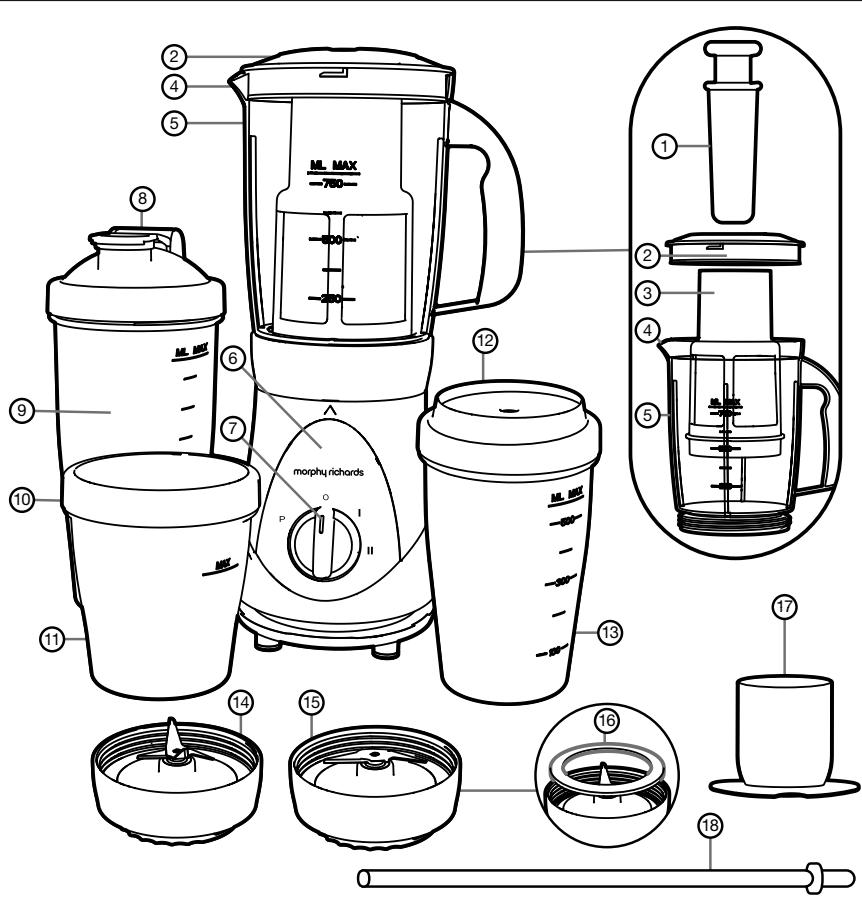

Features

(1)	Pusher
(2)	Juicer Lid
(3)	Filter
(4)	Spout
(5)	Jug
(6)	Main Unit
(7)	Speed Control
(8)	Sports Lid (x2)
(9)	750ml Beaker (x2)
(10)	Flat Lid
(11)	300ml Beaker
(12)	Straw Lid (x2)
(13)	500ml Beaker (x2)
(14)	Quad Blade Lid
(15)	Dual Blade Lid
(16)	Safety Seal
(17)	30ml Measuring Cap
(18)	Straw (x2)

Simple line drawing of a mechanical device with a handle and arrow, no text or symbols present

Pure diagram of a mechanical or optical component with concentric layers and a central oval feature, no text or symbols present.

Before First Use

WARNING: Sharp blades, handle with care.

Before using for the first time or if un-used for a long period, wash your Easy Blend Deluxe thoroughly before use.

1. Remove the Safety Seals (16) from the Blade Lids (14), (15).
2. Wash all parts except the Main Unit (6) in hot soapy water and dry thoroughly. Do not allow the Blade Lids to stand in water.

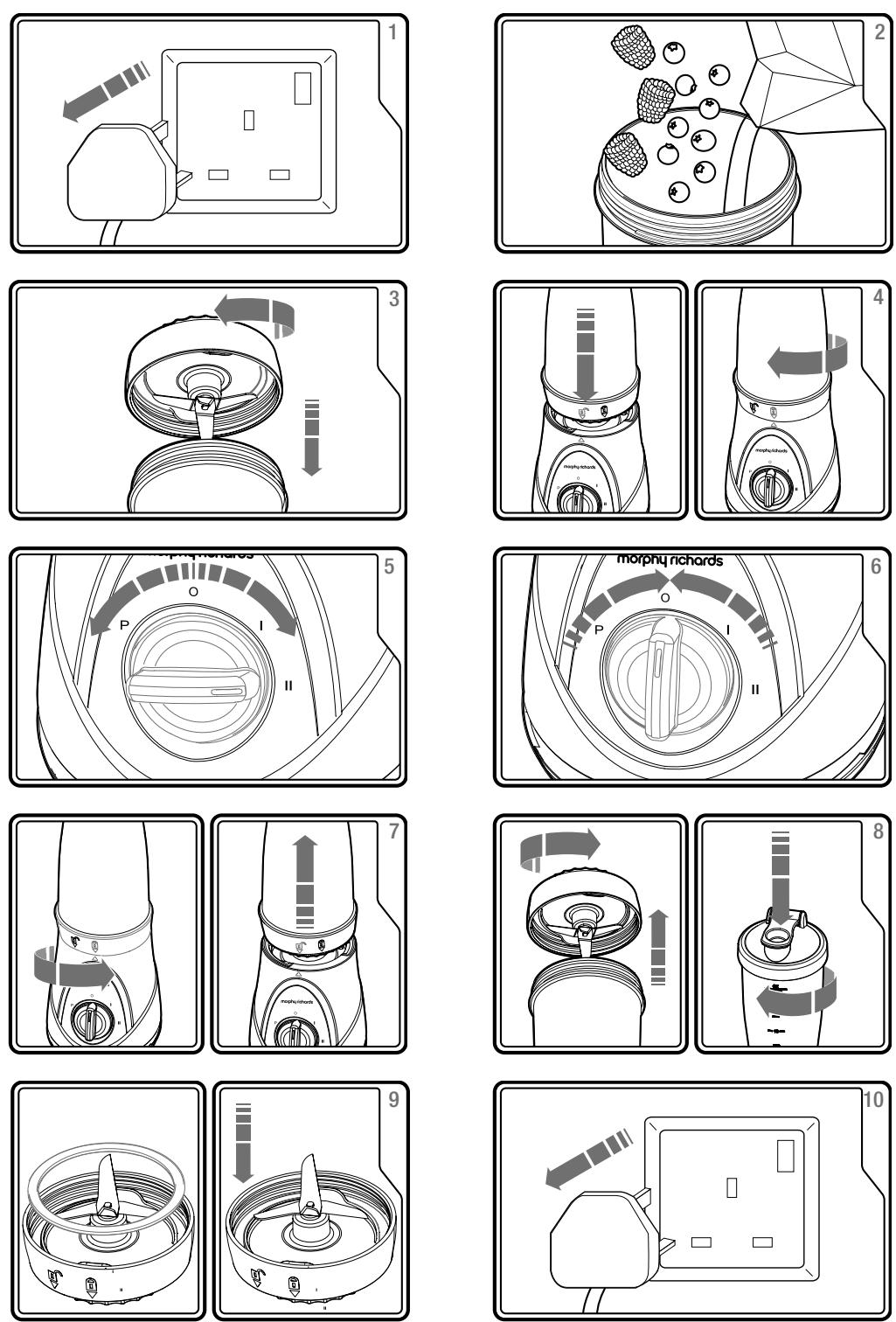

Using Your Easy Blend Beakers

WARNING: Ensure your Easy Blend is unplugged from the mains before use.
2 Add the ingredients to the desired Beaker (9), (11) or (13). Do not exceed the maximum level for the chosen beaker.
Ensure the Safety Seal (16) is fitted correctly in the Quad Blade Lid (14). Attach to the Beaker, screw to fix into place securely.
4 Attach the Blade Lid to the Main Unit (6). Align the open padlock and arrow and twist to lock into place.
5 Plug into the mains. Turn the Speed Control (7) to the desired speed High (II), Low (I), or Pulse (P). Your Easy Blend will begin to blend.
6 When finished, turn the Speed Control to the Off (O) position and unplug from the mains.
7 Hold the Blade Lid and twist to unlock from the Main Unit. DO NOT hold the Beaker.
8 Unscrew the Blade Lid from the Beaker. For drinks on the go, attach a Lid (8), (10), (12) to the Beaker.

Safety Seal 9

• There is a Safety Seal (16) in place on both the Blade Lids (14), (15). This is to prevent leakage from your Easy Blend when in use and for when the Beaker (9), (11), (13) is upside down.
• When inserting the Safety Seal, ensure that it is pressed tightly into the channel in the Blade Lid. Ensure the Safety Seal is correctly located before the Beaker or Jug (5) is screwed onto the Blade Lid.
• After screwing the Blade Lid onto the Beaker or Jug, look inside to check the Safety Seal is securely fitted before attaching to the Main Unit.
• Always ensure the Safety Seal is in place before use. Failure to do so could cause damage to the appliance.
• The Safety Seal only needs to be removed for cleaning. After cleaning ensure the seal is reinserted as directed before using the Easy Blend.

Usage

After 40 seconds of continuous use, you will need to switch off your Easy Blend and leave to cool for 5 minutes to prevent overheating.

For Juicing, after 60 seconds of continuous use, switch off and leave to cool for 30 seconds.

Crushing Ice

• If using ice in a recipe (i.e. blending it with other liquids). Do not use more than 6 ice cubes.
  • Only crush ice as part of the recipe - do not crush ice on its own.

Grinding Spices

10 WARNING: Ensure your Easy Blend is unplugged from the mains before use.

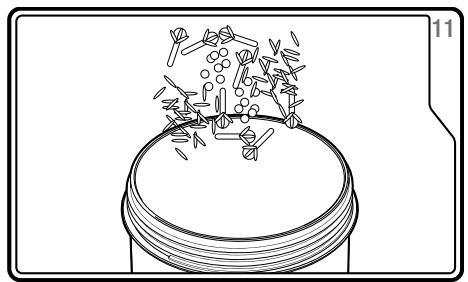

11 Add the ingredients to the 300ml Beaker (11). Do not exceed the maximum level.

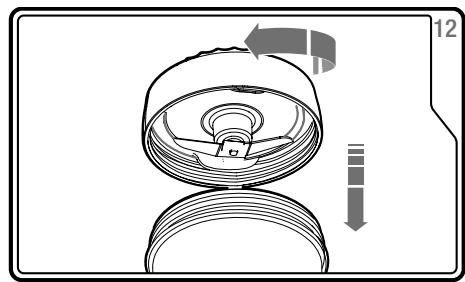

12 Ensure the Safety Seal (16) is fitted correctly in the Quad or Dual Blade Lid (14), (15). Attach the selected Blade Lid to the Beaker. Screw to fix into place securely.
13 Attach the Lid to the Main Unit (6). Align the open padlock and arrow and twist to lock into place.

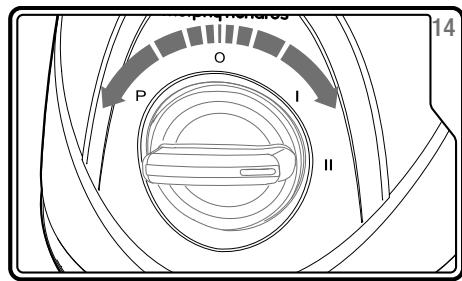

14 Plug into the mains. Turn the Speed Control (7) to the desired speed High (II), Low (I), or Pulse (P). Your Easy Blend will begin to grind.

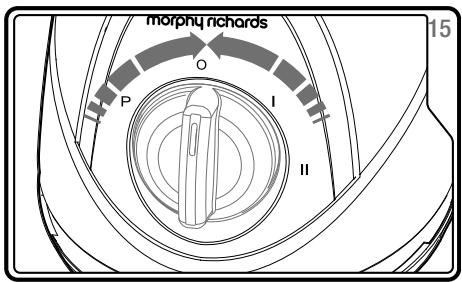

15 When finished, turn the Speed Control to the Off (O) position and unplug from the mains.

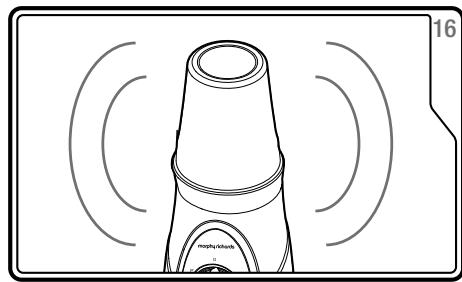

16 It may be necessary to shake your Easy Blend to loosen the spices when grinding.
17 Hold the Blade Lid and twist to unlock from the Main Unit. DO NOT hold the Beaker.

Using Your Easy Blend Juicer

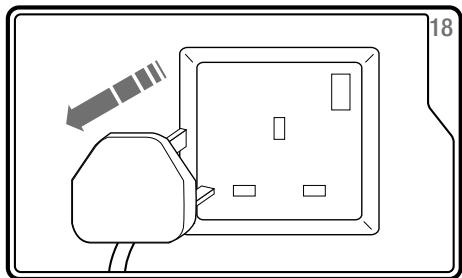

18 WARNING: Ensure your Easy Blend is unplugged from the mains before use.

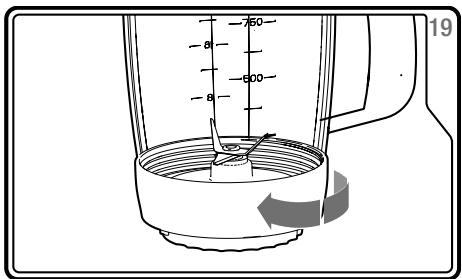

19 Ensure the Safety Seal (16) is fitted correctly to the Quad Blade Lid (14). Attach the Quad Blade Lid to the Jug (5). Screw to fix into place securely.
20 Attach the Quad Blade Lid to the Main Unit (6). Align the open padlock and arrow and twist to lock into place.

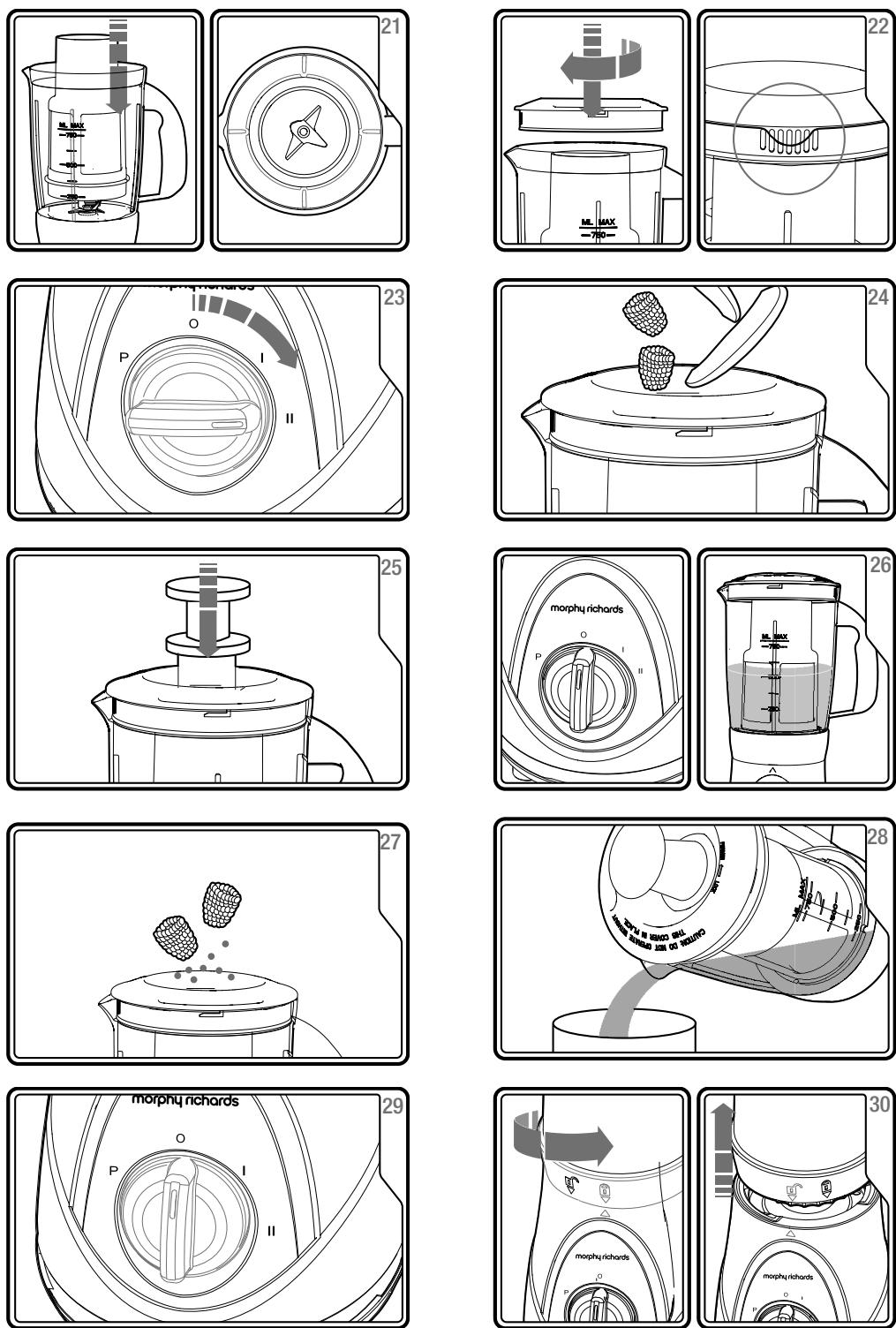

21 Insert the Filter (3) into the Jug. Align the black frame with the lines in the Jug. The four lines on the inside of the Jug will line up with the four cut-outs on the base of the Filter.
22 Attach the Juicer Lid (2). Twist clockwise to lock, aligning the grate with the spout of the Jug. The Juicer Lid will not fit the Jug correctly if the Filter is not properly inserted.
23 Plug into the mains. Turn the Speed Control (7) to High (II).
24 Add a small amount of fruit or vegetables to the Jug, do not over fill.
25 If required, gently press down with the Pusher (1) pushing the fruit or vegetables into the blades.
26 Do not run for more than 60 seconds, switch off your Easy Blend and wait 30 seconds before continuing.
27 When adding fruit for juicing, do not look into the Lid while your Easy Blend is running as 'spitting' may occur. Switch off before looking into the top of the Jug.
28 If the Jug becomes full, switch off, unscrew from the Main Unit (see step 13) and decant before continuing. Mix the juices together before drinking for a better flavour.
29 When finished, turn the Speed Control to the Off (O) position and unplug from the mains.
30 Hold the Blade Lid and twist to unlock from the Main Unit. DO NOT hold the Jug.
31 Pour the juice from the Jug and dismantle for cleaning. Clean the Filter immediately after use.

Suitable Foods

Blending

Your Easy Blend Deluxe is ideal for blending a wide range of foods, including fruit and dairy. However it is NOT suitable for the following uses:

• Grinding or mashing heavy foods (e.g. potatoes or meat).

• Stirring thick mixtures (eg dough).

Grinding

The spice mixes produced are best made with the Dual Blade (15). When grinding garlic or ginger however, the Quad Blade (14) should be used.

Juicing

- A wide range of fruits can be juiced, however it should be prepared correctly before juicing. Your Easy Blend Deluxe is unable to separate citrus peel or pith from fruit so it should be removed and flesh cut into segments prior to juicing.

• DO NOT juice hard vegetables (turnip, carrot potatoes, uncooked beetroot etc).
- Cut all fruit and vegetables into segments or thin sticks before juicing.

Beakers, Lids And Jug

Your Easy Blend comes with 5 beakers of varying capacity.

Blending beakers (9), (11), (13)

There are 3 sizes of blending beakers supplied. 300ml (11), 500ml (13) and 750ml (9). Do not overfill. The Beakers have 3 separate Lids, all are interchangeable between the different sizes. We recommend grinding spices or coffee in the 300ml capacity beaker.

Lids (8), (10), (12)

There are three types of beaker lids supplied. All the lids are compatible with all the beakers. Use the Sports (8) and Straw Lids (12) for drinks on the go. Use the Flat Lid (10) to store rubs, marinades and sauces.

Jug (5)

The Jug supplied is for use with the Juicing process, as depicted on page 8-9. It has a maximum capacity of 750ml. You can also use the Jug to blend smoothies and milkshakes by following the steps detailed to the right.

Blending In The Jug 32

1. Follow steps 1-3 of 'Using your Easy Blend Juicer.'
2. Add your ingredients to the Jug (5), Do not over fill. The Jug has a maximum capacity of 750ml.
3. Insert the Measuring Cap (17) into the Juicer Lid (2) twist to lock into place. Attach the Lid to the Jug ensuring the blank side of the Lid is aligned with the spout (not the grate). See above.
   Ensure the Measuring Cap and Lid are fixed in place securely.
4. Blend as normal (Steps 5-6 of 'Using your Easy Blend Beakers').
5. Before pouring your drink from the Jug, detach from the Main Unit (6).

Blades

Your Easy Blend comes with 2 separate Blade Lids.

Quad Blade (14)

The Quad Blade is designed for blending and mixing wet ingredients such as fruit or vegetables. This blade should be used for making smoothies or juicing.

Dual Blade (15)

The Dual Blade is designed for use with dry ingredients like coffee beans or herbs and spices.

Note: neither blade is suitable for blending bone, potatoes, dough or heavy foods.

Hints And Tips For Juicing

• Prepare all the ingredients first and have them conveniently placed near the appliance, this will ensure you keep the juicing time short. Do not exceed 550g of prepared fruit for juicing.
• The recipe cards supplied should give you 1 glass (approximately 200ml) of fresh juice depending on the condition of the fruits used.
• If you should need to juice for more than 1 minute, switch off, allow to rest for 30 seconds, continue for a further 30 seconds if required. Do not exceed this 1 minute run time as permanent damage could be caused to the motor and blade bearing.
• When removing the Jug from the Main Unit (6), ensure you do not unscrew the jar from the Blade Lid. Support the Blade Lid if you see it turning, leakage will occur if you allow this to happen.
• When pouring juice out keep the pusher in place to retain the pulp.
• After pouring the juice out into a glass allow the pulp to stand in the jug for 2 minutes, this will allow more juice to flow through the Filter mesh (3).

General Hints And Tips

• To reduce the thickness of a smoothie, use the Pulse setting.
- Use the Pulse speed setting (P) for short periods of up to 10 seconds. For longer periods of time blending, use Speed II.
- When removing the Beaker from the Main Unit (6) hold the edge of the Blade Lid and twist. DO NOT hold the Beaker.
- If using seeded berries, you may wish to sieve the drink before serving for a smoother consistency.
- Ripe bananas give a much better, sweeter flavour than green ones.
• Pineapple should be fresh, with all skin removed.
- Mango should be ripe, peeled and de-stoned.
- Remove the peel and pith from citrus fruit to avoid a bitter tasting juice and damaging the Easy Blend Deluxe.
- Soak fresh ginger in cold water for a few minutes before use for a milder flavour.
- Ingredients at room temperature will give a higher juice yield than those used straight from the refrigerator.
- Tomatoes produce a thick juice, adding a few grapes will dilute the drink and add sweetness.
• Use seasonal ingredients to add variety to your fruit juices.
- Add a few herbs to vary the flavour or add a handful of kale for a healthier option.
- Remove the skin from cucumber to alleviate the bitterness.

Care And Cleaning

It is important to clean your Easy Blend Deluxe immediately after use.

1. Switch your Easy Blend Deluxe off and unplug from the mains outlet.
2. Remove the Safety Seal (16) from the Blade Lids (14), (15).

WARNING: Extreme care must be taken when washing the metal blades as they are sharp.

1. Wash all parts except the Main Unit (6) in hot soapy water, dry thoroughly. Do not allow the Blade Lid to stand in water.
   A small brush can be used to remove food from under the blade on the Blade Lids and the Filter (3).
2. Replace the Safety Seal into the Blade Lids before use. Ensure the Safety Seal is correctly located before the Beaker is screwed onto the Blade Lid.
3. Clean the Main Unit with a damp cloth. Do not immerse in water.

- The Beakers (9),(11),(13), and Lids (8),(10),(12), are dishwasher safe, place on the top shelf on a cool wash only.

WARNING: Always unplug the appliance before cleaning.

Contact Us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from.

Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry more quickly.

UK Helpline: 0344 871 0944

IRE Helpline: 1800 409 119

Spares: 0344 873 0710

Talk To Us

If you have any questions or comments, or want some great tips or recipe ideas to help you get the most out of your products, join us online:

Blog: www.morphyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: @loveyourmorphy

Website: www.morphyrichards.com

THIS SECTION IS ONLY APPLICABLE FOR CUSTOMERS IN UK AND IRELAND

REGISTERING YOUR TWO YEAR GUARANTEE

Your standard one year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the

product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at www.morphyrichards.co.uk

N.B. Each qualifying product needs to be registered with Morphy Richards individually. Please refer to the one year guarantee for more information.

YOUR ONE YEAR GUARANTEE

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced. If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown. You may be asked to return a copy of proof of purchase. Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt. If, for any reason, this item is replaced during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase. To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, crumb trays should have been emptied regularly.

EXCLUSIONS

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 The appliance has been used for hire purposes or non domestic use.
5 The appliance is second hand.
6 Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

7 Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.
8 Batteries and damage from leakage are not covered by the guarantee.
9 The filters have not be cleaned and replaced as instructed.

This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

YOUR INTERNATIONAL TWO YEAR GUARANTEE

This appliance is covered by two-year repair or replacement warranty.

It is important to retain the retailers receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 24 months of original purchase, you should contact your local distributor quoting Model number and Serial number on the product, or write to your local distributor at the addresses shown.

You will be asked to return the product (in secure, adequate packaging) to the address below along with a copy of proof of purchase.

Subject to the exclusions set out below (1-9) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt.

If for any reason this item is replaced during the 2-year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 2-year guarantee the appliance must have been used according to the manufacturers instructions. For example, appliances must have been descaled and filters must have been kept clean as instructed.

The local distributor shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 Where the appliance has been used for hire purposes or non domestic use.
5 The appliance is second hand.

6 The local distributor are not liable to carry out any type of servicing work, under the guarantee.
7 The guarantee excludes consumables such as bags, filters and glass carafes.
8 Batteries and damage from leakage are not covered by the guarantee.
9 The filters have not be cleaned and replaced as instructed.

This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

AUSTRALIAN WARRANTY

This appliance is guaranteed for 2 years against faulty material, components and workmanship.

This warranty is in addition and does not affect your statutory rights.

Proof of purchase must be produced for any warranty benefit.

In the unlikely event of any appliance proving to be faulty, securely pack and return the item to the place of purchase accompanied by the original receipt or invoice.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

NOT COVERED BY THIS WARRANTY

(Australian only)

• If the appliance has not been used in accordance with the manufacturers' recommendations or Instructions.
• If the fault is deemed to be caused by abuse, misuse, neglect, modifications or in proper use and or care

Eg: Kettles: Excessive build up of scale.

Toasters: Excessive build up of crumbs or foreign matter etc.

• Connection to incorrect voltage to that stamped on the product.
• Unauthorised repairs.
• Appliance used other than for domestic purposes.
• Excluding bags, filters, glass, carafes, and cutting blades.
• Freight and insurance costs.

If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original receipt or invoice to indicate the date of original purchase.

Morphy Richards's policy is to continually improve quality design and product quality. The company therefore reserves the right to change any specifications or to carry out modifications as deemed worthy at any time.

The Australian supplier reserves the right to repair, modify, exchange or replace the faulty appliance with the same or similar model or product of equivalent value.

Santé et sécurité

Blog : www.morphyrichards.co.uk/blog

Facebook : www.facebook.com/morphyrichardsuk

Twitter : @loveyourmorphy

Site Internet : www.morphyrichards.com

Coperchi (8), (10), (12)

Dual Blade (a due lame) (15)

Blog:	www.morphyrichards.co.uk/blog
Facebook:	www.facebook.com/morphyrichardsuk
Twitter:	@loveyourmorphy
Sito web:	www.morphyrichards.com

GARANZIA DI DUE ANNI

GB Morphy Richards products are intended for household use only.

Morphy Richards has a policy of continuous improvement in product quality and design.

The Company, therefore, reserves the right to change the specification of its models at any time.

The After Sales Division,

Morphy Richards Ltd, Mexborough, South Yorkshire, England, S64 8AJ

Helpline (office hours) UK 0845 871 0960 Republic of Ireland 1800 409119

AUS Glen Dimplex Australia

Unit 1, 21 Lionel Road, Mount Waverley, Victoria 3149

T:1300 556 816

E : [e-mail]

NZ Glen Dimplex New Zealand

38 Harris Road, East Tamaki, Auckland, New Zealand

T:09 2748265

E : [e-mail]

For electrical products sold within the European Community.

At the end of the electrical products useful life it should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice in your country.

www.morphyrichards.com
