Technical data

		DW710
Voltage	V	230
Power input	W	1000
Blade diameter	mm	250
Blade bore	mm	30
Max. blade speed	min	2850
Max. cross-cut capacity at 90°	mm	125
Max. litre capacity 45°	mm	85
Max. depth of cut 90°	mm	50
Max. depth of bevel cross-cut 45°	mm	35
Mitre (max. positions)	left	48°
	right	48°
Bevel (max. positions)	left	45°
	right	0°
0° litre
Resulting width at max. height 135 mm	mm	45
Resulting height at max. width 50 mm	mm	125
45° litre
Max. width at max. height 90 mm	mm	50
Max. height at max. width 100 mm	mm	42
45° bevel
Max. width at max. height 40 mm	mm	100
Resulting height at max. width 135 mm	mm	32
Automatic blade brake time	s	< 10.0
Weight	kg	24
Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Sharp edges.

Declaration of conformity

DW710

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 61029-1, prEN 61029-2-11, EN 55014, EN 55014-2, EN 61000-3-2 & EN 61000-3-3.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to prEN 61029-2-11:

		DW710
LpA (sound pressure)	dB(A)*	90.8
LWA (acoustic power)	dB(A)	98.8

• at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to prEN 61029-2-11:

Director Engineering and Product Development Horst Großmann

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators).

For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (Fl) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Keep all people away from the work area.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

• Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DeWALT repair agent.

20 Have your tool repaired by an authorized DeWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety rules for metre saws

21 Guard actuation

The blade guard on your saw will automatically raise when the arm is brought down; it will lower over the blade when the arm is raised. The guard can be raised by hand when installing or removing saw blades or for inspection of the saw. Never raise or lower the blade guard manually unless the saw is turned OFF.

22 Saw blades

Make sure that the blade rotates in the correct direction. Keep the blade sharp. Do not use blades of larger or smaller diameter than recommended. For proper blade rating refer to the technical data.

23 Blade guards

Never operate the saw without the guards in place.

24 Mind your hands

Keep your hands out of the path of the saw blade. Never place them in the blade area when the saw is connected to the electrical power source.

25 Stopping the motor

Raise the blade from the kerf in the workpiece prior to releasing the switch. Never attempt to stop the machine in motion by jamming a tool or similar against the blade. Do not wedge anything against the fan to hold the motor shaft.

26 Maintenance of the blade and arbour collars

Make sure that the blade is not damaged or cracked and that the armour collars are clean on the surfaces of contact. Use both wrenches to tighten.

Additional safety rules for saw benches

27 Saw blades

Make sure that the blade rotates in the correct direction and that the teeth are pointing to the front of the saw bench.

28 Riving knife

Make sure that the riving knife is adjusted to the correct distance from the blade - maximum 5 mm.

29 Blade guards

Never operate the saw without the upper and lower guards in place.

30 Push stick

Use a push stick at all times, and ensure that you do not place hands closer than 150mm from the saw blade while cutting.

31 Material

Do not use the saw for cutting any material other than wood.

Package contents

The package contains:

1 Assembled table top litre saw
1 Rip fence
1 Top guard for bench saw position
1 Bottom guard for bench saw position
1 Push stick
1 Plastic bag containing:
2 pairs black plastic handles (2 flat & 2 curved end)
4 flat head screws M6 x 16
4 washers D6
4 hex.nuts M6
1 Allen Key 4 mm
1 Allen key 6 mm
1 spanner 10/13 mm
1 dust extraction adapter
Instruction manual
Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

• Remove the saw from the packaging material carefully.
• Remove the 4 hex. headed screws securing the machine to the wooden packaging.
• Release the head lock down knob (14) to raise the head of the machine.

Description (fig. A1 - A4)

A1

1 Bevel locking handle
2 Rotating table locking knobs
3 Mitre fence
4 Plastic feet
5 Plastic handles/work supports
6 Head lock up release lever
7 Switch

8 Additional saw bench table locking knob
9 Moveable lower blade guard

10 Adjustable cut - to length gauge/material support (optional accessory)

11 Rotating work table
12 Steel base
13 Mitre latch lever
14 Head lock down knob

A2

15 Saw bench table
16 Riving knife
17 Upper saw blade guard
18 Rip fence
19 Fixed lower guard (for use in bench saw position)

Optional accessories

A3

20 Material clamp*

A4

9 Adjustable cut - to length gauge/material support
refer to sales literature

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

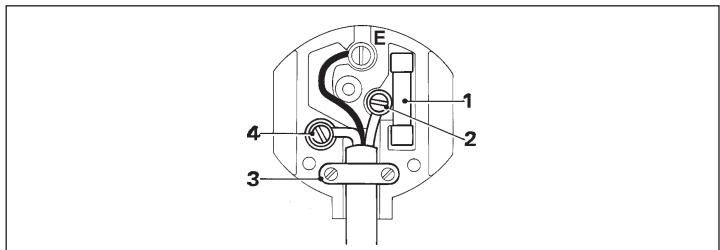

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DeWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 1 .

Using an extension cable

If an extension cable is required, use an approved triple-core extension cable suitable for the power input of this tool (see technical data).

The minimum conductor size is 1.5mm^2 . When using a cable reel, always unwind the cable completely. Also refer to the table below.

Conductor size (mm2)	Cable rating (Amperes)
0.75	6
1.00	10
1.50	15
2.50	20
4.00	25

Voltage	Amperes	Cable length (m)
		7.5	15	25	30	45	60
115	0 - 2.0	6	6	6	6	6	10
	2.1 - 3.4	6	6	6	6	15	15
	3.5 - 5.0	6	6	10	15	20	20
	5.1 - 7.0	10	10	15	20	20	25
	7.1 - 12.0	15	15	20	25	25	-
	12.1 - 20.0	20	20	25	-	-	-
230	0 - 2.0	6	6	6	6	6	6
	2.1 - 3.4	6	6	6	6	6	6
	3.5 - 5.0	6	6	6	6	10	15
	5.1 - 7.0	10	10	10	10	15	15
	7.1 - 12.0	15	15	15	15	20	20
	12.1 - 20.0	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Fitting and adjusting the side handles (fig. B1 - B3)

The machine is supplied with two plastic side handles (5) for easy holding of the base when carrying.

These handles are constructed in two parts in order to be adjustable.

They also act as material supports on each side of the base.

• To mount, take one flat part (22) and one part with a curved edge (21) and place the serrated surfaces together. The serrations allow adjustment, whilst firmly locking them together (fig. B1).
• Place the handles against the side of the base (12), lining up the holes in the handles with the set of holes nearest to the front provided in the base. Ensure the curved edge is to the top and pointing to the centre of the table (fig. B2).
• Using the flat HD screws M6 x 16, four washers D6 and four Hex nuts M6, screw the handles on loosely. Check that the flange on the bottom of the flat section is under the edge of the base.
• Having mounted both handles, take a piece of flat wood and lay it up against the metre fence (3) and across the table. Ensure that the tops of the handles are touching the wood (fig. B3).
• Now firmly tighten all bolts.

Mounting the upper guard (fig. C)

• Fasten the guard (17) to the riving knife (16) with the bolt (23). Place the washer and wingnut onto the other end of the bolt and tighten.
• Fit the dust spout (24) to the blade guard.

Mounting and adjusting the rip fence (fig. D1 - D4)

The rip fence consists of a fixed and a sliding fence.

• Loosen the fence support locking knob (25) which holds the clamping plate in position (fig. D1).
• Slide the fence onto the front of the table using the U-shaped slot as the guide (fig. D2 & D3).
• Slide the fence towards the blade and tighten the locking knob. Check that the fence is parallel to the blade. If not, then adjust as follows (fig. D4).
• Loosen the sliding fence locking knob (26) (fig. D1) and slide the sliding fence backwards in order to obtain full sight on the two holes (27) (fig. D4) in the top of the fence.
• Loosen the two Allen screws fastening the fence to the fence support with the small Allen key. Access is gained through the two holes in the top of the fence.
• Adjust the fence so that it is parallel to the blade by checking the distance between the blade and the fence at the front and rear of the blade.
• When the adjustment has been carried out, re-tighten the Allen screws and check again that the fence is parallel to the blade.

Adjusting the saw bench table (fig. A1, E1 - E3)

The table slides up and down manually and is held at the required height with two locking knobs. The locking knobs are located under the table, the main at the rear of the motor (28) (fig. E1) and the additional at the front to the left of the saw blade (8) (fig. A1).

• Loosen the knobs and position the table as required.
• When the unit is being used as a saw bench, the fixed lower guard (19) should always be used (fig. E3). Remove the M10 hex nut (29) and fit the guard as shown (fig. E2). Replace the nut and tighten so that the guard is fixed in position. The machine should always operate in the bench position with this guard in place.

Mounting the saw blade (fig. F1 - F4)

The teeth of a new blade are very sharp and can be dangerous.

In order to fit a new saw blade it is necessary to remove the table and raise the saw bench table to its highest position.

• Take the pin spanner (30) and place the two holes on the outside of the outer arbor collar (31) (fig. F2).
• In the centre is a large Allen screw. Place the short leg of the 6 mm Allen key (32) through the hole in the metal guard main frame and into the Allen screw.
• This screw has a left-handed thread, therefore holding the spanner firmly, turn the Allen key clockwise to loosen.
  Take out the screw and remove the outer arbor collar.
• The collar (31) has two locking projections (33) that pass through the blade and into the inner arbor collar and locate one on each side of the spindle against the flats provided (fig. F3 & F4).
• The blade has a 30mm bore, and is located on a step flange on the inner arbor collar.
• The movable blade guard (9) must be retracted. To do so, take out the Allen screw (34) on the right-hand side of the fixed nose piece and slide the guard back. Leave retracted (fig. F1).
• Remove the blade (35) (fig. F2).

• To fit a new blade just reverse the process, taking care to ensure that the blade is seated on the inner flange with the teeth pointing downwards towards the table.

• Ensure that the two projections on the outer collar are seated properly through the inner collar and onto the flats on the spindle.

• Tighten the screw securely.
• Remove the guard back down and replace the Allen screw (34) (fig. F1).

The maximum diameter blade that can be fitted is 240~mm

Adjusting the saw blade (fig. F2)

If the saw blade is wobbling during start up and run down, then adjust as follows.

• Loosen the screw for the arbor collar (31) and rotate the blade (35) a quarter turn.
• Retighten the screw and check to see if the blade has any wobble.
• Repeat these steps until the blade wobble has been eliminated.

Checking and adjusting the blade vertical to the rotating table (fig. G1 & G2)

• With the head in the vertical position and the bevel locking handle (1) tight (which can be repositioned by pulling out and rotating clear of its spline rotation), place a set square on the table and up against the blade (35) (fig. G1).
• If the angle is not 90^ , then to adjust loosen the bevel locking handle (1) and tilt the head slightly.
• Loosen the locking nut (36) on the adjustment bolt (37) situated in the left underside of the rotating casting (fig. G2).
• Now screw the bolt in or out as necessary to obtain an angle of 90^ (fig. G2).
• Re-tighten the locking nut.

Checking and adjusting the bevel angle (fig. H)

• Loosen the bevel locking handle (1) and position the head to the left up to its maximum.
• Check the angle from the blade to the table with a suitable protractor. It should be 45^ .
• If not, loosen the lock nut (38) on the bolt and screw bolt (39) either in or out until the correct 45^ angle is achieved.
• Re-tighten the locking nut.

Checking and adjusting the blade to the metre fence (fig. J1 - J3)

• With the head in the vertical position and the bevel handle locked, the rotating table positioned at 0^ and the litre latch lever (13) engaged, pull down the head until the blade enters the slot in the table (fig. J2).
• Now place a set square against the metre fence and along the blade. The angle should be 90^ (fig. J1).
• If adjustment is required, loosen the two Allen screws (40), one each side of the litre latch lever (13), and loosen the two rotating table locking knobs (2) (fig. J2 & J3).
• Now move the litre latch assembly and table either left or right as required.
• Re-tighten the Allen screws (40) and the rotating table locking knobs (2).
• Re-position the pointer (41) to 0^ . This is done by loosening the screw with a screwdriver.

Adjusting the riving knife (fig. A1, K1 - K3)

The correct position is for the top of the riving knife (16) to be no more than 2mm below the highest tooth of the blade and the body of the radius to be a maximum of 5mm from the tips of the saw blade teeth (fig. K1).

• Loosen the table locking knobs, both main (28) (fig. K2) and additional (8) (fig. A1), but do not take them off.
• Use the Allen key to remove the screw (42) from the rear table column (fig. K2). Take the nut and washer off the other end of the screw.
• Remove the table.

• The riving knife (16) (fig. K1) is fastened by a large Allen screw (43) towards the rear of the right-hand side under the table (fig. K3).

• To adjust the riving knife, loosen the Allen screw which allows both the bracket to rotate and the riving knife to move up and down.

• After loosening, rotate the bracket and slide the knife either up or down until the correct position is attained.
• Retighten the screw (43) firmly (fig. K3).
• Replace the table and replace the Allen screw assembly (42) (fig. K2).
• Set the table to the proper height needed.
• Tighten the table locking knobs (fig. A1 & K2).

Lubrication

This machine requires no additional lubrication. The bearings of the motor are pre-lubricated and watertight.

• Avoid using oil or grease as this can cause clogging with sawdust and chips and create problems.
• Clean the parts subject to accumulation of sawdust and chips periodically with a dry brush.

Instructions for use

Always observe the safety instructions and applicable regulations. The attention of UK users is drawn to the "woodworking machines regulations 1974" and any subsequent amendments.

Sawing in litre saw mode

It is dangerous to operate without guarding. Guards must be in position when sawing.

Vertical straight cross cut (fig. L)

• Set the rotating table to 0^ and lock the table locking knobs (2).
• Place the wood to be cut against the metre fence (3). Take hold of machine handle and press in the head lock-up release lever (6).
• Pull down the head approximately 10mm and release the lock-up lever.
• Now press in the switch (7) and depress the head to allow the blade to cut through the timber and enter the table slot.
• Allow the blade to cut freely. Do not force.
• Switch off by depressing the switch again.

Bevel cross cut (fig. M)

• Release the bevel locking handle (1) and tilt the head to the angle required.
• Then re-lock the bevel locking handle.
• Now follow all steps set out in "Vertical straight cross cut".

Vertical litre cut (fig. N)

• Release the table locking knobs (2).
• Lift the litre latch lever (13) to disengage it from the 0^ position. Note that the latch has positive locations at 0^ , 22 - 30^ and 45^ and is spring loaded.
• To obtain these positions simply allow the latch to engage as the table is rotated.
• For other settings, use the pointer in conjunction with the scale on the table and use the table locking knobs (2) on the fence to lock in position.
• Now follow all the steps set out in "Vertical straight cross cut".

This machine cannot be used for bevelling when set in the litre position; i.e. it will not compound litre.

Sawing in the bench mode

Ripping (fig. A1, A2, D1, E1 & O)

• Set the blade to the vertical position.

• Loosen the table locking knobs, both main (28) (fig. E1) and additional (8) (fig. A1), but do not take off. Set the depth of cut by sliding the table (15) (fig. A2) up or down. The correct position is to have the tips of three teeth above the top surface of the wood.

• Loosen the sliding fence locking knob (26) (fig. D1) and slide the sliding fence front or rear in order to support as much of the workpiece as possible. At least the rear end of the fence should be level with the front of the riving knife.

• Lock the table locking knobs tightly.
• Ensure the plastic guard plate (19) is in fixed position (fig. A2).
• Ensure that the rip fence is parallel with the blade.
• Set the rip fence for the width of cut required by using the scale let into the front of the table. Set the sliding rip fence to the required position.
• Switch on the machine.
• Slowly feed the workpiece underneath the front of the upper blade guard, keeping it firmly pressed against the rip fence. Allow the teeth to cut and do not force the workpiece through the blade.
  The blade speed should be kept constant.
• Remember to always use the push stick (44) (fig. O).

After completing the cut, switch off the machine.

Mounting the cut-to-length gauge/material support (optional accessory) (fig. P1 - P4)

• This gauge (10) can be fitted to either the left or right of the mitre fence (3).
• First loosen the knurled black plastic knob (45) on the black plastic part and slide onto the gauge support bar (46) (fig. P1).
• Study figures P2, P3 and P4 and decide which fitting is applicable for the work to be carried out and slide on accordingly.
• Now loosen the Allen screw (47) in the top end of the fence either left or right side as required, and slide the gauge support bar into the square hole provided in the end of the fence (fig. P1).

Transporting

To facilitate carrying, pull down the head and push in the head lock down knob (14).

Maintenance

Your DeWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Unwanted tools and the environment

Take your tool to an authorized DeWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

30 DAY NO RISK SATISFACTION GUARANTEE

If you are not completely satisfied with the performance of your DeWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DeWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

- ONE YEAR FULL WARRANTY

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

The product has not been misused.
- Repairs have not been attempted by unauthorized persons.
Proof of purchase date is produced.

This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual.

Director Engineering and Product Development

HorstGroβmann

DeWALT, Richard-Klinger-StraBe 40,

D-65510, Idstein, Germany

Denote the presence of tension electrode.

Bords tranchants.

Director Engineering and Product Development Horst Großmann

L'emballage contient:

Director Engineering and Product Development Horst Großmann

DeWALT, Richard-Klinger-StraBe 40, D-65510, Idstein, Germany

Director Engineering and Product Development Horst Großmann

DeWALT, Richard-Klinger-StraBe 40, D-65510, Idstein, Germany

0^ gjaering

Oppnänd bredde på maks.øyde 135 mm	mm	45
Oppnänd bredde på maks. bredde 50 mm	mm	125
45° gjæring
Maks. bredde på maks.øyde 90 mm	mm	50
Maks.øyde på maks. bredde 100 mm	mm	42
45° skråsnitt
Maks. bredde på maks.øyde 40 mm	mm	100
Oppnänd bredde på maks. bredde 135 mm	mm	32
Automatisk stopptid på blad	s	< 10,0
Vekt	kg	24

Sikring:

230V

10 A

Director Engineering and Product Development

Horst Großmann

DeWALT, Richard-Klinger-StraBe 40

D-65510, Idstein, Germany

Sikkerhetsforskrifter

- 1 ARS FRI VEDLIKEHOLDSERVICE

Director Engineering and Product Development

Horst GroBmann

DeWALT, Richard-Klinger-StraBe 40

D-65510, Idstein, Germany

15 Tire as chaves de aperto

Director Engineering and Product Development

Horst Großmann

D-65510, Idstein, Germany

Turvallisuusohjeet

BORDSGERINGSSAG DW710

Vi gratular!

Director Engineering and Product Development Horst Großmann

DeWALT, Richard-Klinger-StraBe 40, D-65510, Idstein, Germany

Sakerhetsinstruktioner

16 XpnoiponoiieTe to oWToEpyaIeio

H evbdeevyn xnpoioioin avapepetai oe autc tic obnyiec xpoewc. Mn xpnoiopoite epyaia xaunlnc ioxuoc n npoohtkeyia bapiec epyaiec. To epyaieio oac th aletoupynoe EITUxotepa kai aophaleotepa eav xpnoiopoienthe oumuov a TNC npobdiaypaoec tou.

Ipooxn! Too n xpon eXaptnmuatwv n npooenkwv ooo kal npayatoonoin epyaaiow nou dve ouviotwral otic odnyiec autc Ekyuouei kivduvo tpaumataoou.

17 Mn xnpoiopoieite KaIdeltaia yia epyaoicc yia tic onoiec δev npoopiOvtau

Mny kpatate TOTe to epyaleio aTO KAALWIO tou kai mnu Tpaata To kaawio ia va byaaleTe TO epyaleio ano TMV npiz.

IpooTaTeUoTe To KaIwO Io aIo OePouTeta, AaI Kai aIXmupeC yWvieC.
