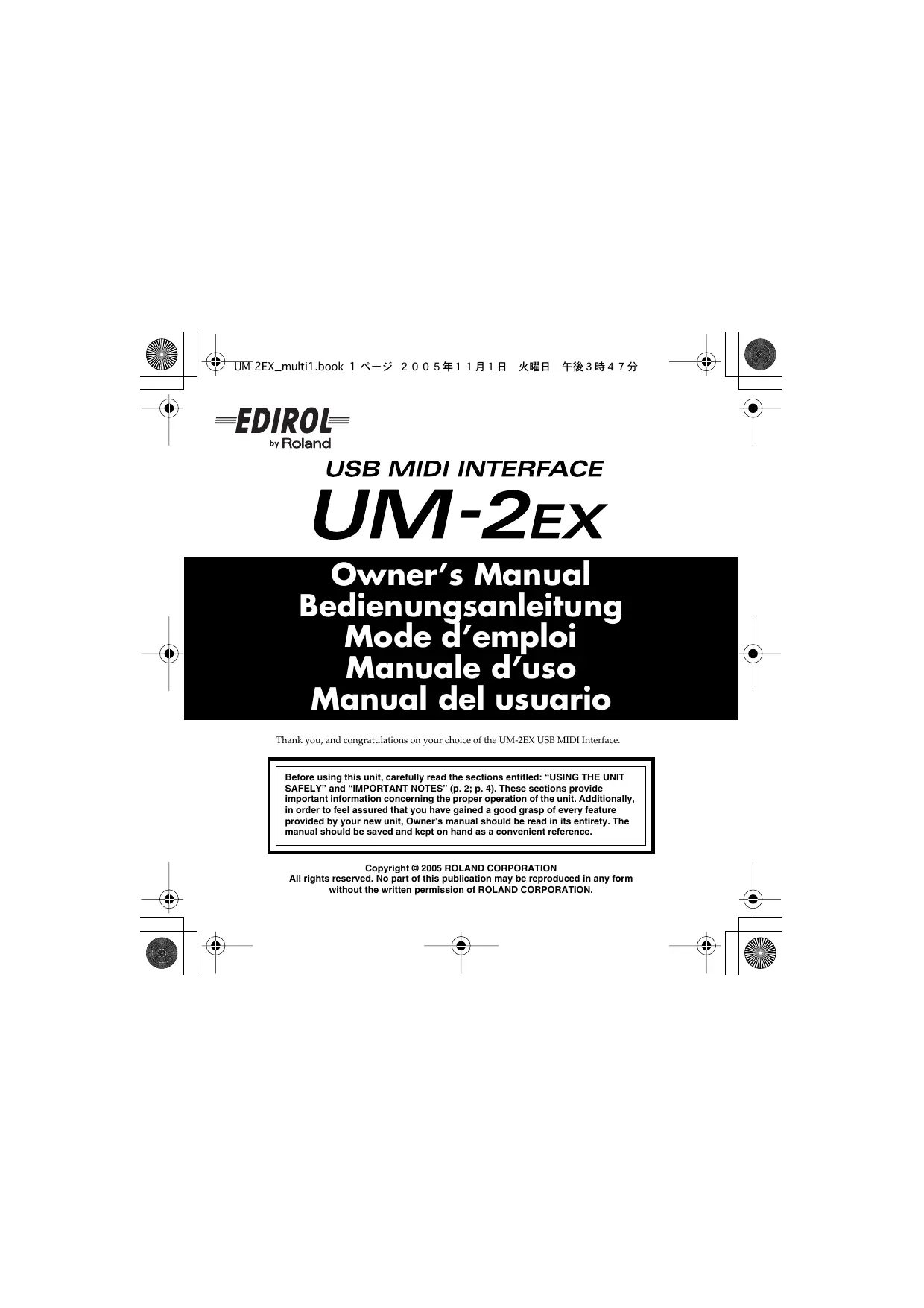

USER MANUAL UM-2EX EDIROL

Thank you, and congratulations on your choice of the UM-2EX USB MIDI Interface.

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (p. 2; p. 4). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About WARNING and CAUTION Notices

WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

A	The △symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
◎	The ⊙symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
◎	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

• Before using this unit, make sure to read the instructions below, and the Owner's Manual.
• Do not open (or modify in any way) the unit.
• Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

WARNING

• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Humid; or are
• Exposed to rain; or are
  Dusty; or are
• Subject to high levels of vibration.

WARNING

• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

• Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

• Immediately disconnect the USB cable, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or

• The unit does not appear to operate normally or exhibits a marked change in performance.

• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

• Protect the unit from strong impact. (Do not drop it!)

WARNING

• DO NOT play a CD-ROM disc on a conventional audio CD player. The resulting sound may be of a level that could cause permanent hearing loss. Damage to speakers or other system components may result.

CAUTION

• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

• Never climb on top of, nor place heavy objects on the unit.

• Disconnect all cords coming from external devices before moving the unit.

In addition to the items listed under "USING THE UNIT SAFELY" on pages 2 and 3, please read and observe the following:

Placement

This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
- Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
- Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
- When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels (especially when it is late at night).
• When you need to transport the unit, pack it in shock-absorbent material. Transporting the unit without doing so can cause it to become scratched or damaged, and could lead to malfunction.

Handling CD-ROMs

• Avoid touching or scratching the shiny underside (encoded surface) of the disc. Damaged or dirty CD-ROM discs may not be read properly. Keep your discs clean using a commercially available CD cleaner.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• The screen shots in this document are used in compliance with the guidelines of the Microsoft Corporation.
• Windows® is known officially as: "Microsoft® Windows® operating system."
• Apple and Macintosh are registered trademarks of Apple Computer, Inc.
• Mac OS is a trademark of Apple Computer, Inc.
• All product names mentioned in this document are trademarks or registered trademarks of their respective owners.
• OMS is a registered trademark of Opcode Systems, Inc.
• FreeMIDI is a trademark of Mark of the Unicorn, Inc.

Contents of the Package

The UM-2EX includes the following items. When you open the package, first make sure that all items are included. If any are missing, contact the dealer where you purchased the UM-2EX.

USB MIDI Interface UM-2EX

CD-ROM

This contains drivers for use with the UM-2EX.

Owner's Manual

This is the manual you are reading. Please keep it on hand for reference.

Names of Things and What They Do. 9

Getting Connected and Installing Drivers (Windows) 11

About the Driver Modes 11
Installing the Driver 12
Windows XP/2000 users 12
Windows Me/98 users 17

Setting the Driver. 18

Windows XP users 18
Windows 2000/Me users 19
Windows 98 users 20

Getting Connected and Installing Drivers (Macintosh) 21

About the Driver Modes 21
Driver Installation and Settings 21
Mac OS X users 22
Mac OS 9 users. 26

Basic Use 33

Basic Connections and MIDI Flow 33

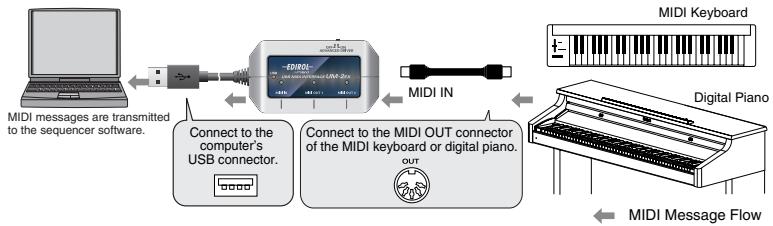

Transmitting MIDI messages
from a MIDI keyboard or digital piano to the sequencer software 33
Transmitting MIDI Messages
from the sequencer software to a MIDI sound module or digital piano 34

Appendices 35

About Standard Driver Mode 35
Installation of the standard driver 35
Standard driver settings 35

Troubleshooting 36

Main Specifications 44

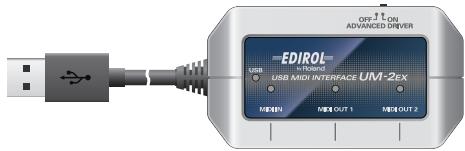

Use this when connecting the UM-2EX to your computer.

2 USB Indicator

This will light when you've connected the UM-2EX to your computer and your computer has detected the UM-2EX.

In order for your computer to detect the UM-2EX, you must install the driver and make settings. "Getting Connected and Installing Drivers" Windows (p. 11) / Macintosh (p. 21))

3 ADVANCED (mode select) Switch

This switches the operating mode.

• Standard driver mode supports only Windows XP SP2 or later, and Mac OS X.

If you are using Windows 98 / Me / 2000 / XP or XP SP1, or if you are using Mac OS 9, you must turn the ADVANCED (mode select) Switch ON before you connect the UM-2EX to your computer.

ON (Advanced mode)	This mode utilizes the UM-2EX's special, advanced MIDI driver. This advanced driver uses *FPT technology for rapid, high-performance MIDI transmissions. We recommend use of this mode.
OFF (Standard driver mode)	This mode uses the standard MIDI driver included with the OS. Use this if you do not have the special driver installed.

*FPT=Fast Processing Technology of MIDI Transmission

4 MIDI IN Indicator

This lights when MIDI messages are received from the device connected to MIDI IN.

5 MIDIN Connector

Connect this to the MIDI OUT connector of the device (such as a MIDI keyboard) that will be transmitting MIDI messages to your computer.

6 MIDI OUT 1 Indicator

This lights when MIDI messages from the computer are transmitted.

7 MIDI OUT 1 Connector

Connect this to the MIDI IN connector of the device (such as a sound module) that is to be employed by your computer for playing music.

MIDI OUT 2 Indicator

This lights when MIDI messages from the computer are transmitted.

9 MIDI OUT 2 Connector

Connect this to the MIDI IN connector of the device (such as a sound module) that is to be employed by your computer for playing music.

About the Driver Modes

What is a driver?

A "driver" is software that transfers data between the UM-2EX and application software running on your computer, when your computer and the UM-2EX are connected. The driver sends data from your application to the UM-2EX, and from the UM-2EX to your application.

About the driver modes

The UM-2EX has two operating modes, Advanced mode and Standard driver mode, and a different driver is used by each mode.

• Standard driver mode supports only Windows XP SP2 or later.

If you are using Windows 98 / Me / 2000 / XP or XP SP1, you must turn the ADVANCED (mode select) Switch ON before you connect the UM-2EX to your computer.

ON (Advanced mode)	This mode utilizes the UM-2EX's special, advanced MIDI driver. This advanced driver uses *FPT technology for rapid, high-performance MIDI transmissions. We recommend use of this mode. (→“Installing the Driver” (p. 12))
OFF (Standard driver mode)	This mode uses the standard MIDI driver included with the OS. Use this if you do not have the special driver installed. (→“Installation of the standard driver” (p. 35))

*FPT = Fast Processing Technology for MIDI Transmission

Installing the Driver

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Windows XP/2000 users. .p. 12
• Windows Me/98 users. p. 17

Steps to be performed on the UM-2EX itself are marked by a Operation of the UM-2EX symbol.

Windows XP/2000 users

1. With the UM-2EX left unconnected, start up Windows.

Do not connect the UM-2EX to the computer until you reach Step 13 (p. 14).

• Disconnect all USB cables except for a USB keyboard and USB mouse (if used).

• Log onto Windows using a user name that has administrative privileges (such as Administrator).

• Open the System Properties dialog box.

Windows XP:

1. Click the Windows start menu, and from the menu, select Control Panel.
2. In "Pick a category," click "Performance and Maintenance."
3. In "or pick a Control Panel icon," click the System icon. Depending on your setup, the System icon may appear directly in the Control Panel (Classic view). If so, double-click the System icon.

Windows 2000:

1. Click the Windows Start menu, and from the menu that appears, select Settings | Control Panel.

2. In Control Panel, double-click the System icon.

3. Click the Hardware tab, then click [Driver Signing].
   The Driver Signing Options dialog box will open.

4. In the Driver Signing Options dialog box, select "Ignore," then click [OK].

If the current setting is "Warn" or "Block," change this to "Ignore." Then, when you've finished installing the driver, change it back to the original setting.

1. Click [OK] to close the System Properties dialog box.
2. Exit all currently running software (applications).

Also close any currently open windows. If you are using virus checking or similar software, you must exit all of these programs as well.

1. Prepare the CD-ROM.

Insert the CD-ROM into your computer's CD-ROM drive.

• If the message "Windows can perform the same action each time you insert a disk or connect a device with this kind of file" appears, [Cancel].

• From the Windows start menu, choose Run...

• In the Open field of the "Run..." dialog box, type the following and click [OK].

D:\Driver\XP2k\setup.exe

• The drive name is "D:" in the example shown here, but may be different on your system. Use the drive name for your CD-ROM drive.
• The Driver Setup dialog box will appears.

Click [Next].

1. To begin the installation, click [Next] once again. Installation will begin.

Windows XP:

If "Driver Signing Options" in step 4 is set to anything other than "Ignore," a dialog box with an "!" or "x" symbol will appear. If a [Continue Anyway] button is displayed, click [Continue Anyway] to proceed with the installation. If you are unable to continue, click [OK] and repeat the driver installation from step 1.

Windows 2000:

If "Driver Signing Options" in step 4 is set to anything other than "Ignore," a dialog box indicating "Digital Signature Not Found" will appear. If a [Yes] button is displayed, click [Yes] to proceed with the installation. If you are unable to continue, click [OK] and repeat the driver installation from step 1.

The "Setup is now ready to install the drivers" dialog box will appear.

Now you are ready to install the driver.

1. Operation of the UM-2EX Set the UM-2EX's ADVANCED (mode select) Switch to ON.

2. The driver cannot be installed by means of the following procedure if the switch is set to OFF.

If you are using Windows 98 / Me / 2000 / XP or XP SP1, you must turn the ADVANCED (mode select) Switch ON before you connect the UM-2EX to your computer.

13. Operation of the UM-2EX Connect the UM-2EX to your computer.

A message of "Found New Hardware" will appear. Please wait.

• This unit is equipped with a protection circuit. A brief interval (a few seconds) after connecting the UM2EX is required before the unit will operate normally.

Windows XP:

1. The Found New Hardware Wizard dialog box will appear. If the message "Connect to Windows Update to search for software?" appears, choose "No" and then click [Next].

2. Make sure that "EDIROL UM-2" is indicated. Then, choose "Install the software automatically (Recommended)" and click [Next].

3. If "Driver Signing Options" in step 4 is set to anything other than "Ignore," a dialog box with an "!" symbol will appear. Click [Continue Anyway] to proceed with the installation.

Windows 2000: If "Driver Signing Options" in step 4 is set to anything other than "Ignore," a dialog box indicating "Digital Signature Not Found" will appear. Click [Yes] to proceed with the installation.

1. The Completing the Found New Hardware Wizard dialog box will appear. Click [Finish].
2. In the Driver Setup dialog box, click [Close]. This completes driver installation.

If the Change System Settings dialog box appears, click [Yes]. Windows will restart automatically.

• If you changed the "Driver Signing Options" setting (step 4 on p. 12), restore the original settings after Windows has restarted.

Next, in order to ensure that MIDI processing occurs smoothly, you need to make settings so that Background Services is given priority.

( "Giving priority to Background Services" (p. 15))

Giving priority to Background Services

To ensure that MIDI data is handled smoothly, proceed as follows to make this setting.

Windows XP:

1. Open the System Properties dialog box.

2. From the Windows start menu, choose Control Panel.

3. In "Pick a category," click "Performance and Maintenance."

4. In "or Pick a Control Panel icon," click the System icon. Depending on your setup, the System icon may appear directly in the Control Panel (Classic view). If so, double-click the System icon.

5. Click the Advanced tab.

6. In the right side of the Performance area, click [Settings].

The Performance Options dialog box will open.

1. Click the Advanced tab.

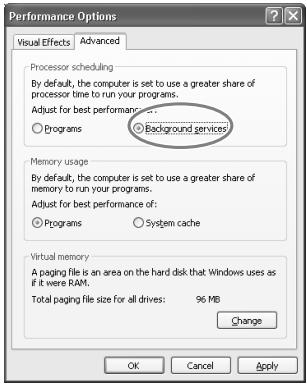

2. In the Processor scheduling area, choose "Background services," and click [OK].I

1. In the System Properties dialog box, click [OK]. The System Properties dialog box will close.

Next, you'll make the driver settings. ( "Setting the Driver" (p. 18))

Windows 2000:

1. Click the Windows Start button, and from the menu that appears, select Settings | Control Panel.
2. In Control Panel, double-click the System icon.
3. Click the Advanced tab.
4. At the right of the Performance field, click [Performance Options]. The Performance Options dialog box will appear.

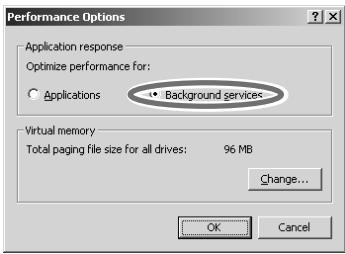

5. In the Application response field, choose "Background services" and click [OK].

1. Click [OK] to close the System Properties dialog box.

The System Properties dialog box will close.

Next, you'll make the driver settings. ( "Setting the Driver" (p. 18))

Windows Me/98 users

1. With the UM-2EX left unconnected, start up Windows. Do not connect the UM-2EX to the computer until you reach Step 9.
2. Exit all currently running software. Also close any open windows. If you are using virus checking or similar software, be sure to exit it as well.
3. Prepare the CD-ROM. Insert the CD-ROM into the CD-ROM drive of your computer.
4. Click the Windows Start menu. From the menu that appears, select Run.... The "Run..." dialog box will appear.

5. In the dialog box that appears, input the following into the "Open" field, and click [OK]. D: \Driver\Me98\Setup.exe

6. The drive name is "D:" in the example shown here, but may be different on your system. Use the drive name for your CD-ROM drive.

7. The Driver Setup dialog box will appear. Click [Next].

8. To begin the installation, click [Next] once again. Installation will begin. The "Setup is now ready to install the drivers" dialog box will appear. Now you are ready to install the driver.

9. Operation of the UM-2EX Set the UM-2EX's ADVANCED (mode select) Switch to the ON position.

10. The driver cannot be installed by means of the following procedure if the switch is set to OFF. If you are using Windows 98 / Me / 2000 / XP or XP SP1, you must turn the ADVANCED (mode select) Switch ON before you connect the UIM-2EX to your computer.

11. Operation of the UM-2EX Connect the UM-2EX to your computer. A message of "Found New Hardware" will appear. Please wait. * This unit is equipped with a protection circuit. A brief interval (a few s 2EX is required before the unit will operate normally.

12. In the Driver Setup dialog box, click [Close]. Next, you'll make the driver settings. ( "Setting the Driver" (p. 18))

The following describes the settings needed to use the UM-2EX with Media Player or other sequencer software using Windows standard device settings.

If you are using sequencer software that does not utilize Windows standard device settings, make the device settings within the sequencer software.

Windows XP users

1. Open the Sounds and Audio Devices Properties dialog box.

2. From the Windows start menu, choose Control Panel.

3. In "Pick a category," click Sound, Speech, and Audio Devices.

4. In "or Pick a Control Panel icon," click the Sounds and Audio Devices icon. Depending on your setup, the Sounds and Audio Devices icon may appear directly in the Control Panel (Classic view). If so, double-click the Sounds and Audio Devices icon.

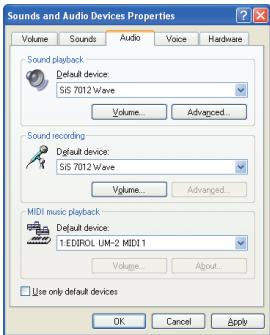

5. Click the Audio tab.

6. For MIDI music playback, click the located at the right of [Default device], and select the MIDI device from the list that appears.

Selecting "EDIROL UM-2 MIDI 1" enables sounds to be played from the sound module connected to the UM-2EX's MIDI OUT 1 connector with Media Player or other sequencer software utilizing Windows standard device settings.

1. Close the Sounds and Audio Devices Properties dialog box.

Click [OK] to complete the settings.

Windows 2000/Me users

1. Open the Sounds and Multimedia Properties dialog box.

2. Click the Windows start button, and from the menu that appears, select Settings | Control Panel.

3. In Control Panel, double-click the Sounds and Multimedia icon. If Sounds and Multimedia icon is not displayed, click "Show all control panel options" in the frame at the left.

4. Click the Audio tab.

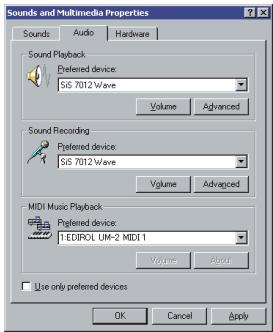

5. Click in the MIDI Music Playback [Preferred device] menu and select the MIDI device from the list that appears.

Selecting "EDIROL UM-2 MIDI 1" enables sounds to be played from the sound module connected to the UM-2EX's MIDI OUT 1 connector with Media Player or other sequencer software utilizing Windows standard device settings.

1. Close the Sounds and Multimedia Properties dialog box. Click [OK] to complete the settings.

Windows 98 users

1. Open the Multimedia Properties dialog box.

2. Click the Windows Start menu, and from the menu that appears, select Settings | Control Panel.

3. In Control Panel, double-click the Multimedia icon.

4. Click the MIDI tab.

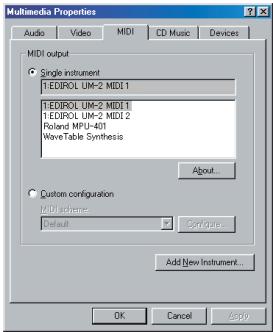

5. Select [Single instrument], and select the MIDI device from the list that appears.

If you want to use Media Player to play a sound module connected to the UM-2EX's MIDI OUT 1 connector, select "EDIROL UM-2 MID1 1."

1. Close the Multimedia Properties dialog box. Click [OK] to complete the settings.

About the Driver Modes

What is a driver?

A "driver" is software that transfers data between the UM-2EX and application software running on your computer, when your computer and the UM-2EX are connected. The driver sends data from your application to the UM-2EX, and from the UM-2EX to your application.

About the driver modes

The UM-2EX has two operating modes, Advanced mode and Standard driver mode, and a different driver is used by each mode.

• Standard driver mode supports only Mac OS X.

If you're using OS 9, you must turn the ADVANCED (mode select) Switch ON before you connect the UM-2EX to your Macintosh.

ON (Advanced mode)	This mode utilizes the UM-2EX's special, advanced MIDI driver. This advanced driver uses *FPT technology for rapid, high-performance MIDI transmissions. We recommend use of this mode. (→“Driver Installation and Settings” (p. 21))
OFF (Standard driver mode)	This mode uses the standard MIDI driver included with the OS. Use this if you do not have the special driver installed. (→“Installation of the standard driver” (p. 35))

*FPT = Fast Processing Technology for MIDI Transmission

Driver Installation and Settings

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

Mac OS X users. (p. 22)
Mac OS9 users (p. 26)

■ Installing the driver

• If the "Authentication" dialog box appears during the installation, input the password and click "OK."

• What you actually see on your Macintosh screen may be different, depending on your computing environment and the operating system you're using.

• With the UM-2EX left unconnected, start up Macintosh.

• Disconnect all USB cables other than those for your keyboard and mouse, and restart your Macintosh.
• Exit all currently running software (applications).
• Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive of your Macintosh.

1. In the Driver (Mac OS X) folder of the CD-ROM, double-click UM2USBDriver pkg.

A message such as "This Installer package needs to..." may appear.

Click "Continue."

1. The display will indicate "Welcome to the EDIROL UM-2Driver Installer." Click [Continue].
2. The display will indicate "Select a Destination."

Click the drive in which the operating system is installed to select it, and then click [Continue].

• Select your startup disk as the drive.
• The display will indicate "Easy Install."

Click [Install] or [Upgrade].

1. The display will indicate "Installing this software requires you to restart your computer when the installation is done."

Click [Continue Installation].

1. The display will indicate "The software was successfully installed."

Click [Restart] to restart your Macintosh.

This completes installation of the UM-2 driver.

Next, make MIDI device settings. ( "Setting the driver" (p. 23))

Setting the driver

The following describes the settings enabling use of the UM-2EX with sequencer software using Macintosh standard device settings. If you are using sequencer software that does not utilize Macintosh standard device settings, make the device settings within the sequencer software.

• What you actually see on your Macintosh screen may be different, depending on your computing environment and the operating system you're using.

• Operation of the UM-2EX Set the UM-2EX's ADVANCED (mode select) Switch to the ON position.

• Operation of the UM-2EX Connect the UM-2EX to your Macintosh.
• Connect the cable to the USB connector of the Macintosh itself, not to the USB connector of the keyboard.
• This unit is equipped with a protection circuit. A brief interval (a few seconds) after connecting the UM-2EX is required before the unit will operate normally.
• Open the Applications folder of your Macintosh hard disk. In the Utilities folder, double-click Audio MIDI Setup to open the Audio MIDI Setup dialog box.

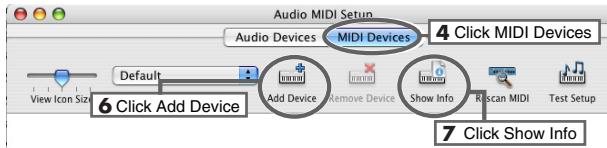

1. Click the MIDI Devices tab.

2. Confirm that UM-2 appears in the Audio MIDI Setup dialog box.

3. If UM-2 does not appear or if it is grayed out, it means that the UIM-2EX is not being recognized properly. Click Rescan MIDI. Also try disconnecting and reconnecting the UIM-2EX.

4. Previous settings from installation of a different version of the driver may still remain. If this is the case, click on the grayed UM-2 or EDIROL UM-2 to select it, then click Remove Selected Device to delete the settings.
5. Click Add Device twice.

Two new external device will appear.

7. Set the Device Name.

1. With the new external device selected, click Show Info.

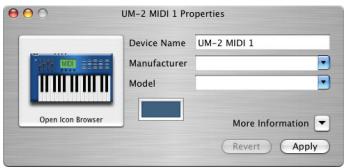

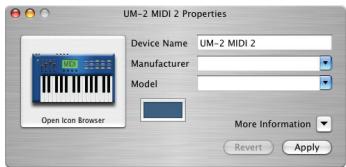

2. Enter the name in the Device Name field.

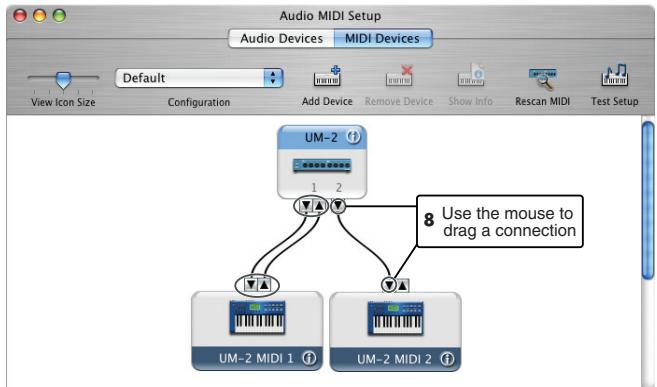

1. Connect the and symbols (which signify the outputs and inputs) of the UM-2 icon to those of the new external device icon by using the mouse to drag between them.

1. If running Mac OS X v10.2 or earlier:

Close the Audio MIDI Setup dialog box. The settings are completed.

If running Mac OS X v10.3 or later:

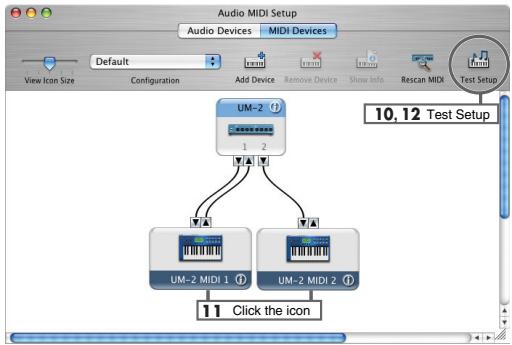

Confirm that MIDI is being transmitted and received correctly. Perform Steps 10-13 (p. 25).

1. Click Test Setup. The shape of the mouse cursor changes
2. Click the area shown in the illustration. If the corresponding MIDI OUT indicator of the UM-2EX blinks, the settings have been made correctly.
3. Click Test Setup and complete the confirmation.

1. Close the Audio MIDI Setup dialog box.

When using the UM-2EX with your sequencer software

Before using the UM-2EX with your sequencer software, please note the following points.

• Connect the UM-2EX to your Macintosh before you start up your sequencer software.
• Do not disconnect the UM-2EX from your Macintosh while your sequencer software is running. Quit your sequencer software before you disconnect the UM-2EX from your Macintosh.
• The UM-2EX will not operate in the Mac OS X Classic environment. Use the UM-2EX when the Classic environment is not running.

■ Installing the UM-2 driver

Use either OMS or FreeMIDI as the MIDI driver.

The included UM-2 driver is an add-on module for using the UM-2EX with OMS or FreeMIDI. OMS can be found in the OMS 2.3.8 E folder within the OMS (Mac OS 9) folder of the CD-ROM. If you would like to know more about OMS, refer to OMS_2.3_Mac.pdf which can be found in the same folder.

• Either OMS or FreeMIDI must be installed in your Macintosh, as appropriate for the sequencer software you are using.
• If you install OMS after installing the UIM-2 driver, you must install the UIM-2 driver once again.

If a UM-2EX is already connected to your Macintosh when you install the driver, a message like the following will appear when the Macintosh is started up. Perform the steps described below as appropriate for the message that is displayed.

If the screen indicates: "Software needed for the USB device "UM-2" is not available. Would you like to look for the software on the Internet?" click [Cancel].

Use the following procedure to install the UM-2EX driver.

1. With the UM-2EX left unconnected, start up Macintosh
2. Disconnect all USB cables other than those for your keyboard and mouse, and restart your Macintosh.
3. Exit all currently running software (applications).
4. Prepare the CD-ROM. Insert the CD-ROM into the CD-ROM drive of your Macintosh.

5. Double-click the UM-2 Driver-E Installer icon (found in the Driver E (Mac OS 9) folder of the CD-ROM) to start up the installer.

6. Verify the Install Location, and click [Install].

The installation location will be shown differently depending on your system. Make sure that you have selected the startup disk for the system you are currently using.

1. If a message like the following is displayed, click [Continue].

The other currently running software will exit, and installation will continue.

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

Cancel

Continue

1. A dialog box will indicate Installation was successful.

Click [Restart] to restart your Macintosh.

Next, make the driver settings.

• OMS users. p. 28
  FreeMIDI users.. p.31

■ OMS settings

If you are using FreeMIDI, proceed to "FreeMIDI settings" (p. 31).

1. Operation of the UM-2EX Set the UM-2EX's ADVANCED (mode select) Switch to the ON position.
2. Operation of the UM-2EX Connect the UM-2EX to your Macintosh.
3. Connect the cable to the USB connector of the Macintosh itself, not to the USB connector of the keyboard.
4. This unit is equipped with a protection circuit. A brief interval (a few seconds) after connecting the UIM-2EX is required before the unit will operate normally.
5. From the CD-ROM, drag the Driver E (Mac OS 9) - OMS Setting folder into the Opcode - OMS Applications folder on the hard disk of your Macintosh to copy it there.
6. In the Opcode - OMS Applications folder where you installed OMS, double-click OMS Setup to start it up.

OMS Setting

OMS Setup

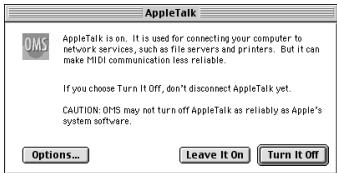

1. If a dialog box like the one shown here appears, click [Turn It Off]. A confirmation dialog box will then appear, so click [OK].
2. We recommend that you turn off AppleTalk, by selecting Chooser from the Apple menu.

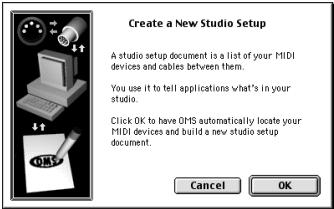

1. The Create a New Studio Setup dialog box will appear. Click [Cancel].

If you accidentally clicked [OK], click [Cancel] in the next screen.

1. Choose "Open" from the File menu.

From the OMS Setting folder that you copied in step 3, select the UM-2 file, and click [Open].

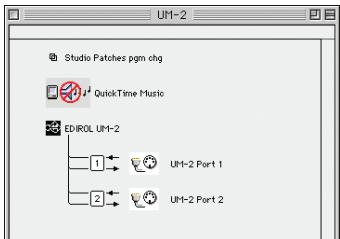

A screen like the one shown here will appear.

1. From the Edit menu, select OMS MIDI Setup.

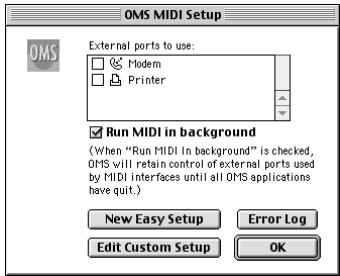

In the OMS MIDI Setup dialog box that appears, check Run MIDI in background, and click [OK].

1. From the File menu, choose Make Current. If you are unable to select Make Current, it has already been applied, and you may continue to the next step.
2. Verify that MIDI transmission and reception can be performed correctly. From the Studio menu, choose Test Studio.
3. When you move the mouse cursor near the MIDI connector icon, the cursor will change to a shape. Click the MIDI connector icon shown in the illustration. If the corresponding MIDI OUT indicator of the UM-2EX blinks, the settings have been made correctly.

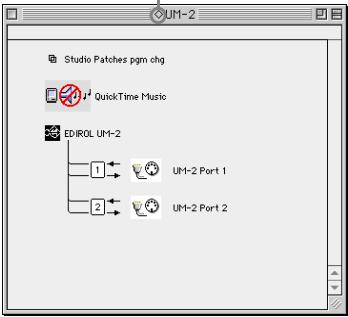

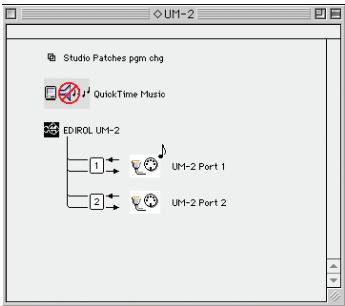

A diamond mark () indicates the settings are enabled.

12.Exit OMS Setup.

From the File menu, choose [Exit]. If the AppleTalk confirmation dialog box appears, click [OK] to close the dialog box.

FreeMIDI settings

1. Operation of the UM-2EX Set the UM-2EX's ADVANCED (mode select) Switch to the ON position.

2. Operation of the UM-2EX Connect the UM-2EX to your Macintosh.

3. Connect the cable to the USB connector of the Macintosh itself, not to the USB connector of the keyboard.

4. This unit is equipped with a protection circuit. A brief interval (a few seconds) after connecting the UIM-2EX is required before the unit will operate normally.

5. From the CD-ROM, drag the Driver E (Mac OS 9) - FreeMIDI Setting folder into the FreeMIDI Applications folder on the hard disk of your Macintosh to copy it there.

6. Open the FreeMIDI Applications folder from the location into which you installed FreeMIDI, and double-click the FreeMIDI Setup icon to start it up. When "OMS is installed on this computer..." appears, click [FreeMIDI].

7. The first time you start up, use the following procedure.

8. A dialog box saying "Welcome to FreeMIDl!" will appear. Click [Continue].

9. The FreeMIDI Preferences dialog box will appear. Click [Cancel].

10. The About Quick Setup dialog box will appear. Click [Cancel].

11. From the File menu, choose Open.

If you are unable to select Open, return to step 4 and continue the procedure.

1. From the File menu, choose FreeMIDI Preference.
2. Uncheck "Use OMS when available."

3. Close FreeMIDI.

4. Select UM-2 from the FreeMIDI Setting folder you copied in step 3, and click [Open].

5. Verify that MIDI transmission and reception occur correctly. From the MIDI menu, choose Check Connections.

6. The mouse cursor will change to the shape of a keyboard.

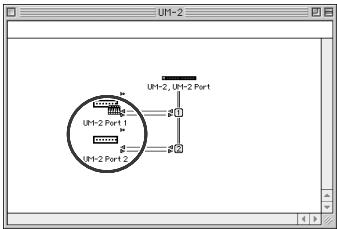

Click the icon shown in the illustration. If the corresponding MIDI OUT indicator of the UM2EX blinks, the settings have been made correctly.

1. Once again choose the MIDI menu command Check Connections to end the test.
2. From the File menu, choose Quit to exit FreeMIDI Setup.

This chapter describes different basic methods of connecting the UM-2EX according to how the UM-2EX is to be used.

Basic Connections and MIDI Flow

Transmitting MIDI messages from a MIDI keyboard or digital piano to the sequencer software

To transmit MIDI messages from a MIDI keyboard or digital piano to the sequencer software or make a MIDI recording of a keyboard performance or other performance using sequencer software on your computer, make the following connections and settings.

MIDI device setting

Specify UM-2 MIDI 1 for MIDI IN.

• Make the device settings within the sequencer software.

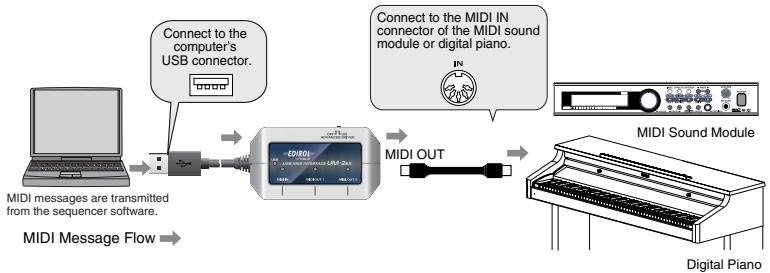

Transmitting MIDI Messages from the sequencer software to a MIDI sound module or digital piano

If transmitting MIDI messages from the sequencer software to a MIDI sound module or digital piano, or if using a MIDI sound module's or digital piano's sound generator to play the sounds from the playback of sequencer software on the computer, make the following connections and settings.

MIDI device setting

If you connected your device to the MIDI OUT 1 connector, specify UM-2 MIDI 1 for MIDI OUT. If you connected your device to the MIDI OUT 2 connector, specify UM-2 MIDI 2. For more on how to make the settings, refer to "Getting Connected and Installing Drivers" (Windows: p. 11 / Macintosh: p. 21).

• If you are using sequencer software that does not utilize Windows or Macintosh standard device settings, make the device settings within the sequencer software.

About Standard Driver Mode

Use this mode when using the standard MIDI driver provided with the operating system.

• Standard driver mode supports only Windows XP SP2 or later, and Mac OS X. If you are using Windows 98/Me/2000/XP or XP SP1, or if you are using Mac OS 9, you must turn the ADVANCED (mode select) Switch ON before you connect the UM-2EX to your computer.

Installation of the standard driver

1. With the UM-2EX left unconnected, start up your computer.
2. Disconnect all USB cables other than those for your keyboard and mouse, and restart your Macintosh.
3. Exit all currently running software (applications).
4. Set the UM-2EX's ADVANCE DRIVER switch (mode switch) to OFF.
5. Connect the UM-2EX to the computer. The driver is automatically installed.
6. This unit is equipped with a protection circuit. A brief interval (a few seconds) after connecting the UM-2EX is required before the unit will operate normally.

Standard driver settings

These settings enable use of the UM-2EX with sequencer software that uses Windows or Macintosh standard device settings.

If using sequencer software that does not utilize Windows standard device settings, make the device settings within the sequencer software. For instructions on the device settings for your particular sequencer software, refer to the owner's manual that was supplied with it.

When using Windows XP

1. In accordance with Step 1 in "Windows XP users" (p. 18), open the Audio tab in the Sounds and Audio Devices Properties dialog box.
2. Click the for [Default device] in the MIDI music playback menu and select the USB audio device from the list that appears.

Depending on your computing environment, "(2)" or some other number may be added at the end of the port name.

When using Macintosh (Mac OS X)

The procedure is the same as for Advanced mode. Refer to "Setting the driver" (p. 23).

If you experience problems, read this chapter first. It contains tips for solving most problems.

• For details on operating your Windows or Macintosh computer, refer to the owner's manual of the computer and operating system you are using.

Problems Related to the USB Driver

Cannot install the driver correctly

Install the UM-2 driver once again as described in Getting Connected and Installing Drivers (Windows) (p. 11) or Getting Connected and Installing Drivers (Macintosh) (p. 21).

Is the UM-2EX connected correctly?

Make sure that the USB connector of your computer is connected to the UM-2EX.

Could any other USB device be connected?

Before you install, disconnect all USB devices except for your mouse and keyboard.

Could other software or resident software (such as antivirus programs) be running?

Installation may not be successful if other programs are running. Be sure to close all other programs before installation.

Is the CD-ROM correctly inserted into your CD-ROM drive?

Installation is not possible unless the CD-ROM included with the UM-2EX is inserted in your CD-ROM drive. Make sure that the CD-ROM is correctly inserted into your CD-ROM drive.

Are you attempting to install from a networked CD-ROM drive?

You cannot install from a networked CD-ROM drive.

Is the CD-ROM or the lens of the CD-ROM drive dirty?

If the CD-ROM or the lens of the CD-ROM drive is dirty, the installer may not work correctly. Clean the disc and/or lens using a commercially-available CD cleaner or lens cleaner.

Is your computer's power-conservation mode turned off?

If power-conservation settings are enabled on your computer, please disable any such settings. For the procedure, refer to the owner's manual of your computer.

Is there sufficient free space on your hard disk?

Delete unneeded files to increase the amount of free space. After deleting the unneeded files, empty the recycling bin.

Could the UM-2EX's ADVANCED (mode select) Switch be OFF?

Turn the UM-2EX's ADVANCED (mode select) Switch ON, restart Windows, and re-install the driver.

Does your computer or USB hub have sufficient power supply capacity?

The UM-2EX cannot be connected if insufficient power is supplied to it. Check whether one of the following cases apply.

• If you are using the UMM-2EX with a notebook computer that is running on its battery, operation may be unreliable with some models of computer. If this is the case, connect the AC adaptor to your notebook computer.
• The power conservation mode of your computer may limit the power that is supplied to USB. Check the settings of your computer.
• In some cases, the UM-2EX cannot be used with a bus-powered hub (a hub that does not contain a power supply). Please use a self-powered hub (a hub that contains a power supply).

Is USB enabled on your computer?

Refer to the operation manual for your computer, and make sure that USB is enabled.

Does your computer meet the USB specifications?

If you are using a computer that does not fulfill the electrical requirements of the USB specifications, operation may be unstable. In this case, you may be able to solve the problem by connecting a USB hub.

In the Device Manager, do you see "Other device," "Unknown device," or a device for which "?" or "x" is displayed? (Windows)

If the driver installation could not be successfully completed, the installed driver may remain in an incomplete state.

Re-install the driver. ( "Installing the Driver" (p. 12))

Is OMS or FreeMIDI installed? (Mac OS 9)

The UM-2 driver cannot be installed unless OMS or FreeMIDI are installed. Please install OMS or FreeMIDI.

Windows XP/2000 displays a "Hardware Installation" or "Digital Signature Not Found" dialog box

Did you make "Driver Signing Options"?

In order to install/re-install the driver, you must make the settings described in "Driver Signing Options" (p. 12).

You are asked to install the driver file even though you installed the driver (Windows)

Did you connect the UM-2EX to a different USB connector than the one you used when installing the driver?

If your computer or USB hub has two or more USB connectors, and you connect the UM-2EX to a different USB connector, you may be asked for the driver file even though the driver has already been installed in your computer. (Such a response does not indicate a malfunction.)

Proceed as follows to install the driver.

1. Connect the UM-2EX to the computer.

Windows XP:

1. The Found New Hardware Wizard dialog box will appear.

If the message "Connect to Windows Update to search for software?" appears, choose "No" and then click [Next].

1. Choose "Search for the best driver in these locations" and click [Next].

If a dialog box with an "I" or "x" symbol will appear, click [Continue Anyway] to proceed with the installation. If you are unable to continue, click [OK] and repeat the driver installation.

( "Installing the Driver" (p. 12))

Windows 2000:

If a dialog box indicating "Digital Signature Not Found" will appear, click [Yes] to proceed with the installation. If you are unable to continue, click [OK] and repeat the driver installation.

( "Installing the Driver" (p. 12))

1. The Completing the Found New Hardware Wizard dialog box will appear.

Click [Finish].

1. If the Change System Settings dialog box appears, click [Yes]. Windows will restart automatically.

If you are unable to complete driver installation using the above method, repeat the driver installation. ( "Installing the Driver" (p. 12))

"Find new hardware wizard" does not execute automatically "Find new hardware wizard" ends before the process is completed "Found unknown device" appears even though you installed the driver (Windows)

Is the USB cable connected correctly?

Make sure that the UM-2EX's USB cable and your computer are correctly connected.

It may take about 15 seconds (or more) after the USB cable is connected.

Does your computer or USB hub have sufficient power supply capacity?

The UM-2EX cannot be connected if insufficient power is supplied to it. Check whether one of the following cases apply.

• If you are using the UM-2EX with a notebook computer that is running on its battery, operation may be unreliable with some models of computer. If this is the case, connect the AC adaptor to your notebook computer.
• The power conservation mode of your computer may limit the power that is supplied to USB. Check the settings of your computer.
• In some cases, the UM-2EX cannot be used with a bus-powered hub (a hub that does not contain a power supply). Please use a self-powered hub (a hub that contains a power supply).

Is USB enabled on your computer?

Refer to the operation manual for your computer, and make sure that USB is enabled.

Does your computer meet the USB specifications?

If you are using a computer that does not fulfill the electrical requirements of the USB specifications, operation may be unstable. In this case, you may be able to solve the problem by connecting a USB hub.

UM-2EX is not detected when making OMS or FreeMIDI settings (Mac OS 9 users)

Is the UM-2EX detected?

• Reconnect the UM-2EX.
• If other USB devices are connected, connect only the UM-2EX.
• It is possible that the Macintosh did not correctly detect and initialize the UM-2EX. Leave the UM-2EX connected, and restart your Macintosh. If it is still not detected, shut down your Macintosh, and then restart it.
• In some cases, the UM-2EX will not be detected if you have connected it to the USB connector located on the keyboard of the Macintosh. Please connect it to a USB connector on the Macintosh itself.

Deleting the Driver

If you were unable to install the driver according to the procedure given, the UM-2EX may not be recognized correctly by the computer. In this case, use the following procedure to delete the driver, and then follow the procedure to install the driver once again.

Windows users

1. Start up Windows with the UM-2EX disconnected.

Disconnect all USB cables other than a USB keyboard or USB mouse.

• If you are using Windows XP Professional/2000, log on as a user that has administrative privileges (e.g., Administrator).
• Insert the CD-ROM into the CD-ROM drive of your computer.
• From the Windows Start menu, choose "Run..."

In the Run dialog box, input the following into the Open field, and click [OK].

Windows XP/2000 users: D:\Driver\XP2k-Uninstal.exe

Windows Me/98 users: D:\Driver\Me98\Uninstal.exe

• The drive name is "D:" in the example shown here, but may be different on your system. Use the drive name for your CD-ROM drive.

• Follow the on-screen instructions to uninstall the driver.

Macintosh (Mac OS X) users

1. Start up Macintosh with the UM-2EX disconnected. Disconnect all USB cables other than a USB keyboard or USB mouse.
2. Prepare the CD-ROM. Insert the CD-ROM into the CD-ROM drive of your Macintosh.
3. In the Driver (Mac OS X) folder of the CD-ROM, double-click "UM2_ Uninstaller."
4. The display will indicate "This uninstalls EDIROL UM-2 driver from this Macintosh;"; click [Uninstall]. If any other message appears, proceed as directed by that message.
5. The display will indicate "Are you sure to uninstall the driver?"; click [OK].
6. The "Authentication" dialog box will appear; enter the password and click [OK].
7. The display will indicate "Uninstillation is completed;" click [Restart]. Your Macintosh will then restart.

Macintosh (Mac OS 9) users

1. Start up Macintosh with the UM-2EX disconnected. Disconnect all USB cables other than a USB keyboard or USB mouse.
2. From the system extensions folder inside the System folder, drag "USB UM-2 Driver" into the trash to delete it.
3. Delete UM-2 from the OMS Folder inside the System folder, or drag UM-2 Driver from the FreeMIDI Folder inside the System folder to the trash.
4. Restart the Macintosh.

Problems When Using the UM-2EX

Sound is interrupted during MIDI playback

In Windows, did you make the setting described in "Giving priority to background services"?

In order to ensure that MIDI processing occurs smoothly, make the setting described in Giving priority to Background Services. ( Windows XP (p. 15) / Windows 2000 (p. 16))

Did you plug in the USB cable, or unplug it while an software was running?

Exit all software that are using the UM-2EX, and re-connect the UM-2EX.

Is your computer in Suspend or Sleep mode?

If so, get your computer to resume normal operation, then exit all software that are using the UM-2EX. Next re-connect the UM-2EX.

Are you running multiple software?

If multiple software are running simultaneously, an error message may appear. If this occurs, click [OK] and exit the other software.

Even if an software window is closed, it is still running if it appears in the taskbar. Be sure to exit unneeded software displayed.

Playback or recording halts midway through, and then becomes impossible

Was a heavy processing load experienced while using the UM-2EX, such as accessing the CD-ROM drive or a network?

If an operation involving a heavy processing load is performed while the UM-2EX is in use, it may not operate correctly. If this occurs, stop playback/ recording, and then try resuming playback/ recording. If you are still unable to play back/ record, exit all software that use the UM-2EX, disconnect the UM-2EX from the computer and then reconnect it.

Operating system becomes unstable

Operation becomes unstable when the computer is started up with the UM-2EX already connected

Please start up your computer with the UM-2EX disconnected, and then connect the UM-2EX. On a computer that uses a USB keyboard, starting up the computer with the UM-2EX already connected may cause operation to become unstable. In this case, start up the computer with the UM-2EX disconnected, and then connect the UM-2EX.

UM-2EX: USB MIDI Interface

Controllers

ADVANCED switch

Connectors

MIDI IN Cable x 1 (16 MIDI Channels)

MIDI OUT Cable x 2 (16 MIDI Channels x 2)

USB Cable

Power Supply

Supplied from the computer

Current Draw

70mA

Dimensions

3-3/16 (W) x 1-7/8 (D) x 1-1/8 (H) inches

Weight

110g / 4oz

Accessories

Owner's Manual

CD-ROM

• In the interest of product improvement, the specifications, appearance, and/or contents of this unit are subject to change without prior notice.

Treiber installmenten

Operation of the UM-2EX

D:\Driver\XP2k\setup.exe

Operation of the UM-2EX

D:\Driver\XP2k\setup.exe

D:\Driver\XP2k\setup.exe

1. Operation of the UM-2EX Collegare 1'UM-2EX al computer.

1. Verrà visualizzato il messaggio "The software was successfully installed".

Operation of the UM-2EX

Usarios de Windows XP/2000

D:\Driver\XP2k\setup.exe

Operation of the UM-2EX

1. La Pantalla indica "Installing this software requires you to restart your computer when the installation is done".
   Haga cli en [Continue Installation].
2. La Pantalla indicará "The software was successfully installed".

Haga clic en [Restart] para reiniciar el Macintosh.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

DECLARATION OF CONFORMITY Compliance Information Statement

Model Name:UM-1EX

Type of Equipment: USB MIDI Interface

Responsible Party: Roland Corporation U.S.

Address: 5100 S. Eastern Avenue, Los Angeles, CA 90040-2938

Telephone: [phone]

-EDIROL

EUROPE

EDIROL (Europe) Ltd.

Studio 3.4 114 Power Road

London W4 5PY U. K.

TEL: [phone]

FAX:[phone]

http://www.edirol.com/europe

Deutschland

TEL:[phone]

France

TEL:[phone]

Italia

TEL:[phone]

Roland

NORTH AMERICA

CANADA

Roland Canada Music Ltd.

(Head Office)

5480 Parkwood Way Richmond B.C.V6V2M4 CANADA

TEL: [phone]

U.S.A.

Roland Corporation U.S. 5100 S. Eastern Avenue

Los Angeles, CA 90040-2938, U.S.A.

TEL: [phone]

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar A1 Askalany

Street,

ARD E1 Golf, Heliopolis,

Cairo 11341, EGYPT

TEL:[phone]

REUNION

Royal Cape Park, Unit 24

Londonderry Road, Ottery 7800

Cape Town, SOUTH AFRICA
TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics Co., Ltd.

5F.No.1500 Pingliang Road

Shanghai 200090, CHINA

TEL: [phone]

Roland Shanghai Electronics Co., Ltd.

(BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili

Chaoyang District Beijing 100011 CHINA

TEL: [phone]

Roland Shanghai Electronics Co., Ltd.

(GUANGZHOU OFFICE)

2/F, No.30 Si You Nan Er Jie Yi Xiang, Wu Yang Xin Cheng

Guangzhou 510600, CHINA
TEL: [phone]

HONG KONG

Parsons Music Ltd.

8th Floor, Railway Plaza, 39

Chatham Road South, T.S.T.

Kowloon, HONG KONG

TEL:[phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

409, Nirman Kendra

Mahalaxmi Flats Compound

Off. Dr. Edwin Moses Road,

Mumbai-400011, INDIA

TEL: [phone]

INDONESIA

PT Citra IntiRama

J1. Cideng Timur No. 15J-150

Jakarta Pusat

INDONESIA

TEL: [phone]

KOREA

Cosmos Corporation

1461-9, Seocho-Dong,

Seocho Ku, Seoul, KOREA

TEL: [phone]

MALAYSIA/

SINGAPORE

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39, Datanat Prima, 47301 Petalingi

Java, Selangor, MALAYSIA

TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue

Makati, Metro Manila 1200,

PHILIPPINES

TEL: [phone]

TAIWAN

ROLAND TAIWAN

ENTERPRISE CO., LTD.

Room 5, 9fl. No. 112 Chung

Shan N.Road Sec.2, Taipei,

TAIWAN, R.O.C.

TEL: [phone]

THAILAND

Theera Music Co., Ltd.

330 Verng NakornKasem, Soi

2, Bangkok 10100, THAILAND

TEL: [phone]

VIETNAM

SAIGON MUSIC

DISTRIBITOR

(TAN DINH MUSIC)

138 Tran Quang Khai Street

Dist. 1, Ho Chi Minh City

VIETNAM

TEL: [phone]

AUSTRALIA/

NEW ZEALAND

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099

AUSTRALIA

For Australia

Tel: [phone]

For New Zealand

Tel: [phone]

CENTRAL/LATIN

AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires

ARGENTINA

TEL: [phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park

Wildey, St. Michael, Barbados

TEL: [phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose,780 Sala B

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHILE

TEL: [phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9

Medellin, Colombia

TEL: [phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30

Curacao, Netherland Antilles

TEL:[phone]

DOMINICAN

REPUBLIC

Instrumentos Fernando

Giraldez

155, New National Road

Patras 26442, GREECE

TEL:[phone]

HUNGARY

Roland East Europe Ltd.

Warehouse Area DEPO'Pf.83

H-2046 Torokbalint,

HUNGARY

TEL: [phone]

IRELAND

Roland Ireland

G2 Calmount Park, Calmount

Avenue, Dublin 12

Republic of IRELAND

TEL: [phone]

ITALY

Roland Italy S. p. A.

Danvik Center 28, 2 tr.

S-131 30 Nacka SWEDEN

TEL: [phone]

SWITZERLAND

Roland (Switzerland) AG

Atlantic Close, Swansea

Enterprise Park, SWANSEA

SA7 9FJ,

UNITED KINGDOM

TEL: [phone]

MIDDLE EAST

BAHRAIN

Moon Stores

No.16, Bab Al Bahrain Avenue,

P.O.Box 247, Manama 304

State of BAHRAIN

TEL:[phone]

CYPRUS

Radex Sound Equipment Ltd.

17, Diagorou Street, Nicosia,

CYPRUS

TEL: [phone]

IRAN

MOCO INC.

No.41 Nike St., Dr.Shariyati Ave.,

Roberoye Cerahe Mirdamad

Tehran, IRAN

TEL: [phone]

ISRAEL

Halilit P. Greenspoon & Sons

Ltd.

8 Retzif Ha'aliya Hashnya St.

Tel-Aviv-Yafo ISRAEL

TEL: [phone]

JORDAN

Abdullah Salem Street,

Safat, KUWAIT

TEL:[phone]

LEBANON

Chahine S.A.L.

Gerge Zeidan St., Chahine

Bldg., Achrafieh, P.O.Box: 16-

5857

Beirut,LEBANON

TEL: [phone]

OMAN

TALENTZ CENTRE L.L.C.

Malatan House No.1

Al Noor Street, Ruwi

SULTANATE OF OMAN

TEL:[phone]

QATAR

Badie Studio & Stores

P.O.Box 62

Doha, QATAR

TEL:423554

SAUDI ARABIA

aDawliah Universal

Electronics APL

Corniche Road, Aldossary

Bldg., 1st Floor, Alkhobar,

SAUDI ARABIA

P.O.Box 2154,Alkhobar 31952

SAUDI ARABIA

TEL: [phone]

SYRIA

Technical Light & Sound

Center

Rawda, Abdul Qader Jazairi St.

Bldg.No.21,P.O.BOX 13520,

Damascus, SYRIA

TEL: [phone]

TURKEY

ZUHAL DIS TICARET A.S.

Galip Dede Cad. No.37

Beyoglu - Istanbul / TURKEY

TEL: [phone]

U.A.E.

Zak Electronics & Musical

Instruments Co. L.L.C.

Zabeel Road, Al Sherooq Bldg.,

No.14, Grand Floor, Dubai,

U.A.E.

TEL: [phone]
