USER MANUAL FM 1101 KRESS

Original instructions "Milling and grinding motor"

• Quality & Process Representative -

März 2010

Datum

Wolfgang Auch

• Technical Director -

Unterschrift

Unterschrift

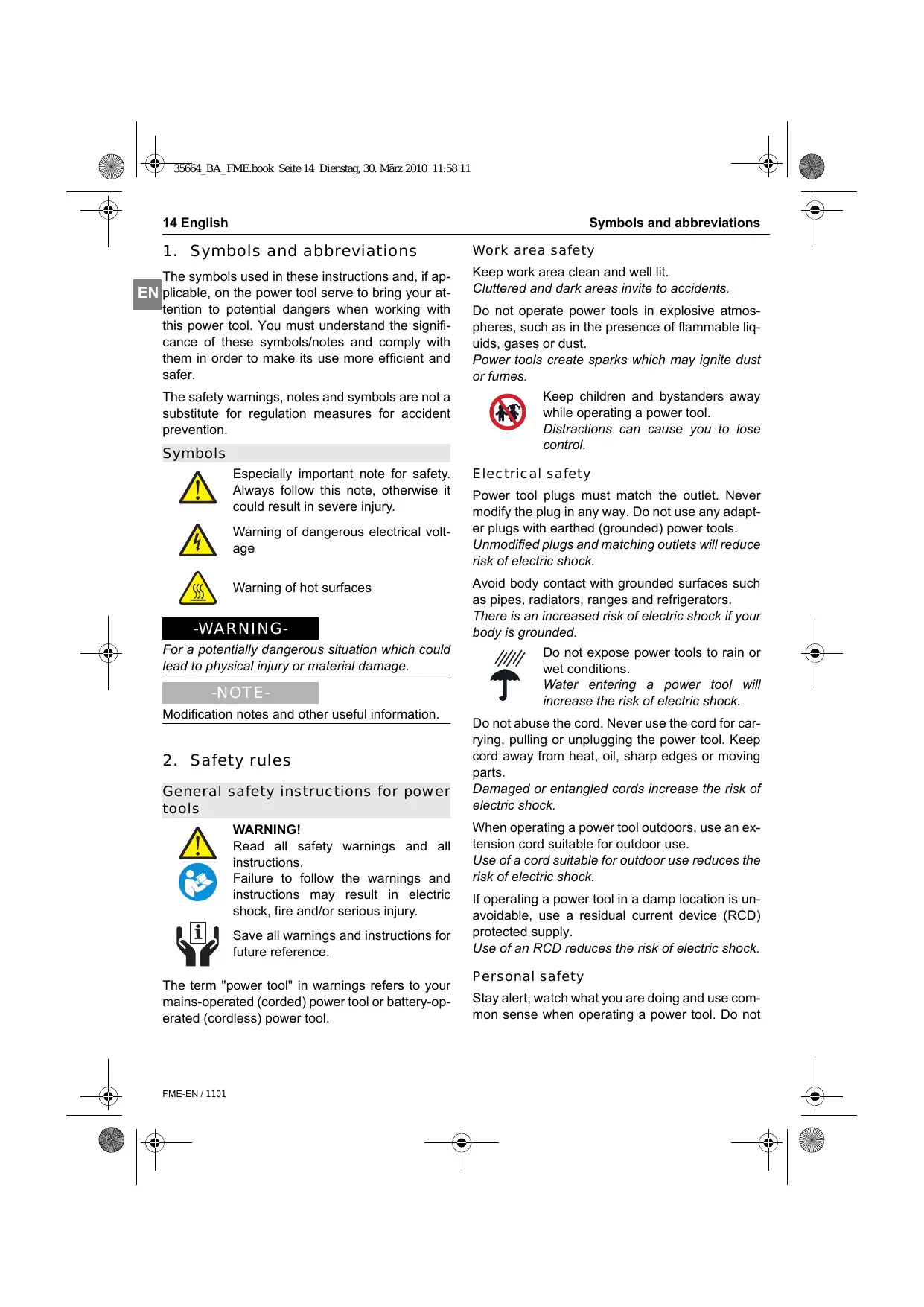

1. Symbols and abbreviations

The symbols used in these instructions and, if applicable, on the power tool serve to bring your attention to potential dangers when working with this power tool. You must understand the significance of these symbols/notes and comply with them in order to make its use more efficient and safer.

The safety warnings, notes and symbols are not a substitute for regulation measures for accident prevention.

Symbols

Especially important note for safety. Always follow this note, otherwise it could result in severe injury.

Warning of dangerous electrical voltage

Warning of hot surfaces

-WARNING

For a potentially dangerous situation which could lead to physical injury or material damage.

-NOTE-

Modification notes and other useful information.

2. Safety rules

General safety instructions for power tools

WARNING!

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit.

Cluttered and dark areas invite to accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite dust or fumes.

Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is grounded.

Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not

use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for connecting dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair person using only original spare parts.

This will ensure that the safety of the power tool is maintained.

Machine-specific SafetyWarnings

Wear hearing protection.

The effects of noise can cause loss of hearing capacity.

Secure the workpiece.

A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

The rated speed of cutting tools must be at least equal to the maximum speed marked on the powder tool.

Cutting discs or other cutting tools running with overspeed can fly apart and cause injuries.

Do not use blunt or damaged router bits.

Blunt or damaged router bits cause increased friction, can become jammed and lead to imbalance.

Apply the machine to the workpiece only when switched on.

Otherwise there is danger of kickback when the cutting tool jams in the workpiece.

Never cut over metal objects, nails or screws.

The router bit can become damaged and lead to increased vibrations.

Do not work materials containing asbestos.

Asbestos is considered carcinogenic.

Take protective measures if there is danger of formation of combustible or explosive dust during operation that can be hazardous to health.

Example: Some dusts can be carcinogenic. Wear a dust mask and work with a dust/chip extraction unit, if possible to connect.

Always wait until the machine has come to a complete stop before placing it down.

The tool insert can jam and lead to loss of control over the power tool.

During operation, always ensure that the mains and extension cable is to the rear away from the device.

This prevents anyone from tripping over the cable while working.

Do not carry the machine by the cable.

Move the switch to the "OFF" position before removing the plug from the plug socket.

When the tool is reconnected to the mains accidental starting of the machine is avoided, thus reducing the risk of accidents.

Tools not in use must be locked away safely in a dry place out of the reach of children.

To mark the machine, do not drill into the housing.

The protective insulation would be bridged. Use stickers.

Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable gets damaged during operation.

Damaged cables increase the risk of electric shock.

Residual risk. Although this information sheet and the operating manuals for our electrical tools contain extensive instructions on safe working with electrical tools, every electrical tool involves certain residual risks that cannot be completely prevented through safety mechanisms. Therefore, electrical tools must always be operated with the necessary caution.

3. Device description

Read all the warnings and instructions before using the equipment. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

While reading the operating instructions, unfold the graphics page for the machine and leave it open.

Device components

1 Locknut
2 Collet chuck
3 Spindle
4 Locking button
5 On/off switch
6 Speed governor turning wheel
7 Mains cable module
8 Locking for mains cable module

Illustrated or described accessories are not necessarily included in the scope of delivery

Scope of supply

See packaging

Specified Conditions of Use

The fitted milling and grinding motor is designed for milling wood and plastics and for grinding wood, plastic, steel and aluminium. The motor must not be guided by hand without appropriate milling attachments.

Requirements for the user

The tool must only be operated, maintained and serviced by authorised trained personnel. The personnel must be made aware of the relevant dangers.

Technical data
Milling and grinding motor		530FM
Input power	Watt	530
Output power	Watt	270
Idle speed	min-1	29.000
Speed for rated load	min-1	14.300
Tool fitting with collet chuckø	mm	22
Grinding toolø, max.	mm	40
Millingø	mm	30
Dimension	mm	240x73
Weight	kg	1,3
Protection class		II
Milling and grinding motor		800FME
Input power	Watt	800
Output power	Watt	420
Idle speed	min-1	10.000-29.000
Speed for rated load	min-1	25.000
Tool fitting with collet chuckø	mm	8
Grinding toolø, max.	mm	40
Milling -ø	mm	36
Dimension	mm	262x73
Weight	kg	1,4
Protection class		II
Milling and grinding motor		1050FME
Input power	Watt	1050
Output power	Watt	600
Idle speed:
1050FME	min-1	10.000-29.000
1050FME-1	min-1	5.000-25.000
Speed for rated load	min-1	24.800
Tool fitting with collet chuckø	mm	8
Grinding toolø, max.	mm	40
Millingø	mm	36
Dimension	mm	289x73
Weight	kg	1,7
Protection class		II

Your power tool is doubly insulated in compliance with EN 60745; there is thus no need for an earth wire.

The machine is radio and TV interference-free in accordance with EN 55014-1 and interferenceproof in accordance with EN 55014-2.

Noise and Vibration Information

Noise levels

Measurement values determined according to EN 60745.

The A-weighted noise level of the device is typically:

Sound pressure level (L_pA) 78 dB(A)

Sound power level (L_WA) 89 dB(A)

Measurement uncertainty K = 3 dB

The noise level can exceed 85 dB(A) during operation.

Wear ear protection!

4. Operation

Before carrying out any work on the machine, pull the mains plug.

Putting into operation

Observe correct main voltage!

Before putting into operation, check that the mains voltage and frequency on the identification plate match the details of your mains supply.

Connect mains cable module if necessary

Mains Cable

If the mains cable is damaged while working, pull the mains plug immediately.

Fixed power supply

Fixed power supply

Damaged mains cables must not be used. They must be replaced immediately by an expert technician.

Mains cable module

Mains cable module with Patent Quick Interlock.

Connect the mains cable module 7 to the handle. The plug must snap in.

Use the mains cable module 7 only for Kress electric tools. Do not attempt to operate other machines with the module.

Damaged mains cable modules must not be used. They must be replaced by a new Kress mains cable module immediately.

Push the two unlocking buttons 4 and remove the mains cable module 7 from the handle.

Use only an original Kress mains cable module.

Additional function

Continuous electronic control (Option)

The continuous electronic control keeps the speed almost constant under no-load and under load and ensures uniform performance.

Electronic control (Option)

In the event of overload or overheating during continuous operation, the speed is automatically reduced until the machine has cooled sufficiently.

Soft starter

The starting current limitation reduces the starting current. The motor revs up slowly until it reaches the preselected rotational speed. This can extend the service life of the machine.

Electronic overload protection

With a load that is too high, which therefore implies a risk to the motor, the rotational speed of the milling motor is reduced by the integrated monitoring of the motor. The machine must be released (preferably remove it a short distance from the workpiece) to ensure that you can have full capacity again.

Operation

The tool runs on for a short time after it is switched off.

If there is contact between the tool and the support surface, there is a danger of losing control of the machine.

Switching On and Off

To switch on the machine, push the On/Off switch 5 forward and press it down at the front to lock on.

To switch off the machine, press down the On/Off switch 5 at the rear so that the switch springs back to the off position.

Preselect speed (Option)

In devices with a setting dial 6, you can select the speed using the setting dial 6 depending on the area of application.

	800FME / 1050FME	1050FME-1
1	10.000 min-1	5.000 min-1
2	12.600 min-1	7.700 min-1
3	17.000 min-1	12.500 min-1
4	21.000 min-1	16.500 min-1
5	25.000 min-1	21.000 min-1
6	29.000 min-1	25.000 min-1

Changing the tool

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures prevent accidental start of the power tool.

Wear safety gloves for tool changing.

The tool insert can become very hot after working for long periods and/or the cutting edges of the tool insert are sharp.

Clamping the tools

The spindle 3 of the milling and grinding motor is equipped with a precision collet chuck 2 to hold the tools. A spindle lock enables you to tighten and loosen the locknut 1.

To clamp the tool, you lock the spindle 3 by pressing the locking button 4.
You tighten the locknut 1 using a SW 17 open-ended spanner.
When you unclamp the tool, the spindle 3 in turn is locked.
You loosen the locknut 1 by turning the open-ended spanner. You can remove the tool by continually turning the open-ended spanner.

Attention! After you use the insertion tool, perform a test run with an overspeed and make sure that no-one is within reach of the rotating insertion tool. Damaged tools usually break in this test period.

Operating tips

Working with the milling motor

Wear protective glasses and hearing protection.

When you use a drill stand or a mill/drill unit (possibly with a milling table), you must refer to the notes in the instructions for use provided there.

Also note that you must add the alignment fences as far as possible on the milling cutter, the hand deflector (screen) must be set down as tightly as possible on the workpiece surface and, for milling work, you must always use equipment that can guarantee safe use of the tool, for example, alignment fence, auxiliary bearings, automatic feeders or a non-return block for milling work.

The feed direction of the tool must always be the opposite of the circulation direction of the milling cutter (counter direction):

Caution! Always mill in a counter direction!

Grinding work

If the milling and grinding motor is used as a grind-EN er in manual operation, it is important to ensure that the circumferential speed specified by the tool manufacturer is not exceeded.

The peripheral (circumference) speed is calculated as follows:

$$ V = \frac {d \times \pi \times n}{6 0 0 0 0} $$

V = Peripheral (circumference) speed

d = grinding tool in mm

$$ \pi = 3. 1 4 $$

n = Idling speed of the milling and grinding motor in revolutions/min.

Example: The grinding tool used has a diameter of 25mm .

$$ V = \frac {2 5 \times \pi \times 3 0 0 0 0}{6 0 0 0 0} \frac {m}{s} = 3 9, 7 5 \frac {m}{s} $$

The accepted overspeed is not exceeded.

Make sure that

the grinding tool used is bound with ceramic or resin.
the grinding tools are stored in such a way that they are not damaged (cracks in the grinding tool, damaged tool shanks and so on, mean that the user's life is in danger).
- before you use new grinding tools, you must carry out a test run for at least 5 minutes without the device being overloaded.

-NOTE-

Very high rotational speeds result in the tools wearing rapidly and consequently in low service lives for the tools!

-WARNING

Only use sharp milling tools that are in good condition! Preferably use our original milling tools.

When you use other milling tools, the steady rotational speeds per minute indicated on the manufacturer's rotating tools must not be exceeded!

Routing Procedure

Keep your hands away from the cutting area and the cutting disc. Hold the auxiliary handle with your second hand.

When both hands hold the machine, they cannot be injured by the cutting disc.

Apply the machine to the workpiece only when switched on.

Otherwise there is danger of kickback when the cutting tool jams in the workpiece.

5. Tools and accessories

Always wear a dust protection mask when working with the power tool.

Do not attach a saw chain woodcarving blade or toothed saw blade.

Such blades create frequent kickback and loss of control over the power tool.

Permissible grinding tools

You can use all grinding tools shown in the illustrated instructions.

Observe the permissible speed and circumferential speed specified on the label of the grinding tool.

The ratings on the type plate of the power tool must not exceed the permissible speed [rpm] and circumferential speed [m / s] of the grinding tools used.

For safety reasons, the grinding tools must not be operated at circumferential speeds exceeding 80 m/s.

When using grinding tools, always observe the information provided by the grinding tool manufacturer.

Changing the collet

Release the tightening nut 1 and remove the tool using suitable cut protection (Caution - Danger of injury).

Unscrew the tightening nut 1 with the collet 2.

Using your thumb and index finger, press the collet 2 together at the continuous slot.

Tilt the collet 2 off and remove it from the tightening nut 1.

Caution! To protect the thread, screw the tightening nut 1 lightly onto the spindle 3, but never tighten it if no tool is inserted. The collet 2 could be pressed together too tightly and damaged.

Working with a flexible shaft

Due to its adjustable speed, the milling and grinding motor is also ideal for use as a drive motor for flexible shafts.

When using the motor for this purpose, it is important to ensure that the motor does not exceed the maximum permissible speed for the flexible shaft.

Wear protective glasses and hearing protection.

6. Maintenance and Service

Maintenance and Cleaning

Before carrying out any work on the machine, pull the mains plug.

Always keep the machine and ventilation slots clean.
Regularly wipe off the plastic parts which are accessible from the outside using a cloth without cleaning agent.
After each job, blow the dust from the fan. This will increase your machine's service life.

Replacing brushes

Worn carbon brushes should be replaced by an authorised customer service organisation.

Service

After heavy use over a long period, the machine should be taken to a Kress service location for inspection and thorough cleaning.

The relevant service centres are listed in the enclosed appendix "SERVICE" or on the website www.kress-elektrik.de.

Spare parts / exploded view

Exploded views and spare parts lists are available on our home-page

http://spareparts.kress-elektrik.de

Environmental Protection

Recycle raw materials instead of disposing them as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling.

The plastic components are labelled for categorised recycling.

Only for EC countries.

Do not dispose of electric tools together with household waste material!

In observance of the European Directive 2002/96/EC for waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Warranty

1. This power tool has been carefully tested and has been subjected to a strict quality control process.
2. We guarantee the free-of-charge repair of faults in the power tool that arise within 24 months from the date of purchase at the end user's premises and which can be attributed to a material or manufacturing defect. In certain countries there are special regulations concerning the warranty terms. We reserve the right to repair faulty components or to replace them. Replaced items become our property.
3. Inappropriate use or handling and opening up the device by unauthorised repair centres leads to the warranty becoming void. The warranty does not cover: mechanical damage due to falls etc., damage caused by penetration of water or other fluids, cut and damaged cables, motor damage and mechanical damage caused by inappropriate overloading, wear parts e.g. carbon brushes, drill chucks, chuck keys, worn drilling spindles, motors, mains cables, batteries, saw blades, grinding discs, dust bags, accessories in general (drill bits, chisels etc.). Details of the various toll wear parts can be obtained from http:// spareparts.kress-elektrik.de or from one of our service centres.
4. The warranty may only be enforced when defects are reported without undue delay (including shipping damage). Warranty implementation does not extend the warranty period.
5. If you need to apply the warranty, send the original purchase receipt together with the device to us or to the relevant service centre.
6. The warranty obligations assumed by us shall exclude any further claims on the part of the buyer, in particular the right to cancellation of a sale, reduction and the assertion of damage claims.
7. However, the buyer shall have the right to either a reduction (in the purchase price) or the cancellation of the sales agreement should we fail to eliminate any defects within a reasonable period of time.
8. This does not exclude compensation claims in accordance with §§ 463, 480 Para. 2, 635 BGB caused by the failure of assured properties.

The provisions defined in Items 7 and 8 only apply to the Federal Republic of Germany.

Technical modifications reserved

EU Declaration of Incorporation

The manufacturer: KRESS-elektrik GmbH & Co. KG, Hechingerstrasse 48 D-72406 Bisingen Tel.: [phone] / 87-0

hereby declares the following product:

Product designation: Integral milling motor
Type designation: 530 FM, 800 FME, 1050 FME, 1050 FME-1
Serial number: 2010XXXXXX
Year of manufacture: 2010

complies with the following basic requirements of Machinery Directive (2006/42/EG): Annex I, Article 1.1.2, 1.1.3, 1.1.5, 1.3.2, 1.3.4 and 1.5.1.

The partially completed machinery also complies with all requirements of the Electrical Equipment Directive (2006/95/EG) and Electromagnetic Compatibility (EMC) Directive 2004/108/EC/EMC.

The partially completed machine must not be put into service until it has been ascertained that the machine into which it is to be incorporated complies with the requirements of the Machinery Directive (2006/42/EG).

The manufacturer undertakes to transmit to national authorities the relevant documentation on the partially completed machinery, in electronic form and on request. The relevant technical documentation for the machine as specified by Annex VII Part B has been created.

Persons authorised to compile the relevant technical documentation: Klemens Muller, Wolfgang Auch Address of the persons authorised to compile the relevant technical documentation: see manufacturer's address

Bisingen,

March 2010
Date

Klemens Muller - Quality & Process Representative -

Signature

March 2010
Date

Wolfgang Auch
- Technical Director -

W

• Quality & Process Representative -

Signature

Mars 2010

Wolfgang Auch

• Technical Director -

Signature

• Quality & Process Representative -

Firma

Marzo 2010 In data

Wolfgang Auch

• Technical Director -

1. Simbolos y abbreviaturas

Klemens Muller - Quality & Process Representative -

Wolfgang Auch - Technical Director -

1. Simbolos e abreviaturas

• Quality & Process Representative -

Assinatura

Março de 2010

Data

Wolfgang Auch

• Technical Director -

Assinatura

Klemens Muller - Quality & Process Representative -

Handtekening

Maart 2010 Datum

Handtekening

Klemens Muller - Quality & Process Representative -

Underskrift

Mars 2010 Datum

Wolfgang Auch - Technical Director -

Underkrift

Egaptnmuataepyaaeiou

1 Paiaiαδi αoσφiεns
2 MnXaviooosuOaipns
3 AtpaKToC
4 PAnKToaOpaAioNs
5 i k ON/OFF
6 EπIoγεαρθμiστηταχιτητας
7 Mováða kaλωδiou troφoδoσiαc
8 Aopalion movadac kalwiou tropooia

Ta aεoouap TOU aTEIKoviOVTai n
TEPiYpApovTai δEV TEPiExOVTai
UTOXPEWTIKA OTO TIAIO
TTAPaOoN5

IIaioio npapaoos

BLeTTnouokuaoia

EvdeEevymevXpno

To pnoapozo evpaaieio pepzapiogatoc kai
Eiaavons eivai katalnnlo yia to ppezapioua
Eulou kai nlaotikou kaowc kai yia tn Eiavon
Eulou, nlaotikou, ataaiou kai alouviou. 2ev
ETIITPENTAI VA θeOeTO pyaieio oE
Aetoupyia xwpis ta katalnnna Eaaptnmuata
ppzapoiatoC.

Aattnoeic oTo xphotn

H xpno, ouvtnpno kai eTIOKEun Tou epyaEIou EITIPTETAI aTOKAIEOTIKA OE EGOUIOOtoNeveo, EKTIAEUEVO TPOOONIKO.To TPOOONIKO TpETTEI va ExeEvnepeWthetaExwpiotaYia Touc KIVUVous TTO Evexetai va TAPOUIAOToUV.

• Quality & Process Representative -

YTovpapn

Máptioc 2010

Hερομηνία

Wolfgang Auch

• Technical Director -

Yyoypaqn

• Quality & Process Representative -

Wolfgang Auch

• Technical Director -

Aláiras

Alairas

1. Symbole i skróty

Klemens Muller - Quality & Process Representative -

Podlis

Marzec 2010 r. Data

Wolfgang Auch - Technical Director -

Podps

1. CnmbolblncokpaueHna

IcnoB3yembe B daHHo INHCTpyKcunn Ha
camOM 3JeKTPoINHCTpyMeHTe CmMBOJIb clyXkAT
TJrTO, yTObI o6paTntb BaIe BHNMaHne Ha
BO3MOxHbIe ONaCHocTn np pa6ote C daHHbIM
3JeKTPoINHCTpyMeHTom. Heo6xoJIMO noHNMaTb
3NaueHne CmMBOJOB/Yka3aHn I DeiCTBOBaTb
pa3ymHO dJa 60nee 3KOHOUMuHORo n HaNEXHORO
npimHeH. PpeDynpeXkDeHn, Yka3aHn I
CmMBOJIb He 3aMeHryOT COOTBETCTBYUoJne
npedncaHHbIe MeOpnpraTn No
npedotBpauSeHHIO HeCchuaCThblx ClyuaEB.

CNMBOJIbI

OueHb BaxHoe yka3aHne no 6e3oNaChocTn. Bcerda co6bIoudaIte daHHbe yka3aHnB, B npOTNBHom clyuae Hec6bIouDeHne MOXET npINBeCTN K TjKeJIbIM TpaBMam.

Пре dioctepexeHne o6 onachom dny KJ3N3n 3JeKtpnueckOM haprjekhen

IpeodocetepexeHne o ropeuynobepxHoctn

-Предупөхдөнг -

O BO3MOXHON ONaCHO CNTyaCIN, KOToPAJ MOKeT pInBecTN K JIeKIM TeneChbIM TpaBMAM NJI MaTePnaJIbHOMy Usep6y.

-YKA3AHNE-

no npimmehenHIO n Dpyra NOJe3Ha INΦopMaζIa.

2. ПравILA Тхнки 6e30anchoctn

ОвICIne npabuNa TeXHnK 6e3OnaChOCTn npn 3KcPnIyataqnn 3JIeKTPoHnHCTpyMeHTa

BHIMAHNE!

O63aTeIbHo IpoUHTe INHCTpyKcIOu O3HaKOMbTEcB CO BCEMnpabINAMn NIOJoxKeHnMn.

OunbKn ynyueneH B pe3yIbTaTe HecobJIOeHn npBveeHHbIX HNKe npaBn I NpOxHeHm MOyT CtaTb npuHoi nopaxeHn 3JIeKTPueeCKM TOKOM, BO3HNKHOBeHn NOXapa N/INn INOnyUeHn TAgKeJIbIX TpaBM n yBeHn.

BepexHo xpaHnTe Bce INcTpyKuIN I pykoBDCTBA NO TexNke 6e30aNoCTn Dna DaJbHeIWeo NCNOB3OBAHnI.

IcnoJIb3yEmbl 3decb TepMH "3JIeKTPoINHCTpyMeHT" OTHOCNTCA 3JIeKTPoINHCTpyMeHTAM,paOtaIOUmOT cETn (C cTeBbIMKa6eIeM NII MOnyIeM CeTeBOrO Ka6eJIa) n paOtaIOUmOT aKKymJYTopa (C nITaHEm OT aKKymJYTophIx 6atapei).

Бezonaachoctb pa6ohero mecta

ObecneyTe xopoOee OCBeUeHne n noDepKbBaIte YnCTOTy n nopAOK Ha pa6oHem MeCTe.

BecnpaOK n HeocBeuHoe pa6oee MeCTOMOyT CTaTb pInuHOB HeCuaCTHO CnyaJ.

3anpeaetcA 3KcPnyataun INHCTpyMeHTA BO B3pbIBOONaCHO 3OHe, B KOTOPH HAXoJrTcJIeKOBOCnPaMeHraUoIeC JNkKOCTN, Ra3bI NJI NbJIb.

3JIeKtpOnHCTpyMeHTbI pOn3B0aT NcKpy, KOTopar MoXeT BOCnJIaMeHbTbIbIbNJI napbl.

He donyckaIte npn 3Kcnnyataunn 3JNEKTPOHNCTPymeHTa HaxOXJDeHNr pRdOM dTei nIOCTOPOHHX LIuC.

OTBnEkaCb, MOXHO nOtepTaKoHTpoJIb NaI 3JNEKTPOINHCTpyMeHToM.

3NeKtpo6e3onacHocTb

山Tekep 3neKtpOnHCTpyMeHTa DOJIKeH NOxOHTb K pO3eTKe. 3anpeUaetcB BHOCtB KaKHe-NI6o N3MeHENB B StKepe. He nCNoJb3yIte

nepexoHnK 1TeKepa IJRAeKTPoHHCTpyMeHTOB C 3aUHTbIM 3a3eMJIeHNiEM.

OpunnabHbHbI uTKeep NIOxOJaUaK HeMy po3eTKa CHNkaIoT pNCK nopaxHeNHa 3JIeKtpnueckm TOKOM.

He donyckaTe KOHTaKaTe Tena C TaKIMn 3a3eMJIeHHbIM NOBepxHOCTaMn, KAK Tpy6bl, OTONITeJIbHbIe CNCTeMbI, KYXOHHbIe PIIITbI, Neu N XOJOniNbHKn.

CyueCTByET NOBbIeHHbI PNCK nopaxhenn 3JIeKTPuYeCKM TOKOM,ecnBaSe TeNo 6yDet 3a3emJeHO.

ObeperaTe 3JeKtpoHCTpymeHT OTOJQIJI NIN nonaHaHnBnAIn.

ПюнКНовене BOДБВ 3ЛЕКТПОИНСТРУМЕТ yBЕЛЧИΝБЕТ риСК ПОражени 3ЛЕКТПИССКIM TOKOM.

IcnoJb3yIte Ka6eIb TOnbKO No Ha3HaueHIO. 3aIpeuaeTc nepeHocITb 3JeKtpoHnCTpymeHT, ydepXnbAero 3a Ka6eIb, IIN NcNoIb3OBA Tb Ka6eIb dIy oTOcoEInHeHn 7TeKepa OT po3ETKn. OBeperaiTe Ka6eIb OT Bo3JeIcTBn BblCOkNx TemnepaTyp, Macna, pexyux KpOMOK IIN DnBnKyUxxCy y3IOB 3JeKtpoHnCTpymeHTa.

Поврждений сптуаньувелуновпuck поаркеши злектческIMТOKOM.

При работе слелковсгтум entOM ha OTKpbITOM BO3dyxe, ИСпОЛьзуйTe yДИNHHTeNb, npedHa3haeHHbI TOJbKO ДЯн hapyKhbIX pa6OT.

Ipeed Tem KaB KJIIOUHTb 3JIeKTPoINHCTpyMeHT ydaJIInTe NHCTpyMeHTbl JIA NaCTPOIK MaUNHbI INJN KJIIOU NaTPOHa.

HCTpymEn T JIa HAcTPOKn NJI KJIIOU, BCTaBHeHHbI BO BpaAioOuINcR y3eIN MaWInHbI, MOrYt npNBecTN K YBeYbI OJN TpaMe.

He nepeoehnbaTe cBOI cnbl, npHmam HeecTeCTBeHHoe Ira TeJa noJIOKeHne. Bcerda BbIbpaTte yctOuHBoe noJIOKeHne u CoXpaHnTe paBHOBeCne.

Bnaorapar 3tomy moKHO lyuhe KOHTpOInpoBaTb MaunHy n 6bictpee n Inerpe pearnpoBaTb HneoxndaHHyOCITyaIIO.

IcnoJIb3yIte cneuaJIbHyO pa6Ouyo OdekJy. He Hocnte npocToPbIe npeDMtbl OdekJbl IIN yKpaSeHn. ObeperaIte BONoCbl, OdekJy n nepaTkn OT noDBrNkHbIX y3NoB u Detanei.

Cbo6oHaJ oexka, ykpaSeHnI nn IINHHbIe BOIOcbl MOyT 6blb 3aTAYtbl NOBUNKHBIMU y3Iamn n DeTaJIaMm MaunHbI.

EcnHa 3neKtpOnHcTpymeHTpeDyCMOTpeHa BO3MOxHOCTb POKJIIOUHeHnI PbIInecOca,

y6eHNTecb, yTO OH npaBnIbHO nOdkIIOHe H IOxODHT DnT OTCabIbAemOrMo MaTePnAna.

Применени NBJIeOTcaBbAIOUxN

IbIyIaBnBaIOUxN yCTPOJCTB CHIXKaET BpeIHOE BO3JeICTBNE IbIIN.

3JIeKtpOnHCTpyMent, KOtOpbI He BkJIIOUaETcR IINHe BblKJIIOUaETcR, PpeIcTbAaET ONaCHOCTb IdoJIKeH 6bITb OTpeMOHTnpOBaH.

Bcerda otcoeHnHne Te tKeep oT pO3eTKn, nIu akKymJyTop OT MaunHbI, nepei TEM kak pIncTynNTb K HacTpoKe, perynipOBke MaunHbI, 3aMeHe DeTaJe OChAcTKn IIN eCNI OTknaDbIbAeTe MaunHy B CToPOHy.

3TN MepbI npedoctopoxhocTINppenrTCTBYOT CnyuahHomy 3anyckyMaunHbI.

HeicnoIb3yemble 3JekTPOHnCTpyMeNTbXpAHnTe B HeIOCTyHOM dJa DeTei MeCte. 3aPpeaetc8 3KcIIpyataunr 3JekTPOHnCTpyMeHTa HENoIROTOBJIeHHbIMN IIN HeO6yueHHbIMN JINuAMN, HE O3HaKOMMBUIMMCs C npabINAmn 3KcIIpyataunn.

3NeKtpOnHCTpyMeHTbI npeDctabJIOT onaCHOCTbДЯ HeONbITNbIX,HeO6yUeHHbIX NIIU.

CJeIte U yxaxnBaIte 3a COCTOHNHeM 3JIeKTPoHnCTpymEHTA. IpoBepaTe IOdBHXHbIe DeTAlN U y3JIbI Ha INx 6e3ynpueHyIO fYHKUHOHaJIbHYo pa60tocNoC6HOCTb - OHI He DOJXHbI 3aEdaTb, 6bITb NOBpeXDeHbI ININ CLOMaHbI. IOBpeXDeHHbIE DeTAlN, IpeE TeM KAK npICTuNTb K pa6Ote C 3JIeKTPoHnCTpymEHTOM, DOJXHbI 6bITb OTpeMOHTpOBAHbI ININ 3aMeHeHbI.

ПричноMHOrnx HecuactHbIX CnyaEB YBnEeTcNJILOXOI TEXHnueckn yXoD 3a

3JIeKtpOnHCTpyMeHTOM.

Cneinte n yxaknBaIte 3a coCToHnem Baunx pexyux nHcTpymeHTOB! OHN DoJIkhbl 6bItb BCerda octpo 3aTOUeHHbIMn uNCTbIMn.

Pexyuzne INCTpyMeNTbI C OCTpbIMN pexyuzmN KpOMkAmn pexe 3akJINHnBaet N MMn JereYe ynpabTb.

IcnoIb3yIte 3NeKtpOnHCTpyMeHT, OChactKy I T.D. B COOTBETCTBnC 3TmN IpabuNAMn 3KcNpYatauN IN NO Ha3HaueHIO, KAK ONiCaHO B pyKOBOdCTBe DJIa DaHHoro Tnna MaunHbI. YUnTBaIeTe npn 3TOM ycIOBra pa6ObI N o6pa6aTbIAembMy MaepnA.I

IcnoJIb3OBoAHne 3eKTPoHnCTpyMeHTa IJyDpyrIX ceJe,OTnHybIX OT npEdycmTopeHHo OBlaactn npImeHeHn, MoKeT npVBecTN K ONaChbIM cITyaUzma. 3aIpeuaeTcB BVocntb KaKne-1n60 n3MeHHeN B KOHCTpyKcUIO 3eKTPoHnCTpyMeHTa, HApUwA Tb CENoCTHOCTb KOpTyCa, PbITaTbC4 camOCTOReTbHO BCKpbIBaTb IN pEmOHtnpOBaTb 3eKTPoHnCTpyMeHT, 3aMeHraTb Ka6enb, UcTeKn, WTekep, CamOCToReTbHO pa3bupatb N CMa3bIBaTb 3eKTPoHnCTpyMeHT. HApUweHne BblSeYka3aHHbx YcNoBn I Tpe6oBaHn MOKeT NOBNeYb 3a C6oB OTKa3 B yDoBnTeBOpEHn rapaHTnHBx npTeH3n.

CepBnC

Pemont 3neKtpoHnCTpymeHa TdoJxKeH OcyuEcTBJyTbcra TOJbKO CneUaNtAmc cepBnCHOrO cHTpa NTOJbKO C NcNoJIb3OBaHNEM OPINHAJIbHbIX 3anaChbIX DeTaJIeN I YaCTei.

ToIbKO B 3TOM cnyuae 6ydet o6ecneueha 6e30nacHOCTb 3JIeKTPoHnCTpyMeHTa.

CneuahlbIe npaBnla TeHNKBe30nacHocTn

Дяразовы Incnoьуte Hayshnki. Heratubhoe BOZdienCTBue shyma moket npnbectn K notepe clyxa.

3aKpEnIte 3aToBky.
UcnoIb3yIte TnCKn IJIN 3aXkMbl
IdIg 3aKpEnIeHn 3aRoTobKn. 3To
ropa3do HaJeXHee, Yem 3axmTaB
ee pyKo.

Дусгимоe YNCSNo O6bOpOTb pa6oery HnCTpyMeNTa (OChACTKn) DoJIXHO 6bITb He MeHbIe yka3aHHOrHa 3JIeKTpOHcTpyMeHTe MaKcIMaJIbHorO YNcna O6bOpOTb.

BpaaiooiecC npeBbIeHHeM dOnyctmOrO ounca oboopoTob nckOBbIe ppe3blnn dpyrne

RU

pa6oue HnHcTpymeHTbI (OCHaCTka) MOryT pa3JeTeTbc8 OCKoJkamN IN pInBecTN K TpaBme NJIY BVeCyIO.

3anpeaetcncnoJIb3ObaTb 3aTyINBUnecra nn nobpekdeHHbe ppe3bl.

3aTynBwneceNnIOBpeKdEHHbIe ppe3bCO3daIOT NOBbIeHHOe TpeHne, MOryT3aKnINHBaTbcN n npNbOJr K 6ueHIO NnPa36baIahCnpOBke.

3NeKtpOnHCTpyMeHT DOLKeH HAnpaBnTbcra Ha 3aROTOBky TOJbKO BO BKJIIOUeHHOM COCTOAHIN.

B npotnbom cnuyae cyuecTbyet onachoctb Bo3HNKHOBeHnO Tdaun npn 3aKJIINHBaHn pa6oery nHCTpyMeHTa (OChactKN) B 3arOTOBke.

3aIpeaaeTc BbIOJHrTb 4pe3epoBaHne 3aROTOBOK, IMEIOUx MeTaJIINueCKne IpeMeTbI, rBO3n INIIN WpyPbI.

Φpe3a MoKet 6bIb NOBpExKeHa N BbI3BaTb NOBblSeHHyU Bn6paCnIO.

He pekomeHdyetcI dIHTeJIbHaI eKcnIpyaTuIg 3JeKTPoHNCTpymEnTa npI o6pa6oTke a6ecctocOedePkaUero MaTePnana!

AcbectyBnTc npuHno oba0BaHna paka.

Hanpimep: HeKOTOpbIe pa3HOBvIDHOCTn nbIIM MOryt cTaT npuHNoI 3a6OJIeBaHnpaKa. HadeBaIte nbIJe3aIHTHyo Macky n IcNoIb3yIte yCtpoiCTBa dIyUdaneHn pbJIn/ctpykKn, ecnn ppeDyCMOTpeHa BO3MOXHOCTb IN NOKIIHOueHn.

3JNeKtpOnHCTpymEnT CneDyET 3KcNJIpyATnPOBaTb TONbKO C BXOJaUIMM B KOMNJIeKT 3aIHTbIMN yCTpoiCTBaMn.

DnAmEtPNCNoB3yEmbIX MM

Baw 3neKtponHcTpymeHT cornaCHO

HopMaTnBy EN 60745 mMeTe

ДВОИНΥΙΟ ΙЗОЛЯЦИΝΟ; ПО 3ΤΟΙ

PnUHHe 3a3eMJIeHHe He Tpe6yETcA.

3JNeKtpOnHCTpyMeHT 3aUuIeH OT NOMEX corlacho HopMaTnBy EN 55014-2, a TaKke OT paIIO - I TeJIeBUNOHbIX NOMEX corlacho HopMaTnBy EN 55014-1.

Hnfoopmaun O yMBOOy 3MnCCnn / Bn6paun

3haeHnIyMBOOByMnCCnn

I3MepeHHbI 3HaueHnI IOnJuYeHbI B

COOTBETCTBUN C HOpMaTINBOM EN 60745.

YpOBeHb UyMoBoI 3MnCCnHa pa6Oyem MeCTe COCTaBnAET:

IcnoJb3yTe MoDyIb CeTeBoro Ka6eIa 7 ToIbKO Ha 3NeKtponHCTpyMeHTax fnpMbI Kpecc, He nbTaIaTeCb 3KcNJIyaTnPoBaTb c erO nOMoUbIO IHCTpyMeHTb dpyrNx fnpM-npOn3BODnteJe.

3anpeaaetc 3Kcnnyataun

3JIeKTPoIHCTpyMeHTa C NOBpeXdEHbIM

MOdyIeM cTeBOrO ka6eIa. IOBpeKdEHHbI

MOyIb ceTeBOrO Ka6eJr Heo6xOJIMO

He3aMeIJIHTeJIbHO 3aMeHITb HOBbIM

OpnHaJIbHbIM MoDyIeM QnpMbI Kpecc.

HaabaTe Ha o6a fikcatopa 3amka 4 n OTcoeHNITE Moynb ceTeBOrO Kaebn7 OT pykoTkn.

IcnoJIb3yIe BCerda TOnbKO opnHnHaJIbHbI MoDyJIb CeTeBOrKa6EJa QnPmbl Kpecc.

DononHntelbna yHKn

KoHCTaHTHa 3JIeKTPoHnKa (OIIzIa)

KoHCTaHTnA 3NeKtpoHnKa nOdEprXnBaET NocToRHHoe YNCIO o6OpOTOB B pexMe XOnocTOrO XoJa I NOHarpy3kO IN ObecneuBaET paBHomepeHyIO npON3BOIDNTelbHOcTb.

3NeKtpOnHka (onu)

3JIeKtpOnHCTpyMeHT ABTOMaTnueCckn
ymEnbShaet YncNo OobopoTOB npn
n36bltOuHO Harpy3Ke nPi
nepeReBe B pexmme dNITeNbHO
paobToI Do Tex nop, Noka
doCTaTOUHO He OxJaNTcra.

PnaBbIy nycK

CnCTema nIaBHO rnycka yMeHbShaet nyckOBoi TOK npu BkJIuOeHIn 3JeKTPoINHCTpyMeHTa, YTO6bl I36EkaTb CINbHOro pblBka npn 3anycke. 3JeKTPoINBIRaTeIb MeDJIeHNO n I INaBHO HabipaET obOpToI do 3aDaHHoro YcNla. Bnaorapr 3tOMy yBeINuHBaETc npok cIyKbI 3JeKTPoINHCTpyMeHTa.

3NeekpOnHnA 3aunTa oT neperpy3Kn

При чрзмерно onachою Дядвигаелнагрузke Inteertropobahная систema Контponдвигаелая сокрашаet Усло obopotOBфpezeрно DBигаелЯ.В зтOM с lyuae Heo6xODIMO pa3rpy3ntb 3neKTPONHCTpymeHT.Дял STORO Lyuше BCero Ha HeKOTopoe Bpema OTBECTN erO OT 3aROTOBKN,ЧTOБы ChOBAdoCTnHy NOJIHO MOUHOCTN.

3Kcnnyataun

Iocne OTKJIUOeHnpa6oHn INCTpymENT npoJolJaet BpaaTaTbCn PO HnepuN eue HeKOTOpoe BpeM.

OTknaIbIaB aIeKtpOnHcTpymENT BCTOPoHy,MOxHO nOtepRb KOHTpObHaI HmB Cnyae KOHTaTc NOBepxHOCTbIO.

KpOMKn INHCTpyMeHTa MOryT 6bItb

OCTpbIMN.

3axm pa6oynx HcTpymeHToB (OChAcTkn)

UHnDJIb 3 fpe3epHO-UNnFOBaIbHOrO DnIraTeJIa OCHaIeH INPteuN3IOHNO 3aXIMHO UaHroJ 2 IJ KpENJIeH NHTpymeHTOB. FUKCaIJaU HINDeJI O6JIerHaET 3aTIRBaHne n OCJIa6JIeHne 3axmHNo raiKn 1.

Для 3ажима paбочero nHcTpymeHTa шпндь 3 Фнсруетс нажатем KhoNTK 6лokировк 4.
3axmna raKa 13aTnBaETc c nOouraeHoro kNoya SW 17.
Дя paçkaTNЯ pa6oery INHCTpyMeHTa ⅢINHdJIb 3 ChOBA qKcnpyETca.
Pn nomounraeHoro KIOUa 3aXmHa raKa 1 ocna6JIaETcra Ha OINo6OpOT. Pocne HeckonbKnx O6OpOTOB MoxHO ChrTb HNCTpyMeHT.

BhImaHne! Pocne yctaHObKn pa6oOero IHCTpymeHTa BblIOJIHnTe np6bHb 3aynck C MaKcIMaIbHbIM uCnOM o6OpOTob. Y6eIITecb, YTO B 30He DeiCTBnB BpaUaHOUeOcra pa6oOero IHCTpymeHTa He haxOJrTcIIOIN. IOBpeXdEHHbI INHCTpymeHT B 6OJIbSInHCTBe clyuaeB IOMaETcB BO BpEm TaKoI npOBepKn.

PpakTnueckne yka3aHna

Pa60ta fpe3epHbIM DnBureTeJIeM

HaedeBaIte 3aIHTbIe OUKn N HayuHnKn!

Ppi nCnOJIb3OBaHmN CTOe DJIg CBepeHnI NIN CBepINlBhBIX Φpe3epHbIX CTaHKOB, Ppi Heo6XoDImOCTN, B COUeTaHmN CO CToJOM IJIg Fpe3epHOrO CTaHKa, CJIeDyET Co6JIHOdaTb Yka3AHnI PpNJraEmbIX K HmM pyKOBODCTB NO 3KcIIpyatauIN.

Kpome toro, cneJeT cneIuMb, yTo6bI ynpHnaJIInHeKa pacnOraIacb KaMoxHo 6bnKe K

FME-RU / 1101

Φpe3e, yctpoiCTBa 3aunTbI pyK (neperopoKn) DOnXhbl yCTaHaBnBaTbCk KaK MoxH0 6bnKe K NOBepxHocTN 3dEInN, DnA Φpe3epHbIX pa6OT BCERda CLeDyET NcNo1b3OBaTb IprncnOcoBleHn, KOtOpble o6ecneuBaIOT 630NaChyIO nOaCy 3arOTOBKn npn OcyueCTBlenn Φpe3epHbIX pa6OT, HnP. ynOpHy IOHeKy, BcNoMOraTeIbHbI ynop, NpaIoUe caJa3Kn nIIN cynnopt.

HanpaBJIeHne noaun 3aROTOBOK Bcerda OJONXHO 6bIb IPOTNUBONIOxHO HAnpaBJIeHIO BpaUeHnA fpe3bl (BCTpeuHoe DvIXKeHne):

BnMaHHe! Φe3epuTe BcerTa B npTbONIOJXHom HappaBJIeHNI

JnfoBaIbHbIe pa6oTbI

PnncnoB3OBAHnI ppe3epHO-llnfoBaJbHoro Dbratena B kaueCTbe IunfoBaJbHoM MaunHbI BpyHom pexime Heo6xOJIMO CneDInTb 3a TEM, TTO6bl NHeHna CKOpocTb BpaUeHnO cHaCTKn He npeBbIaJ aOnyCTmORO 3HaueHnY, yka3aHHoro n3rotOBuTeJem OcHaCTKn.

Формуна Для onpeДelenЯ DoNYCTMOMJIINHeHOB CKOpOCTN BpaUeHNA OCHaCTKNpaccuHTbIbAeTcno CneDyuee Формуile:

$$ V = \frac {d \times \pi \times n}{6 0 0 0 0} $$

$$ V = \text {J i n h e i n h a r c k o p o c t b} \frac {m}{s} $$

$$ d = \varnothing \text {U} \text {I I N} \Phi \text {O B A J b H O H O C H A C T K N B M M} $$

$$ \pi = 3, 1 4 $$

$$ \begin{array}{r c l} n & = & \text {Y u n c s i n o} \ & & \text {O b o p o t o b} \ & & \text {B M N H y T y} \ & & \text {B p e x k i m e} \ & & \text {X O J O C T O R O} \ & & \text {X O D a} \ & & \text {F p e 3 e p h o -} \ & & \text {U S I N F O B A B L H O R O D B U R A T E N I A} \end{array} $$

OTcoeINHNTe 1aHROBbl 3aXIM2OT 3aXIMHOI raIKN1.

Octopoxho! 3aunbI pe3b6bl CnErKa HABINHTb 3axmHyo raKy 1 Ha 5nnHdNb 3, HO He 3atraNBaTb, ecn He nCNoB3yETcN HCTpyMeHT. 3axmHna Yahra 2 MoKet cNIuKOM cnIbHO CKaTbCn N B pe3yNbTaTe 3TOr NOBpeNTbcr.

Pa60tbi C n6Km BaJOM

Бларупсьчсу obopoTOBфpe3epHO-шнфовальдВигATEн OTПИHOnpoXODNT BkaueCTBe npBOda ДягбКOrBaJa.

При зTO Heo6xOДIMO yuHTbIbTa,чTo YnCNo OobopoTOB DBrataJIЯ He DoJXHo npeBbIaTb MaKcMmaJIbHO DoNyCTmOe YnCNo OobopoTOB r6koro bana.

HaedeBaIte 3aIHTbIe OUKN HuyuHnKn!

6. Texhnueckn yxoid oucnctka

Yxoid oucnctka

IpeiHaayalom npoBeeHnIIObIx npOphiJAKTNUeCKNX pa60T OTOeHNHTe CeTeBOI 1TEKePOT 3JIeKTPoHNCTpymEnTa.

Coepknte B uHCTOTE 3neKtpOHnCTpymeHT n nepoOnuYeCKOuIaJIte BEHTUNJauONHHbIE OTBepCTNOr OT Nblnnn rpr3n.
Perynpno npotnpaIte kopnuc n Bce DocTyNHbIe cHApxNn PnactMaCCOBbIe DetanTkAhbIO 6e3 npImHeHnq YnCTraXn CpeDCTB.
По Okончани pa60ы Bcerда BbydyaIteпьИи 3 BeHTnIЯTopa, 3TO npOДЛТСpoK cnYk6bl BaUero 3NeKTponHCTpyMeHTa.

3aMeHa yroIbHbIX 1eTOK

I3HOWeHbIe yrOJIbHbIe ⅢeTKe HEO6xoDnMo 3aMeHrTb B aBTOpN3uPObaHHbIX CepBnCHbIX MaCTepCKNX.

CepBnC

3NeKtpoHnCTpyMeHT, NOBBeprabWmIcB TeYeHne DInTeNbHO BpEmEH CINbHbIM Harpy3kAm, CJeDyET CdaBaTb B CepBnCHbI ZeHTP IJRA npOBeDeHnI npOuJIakTKnI N OJHO OHCTKn.

Bcio nHΦopMaζuO o cepBnChblx ΒeHTpax MOxHo noJyUHb B pπIaeraMOM JIcTke “CepBnC” IInI Ha NaIeM INHTepHET-CAITe www.kress-tools.com

3anachbIe yactn /Yeptexn Iyra c6opkn

MOHTaXHbIe Cxembl N cepTeKn, a TAKKe CNICOK 3anachbIX qacte Bbl haJeTe Ha hauWe m caTe http://spareparts.kress-elektrik.de

YtJnI3aIy

BtopuHoe nCnoJIb3OBAHne cblpBa BMeCTO yTnIIN3aUIN Mycopa. MaunHbI, oChactKa uYnakOBouHbI MaTePnA1 NOnKhbI CdaBaTbcr Ha nepepa60TKy DnR BTOpNUHOro 3KoIOnrueckn 6e3BpeDnHO rNCIOb3OBAHnI. Dnry TyniN3aUIN npepa60TKn NO copTaM Ha INaCTMaCCOBbIX DeTaJx HaHeceHa MapKnipOBka.

ToIbko dIra cTpaH EC. He Bbl6paCbIbaiTe 3JIeKTpOpiPn6bpbl BMecTe C obblHbIM Mycopom!

B COOTBeTCTBmN c eBpOeNcKoI dUpeKTHBOI 2002/96/EC o6 yTNIN3aCNI CTapbIX 3JIeKTPnuecknx I 3JIeKTPoHbIX pIn6OpOB IN B COOTBeTCTBmN C MECTHbIMN 3aKOHaMn 3JIeKTPoPn6Opbl, BbIPa6oTaBUnne CBoI pecypc, DOJIKHbI yTNIN3OBbIBaTbcR OTDeJIbHO, 6e3OnacMbIM DJIa OKpyxaiOuSei CpeDbI cnOCo6OM.

HΦopMaunno rapaHTnHOMy 06cnykBaHIO

1.ДанньЭлектponHCTpymEnITN3rotabINbAeTcB BbICOKOToHHoCTbIO INOBepraeTcHa 3aBoDeH3ROTOBHTeTE CTporOMY KOHTPOJIO Ha KaYeCTBO.
2.ПОТOMуMbIпгдocтавлгem rapaHTNo Ha 6eCnIaThbI peMOHTИЗдELЯ NO HeICnPabHOCTm, YBJIHOUIMCMc CNeDCTBnEM ПОИЗВODCTBeHHbIX IMATEpHaJbHbIX DeФeKTOB, IN BO3HnKlIMM B TeYeHne 12 MecaIeB C DaTbI npOdaJx KOneYHOMy noTppeBntNo.
3. Be3 npedbaryenra rapaHTnHoro taIOna nn npn OTCyTCTBn Ha TaIOnHe 7tAmna TopROBOro npednpnTn N DaTbI npOdaXn npTeH3nn NO KaueCTBy He npuHmAlOTcN rapaHTnHbI peMOHT He npOn3BOJNTcN.
4.Инструмент He NOДлжNT rapaHTnHOMy 6bCnyJBaHHoB CJIeDyHOuX CNYaJx:

BCKpbITNe (NOnbITKa BCKpBTn) nIpeMOHT HNCTpyMeHtCa CAMM NOpb3OBaTeJIe M IIN He yNOLHOMOeHHbIM Na 3TO NlUcAMB NepNoD DeiCTBnraPapHTn,
IcnoIb3OBAHHe npHaIeXHOCTei, He IpeDyCMOTpeHHbIX 3aBODOM- N3ROTOBNTeJIEM,
ecn y uHCTpyMeHTa 3a6ntbI BeHTNUJauOHHbIe KaHaJIbI PbIbHO UIN CTpyKKoI,
- PnB03HnKHOBeHn NOBpeXdHn B pe3yIbTaTe BO3DeiCTBnB OBObl INN XmMnueCKNX KINKOCTe,
PnIN N0LOMKax, BO3HNIKUNX B pe3yIbTaTe 3KcNpIyatauIN Pn IN HeDOnyCTUMOM HAnpJKeHN INI YactOTe NiTAtOSei CETn,
- npn IOBpeXdeHn JkOp, Bbl3BaHHORO nCNoJIb3OBaHHe NHeOprHnHaJIbHbIX yRToJIbHbIX ⅢeTOK, pNIObHApUxKeHn CneIOB 3aknHnBaHnI neperpy3Kn (HaNPIMep, OdHOBpeMeHHOe neperopahne potopa n cTaTopa, oBeExn obMToK cTaTopa),
B CNYaae HAnuHbHyTpN INHCTpyMeHTa INHOpOdHbIX MaTePnaJIOB,
B CNYae BHeUHINx MExaHnueCKNX IOBpeXdEHN, BO3HKnUHX NO BIne BJaDeJIbca,
B Cnyae BO3dEiCTBnHa HNCHpyMeHT 06TOTeIbCTB HenpeODoNIMoCnbl.
B Cnyucae HapyeHn Tpe6OBaHn I npabIN pyKoBOcCTBa nO 3KcPJIyatauN, INCNoJIb3OBaHn He no Ha3HaueHIO,
PnHn HnpaBnIbHO 3aONHeHHOM rapaHTnHOM TaIOHe,6e3 pyKOBoDCTBa nO 3KcNlyaTaun,
Прип NOВРЕЖDEHIN N3ДЕЛЯ BCLEДCTBINE He npabINbHOn TpaHcNpOtpuOBKN XpaHEnHn,
- Праздметом rapаHTи HeяВьЯETСН НЕОЛная KOMПлЕКТацИУ ИЗДeлЯ, KOТОРА МOrЛЯ 6БыТБ obHapужЕп ри пpoДахе ИЗДeлЯ. ПгетензИОТ Tретьnx Iиц He прИнMuHOTс. ИНЧТPyМENT прИнMuEТСВ В rapaHTиНь ремOTВ YИСТOM BИДe.

5.「rapaHTmHoe 06cnykmbaHne He pacnpoctpaHareTcHa 6bICTpon3HaunBaemble 3anachbIe yactN, yka3aHHbIe B nyHKTe «bICTpon3HaunBaemble DeTaIIN» DaHHoINHCTpyKcIMN IO 9KcPlyatauM:
6. Kpome TORO, BCE pe3HIOHBie, yNJIOHTeJIbHbe, KOMPpeCCNOHHBe 3aNaChbIe Yactn PnIN3HaIOTc 6bICTPOIN3HaINBaEMbIMN He NoJInEkat 3aMeHe NO rapaHTNI.
7. B 3aBnCmOCTN OT INTEHcNBHOCTN 3KcPlyatauim peKOMeHNdyETcnpoBOIDtbperyIpaHyo npoФиJIakTNUy 3NeKTPOnHCTpyMeHTa B cepBnCHOM ueHTpe Kpecc.Bo3MOxHNo, Heo6xOIMbIe pni 3Tom uCTKa N Cma3ka He BXODIaB nepeyeHb rapaHTnHbIx ycIyr, npedocTabIeMbIX nOKyNaTeIIO 6ecnTaTHO.
8. 3anpeaetc3kCnIyataun3JIeKTPoHNCTpymEnTa npn pOABHeHH npn3HaOB NOBbIeHHORIO NCKpeHH. Ipy BBycHHeHH npuHH NCKpeHH NOKyNaTeH0 CneJdyET o6paTntbcraB rapaHTmHyU MaTePckyU. HeCnpabHocTN, Bbl3BaHHbIe HecBOeBpeMeHHo 3ameHO yrOlbHbIX uETOK, yCTpaHryOTc3 a ChET nOKyNaTeJI.
9. При постулени зелковинчтумента в Мостерскув Налочи Должны 6ыть BCE KOMПLEKТУОШе, rapaHTинь ТАОн ИИСТPyКУпя NOЗКПУаТAUи, a TAKKE DOKUMENTbl, NOДТВЕРЖDAIOUше ФakT NOKUPКI (KOHТрОЛьНО-ΚACCOВьй УЕK, ChET-ФakТура и п.)
10.C ycNoBnA MnpaHTnHbIX 6o3aTeNbCTB corIaceH. NpTBePjDaIO, YTO npn NOKynKe 3NeKTPOnHCTpyMeH 6bln npOBepen, nCnpaBeH, NOJHOCTbIO yKomNJIeKTOBaH nIMeET 6e3ynpeHbI BHeuHn BvI.

HaMeHOBaHne H3JeJIa:

BctpaBaembФpe3epHbI Dvrgatelb

Tinoboe 603haueHne:

530 FM, 800 FME, 1050 FME, 1050 FME-1

CepinHbH Homep:

2010XXXXXXXXX

Iod n3rTOBJIeHnA:

2010

COOTBETCTByET CNEyUOIM OCHOBHIM Tpe6OBaHnM DnpeKTHBbI O Maunhax

(2006/42/EG):ПилJOжене I,ПункT 1.1.2,1.1.3,1.1.5,1.3.2,1.3.4 n 1.5.1.

HenoJIHOUeHHa MAuINHa COOTBETCTBYET BCEM NIOJoxEHnM DIPKeKTNIB NO 3JIeKtpUeCKHM npOn3BOvOCTBeHHbIM MaTePnAJaM (2006/95/EG) n 3JIeKtpOMaHHTHcOBMeCTNMOCTn 2004/108/EC/EMC.

DaHHyU HeONHOeHHyo MaSHHy pa3peSaaTc8 3KcNllyaTuPoBaTb ToJIbKO B TOM CnYae,ecNI 6yIET ONpeDeHeO I yCTaHOBLeH,O YTO MaSHHa,B KOTOpYU DOJIXHa 6bITb BCTPoeHa HEnoHIOeHNHa MaShHa, COOTBeTcByet NIOXKeHm DInpeKTtBbI O MaSHINax (2006/42/EG).

N3rotobutteB 683yETcNo nepBOMY Tpe6oBAHnIO ppeCTaBtB BCEM IHCTAHzIM I yUpeXeHnM BcO CNEuAIBHyO DOKyMeHTaCnHO Ha HENOLHOeHHYIO MaunHny Ha 3NeKToPOnhBx HocntTeJx.

Bcra OTHOCAaCRA K DaHHOI MaHIne CneuaJIbHaT EcxHueckAdoKymeHTaIg 6bIa n3rotOBHea cornaccho npNILOXeHNIO VII qactb B.

Фаминун homoeHHbIXиц по дokymeHTaun:Клемс МIoJIпep,BoIbФraHr Ayx AApca ynoHMOUeHHbIX no dokmteauin:cmotpn aDpe n3roTOBtTeN

r.Bn3nHreH,

MapT 2010

Data

Poiinscb

KlmeHc MIOJIeP

-Pykooboumelen omdeena kauecmea -

Mapr 2010

data

BolbphrAxy

-TexHnueckn DnpeKTop -

POnmcb

Klemens Muller - Quality & Process Representative

podis

Brezen 2010 Datum,

Wolfgang Auch - Technical Director -

podpi

Klemens Muller - Quality & Process Representative -

Mart 2010
Tarih

Wolfgang Auch - Technical Director -

DE

CE Declaration of conformity

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents:

see CE

Technical file at: see TF

FR

Quality & Process Representative

Wolfgang Auch

Technischer Leiter

Technical Director

KRESS-elektrik GmbH & Co. KG

Postfach 166

D-72403 Bisingen
