Product type	Electric deep fryer
Brand	SOLAC
Model	FM6720
Oil capacity	Approximately 2.5 L
Tank material	Stainless steel
Removable basket	Yes, with handle
Lid	Yes
Temperature control	Adjustable thermostat
Indicator lights	Orange (on) and green (ready)
Safety system	Safety thermostat with reset button
Cleaning	Tank and basket dishwasher safe
Maintenance	Do not immerse the control panel
Power supply	Mains (220-240 V), grounded plug
Power	Approximately 1800 W
Included accessories	Basket, lid
Storage	Cable compartment
Draining	Basket draining support

Frequently Asked Questions - FM6720 SOLAC

How to clean my SOLAC FM6720 deep fryer?

Unplug the appliance and wait for the oil to cool. Remove the basket, lid, and tank. Wash the tank and basket with soapy water or in the dishwasher. Clean the control panel with a damp cloth without ever immersing it. Dry all parts well before reassembling.

What to do if the deep fryer no longer heats up?

First check that the fryer is plugged in and the thermostat is set. If the orange light is off, the thermal safety system may have triggered. Unplug, let it cool, then press the reset button (12) with a screwdriver. Plug back in and test.

How to use solid fat in the deep fryer?

If it's the first time, melt the solid fat in a saucepan over low heat, then pour it into the tank without exceeding the max level. For already solidified fat in the fryer, make holes with a fork (without touching the heating element), close the lid and set the thermostat to 150°C to melt it slowly.

How to know if the oil is at the right temperature?

Turn the temperature control knob (3) to the desired temperature. The green light (5) comes on when the oil has reached the temperature. The orange light (4) stays on as long as the fryer is powered.

Can I wash the control panel with water?

No, never immerse the control panel in water. Clean it only with a damp cloth and dry it immediately.

How to reset the safety system after overheating?

If the safety thermostat has cut off the power, unplug the fryer and let it cool completely. Then use a screwdriver to press the button (12) located on the base. Plug back in and check operation.

How much oil should I put in the deep fryer?

Pour the oil until it is between the minimum and maximum marks indicated inside the tank. Never exceed the max level to avoid overflow.

How to drain the food after frying?

Once frying is complete, lift the basket and shake it gently. Hang it in the draining position (fig. C) using the provided support, so excess oil drains. Then remove the basket and empty the food.

How often should I change the oil?

Replace the oil when it becomes dark, has a bad odor or gives a bad taste to food. Never mix new oil with used oil. Dispose of used oil in a sealed container and take it to an appropriate waste container.

What to do if the deep fryer overheats?

The safety thermostat automatically cuts off the power in case of abnormal overheating. Unplug the fryer and let it cool. After cooling, press the reset button (12) with a screwdriver. If the problem persists, contact an authorized service center.

USER MANUAL FM6720 SOLAC

Exterior view of a modern stainless steel electric oven with black lid and handle (no visible text or symbols)

Solac is a registered Trade Mark

1/06

5- 8 • ESPAÑOL

9-12 • ENGLISH

13-16 • FRANÇAIS

17-20 • DEUTSCH

21-24 • PORTUGUÊS

25-28 • ITALIANO

29-32 • NEDERLANDS

33-35 • ČESKY

36-39 • POLSKA

40-43 • SLOVENSKY

44-47 • MAGYAR

48-51 • българск

52-54 • HRVATSKA

Line drawing of a food processor with a basket and cable, labeled Fig. C (no text or symbols on the diagram itself)

ATENCIÓN

• Read these instructions before connecting the deep fryer.
• Do not use the deep fryer for purposes other than those described in this manual.
• Do not switch the deep fryer on without making sure that the voltage stated on the specifications plate matches that in your home.
• Make sure you plug the appliance into a socket that has a suitable earth connection.
• Never connect your deep fryer unless the oil level is above the minimum and under the maximum.
• Apart from oil, do not put any other liquid into the deep fryer.
• Never put the fryer's control panel (2) under water.
• Ensure that the socket is suitably earthed.
• Unplug the fryer after use.
• Keep out of the reach of children.
• Do not leave the deep fryer in operation unattended.
• This deep fryer is fitted with a thermal safety device. In the event of a faulty thermostat, the electric current is automatically cut off, which prevents any risk of over-heating and other hazards.
• Avoid moving or putting the deep fryer in another place when it is functioning.
• Do not use the appliance when its cord or plug is damaged. If the cord is damaged, it must be replaced by an Authorised Technical Service.

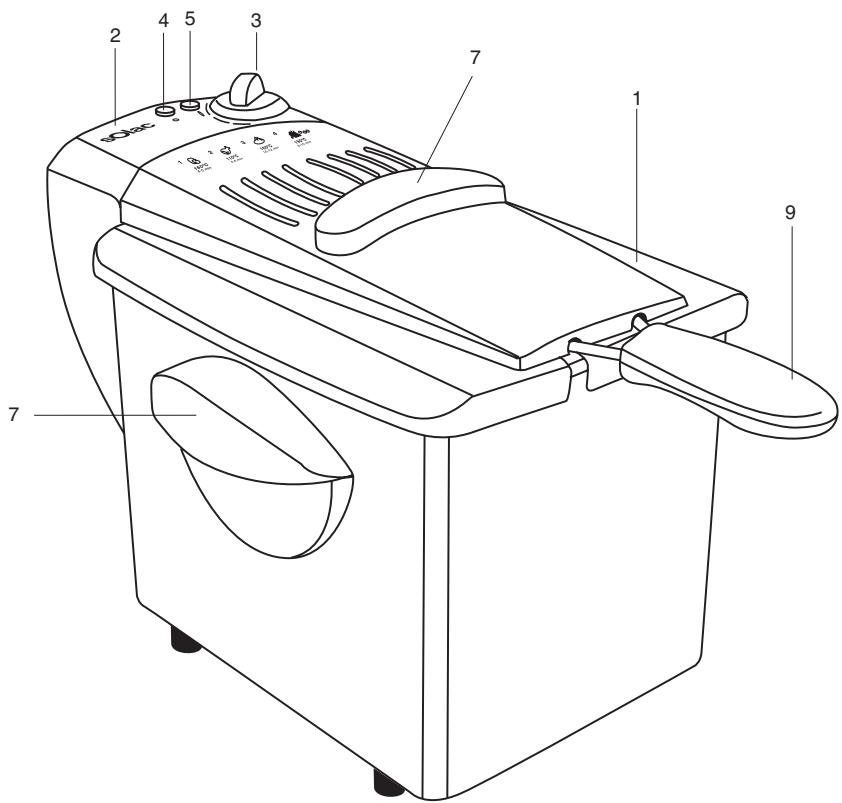

MAIN COMPONENTS

1. Lid
2. Control panel
3. Control for regulating the temperature
4. Deep fryer ON pilot light (orange)
5. Deep fryer Ready pilot light (green)
6. Stainless steel vat
7. Handles
8. Basket
9. Basket handle
10. Draining stand
11. Compartment for the cord
12. Safety system button

OPERATION

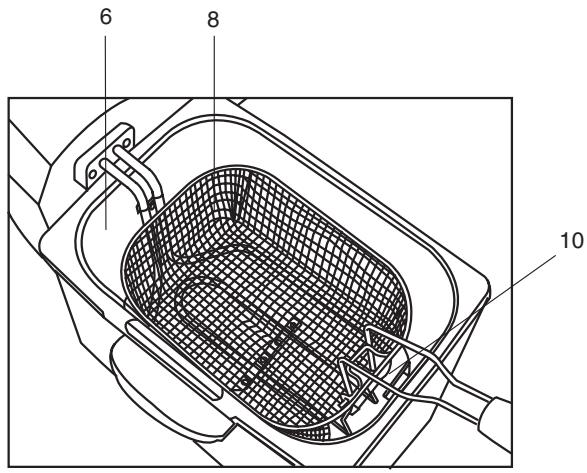

• Before you use the fryer for the first time we recommend you to wash the basket (8) and the vat (6). To do so, take the basket (10) out of the vat, lift out the control panel (2) and take out the vat (6). You can wash the basket and the vat either using soapy water or by putting them into the dishwasher. Never wet the control panel (2). For operation, put all the elements back in their place in reverse order, making sure that the panel guides match the body guides.
• Place the appliance on a horizontal, flat, stable surface away from the edges and do not allow the cord to hang over the edge of the table or work surface or to come into contact with a hot surface.
• Pour the oil or liquid fat into the deep fryer and remember that the oil level must be above the minimum and below the maximum. These levels are indicated inside the vat.
• Place the basket handle (9) in the vertical position and squeeze the metal rods into the basket support holes (fig. A). Next place the handle in the horizontal position until it fits into the basket support.
• Plug in the fryer. At this moment the pilot lights (4/5) will come on. Turn the temperature control regulator and select the desired temperature, depending on the food to be fried. When the oil reaches the selected temperature, the green pilot light (5) will come on, and the orange pilot light (4) will remain lit.
• Place the food in the basket (8) while the basket is out of the fryer.
• Gently put the basket into the fryer and place it in its frying position (fig. b). When the food is placed inside the fryer the green pilot light (5) will switch off, since the food causes the oil to cool due to the temperature difference, and it will come on again when the oil reaches the temperature indicated on the temperature regulating control.
  • The food should always be covered by the oil.
• Close the lid (1) over the fryer.
• After frying the food, open the deep fryer lid, lift out the basket and shake it gently. Next, hook it into the draining position (fig. C) for the food to drain off as much oil as possible.
• Once the food is drained, take the basket out of the deep fryer and empty it.
• Place the temperature control (3) at the position ①. The pilots light will be on. Then unplug the appliance.
• When the oil is cold, place the basket inside the fryer and turn the handle towards the inside. If you were using solid fat, leave it to solidify in the vat and store the deep fryer with the fat in it.

USE WITH SOLID FAT

- If you use solid fat for frying (when not previously used), you must take the following precautions:

• Melt the pieces of new solid frying fat in a pan at a low heat. Watch over the pan at all times and keep it out of the reach of children.
• Turn off the heat as soon as the fat has melted. Place the deep fryer in the kitchen sink and very carefully pour the melted fat into the vat.
• Remember not to go over the maximum level indicated in the vat.
• If you are going to use fat that is in the deep fryer left over from a previous frying session, make holes in the fat with the help of a fork. When doing so, be careful not to harm the element.
• Close the deep fryer lid to avoid spatters and turn the temperature regulating control (3) to 150^ so that the fat slowly softens. If you wish, you can increase the temperature once the fat has melted.

CLEANING AND MAINTENANCE

• Wait until the oil has completely cooled before proceeding to dismantle and clean the fryer. Unplug the deep fryer.
• The fryer can be completely dismantled for cleaning as described in the "Operation" section.
• The body, basket, lid and vat can be washed either with soapy water or in the dishwasher.
• The control panel can be cleaned using a damp cloth.
• IMPORTANT: The fryer's control panel must never get wet.

• Replace all the parts and remember that they must be completely dry before you put them back into position. Assemble the fryer in the following order:

• Control panel

• Basket
• Lid

PRACTICAL HINTS

• Food items must be completely dry before you place them in oil or fat.
• In order to prevent potatoes from sticking together, wash them before you fry them.
• If the fryer is not going to be used continuously, it is best for the oil or liquid fat to be kept in the refrigerator or in a cool place in tightly closed containers. Beforehand, using a strainer, remove all the loose particles that the fried food may have released into the oil.
• Change the oil when it looks dark, smells bad or the food tastes bad. Never add fresh oil or fat to used oil or fat.
• Do not leave oil/fat at a high temperature for longer than necessary.

• Always store the fryer with its lid closed to prevent dust or other products from deteriorating the oil or fat.
- The discarded oil or fat must not be thrown down the WC or the sink. Put them into a closed container and take them to a suitable rubbish container.

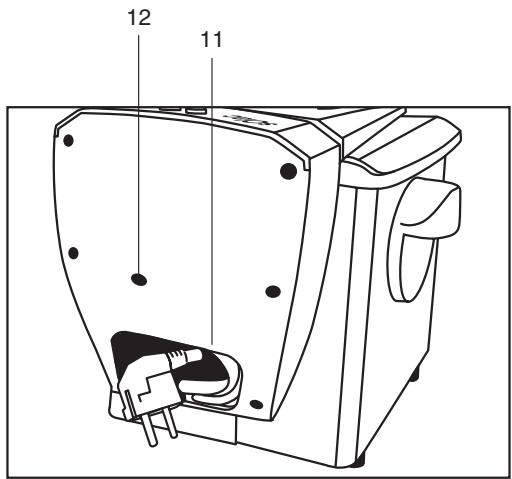

SAFETY SYSTEM

- This deep fryer has a safety thermostat that cuts off the power in the event of abnormal overheating. If this happens, follow the steps below:

Unplug the fryer from the mains and allow it to cool.

Press the button (12) using a screwdriver.

Plug the fryer in and check that it works correctly. If the problem continues, take the fryer to a Technical Service shop.

IMPORTANT: When you wish to dispose of the appliance, NEVER throw it in the rubbish. Instead, go to your nearest CLEAN POINT or waste collection point, where it will receive subsequent treatment. In this way, you will be contributing to looking after the environment.
