USER MANUAL FA1801 SOLAC

Line drawing of a mechanical device with two internal compartments (no text or symbols)

EN. Instructions for use

FR. Mode d'emploi

Technical line drawing of a mechanical housing or enclosure with internal components and a labeled point (C), no text or symbols present.

B F

A ④ 7 ② + + 888 °C 888 MIN - 316131011125

ES

English (Original instructions)

AIR FRYER

FA1801

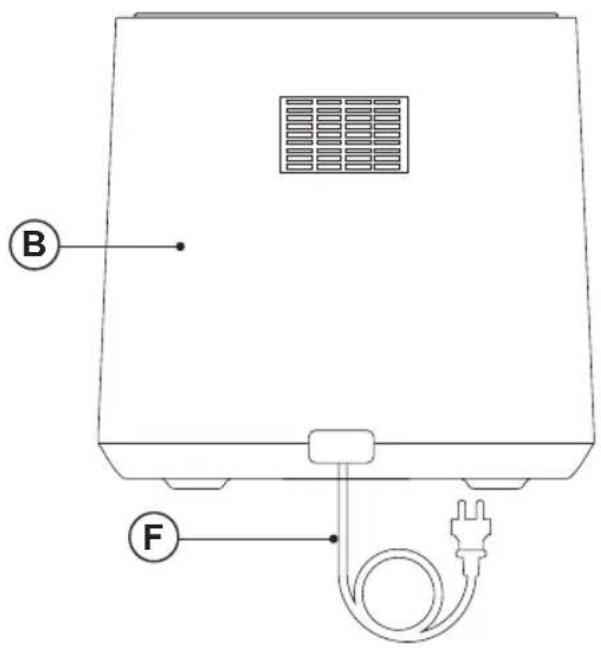

DESCRIPTION

A Digital control panel

B Main body

C Frying pot

D Handle

E Non-stick tray

F Supply cord

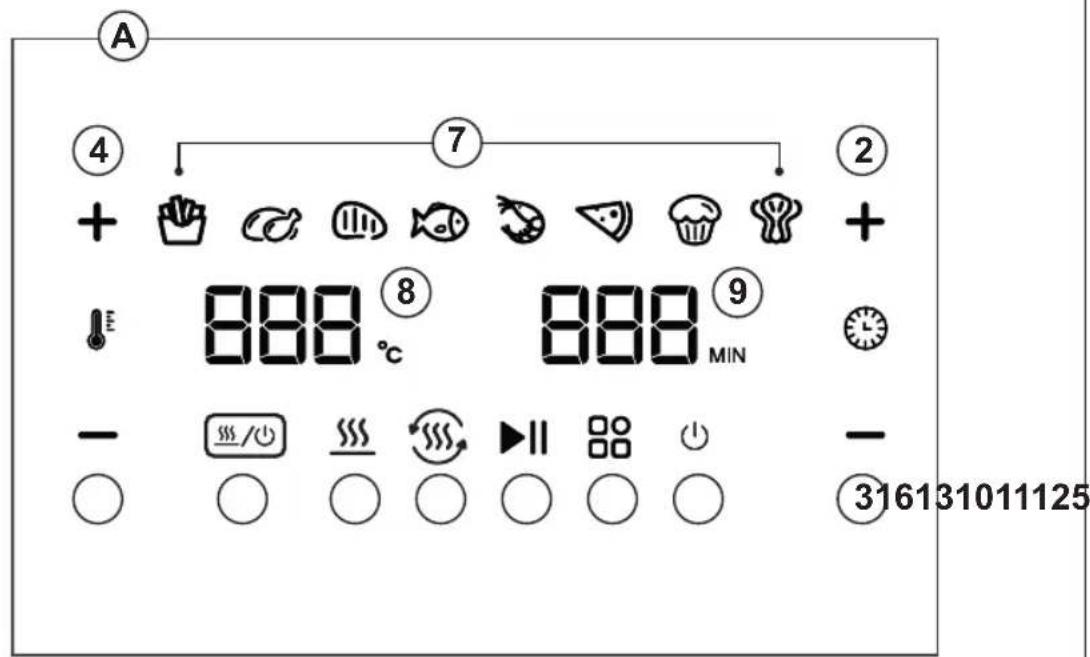

CONTROL PANEL

1. On/off button
2. Increase temperature button
3. Decrease temperature button
4. Increase time button
5. Decrease time button
6. Program selector button
7. Program indicators
8. Temperature Display
9. Time Display
10. Keep warm button
11. Preheat button
12. Double heating button
13. Start/Stop button

USE AND CARE

- Fully extend the appliance's supply cord before each use.

- Do not use the appliance if the parts or accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance when empty.

- Do not use the appliance if the on/off button does not work properly.

- Do not move the appliance while in use.

- To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.

- Do not force the appliance's work capacity.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Do not store or transport the appliance if it is still hot.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

• Use only utensils appropriate to support high temperatures.
• Turning the temperature regulator to the minimum setting does not mean that the appliance is switched off.
• As a reference, in the annexed table you will find a recommendation on the cooking temperature and time for several meals.

INSTRUCTIONS FOR USE

BEFORE USE

• Make sure that the entire product's packaging has been removed.
• Please read carefully the "Safety advice and warnings" booklet before first use
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

USE

• Extend the supply cord completely before plugging it in.
• Connect the appliance to the mains.
  • Take the frying pot out of the fryer carefully.

Note: Do not use the frying pot without the non-stick tray in it.

Note: manipulate the frying pot using the handle. Don't touch the frying pot when it's hot.

• Put the ingredients you want to fry inside the frying pot
• Introduce the frying pot inside the fryer.
• Turn on the appliance by pressing the On/Off button.
• Select a program, by pressing the program selector button repeatedly.
• Select the desired temperature using the increase and decrease temperature buttons.
• Select the desired time using the increase and decrease time buttons.

Note: If the fryer is cold, the preheat function will activate automatically. If you don't want this, press the preheat button to deactivate it.

• You can use either both heating elements or just one. If you want both to work, press the double heating button and make sure it is activated in the menu.
• Press the start/stop button to start the cooking process.

Note: if you want to shake the ingredients, pull the frying pot out of the appliance and shake it.

- Once the cooking time reaches its end, the fryer will beep several times and will switch off automatically.

CAUTION: Frying pot, basket and food will be very HOT.

- Check to see that the food is cooked.

- If it is not, you only have to put the frying pot back in the fryer and program the timer to cook for a few more minutes.

- Place the frying pot over a plain surface able to work with high temperatures.

TIME AND TEMPERATURE

- If you wish you can also change the temperature and time settings.

- The cooking time can be adjusted from 1 to 90 minutes by using the increase and decrease time buttons. Time increases or decreases 1 minute every press.

- The cooking temperature can be adjusted from 40^ to 200^ by using the increase and decrease temperature buttons. Temperature increases or decreases 5^ every press.

- Press and hold the selector buttons to quickly increase or decrease the time and temperature.

PRESET PROGRAMS

• This appliance has 8 preset programs.

- To select a program, press the program selector button repeatedly.

- Press the start/stop button to start the cooking process.

- If you wish you can also change the temperature and time settings for the preset programs as explained in the "TIME AND TEMPERATURE" section.

KEEP WARM

- You can choose to start this function even if it wasn't previously selected. It will program 60^ for 45 minutes.

- If you select it before the program starts, once the program finishes, the 45 minutes at 60^ of this function will begin.

DOUBLE HEATING

- You can choose whether to use both heating elements (upper and lower) or only the upper heating element using the "Double Heating Button."

- Before pressing the Start/Stop Button, you must activate or deactivate the double heating function:

- Press the Double Heating Button, and if it flashes, it means the double heating function is selected, and both the upper and lower heating elements will work.

- Press the same button again, and it will remain steady on the screen. This indicates the double heating function is deactivated, and only the upper heating element will operate.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

- When the cooking time finishes, the fryer will stop automatically.

- Unplug the appliance from the mains.

- Allow it to cool down.

- Clean the appliance as it is explained on the cleaning section.

SAFETY THERMAL PROTECTOR

- The appliance has a safety device, which protects the appliance from overheating.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never immerse the appliance in water or any other liquid or place it under running water.

- It is advisable to clean the appliance regularly and remove any food remains.

- If the appliance is not kept clean, its surface may get damaged and affect how long it will last. It could even become dangerous to use.

- The non-stick tray is suitable for cleaning in the dishwasher.

RECOMENDEDATION TABLE

Here you can find our recommendation on the time and temperature for frying different meals.

Program Time (minutes) Temperature (°C)
French chips 20 190
Chicken legs 20 185
Meat 15 180
Fish 10 180
Shrimp 7 190
Pizza 12 180
Cake/muffins 22 160
Vegetables 12 160
