USER MANUAL Digital 7 FA1521 SOLAC

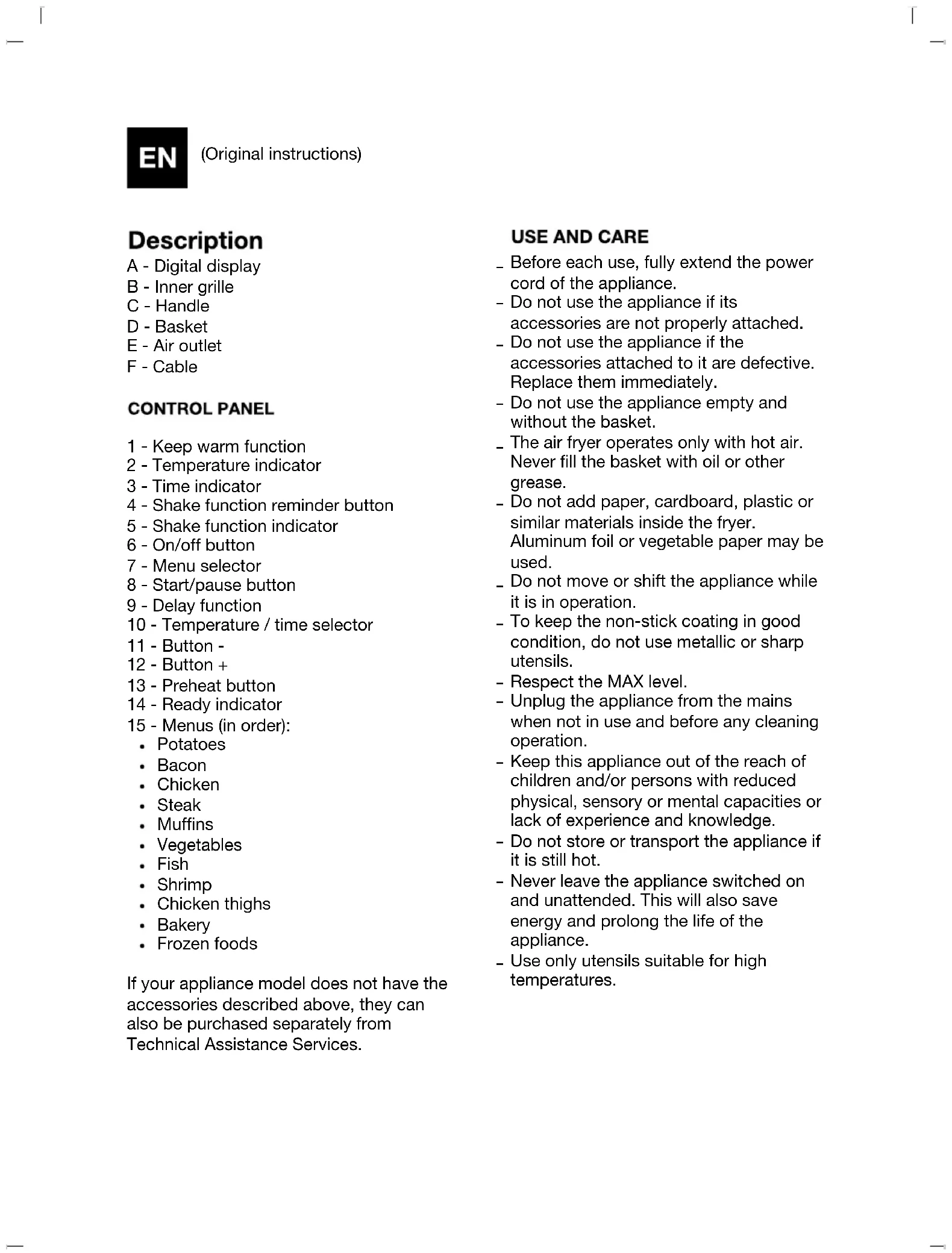

15 - Menus (in order):

If your appliance model does not have the accessories described above, they can also be purchased separately from Technical Assistance Services.

Before each use, fully extend the power cord of the appliance. Do not use the appliance if its accessories are not properly attached. Do not use the appliance if the accessories attached to it are defective. Replace them immediately. Do not use the appliance empty and without the basket. The air fryer operates only with hot air. Never fill the basket with oil or other grease. Do not add paper, cardboard, plastic or similar materials inside the fryer. Aluminum foil or vegetable paper may be used. Do not move or shift the appliance while it is in operation. To keep the non-stick coating in good condition, do not use metallic or sharp utensils. Respect the MAX level. Unplug the appliance from the mains when not in use and before any cleaning operation. Keep this appliance out of the reach of children and/or persons with reduced physical, sensory or mental capacities or lack of experience and knowledge. Do not store or transport the appliance if it is still hot. Never leave the appliance switched on and unattended. This will also save energy and prolong the life of the appliance. Use only utensils suitable for high temperatures.

Select the temperature and time using the +/- buttons. Press the start/pause button (8) to start cooking (if the start/pause button or any other button is not pressed within 25 seconds, the appliance will start cooking according to the displayed temperature and time). During cooking you can change the time and temperature. If you wish to pause cooking, press the start/pause button. If you wish to stop the appliance completely, press the on/off button for 5 seconds. The display will turn off and the appliance will go into standby mode. Make sure that you have removed all packaging material from the product. Before using the product for the first time, clean the parts in contact with food as described in the Cleaning section. During the first use it is normal for the appliance to give off a slight plastic odor. This does not affect the operation of the appliance. Leave a minimum of 50 mm of space around the appliance when it is to be used. Place the appliance on a stable horizontal surface. Do not place the appliance on surfaces that do not withstand heat.

Grasp the basket handle and carefully pull it out of the fryer by pushing it outwards. Place the food inside the basket on top of the inner rack. Replace the basket with the food inside the fryer. Note: The appliance will not operate until the basket is completely closed inside the fryer. Unwind the appliance cable completely before plugging it in. Plug the appliance into the mains. As soon as the appliance is plugged in, 1 beep sounds, indicating that the appliance is switched on and the on/off button (6) lights up red. To activate the digital display, press the on/off button. When the on/off button is pressed, a beep sounds and the digital display lights up.

Once the ingredients are in the basket and the fryer is plugged in, set the time and temperature using the temperature and time selector (10).

Once the ingredients are in the basket and the fryer is plugged in, press the menu selector (7) to select the desired menu. You can change the temperature and time of the menus. Simply follow the steps explained in the manual mode. Press the start/pause button (8) to start cooking. During cooking you can change the time and temperature. If you wish to pause cooking, press the start/pause button. If you wish to stop the appliance completely, press the on/off button for 5 seconds. The display will turn off and the appliance will go into standby mode.

The delay function is used to program the start of cooking at a specific time. Once the food is in the basket and you have selected manual mode or menu mode, you can program the start of cooking. To do this, press the button (9). You can select to start cooking in 10 min or up to 999 min.

Note: you can remove the basket in the middle of cooking without any problem. The fryer stops automatically and the display turns off. When the basket is replaced, the fryer restarts and continues its program. Avoid shaking or stirring the food for more than 30 seconds so that the fryer does not cool down.

At the end of cooking, the appliance beeps 5 times. The appliance enters standby mode. When the fryer stops, remove the basket and the food inside. Place the basket on a heat-resistant surface. To increase/decrease the temperature or time quickly, press and hold the +/- buttons. During the cooking time, the digital display will show the set minutes and the set temperature. For a crispier result add a little oil to the recipe. IMPORTANT: Do not turn the baskets upside down as the remaining oil on the bottom may fall out.

Press the button (9) again. The appliance will start cooking after these minutes have elapsed. Only the buttons (9) and (6) will be lit on the display and the remaining minutes will be shown. To cancel the programming, press button (9) again. Press the button (13). The appliance will start to heat up for 3 minutes, until it reaches 200ºC. READY will appear on the display and it will beep 3 times when ready.

Unplug the appliance from the mains. Clean the appliance as described in the cleaning section.

To activate the warning to shake the food, once you have the food in the basket and you have selected manual mode or menu mode, press the SHAKE button (4). The button will flash. Press the start/pause button. At the moment of the warning, the appliance will beep 5 times for you to shake the basket. There are 3 menus that have the default

warning: potatoes, vegetables and fish.

Press the button (1). You can set the temperature only between 60 and 70ºC. You can also set the time to a maximum of 60 minutes. Once set, press the start/pause button.

-Unplug the appliance from the mains and let it cool down before starting any cleaning operation. Clean the unit with a damp cloth soaked in a few drops of detergent and then wipe it dry. Do not use solvents, or products with an acid or basic pH factor such as bleach, or abrasive products to clean the appliance. Do not immerse the device in water or any other liquid, nor put it under the tap. It is recommended to clean the appliance regularly and remove all food residues. If the appliance is not kept in a good state of cleanliness, its surface may degrade and inexorably affect the lifetime of the appliance and lead to a dangerous situation. Do not store the fryer when it is hot or wet. Basket and inner grille are dishwasher safe.

NOTE: Add 3 minutes to all menus if the appliance is cold at the start of cooking.The appliance does not work. The appliance is not plugged into the mains. Plug in the appliance. Ingredients are not sufficiently cooked. There is too much food in the basket. Put less food in the basket so that it cooks more evenly. The temperature is too low. Adjust the temperature. The preparation time is too short. Set the timer. The ingredients are fried unevenly. Certain types of ingredients need to be shaken in the middle of the cooking time. Ingredients that are on top or crossed over (e.g. chips) should be shaken halfway through the cooking time. I cannot slide the basket into the appliance properly. There are too many ingredients in the basket. Do not fill the basket above the MAX symbol. The basket is not positioned correctly. Push the basket in until you hear a click. White smoke comes out of the appliance. You are preparing fatty ingredients. When cooking fatty ingredients, a large amount of oil will seep into the basket. The oil produces white smoke but does not affect the appliance or the final result. The basket contains grease residues from previous use. The white smoke is due to the fat heating up. Make sure to clean the basket properly after each use. Black smoke comes out of the appliance. Food may be burning. Unplug the fryer immediately. Wait until it cools down before removing the basket and cleaning. E4 error The appliance has reached more than 300°C and has stopped working. The appliance fan will continue to run automatically to lower the temperature.-

15 - Menu's (in volgorde):

ASSISTANCE This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights technical assistance services. following web link: http://solac.com You can also request related information by contacting us by phone. You can download this instruction manual and its updates at http://solac.com
